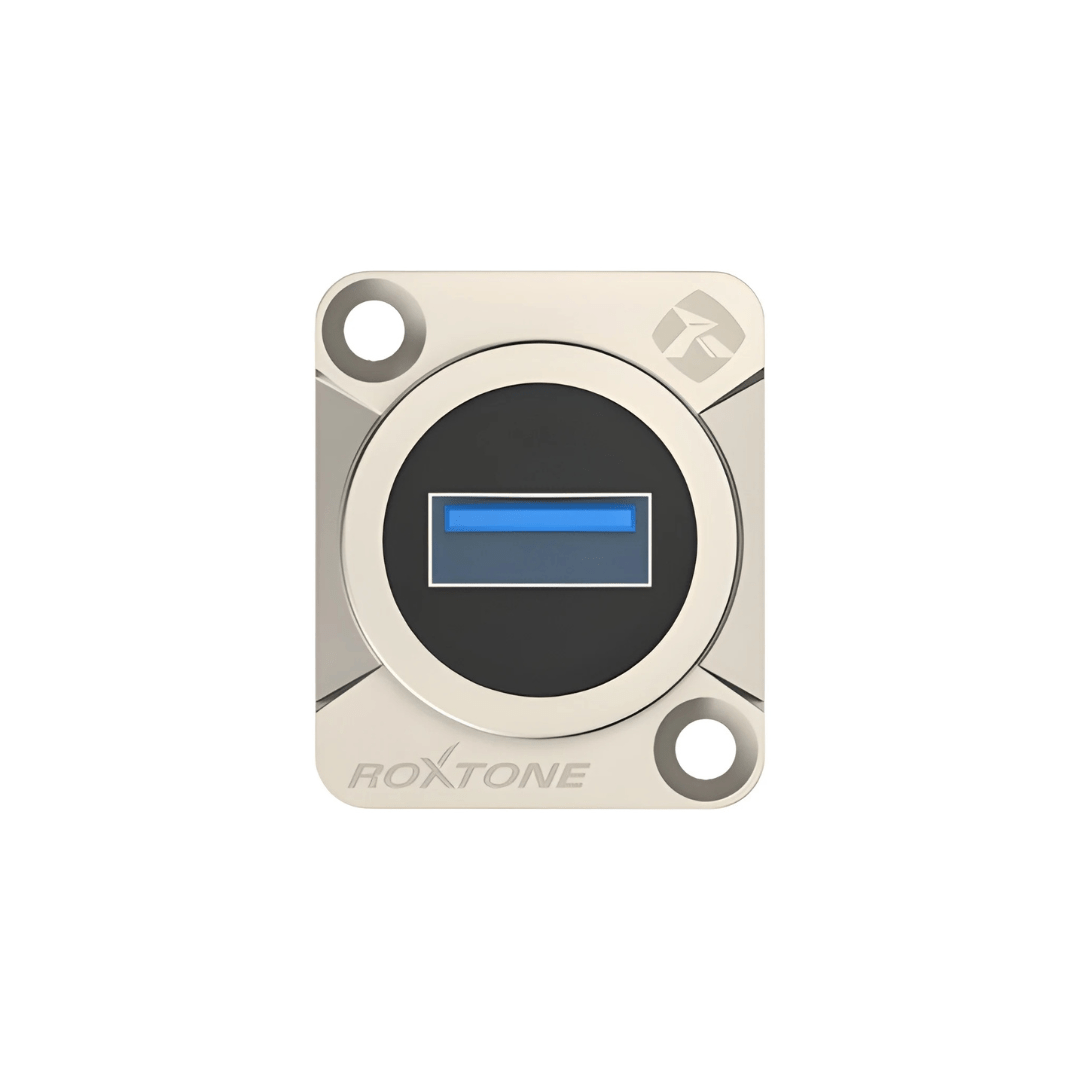

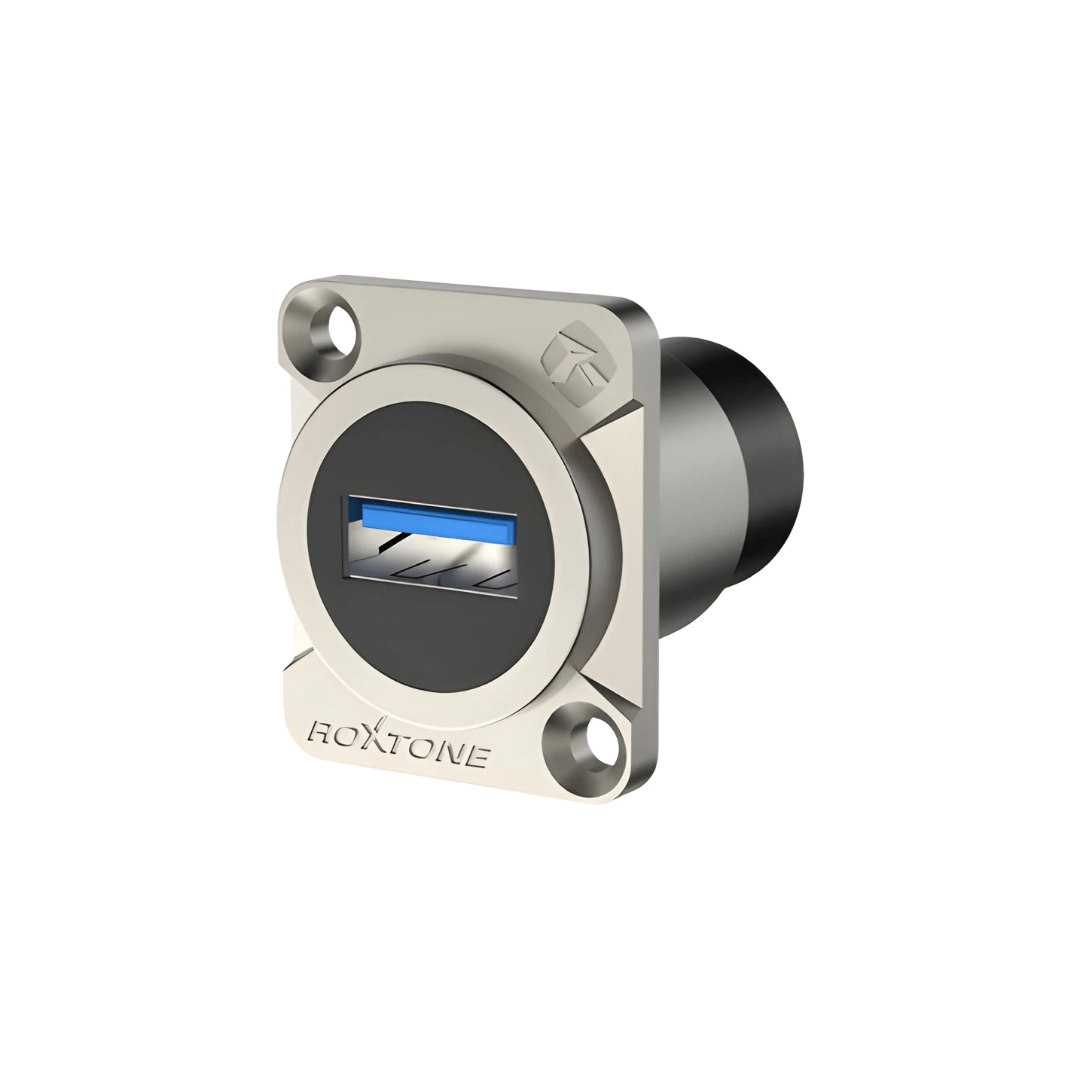

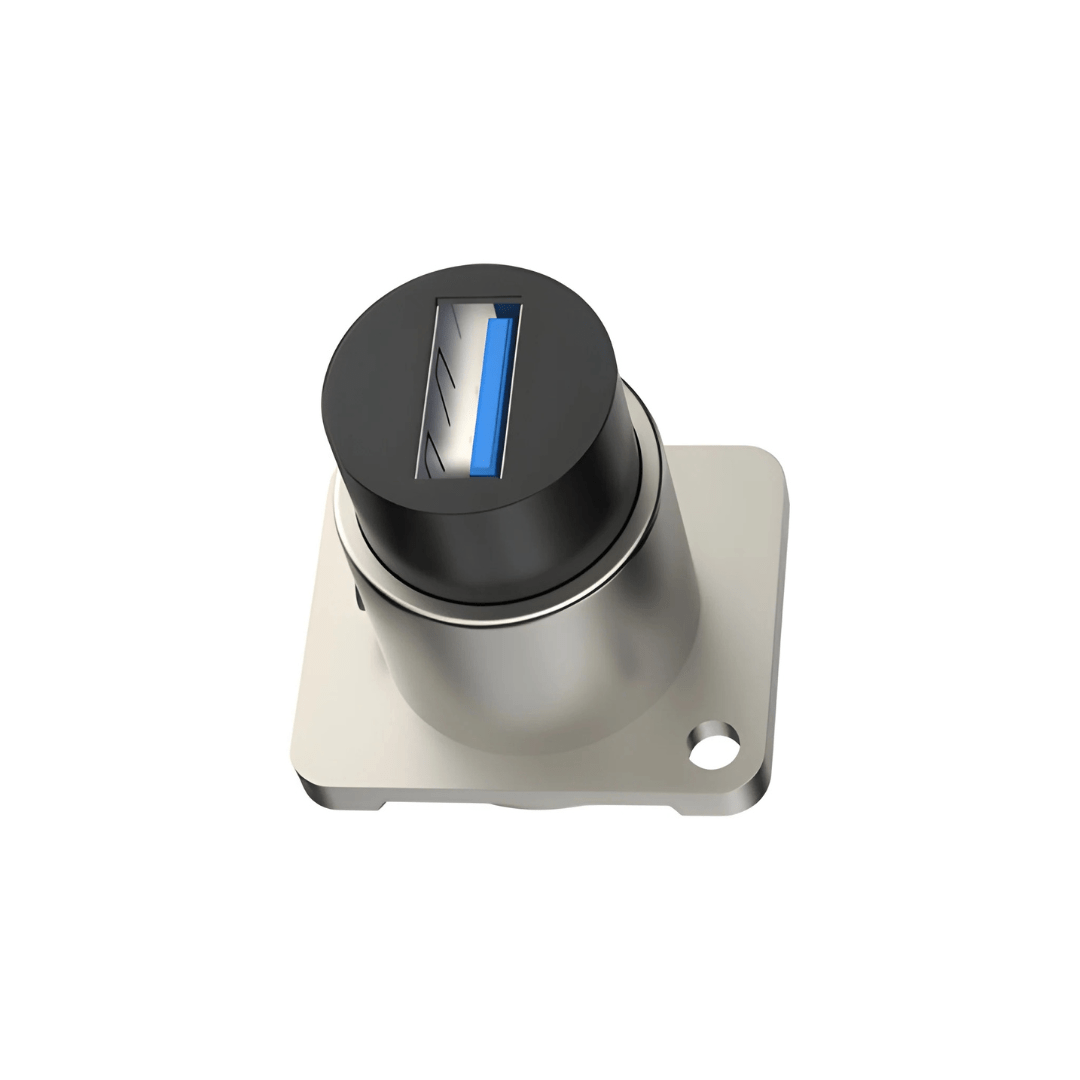

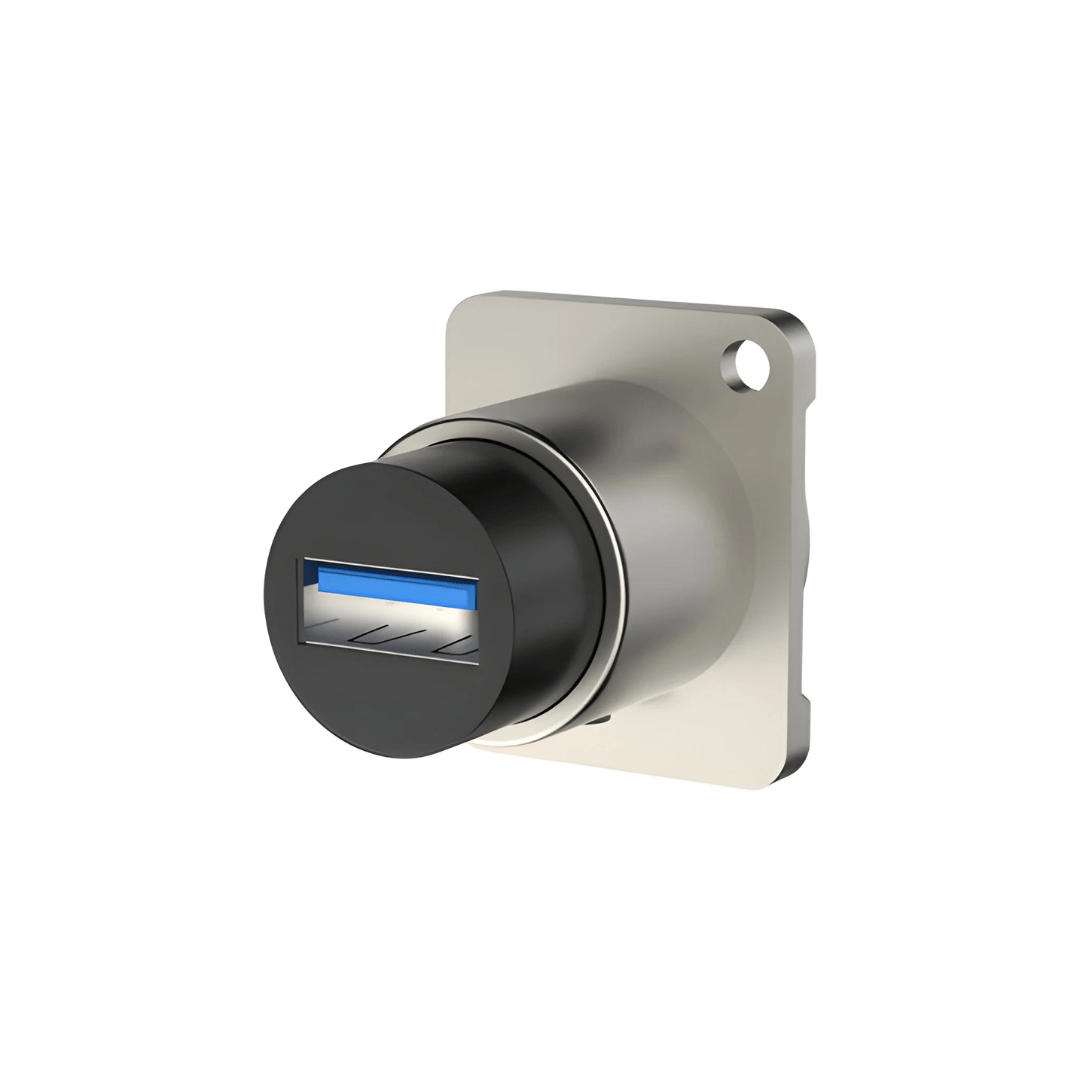

• Professional feed-through USB 3.0 (Type-A to Type-A) chassis connector
• Designed for panel mounting in standard D-series cutouts
• Built with a durable zinc alloy die-cast shell and nickel-plated finish
• Provides high-speed, reliable data transfer for professional audio, video, and IT applications
• Roxtone-branded, precision engineered, and patent-protected

Features

• USB 3.0 compliant – supports data transfer rates up to 5 Gbps
• Feed-through design – simple plug-and-play connection between two USB devices/cables
• Gold-plated brass contacts – ensures superior conductivity and corrosion resistance
• Zinc alloy nickel-plated housing – strong, durable, and resists wear
• D-series panel mount compatibility – easy installation into racks, wall plates, and stage boxes
• Roxtone engraving – authentic branding and professional look
• Suitable for industrial, medical, automation, and AV applications

Specifications

• Connector type: USB 3.0 Type-A Female to Type-A Female (feed-through)
• Material (shell): Zinc alloy die-cast, nickel-plated
• Material (contacts): Brass, gold-plated

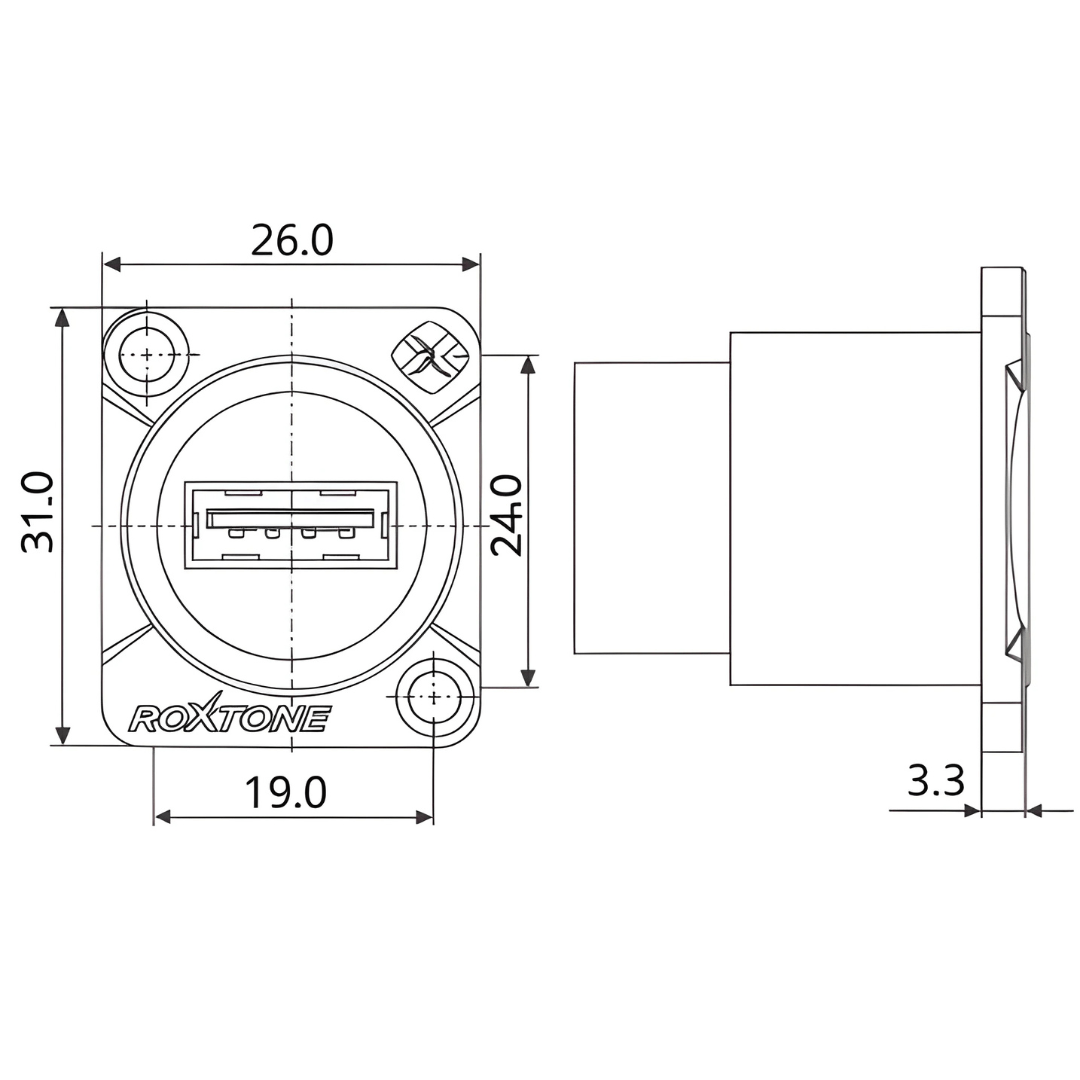

• Dimensions: Approx. 25.8 mm (W) × 30.8 mm (H) × 32.8 mm (D)
• Mounting: Standard D-type cutout (fits most pro-audio plates/panels)
• Data transfer rate: Up to 5 Gbps (USB 3.0 standard)

What's in the box

• 1 x USB 3.0 (Type-A to Type-A) Through Chassis Connector
