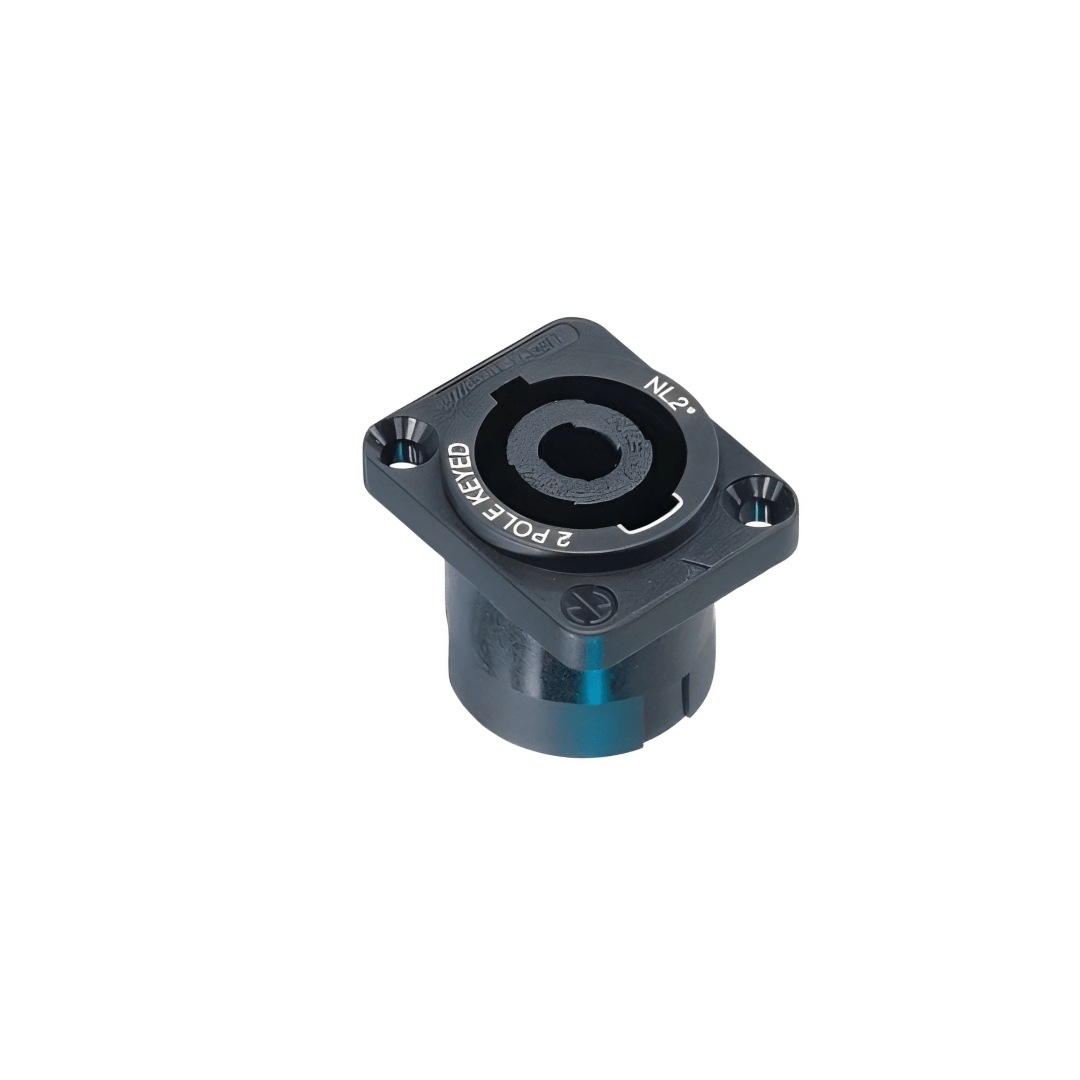

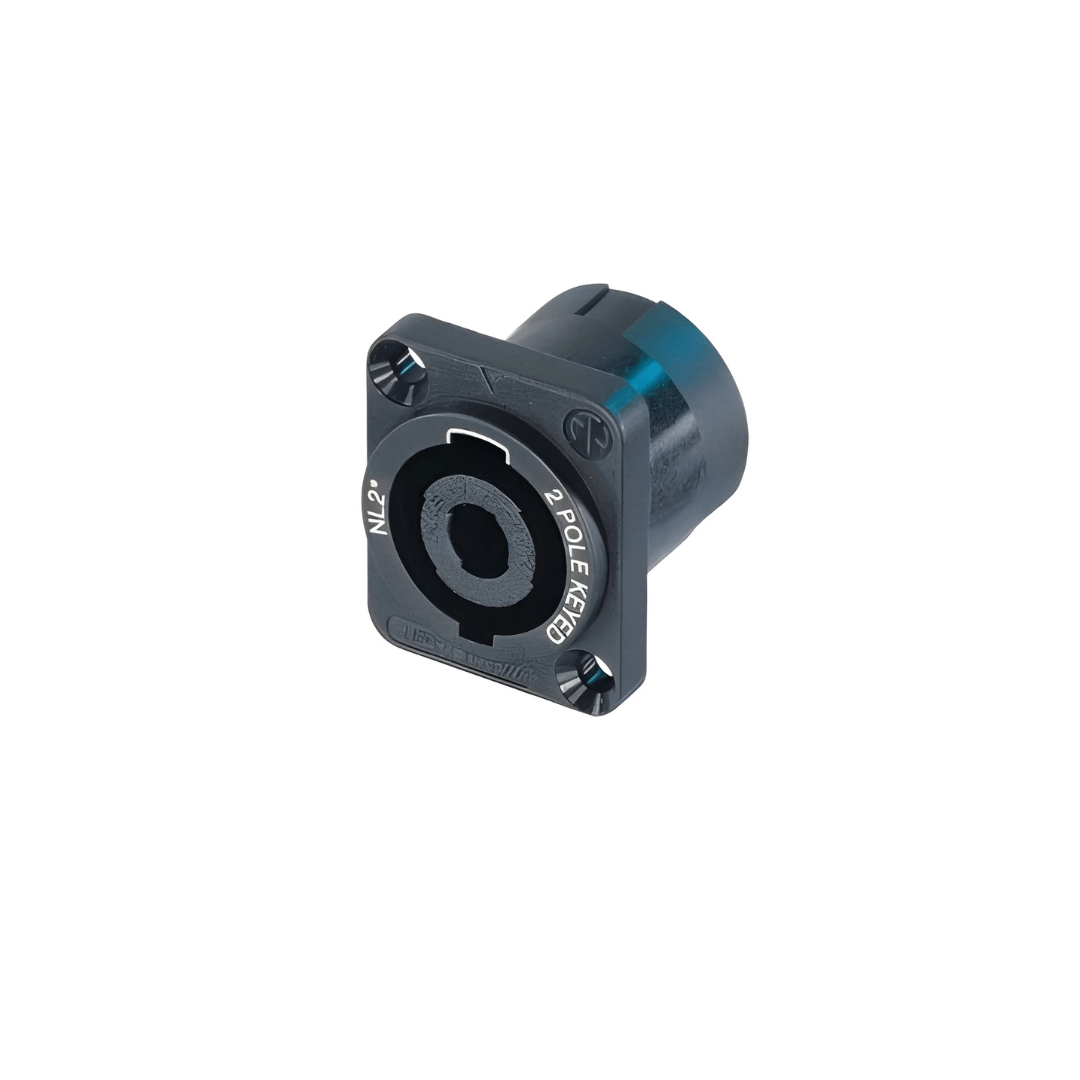

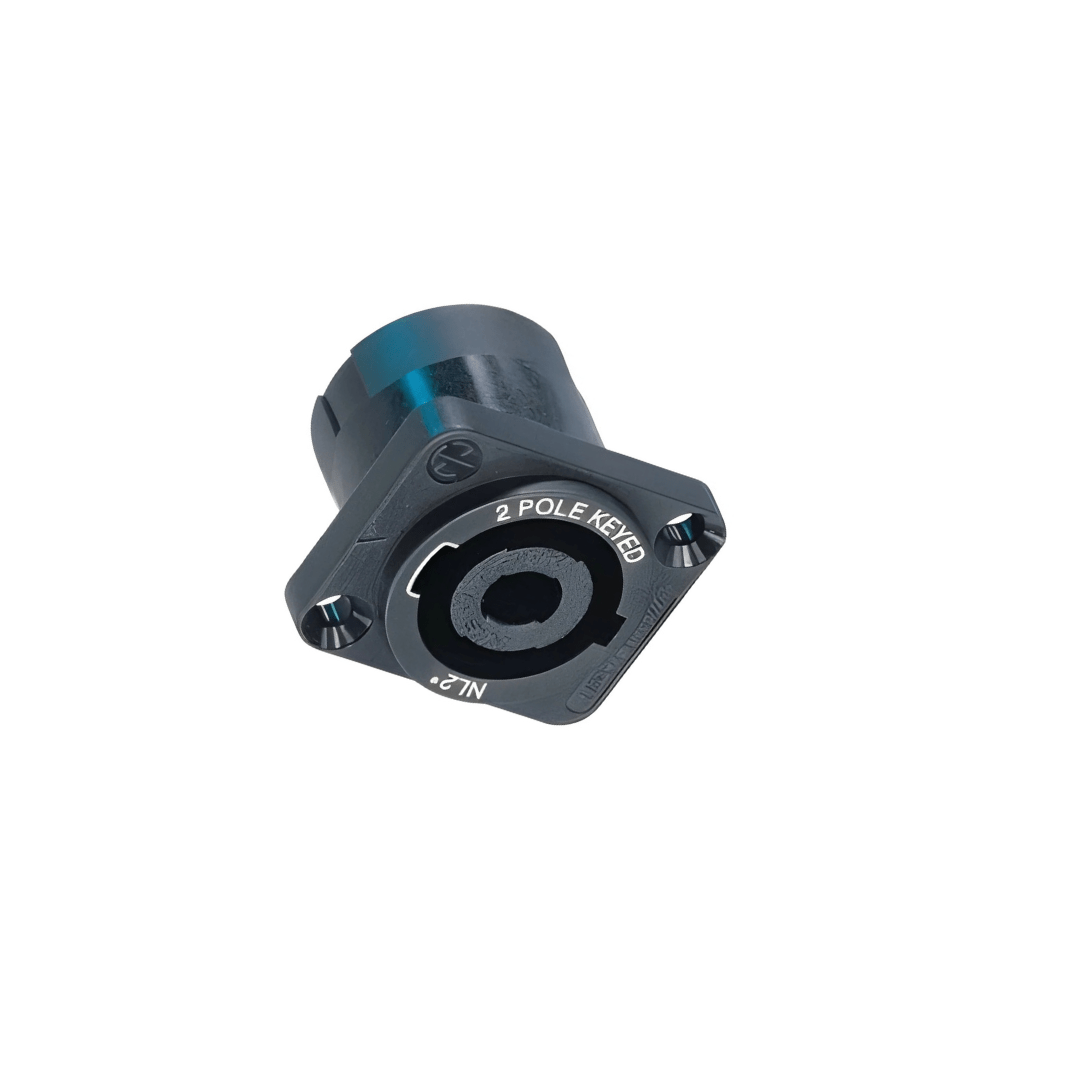

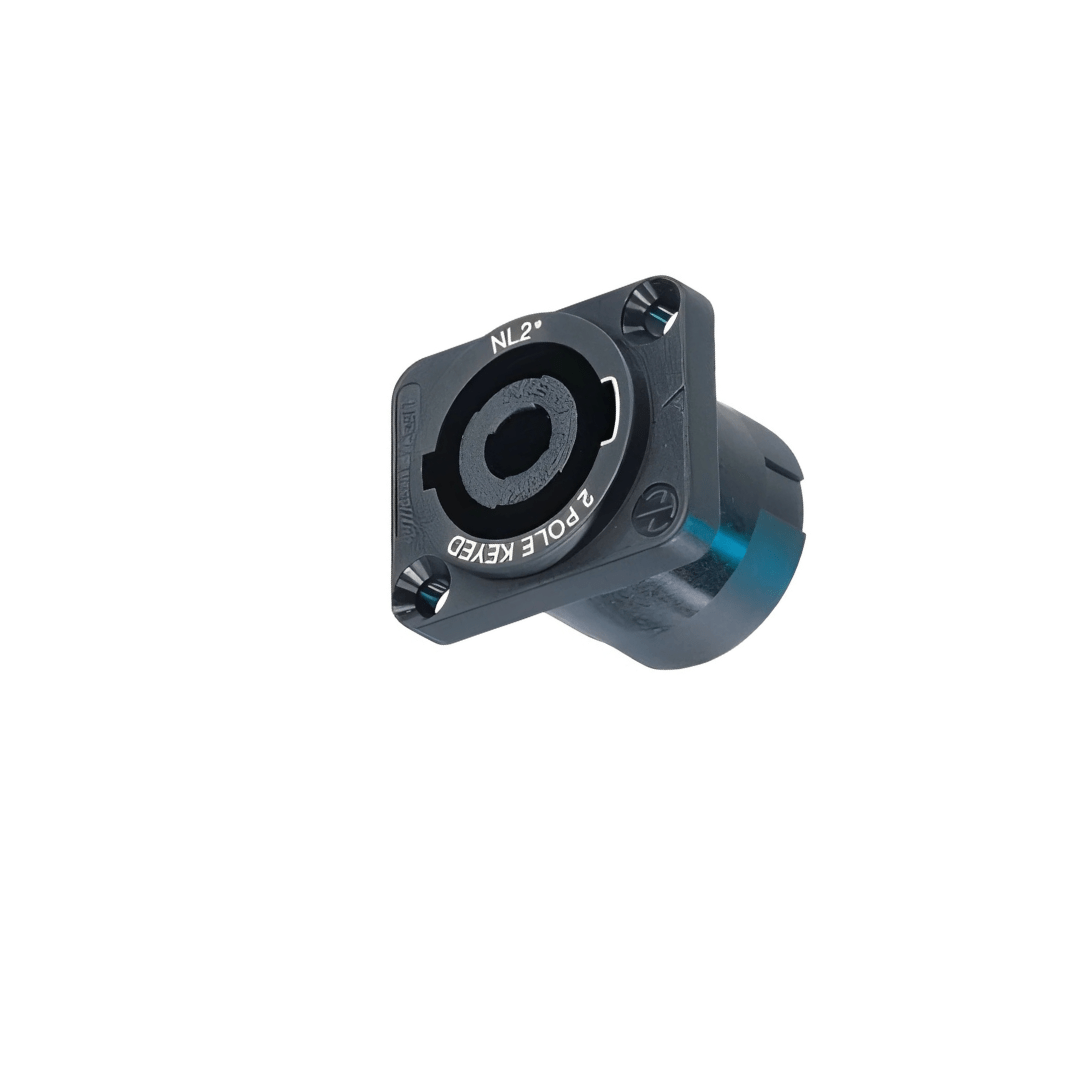

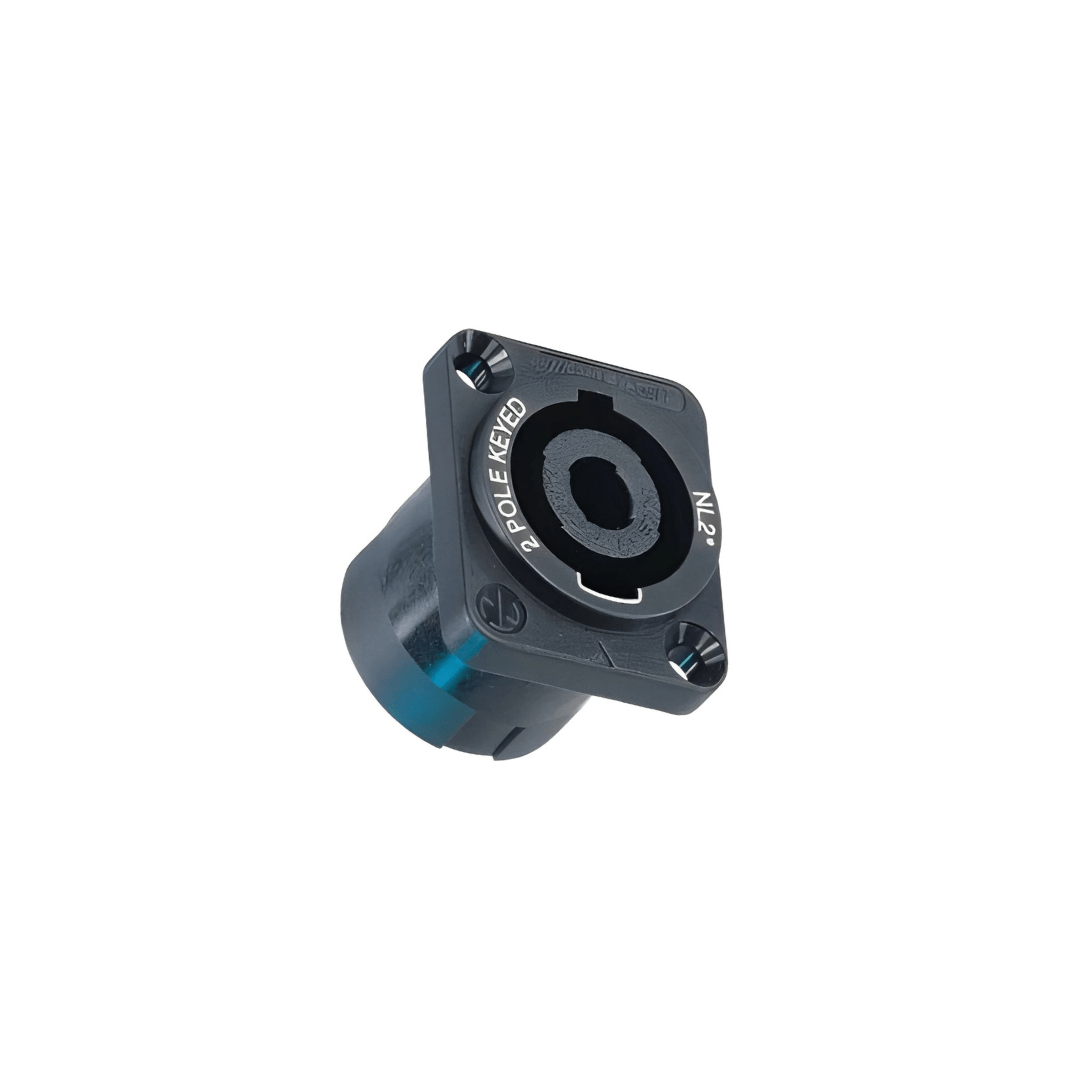

• Professional 2-pole male panel-mount speakON chassis connector
• Designed for speaker/amplifier connections (not for mains power)
• Quick-lock twist system ensures secure mating
• Rugged D-size flange housing with countersunk thru-holes
• NL2MP = legacy/discontinued model; NL2MPXX = updated IEC-compliant version

Features

• Robust locking system for secure, vibration-resistant connection
• Optimized airtight design for speaker applications
• Over 5,000 mating cycles (long lifespan)
• Glass-reinforced housing for high mechanical strength
• Flat tab (3/16" / 4.8 mm) terminals for fast and secure wiring
• Airtight design helps preserve cabinet tuning in loudspeakers
• Industry standard, widely used in PA systems, pro audio, and touring rigs

Specifications

• Number of Contacts: 2 poles
• Connector Type: Male, panel mount (chassis)
• Rated Current (NL2MP): 30 A RMS continuous
• Rated Current (NL2MPXX): 24 A RMS continuous (IEC 62368-1 compliant)
• Contact Resistance: ≤ 2 mΩ
• Insulation Resistance: > 10 GΩ (initial)
• Dielectric Strength: 4 kV DC
• Mounting: D-flange with 4 countersunk thru-holes
• Termination: Flat tabs (4.8 mm) for soldering or push-on connectors
• Housing Material: Glass-reinforced polyamide
• Mating Cycles: > 5,000 insertions
• Operating Temperature: –30 °C to +80 °C
• Applications: Loudspeakers, amplifiers, rack panels

What's in the box

• 1 x Speakon Chassis Speaker Connector
