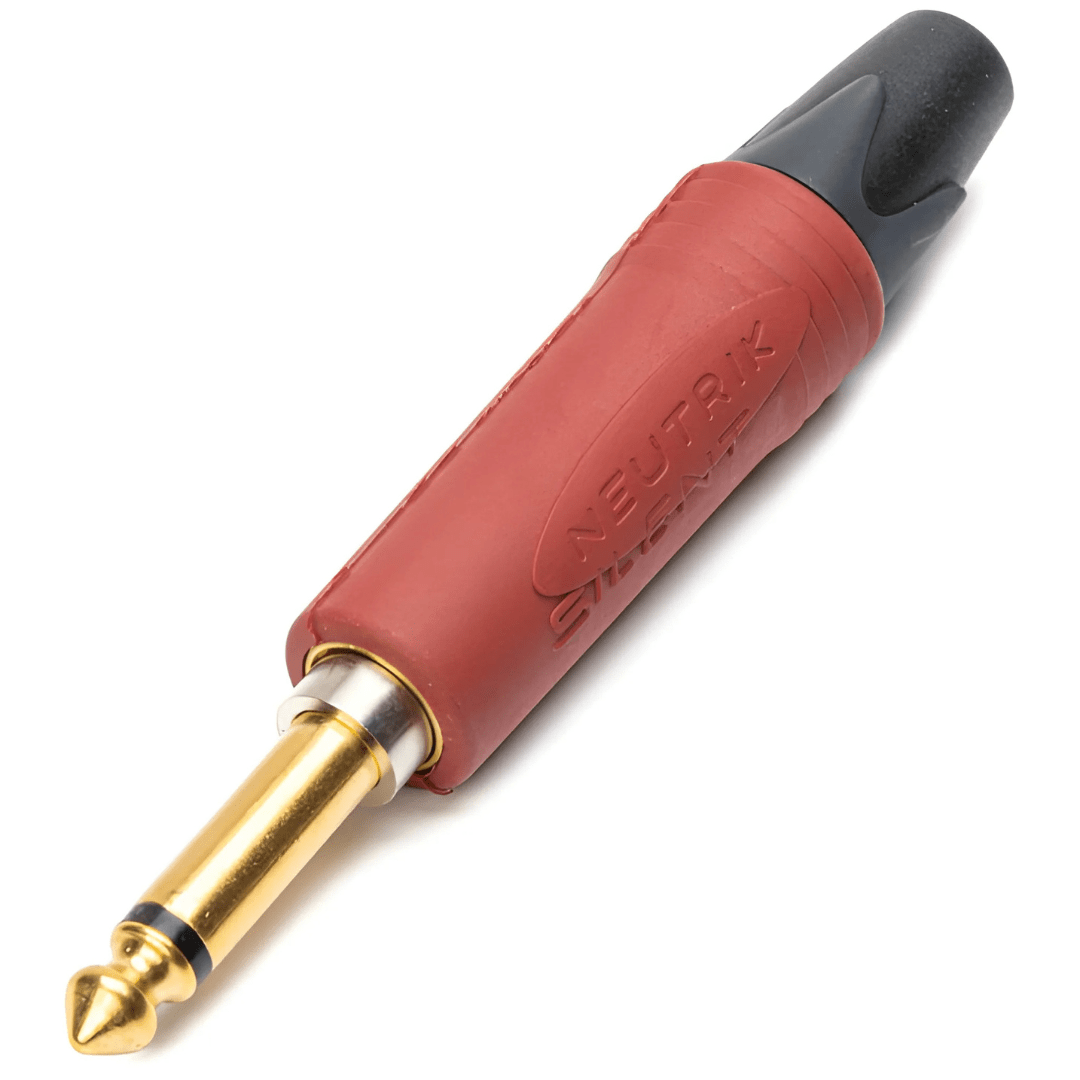

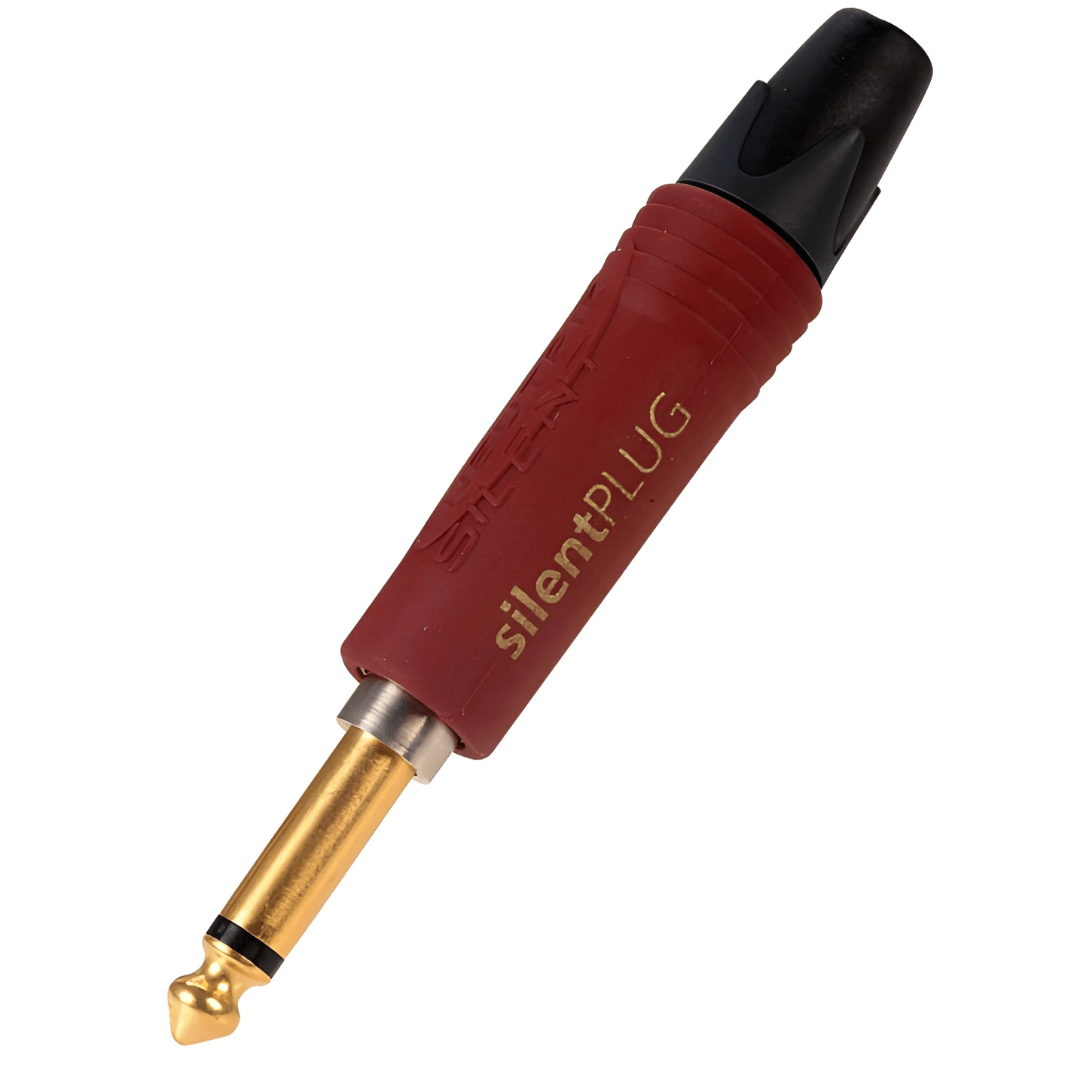

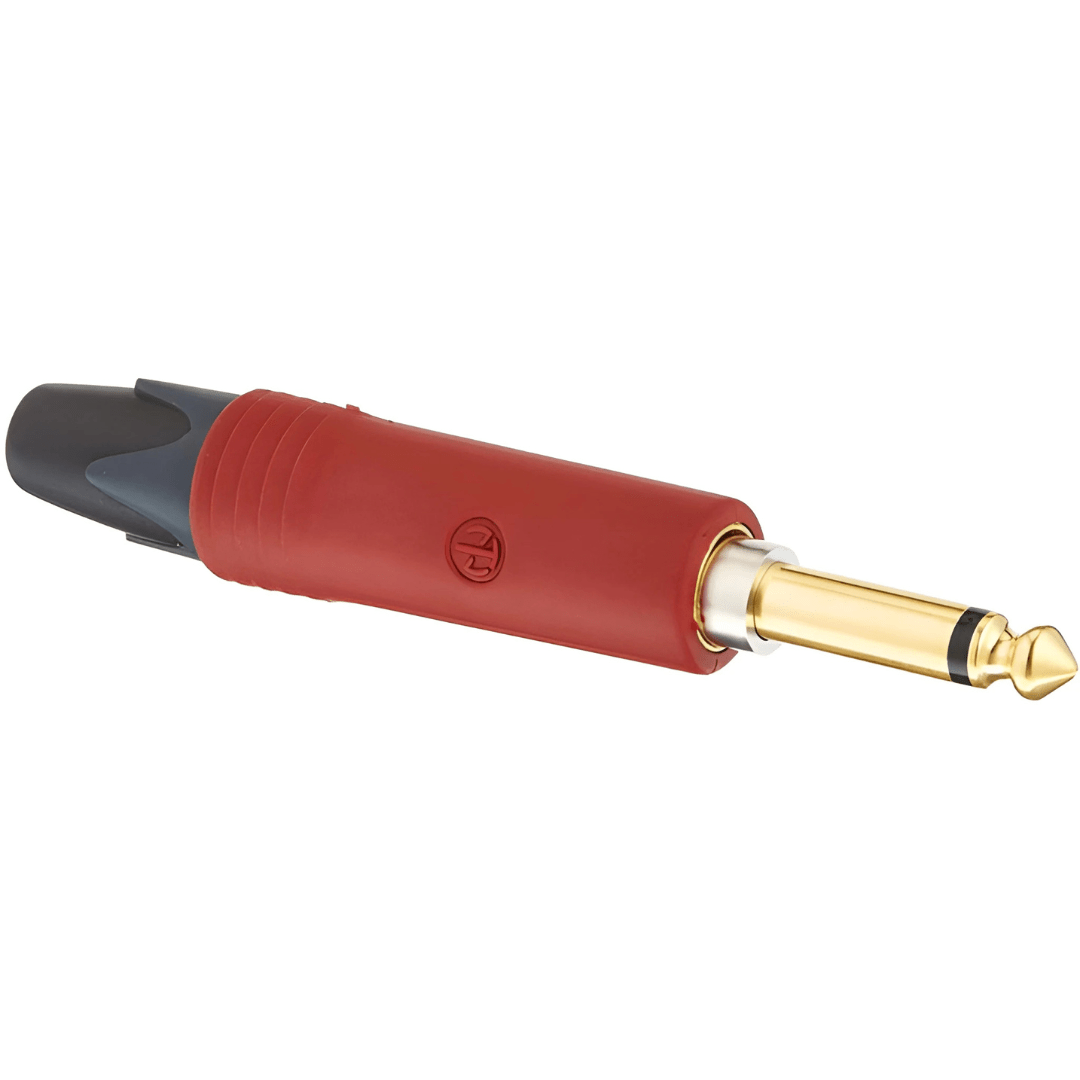

• Professional ¼″ (6.35 mm) mono TS straight plug
• Features integrated silent switch using reed technology
• Eliminates pops and noise when plugging/unplugging instruments
• Gold-plated contacts for improved conductivity and corrosion resistance
• Rugged metal housing with red rubber overlay for shock protection
• Slim profile design suitable for dense pedalboards or patch setups
• Designed specifically for instrument inputs only (not for amplifier outputs)

Features

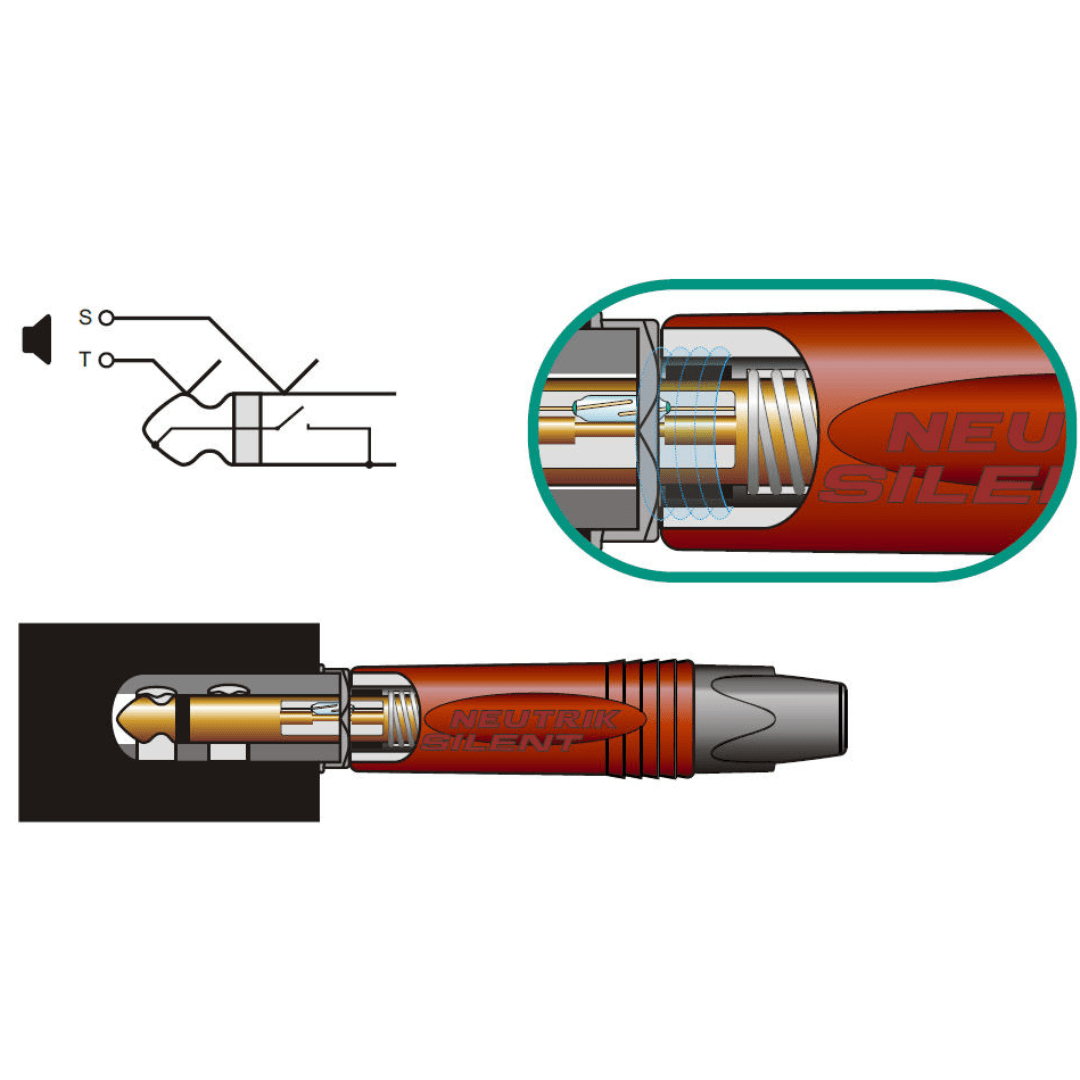

• SilentPlug technology: automatically mutes signal when disconnected
• Hermetically sealed reed switch for wear-free operation
• Durability: rated for more than 1,000 mating cycles
• Ergonomic design: compact shape and improved handling grip
• Reliable cable strain relief with chuck-type system
• Shock resistance: red rubber overlay provides extra protection
• Solder contacts for secure cable termination
• Compatibility: works with cables 4–7 mm in outer diameter

Specifications

• Connector type: 2-pole, ¼″ (6.35 mm) TS male plug
• Contact material: Brass with gold plating
• Cable compatibility: 4–7 mm outer diameter (up to 8 mm on some variants)
• Maximum wire size: 1 mm² / 18 AWG
• Cable termination: Solder-type connection
• Insulation resistance: > 2 GΩ (initial)
• Dielectric strength: 0.2 kV DC
• Rated voltage: < 50 V
• Operating temperature: −20 °C to +65 °C
• Standards compliance: IEC 60603-11 / EIA RS-453
• Lifetime: 1,000+ mating cycles
