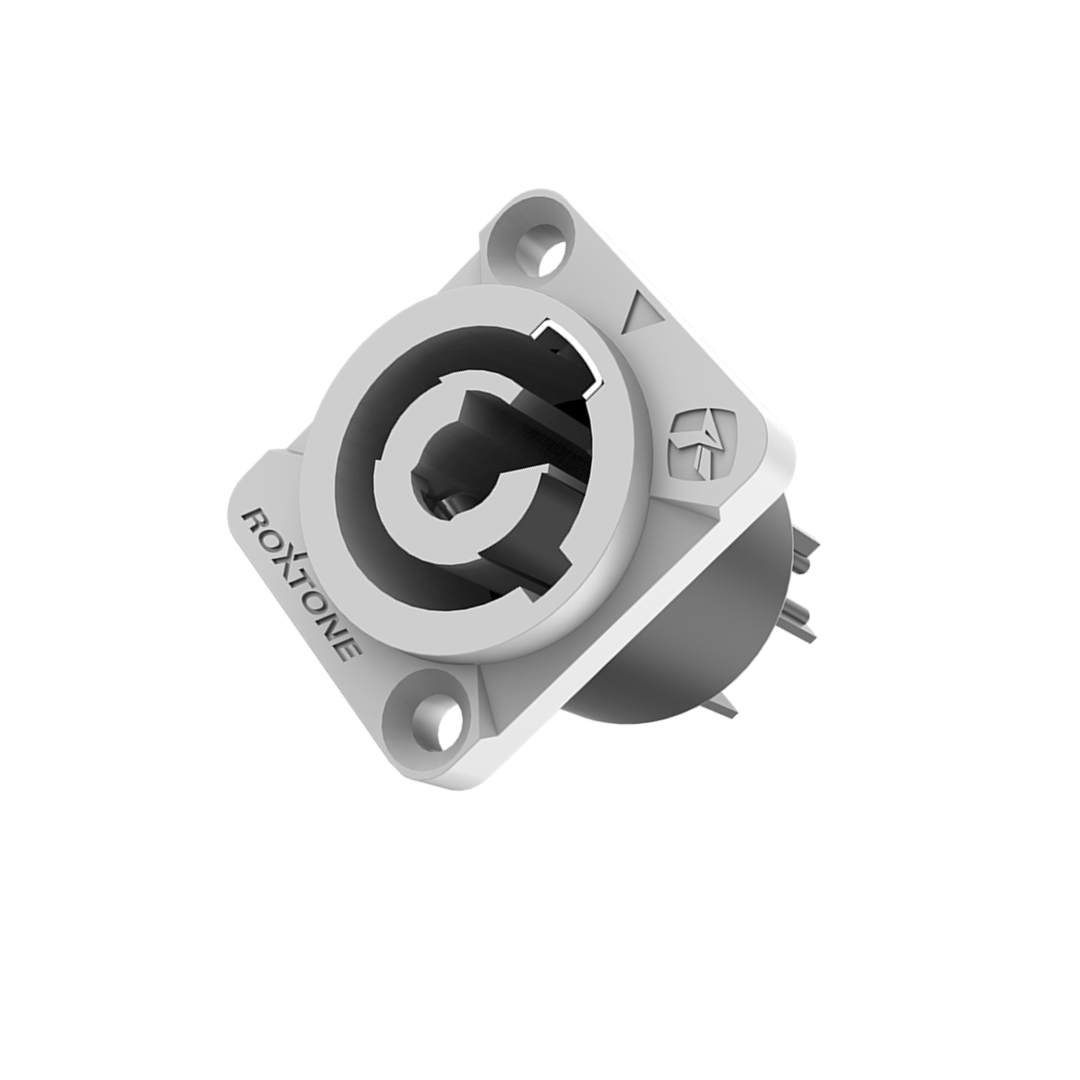

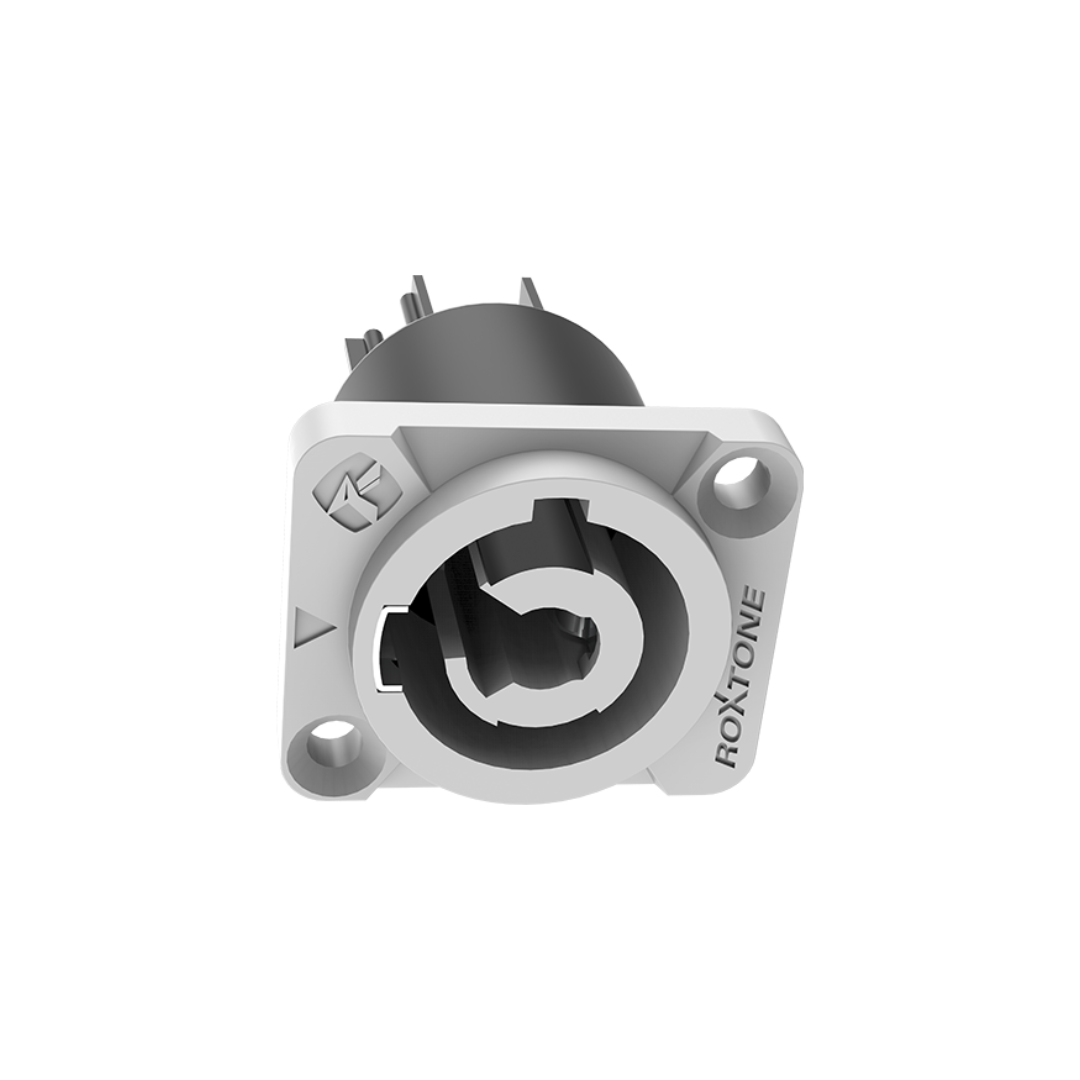

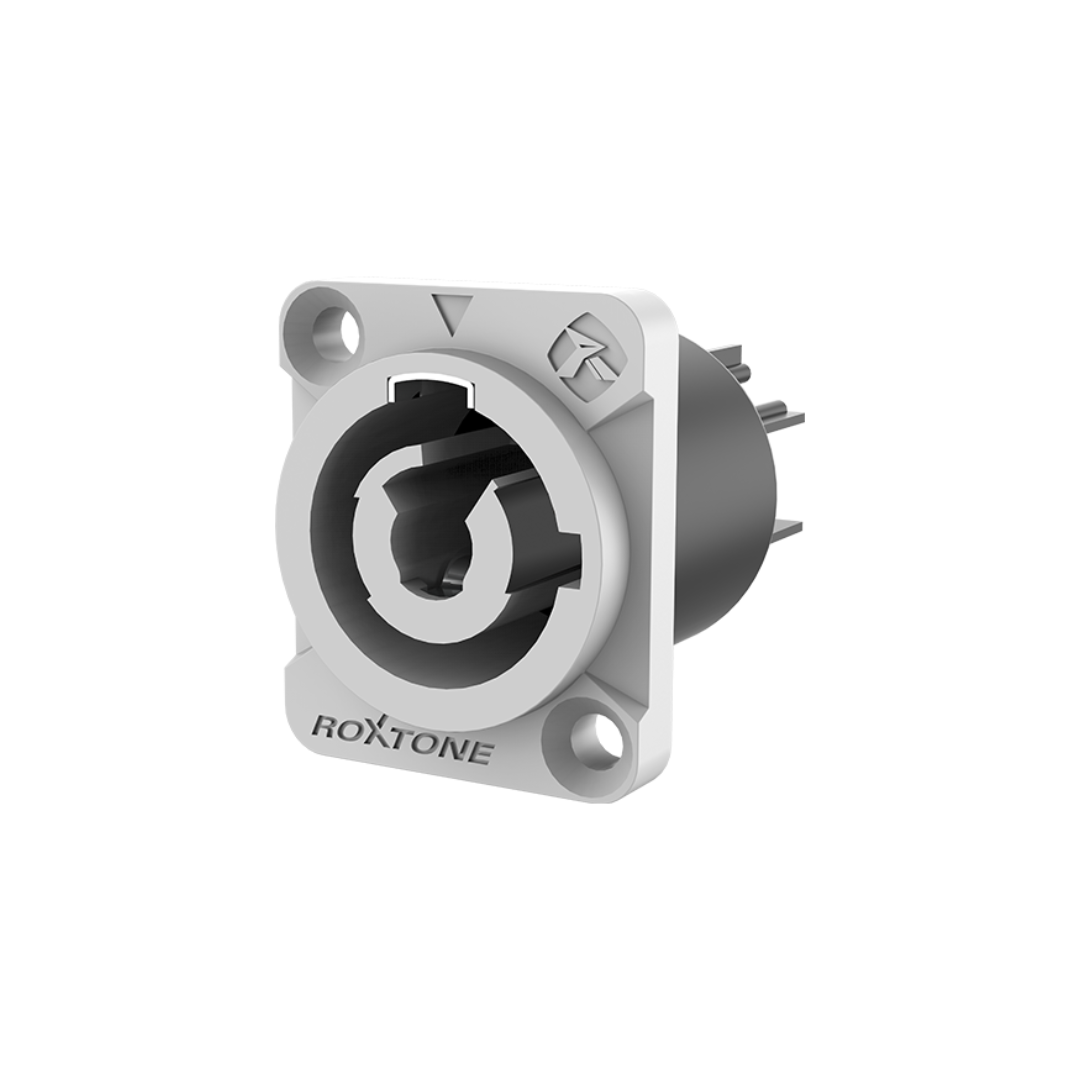

The Roxtone RAC3MPO is a professional-grade, lockable 3-pole equipment AC chassis connector designed to serve as a reliable power-out socket for high-demand electrical systems.
Rated for 20A RMS at 250V AC, this robust chassis-mount receptacle is purpose-built for safe, continuous power distribution in live entertainment environments.
It provides a secure, interlocking power interface ideal for daisy-chaining and feeding mains power to professional LED screens, moving-head lighting fixtures, active PA loudspeakers, and heavy-duty stage power distribution grids.
Constructed from premium glass fiber reinforced composite materials (PA6 30% GR), the connector's housing provides exceptional physical durability, impact resistance, and electrical insulation.
The interior mechanism is outfitted with extra-thick bronze contacts finished with premium silver plating to supply excellent contact pressure and high conduction efficiency while minimizing electrical resistance.
Engineered for maximum safety on site, the raw structural elements comply with strict UL V-0 flammability standards to ensure flame-retardant performance under critical operational loads.
Features
Lockable 3-Pole AC Design: Features a secure, fast-twist locking system that prevents accidental pull-outs or connection breaks caused by stage vibrations or cord tension.
Silver-Plated Bronze Contacts: Engineered with thick silver-plated bronze terminals to maximize conductivity, lower operating temperatures, and resist surface tarnishing.
Flame-Retardant Composition: Molded from raw materials meeting the UL V-0 flammability specification to guarantee a self-extinguishing housing for advanced fire safety.
Glass Fiber Reinforced Shell: Constructed from PA6 30% GR composite material to offer supreme physical defense against structural cracking, twisting, and crushing forces.
Dedicated Power-Out Coding: Configured specifically as a gray/white-coded power outlet socket to distinguish it from blue power-in lines, preventing dangerous cross-wiring errors during setup.
High-Load Equipment Utility: Perfect for manufacturing or repairing rear panels on active stage monitors, automated moving lights, LED video walls, and custom rack-mounted power distribution boxes.
Specifications
Component Type: Professional Power Link Series Power-Out Equipment Socket
Model Designation: RAC3MPO

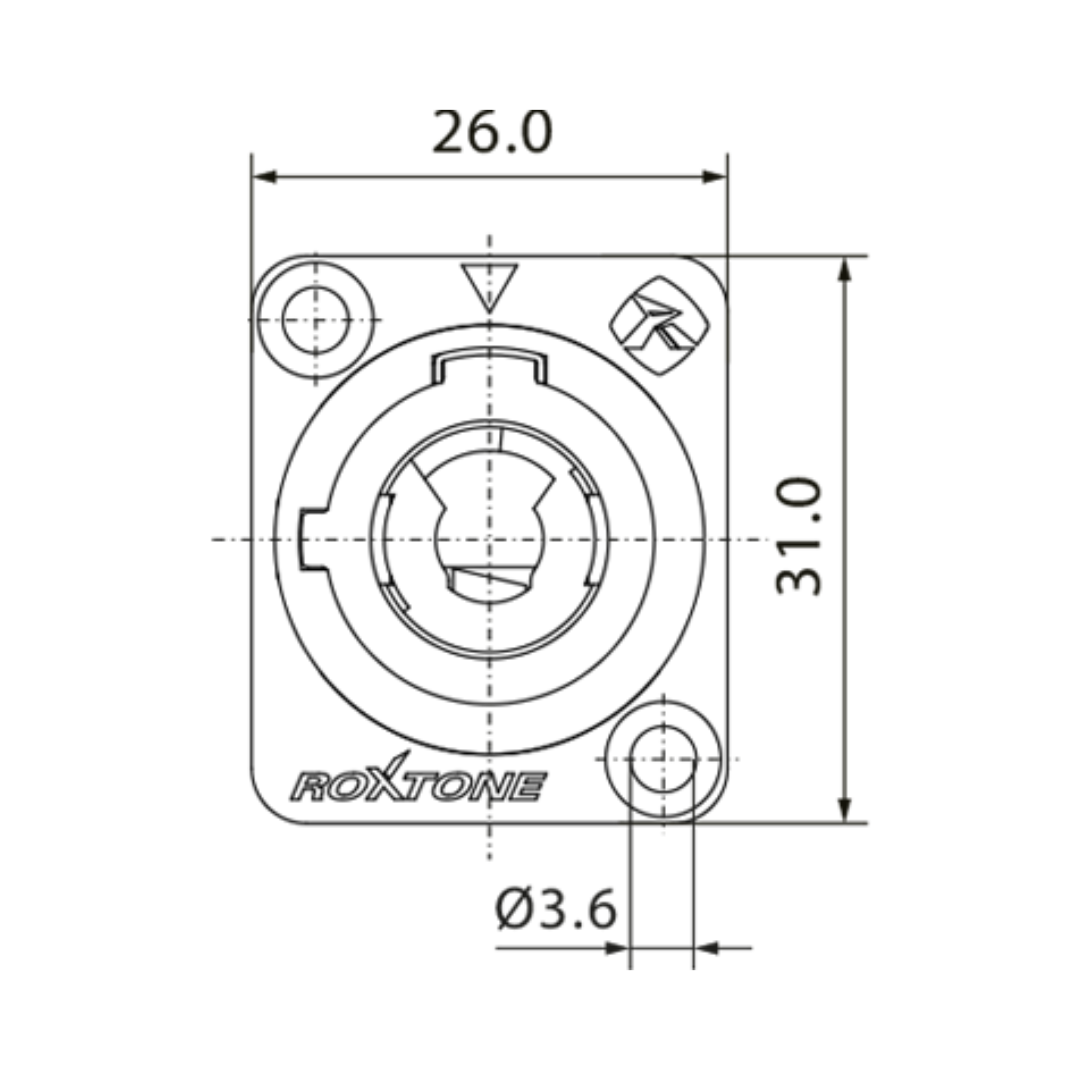

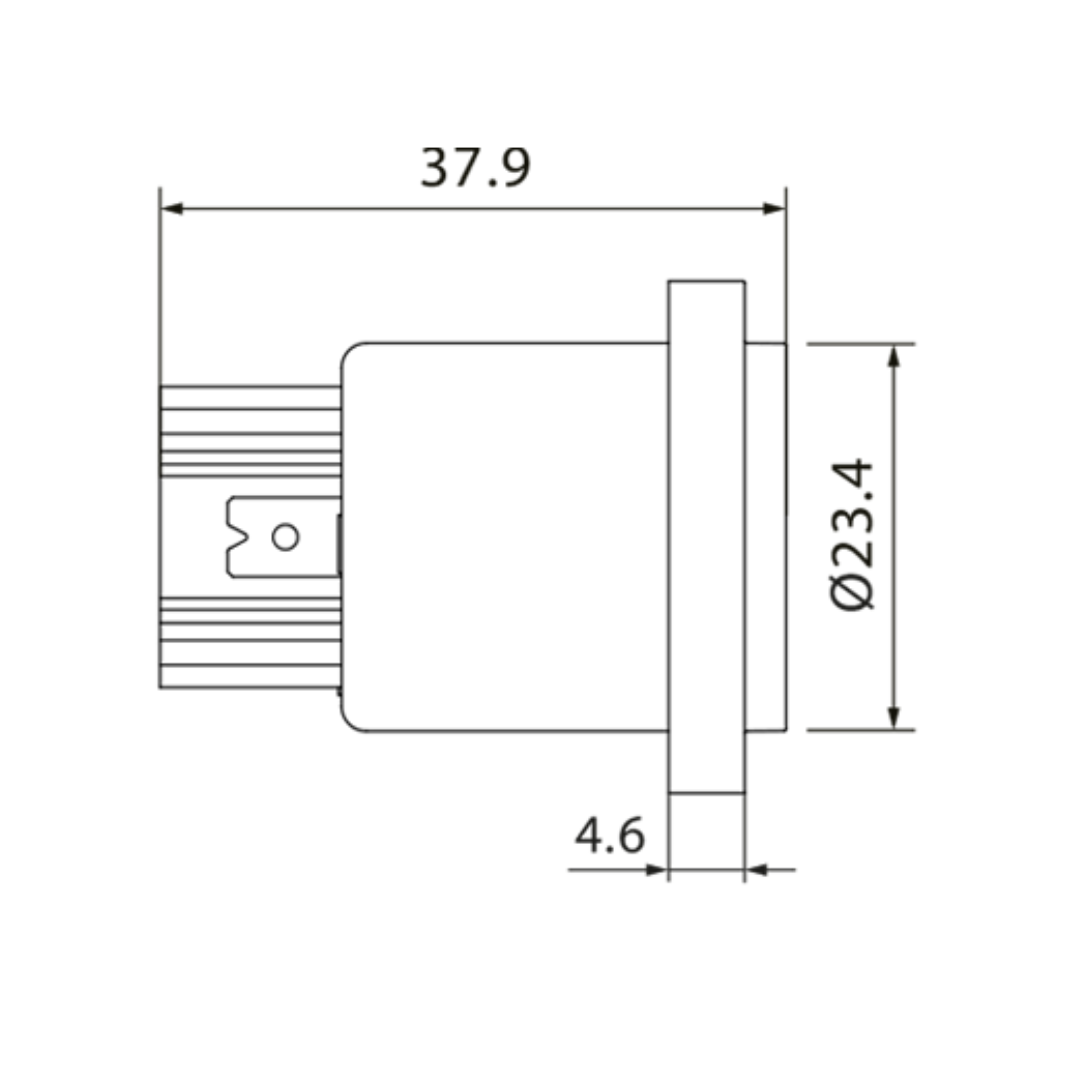

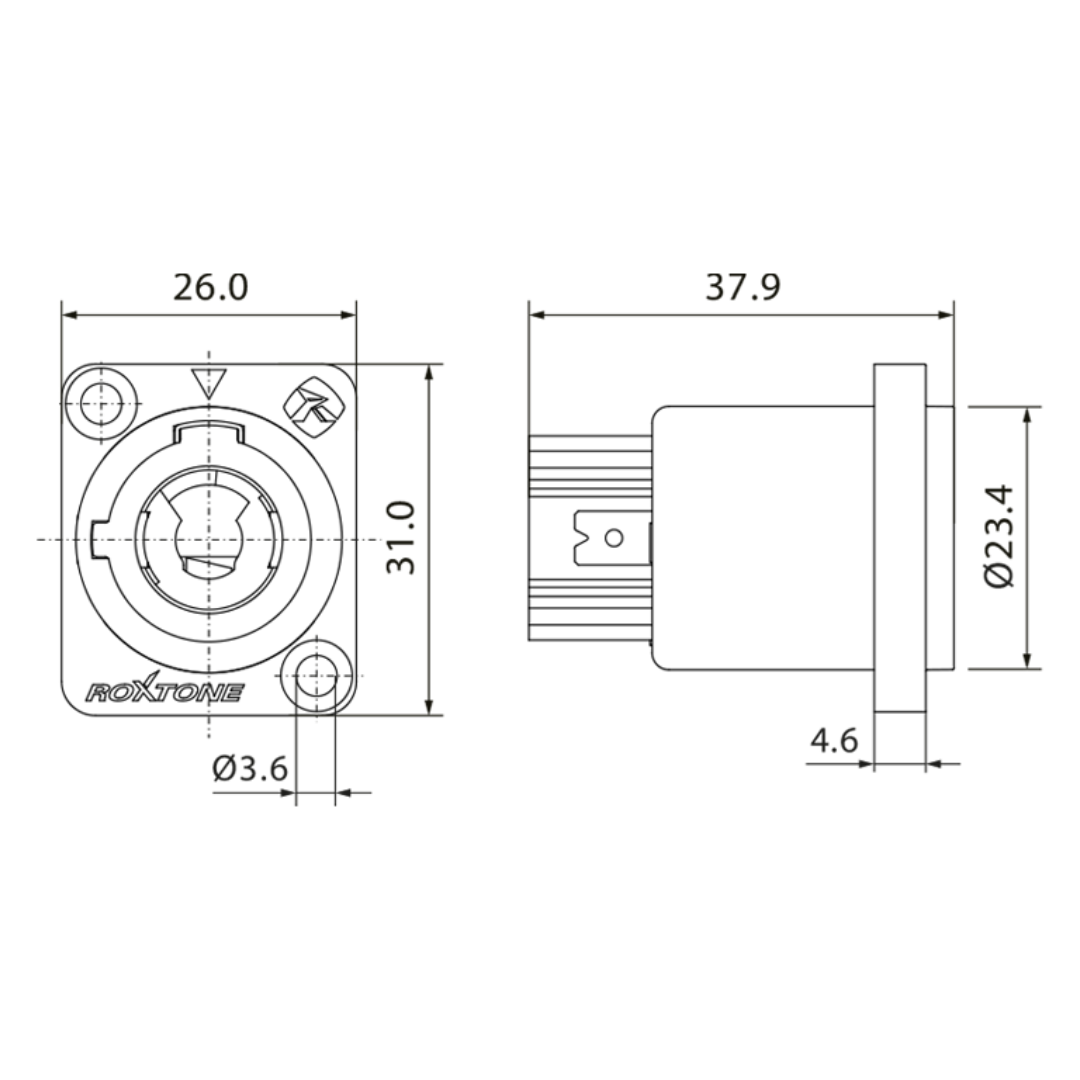

Chassis Layout Pattern: Standard D-Series Panel Mount Mounting Profile
Electrical Contact Count: 3-Pole Wire Contacts
Rated Current Capacity: 20 A RMS (per contact terminal)
Maximum Rate Voltage: 250 V AC
Housing Base Material: PA6 30% GR (Polyamide Glass Fiber Reinforced)
Flammability Safety Rating: Certified UL V-0 Standard
System Interactivity: Pairs seamlessly with the matching Roxtone RAC3FCO power out inline cable connector
Primary System Applications: Main power distribution racks, heavy-duty lighting arrays, active concert audio enclosures, LED video wall tiles, and specialized staging machinery.
What’s in the Box
1 x Roxtone RAC3MPO Power Link Series Power Output Chassis Mount Socket
