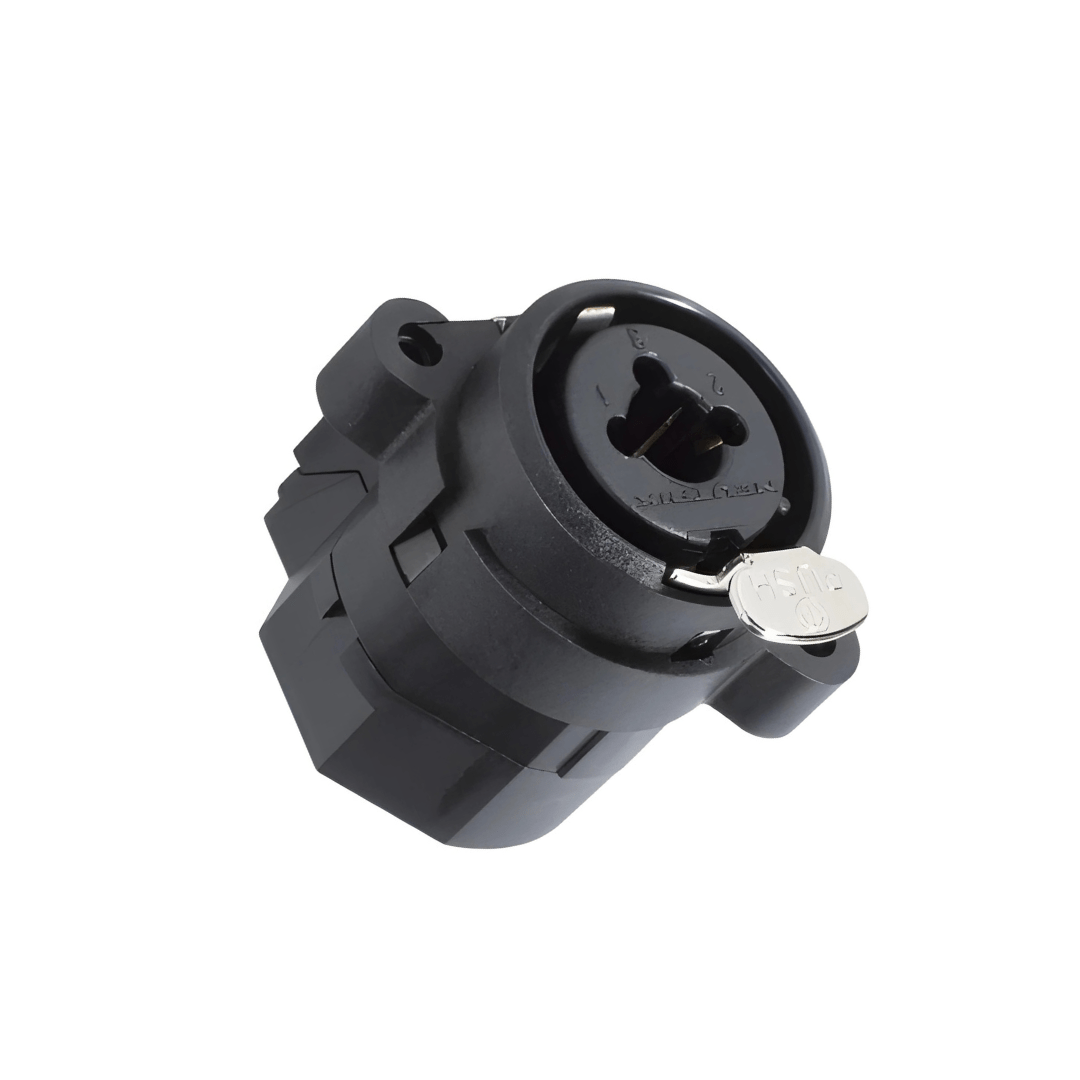

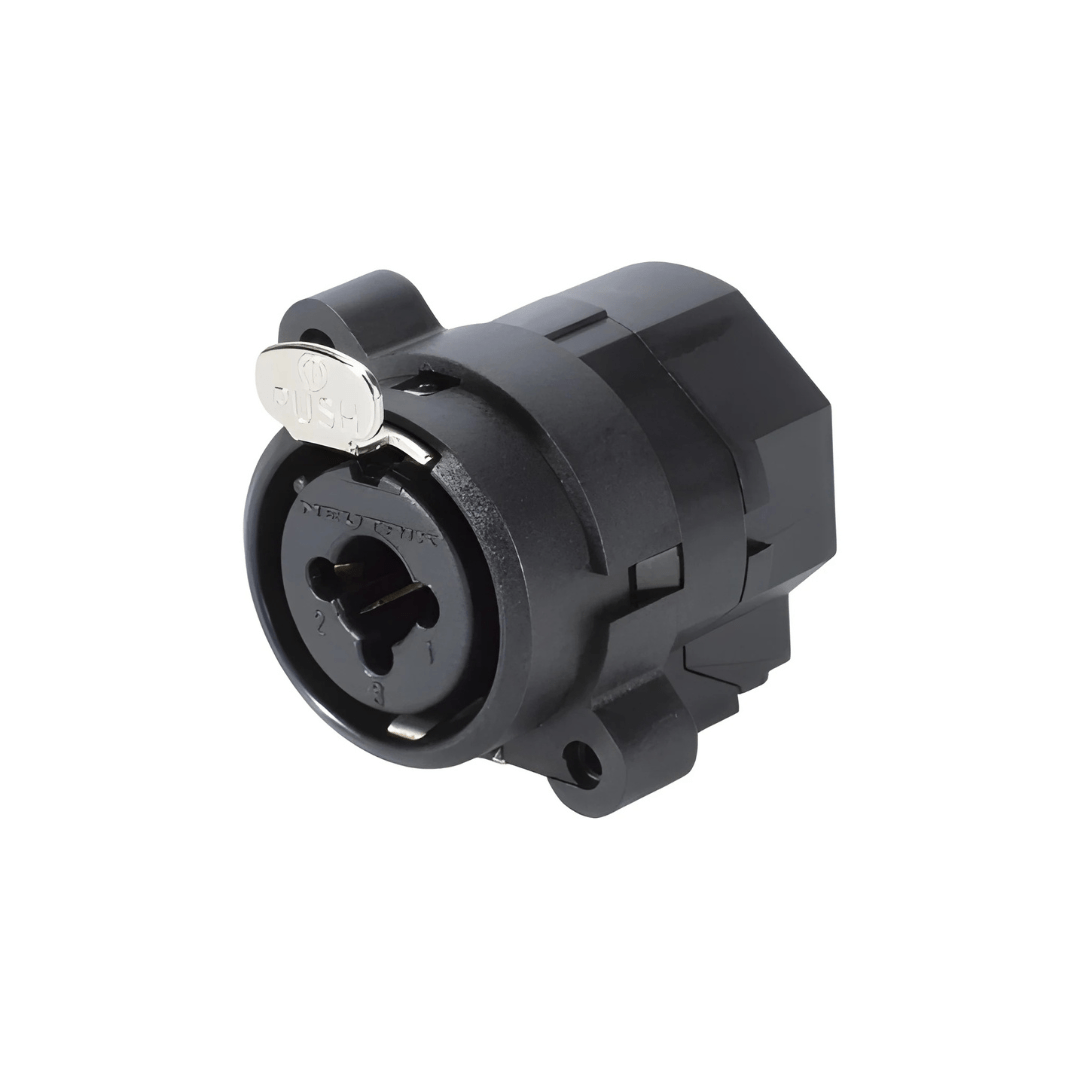

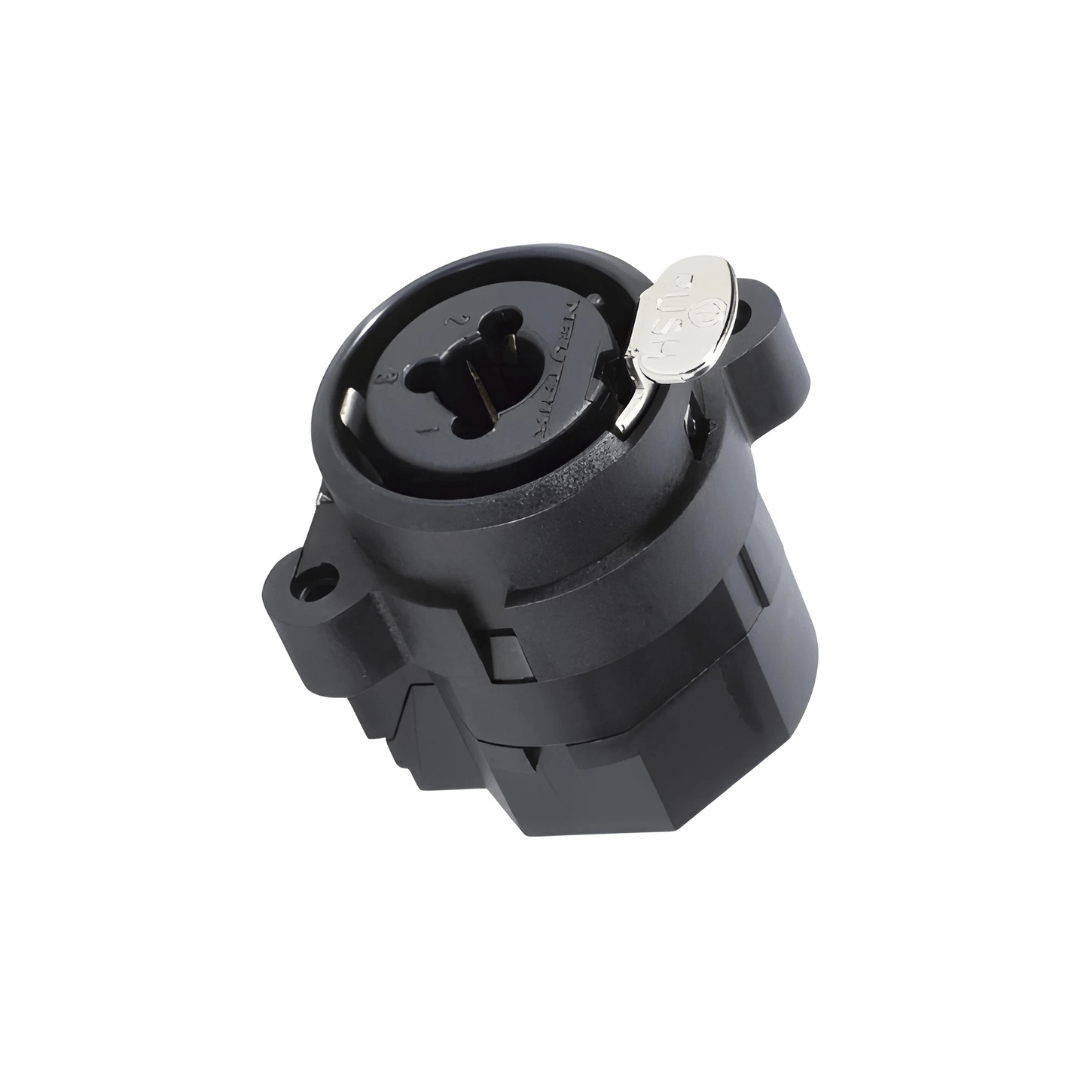

• Professional XLR/¼″ TRS combo connector in one chassis.
• Accepts 3-pole female XLR plugs and ¼″ TRS/TS jacks.
• Designed for solder-cup terminations (easy wire soldering).
• Rugged, compact design for professional audio equipment, mixers, stage boxes, instruments, and patch panels.
• Part of Neutrik’s Combo I Series, widely used in pro-audio and broadcast.

Features

• Dual input: One socket accepts both XLR and ¼″ TRS plugs.
• Space saving: Replaces two separate connectors with one unit.
• High durability: >1,000 mating cycles.
• Gold-plated contacts for reliable signal transmission and resistance to corrosion.
• Robust housing with steel locking element for XLR plug retention.
• Panel mountable, fits panel thickness up to 7 mm.
• Standard solder contacts – no PCB needed.
• Compatible with mono (TS) and stereo (TRS) jacks.

Specifications

• Connector Type: Combo receptacle (3-pole female XLR + ¼″ stereo jack).

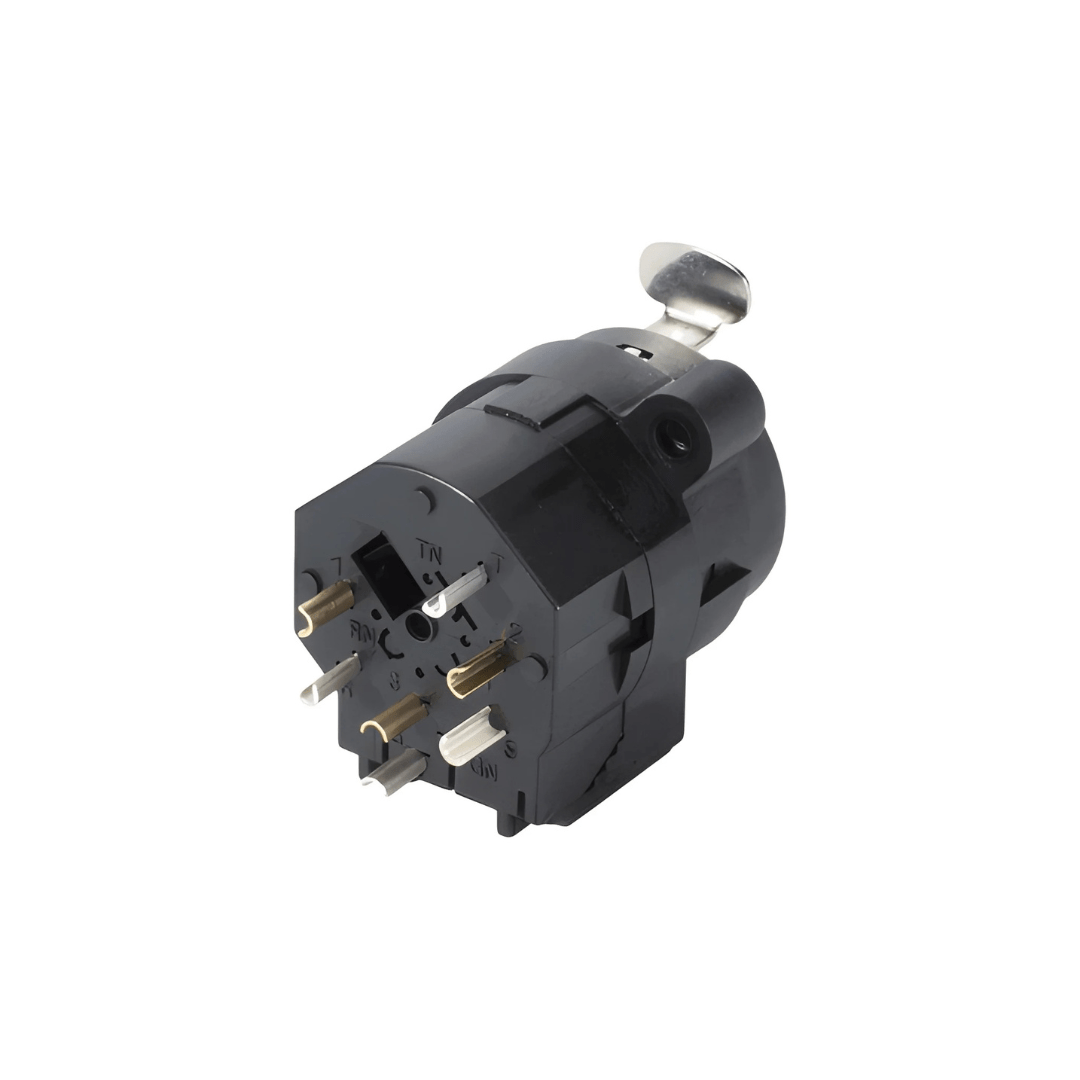

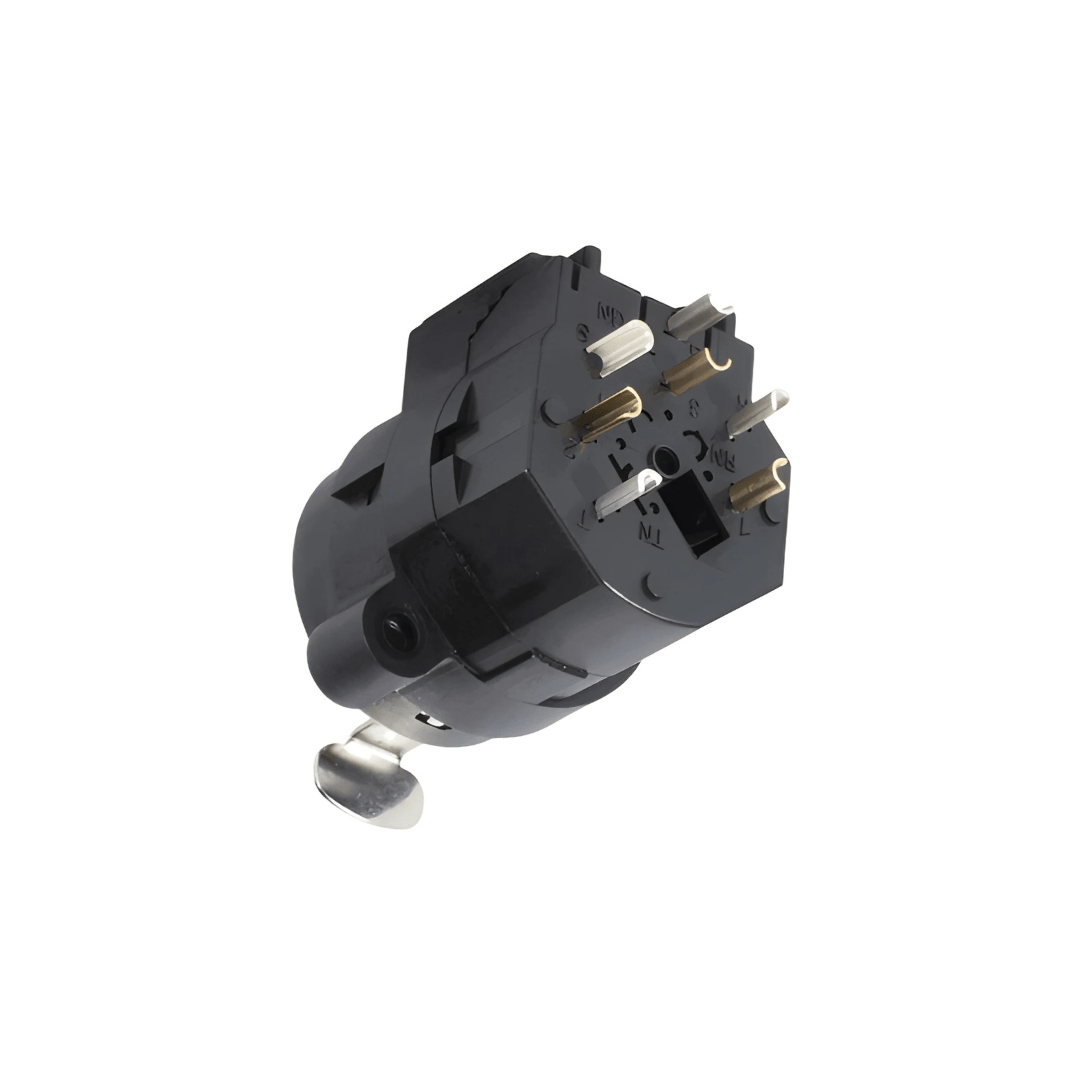

• Termination: Solder cups.
• Contact Resistance:
  • XLR: <10 mΩ
  • Jack: <20 mΩ
• Rated Current: 7.5 A per contact.
• Rated Voltage: <50 V.
• Dielectric Strength: 1.5 kV DC.
• Insulation Resistance: >10 GΩ (initial).
• Contact Plating: 0.2 µm gold over 2 µm nickel.
• Housing Material: Polyamide (PA66), bronze contacts, steel latch.
• Operating Temperature: –30 °C to +80 °C.
• Mechanical Life: >1,000 mating cycles.
• Panel Thickness: Max 7 mm (0.27″).
