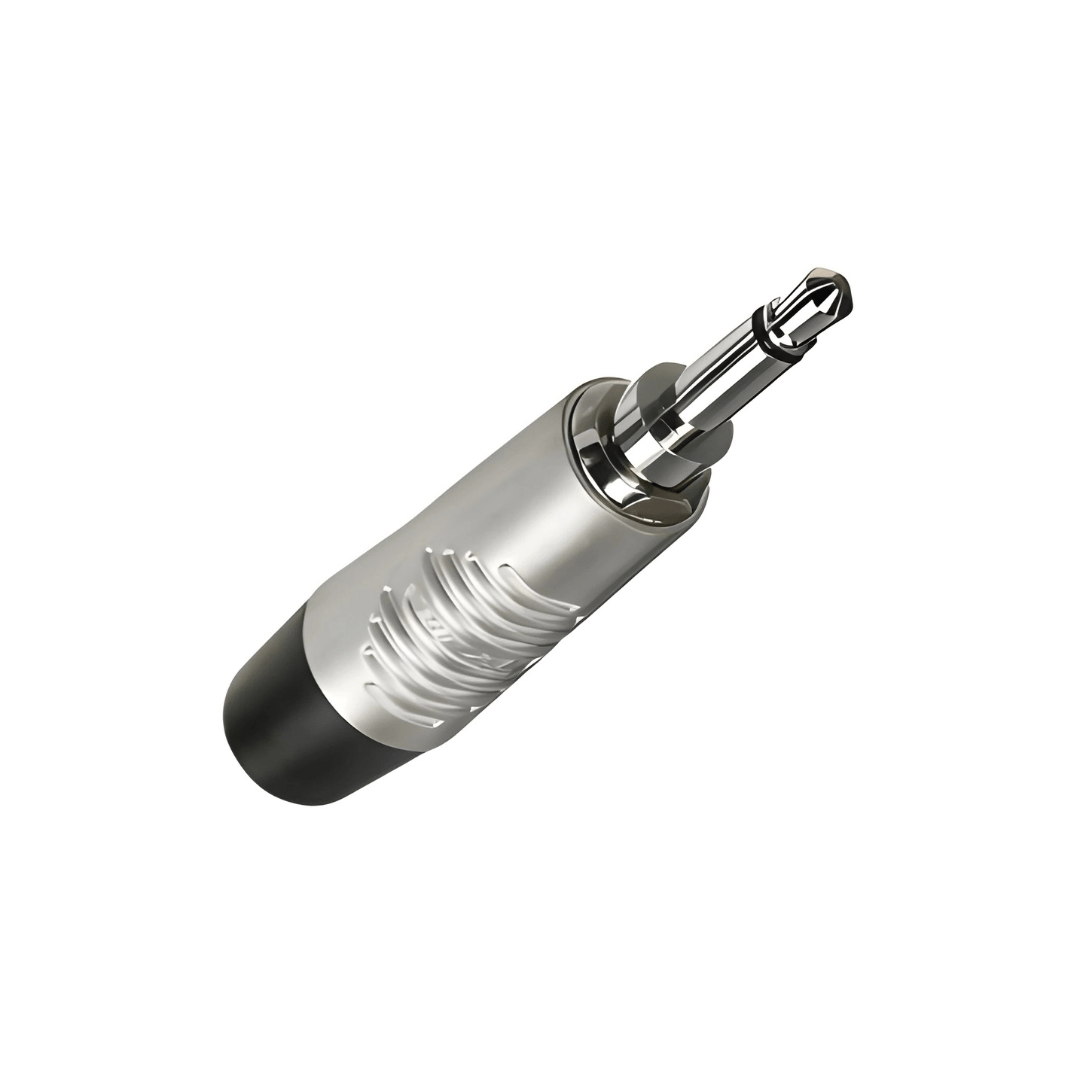

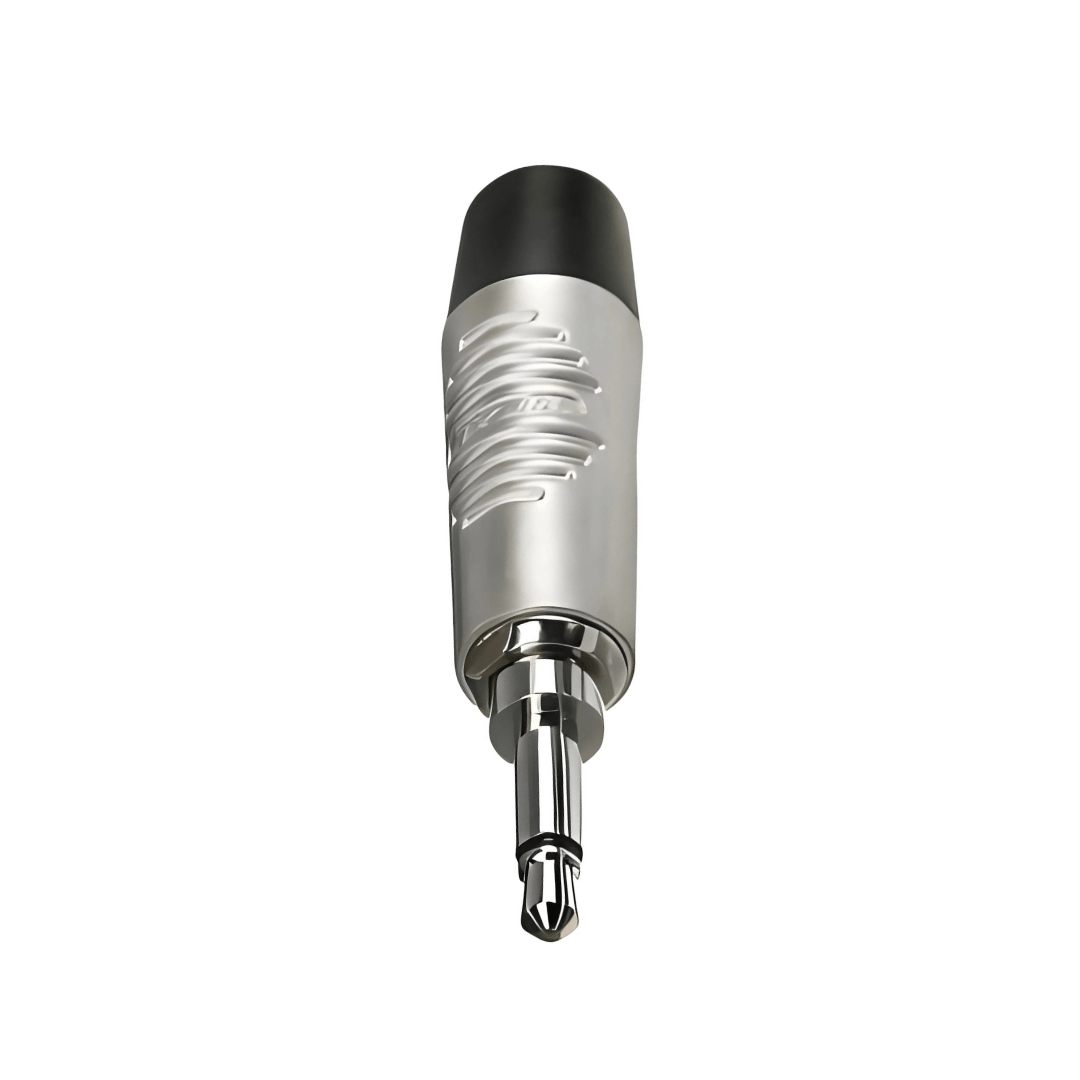

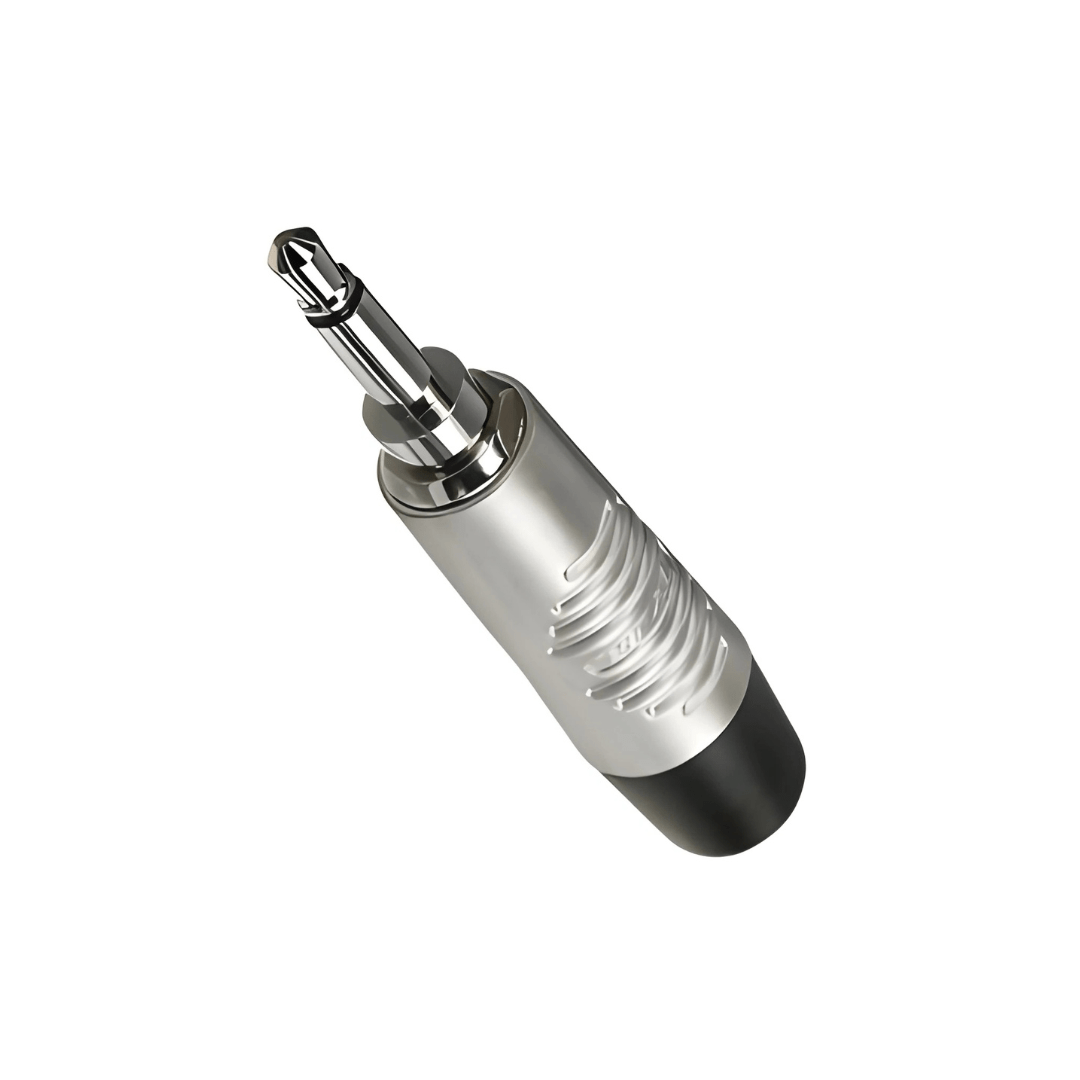

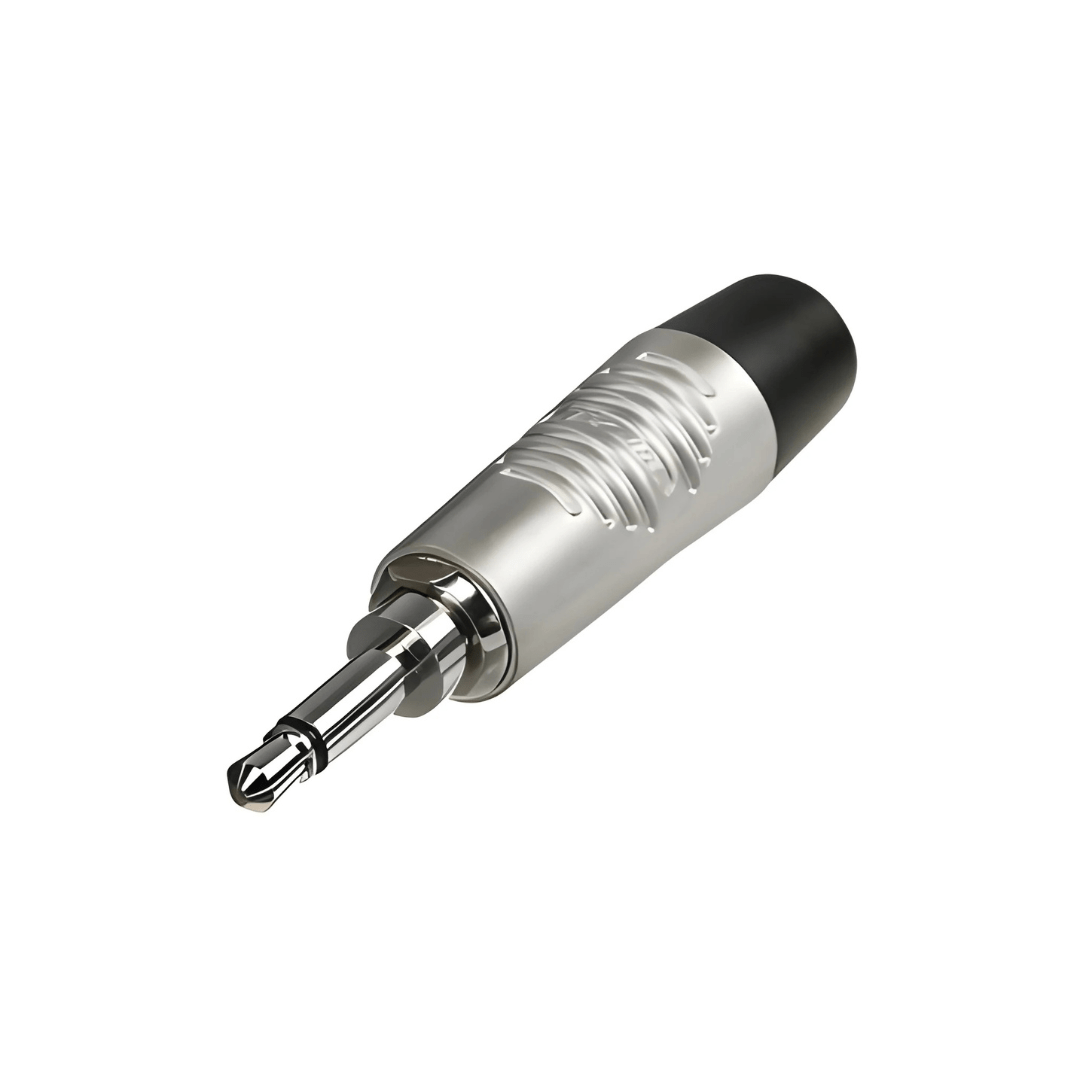

• The RTP2C is a precision-engineered 3.5 mm (1/8") mono plug designed for professional-grade audio and video applications.
• Built by Neutrik under its Rean line, it offers a robust metal housing, ergonomic finger-groove grip, and dependable solder-type cable termination.
• The connector ensures long-lasting performance and reliable contact in studio, live, and custom cable applications.

Features

• Finger-groove design: Ergonomic slim body for easier handling and cable installation
• All-metal construction: Zinc housing with nickel plating (or black/gold variants available) ensures durability and shielding
• Multiple finish options:
  • Nickel shell with nickel-plated contacts
  • Black shell with gold-plated contacts
• Long mating life: Rated for over 1,000 insertion cycles
• Robust strain relief: Durable strain relief to protect cable from damage

Specifications

• Connection Type: 3.5 mm TS (mono) plug
• Contact Resistance: ≤ 10 mΩ
• Insulation Resistance: > 200 MΩ
• Dielectric Strength: 500 V DC at 50 Hz
• Insertion/Withdrawal Force: ≤ 60 N
• Mating Cycles (Lifespan): > 1,000 cycles
• Cable Outer Diameter: 2 – 4 mm
• Wire Size: Up to 0.24 mm² (24 AWG)
• Housing Material: Zinc (nickel-plated)
• Sleeve Material: Brass (nickel-plated)
• Finish Options: Nickel shell & nickel contacts; Black shell with gold or nickel contacts
• Operating Temperature: −20 °C to +70 °C
• Standards: UL94 HB, solderability per IEC-68-2-20

What's in the box

• 1 x Mono Phone Plug
