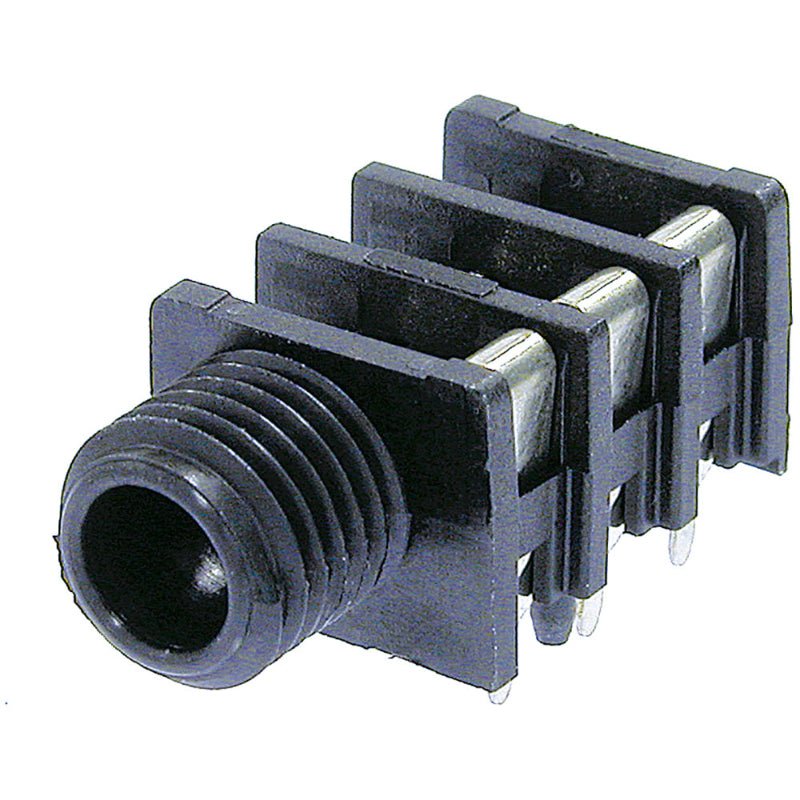

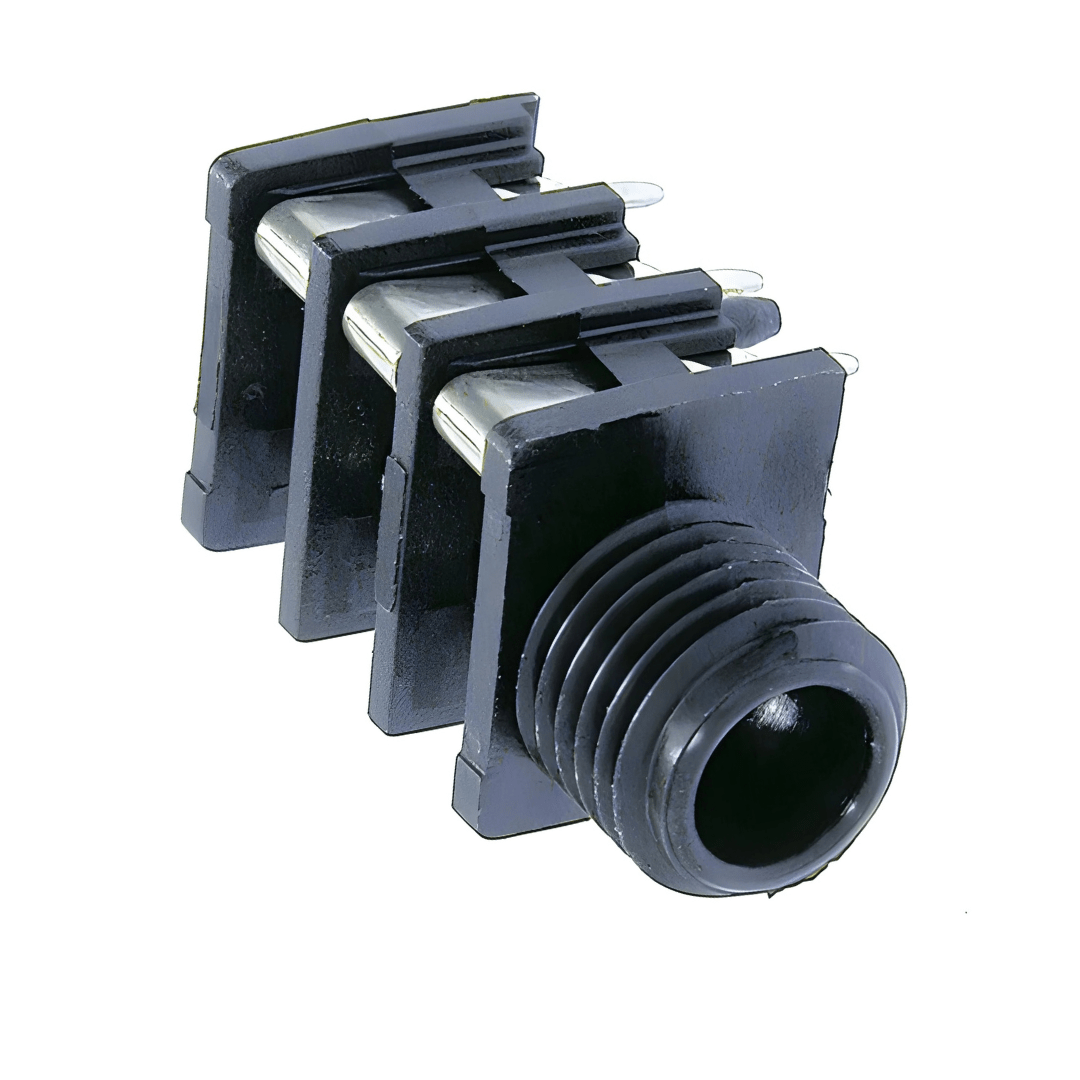

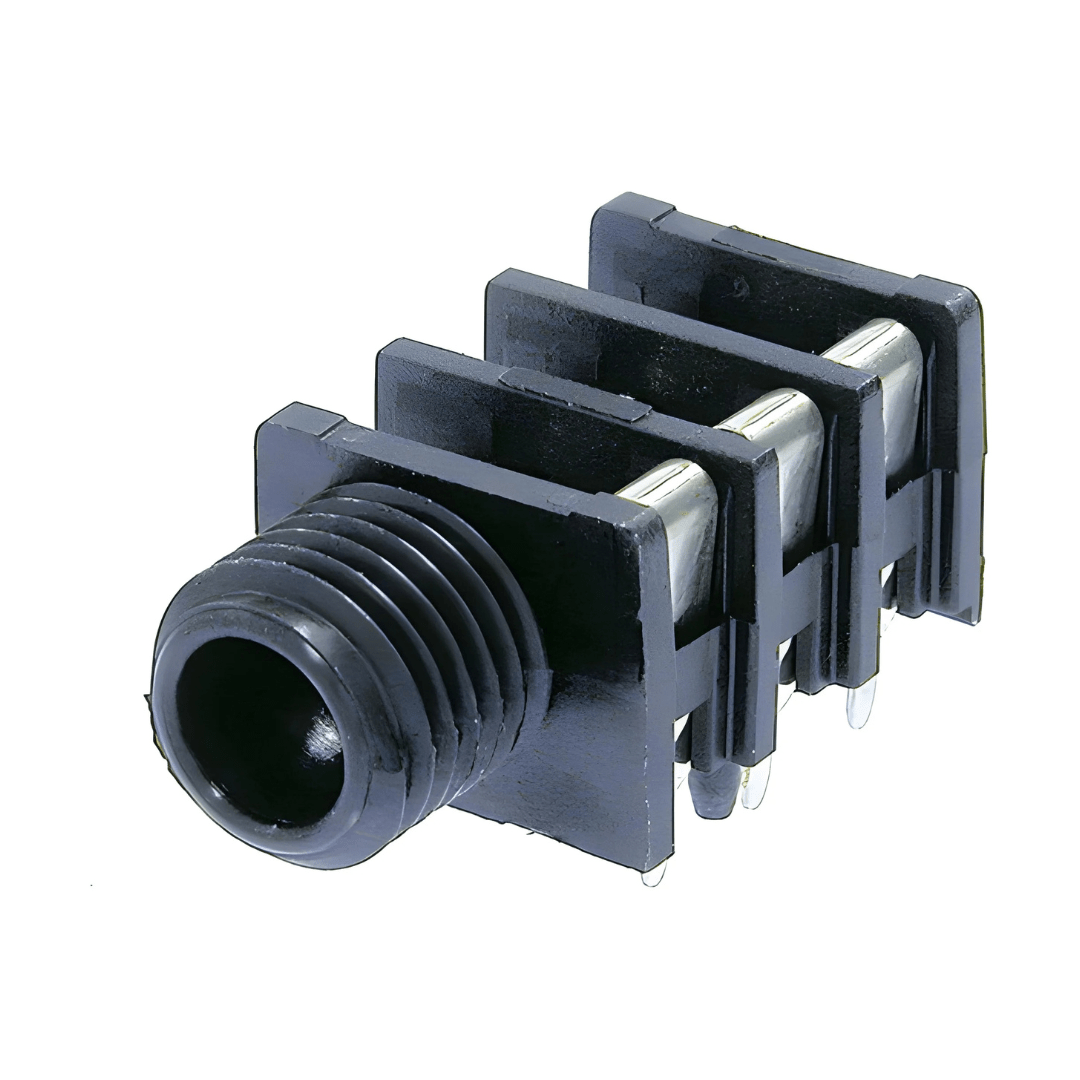

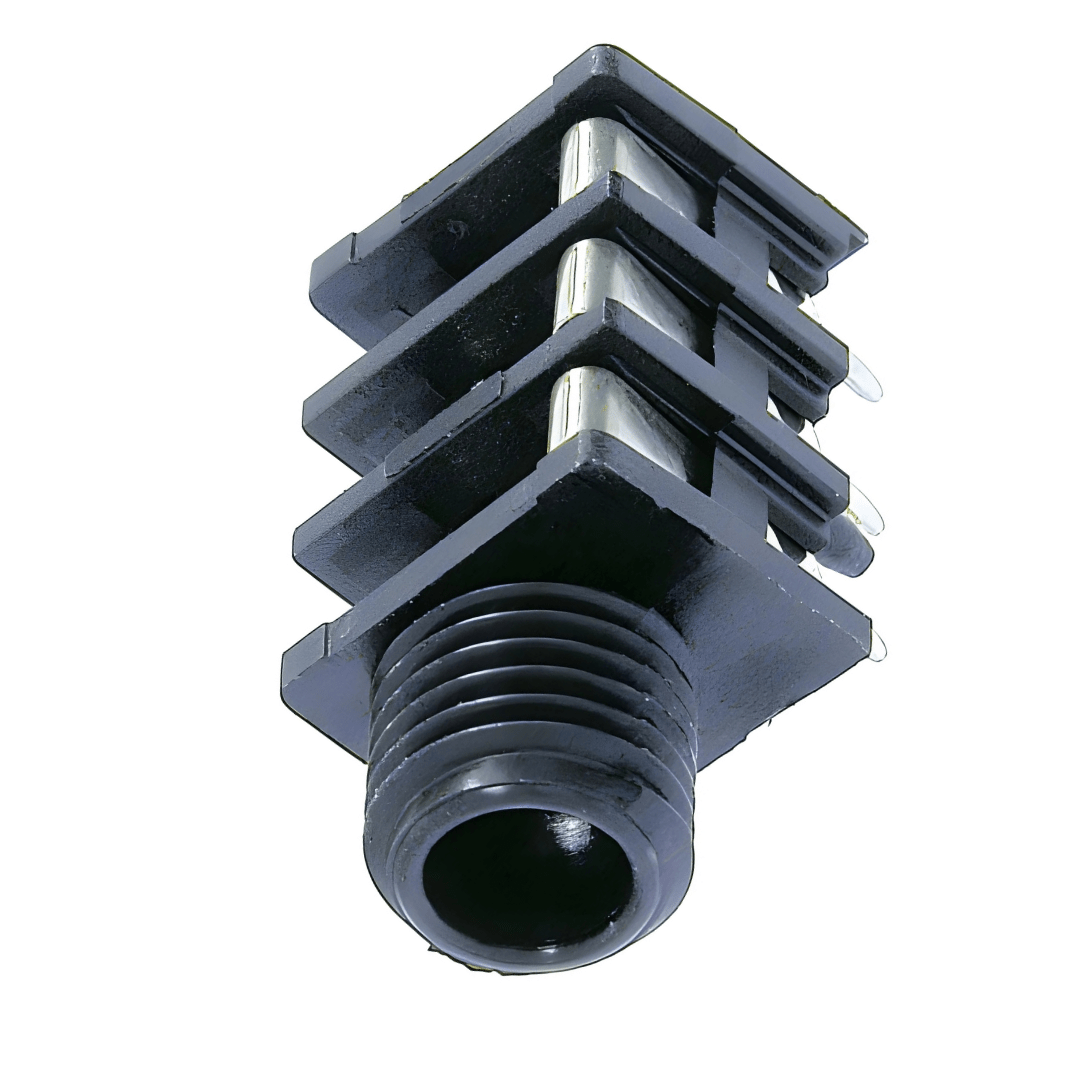

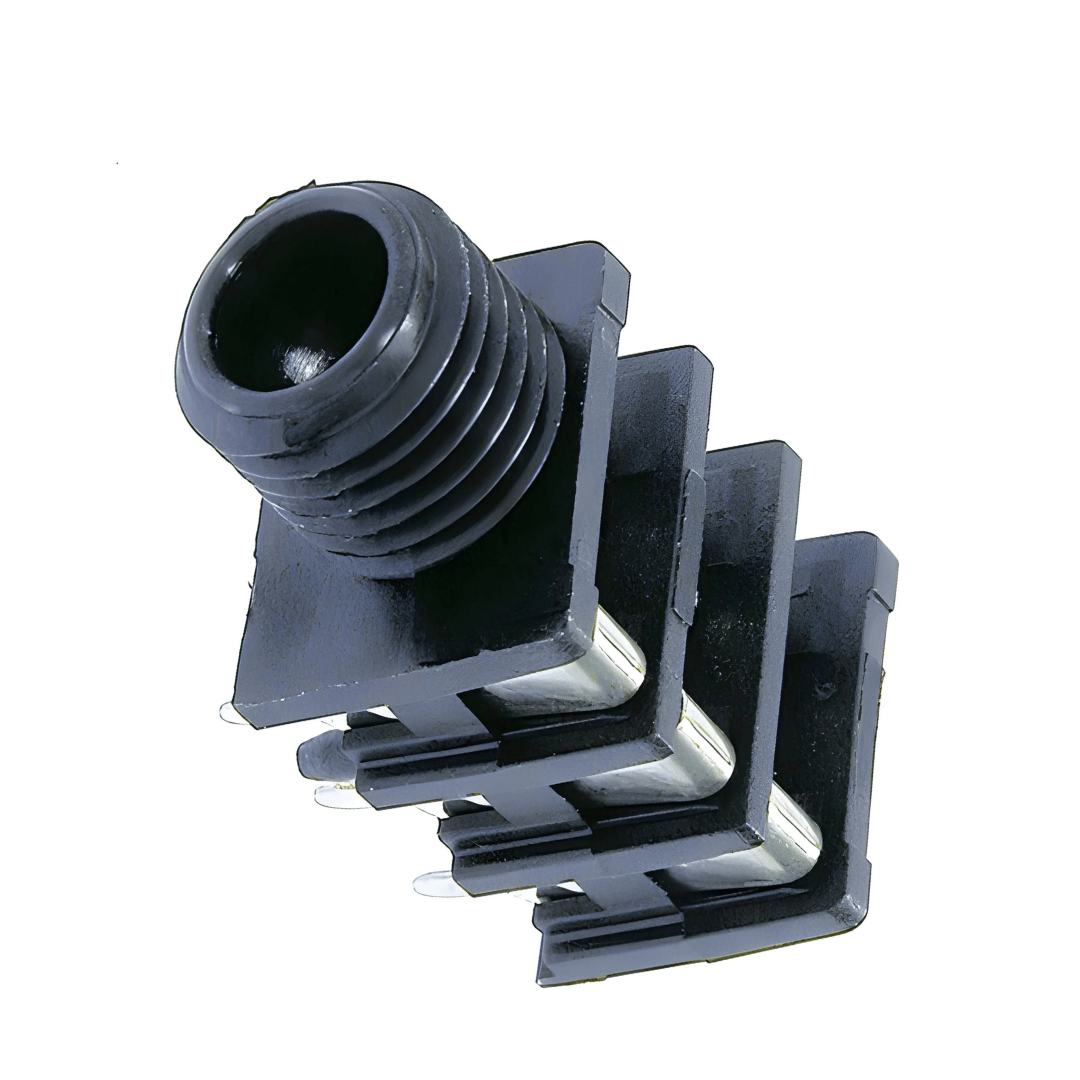

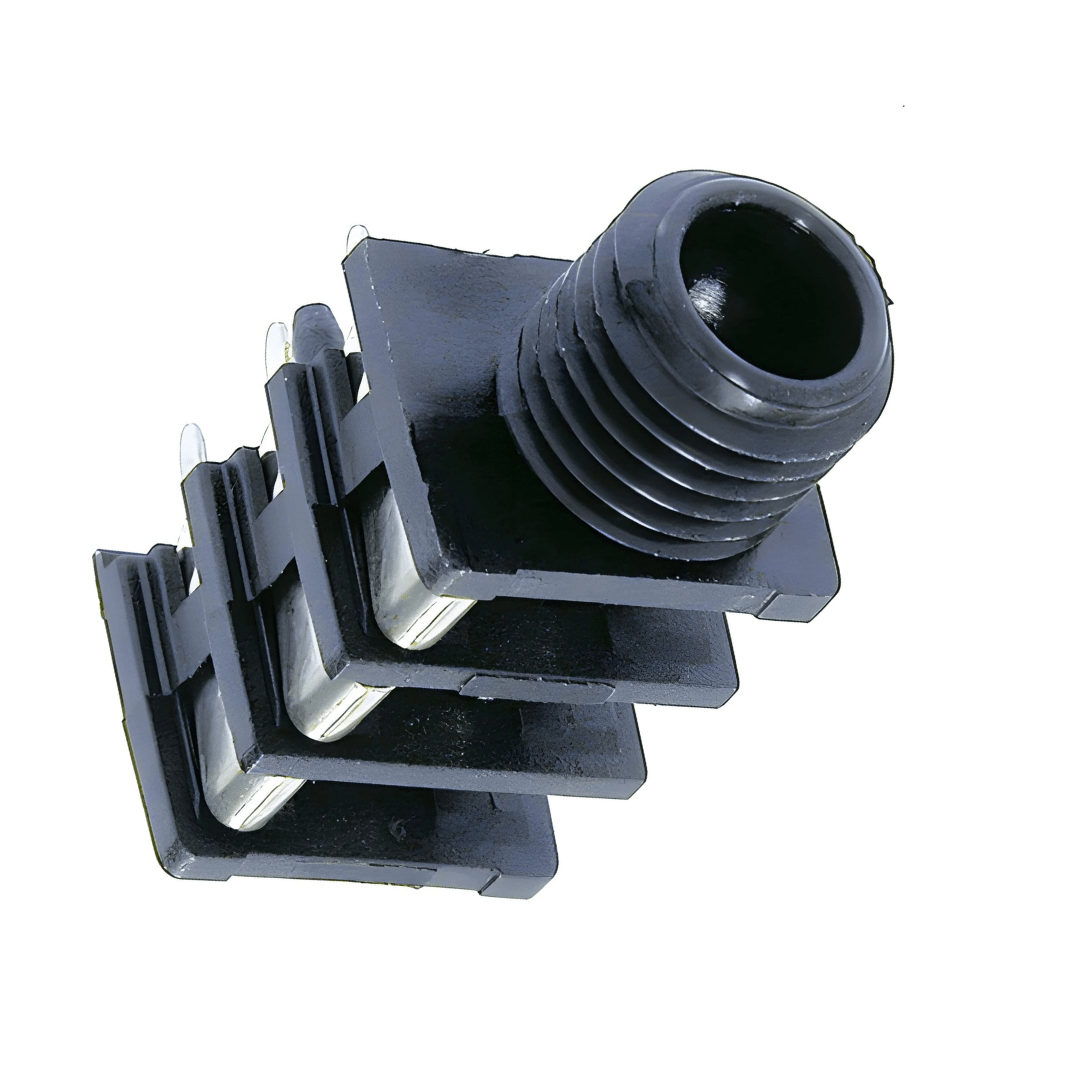

• ¼″ (6.35 mm) stereo jack socket (female)
• Horizontal PCB mount with threaded nose for secure panel fastening
• Includes switching contacts for automatic signal routing
• Designed for high-density layouts (15.88 mm spacing between centers)

Features

• Compact design for dense PCB or panel assemblies
• Threaded nose allows nut fastening to panels up to 3 mm
• Switched contacts enable input/output rerouting
• Durable—rated for > 10,000 mating cycles
• Meets EIA RS-453 and IEC 60603-11 standards
• Operating temperature: −25 °C to +70 °C

Specifications

• Electrical
  • Contact resistance: < 10 mΩ (typ.), < 25 mΩ (max)
  • Dielectric strength: 1 kV DC
  • Insulation resistance: ≥ 1 GΩ at 500 V DC
  • Current rating: 3 A per contact, 0.5 A @ 50 V for switch
• Mechanical
  • Insertion force: < 30 N
  • Withdrawal force: > 10 N
  • Panel thickness: ≤ 3 mm
  • Mounting: horizontal PCB
• Materials
  • Housing: polyamide (PA 6.6 GF, UL94 V-0)
  • Ring nut: brass, nickel-plated
  • Contacts: bronze alloy (CuSn6), silver-plated (2 µm)

What's in the box

• 1 x Stereo Jack Connector
