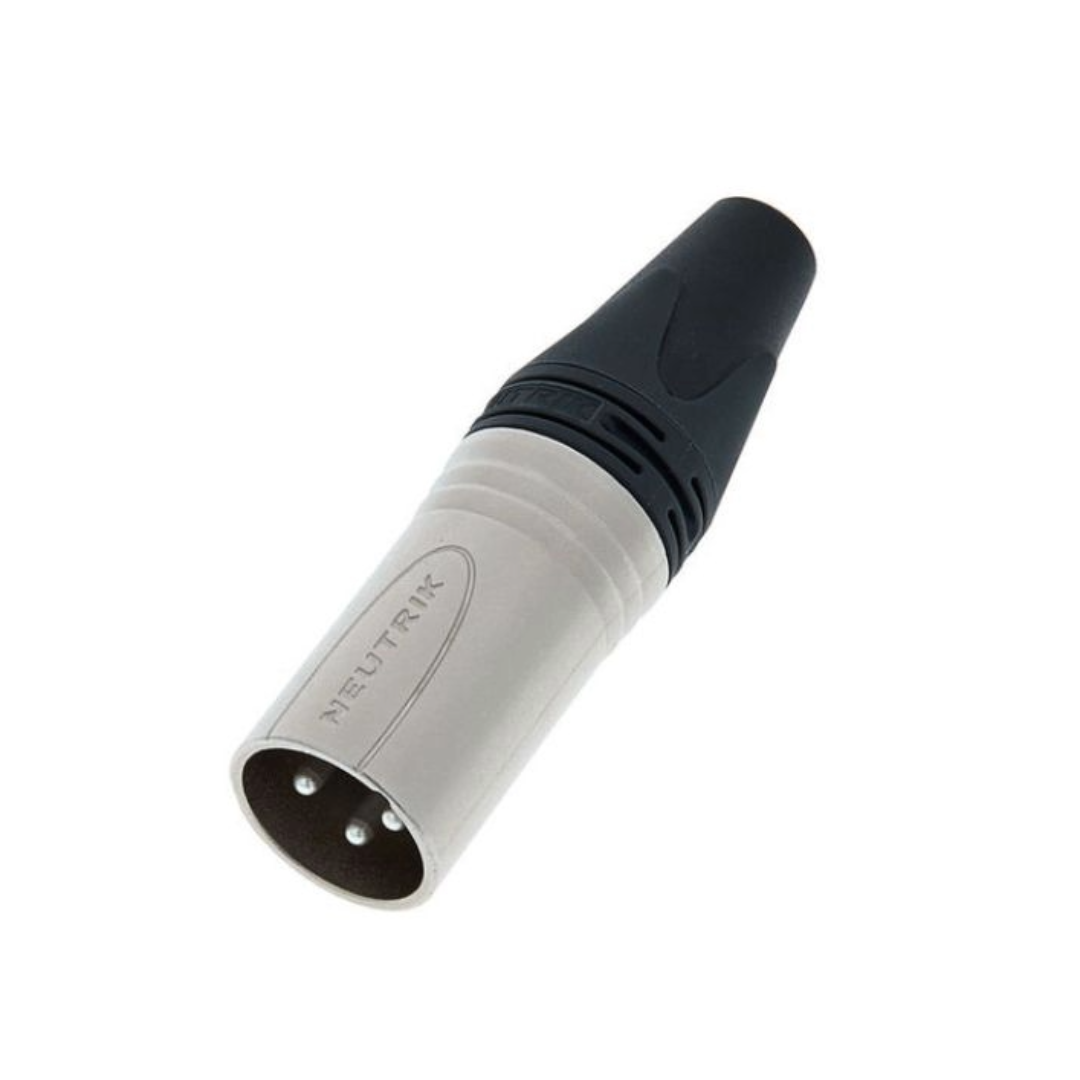

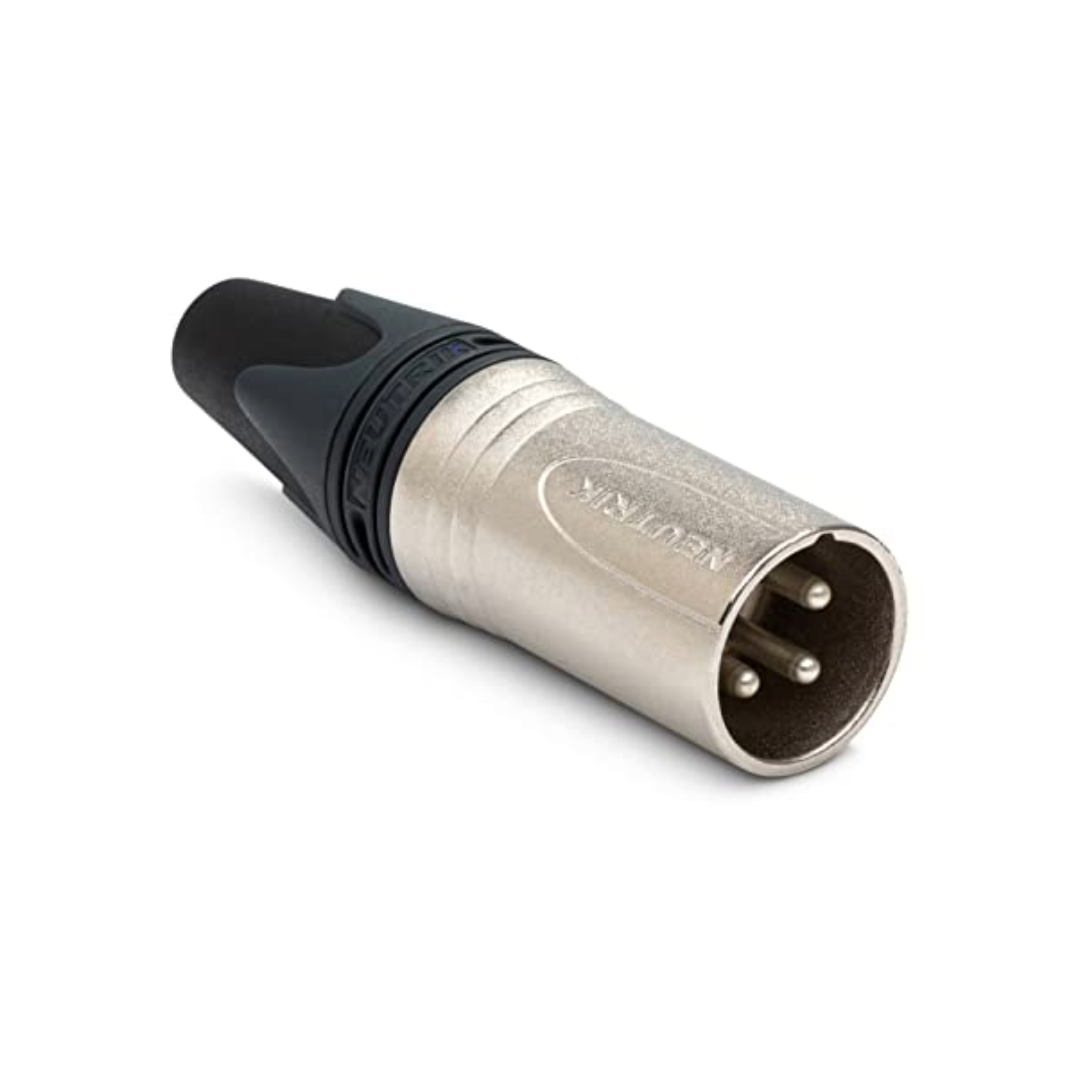

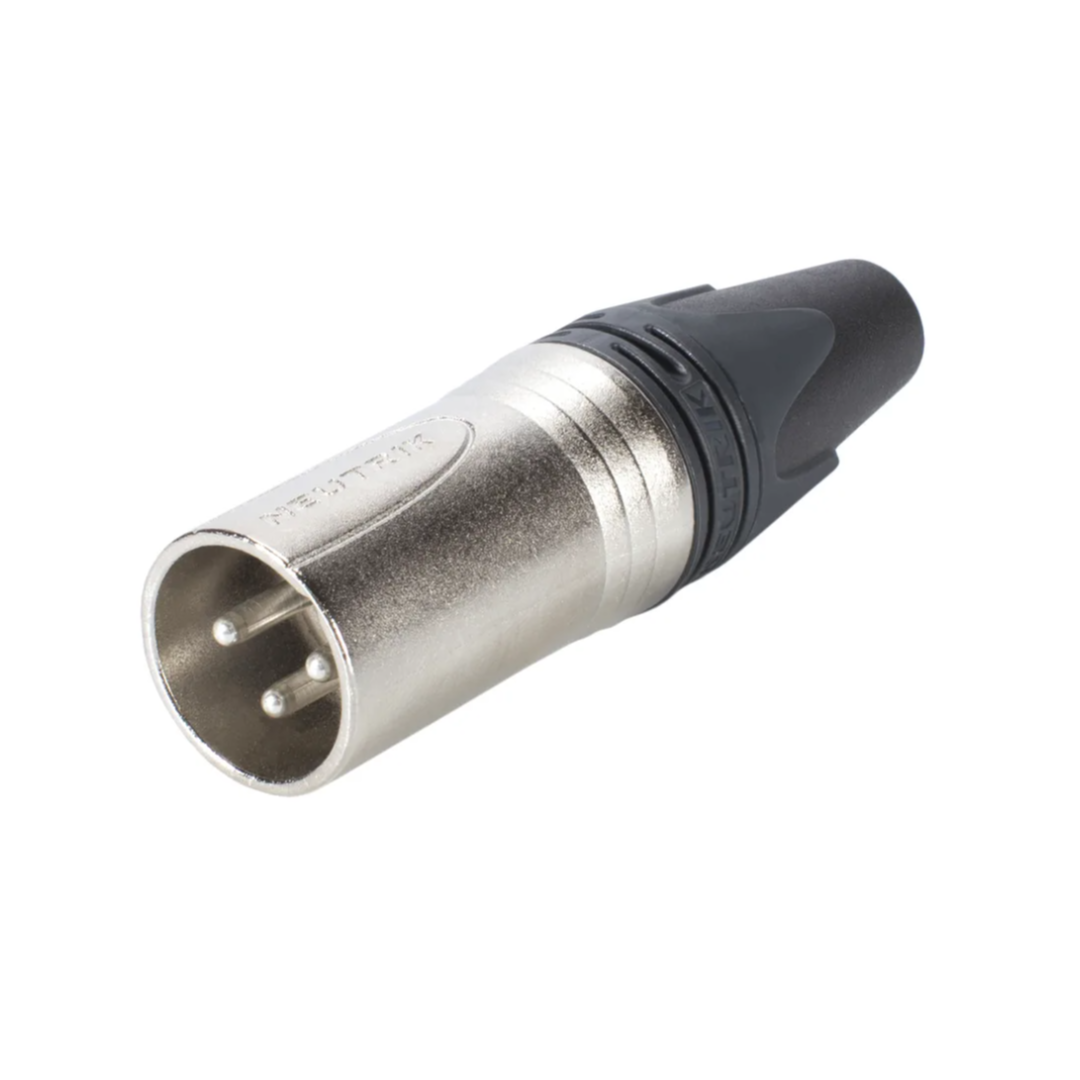

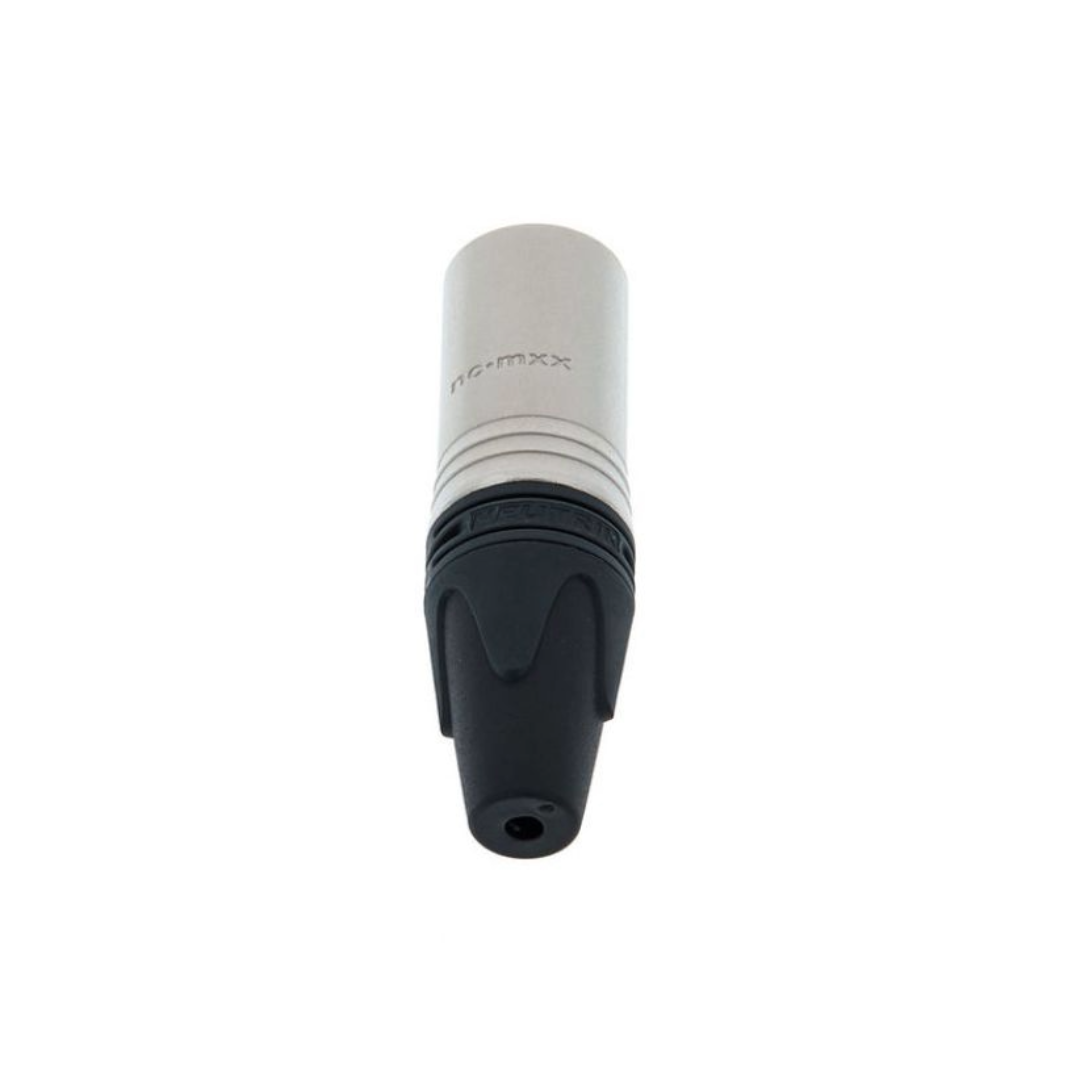

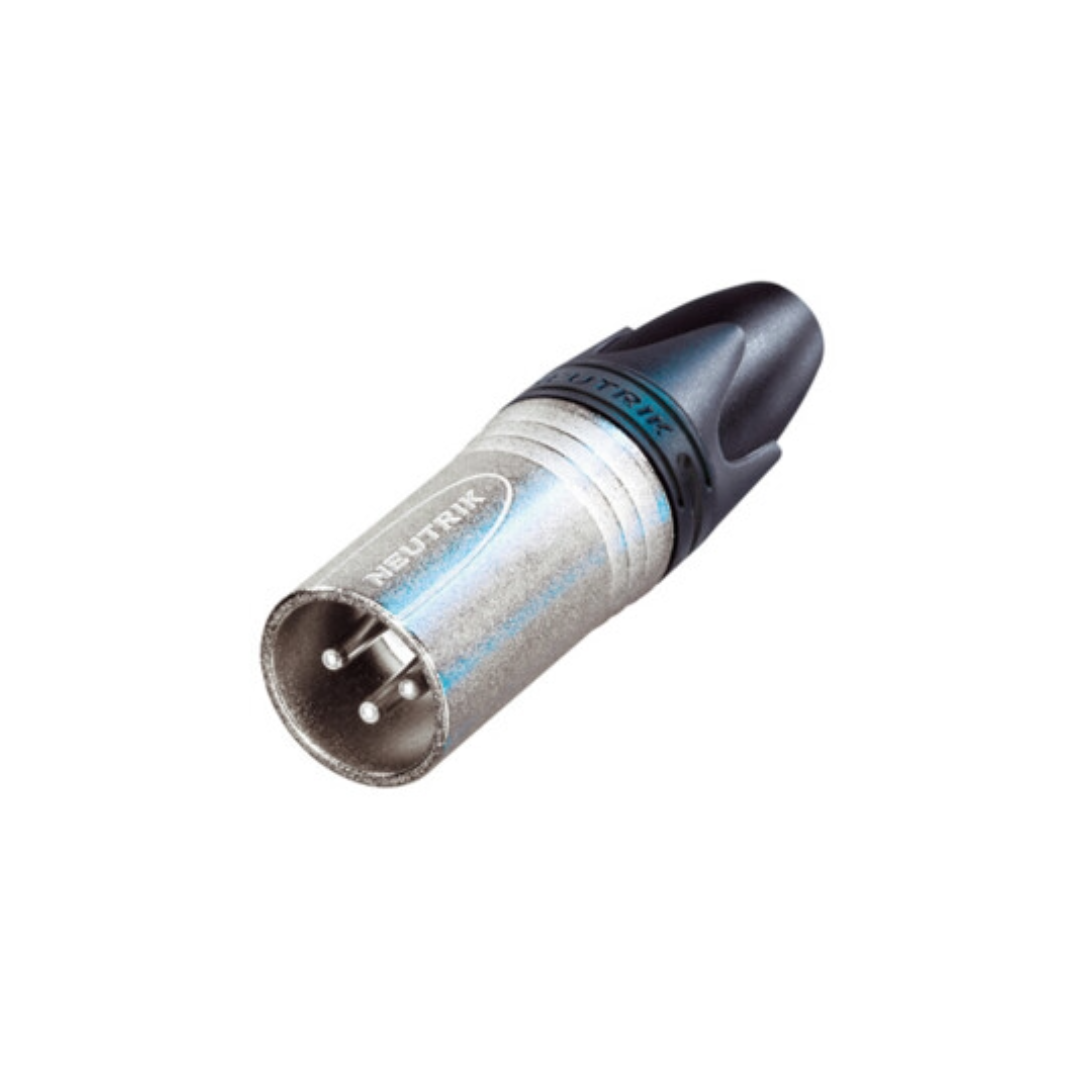

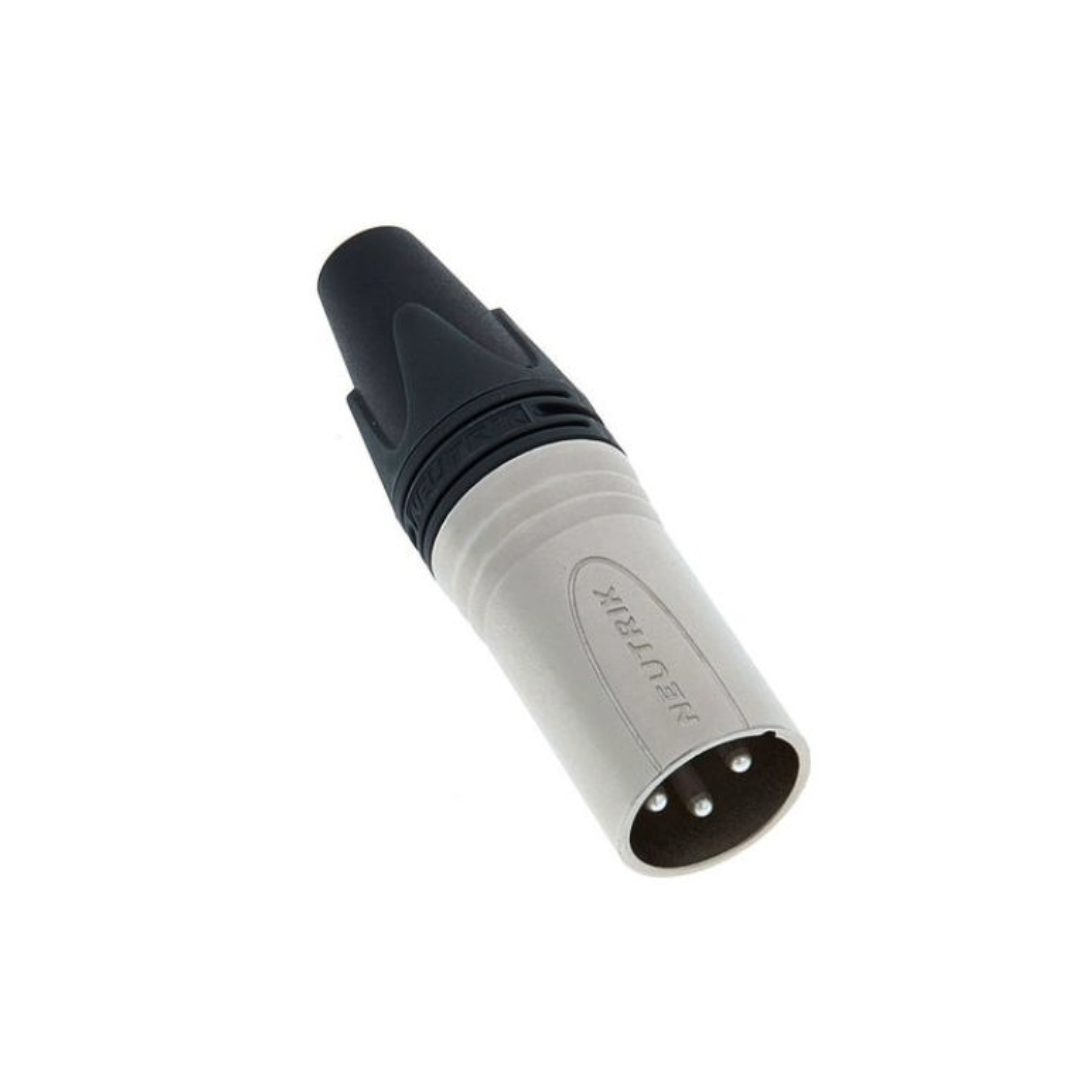

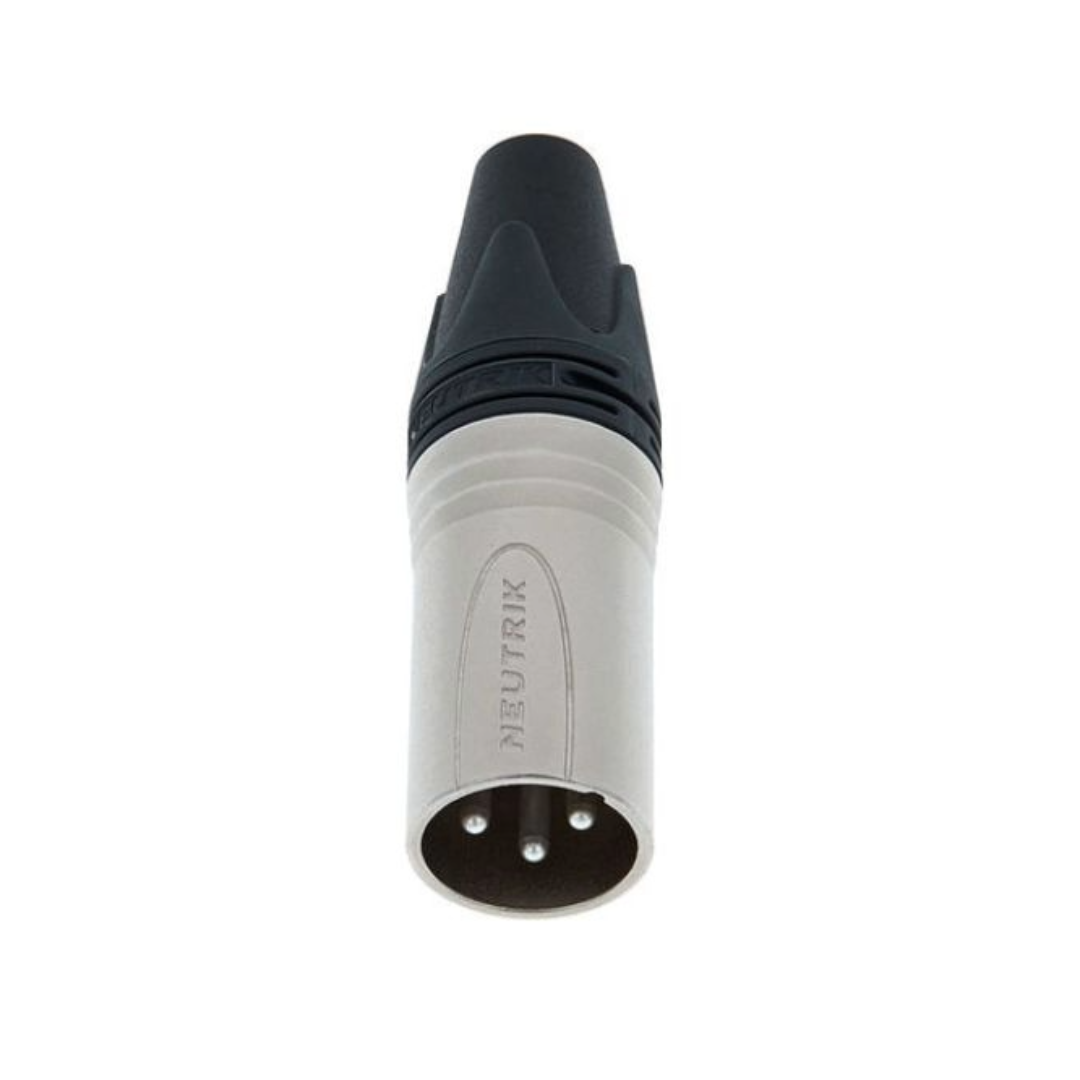

Neutrik NC3MXX 3-Pole Male XLR Inline Cable Connector

R 129.90
Quantity:
Sku: 28552288
Visa Mastercard American Express Ozow MTN Mobile Money

  • Ensure uninterrupted signal transfer and tour-grade connection security with the industry-standard NC3MXX 3-Pole Male XLR Inline Cable Connector.
  • As part of a globally acclaimed series, this professional male connector is trusted by broadcast networks, recording studios, and touring live-sound engineers worldwide to assemble reliable balanced microphone lines, line-level patch snakes, and balanced audio interconnects.
  • The connector features a streamlined, ergonomic zinc die-cast housing with a durable nickel plating that resists physical crushing and impacts while shielding internal audio signals against radio frequency (RF) and electromagnetic noise.
  • It incorporates a specialized locking recess that eliminates the traditional, easily broken locking window, significantly boosting the physical strength of the connection when mated to a female XLR socket.
  • To improve reliability over decades of use, the internal core is equipped with precision-turned brass contact pins treated with high-conductivity silver plating over a nickel sub-layer.

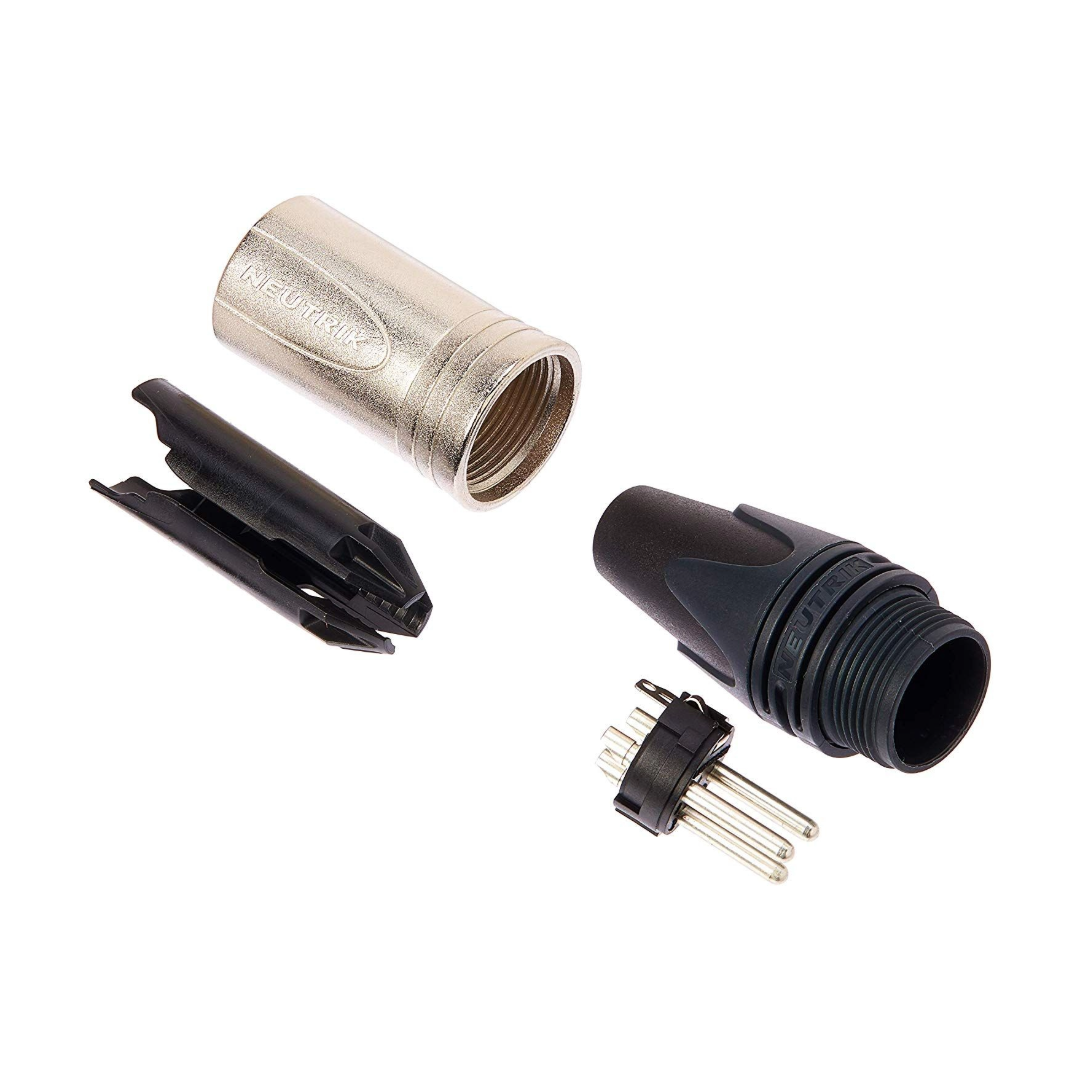

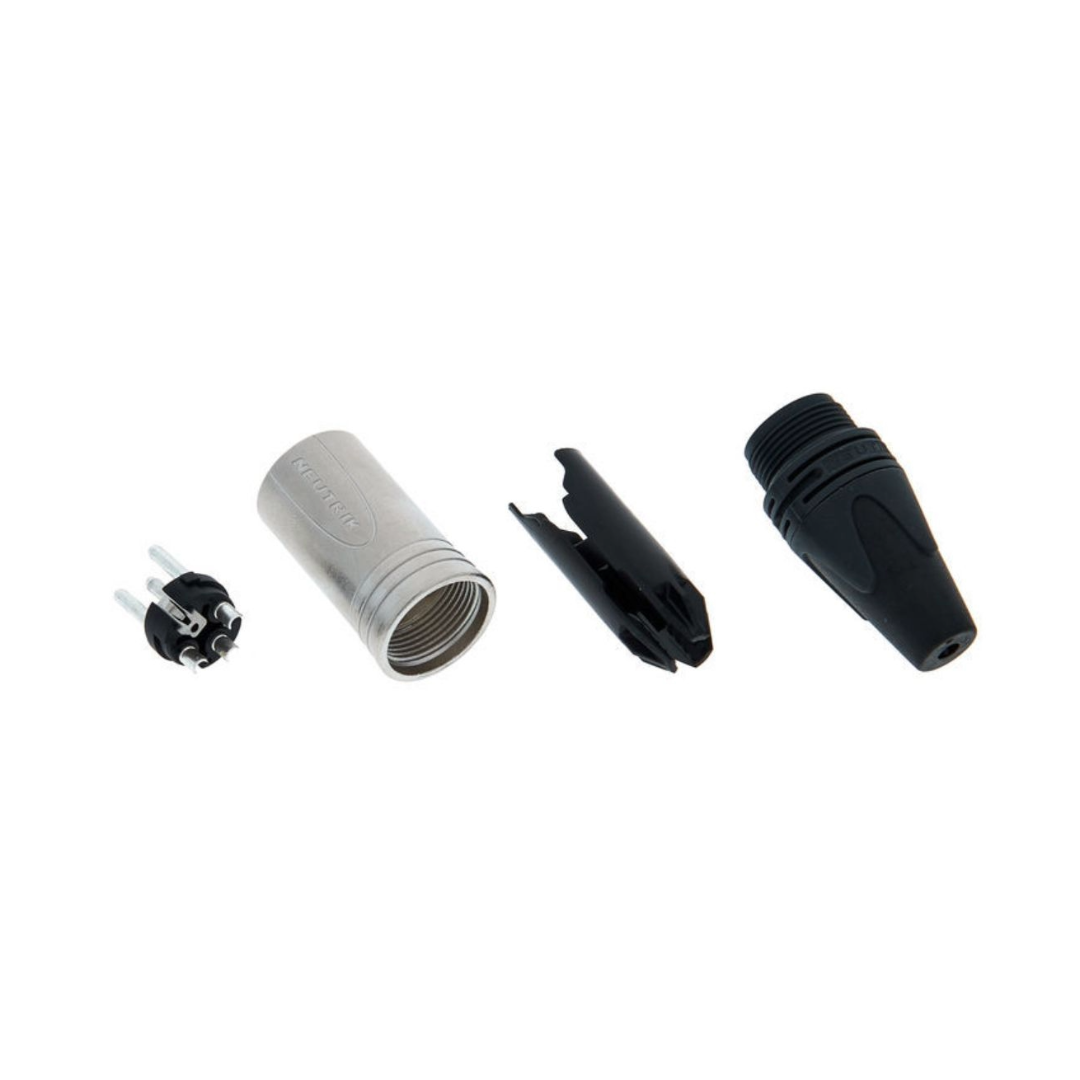

  • The connector uses an upgraded polyoxymethylene (POM) chuck-style internal strain relief clamp that exerts massive gripping force onto your cable jacket.
  • Working alongside a flexible, integrated polyurethane bushing boot, this mechanism effectively isolates structural pulling forces and bending stress away from the internal precision-solder terminals.
Features
  • Upgraded Shell Design: Streamlined, easy-to-grip zinc die-cast outer housing resists impact damage and offers superior structural shielding.
  • Silver-Plated Contact Pins: Solid brass pins treated with premium silver over nickel plating ensure ultra-low contact resistance and clean conductivity.
  • High-Retention Mechanical Strength: Redesigned locking recess replaces the old-style cutout window to eliminate casing cracks and improve joint longevity.
  • Chuck-Style Strain Relief: Upgraded internal POM clamping teeth lock tightly onto the cable jacket to absorb heavy pulling and twisting forces.
  • Flexible Polyurethane Boot: Integrated rubberized rear boot prevents the cable from kinking or fraying at the critical exit junction point.
  • Ergonomic Solder Terminals: Large, accessible rear solder cups are pre-tinned to streamline wire assembly and ensure robust solder connections.
Specifications
  • Model Code: NC3MXX (also recognized as NC-3/MXX)
  • Connector Type: XLR Male (Inline Cable Plug)
  • Number of Pins (Poles): 3-Pin
  • Shell Housing Material: Zinc Die-cast (ZnAl4Cu1)
  • Shell Housing Plating: Nickel
  • Contact Pin Material: Brass (CuZn39Pb3)
  • Contact Plating: 2 µm Silver (Ag) over 2 µm Nickel (Ni)
  • Inner Insulation Core: Polyamide (PA 6.6 30% GR)
  • Strain Relief Mechanism: Polyoxymethylene (POM) Chuck
  • Bushing Boot Material: Polyurethane (PU)
  • Compatible Cable Diameter: Accepts cables measuring between 3.5 mm to 8.0 mm
  • Contact Resistance: Less than or equal to 3 mΩ
  • Rated Current per Contact: 16 A
  • Termination Method: Rear Solder Cups
What's in the Box
  • 1 x Male 3-Pole XLR Connector
Vendor Neutrik
Type Audio Connectors
Sku 28552288
Barcode 7613187000379
Weight:  0.1 kg
