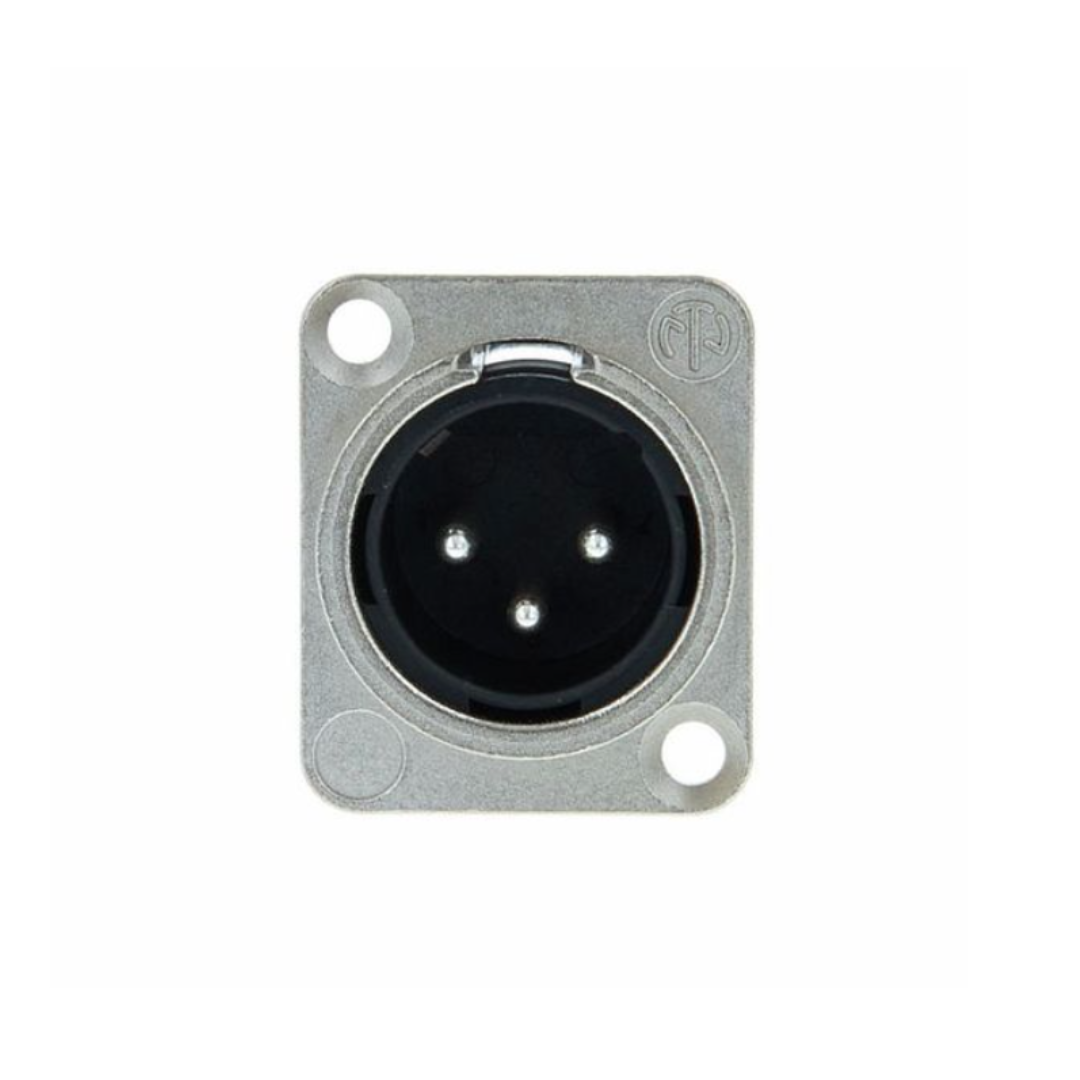

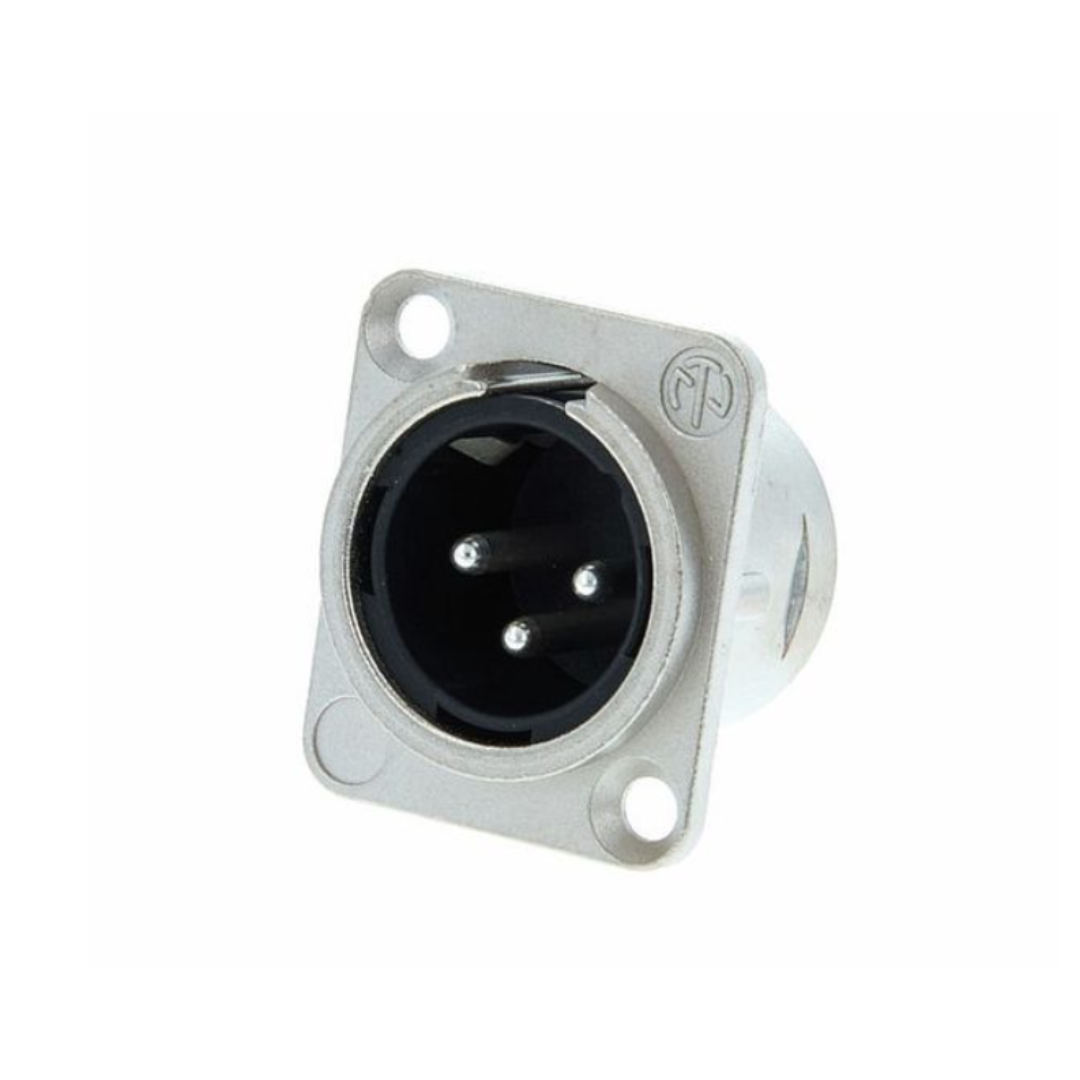

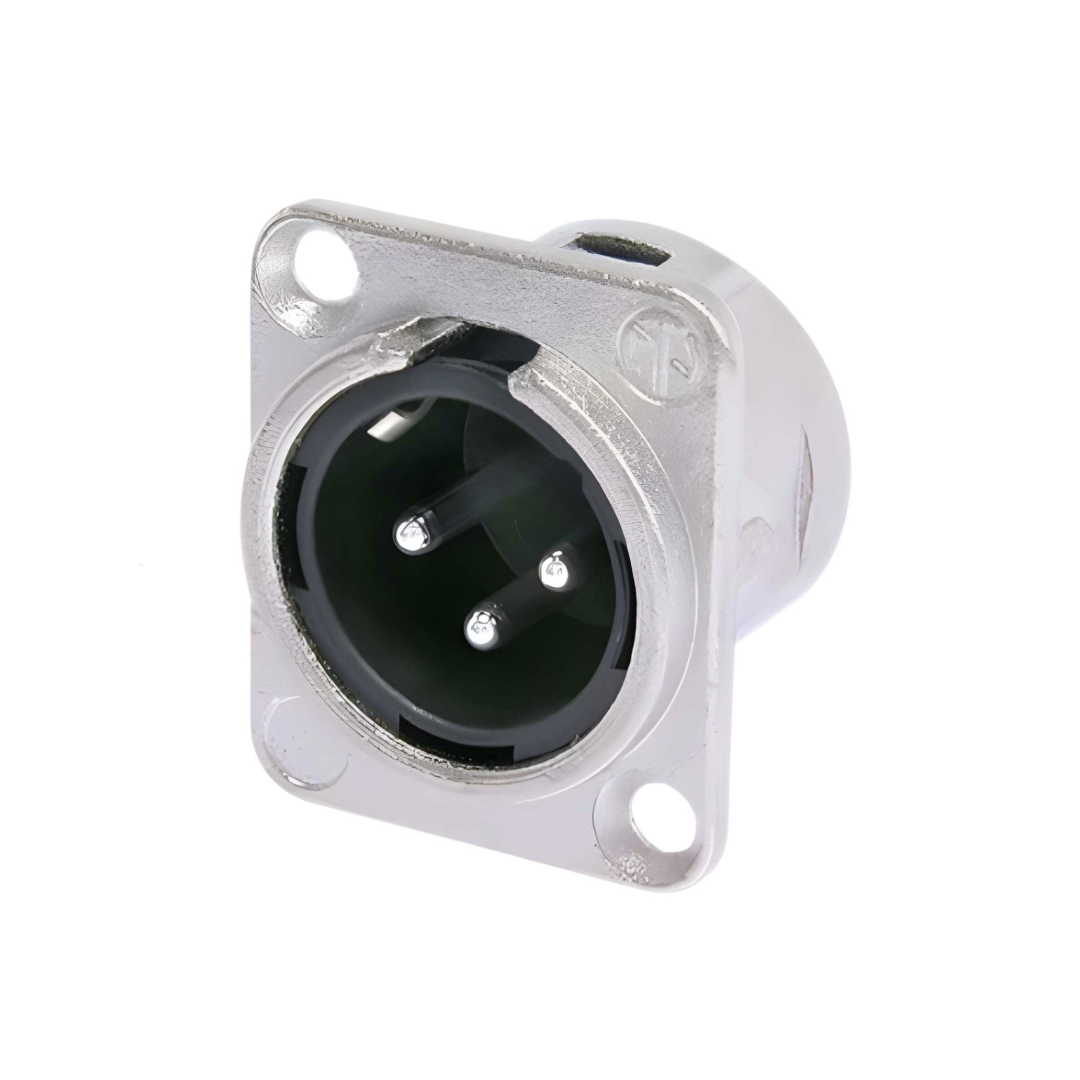

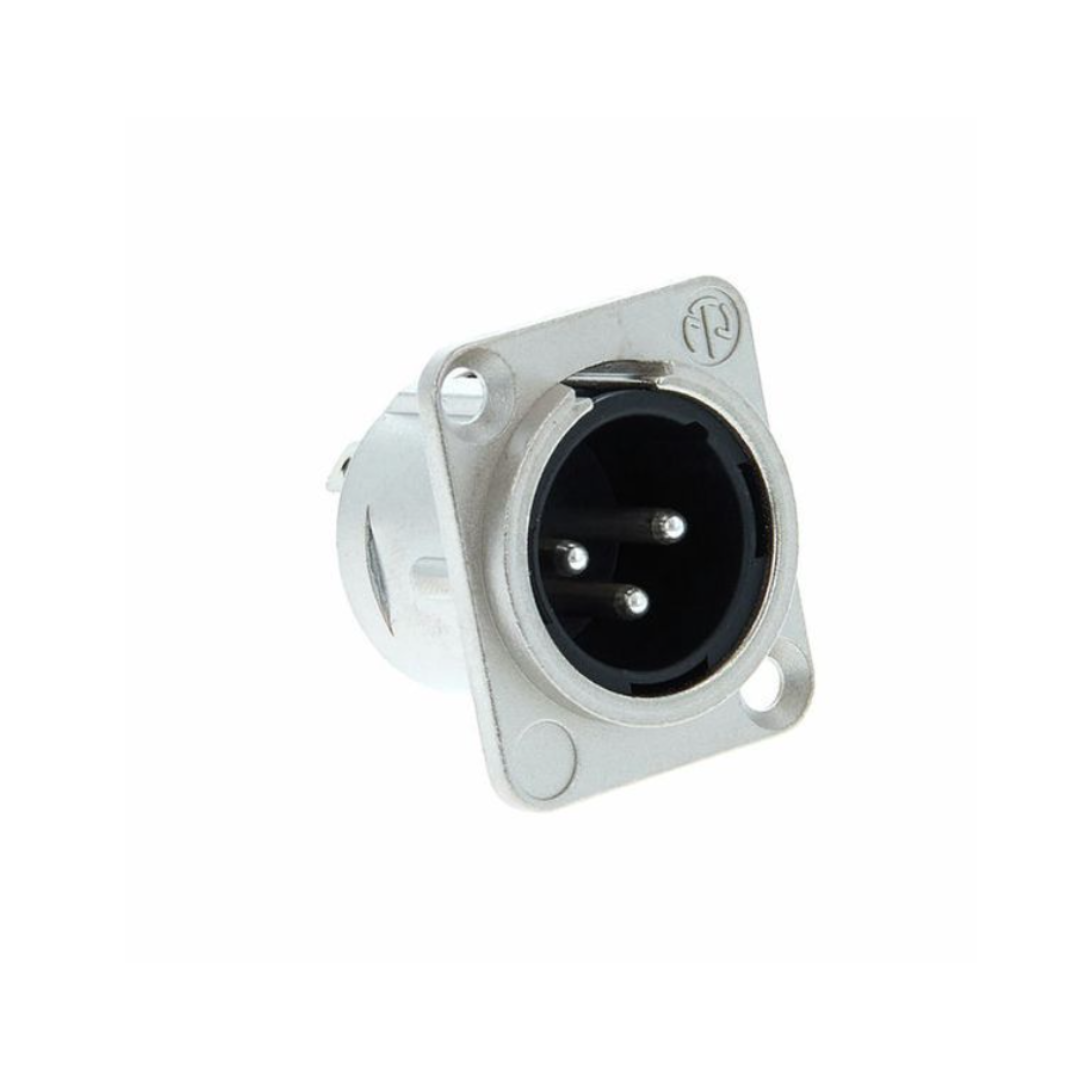

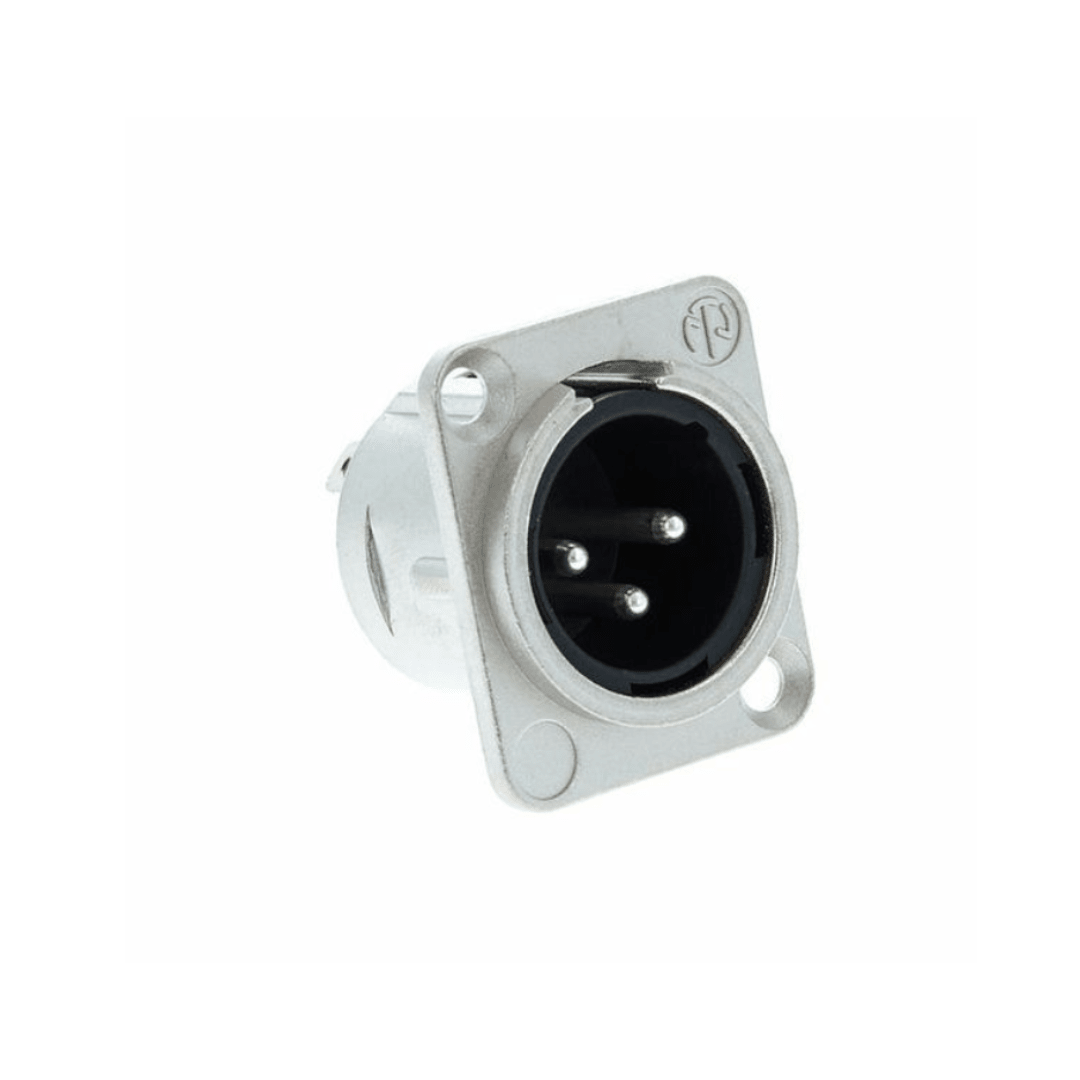

Outfit your custom patch panels, architectural stage boxes, and active loudspeaker enclosures with the industry-standard Neutrik NC3MD-L-1 3-Pin Male XLR Chassis Mount Connector.
As a core component of the highly regarded DL Series, this panel-mount receptacle is trusted worldwide by system integrators, touring sound companies, and recording engineers to deliver continuous electrical contact and tour-grade mechanical performance.
The connector is engineered within a standardized unified "D" size metal body shell, ensuring a drop-in match with any industry-standard 24mm panel cutout.
Constructed from an ultra-rugged zinc die-cast housing and finished in premium nickel plating, the chassis offers optimal shielding performance, isolating internal signals from surrounding radio frequency (RF) and electromagnetic interference (EMI).
Internally, the receptacle features high-conductivity brass contact pins treated with 2 microns of silver plating over a nickel sub-layer.
This specialized combination achieves extremely low contact resistance (less than or equal to 5 mΩ) and delivers exceptional thermal tolerance during assembly.

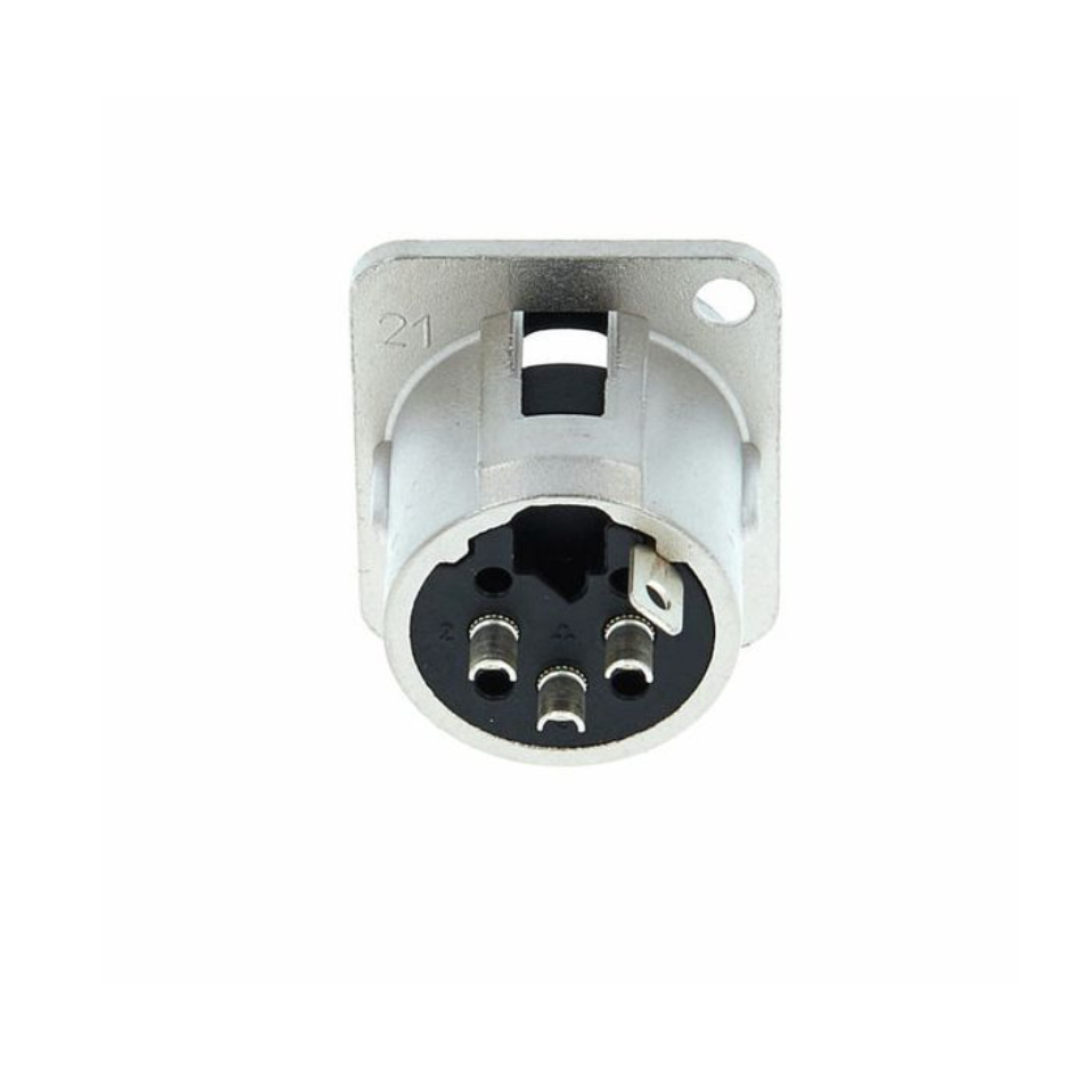

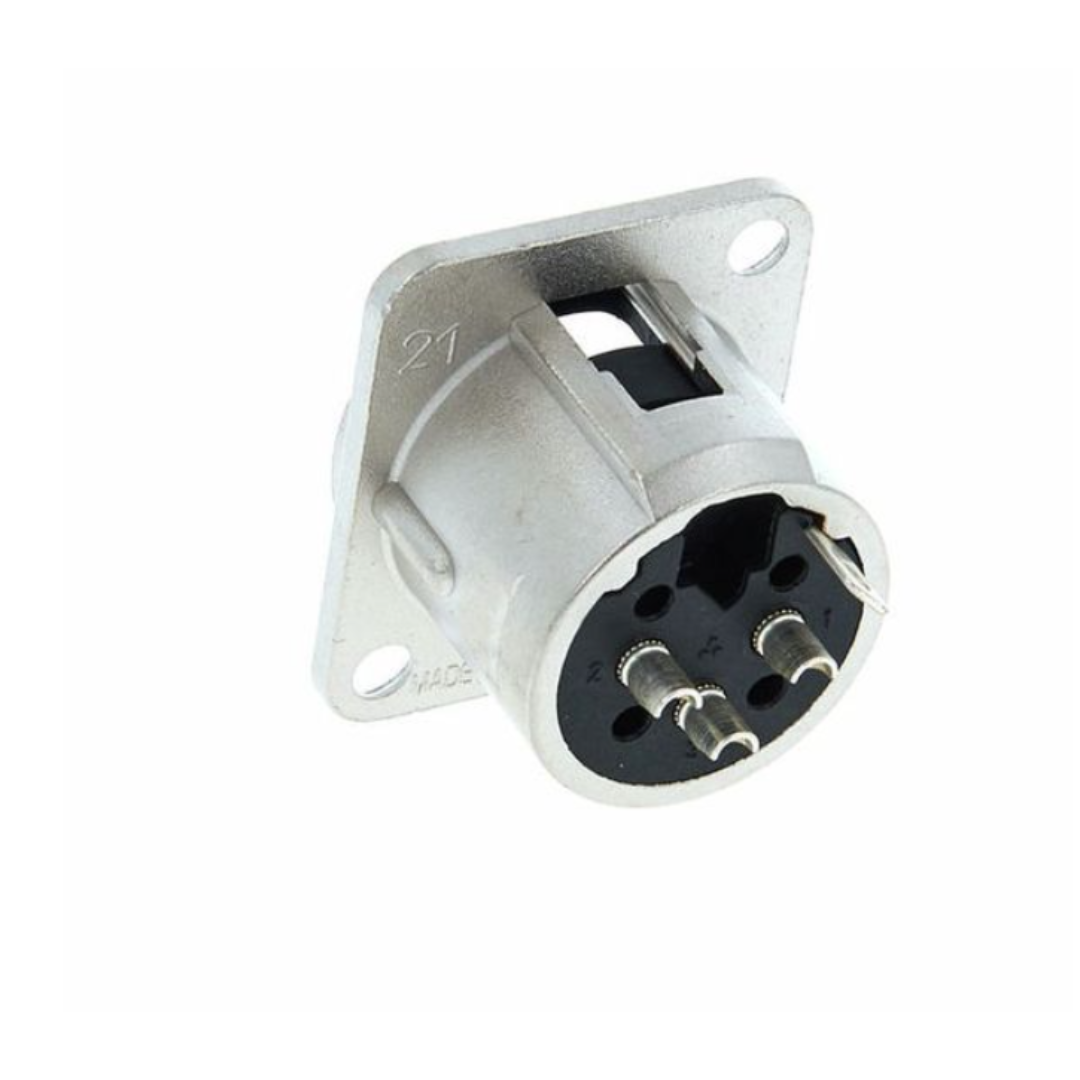

Outfitted with deep, spacious rear solder cups, this front-mounting chassis connector streamlines custom manual wiring setups while ensuring clean, high-retention solder joints for critical balanced lines.
Features
Unified D-Size Shell: Fits perfectly into standard 24mm panel cutouts, allowing easy mixing and matching with female ports or data connectors on the same plate.
Silver-Plated Contacts: Premium 2 µm silver over nickel plating across the brass pins ensures ultra-low contact resistance and clean electrical transfer.
Rugged Zinc Die-Cast Housing: Heavy-duty metal construction protects the inner core against impacts, deformation, and intensive road handling.
Generous Solder Cups: Features large, open rear solder terminal terminals that anchor your wiring workflow for faster, more secure connections.
RF & Noise Isolation: The full-metal envelope assists in continuous shield grounding, deflecting external buzzes, hums, and static.
Front Panel Mounting: Designed specifically for clean, direct front-of-panel installation utilizing standard countersunk mounting holes.
Specifications
Model Code: NC3MD-L-1 (also referenced as NC-3/MD/L-1)
