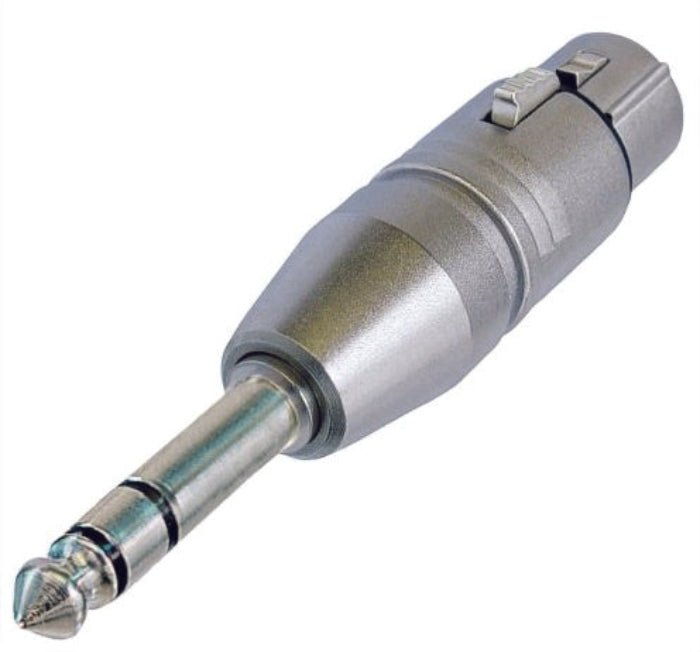

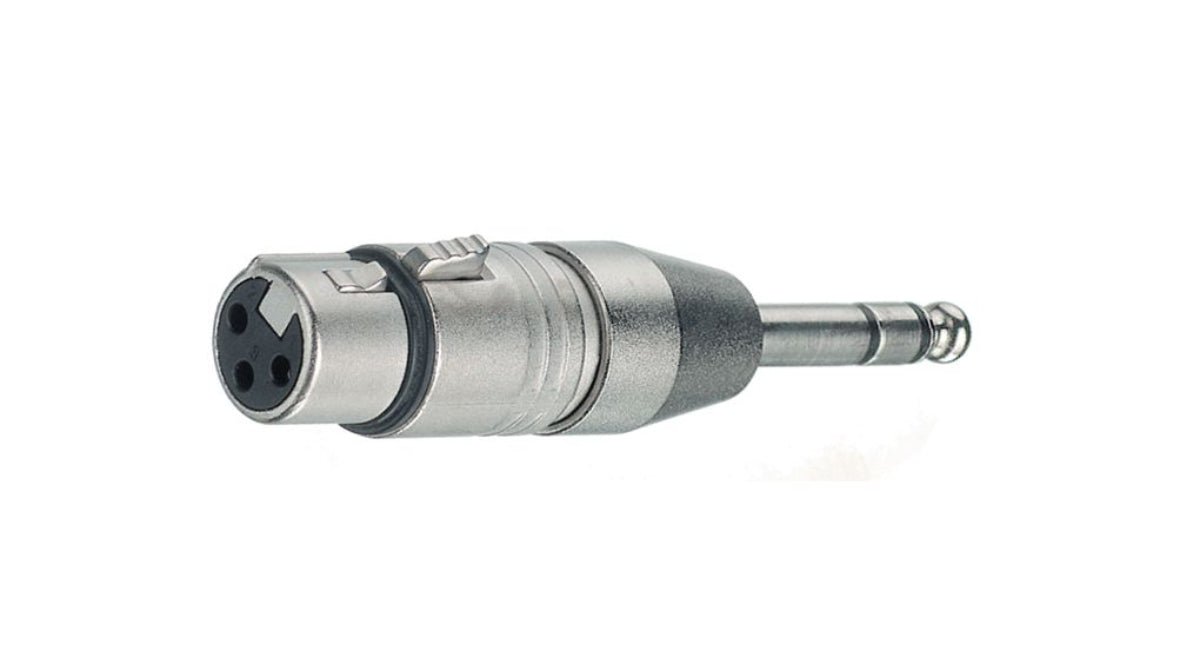

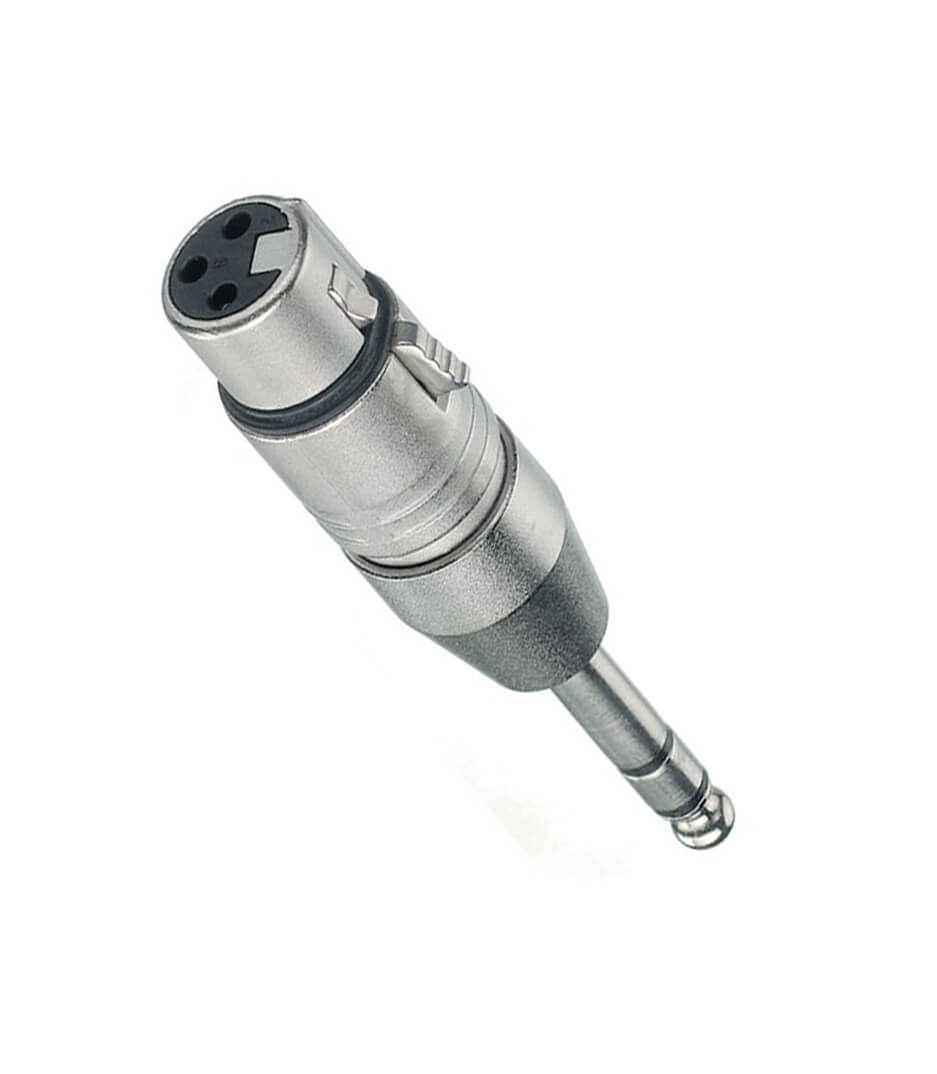

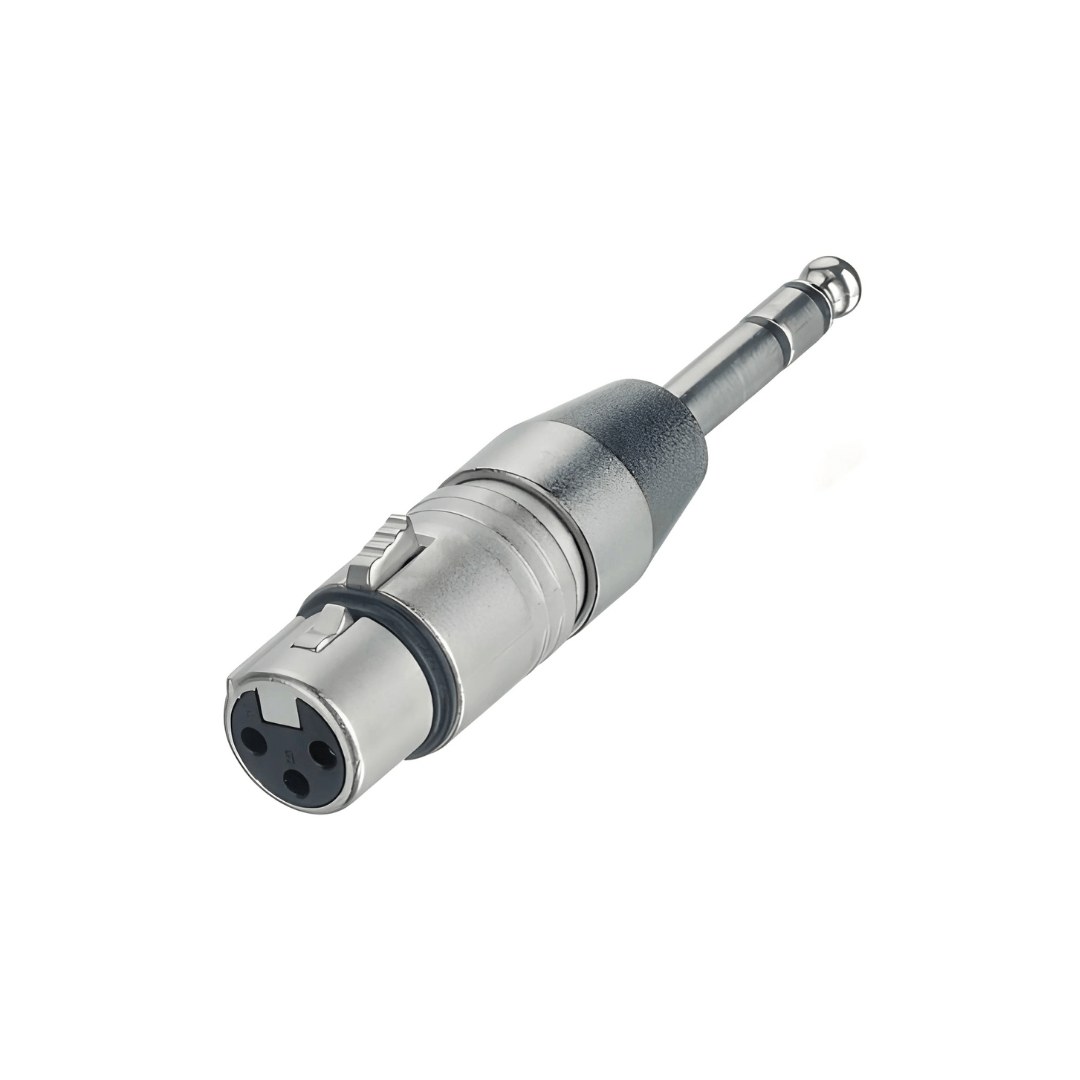

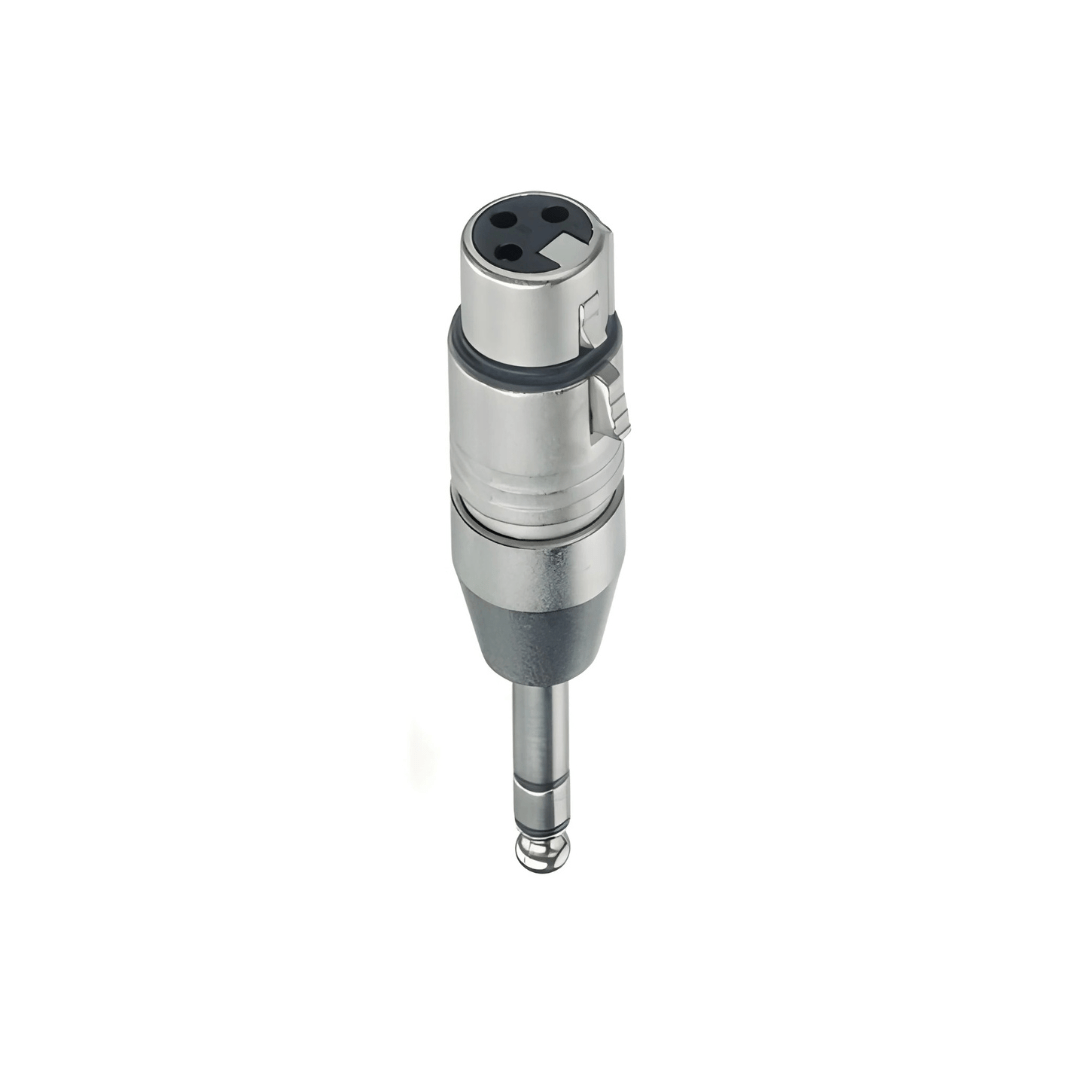

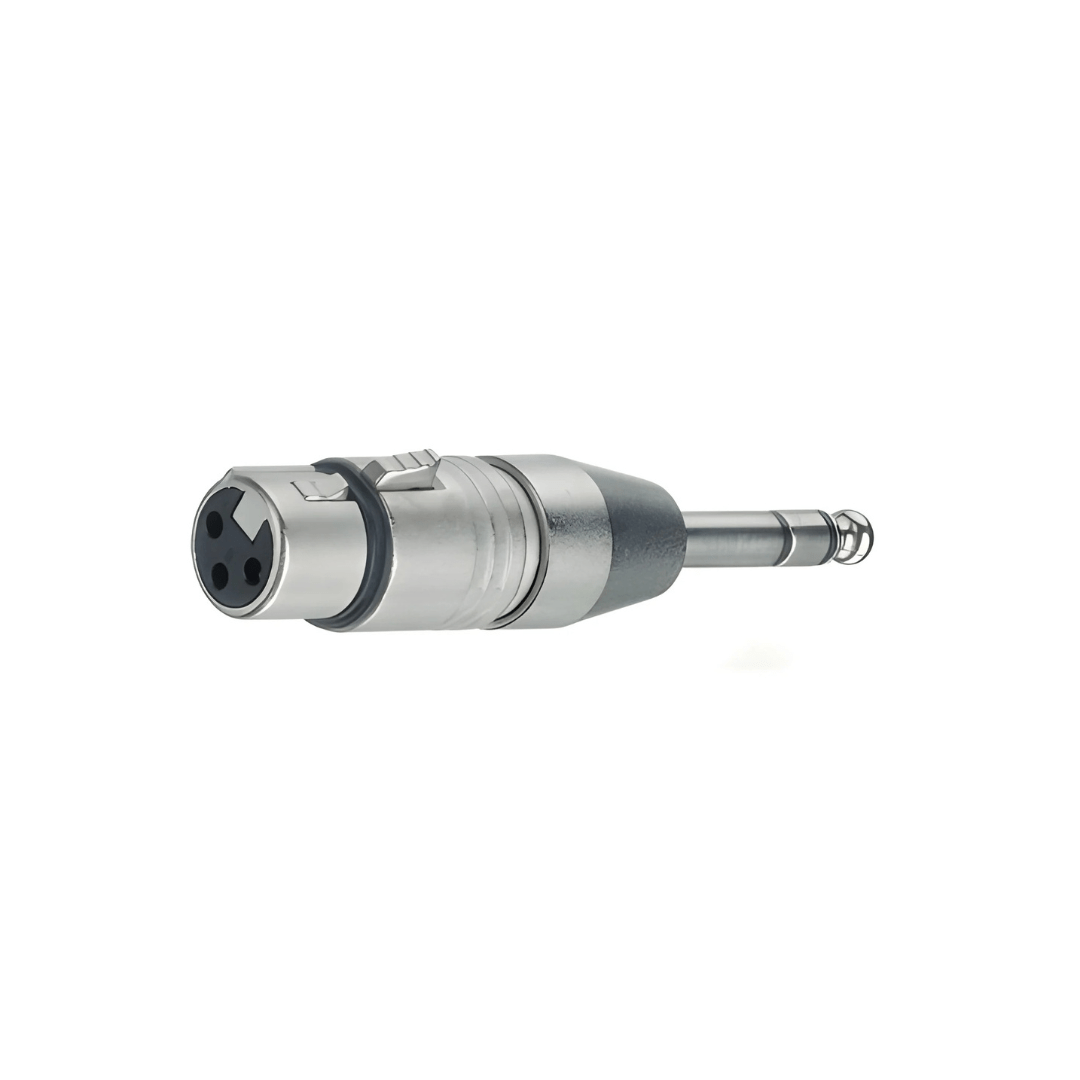

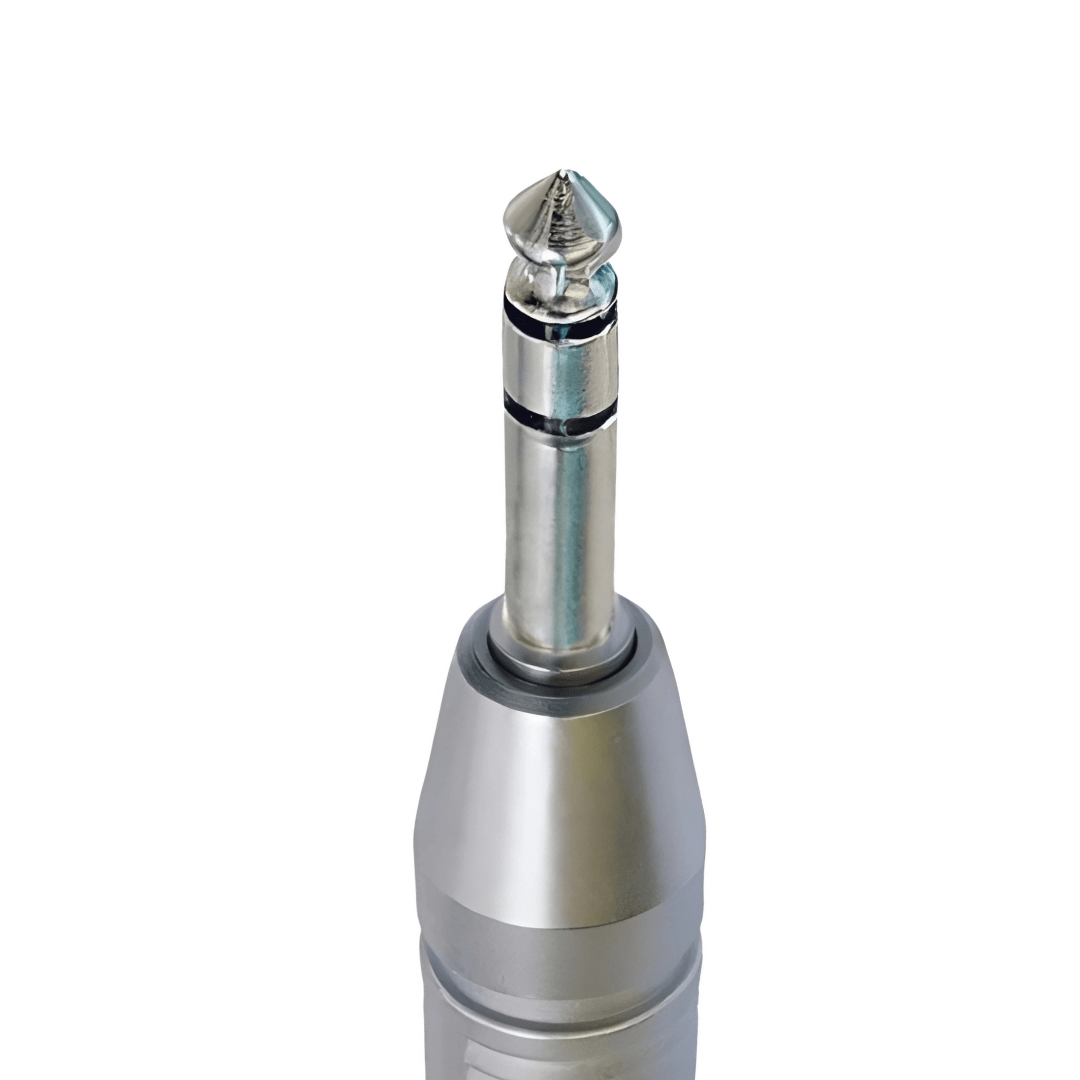

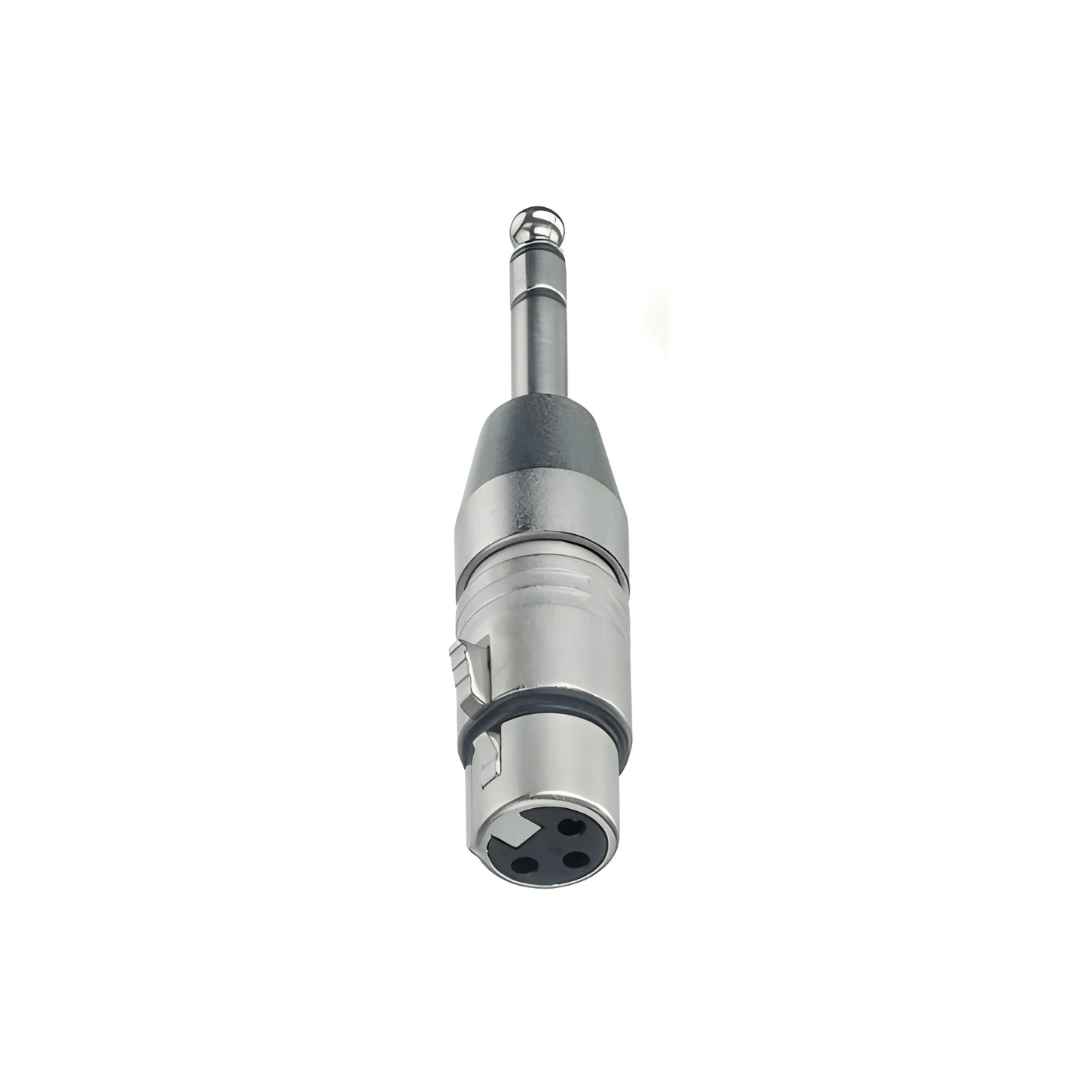

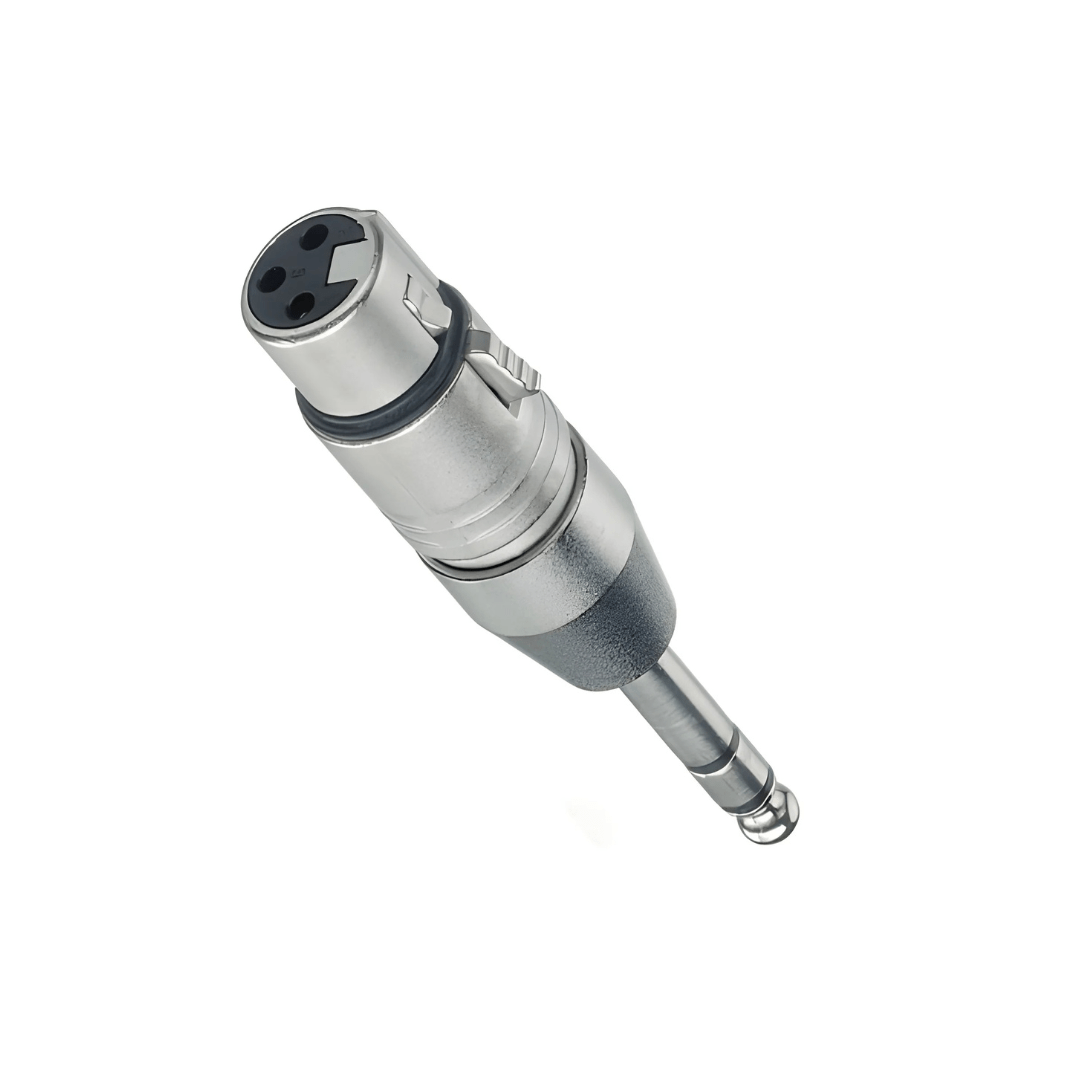

• The Neutrik NA3FP is a professional, pre-wired audio adapter designed to convert a 3-pole XLR female connection to a stereo ¼″ (6.35 mm) TRS male plug.

• It is widely used in professional audio environments such as studios, live sound systems, and patch bays.

• The adapter is built on Neutrik’s proven X-Series connector design, offering exceptional durability, reliability, and signal integrity.

• Its compact and rugged die-cast housing makes it ideal for both mobile and installed applications.

Features

• Converts 3-pole XLR female to ¼″ TRS male plug
• Pre-wired and ready to use — no soldering required
• Compact, professional design based on Neutrik’s X-Series standard
• Rugged zinc die-cast shell for durability and long life
• High-quality contact materials ensure reliable signal transfer
• Operating temperature range from –20 °C to +65 °C
• RoHS compliant and manufactured to Neutrik’s high standards

Specifications

• Connector type: 3-pole XLR female to ¼″ (6.35 mm) TRS male plug
• Contact resistance (XLR side): ≤ 3 mΩ
• Contact resistance (plug side): ≤ 6 mΩ
• Dielectric strength: 1.5 kV DC / > 1 kV DC (XLR/Plug)
• Insulation resistance: > 2 GΩ
• Contact plating: 2 µm silver over 2 µm nickel
• Contact material: Brass (plug), Bronze (XLR)
• Insert material: Polyamide (PA 6.6, 30% glass-filled)
• Shell material: Zinc die-cast (ZnAl4Cu1) with nickel plating
• Temperature range: –20 °C to +65 °C
• Weight: Approx. 52.5 g
• Compliance: RoHS compliant
• Configuration: Pre-wired, ready to use (no soldering required)
• Signal type: Balanced stereo adapter
• Design standard: Neutrik X-Series housing
• Operating environment: Professional audio, studio, or live sound use

What's in the box

• 1 x 3-Pole XLR Female to 6.35 TRS Male Stereo Adapter
