Solve ground loops, hums, and signal mismatch issues instantly with the professional Neutrik NA2M-D2B-TX 1:1 Miniature Audio Transformer Balancing Adapter.
Built specifically for broadcast environments, recording studios, live staging, and high-end AV installations, this inline utility component acts as a passive impedance-matching bridge and balancing adapter between consumer unbalanced lines and professional balanced systems.

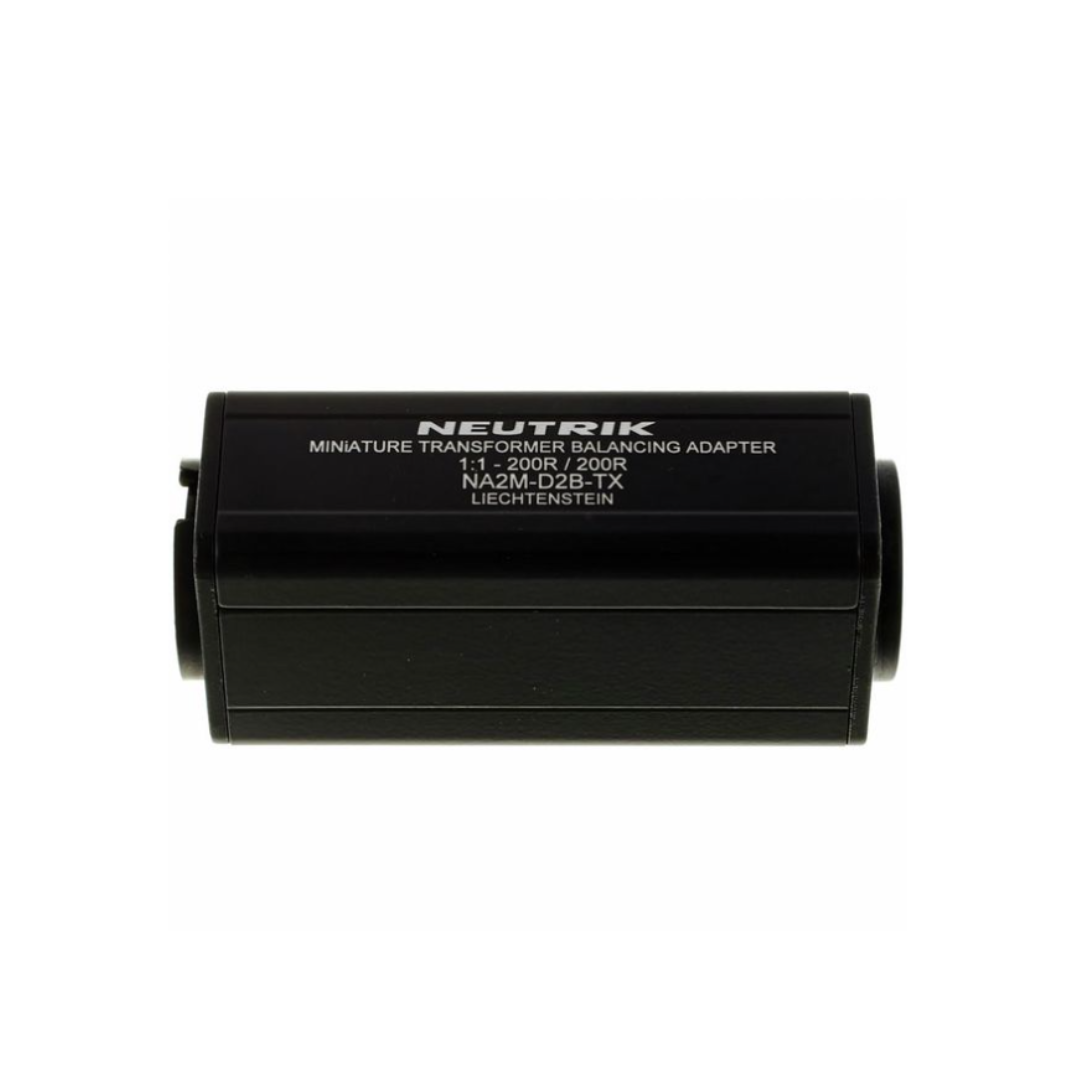

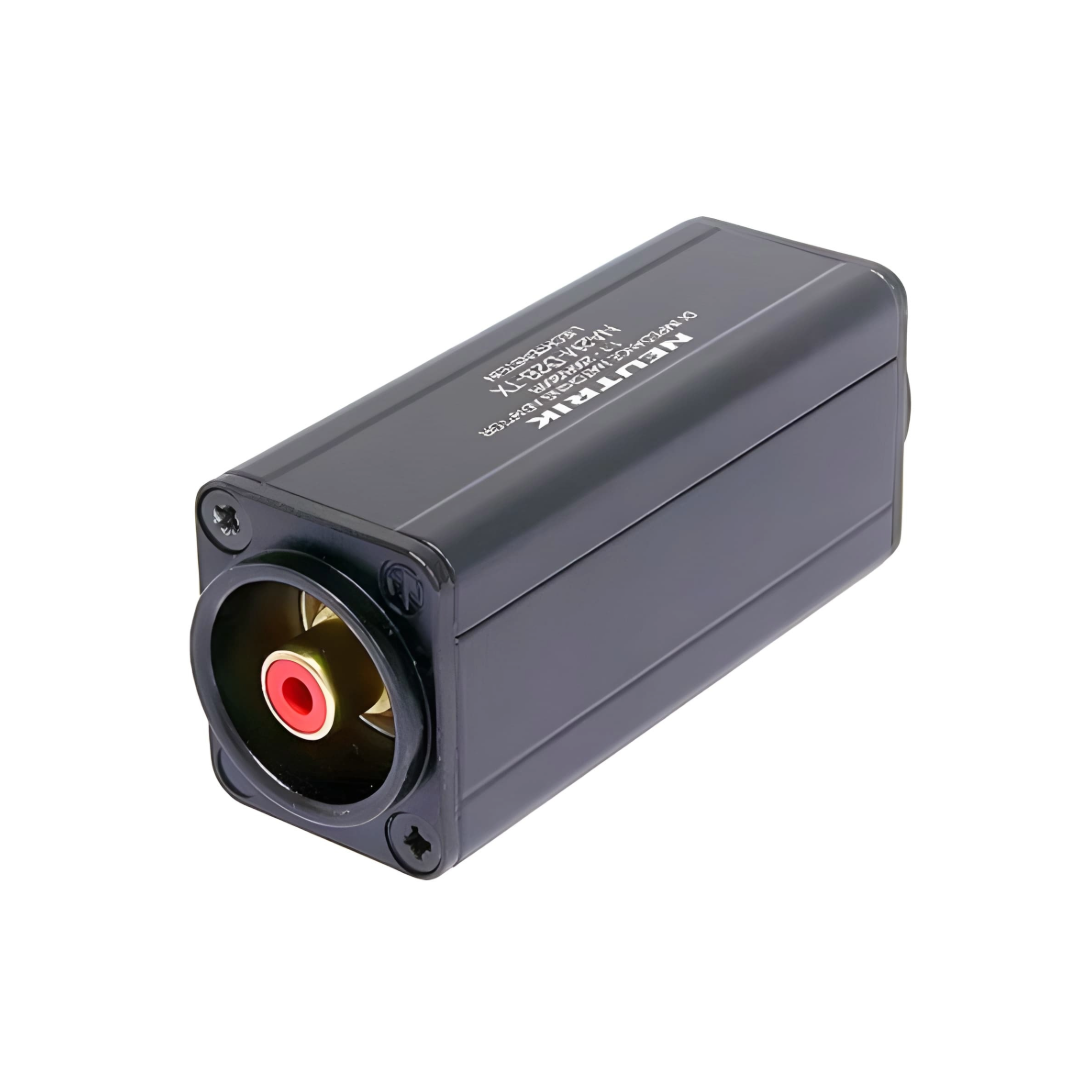

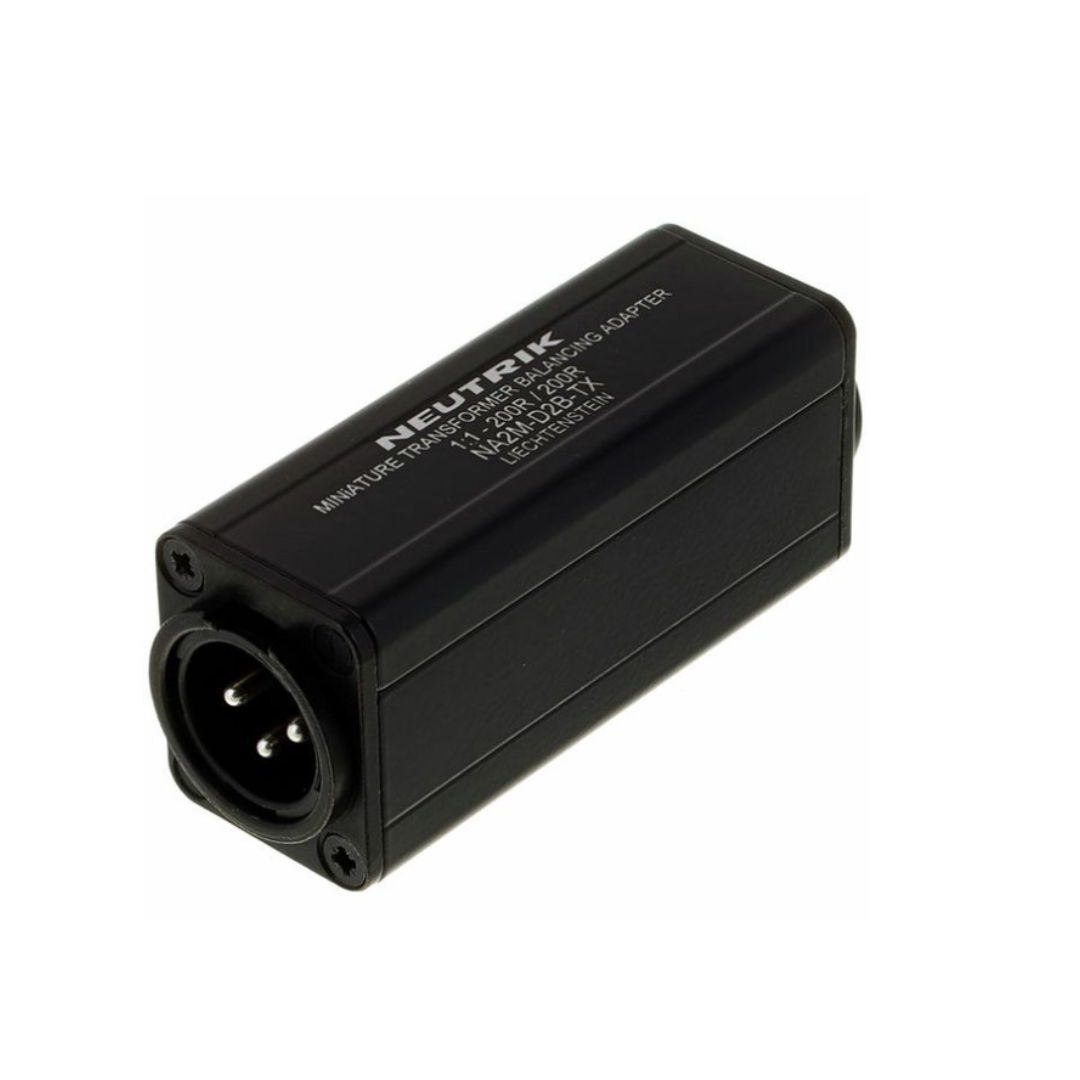

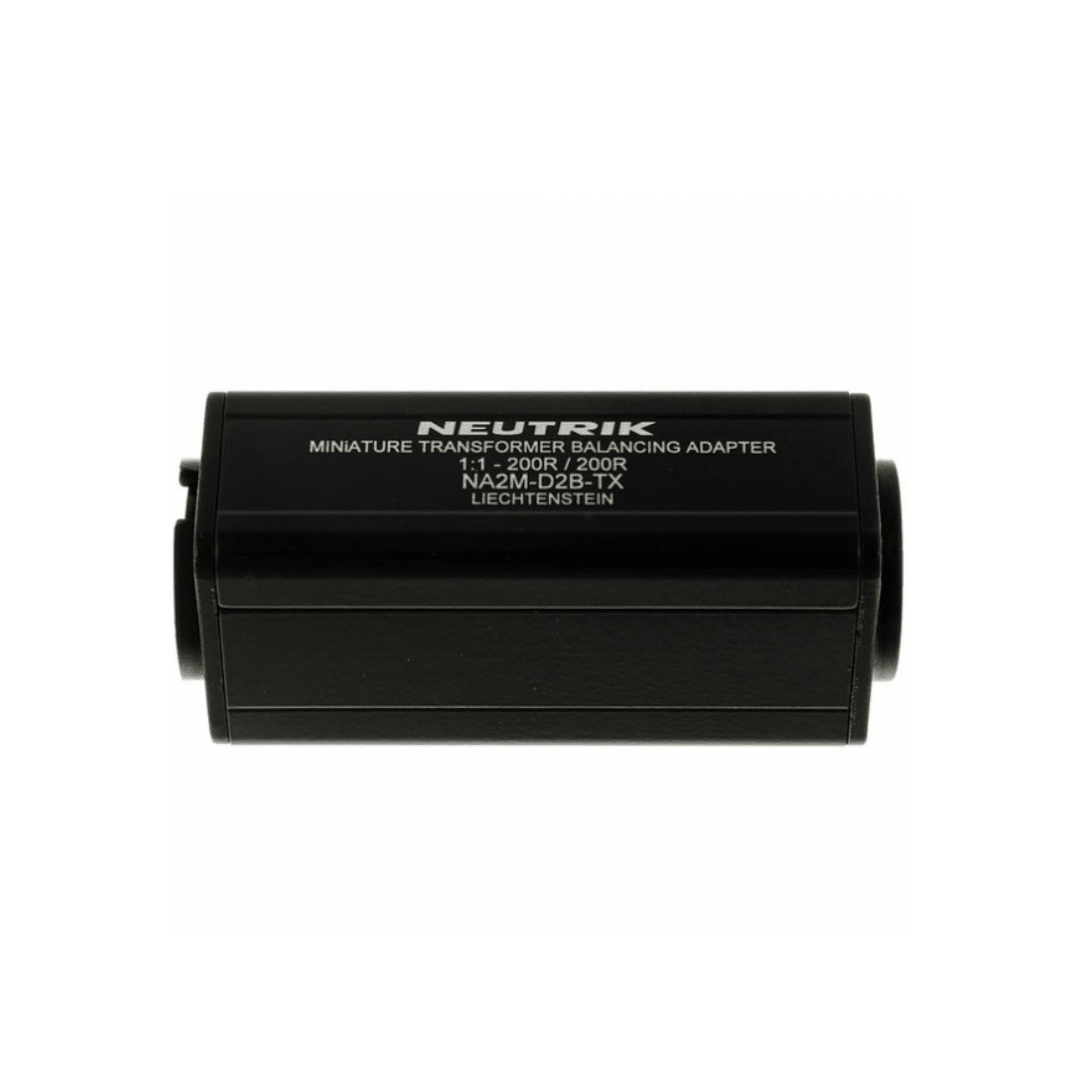

The adapter features a premium 3-pin male XLR connector on one end and a female RCA/phono socket on the other, wrapped inside a rugged, black-anodized aluminum extrusion housing that offers tour-grade structural durability.
Inside, it features a high-performance 1:1 audio transformer with a 200Ω to 200Ω impedance ratio.
This internal transformer physically isolates the input and output stages, effectively blocking common-mode noise, ground loop hums, and radio frequency interference (RFI) without needing an external power source, ground switches, or manual gain adjustments.
Optimized strictly for line-level signals, the NA2M-D2B-TX accommodates a maximum input level of -3 dBu at 50 Hz with less than 1% Total Harmonic Distortion (THD), maintaining a flat, transparent frequency response across the audible spectrum.

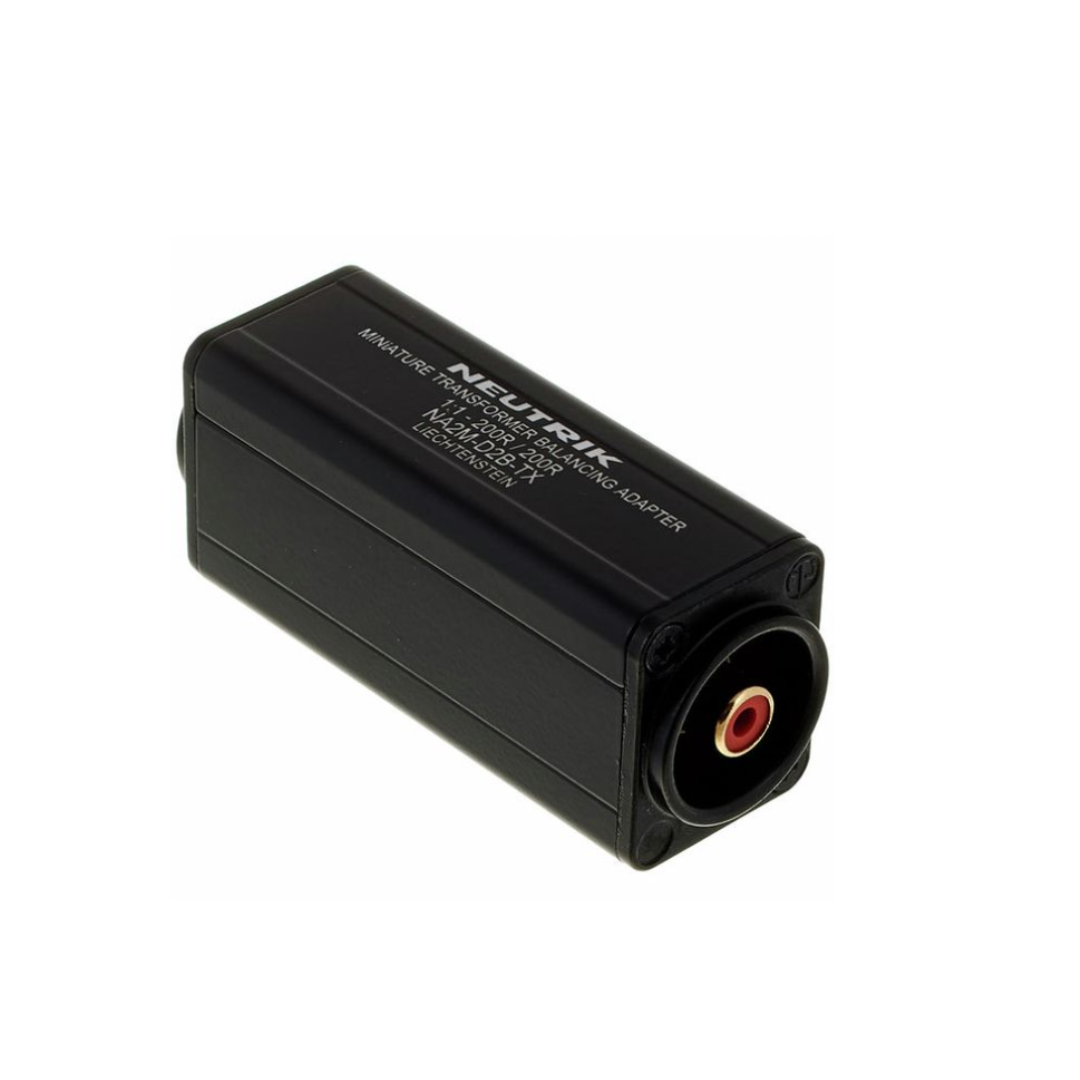

To eliminate configuration mistakes in complex multi-channel routing layouts, the RCA side features a clear, red color-coded identification ring.
Features
Passive Signal Balancing: Converts unbalanced consumer RCA line signals to true balanced male XLR lines smoothly without requiring batteries or phantom power.
Ground Loop Isolation: High-quality internal 1:1 audio transformer breaks physical ground paths to suppress system hums, buzzing, and static.
Extruded Aluminum Housing: Rugged, black-anodized metal outer shell protects the inner transformer core from heavy crushing forces and drop impacts.
Red Channel Color Coding: Outfitted with a distinct red visual ring on the RCA entry point for fast, error-free channel pairing in high-density patches.
Low Distortion Performance: Delivers clean audio transmission tracking up to -3 dBu input levels with nominal harmonic distortion under 1%.
Secure Latch Lock Support: Standard XLR male design interfaces cleanly with any locking female socket to prevent unexpected cable separation.
Specifications
Model Code: NA2M-D2B-TX (commercially noted as NA2MD2B-TX)
