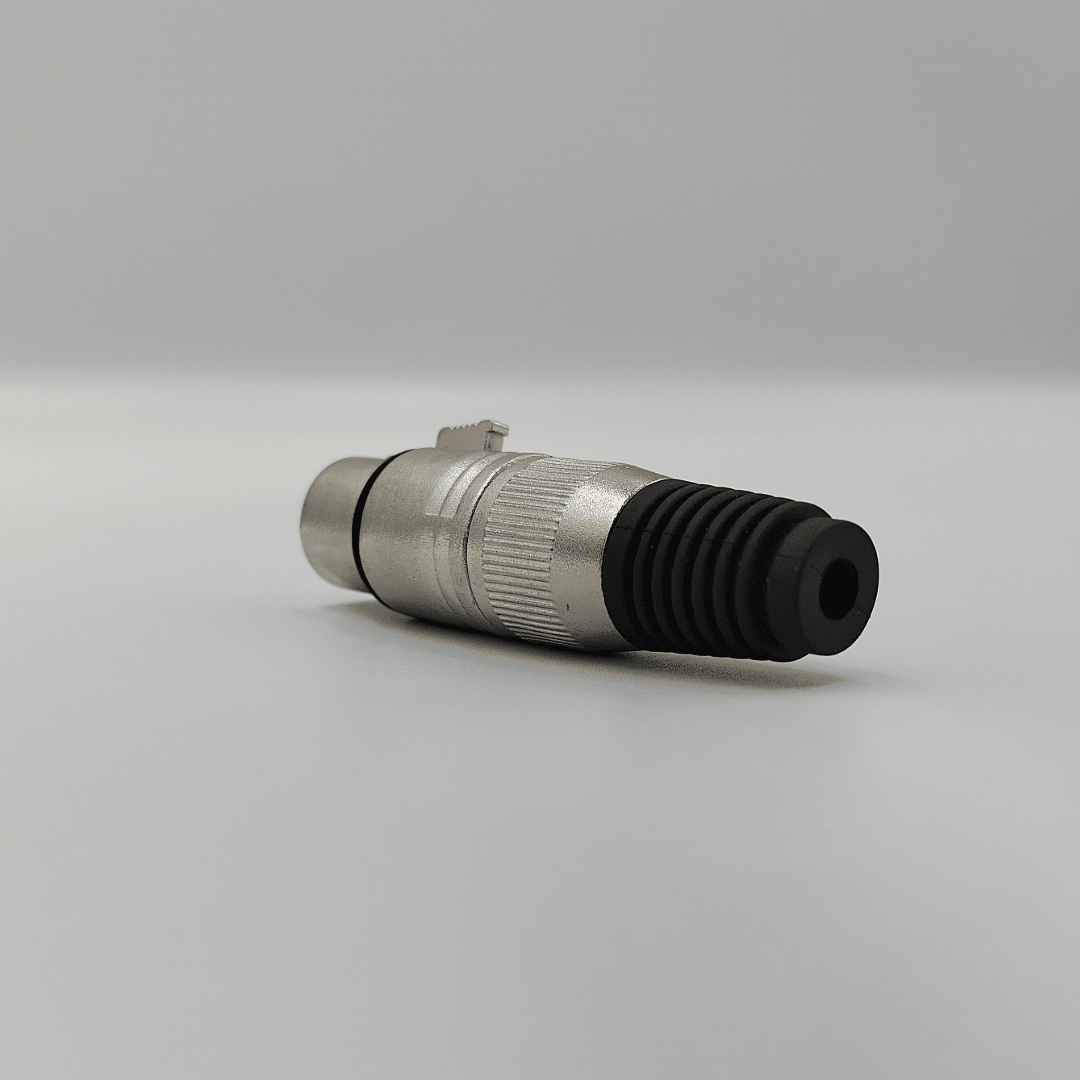

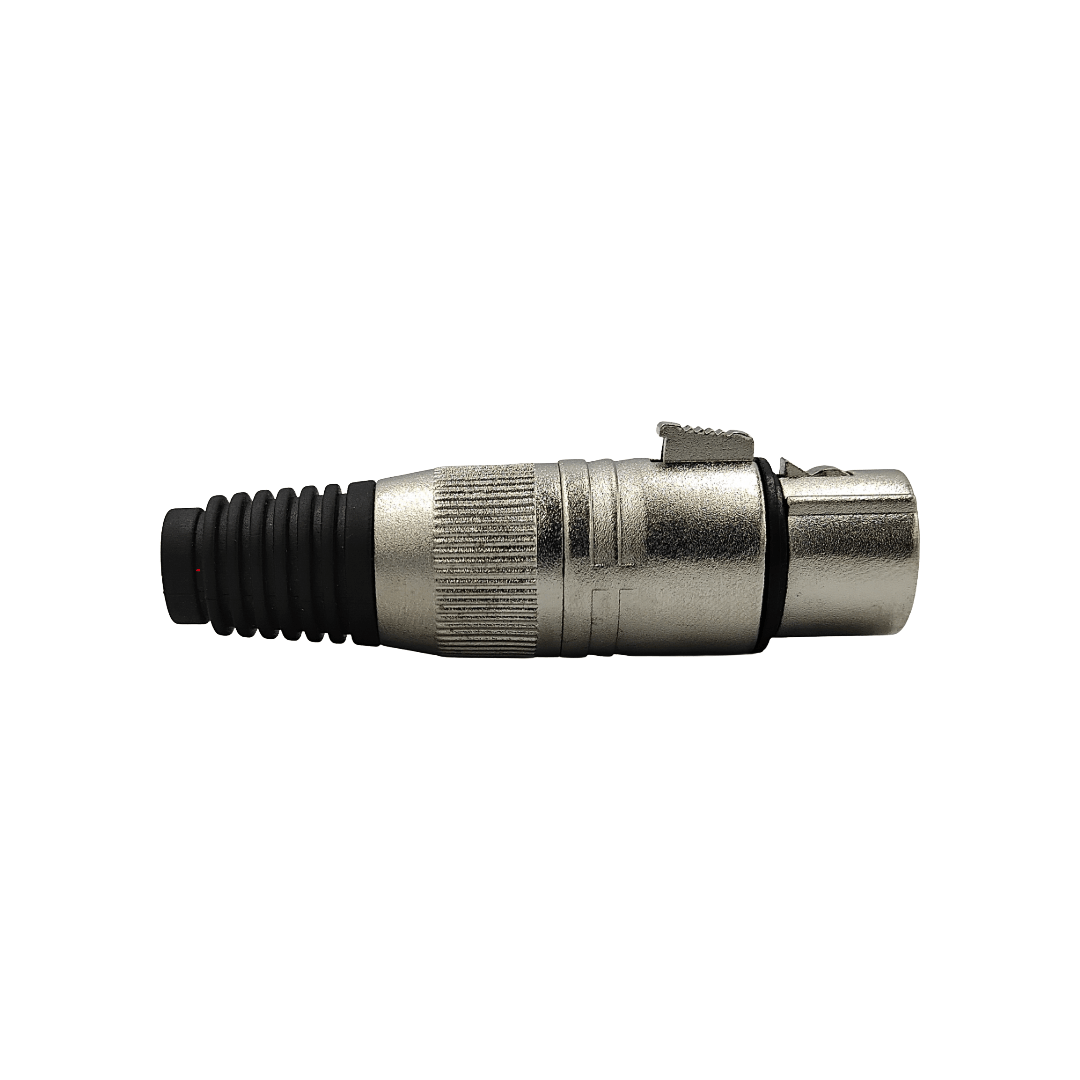

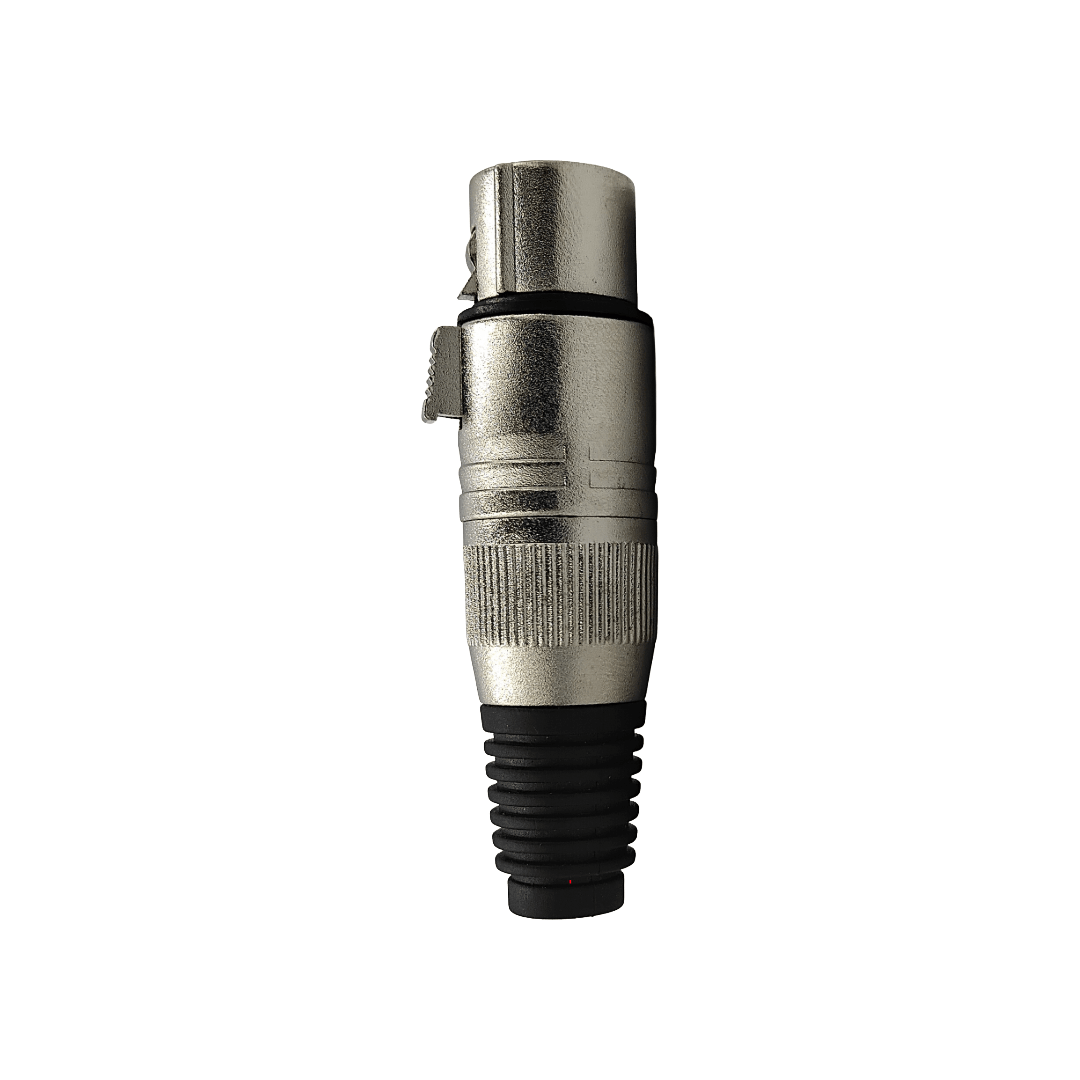

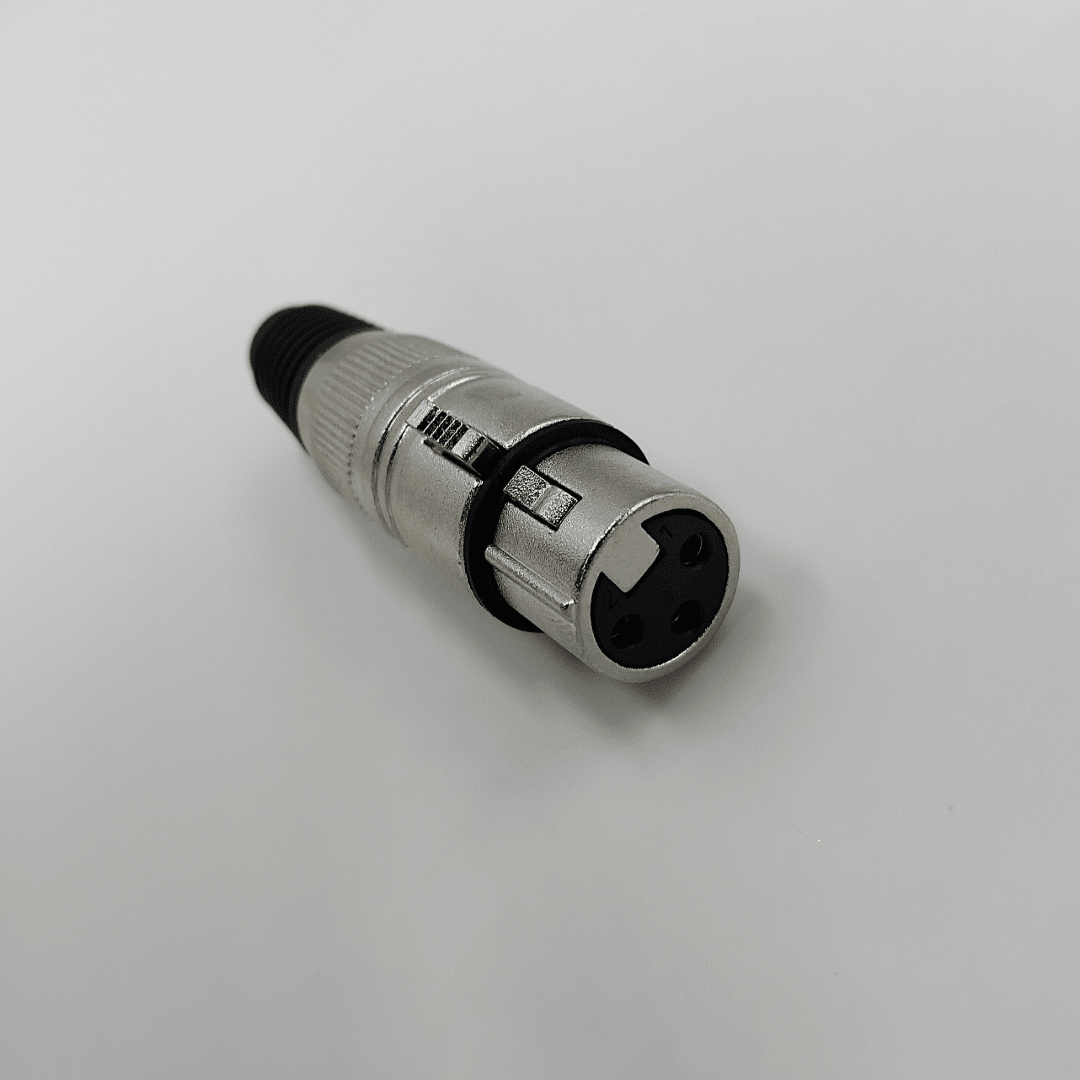

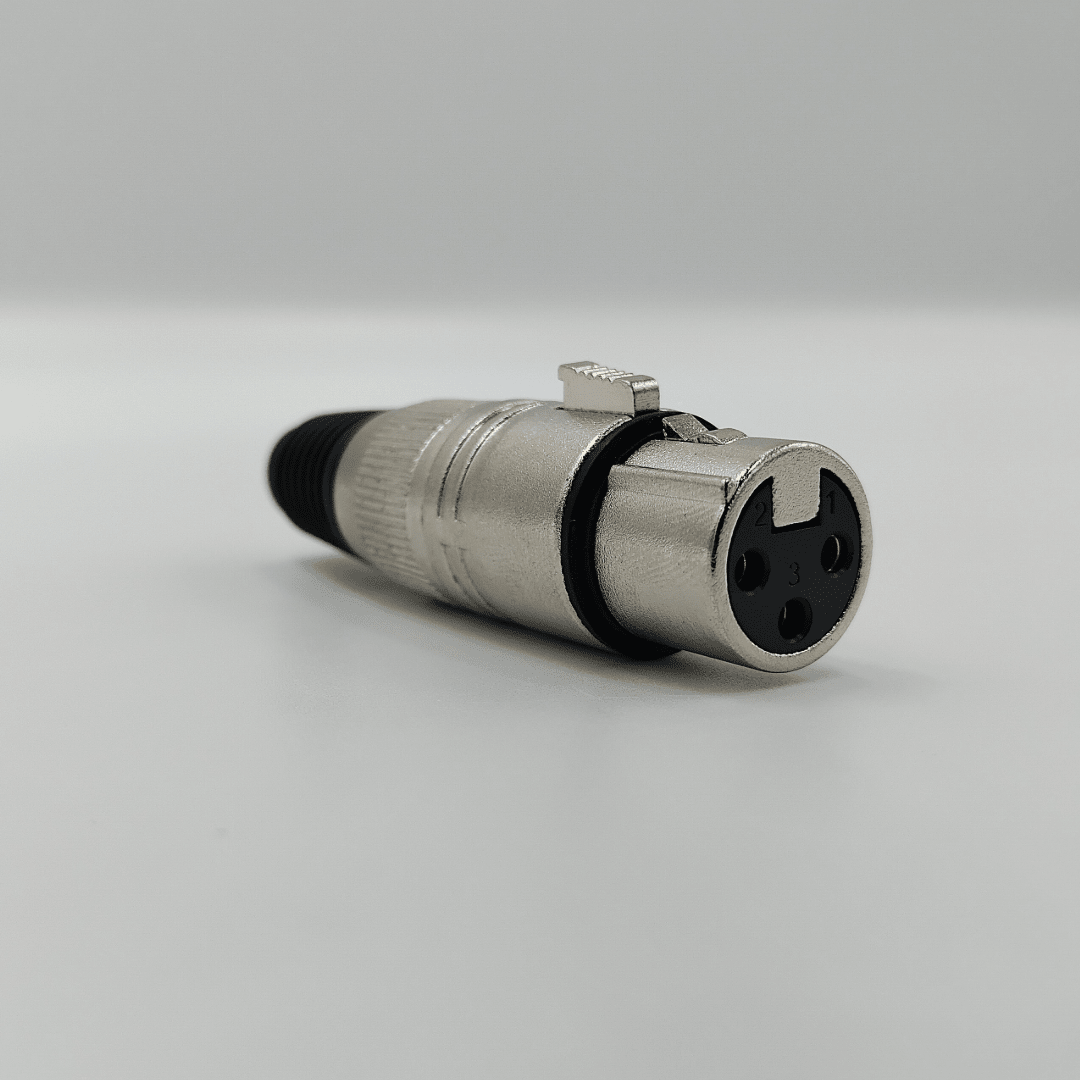

• Professional-grade 3-pin female XLR cable connector designed for custom audio lead assembly, repairs, and studio wiring.
• Features a rugged, heavy-duty metal diecast housing that delivers superior durability and shielding against electromagnetic interference (EMI).
• Integrated flexible black strain-relief tail boot protects internal solder joints from bending strain and cable pull fatigue.
• Precision-machined female contact sockets ensure a tight, low-resistance connection with balanced audio equipment and microphones.

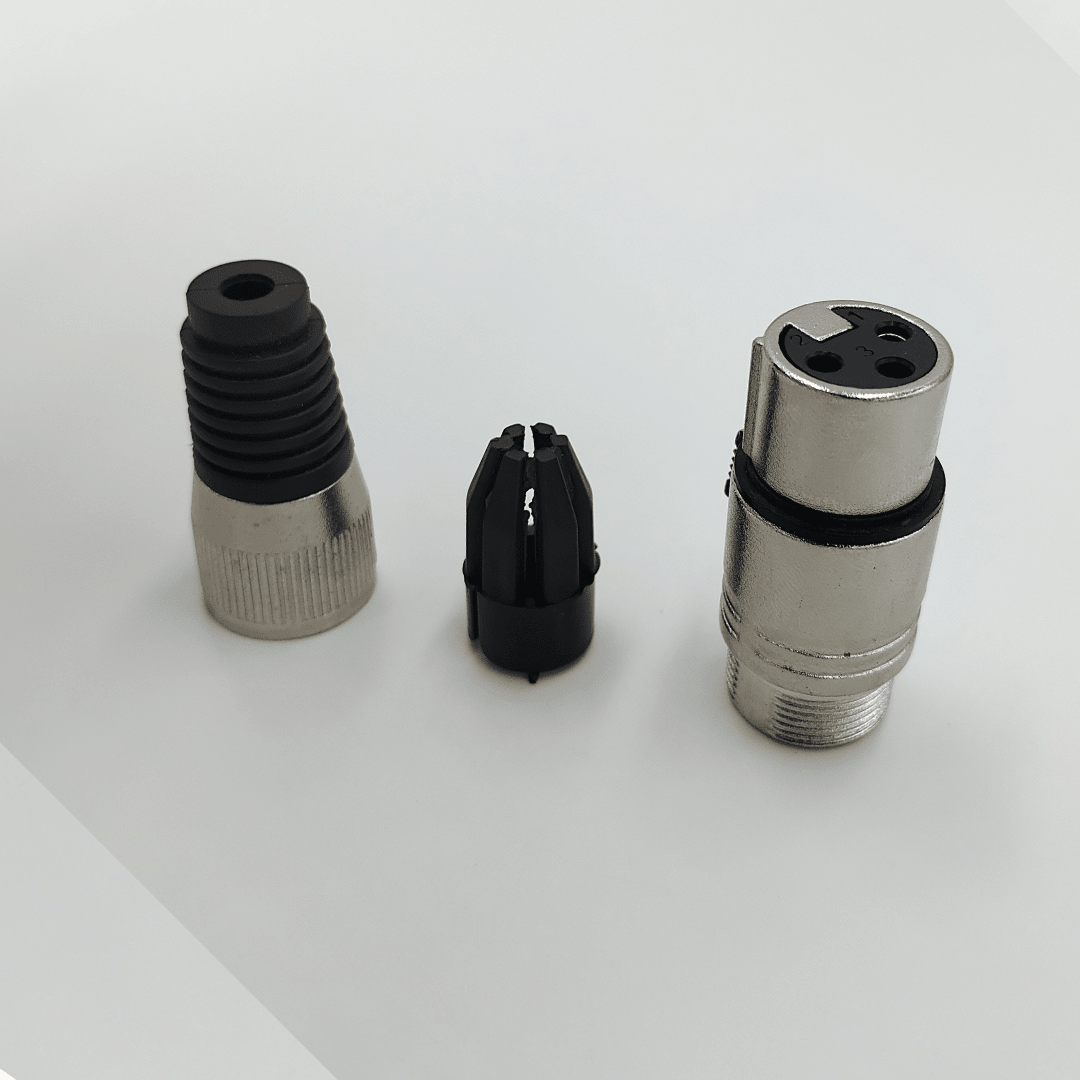

• Simple 4-piece screwless assembly makes field soldering and cable termination quick and efficient.

Features

• Heavy-Duty Metal Shell: Durable metal construction provides physical protection and full ground-shielding continuity.
• Flexible Black Tail Boot: High-tensile rubberized strain relief boot reduces cable strain at the rear entry point.
• Secure Latching Mechanism: Metal push-release latch locks firmly into male XLR jacks to prevent accidental disconnects.
• Easy-Solder Terminals: Generous solder cups allow clean, quick wire termination for standard 3-pin balanced audio cables.
• Universal Audio Compatibility: Works seamlessly with microphones, audio interfaces, mixers, active speakers, and DMX lighting controllers.

Specifications

• Brand: Kentech
• Model Code: SX026P1
• Connector Type: XLR Female (3-Pin)

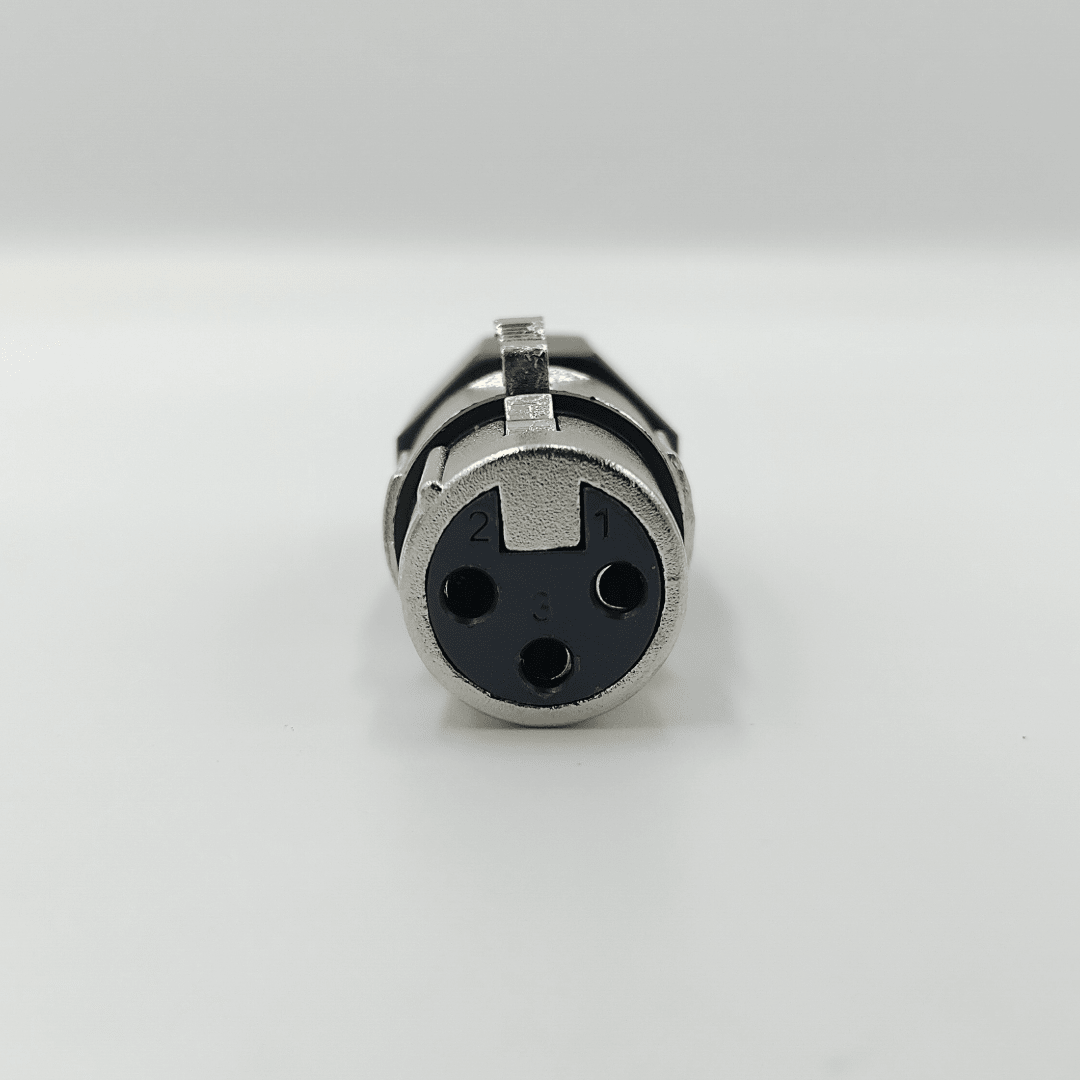

• Pin Configuration: 3-Pin (Pin 1: Ground/Shield, Pin 2: Hot/Positive, Pin 3: Cold/Negative)
• Housing Material: Metal Diecast Shell
• Tail/Boot Color: Black
• Termination Type: Solder Contacts
• Strain Relief: Flexible Rubber Boot
• Application: Balanced microphone cables, interconnects, audio mixers, powered speakers, stage boxes, and DMX lighting setups

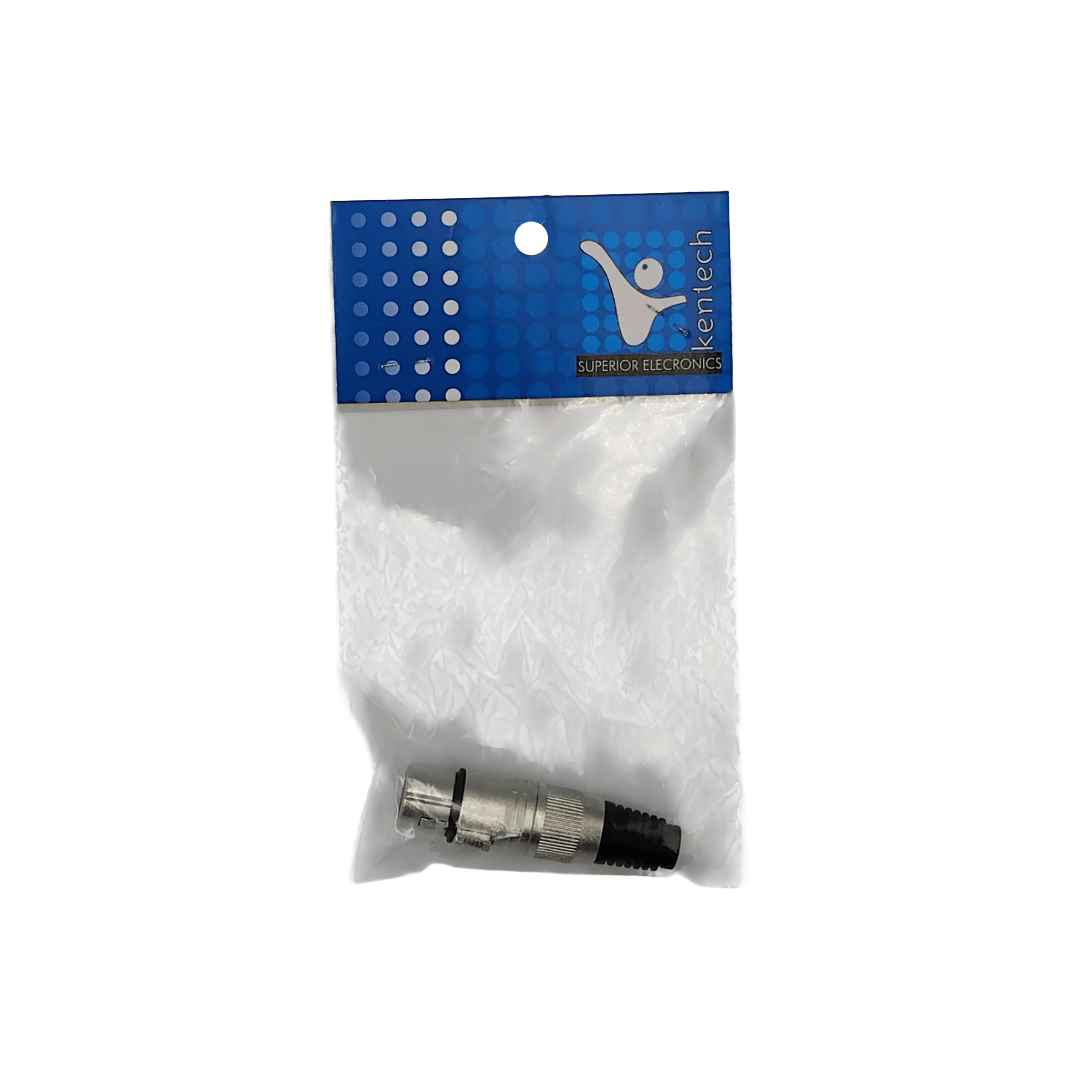

What's in the Box?

• 1 x Kentech SX026P1 3-Pin Female XLR Metal Connector with Black Tail Boot
