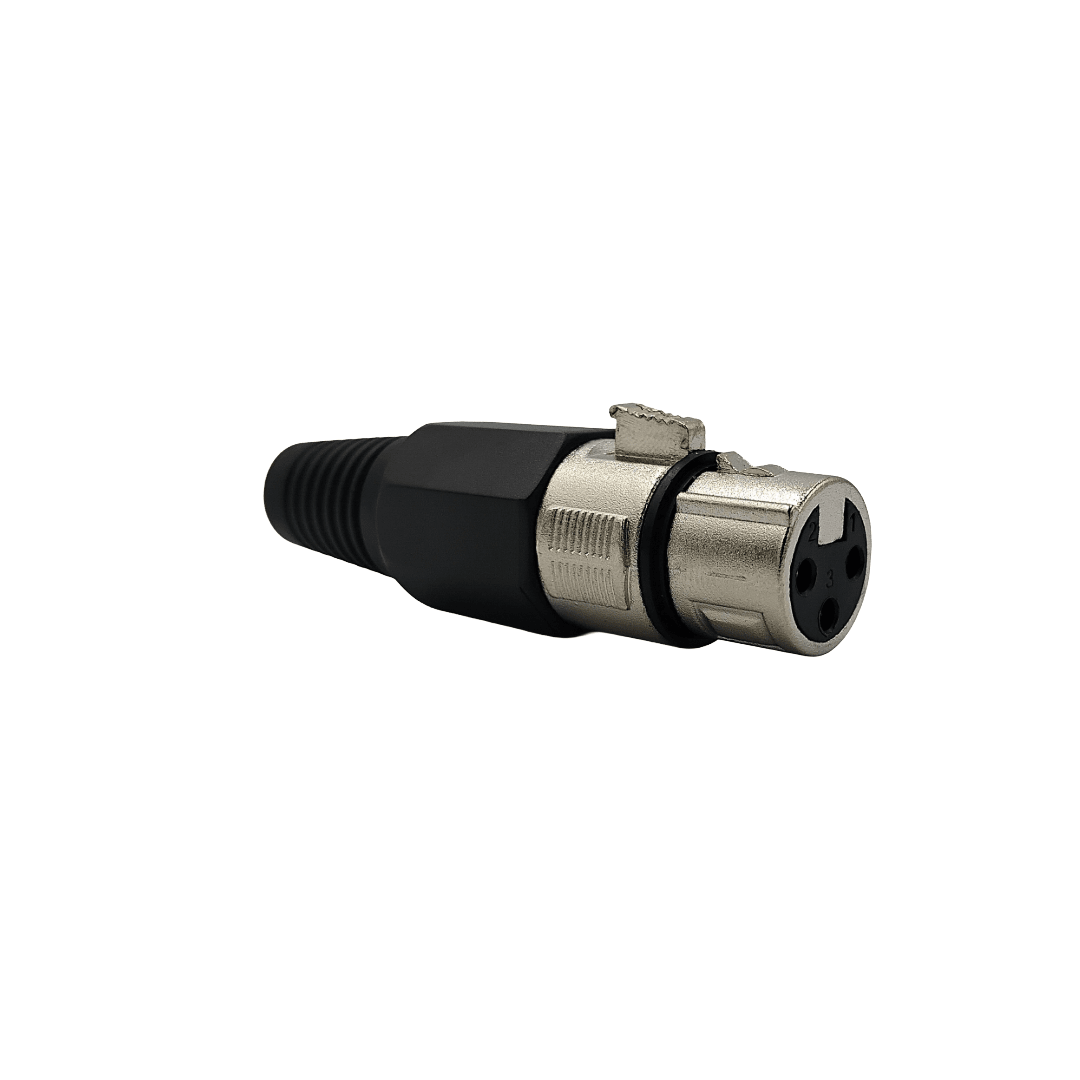

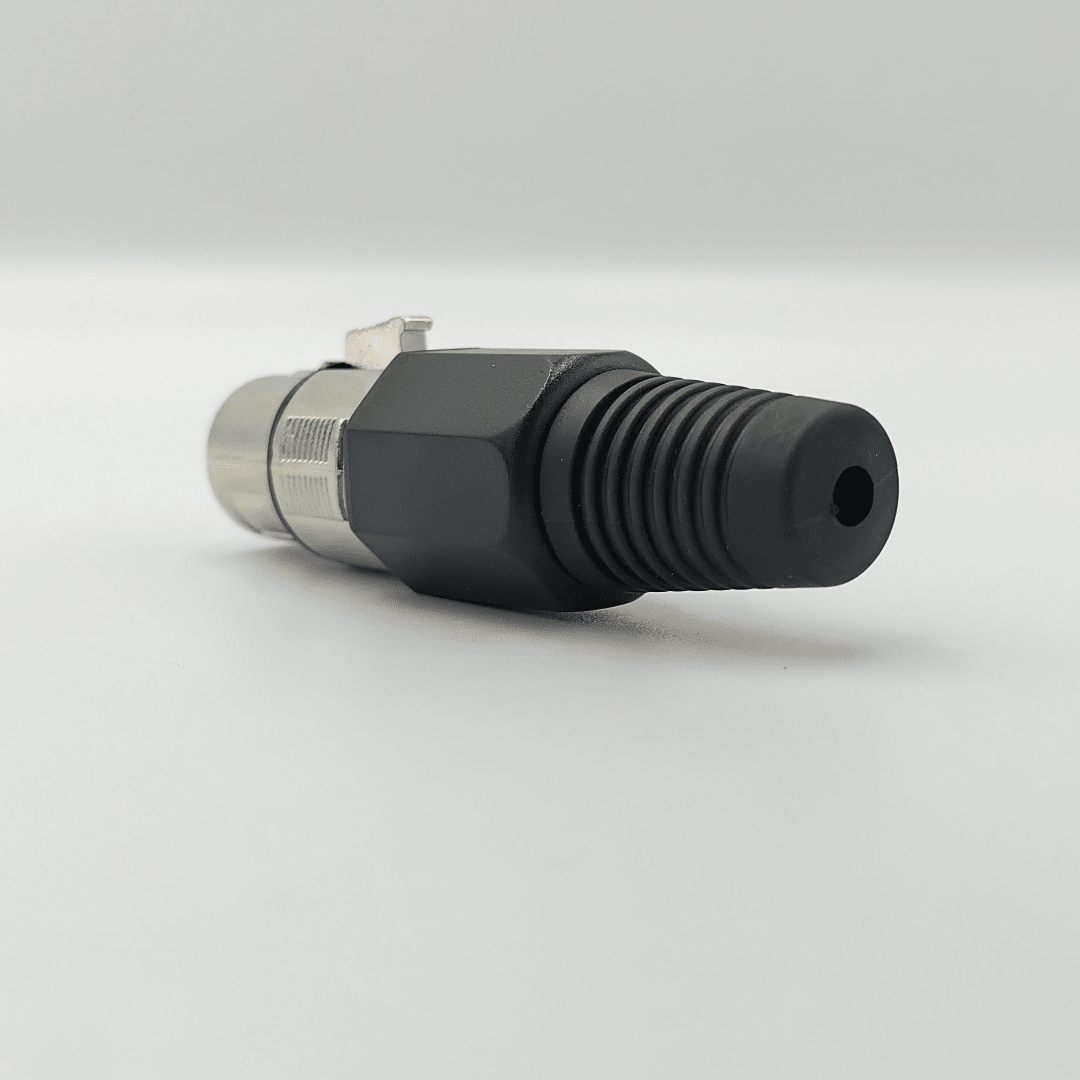

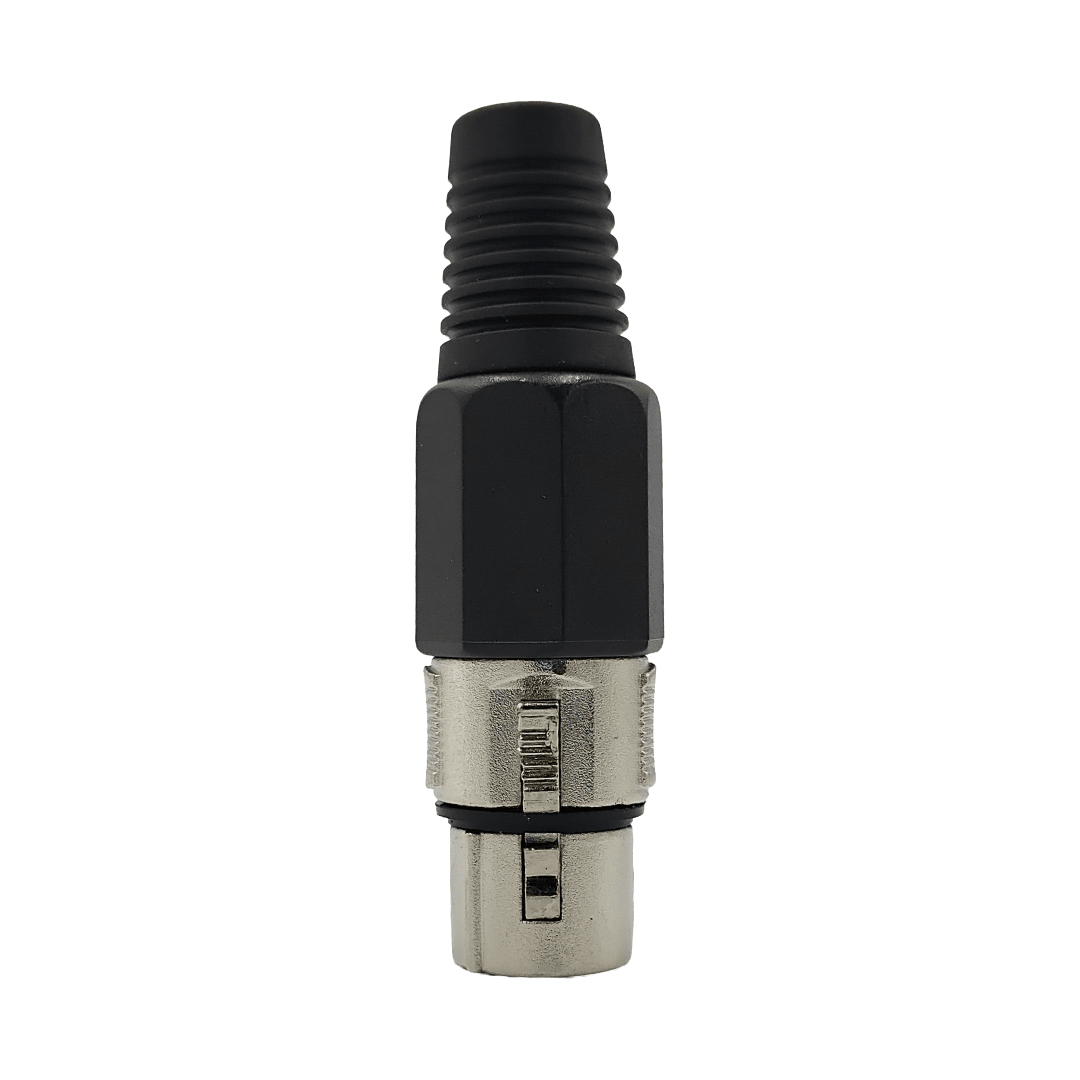

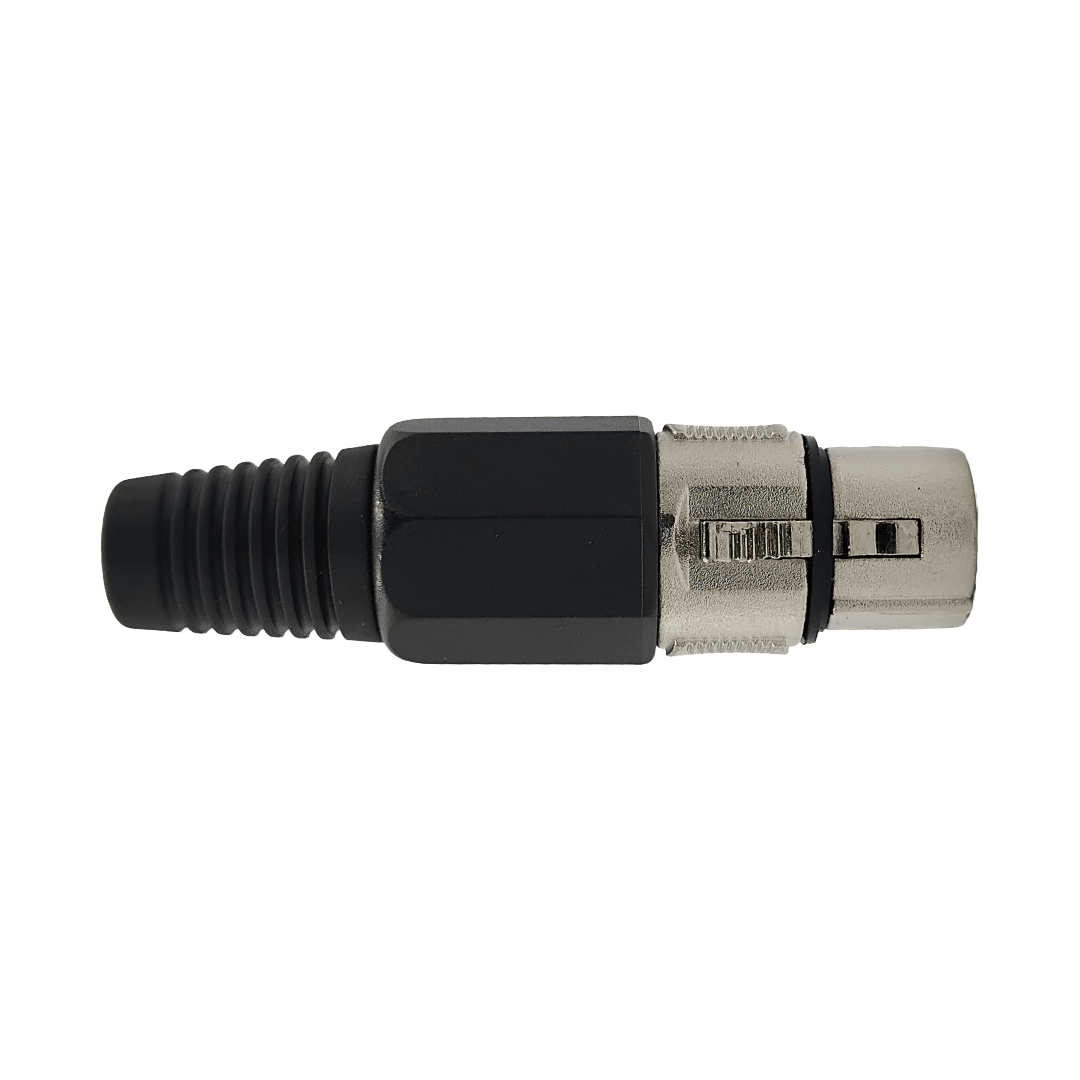

• Professional-grade 3-pin female XLR inline cable connector designed for high-reliability balanced audio cabling and stage applications.
• Built with a solid metal diecast casing for physical durability and ground shielding protection against external signal interference.
• Features a black coding ring for easy cable identification and channel differentiation on busy production stages or patch panels.
• Equipped with precision female contact sockets that establish a secure, low-impedance connection with standard male XLR jacks.
• Includes a built-in chuck-type strain relief and flexible boot to keep internal solder points secure under frequent pulling and flex strain.

Features

• Rugged Metal Shell: Heavy-duty diecast zinc construction protects internal wiring from mechanical damage and touring wear.
• Black Identification Ring: Provides clear visual coding for organizing stage snakes, microphone lines, and patching setups.

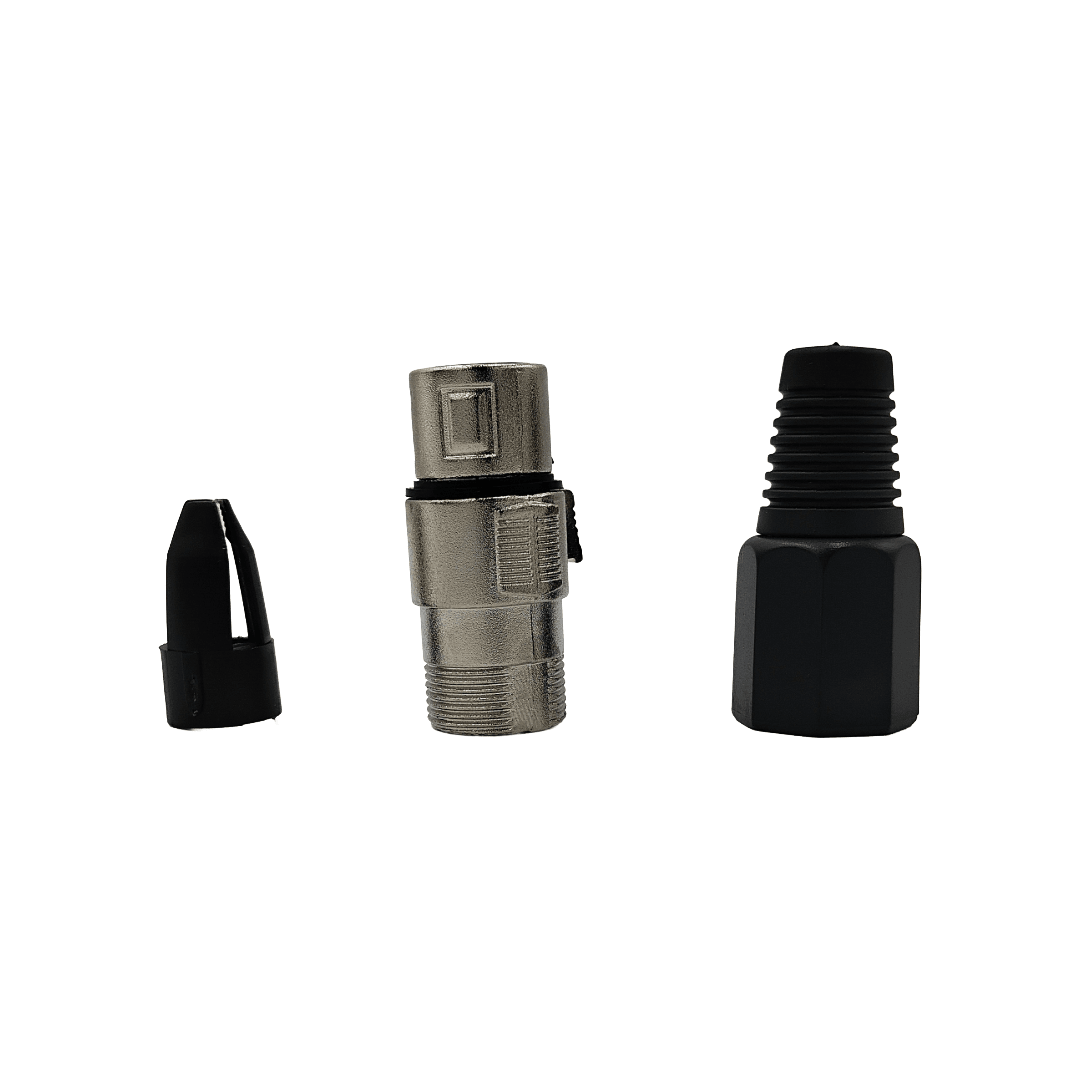

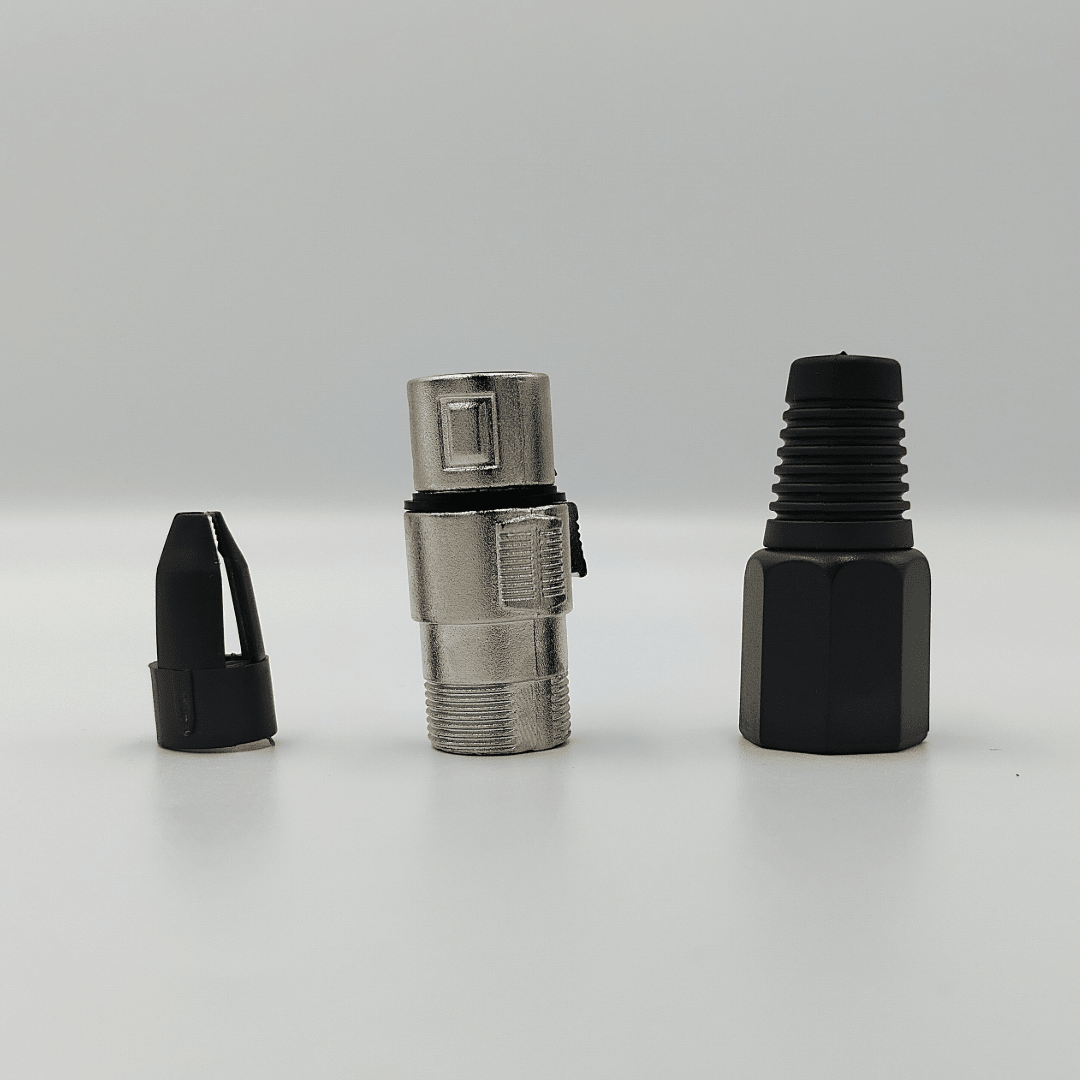

• Chuck-Type Strain Relief: Secures internal cable grip to prevent solder joint fatigue and wire breakage.
• Quick Latching Mechanism: Smooth push-release metal latch locks securely into male XLR sockets to prevent accidental disconnects.
• Solder-Friendly Terminals: Generous solder cups facilitate quick, reliable cable termination during custom cable fabrication.

Specifications

• Model Code: SX011P1
• Connector Type: XLR Female (3-Pin)

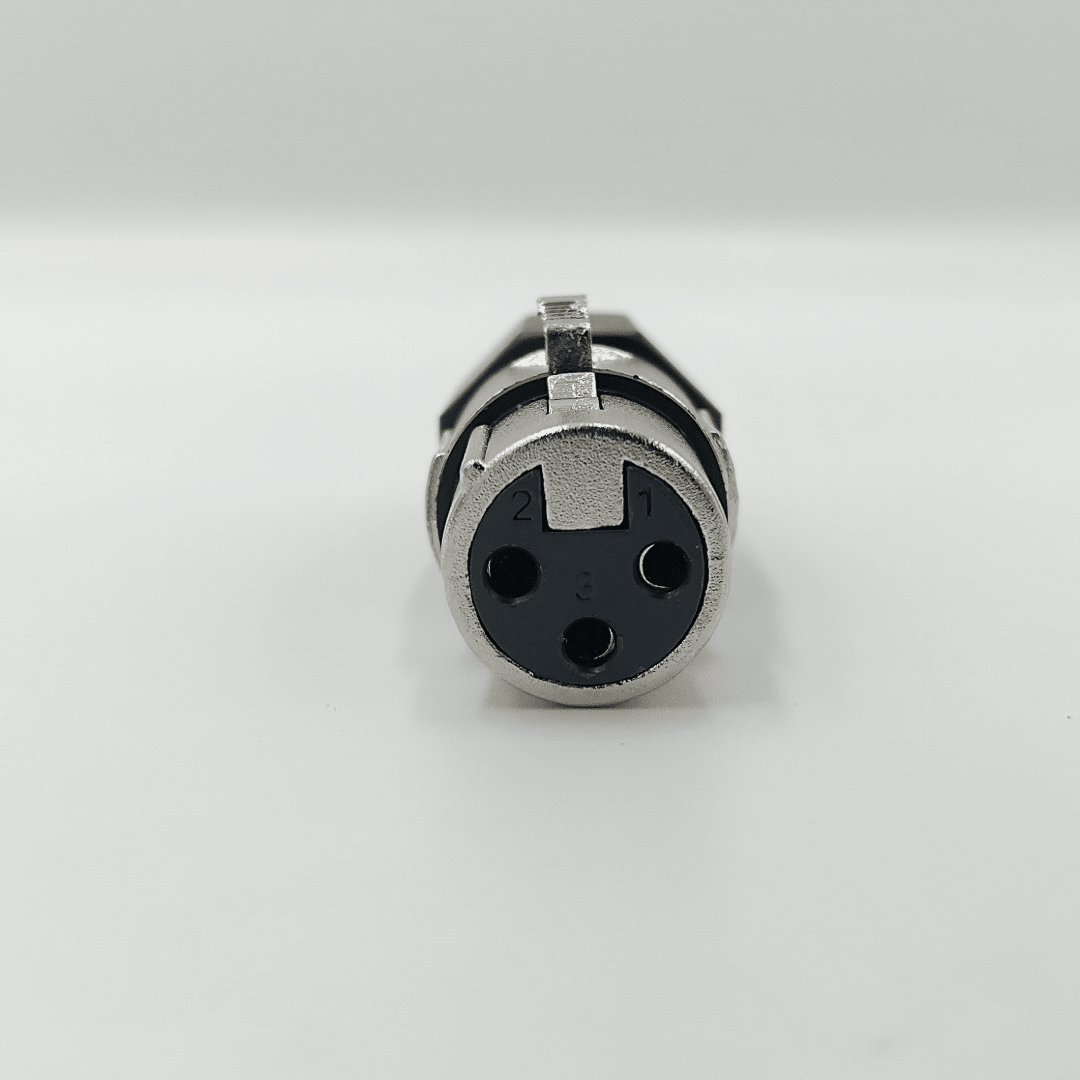

• Pin Configuration: 3-Pin (Pin 1: Ground/Shield, Pin 2: Hot/Positive, Pin 3: Cold/Negative)
• Housing Material: Metal Diecast
• Color Code Ring: Black
• Termination Type: Solder Terminals
• Strain Relief: Internal Chuck Clamp with Flexible Rear Boot
• Application: Balanced microphone cables, interconnects, audio mixers, active speakers, stage boxes, and DMX lighting controllers

What's in the Box?

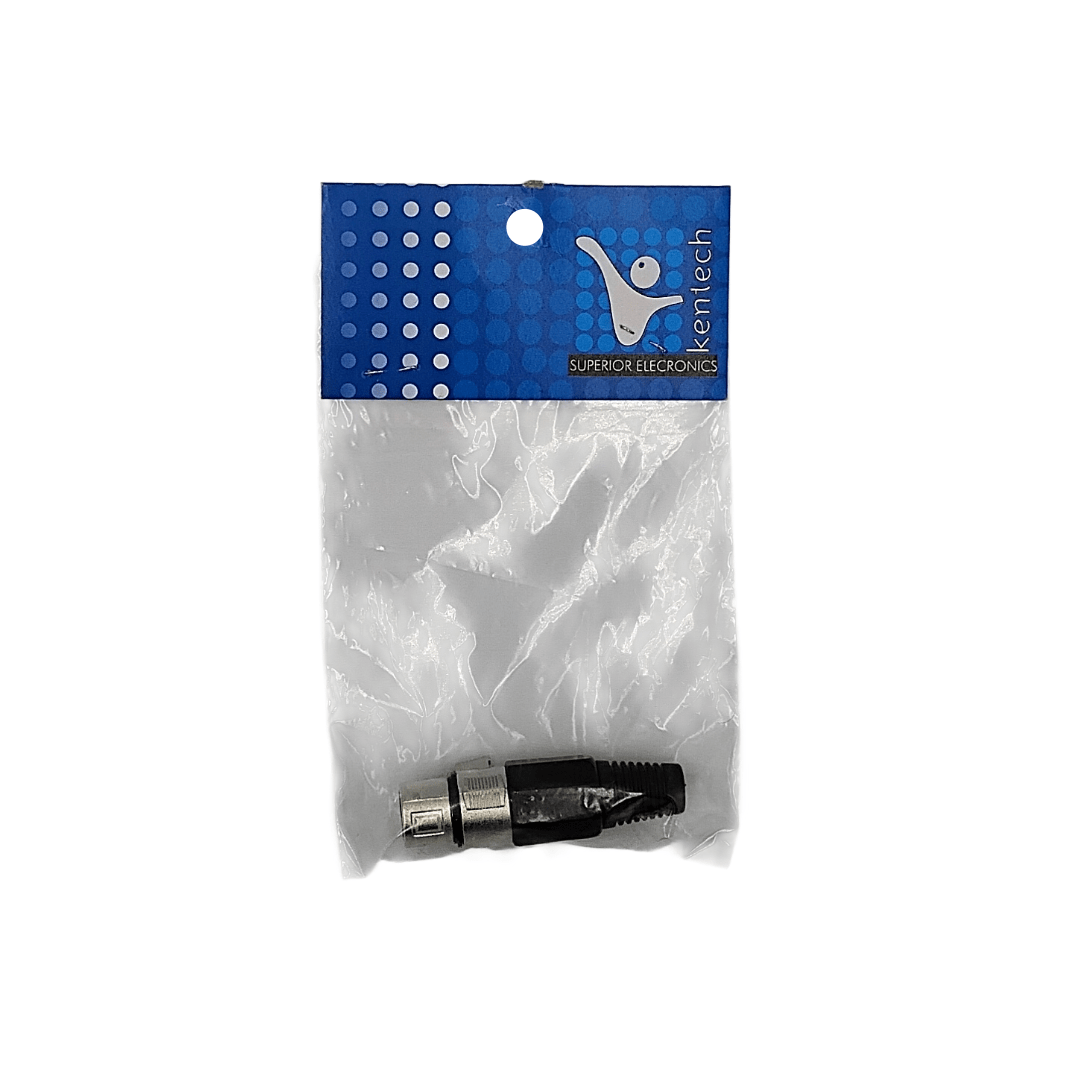

• 1 x Kentech SX011P1 3-Pin Female XLR Metal Connector with Black Ring
