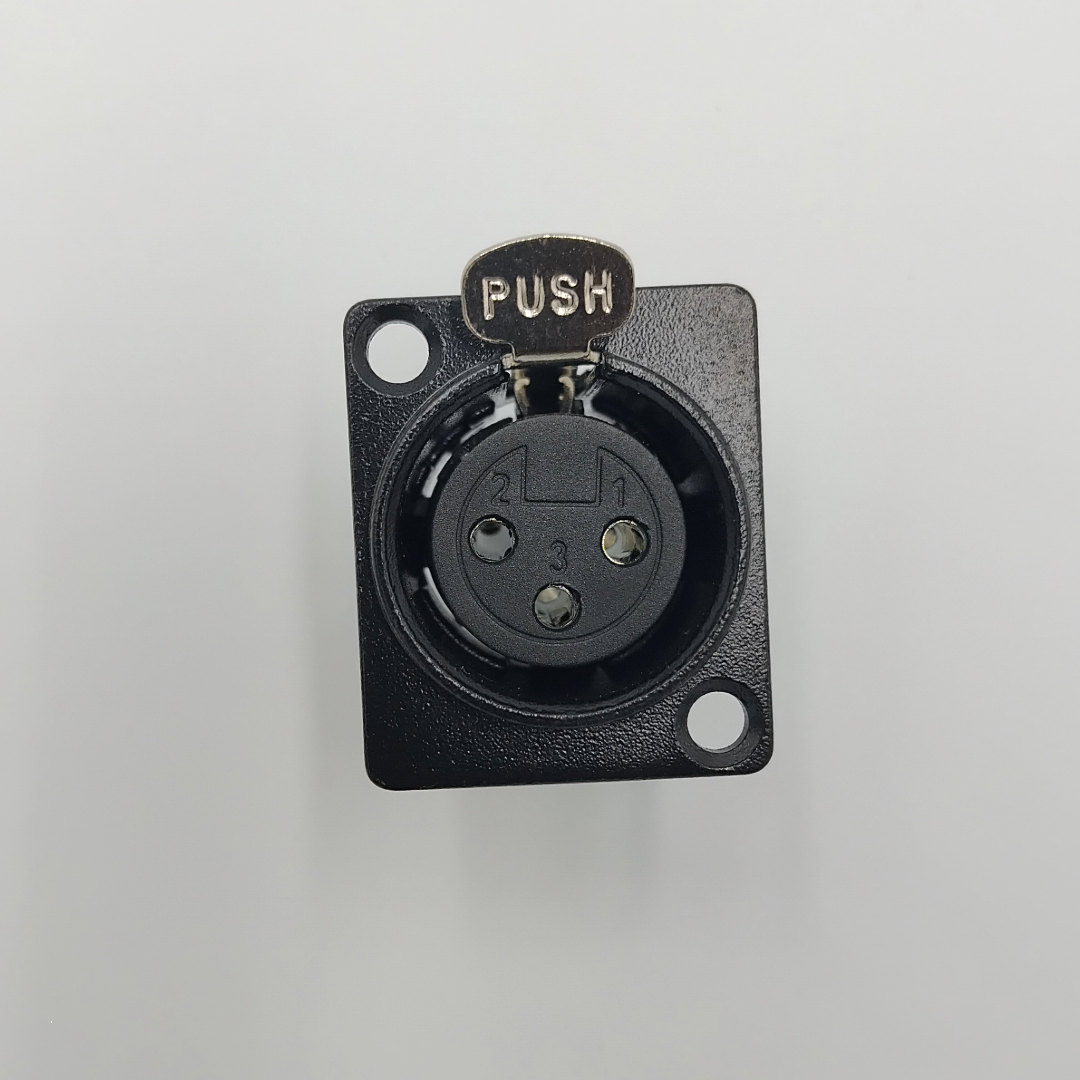

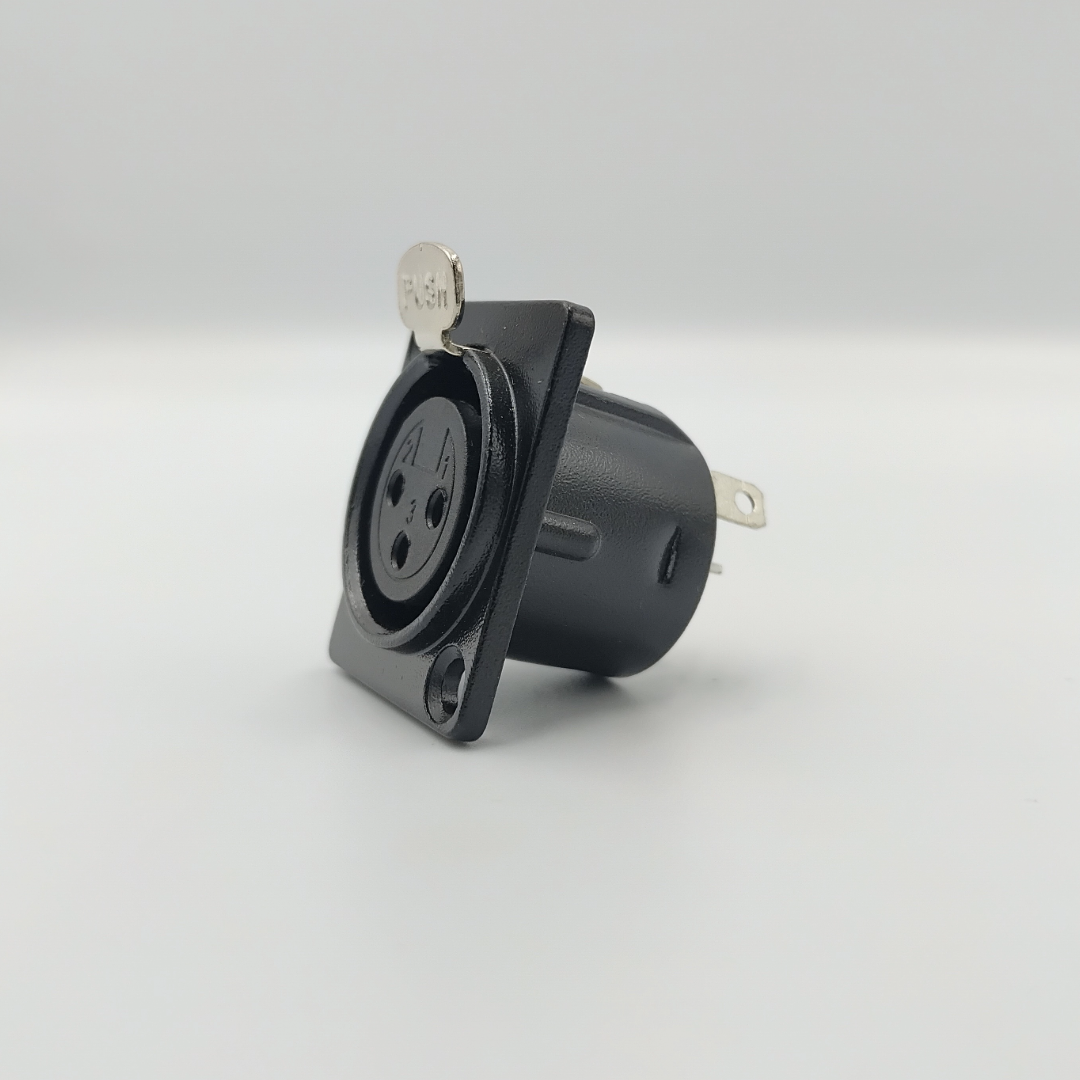

Professional Panel Integration: The Kentech SX0102 is an industrial-grade, 3-pin XLR female chassis-mount connector engineered for seamless integration into custom audio panels, stage boxes, mixing consoles, wall plates, and active loudspeaker enclosures.
Rugged All-Black Aesthetics: Finished in a sleek, non-reflective matte black protective coating. This durable finish blends cleanly into professional dark-chassis hardware designs and minimizes visibility on live event stages.

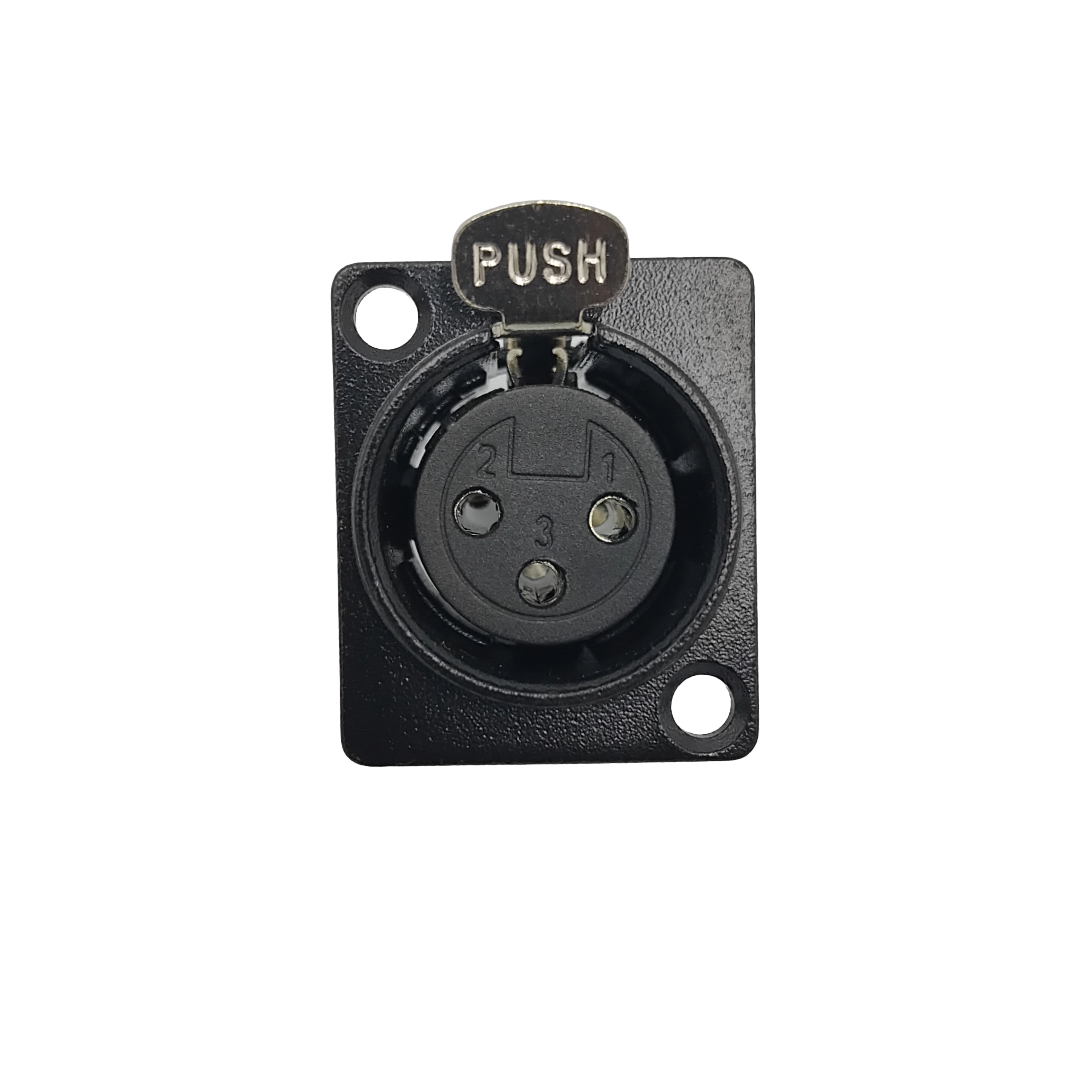

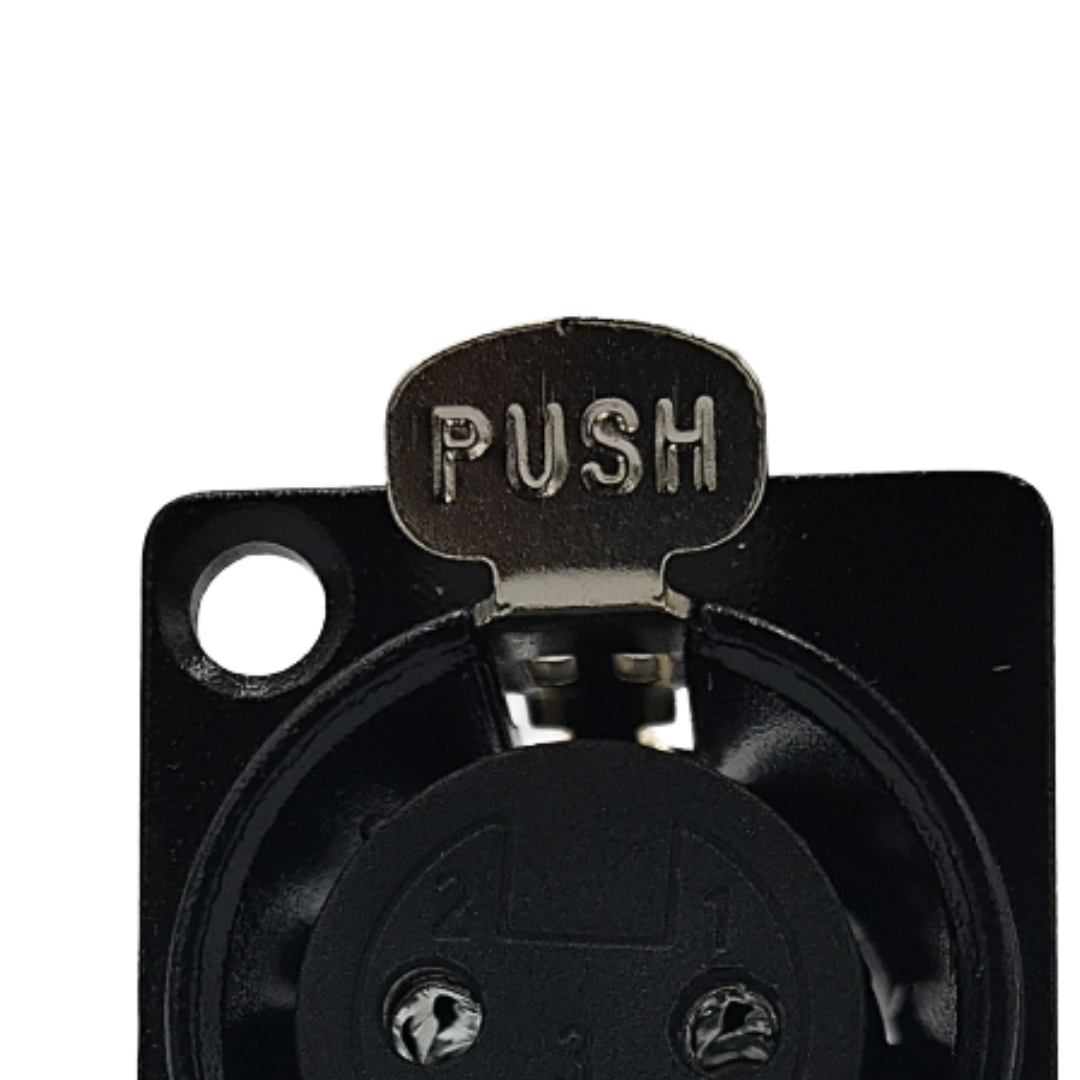

Secure Mechanical Latch Lock: Features a robust, integrated spring-loaded metal locking tab that securely fastens incoming male XLR cable plugs, guaranteeing an airtight physical connection that completely eliminates accidental disconnects caused by cable tugging.
Precision-Molded Contacts: Outfitted with high-conductivity internal female receiver socket tubes machined to precise tolerances, providing consistent mechanical spring-tension grip and uniform surface contact over thousands of insertion cycles.
Continuous Balanced Shielding: The structural design maintains independent electrical isolation between the three audio transmission pins and the grounding path, preserving a true balanced signal line to combat electromagnetic and radio frequency interference (EMI/RFI).
Features
Universal D-Style Footprint Compatibility: Styled around standard architectural sizing metrics, allowing dropping this component cleanly into industry-standard pre-punched panel cutouts without filing or re-drilling.
Recessed Countersunk Mounting Holes: The exterior rectangular flange features pre-drilled, countersunk twin mounting points, allowing it to be fastened flush against the panel face using standard rivets or screws.

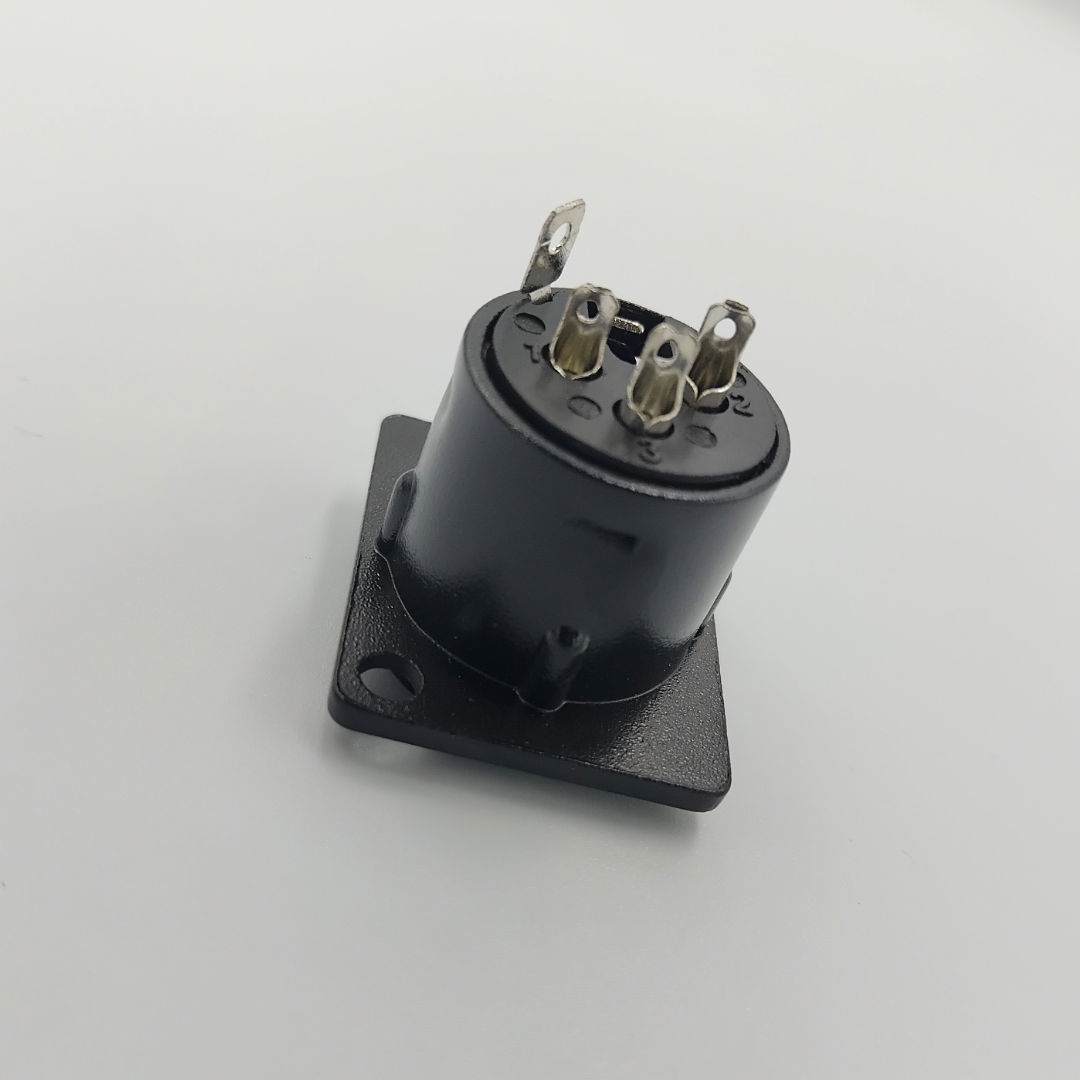

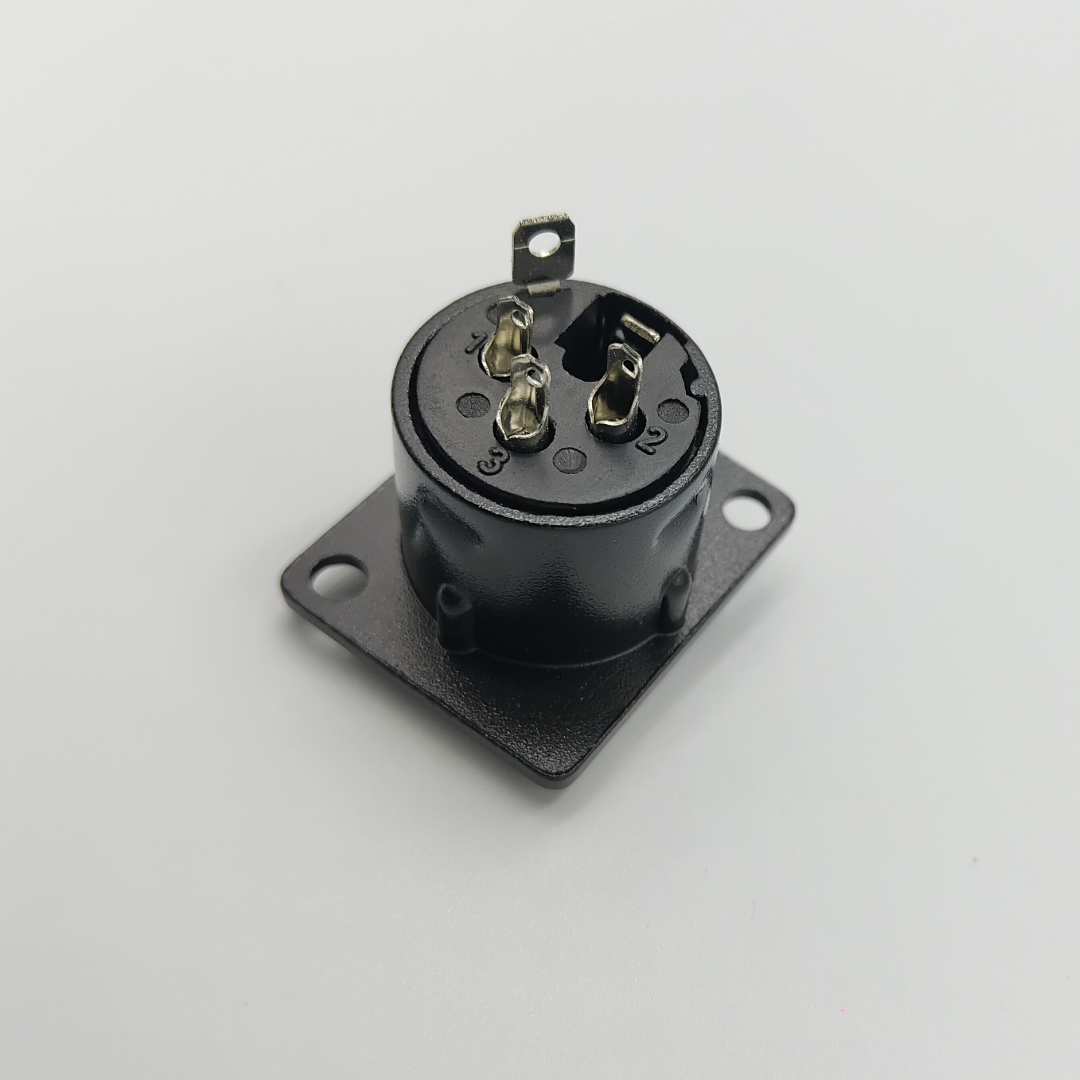

Rear Solder-Cup Termination: Built with deep, hollow-profile silver-plated rear solder cups that hold bare wire tips firmly in place, simplifying hand-soldering and ensuring efficient thermal transfer during assembly.

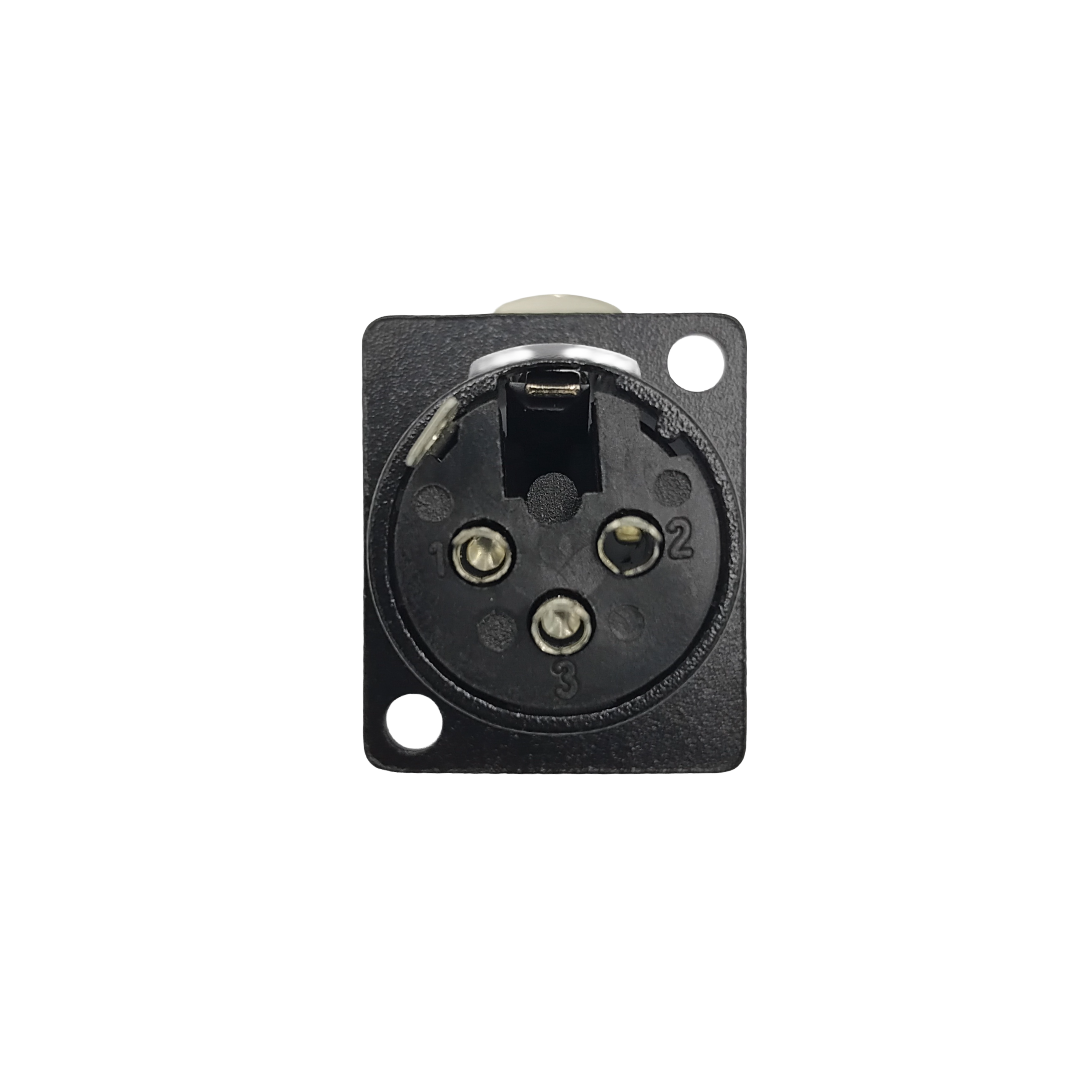

True Balanced Signal Flow: Provides native routing architecture optimized for the pro-audio ecosystem: Pin 1 (Ground), Pin 2 (Positive/Hot), and Pin 3 (Negative/Cold).
Industrial Polymer Internal Core: The internal pin matrix is embedded within a high-melting-point, impact-resistant synthetic block that resists physical cracking and withstands high soldering iron temperatures without shifting.
Specifications
Product Line: Professional Audio Component & Bulk Panel Series
Model Identification: SX0102 / SX-0102
Gender Configuration: XLR Female Receiver
Pin Count Format: 3-Pole Core Matrix
Flange Finish Styling: Non-Reflective Industrial Black Coat
Mounting Type: Front or Rear Chassis Panel Mount via Dual Flange Holes
Termination Method: Rear-Facing Solder Cups
Target Applications: Fabricating Custom Stage Snake Enclosures, Panel-Mounting Studio Intercom Systems, Repairing Defective Mixer Input Jacks, Wall Plate Installations for Houses of Worship, Custom Amplifier Panel Upgrades
What's in the Box
1 x Kentech SX0102 3-Pin XLR Female Chassis Mount Panel Connector Unit (Black)
