You are entitled to cancel your order for the Goods without penalty within seven days of the Goods having been delivered to you. In such an event, you will receive a full refund of the purchase price within thirty days of the date of cancelling this agreement.
Goods may be returned only when defective, damaged or if the product supplied is not the same product as what was ordered. If the Goods are defective in any way this must be reported within twenty four hours after the product having been delivered to you and must be returned to us within a period of one month after delivery.

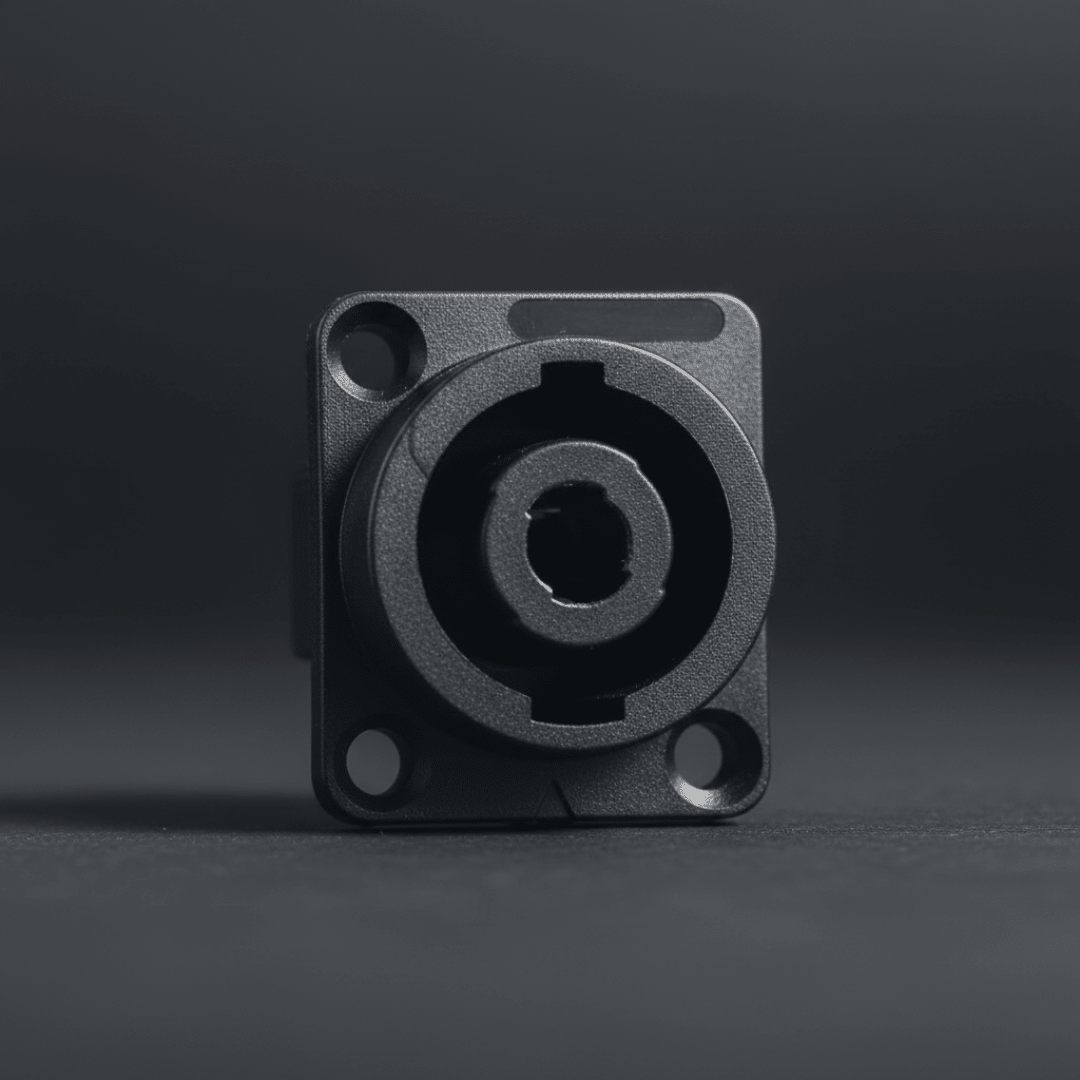

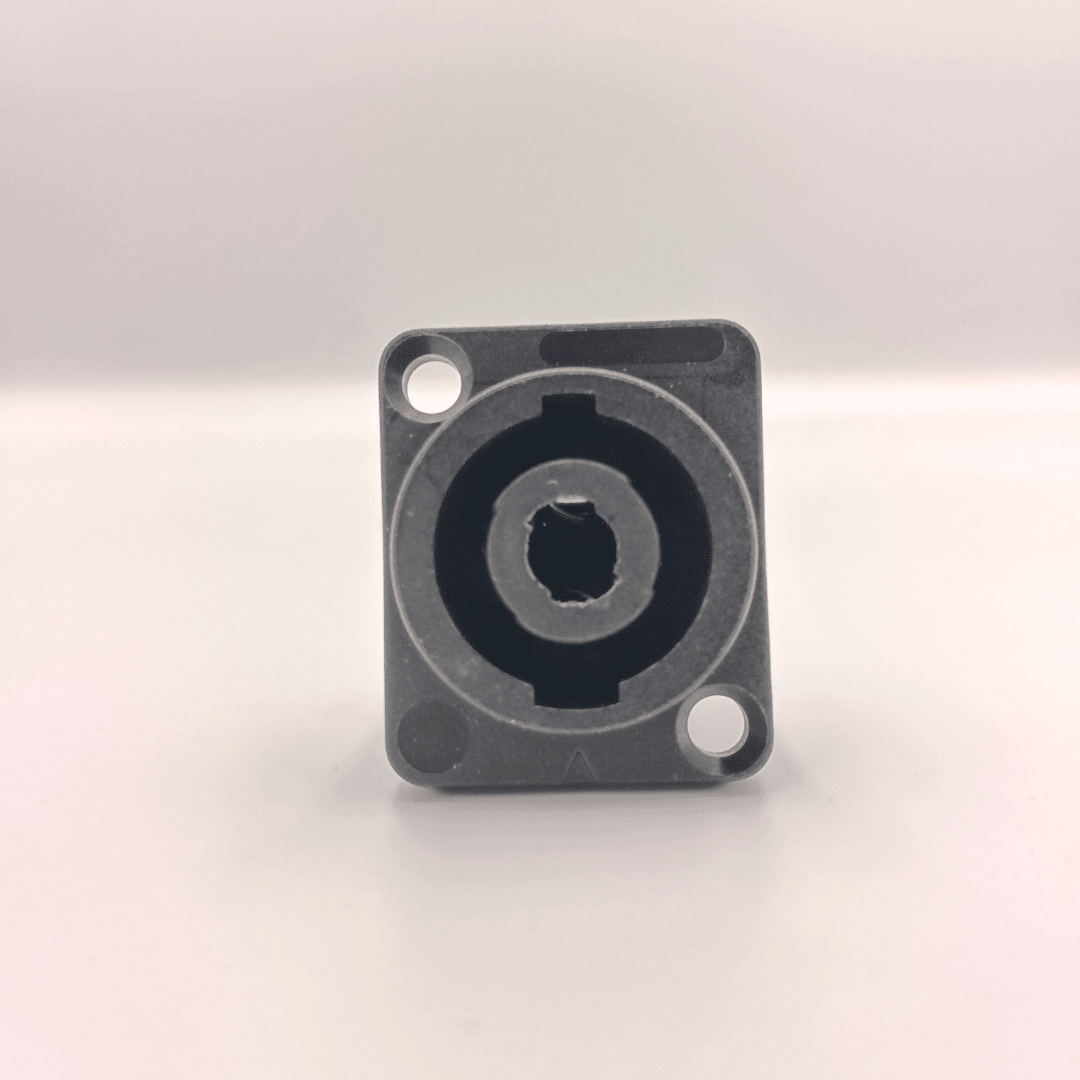

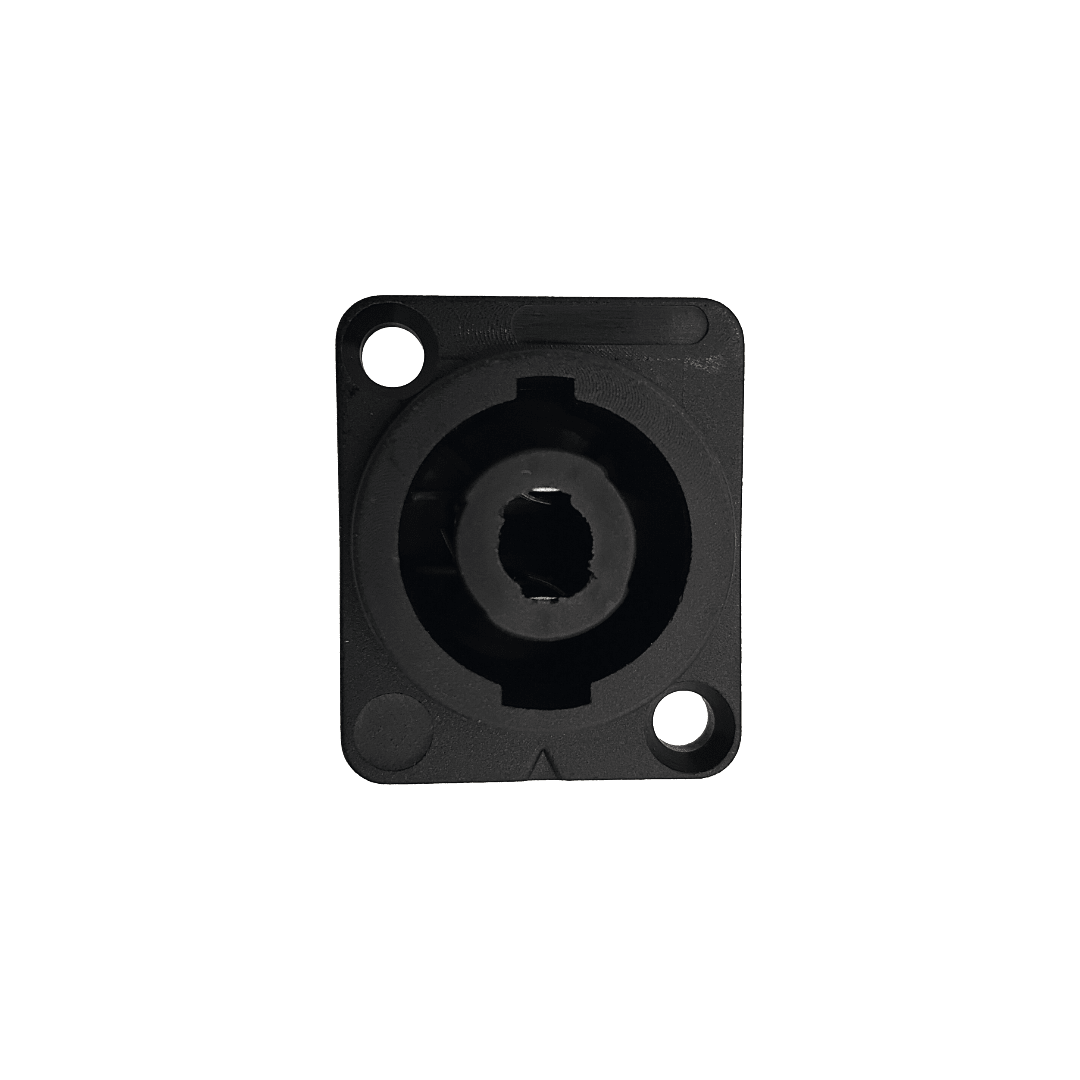

Industrial Standard Loudspeaker Interface: The Kentech SS015-4P is a heavy-duty, 4-pole female speakON panel mount connector engineered to provide secure, high-current audio path connections between power amplifiers and professional loudspeaker enclosures.
Industry Standard D-Flange Footprint: Shaped in a universal rectangular 26mm x 31mm frame layout (D-size standard) that mounts flush into pre-punched audio rack panels, wall plates, stage floor boxes, and speaker backplates.
Fail-Safe Twist-Lock Engineering: Equipped with a dependable metal-reinforced internal latching mechanism. Once a male plug is inserted and twisted clockwise, it locks perfectly in place to prevent accidental cable pull-outs from stage movement or cable weight strain.

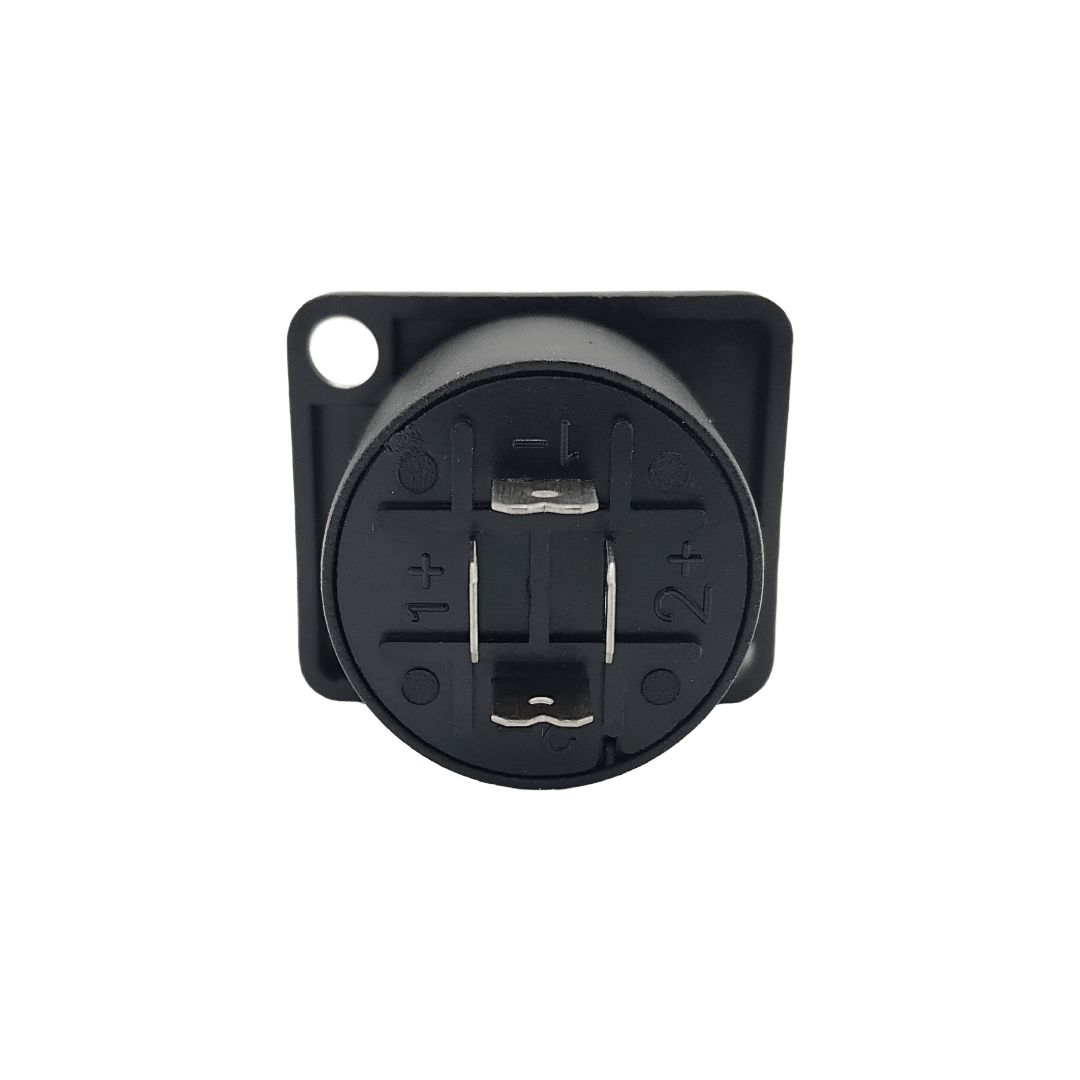

High-Current Multi-Pole Terminal Routing: Features a 4-pole configuration (1+, 1-, 2+, 2-) capable of handling bi-amplified loudspeaker configurations (routing independent sub and mid-high frequencies down a single trunk line) as well as standard 2-pole lines.
Airtight Sealing Design: Precision-molded frame tolerances seal tightly against the cabinet surface when fastened, maintaining proper internal pressure metrics inside ported or sealed speaker cabinets to avoid audio hissing or air leakage.
Features
Secure Quick-Release Mechanism: Smooth internal detent paths allow rapid alignment, tool-free coupling, and lightning-fast breakdown at the end of an event.
Silver-Plated Contact Terminals: Low-resistance solid copper core contact tabs receive premium silver plating to minimize signal attenuation and guarantee long-term anti-corrosive properties.

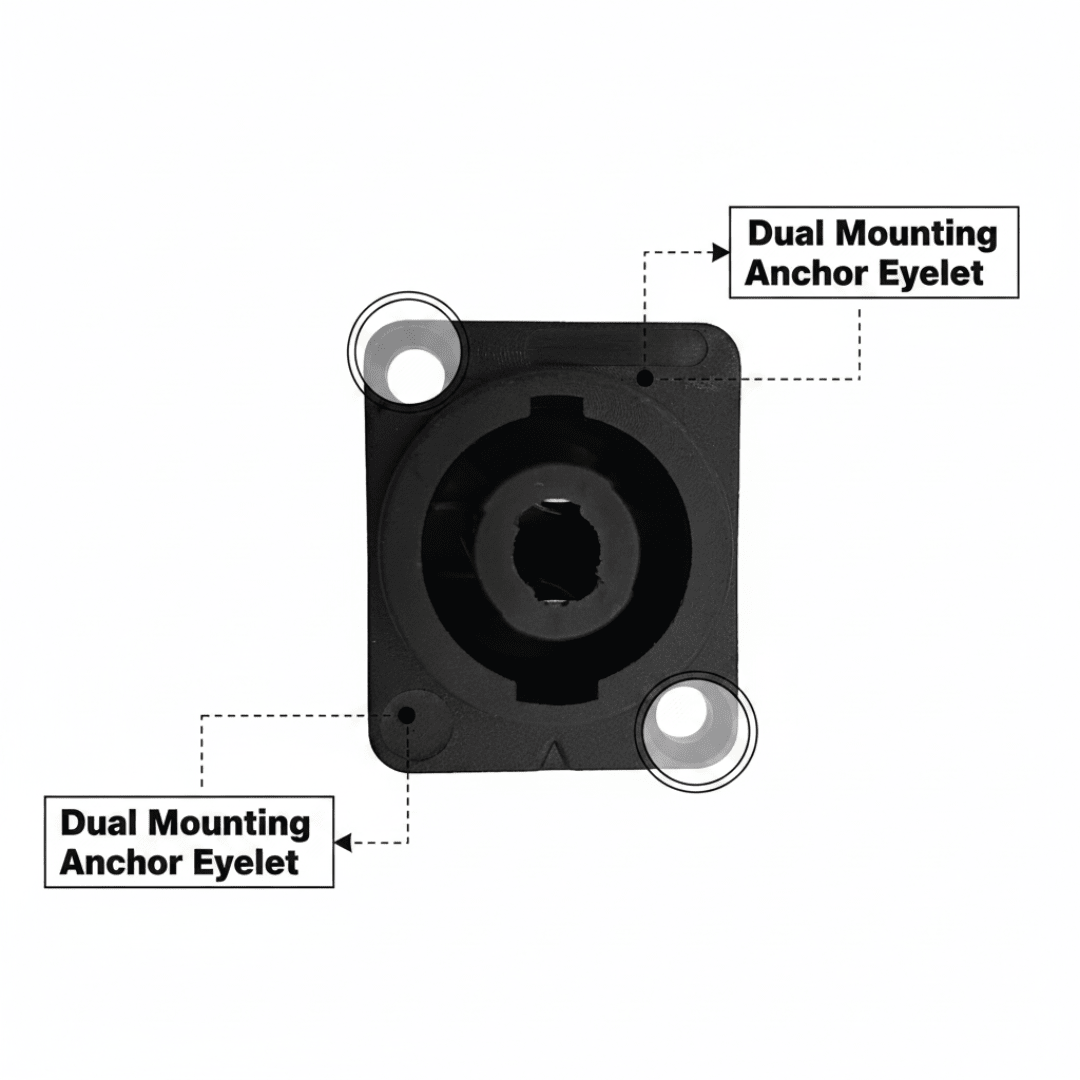

Dual Mounting Hole Anchors: Outfitted with standard dual countersunk eyelets flanking the main cylinder, safely accommodating standard M3 bolts, wood screws, or rivets.

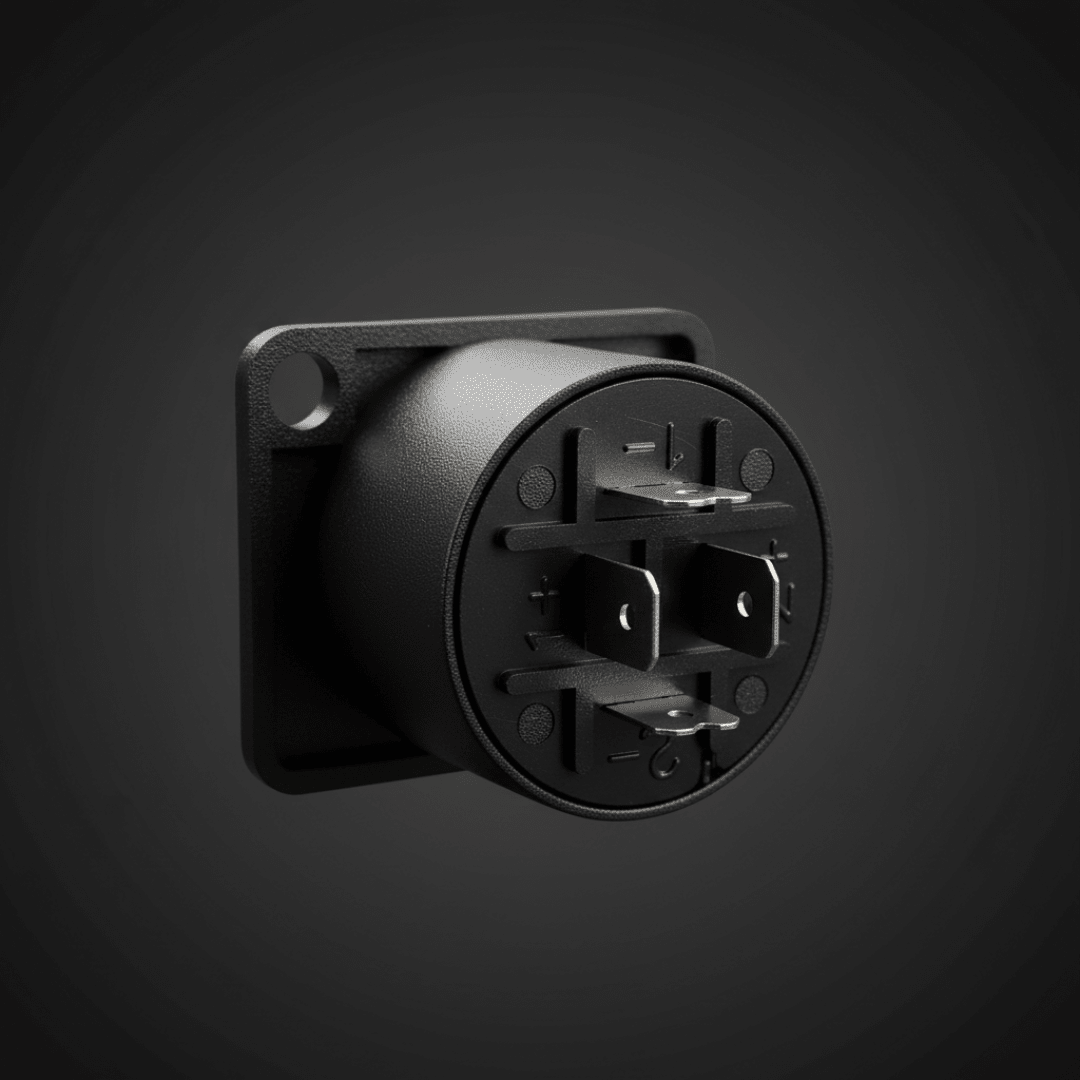

Flexible Solder or Tab Termination: Extended rear terminal pins accept direct wire soldering or standard 3/16" push-on flat spade quick-connect tabs for quick service loops.
Glass-Reinforced Outer Shell: Constructed out of a rugged, high-density thermoplastic compound to absorb mechanical drops and survive grueling mobile DJ touring life.
Specifications
Product Line: Pro-Audio Panel Interface Hardware Series
