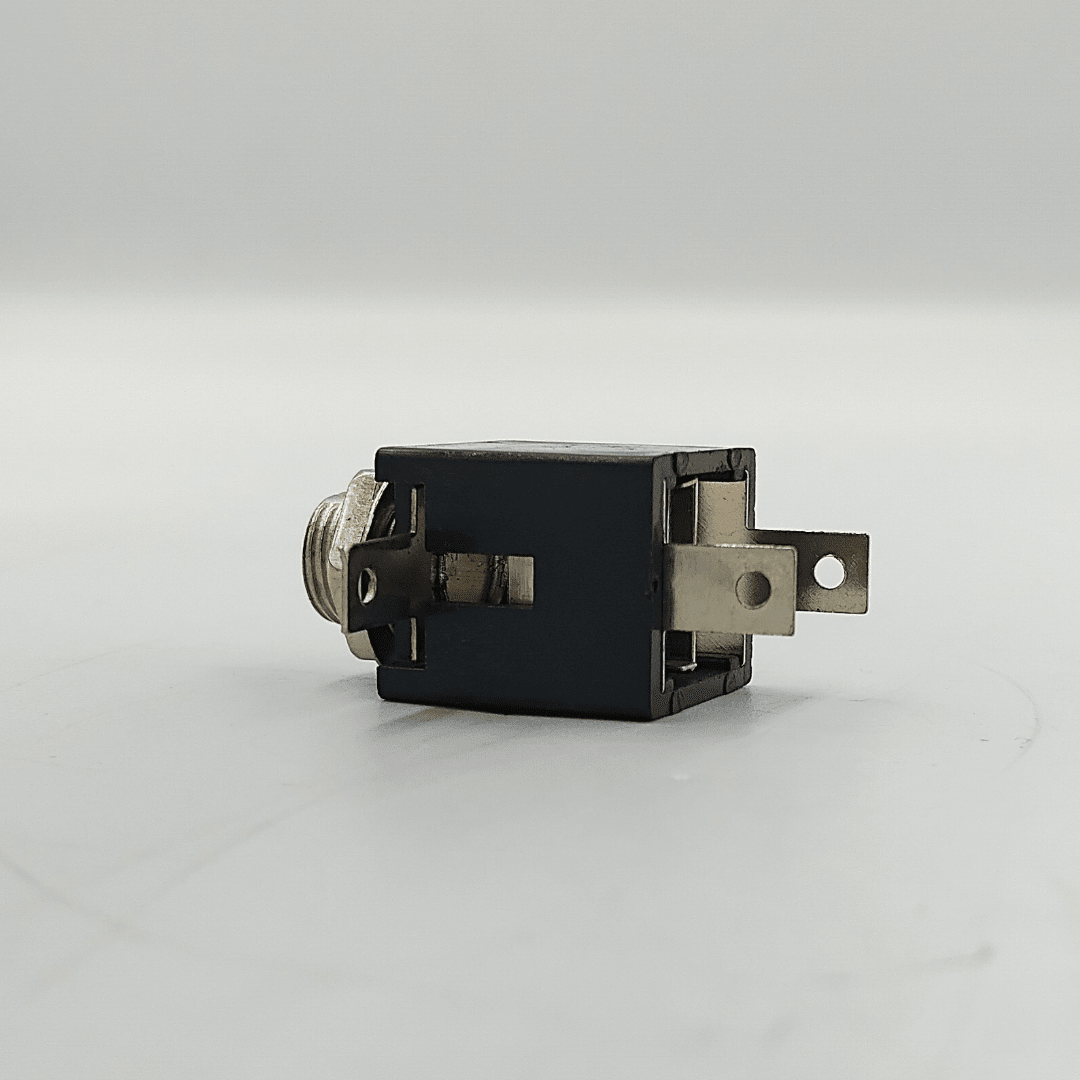

• Panel-mount 1/4" (6.35mm) mono open chassis jack socket designed for audio equipment assembly, repair, and custom PCB wiring.
• Features integrated switched contacts to enable automatic signal routing or speaker muting upon plug insertion.
• Constructed with a durable molded plastic body that provides electrical insulation from the mounting panel or chassis.
• Includes a threaded knurled mounting collar and washer for firm, stable installation on equipment panels.
• Ideal for use in guitar amplifiers, active loudspeakers, audio interfaces, pedalboards, and electronic instruments.

Key Features

• Switched Contact Mechanism: Built-in switch contact opens or closes circuit pathways automatically when a 6.35mm mono plug is inserted.
• Insulated Plastic Body: Non-conductive plastic housing prevents grounding loops and accidental chassis shorts.

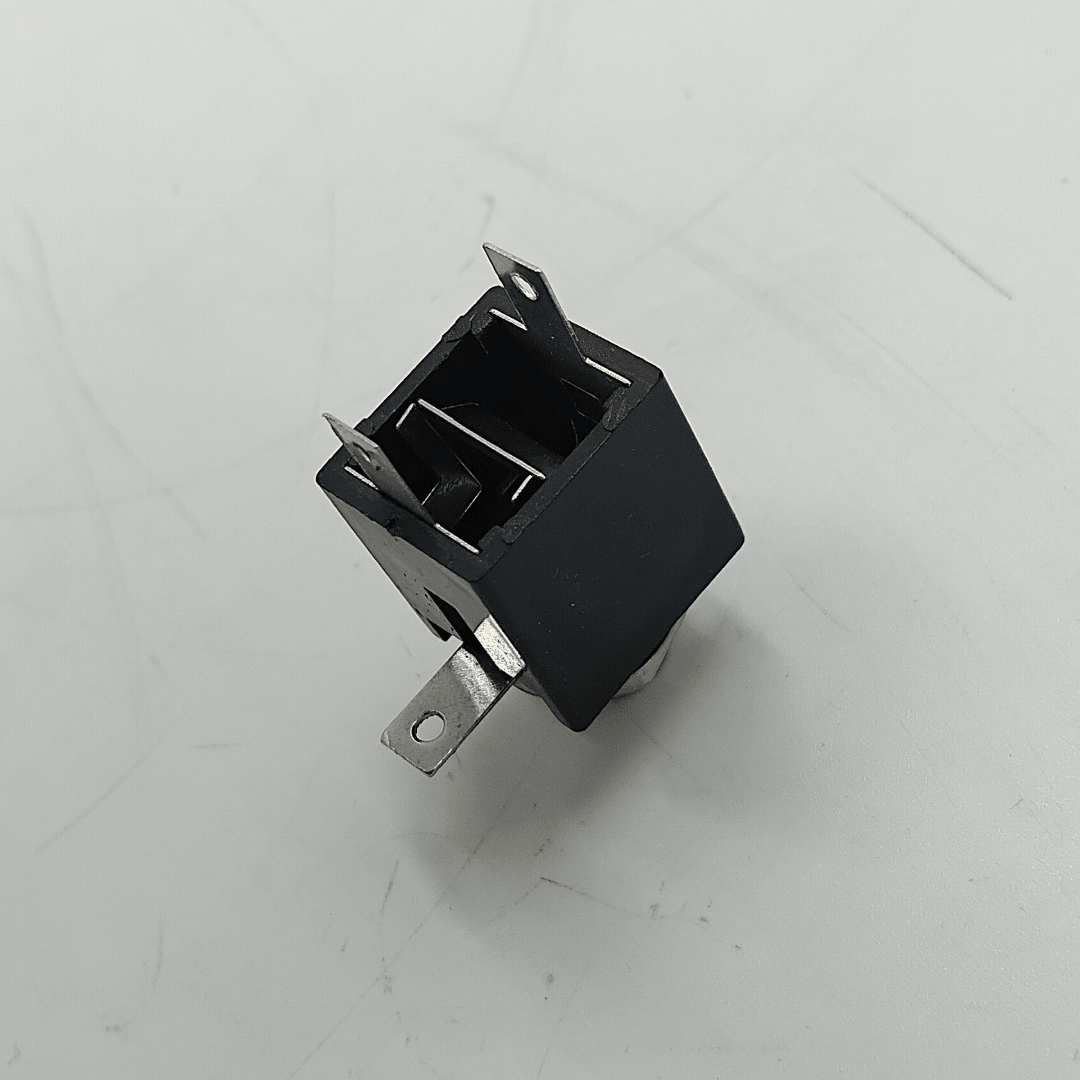

• Open Chassis Design: Exposed solder lugs allow easy access for quick soldering, inspection, and maintenance.

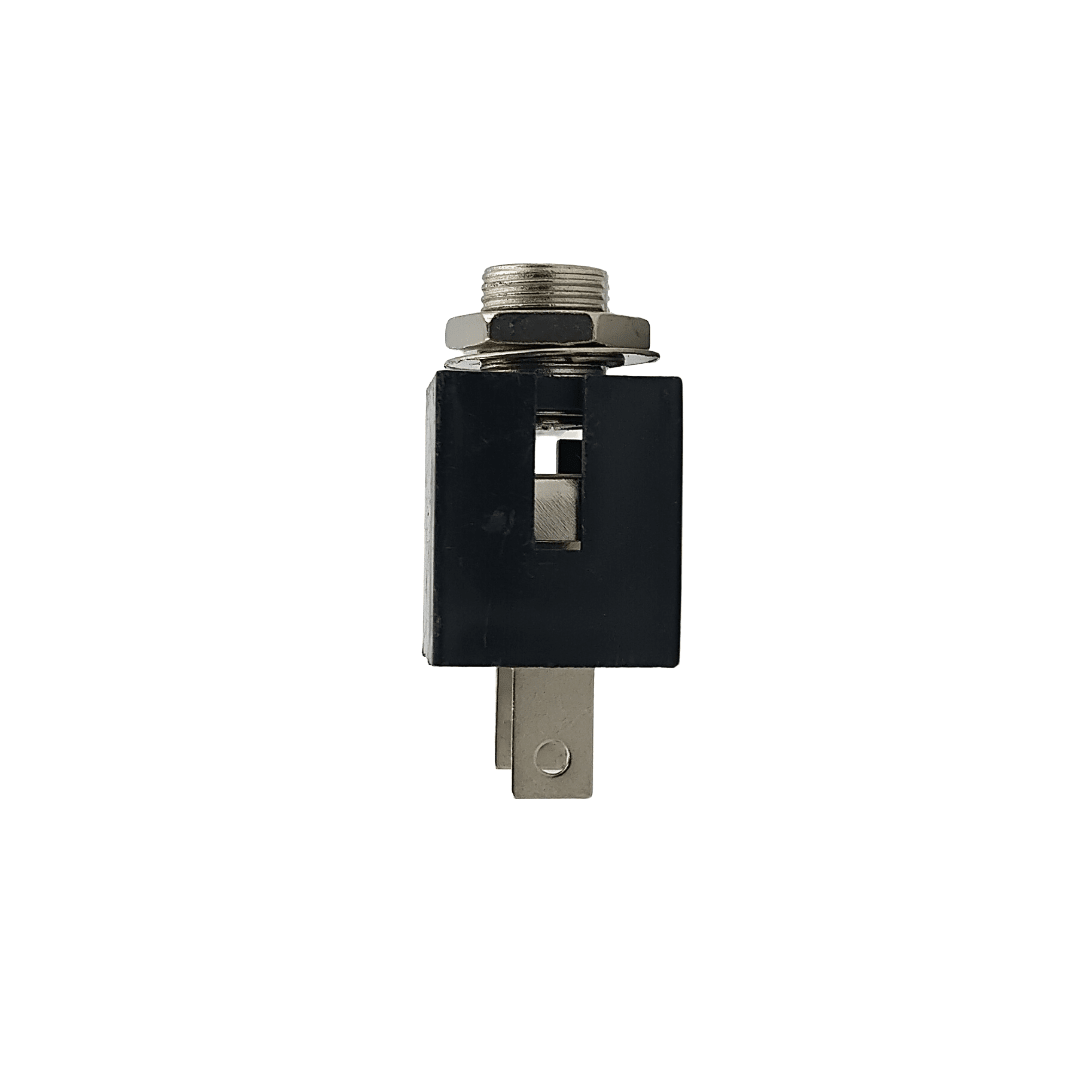

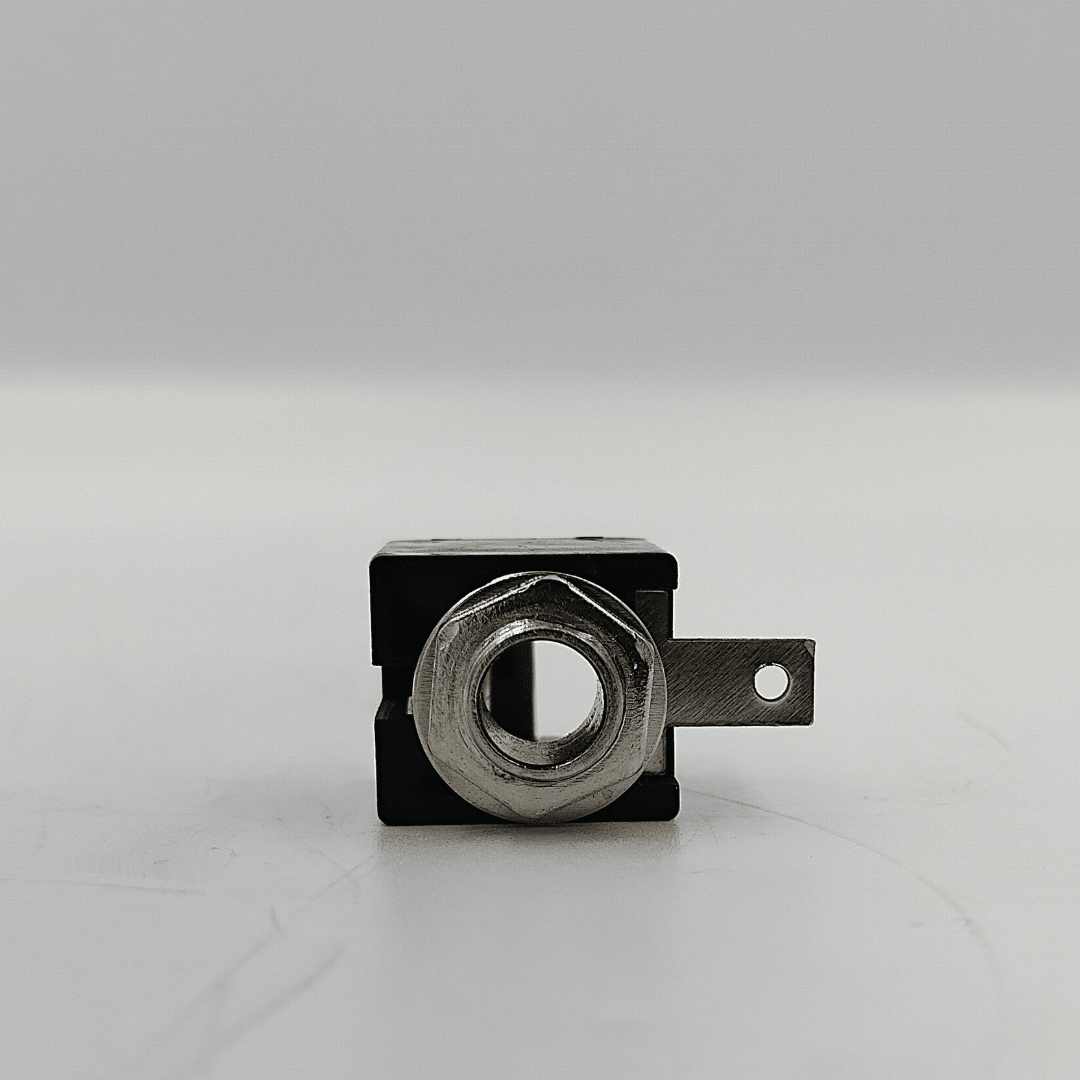

• Secure Panel Mounting: Comes with a threaded metal collar and washer for tight panel fixation.
• Standard 1/4" Compatibility: Accommodates all standard 6.35mm TS mono audio plugs.

Specifications

• Model Code: SJ088
• Product Type: 6.35mm (1/4") Mono Switched Chassis Socket
• Audio Format: Mono (TS - Tip/Sleeve)
• Switch Configuration: Switched Tip Contact
• Mounting Type: Panel Mount / Threaded Chassis Mount
• Housing Material: High-Impact Molded Plastic
• Terminal Type: Solder Lugs
• Weight & Dimensions: 3.2 cm x 2.0 cm x 1.8 cm | 0.10 kg

What's in the Box

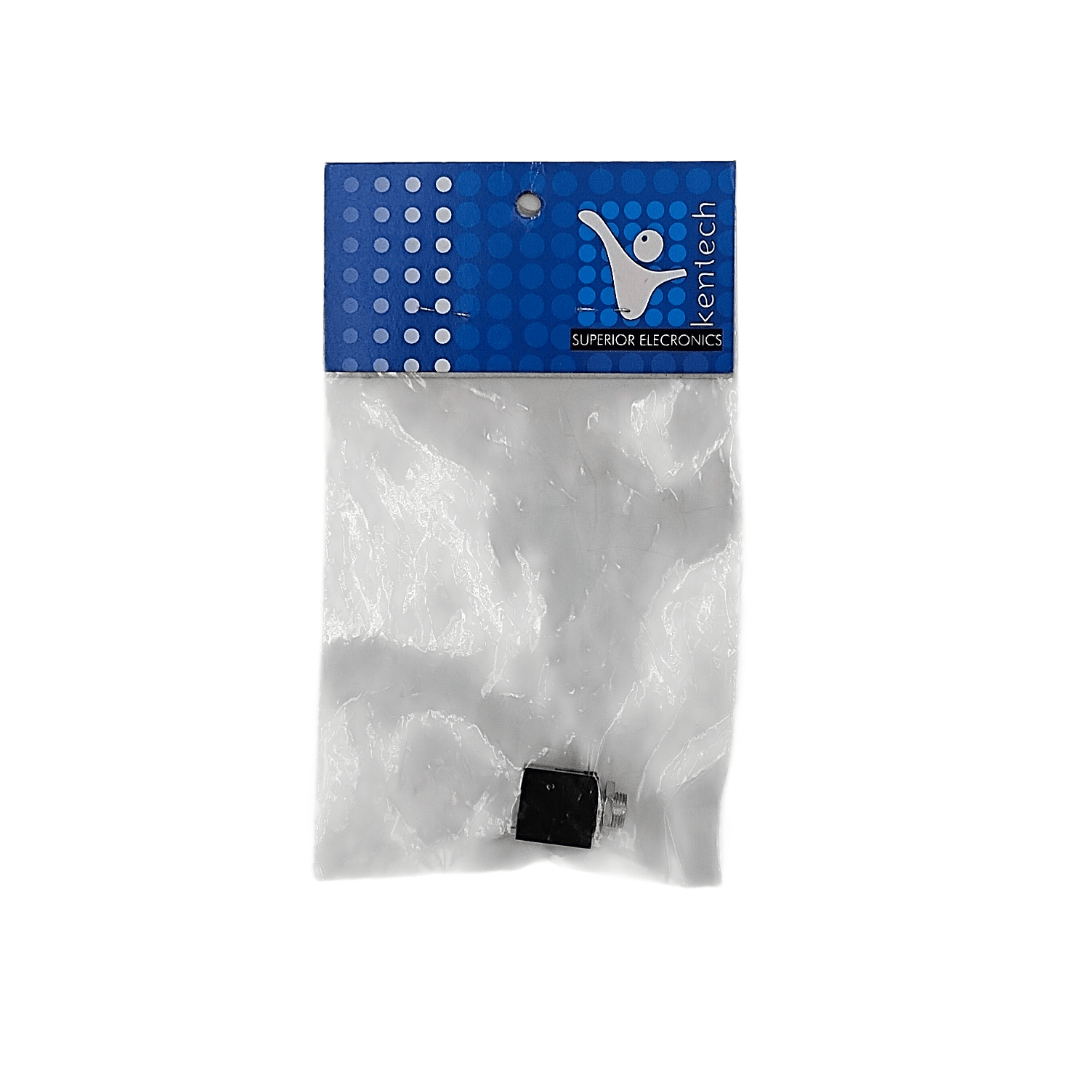

• 1 x Kentech SJ088 6.35mm Mono Open Chassis Switched Socket
• 1 x Mounting Washer
• 1 x Threaded Locking Nut
