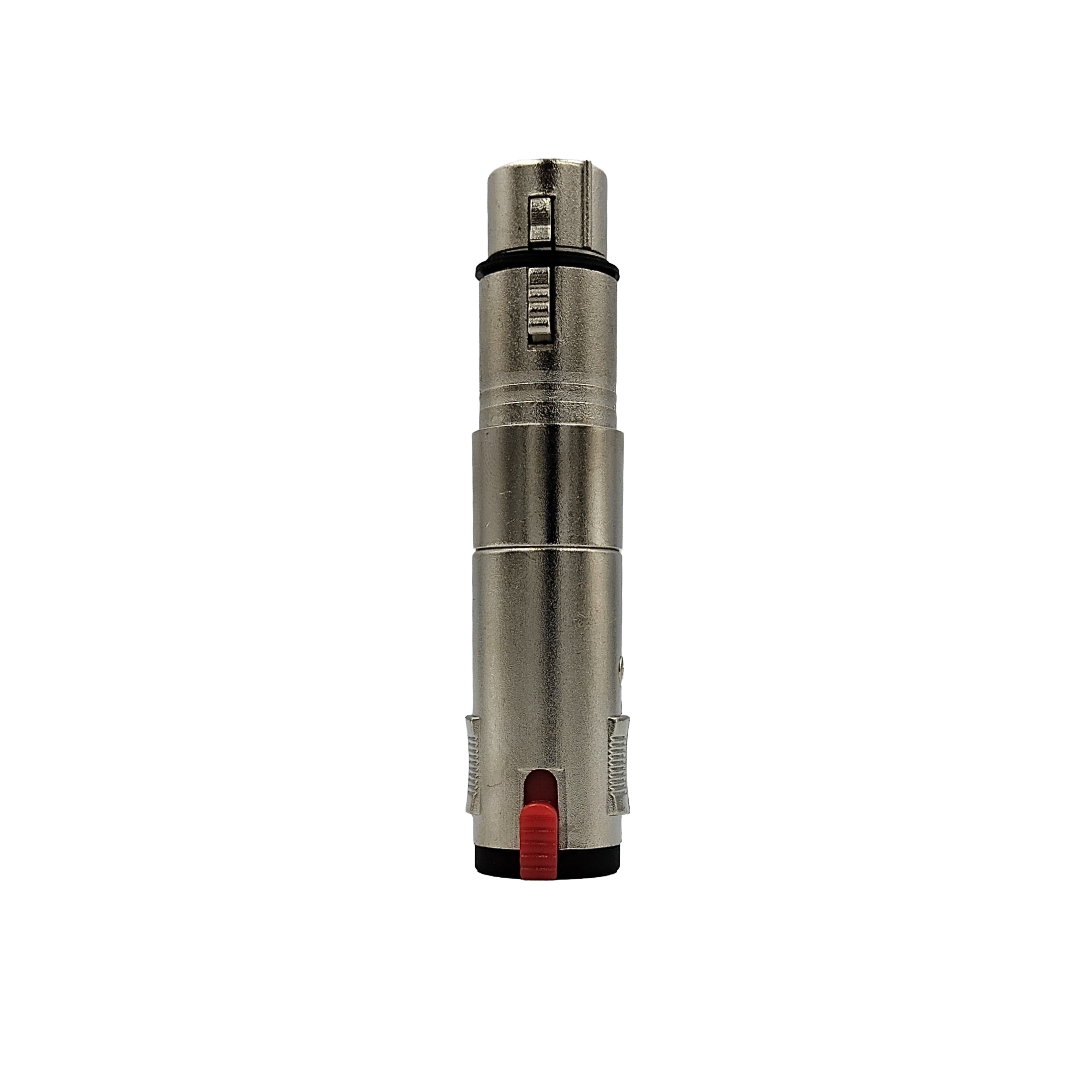

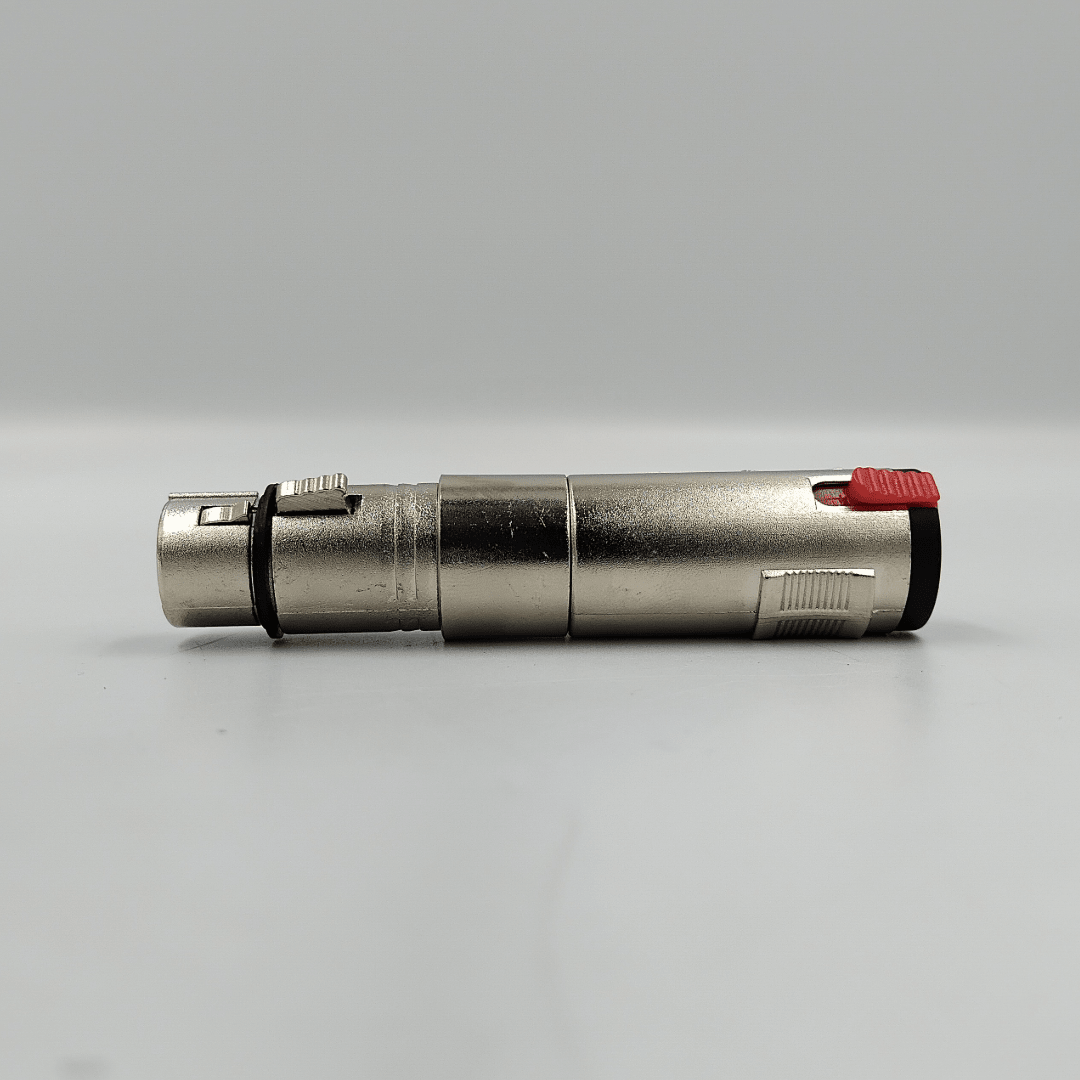

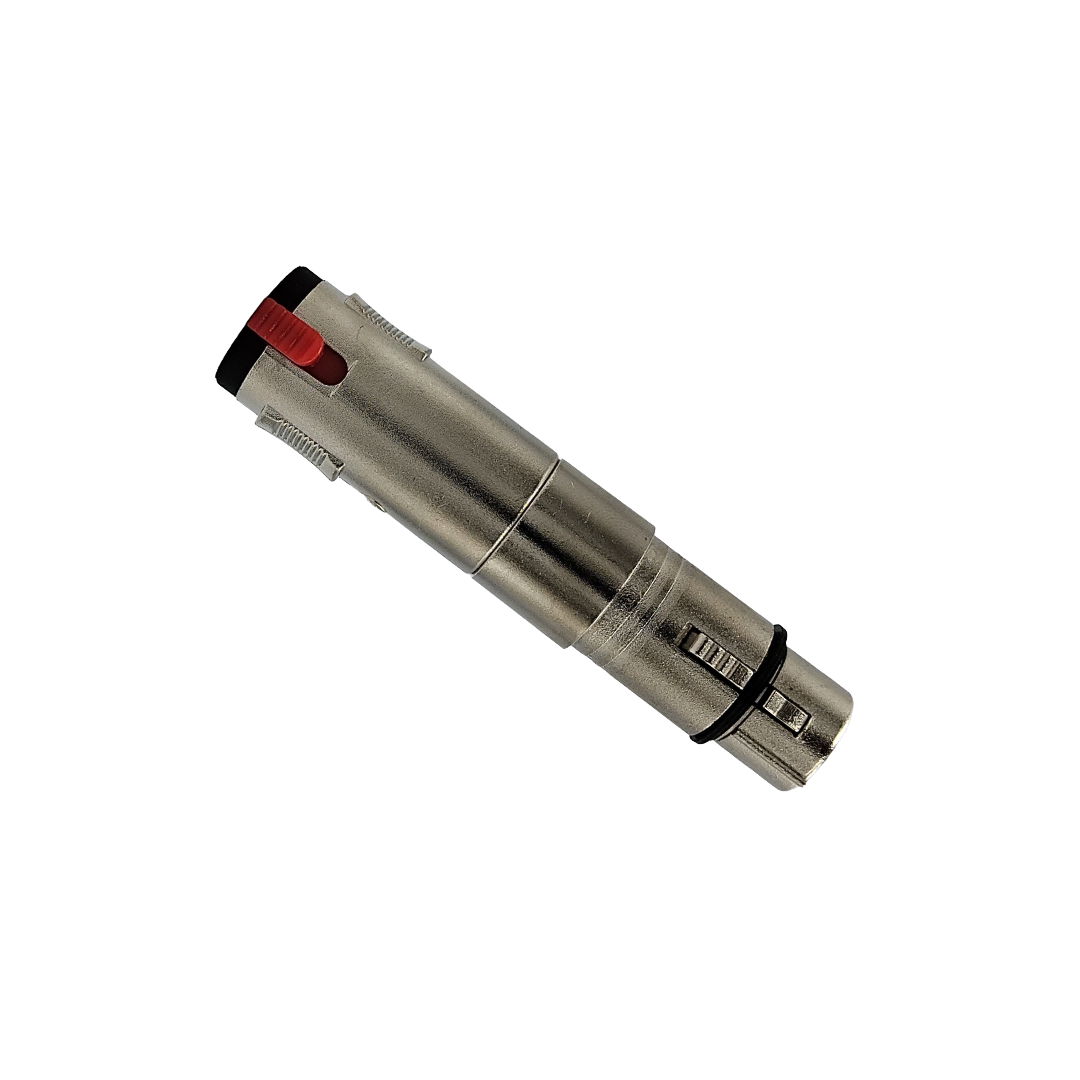

• Heavy-duty audio inter-format adapter designed to bridge 3-pin XLR male interconnect cables with standard 6.35mm (1/4-inch) mono instrument plugs.
• Features a secure locking mechanism on the 6.35mm jack socket to prevent accidental cable disconnections during live performances and stage movements.
• Encased in a rugged die-cast metal housing that provides high structural durability and electromagnetic shielding against RF/EMI interference.
• Equipped with precision-machined internal contacts to ensure high signal conductivity, low contact resistance, and clean analog signal transfer.
• Ideal for adapting microphone lines, instrument cables, and outboard signal processors across PA systems, stage snake boxes, and studio gear.

Features

• Secure Locking 6.35mm Socket: Integrated push-release latch securely holds inserted 1/4-inch mono plugs in place until manually disengaged.
• Solid Die-Cast Metal Casing: Protective nickel-plated zinc alloy shell safeguards internal solder points against mechanical stress and impact.
• Low-Loss Signal Path: High-conductivity metal alloy terminals preserve signal integrity and dynamic frequency response.
• Compact Inline Profile: Streamlined cylinder housing minimizes strain on equipment input/output panel connectors.
• Plug-and-Play Compatibility: Instant hardware conversion between balanced XLR male leads and unbalanced 6.35mm TS/TRS jack lines.

Specifications

• Model / Part Number: SA007
• Product Type: Pro-Audio Inter-Format Cable Adapter

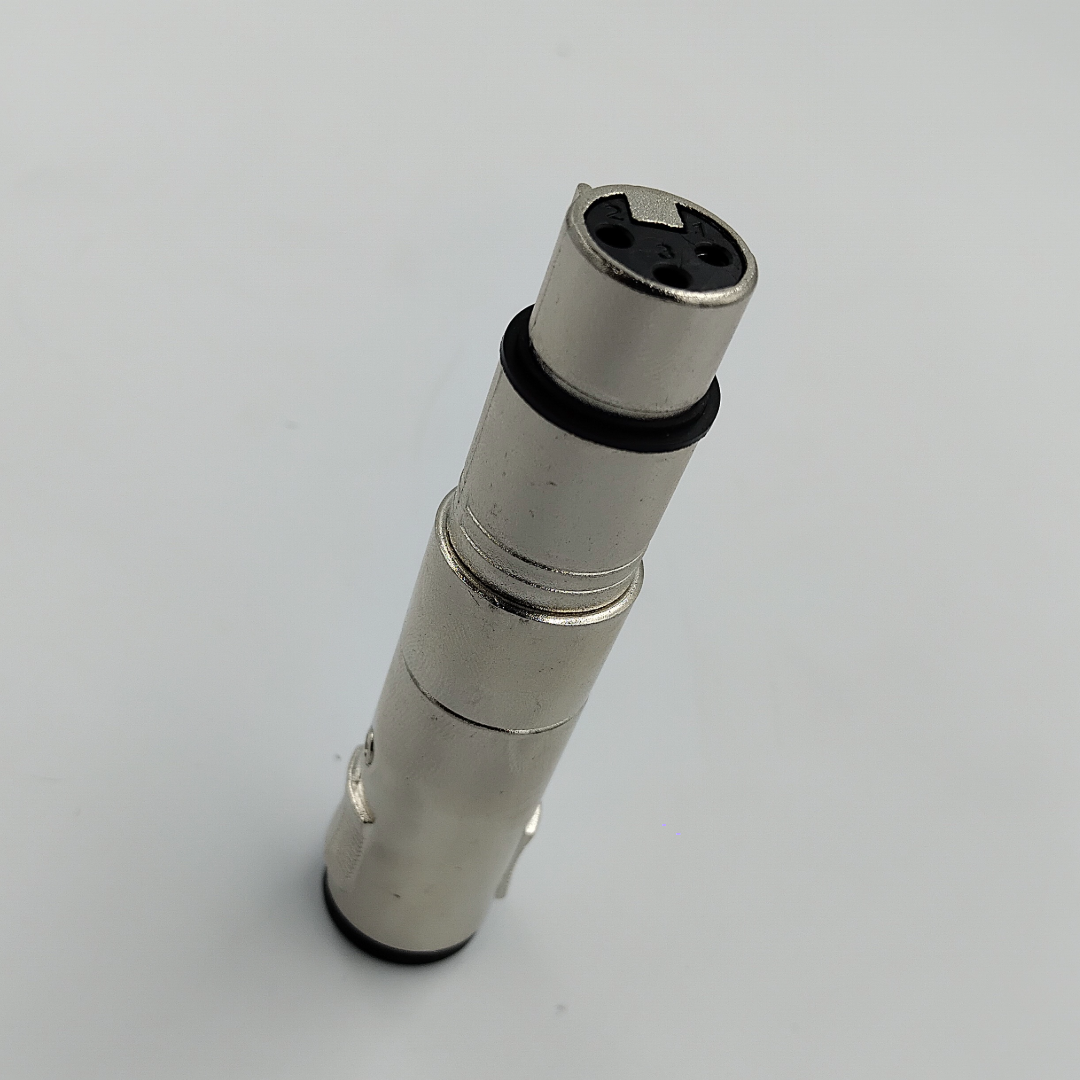

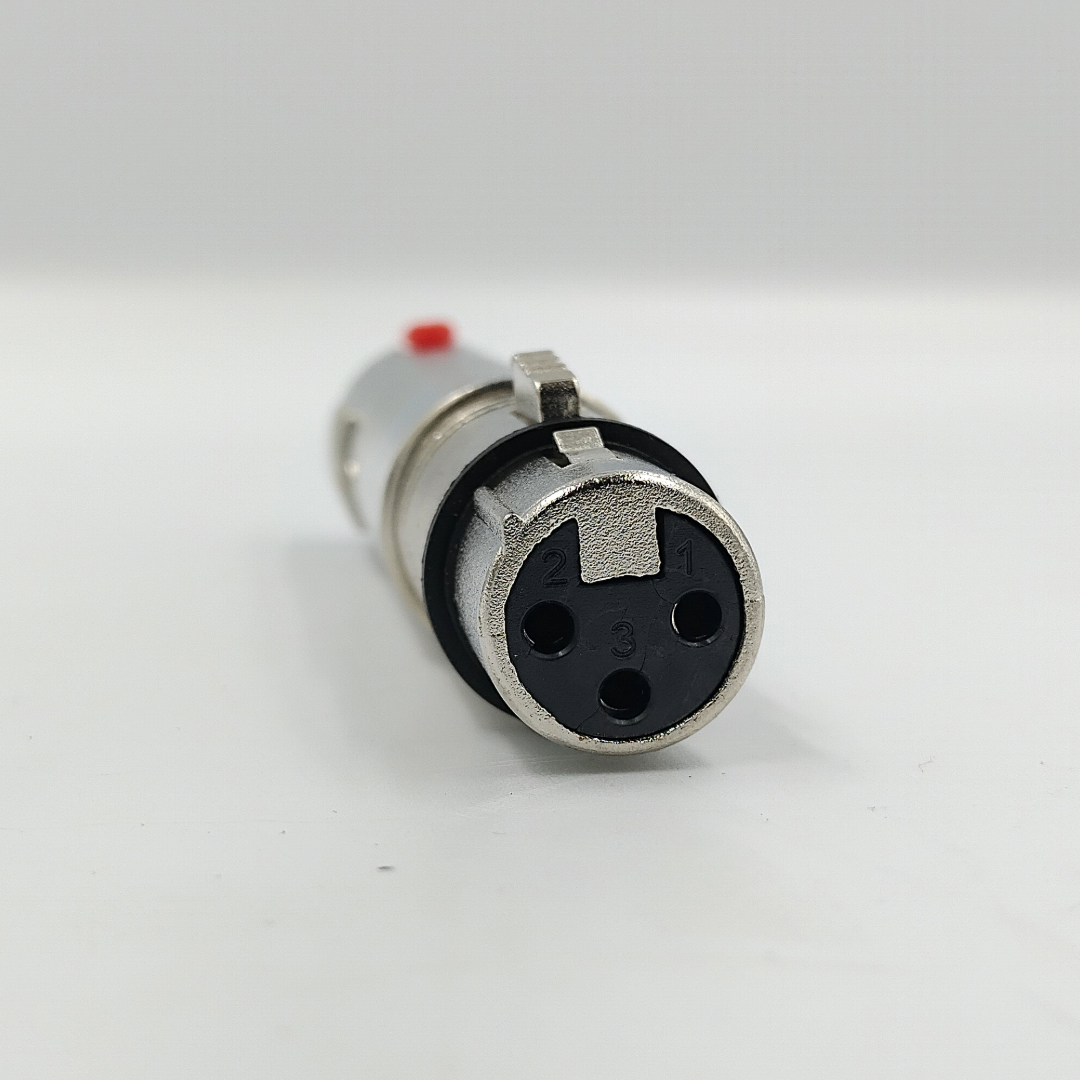

• Connector A: 1 x 3-Pin XLR Female (With Release Latch)

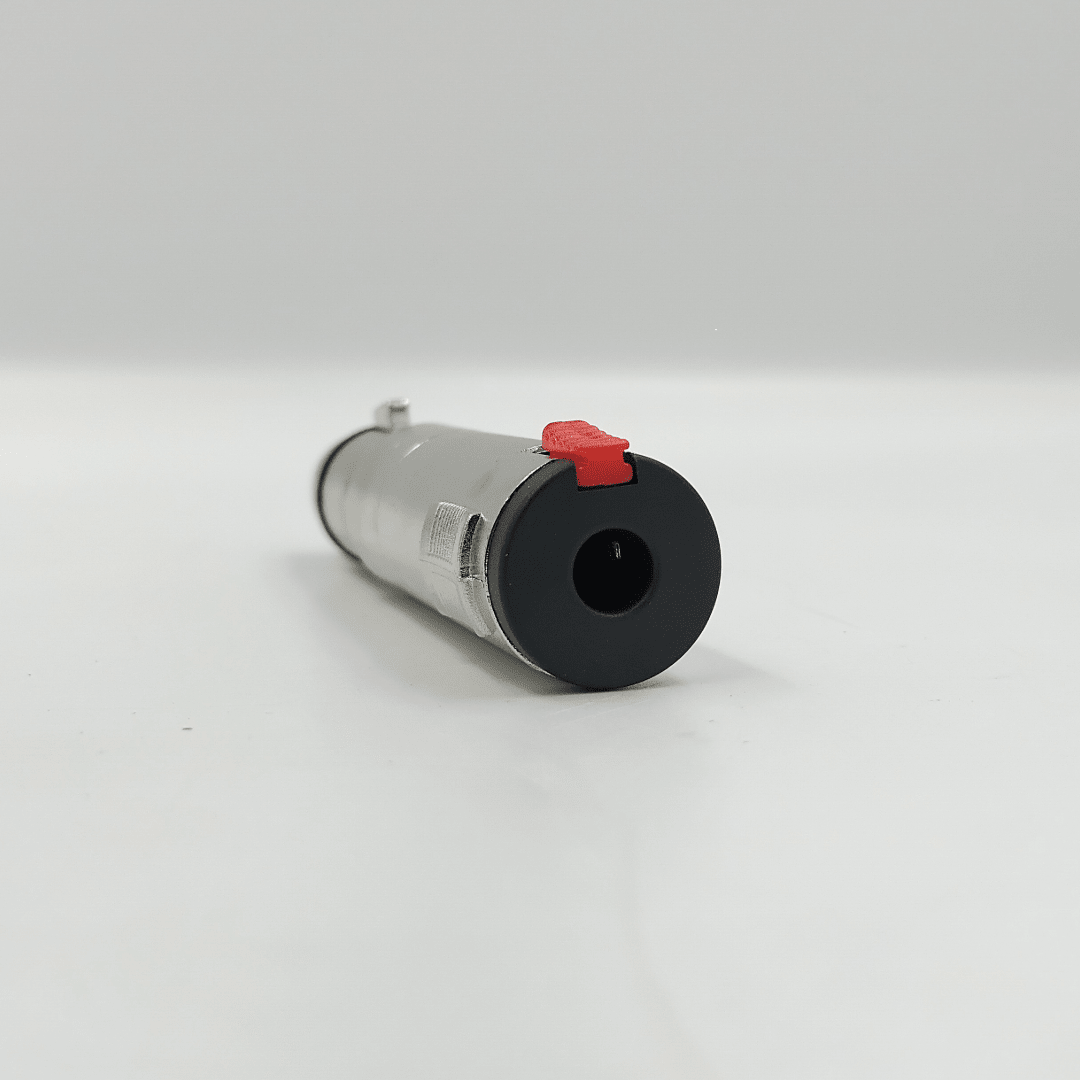

• Connector B: 1 x 6.35mm (1/4") Mono Jack Female (With Locking Switch)
• Signal Type: Analog Audio (Mono TS / Unbalanced Conversion)
• Housing Material: Die-Cast Zinc Alloy (Nickel-Plated)
• Locking Mechanism: Mechanical Spring-Loaded Push Release
• Application: Live Sound Reinforcement, Microphone Lines, Stage Snakes, Studio Mixers, Instrument Amplifiers

What's in the Box?

• 1 x Kentech SA007 3-Pin XLR Female to 6.35mm Mono Locking Socket Adapter
