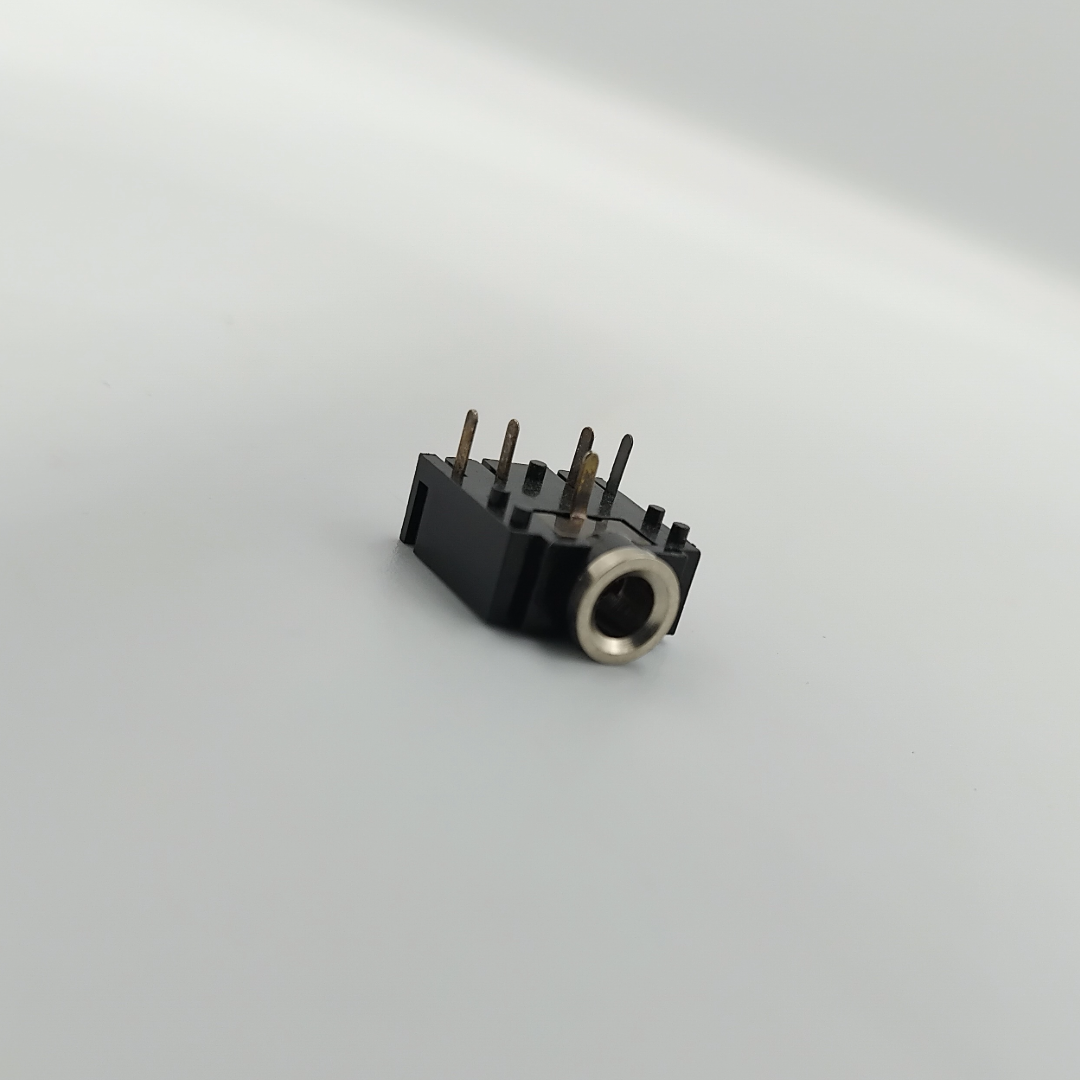

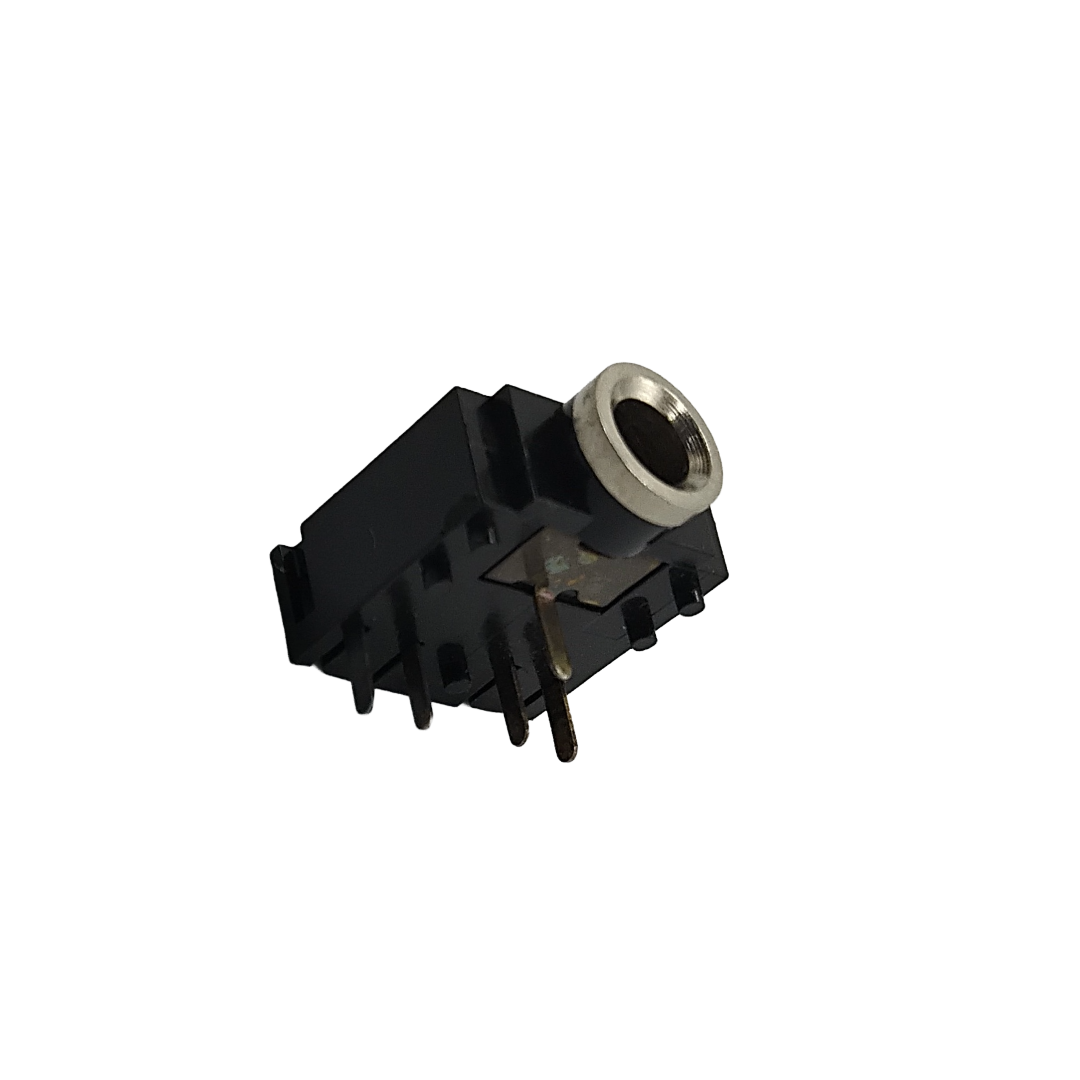

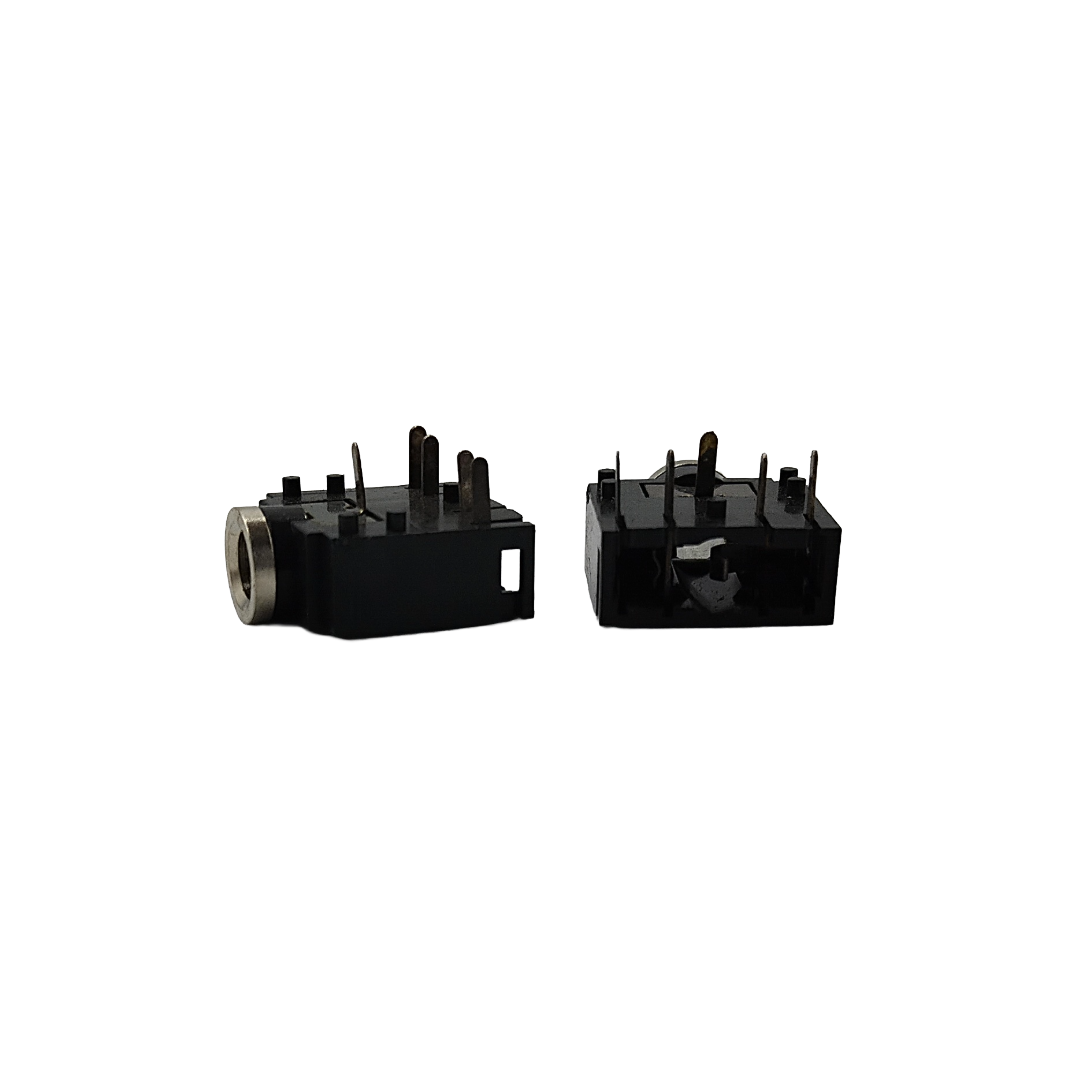

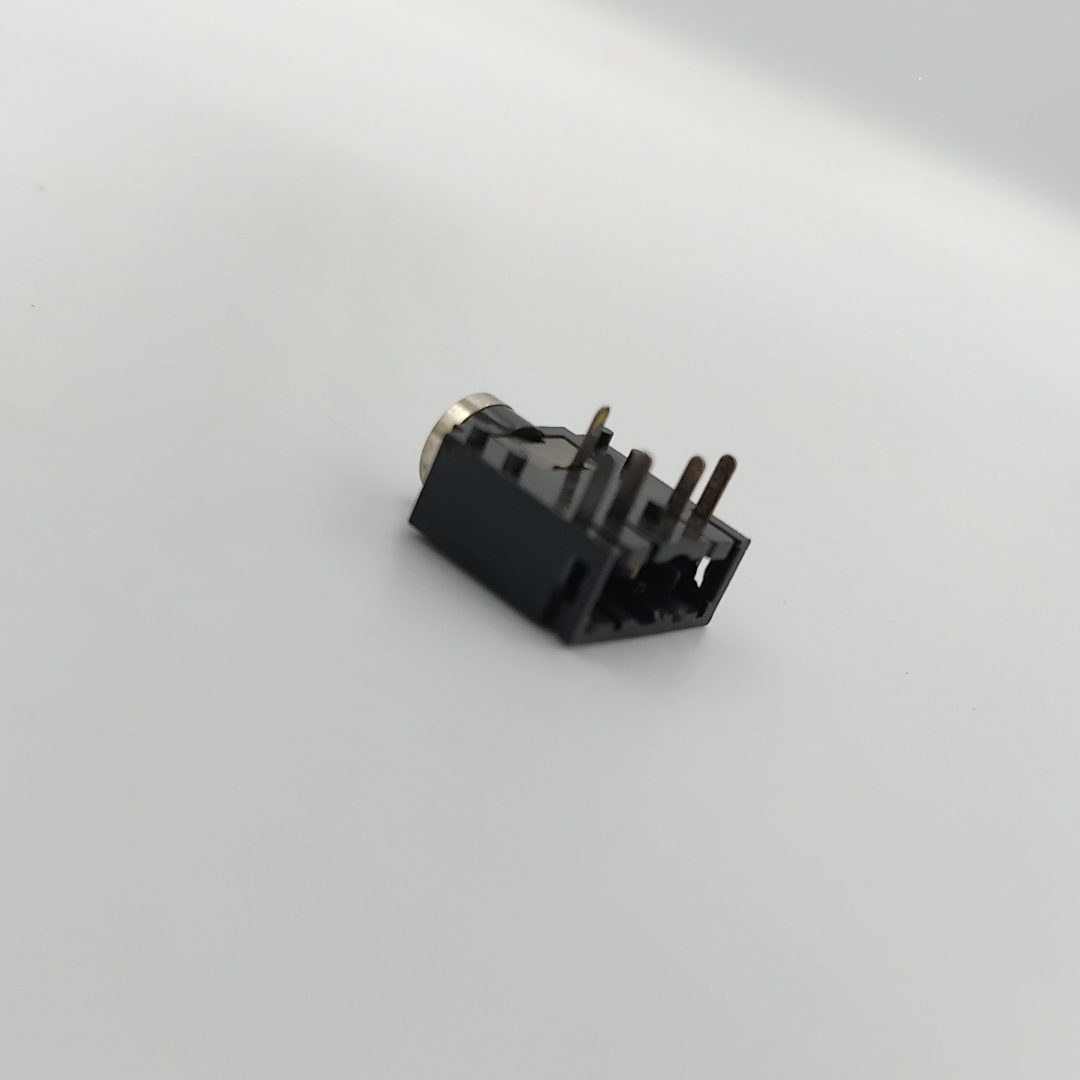

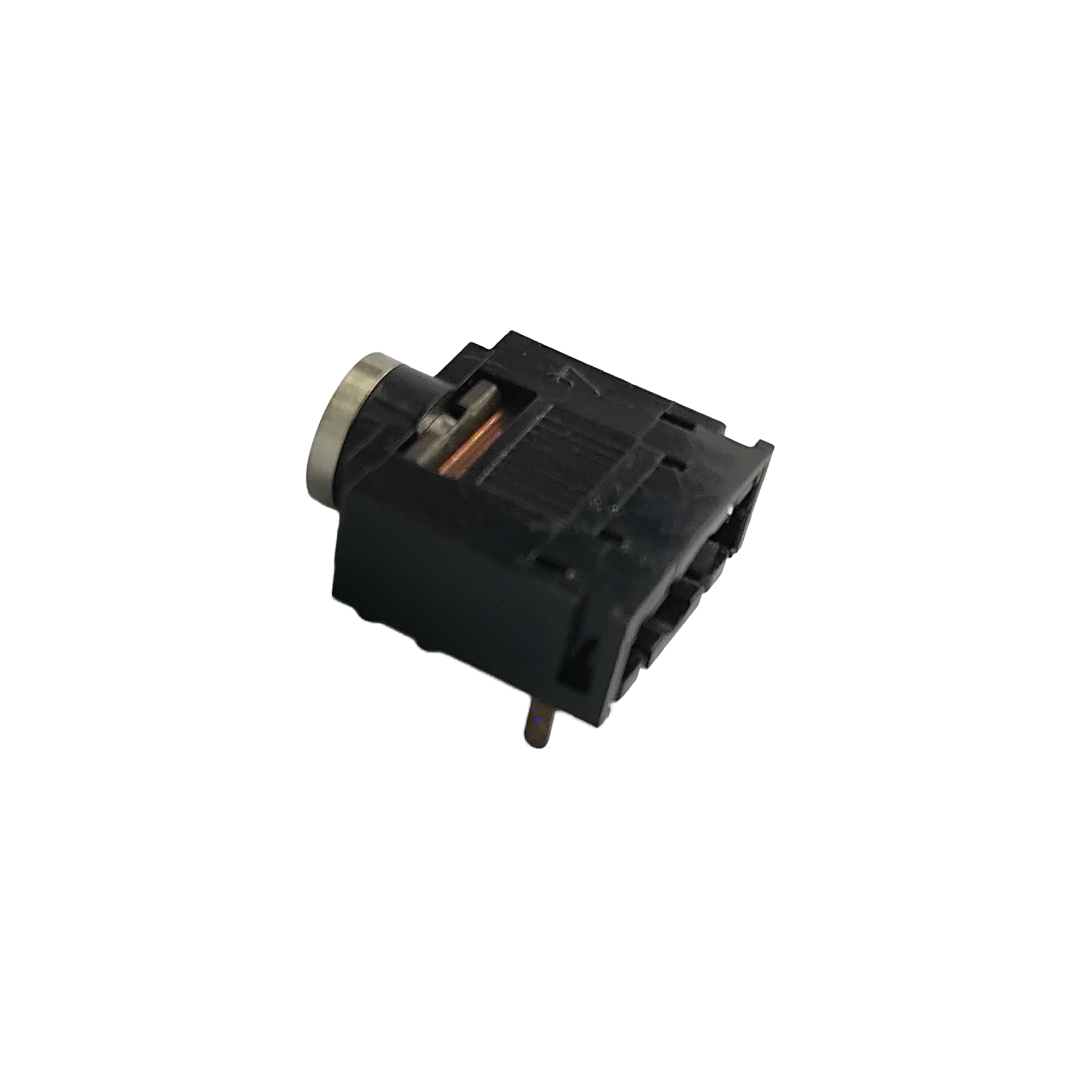

Low-profile 3.5mm (1/8") TRS stereo female jack socket designed for direct horizontal printed circuit board (PCB) mounting.
Features a 3-pole Tip-Ring-Sleeve (TRS) configuration that supports dual-channel stereo audio signals and auxiliary line inputs/outputs.
Horizontal right-angle orientation allows connector access directly through equipment enclosures, project boxes, and chassis panels.
Constructed with a durable, heat-resistant thermoplastic housing and copper alloy contacts to ensure low contact resistance and long mating cycle life.

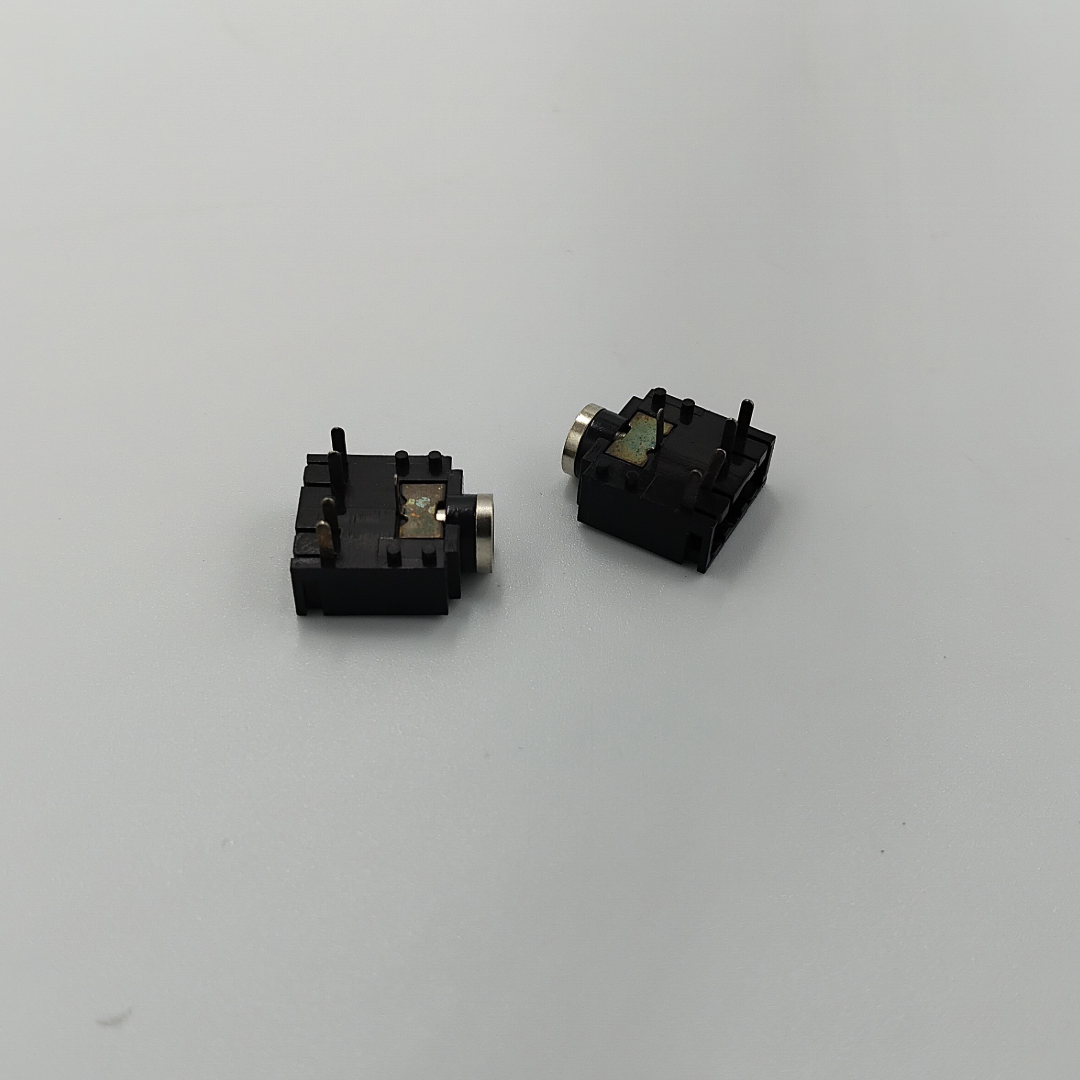

Supplied in a convenient pack of 2 for prototype builds, repair projects, and custom audio circuit designs.
Features
Right-Angle PCB Mounting: Designed for horizontal through-hole soldering directly onto circuit boards for seamless panel integration.
3-Pole TRS Stereo Audio: Supports standard 3.5mm headphone jacks, line-in connections, and auxiliary stereo audio signals.
Durable Insulated Housing: Non-conductive plastic casing prevents electrical shorting against adjacent components or metal panels.
High-Conductivity Terminals: Precision copper alloy contacts deliver stable, noise-free signal transmission and high retention force.
Convenient 2-Pack: Includes two sockets for dual-channel designs, spare stock, or repair applications.
Specifications
Model / Part Number: CJP9023HP2
Product Type: PCB Mount Audio Jack / 3.5mm Stereo Socket
Connector Gender: Female Socket / Jack
Jack Size: 3.5 mm (1/8 Inch)
Signal Layout: 3-Pole TRS (Tip-Ring-Sleeve) / Stereo
Mounting Style: Through-Hole Horizontal / Right-Angle PCB Mount
Housing Material: Flame-Retardant Thermoplastic
Contact Material: Gold/Tin-Plated Copper Alloy
Quantity: Pack of 2
Application: PCB Audio Circuits, Headphone Amplifiers, DIY Synthesizers, Media Players, Control Panels
What's in the Box?
2 x Kentech CJP9023H 3.5mm Stereo PCB Horizontal Sockets
