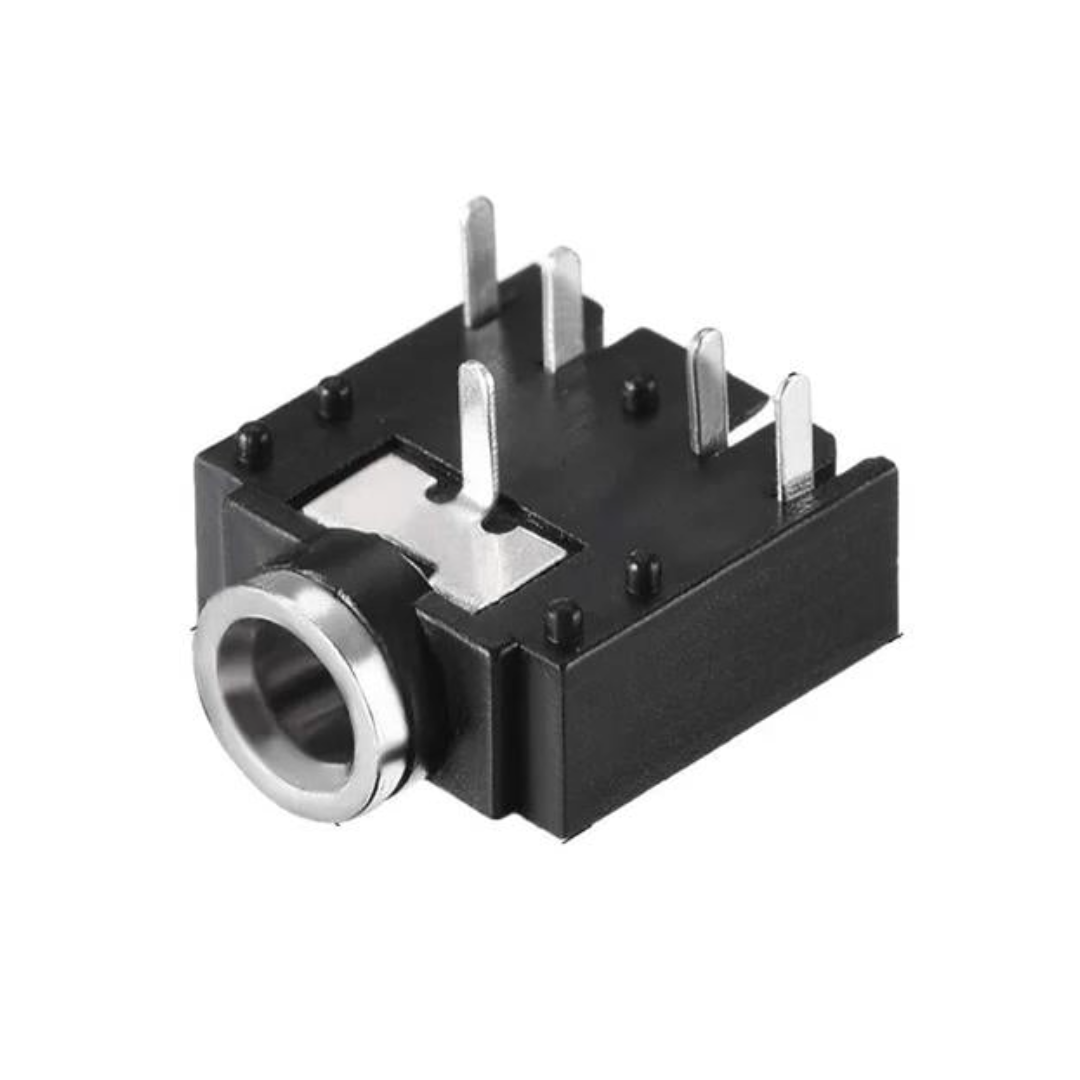

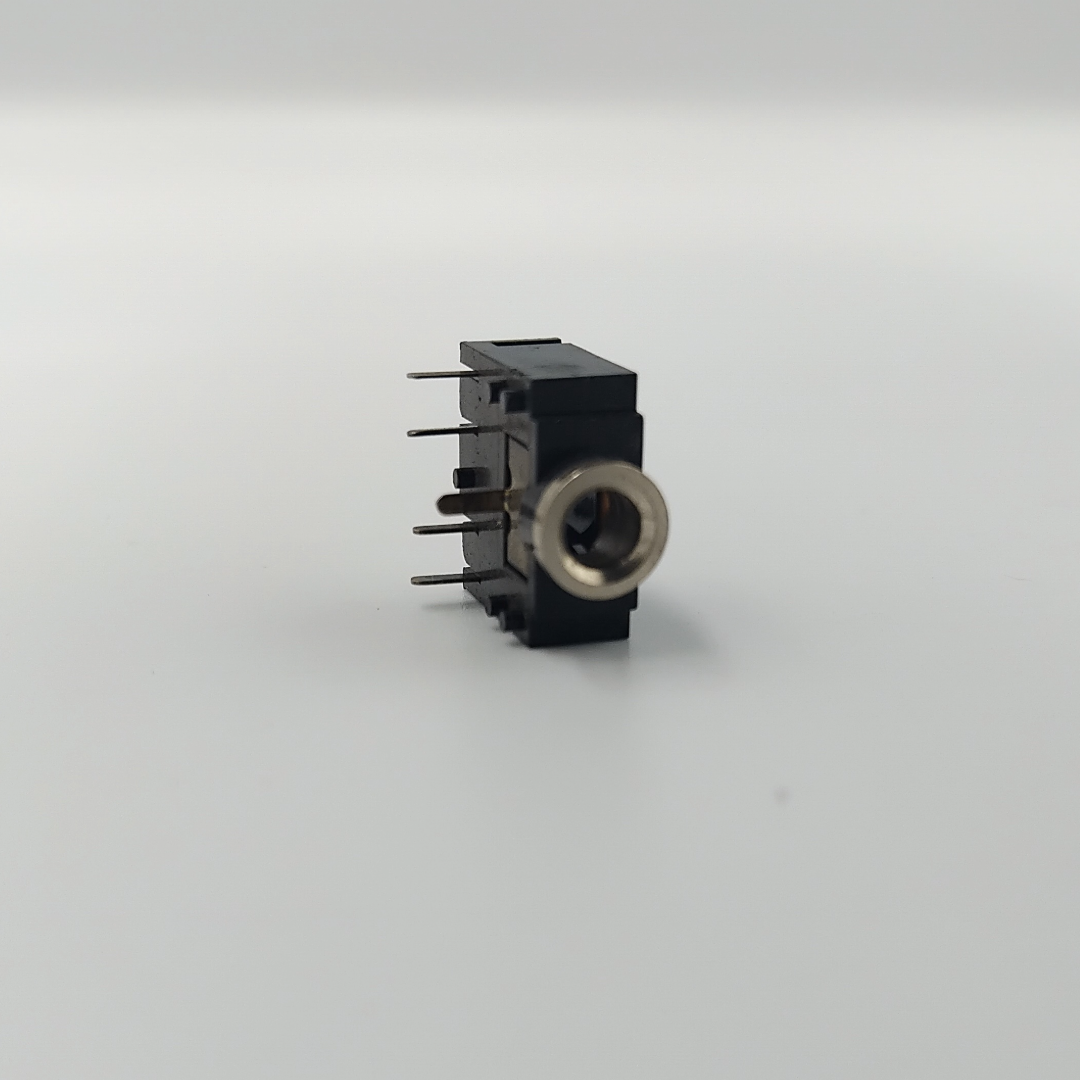

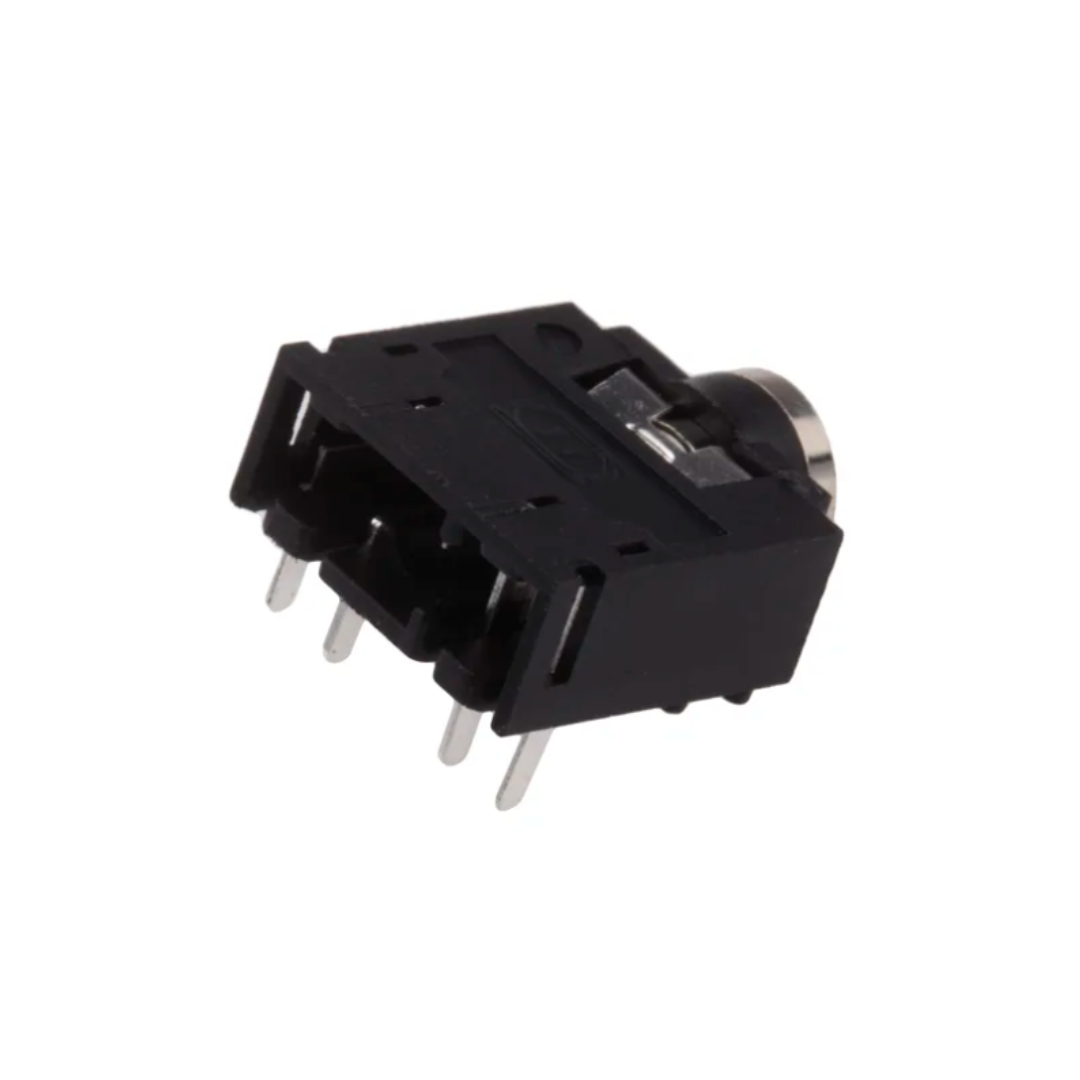

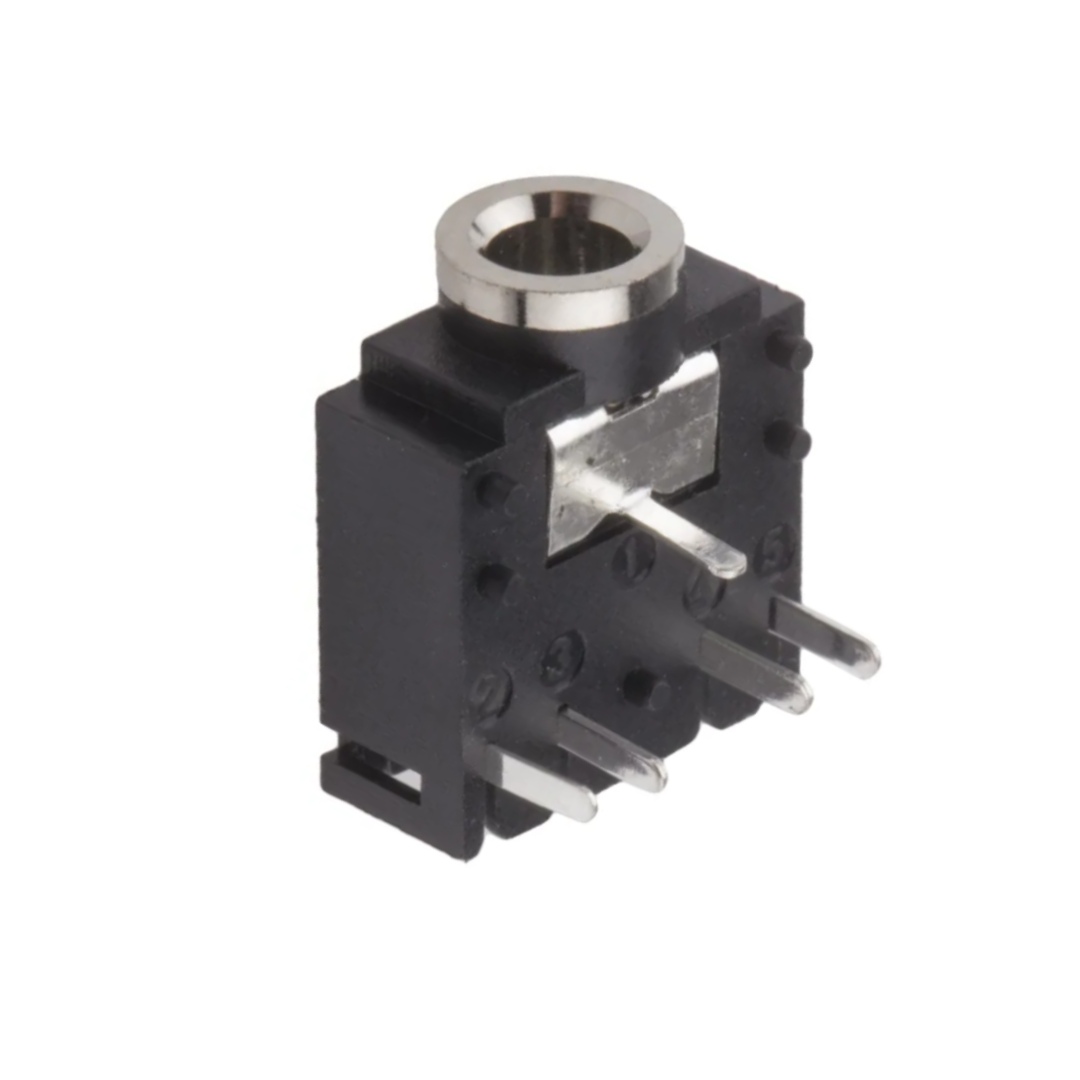

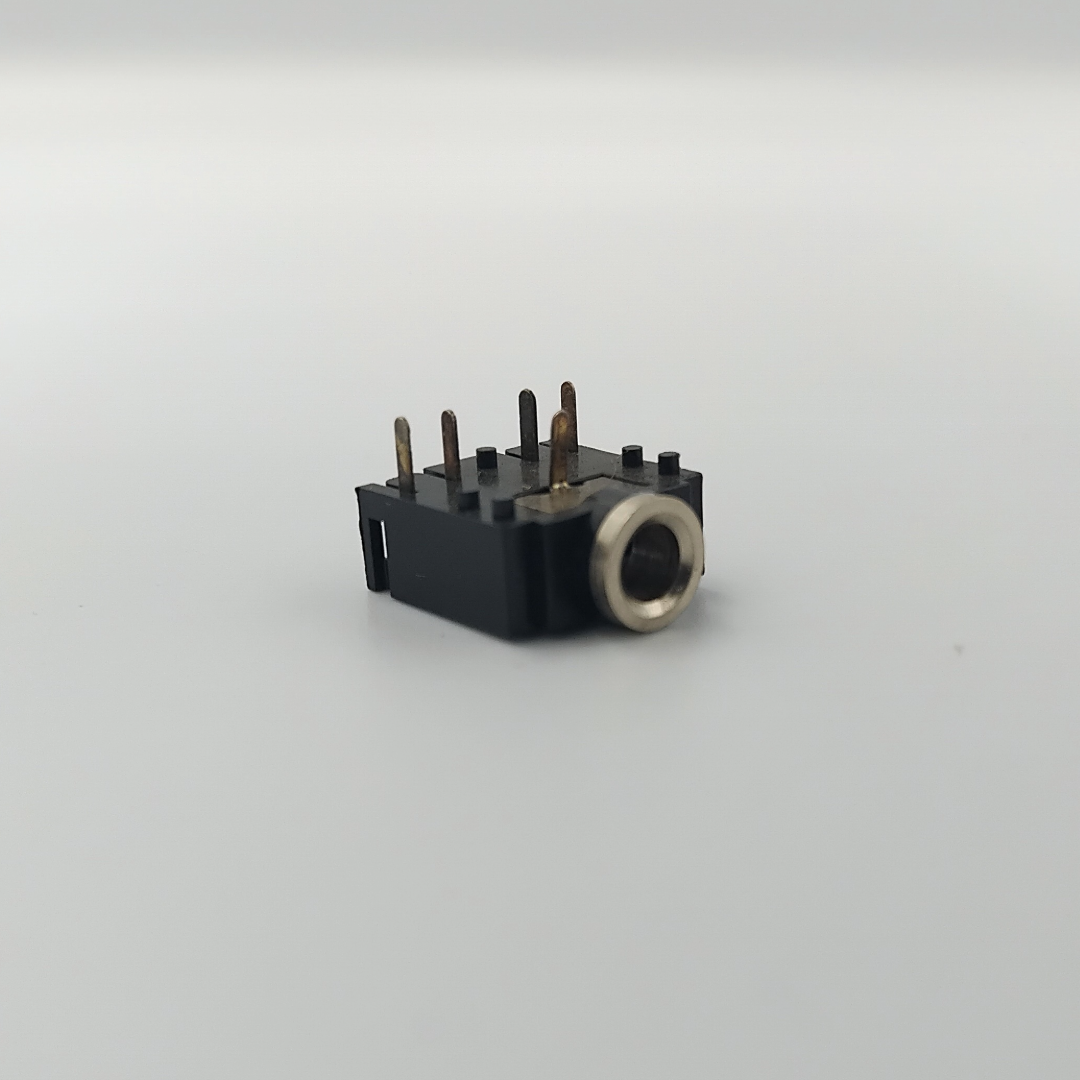

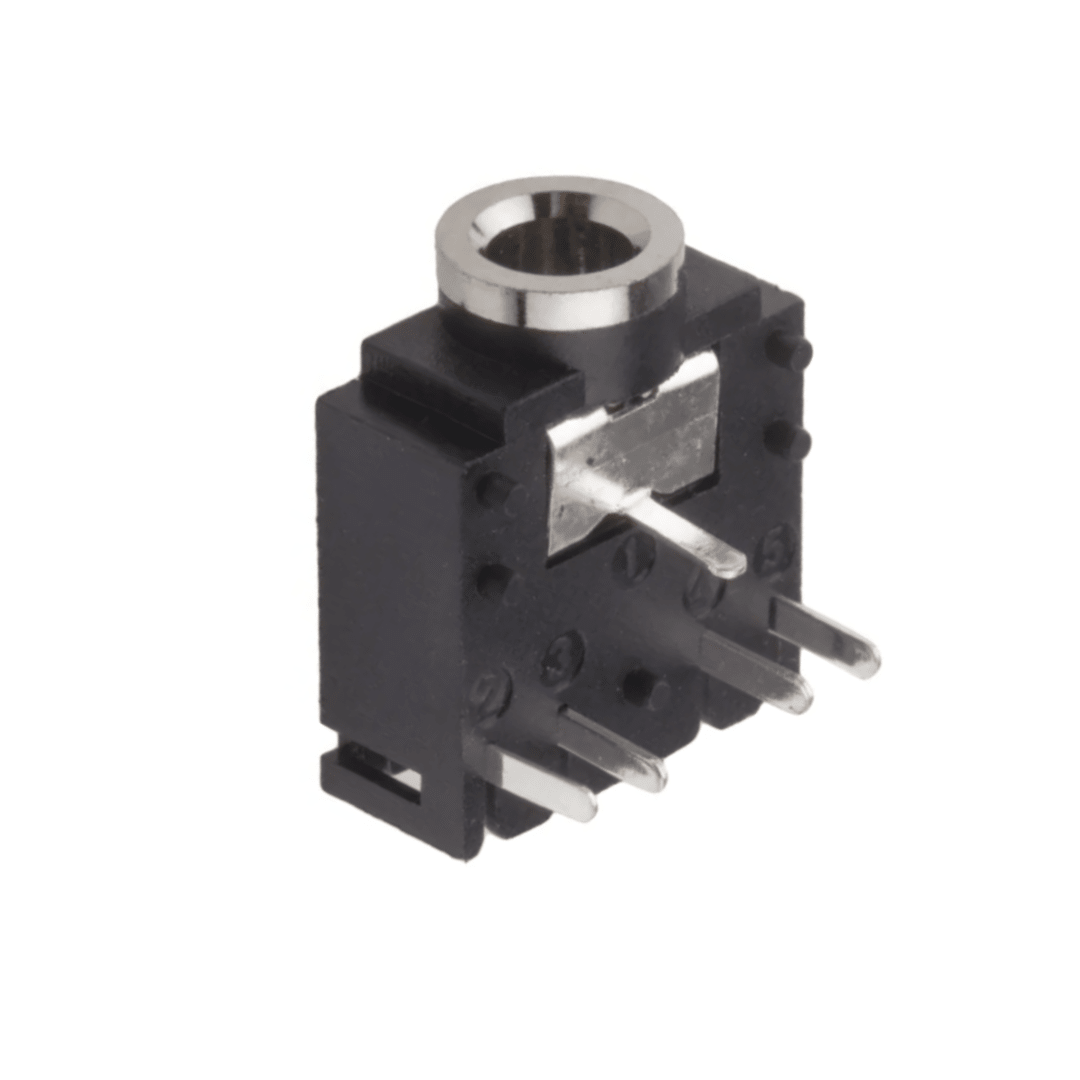

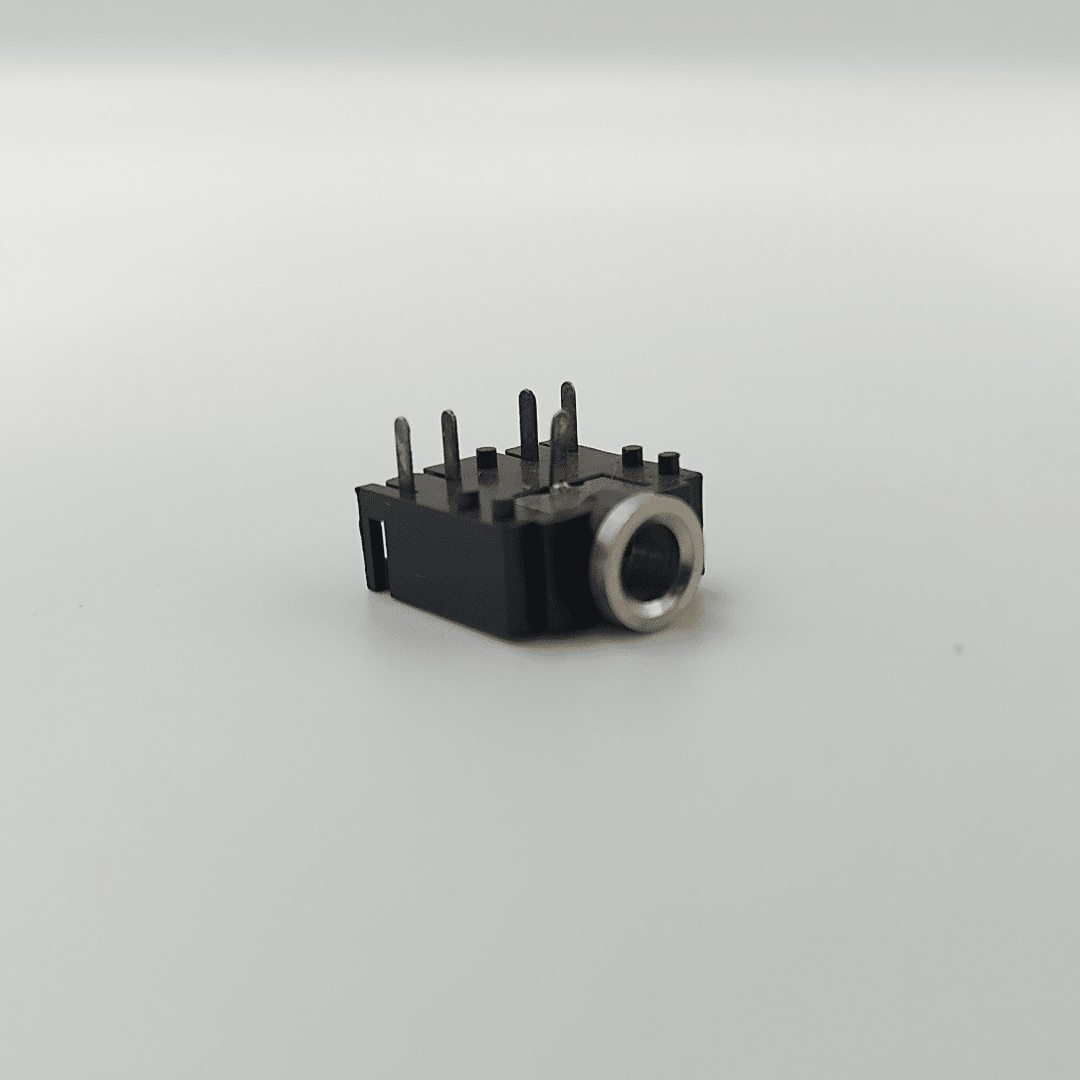

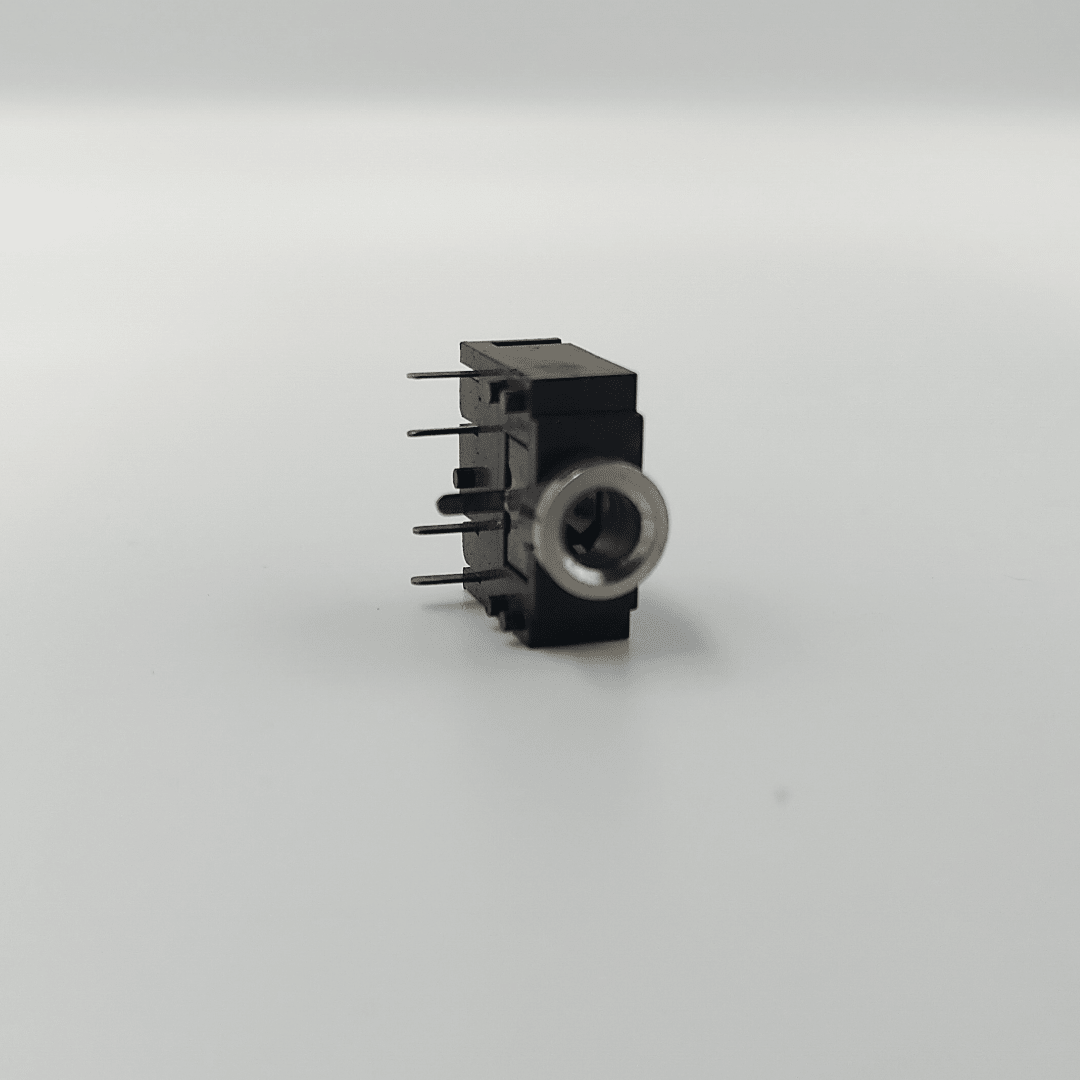

• Commercial-grade 3.5mm (1/8") stereo female jack socket connector designed for right-angle horizontal PCB (through-hole) mounting.
• Horizontal design aligns the jack entry parallel to the circuit board, ideal for side-panel or front-bezel audio input and output ports.
• Features 3-pole TRS (Tip, Ring, Sleeve) internal contacts to support balanced mono or dual-channel stereo audio signal transmission.
• Rugged thermoplastic housing protects internal leaf-spring contacts from dust, mechanical wear, and repeated plug insertions.
• Suitable for prototyping, production assembly, and replacement of damaged audio ports on electronic devices.

Features

• Horizontal PCB Alignment: Right-angle pin design mounts flush against circuit boards for streamlined side-access panel layouts.
• 3-Pole Stereo (TRS) Contacts: Accommodates standard left and right audio channels plus ground for clear headphone and line-level connections.
• Sturdy Solder-Tail Pins: Precision-formed terminal pins ensure reliable mechanical anchoring and secure through-hole solder joints.
• Durable Insulated Body: High-temperature plastic casing with nickel-plated metal contacts delivers low electrical resistance and long operational life.
• Compact Footprint: Fits tight board layouts in portable audio electronics and custom DIY projects.

Specifications

• Model Code: CJP9023H
• Connector Type: 3.5mm (1/8") Stereo / TRS Female Jack Socket
• Mounting Style: Through-Hole PCB Horizontal / Right-Angle Mount
• Pin Configuration: 3-Pin TRS (Tip, Ring, Sleeve)
• Housing Material: Thermoplastic
• Contact Material: Nickel-Plated Copper Alloy
• Application: PCB audio projects, amplifiers, synthesizers, portable media players, sound cards, and custom enclosure audio ports

What's in the Box?

• 1 x Kentech 3.5mm Stereo PCB Horizontal Socket (CJP9023H)
