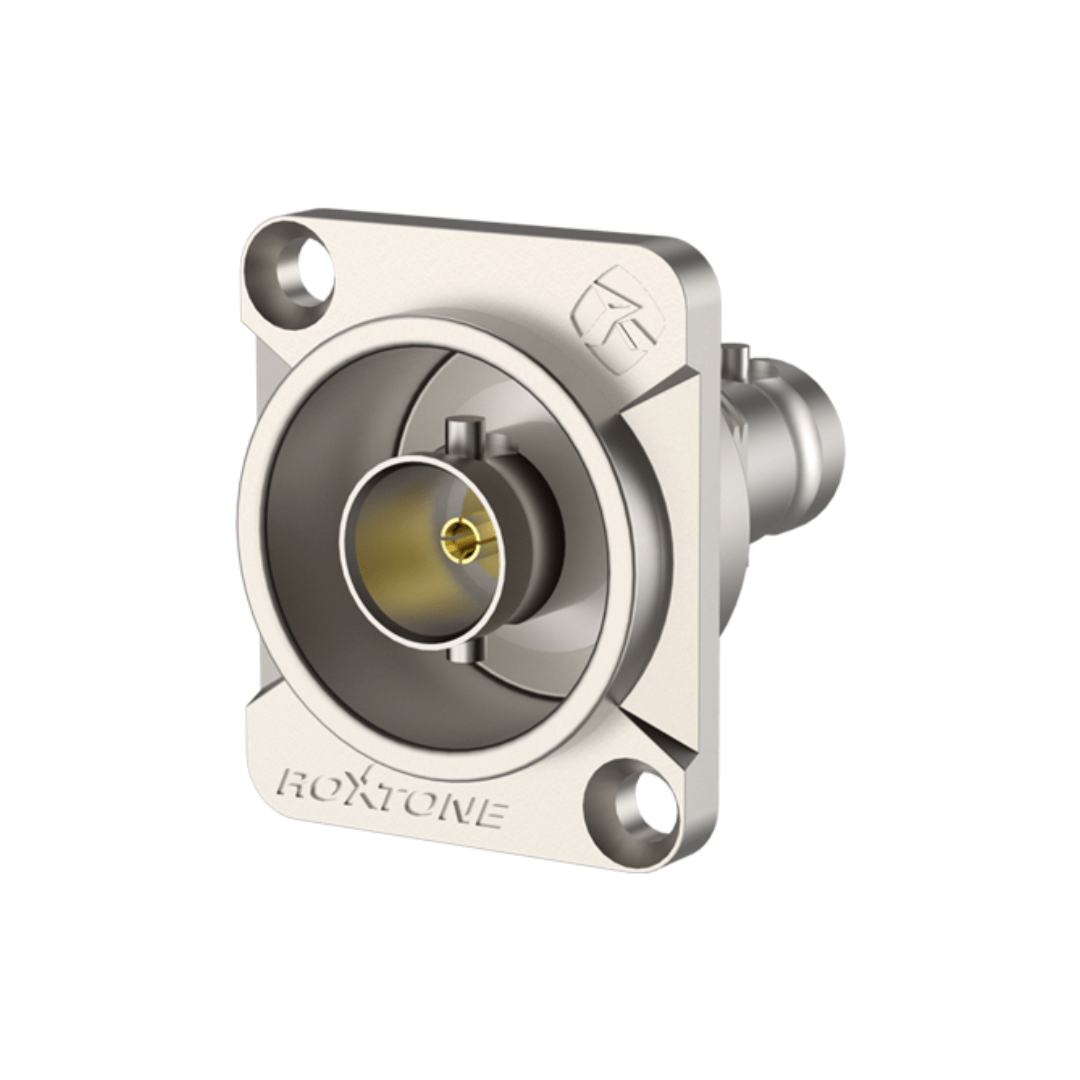

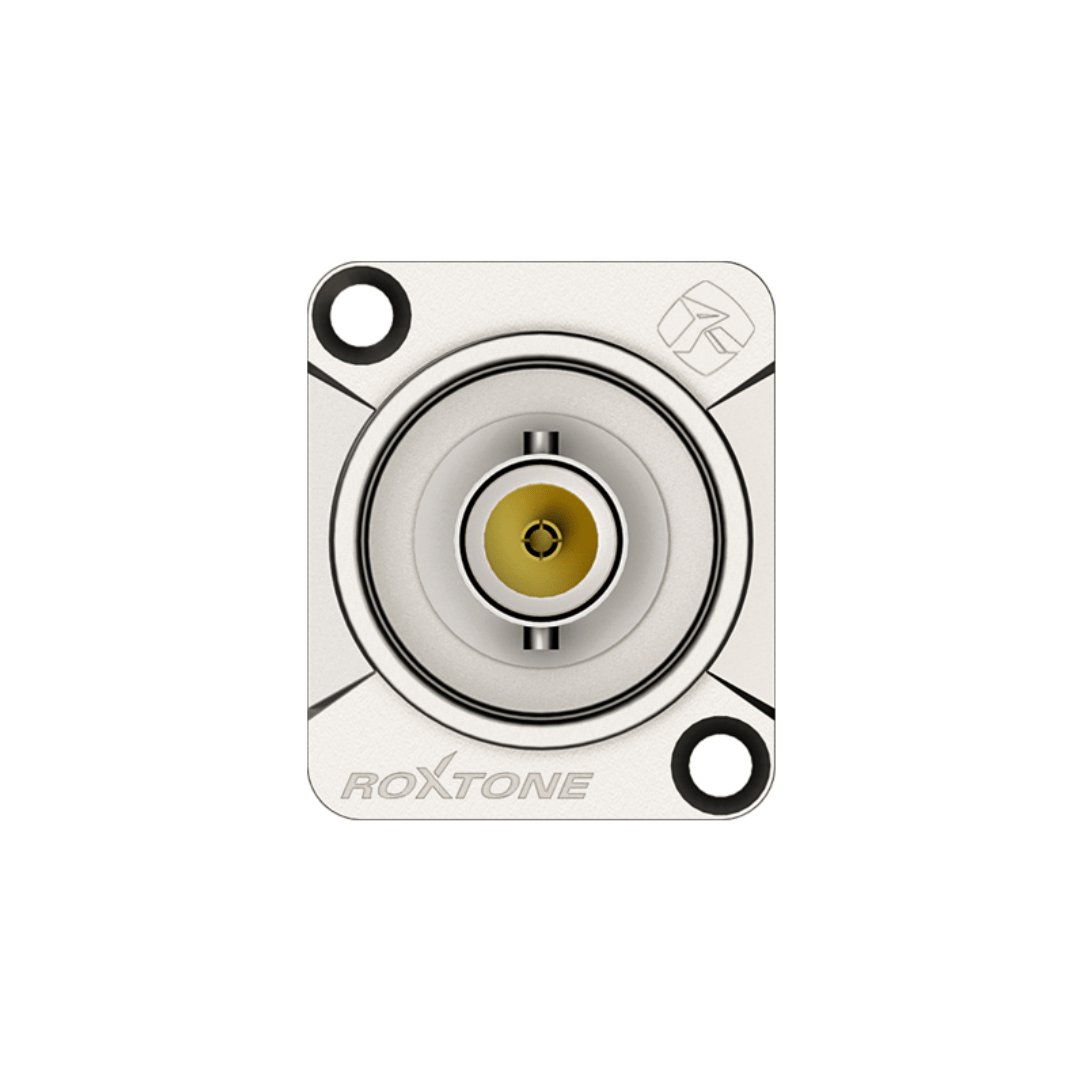

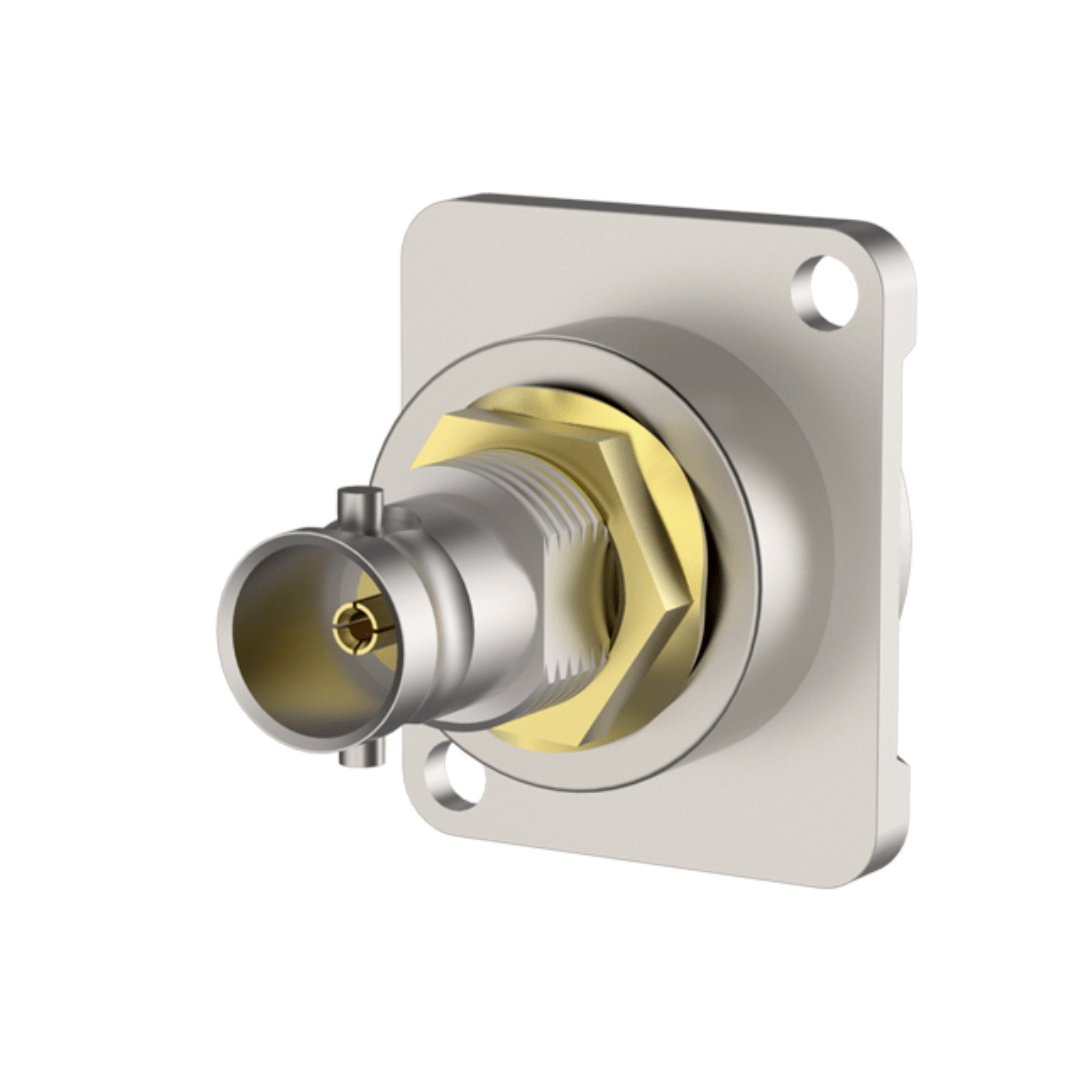

Roxtone RAB75D BNC Female Chassis Mount Nickel Plated Shell

R 90.00
Quantity:
Sku: 28601890
Visa Mastercard American Express Ozow MTN Mobile Money

  • Professional feed-through chassis BNC adapter
  • Designed for 75 Ω applications such as broadcast, RF, and video distribution

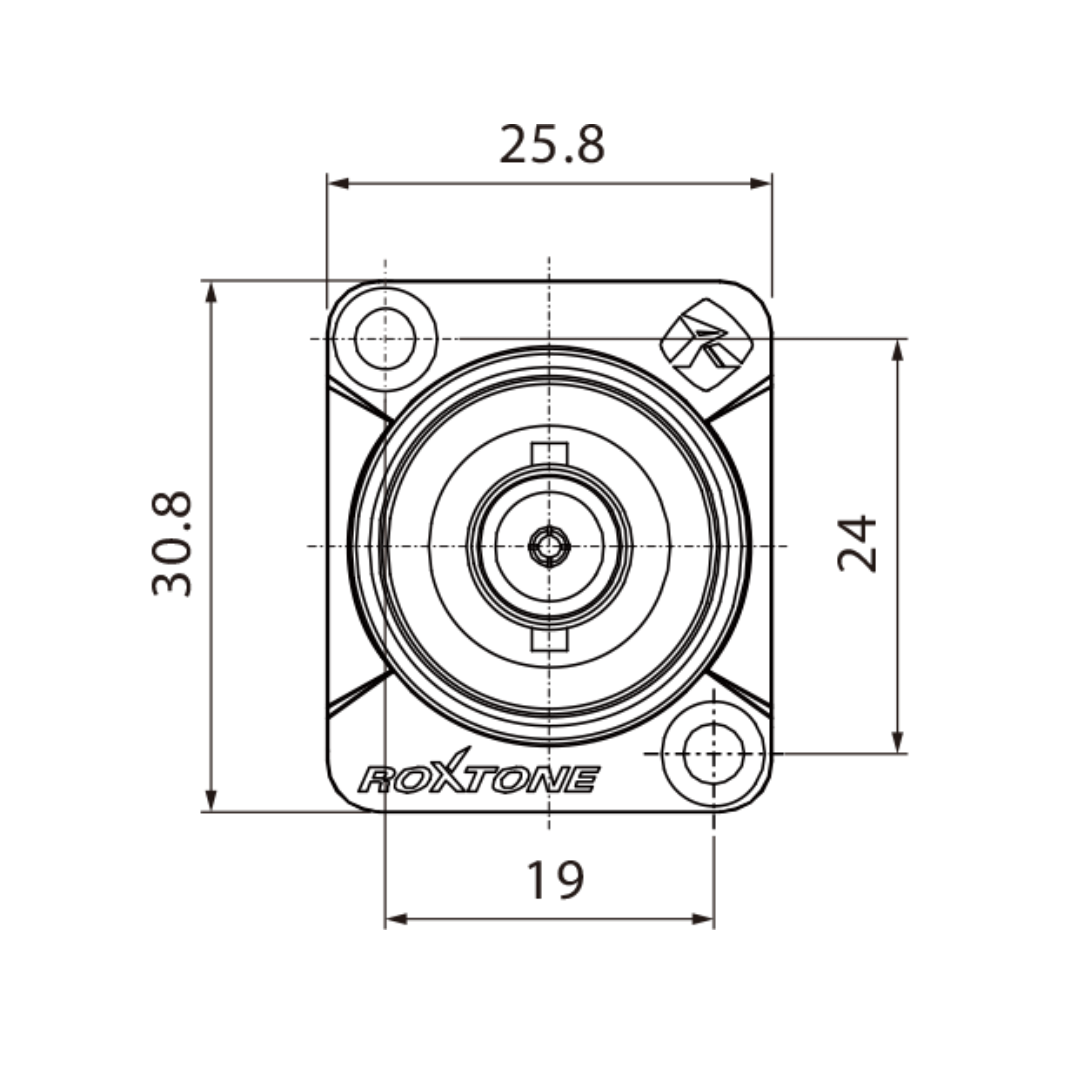

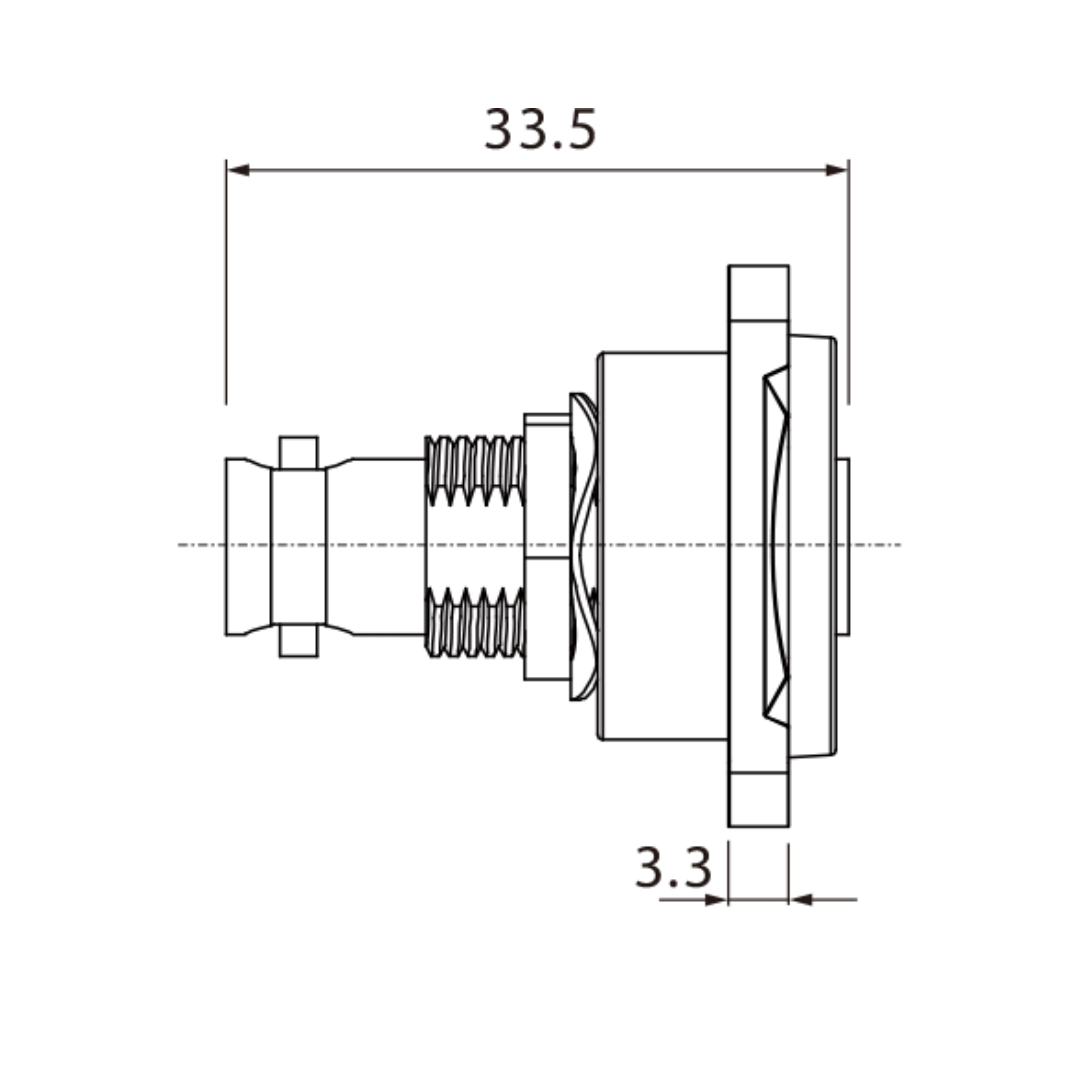

  • Mounts directly into panels or chassis with standard D-size cut-out
Features
  • D-size feed-through format for easy panel installation
  • 75 Ω impedance for high-quality video and RF signal transfer
  • Gold-plated center contact for improved conductivity and corrosion resistance
  • Grounded chassis design for shielding and signal stability
  • Engraved Roxtone branding for clear identification
  • Patent-protected robust design
Specifications
  • Housing: Zinc alloy die-cast, nickel or black finish
  • Contacts: Brass with gold plating
  • Insulation: Teflon (PTFE)
  • Impedance: 75 Ω
  • Grounded version: Yes
  • Application: Broadcasting, SDI video, RF panels, AV racks
What's in the box
  • 1 x BNC Female Chassis Mount Nickel Plated Shell
Vendor Roxtone
Type Audio Connectors
Sku 28601890
Weight:  0.1 kg
