• The Roxtone RS4MD-T is a professional 4-pole Speakon chassis-mount connector
• Designed for speaker and amplifier panel installation
• Provides secure locking connections for high-power audio signals
• Compatible with industry-standard Speakon plugs

Features

• Twist-lock mechanism for a safe and reliable connection
• Front or rear panel mounting flexibility
• Durable housing: PA6 with 30% glass fiber for strength
• Engraved Roxtone logo for authenticity
• Compact and lightweight design for easy installation
• Budget-friendly yet professional-grade connector

Specifications

• Connector Type: 4-Pole Speakon (male chassis socket)
• Poles: 4 contacts (compatible with 2-pole and 4-pole plugs)
• Contact Material: Bronze with tin plating
• Current Rating: Up to 30 A rms continuous
• Voltage Rating: 250 V AC
• Mounting Type: Chassis mount (front/rear)
• Housing Material: PA6 + 30% glass fiber
• Operating Temperature: –30 °C to +80 °C

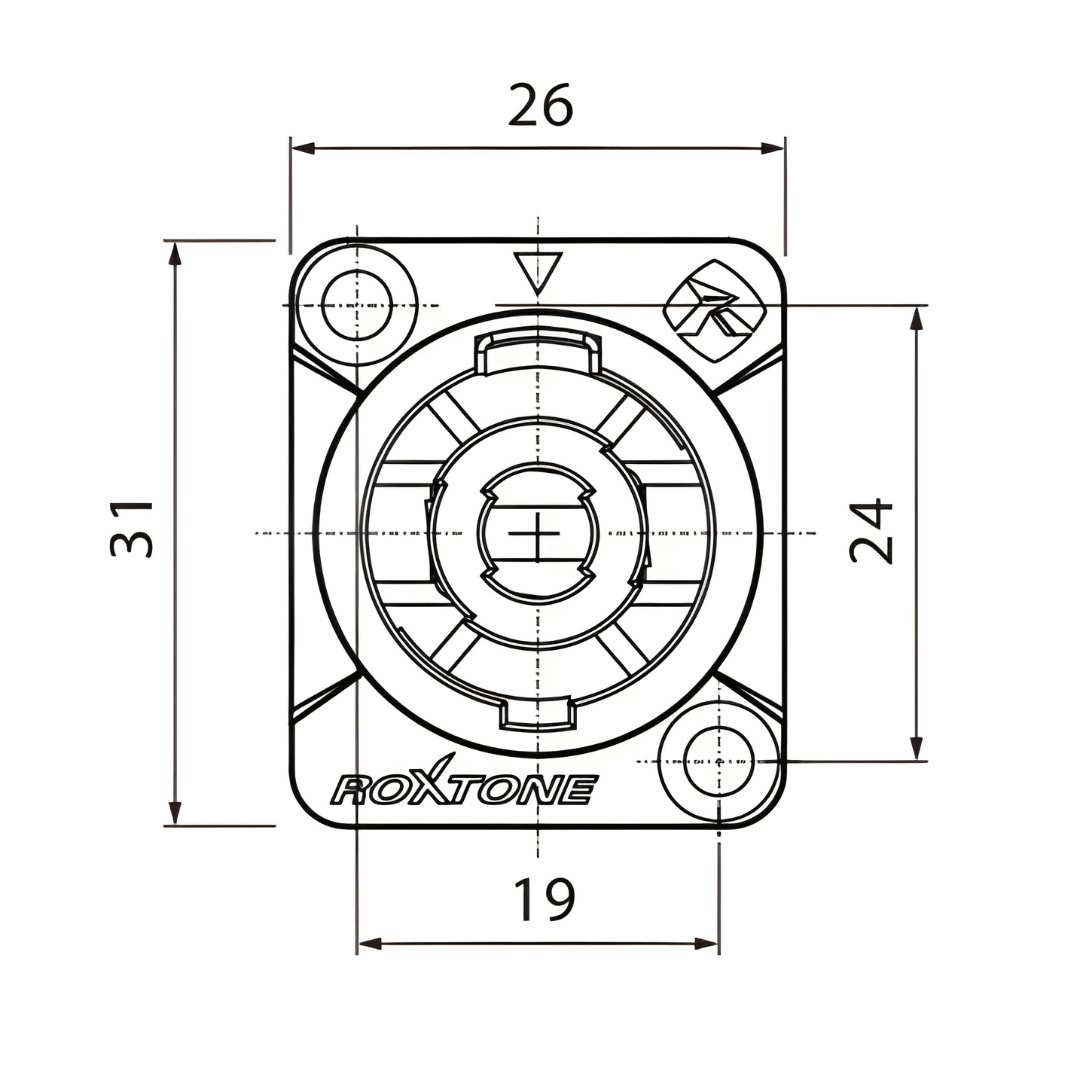

• Dimensions (approx.): Standard Neutrik-style cut-out
• Applications: Speaker enclosures, amplifiers, PA systems, pro-audio equipment

What's in the box

• 1 x Speakon Chassis Mount Connector
