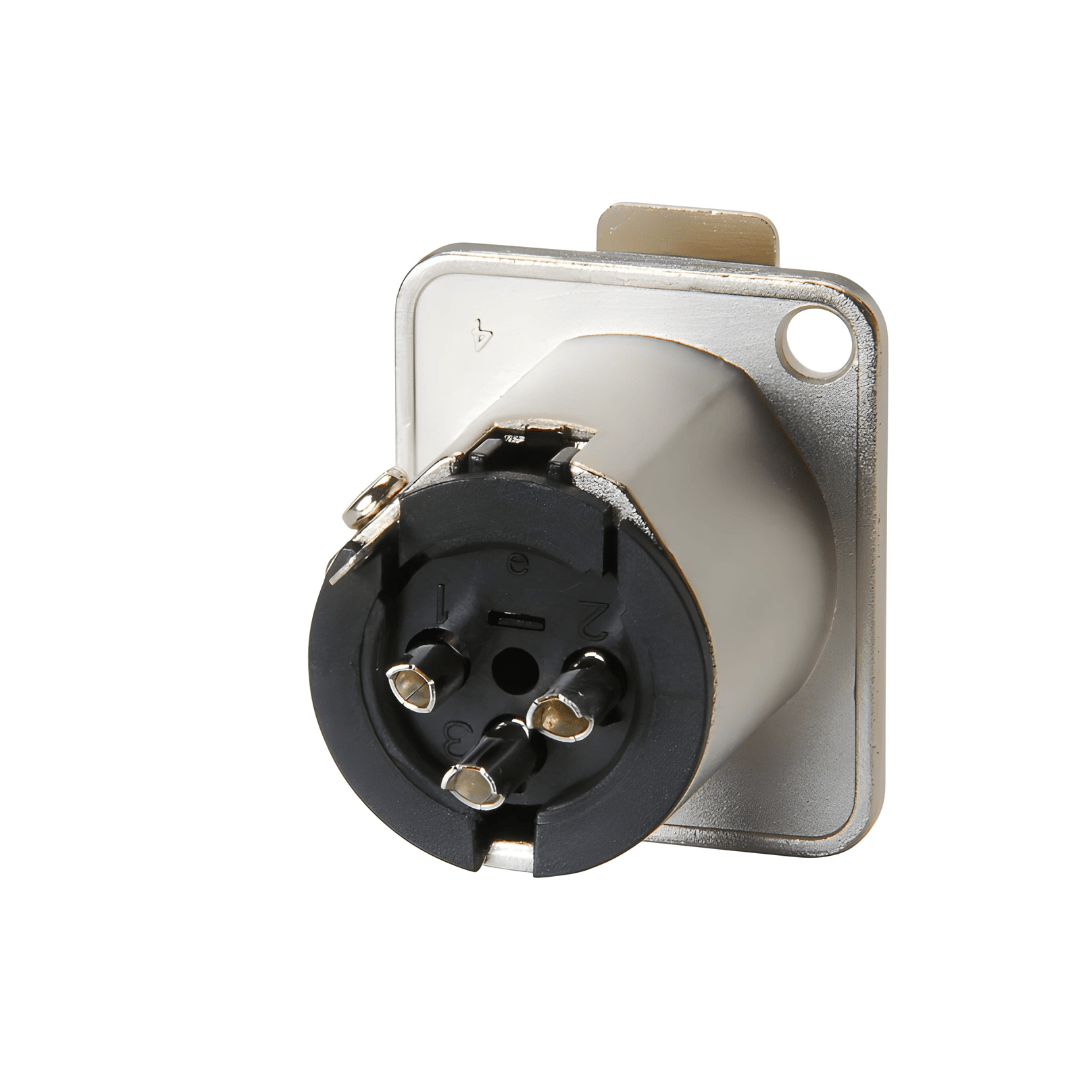

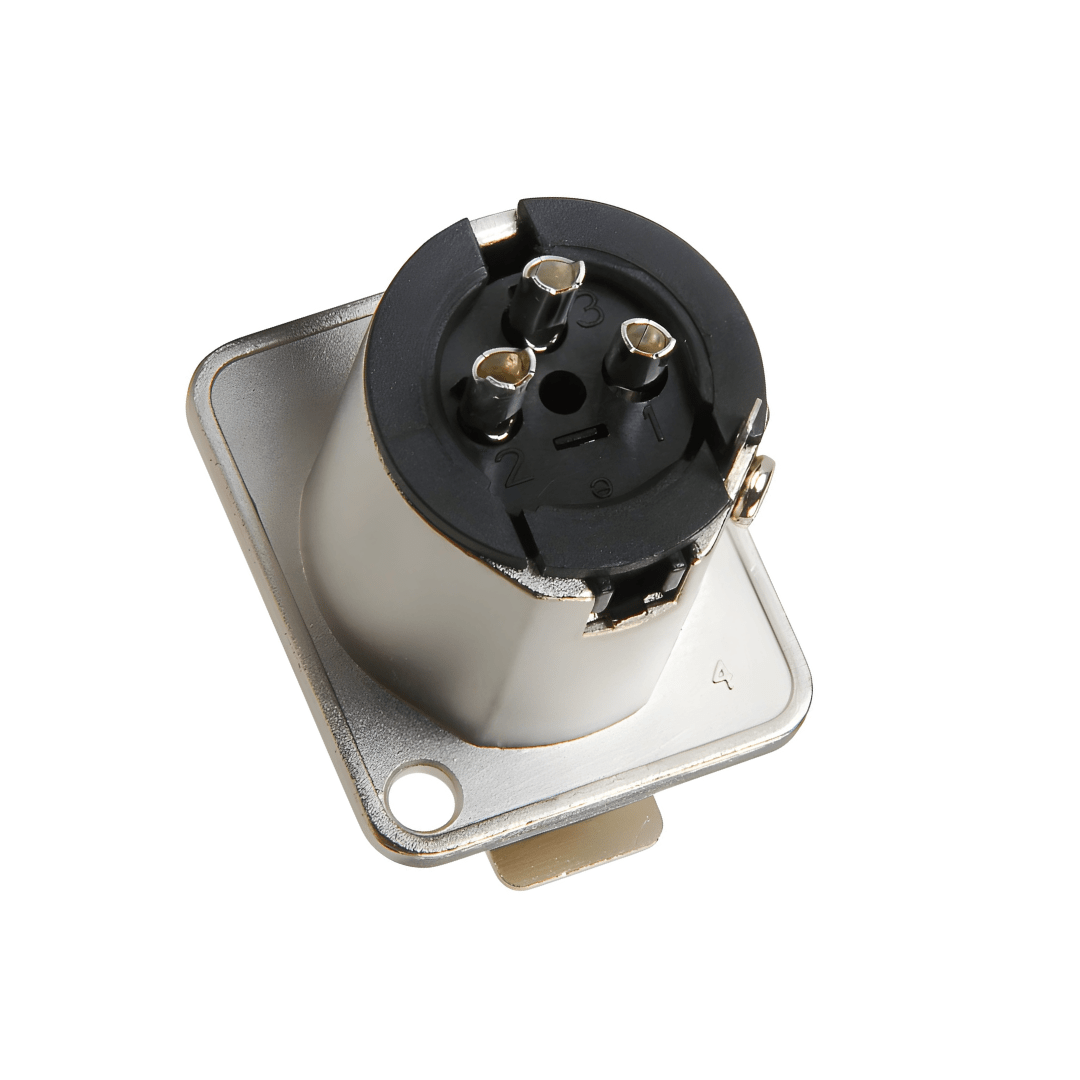

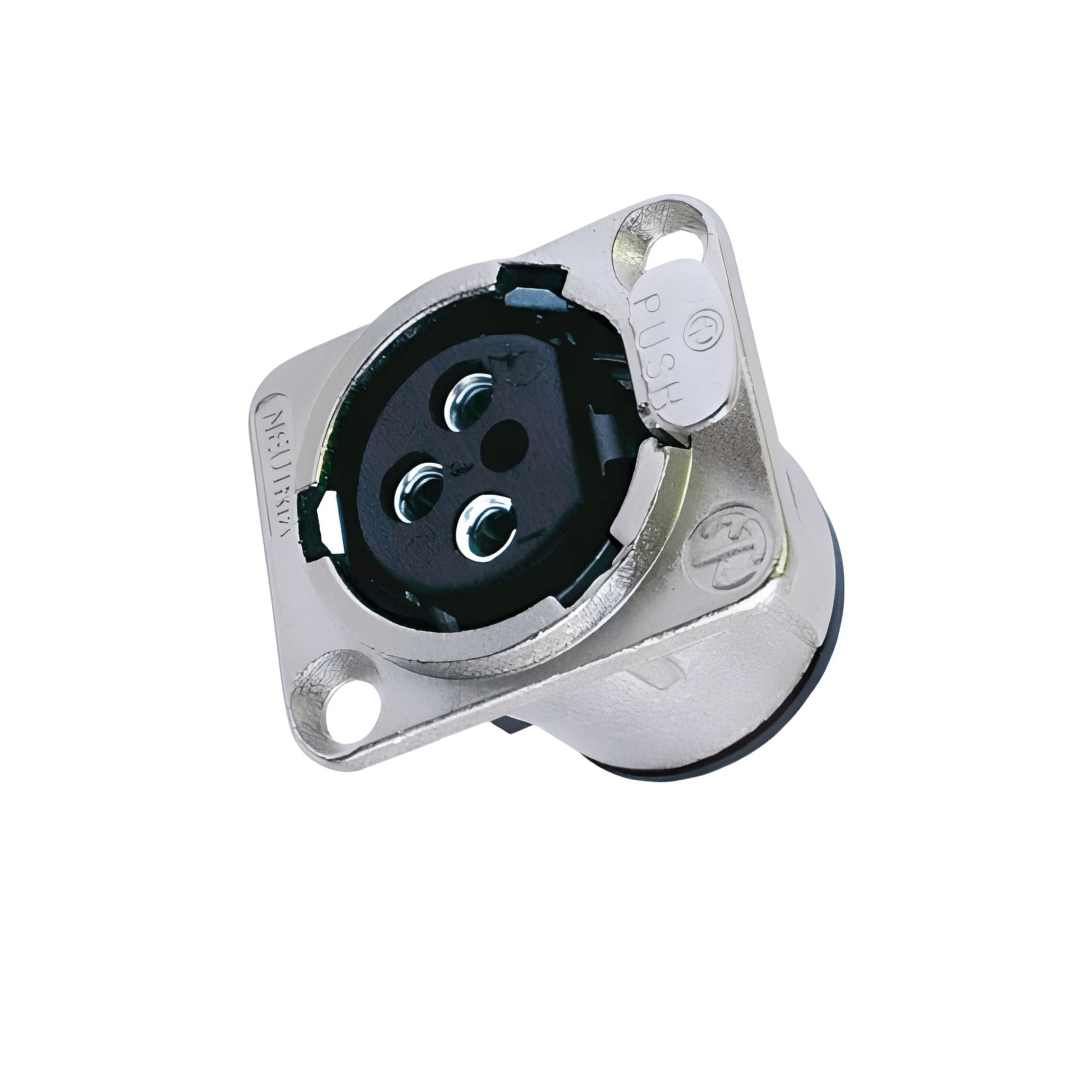

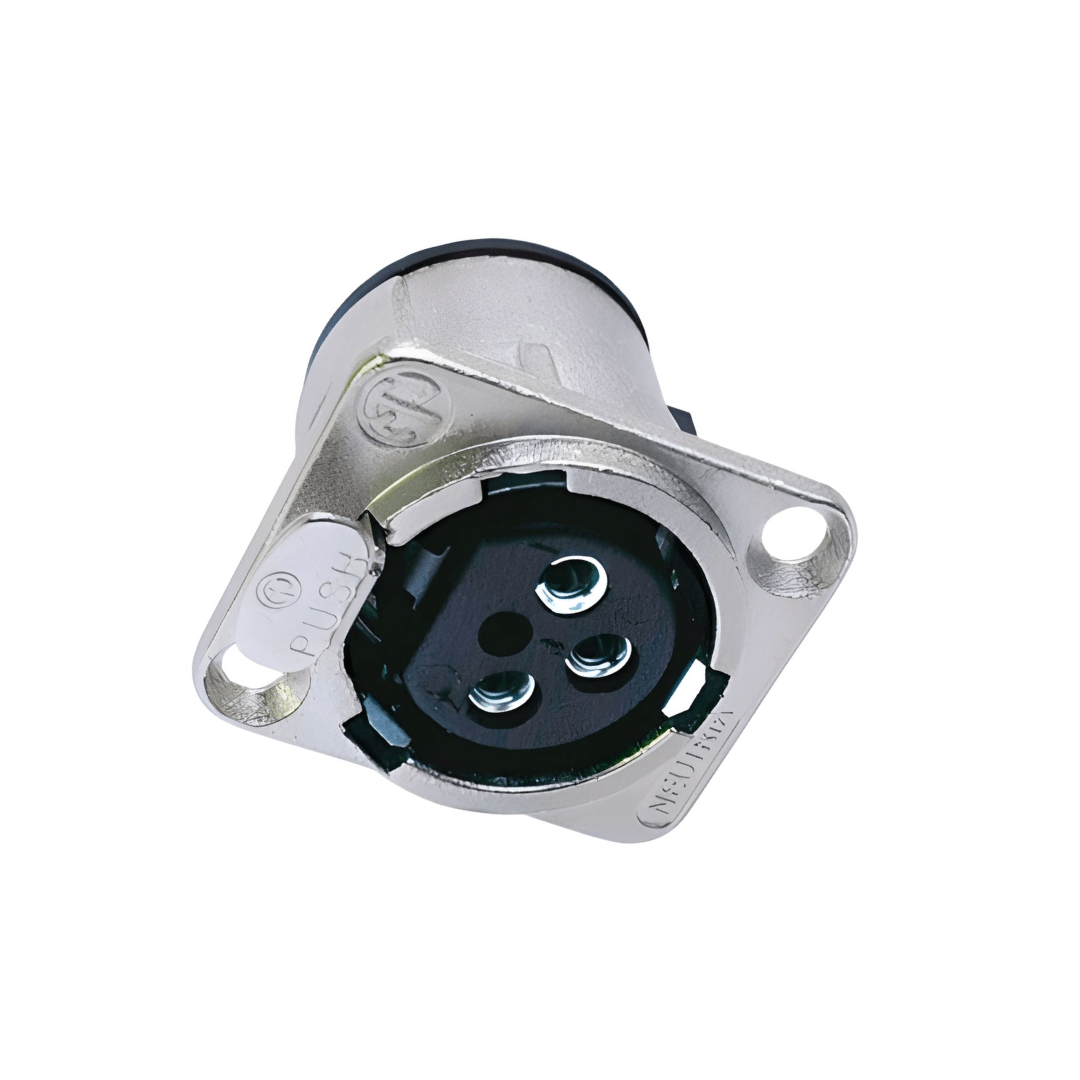

• 3-pole female XLR receptacle
• Vertical PCB-mount (D-series standard)
• Durable metal housing with nickel plating (also available in black)
• Widely used in audio equipment, patch panels, and PCB assemblies
• Insert is removable for easy pre-testing before final housing assembly

Features

• Compact vertical PCB mount design for space-saving installation
• D-series shell size — universal standard for chassis mounting
• Removable insert allows for pre-assembly testing
• Durable housing made from zinc die-cast with nickel plating
• Secure mating with standard XLR plugs
• High reliability — > 1,000 mating cycles
• UL recognized and compliant with IEC 61076-2-103
• RF protected to minimize interference
• Optional variants: black housing (-B), black housing with silver contacts (-BAG), gold contact versions

Specifications

• Contacts: 3 (female), silver-plated bronze (CuSn6)
• Rated current: 6 A per contact
• Rated voltage: < 50 V
• Contact resistance: ≤ 5 mΩ
• Insulation resistance: > 10 GΩ (initial)
• Dielectric strength: 1.5 kV DC
• Capacitance between contacts: ≤ 4 pF
• Insertion / withdrawal force: ≤ 20 N
• Mating cycles: > 1,000
• Operating temperature: –30 °C to +80 °C
• Housing material: Zinc die-cast, nickel plated
• Insert material: PA66 reinforced plastic
• Environmental protection: IP40
• Flammability rating: UL 94 V-0 / HB

What's in the box

• 1 x 3-Pin Female XLR Chassis Connector
