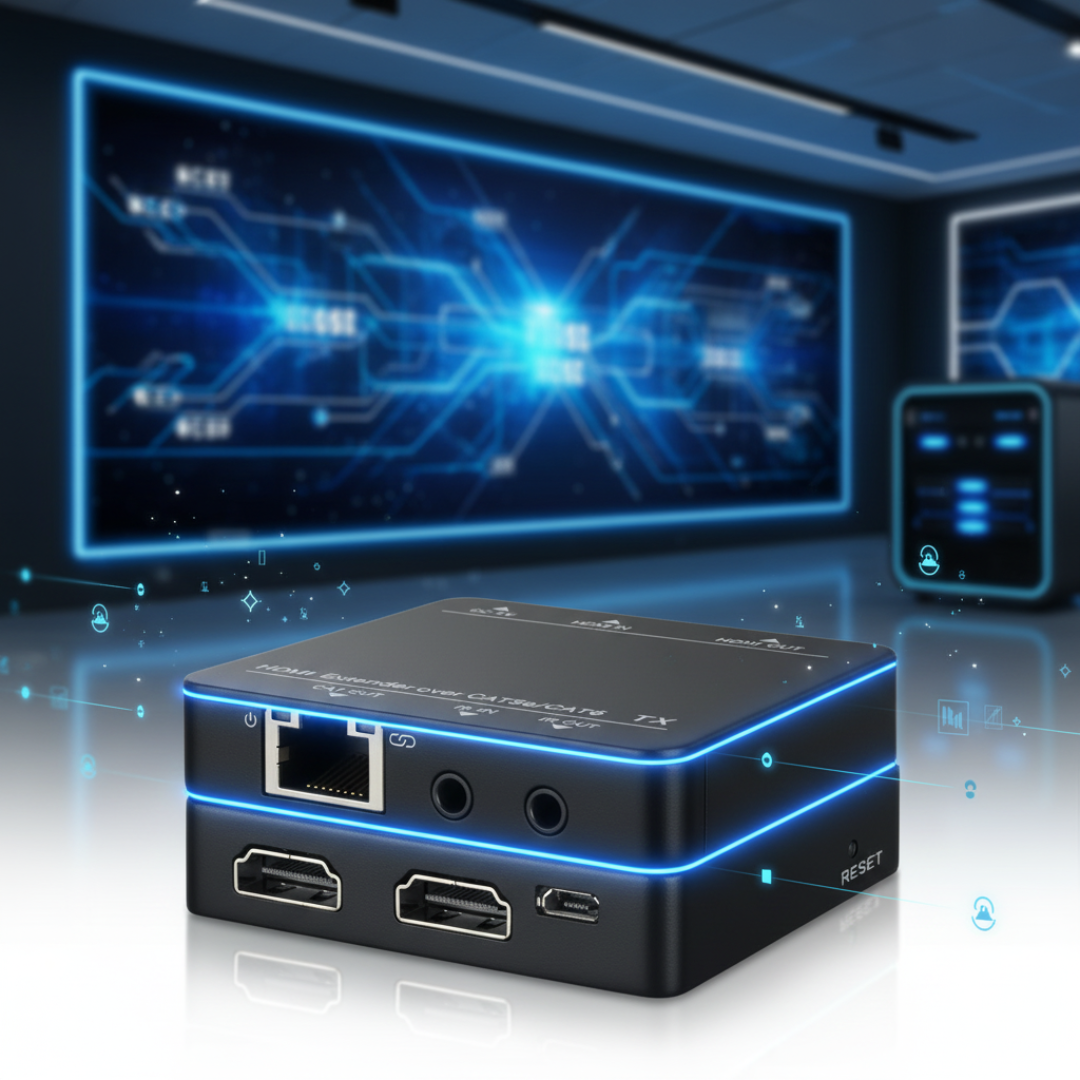

• The 001-HDM-TX/RX-2 HDMI Extender is a high-performance solution designed to transmit high-definition video and audio over long distances using a single CAT5e or CAT6 network cable.
• Perfect for setups where standard HDMI cables fail due to length, this extender maintains signal integrity up to 55 meters at full 1080p resolution.

• Equipped with Power over Cable (PoC) technology, this system simplifies installation by allowing the Receiver to draw power from the Transmitter—eliminating the need for an extra power outlet behind your TV or projector.
• With bidirectional IR pass-through and built-in EDID management, it ensures seamless control and compatibility between your source device and display.

Features

• High-Definition Extension: Extends 1080p @ 60Hz signals up to 55 meters via a single CAT5e/6 cable without signal loss.
• Power over Cable (PoC): Only one power adapter is required; the Transmitter powers the Receiver through the network cable for a cleaner installation.
• Bidirectional IR Pass-Through: Control your source device (like a DSTV decoder or Blu-ray player) from the TV's location, or vice versa.
• Smart EDID Management: Built-in EDID ensures the source automatically outputs the correct resolution and timing for your specific display.
• Full Compatibility: Supports HDMI 1.3 and is HDCP 1.4 compliant, making it compatible with gaming consoles, media players, and security DVRs.
• Plug-and-Play Setup: Compact, rugged design that is easy to hide behind mounting brackets and requires no software configuration.

Specifications

• Model: 001-HDM-TX/RX-2
• Input/Output: HDMI 1.3
• Resolution Support: Up to 1080p @ 60Hz
• Transmission Distance: Up to 55m (using CAT5e/6)
• HDCP Compliance: HDCP 1.4
• Power Method: PoC (Receiver powered by Transmitter)
• IR Support: Bidirectional IR Pass-through
• EDID: Built-in EDID management

What's in the box

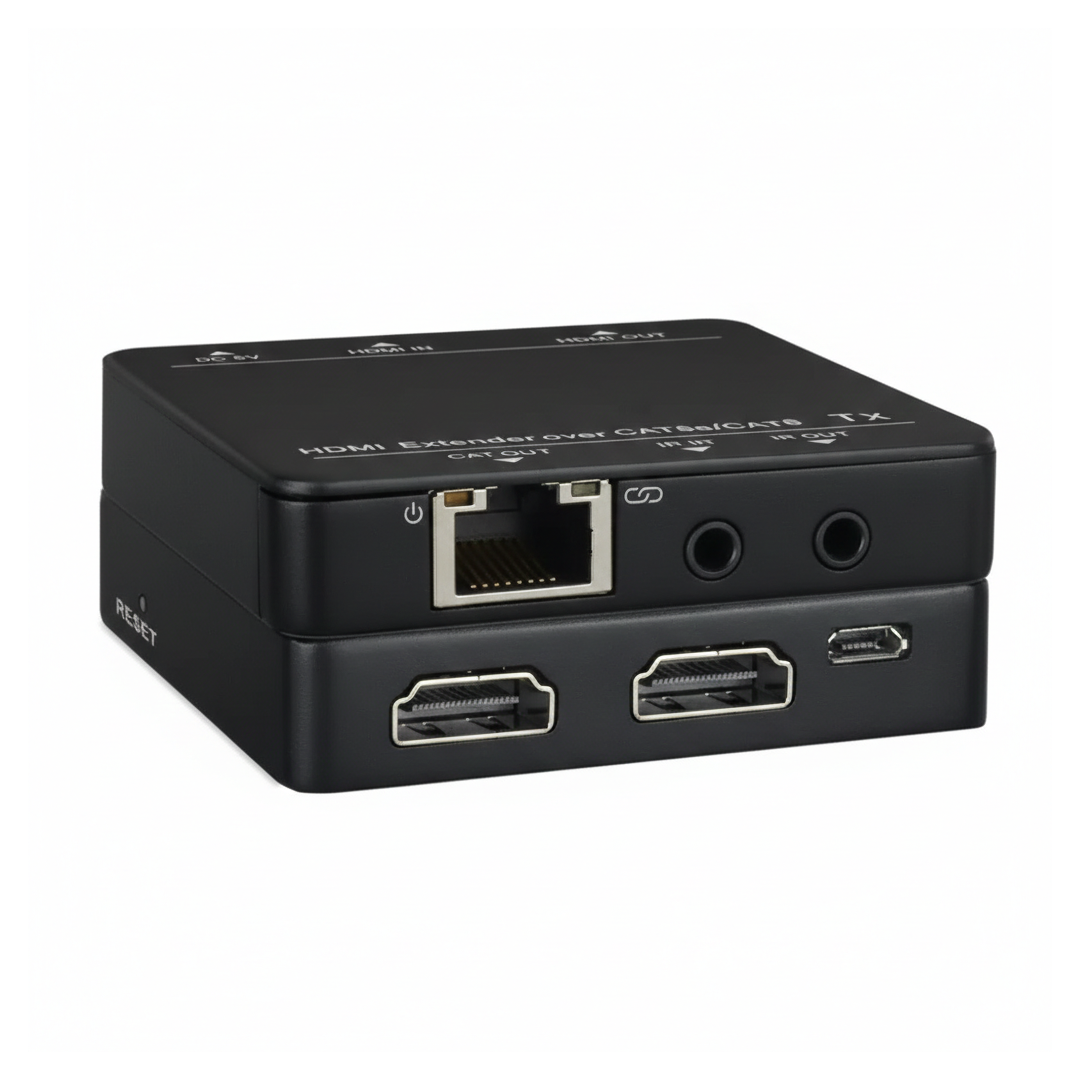

• 1 x HDMI Transmitter (TX)
• 1 x HDMI Receiver (RX)
• 1 x Power Adapter
• 1 x IR Blaster Cable
• 1 x IR Receiver Cable
• 1 x User Manual
