• Professional 2-channel stereo power amplifier
• Output power 2 x 600W @ 4 ohms
• Designed for PA systems, DJs, and small to medium sound setups
• Reliable and cost-effective solution for mobile and fixed installations
• Ideal for powering passive speakers and small subwoofers

Features

• Stereo / Parallel / Bridge operation modes
• Stable performance under continuous load
• Built-in protection circuits:
  • Short circuit protection
  • Thermal protection
  • Overload protection
• Clip limiter
• Forced-air cooling system
• Front panel gain controls with LED indicators
• Standard 19” rack-mount design

Specifications

• Stereo Output (8Ω): 2 × 400W
• Stereo Output (4Ω): 2 × 600W
• Bridge Output (8Ω): 1200W
• Output Connections: Speakon and binding
• Frequency Response: 20Hz – 20kHz, ±1dB
• Input Sensitivity: 0.775V
• Input Impedance: 20kΩ balanced and 10kΩ unbalanced
• Signal to Noise Ratio: ≥ 95dB
• THD: ≤ 0.03%
• Crosstalk @ Rated Output (80/1kHz): > 70dB
• Damping Factor (8Ω / 1kHz): > 240
• Slew Rate: 15V/μs
• Protection: Soft start, short circuit, limiter, DC fault, AC line fuse, thermal cut
• Cooling System: Airflow from front to rear
• Mains Power Supply: AC 220–230V, 50Hz
• Weight: 10.5 kg
• Dimensions (W × D × H): 483 × 356 × 88 mm

What's in the box

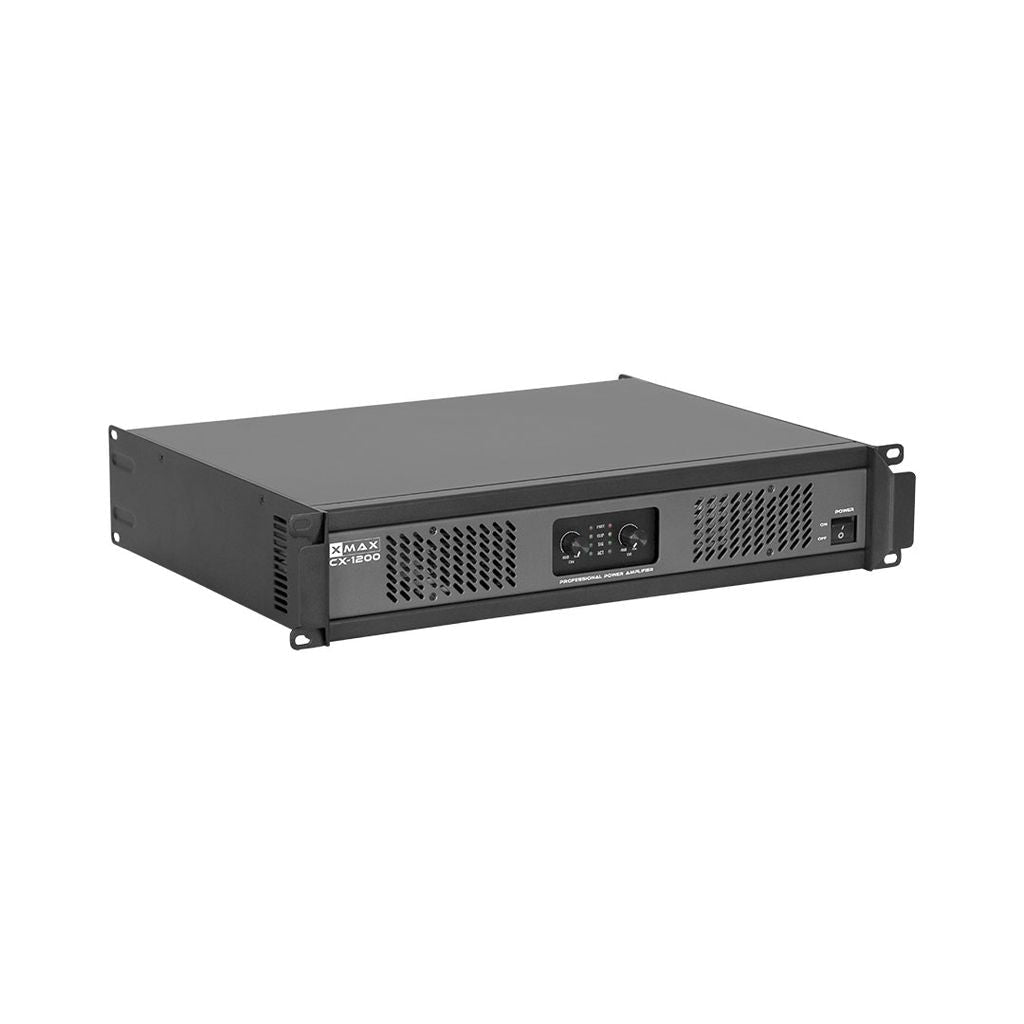

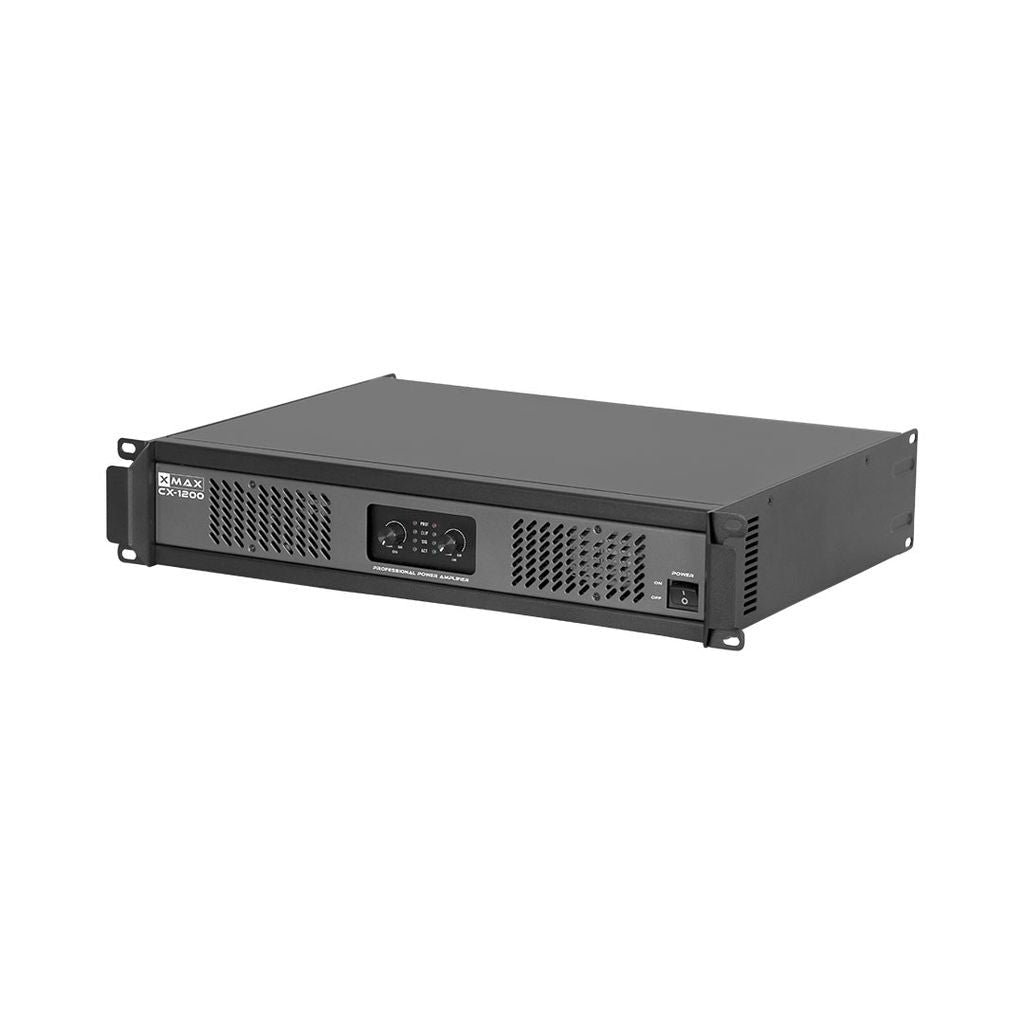

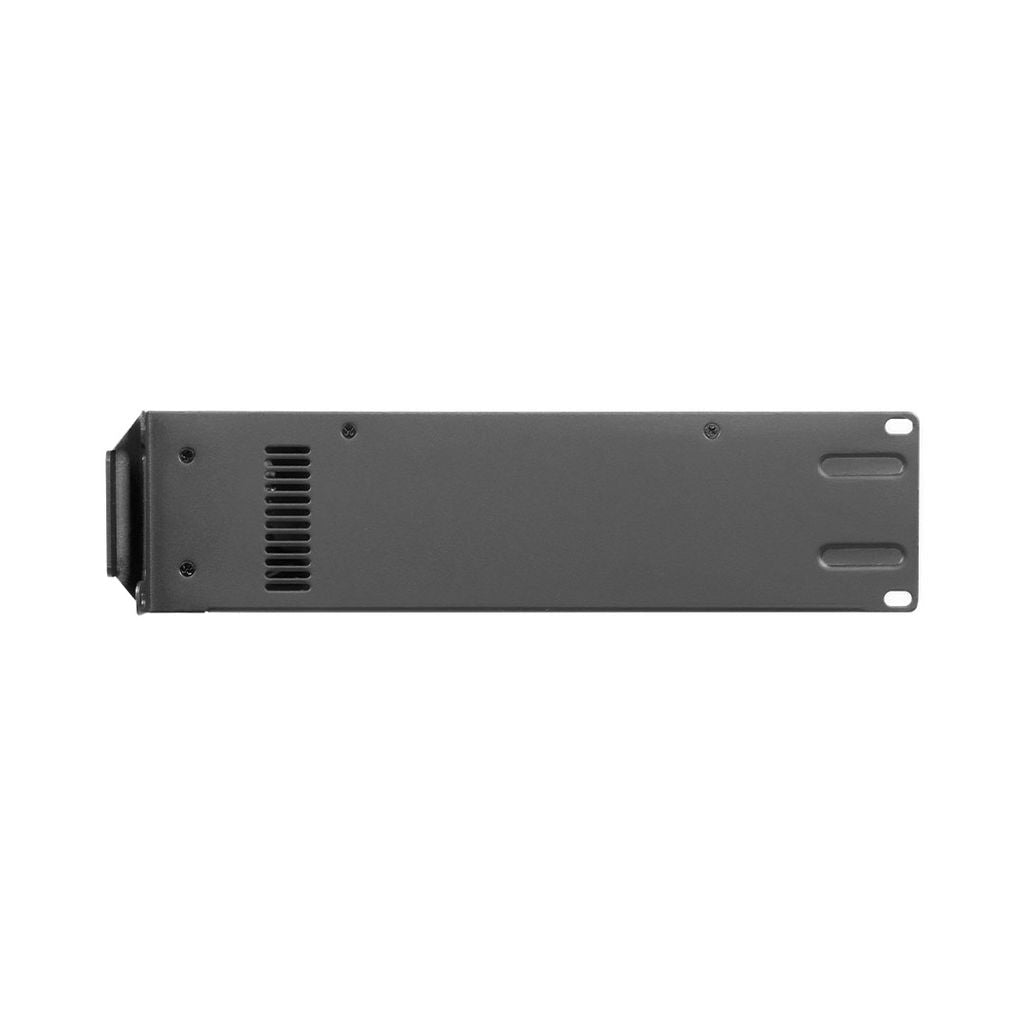

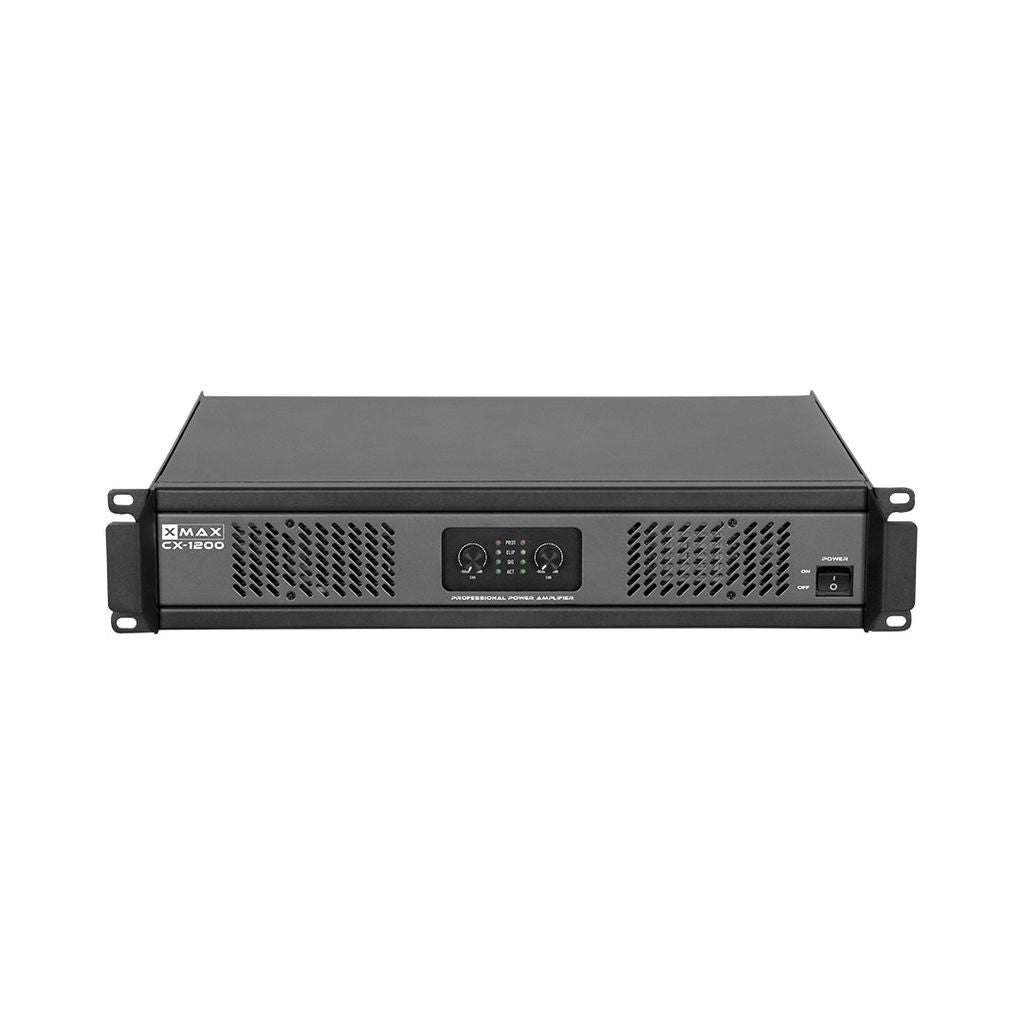

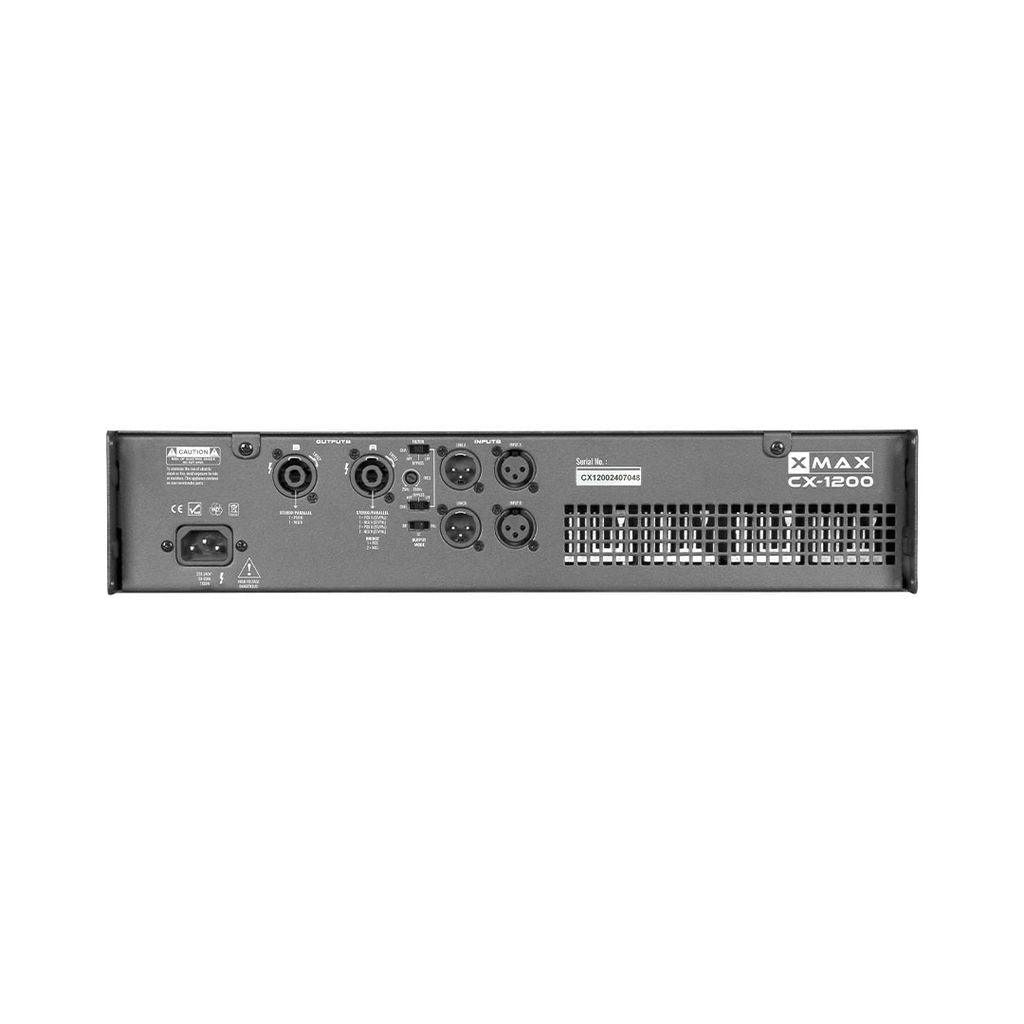

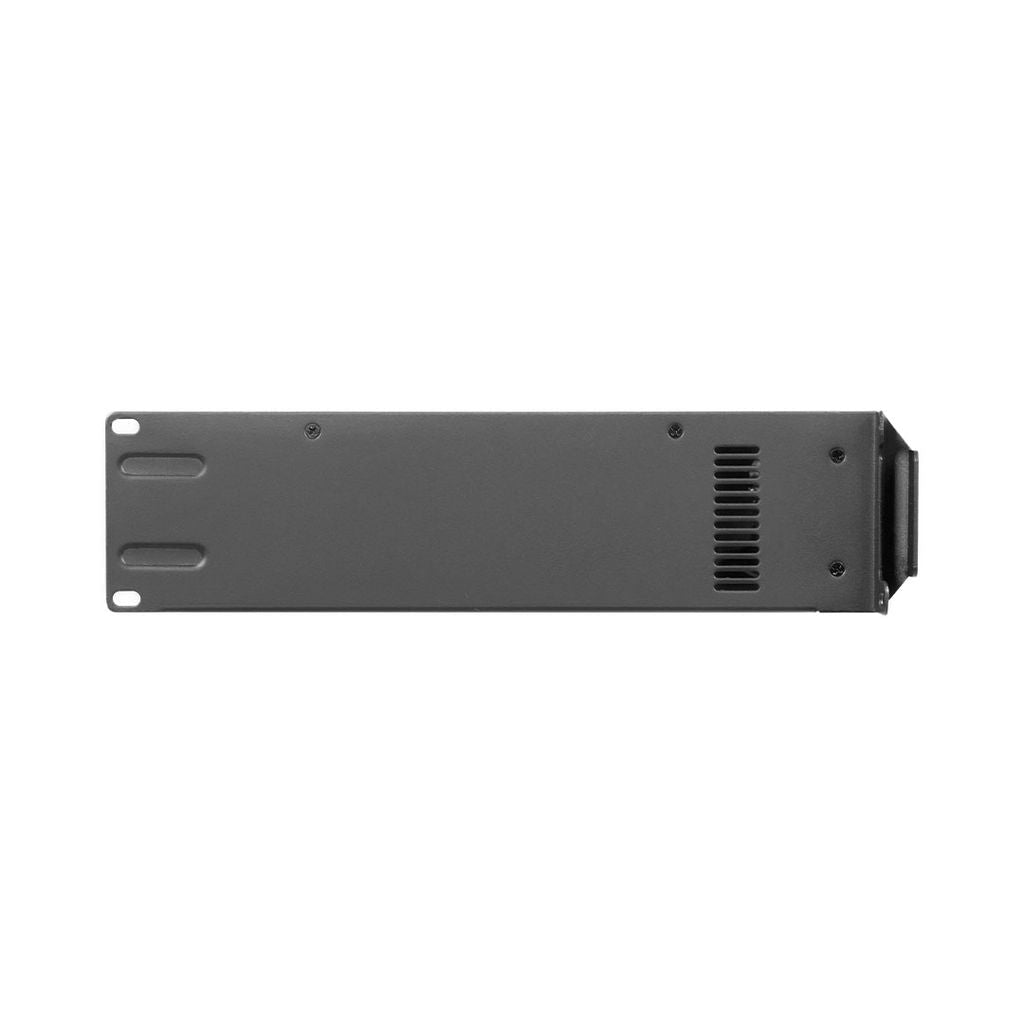

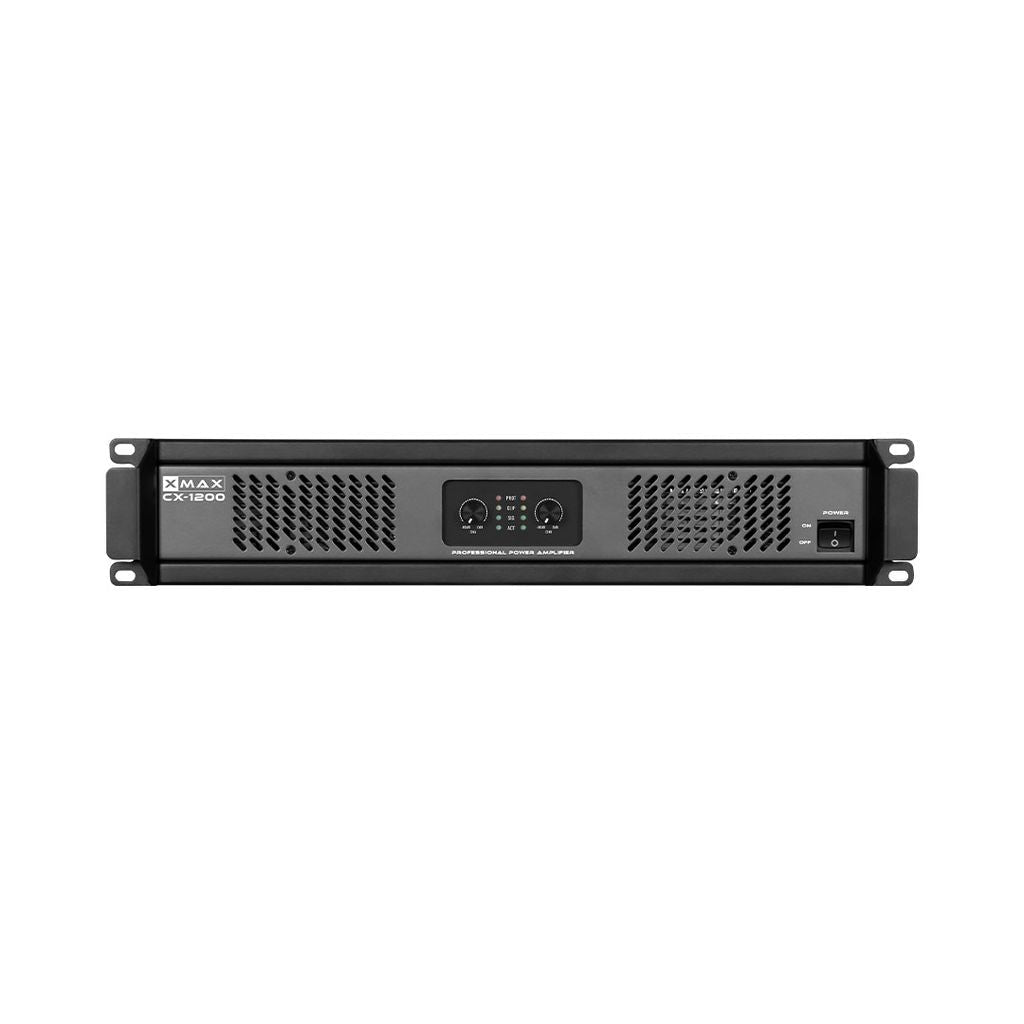

• 1 x XMAX CX-1200 Power Amplifier
• 1 x Power Cable
• 1 x User Manual
