The Roxtone MSL8CL6 (belonging to the MSL8C professional premade cable series) is a premium-grade, 8-channel balanced multilink connecting cable loom engineered to streamline audio signal distribution, eliminate cable clutter, and maintain pristine signal integrity.

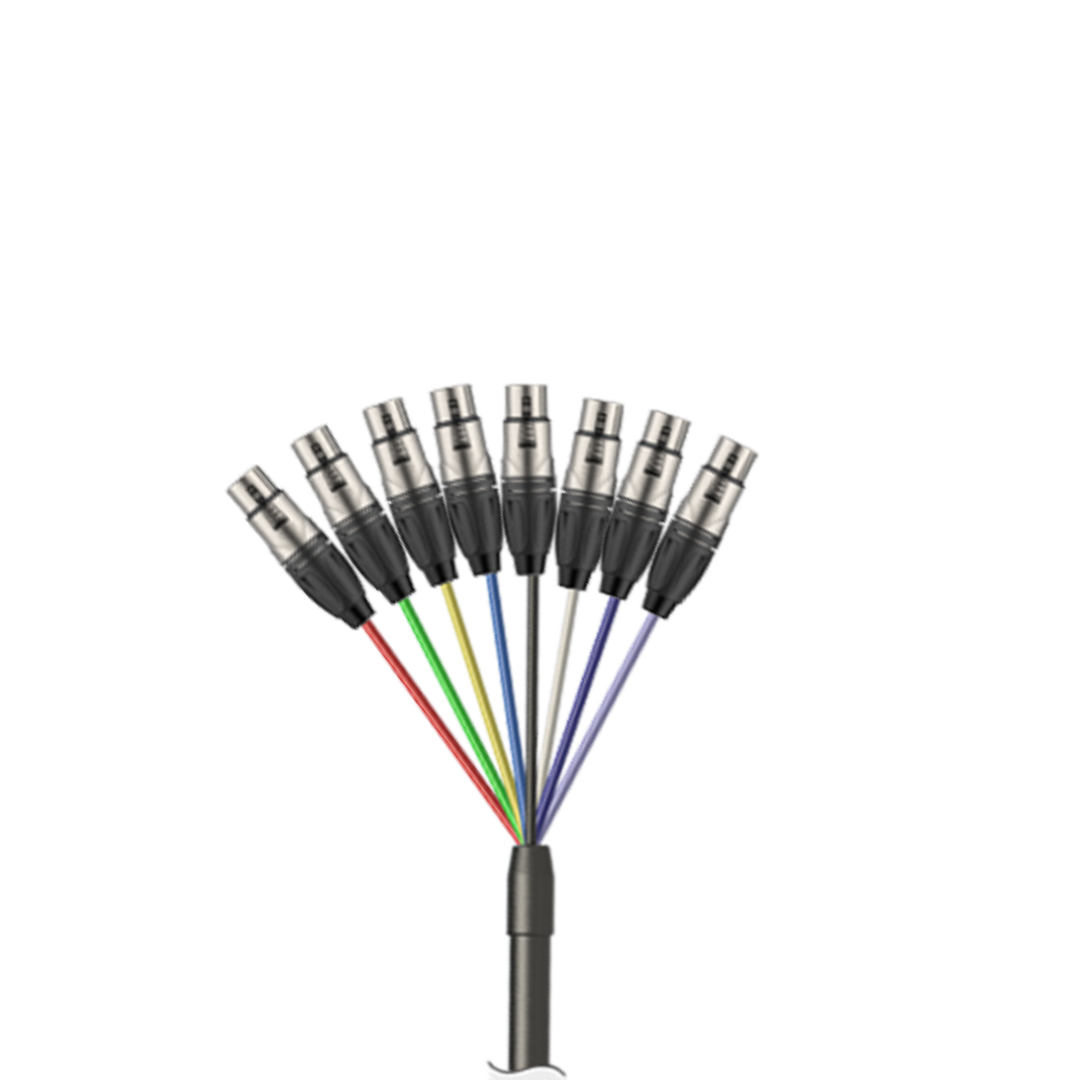

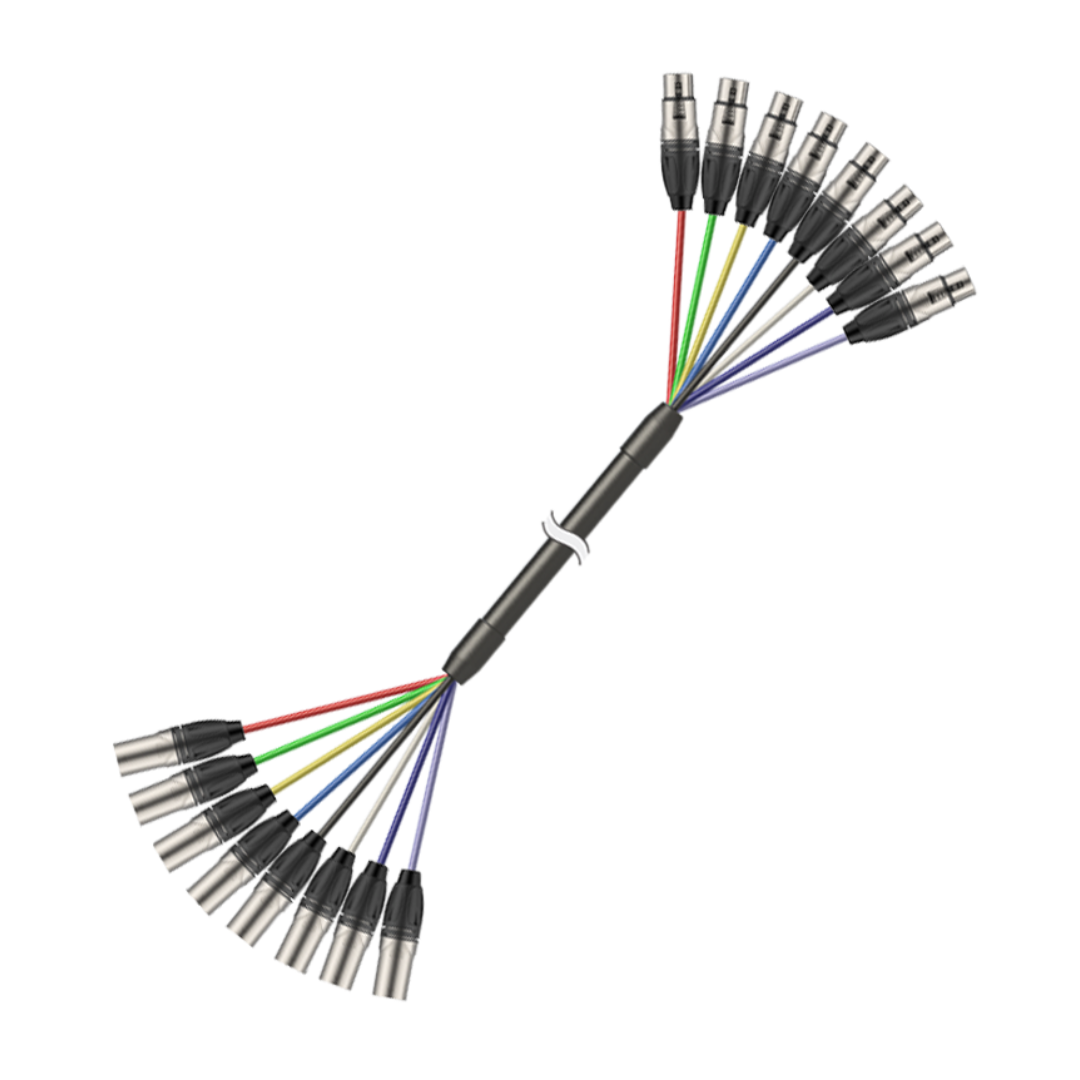

Spanning exactly 6 meters (19.69 feet) in length, this professional-tier extension breakout features eight precision-machined 3-pin XLR male plugs on one end and eight matching 3-pin XLR female sockets on the other.
It serves as an essential audio pipeline for studio tracking rooms, broadcast installations, mobile staging rigs, and live performance venues that require ultra-reliable multi-channel routing between stage boxes, rack components, sub-mix areas, and front-of-house mixing consoles.

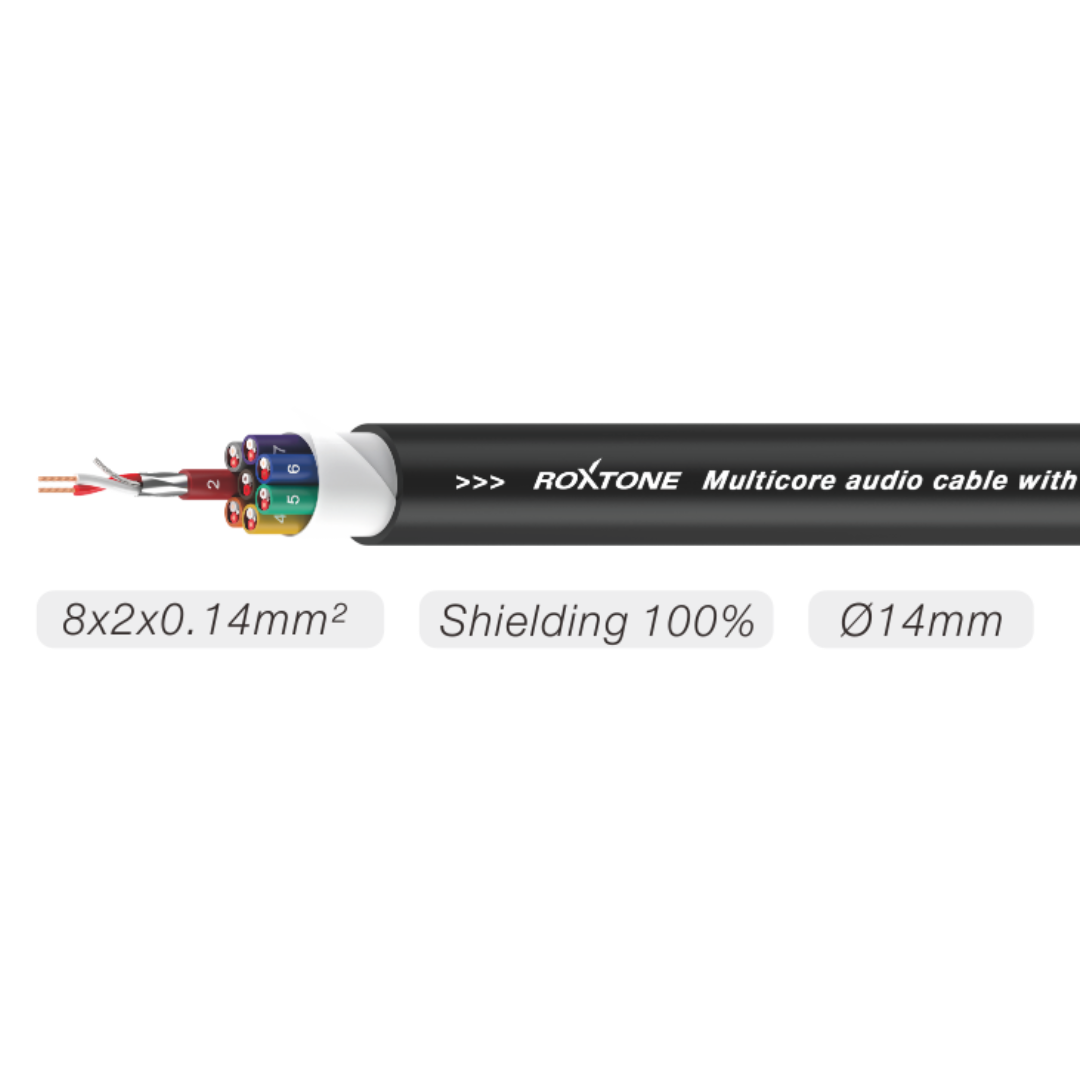

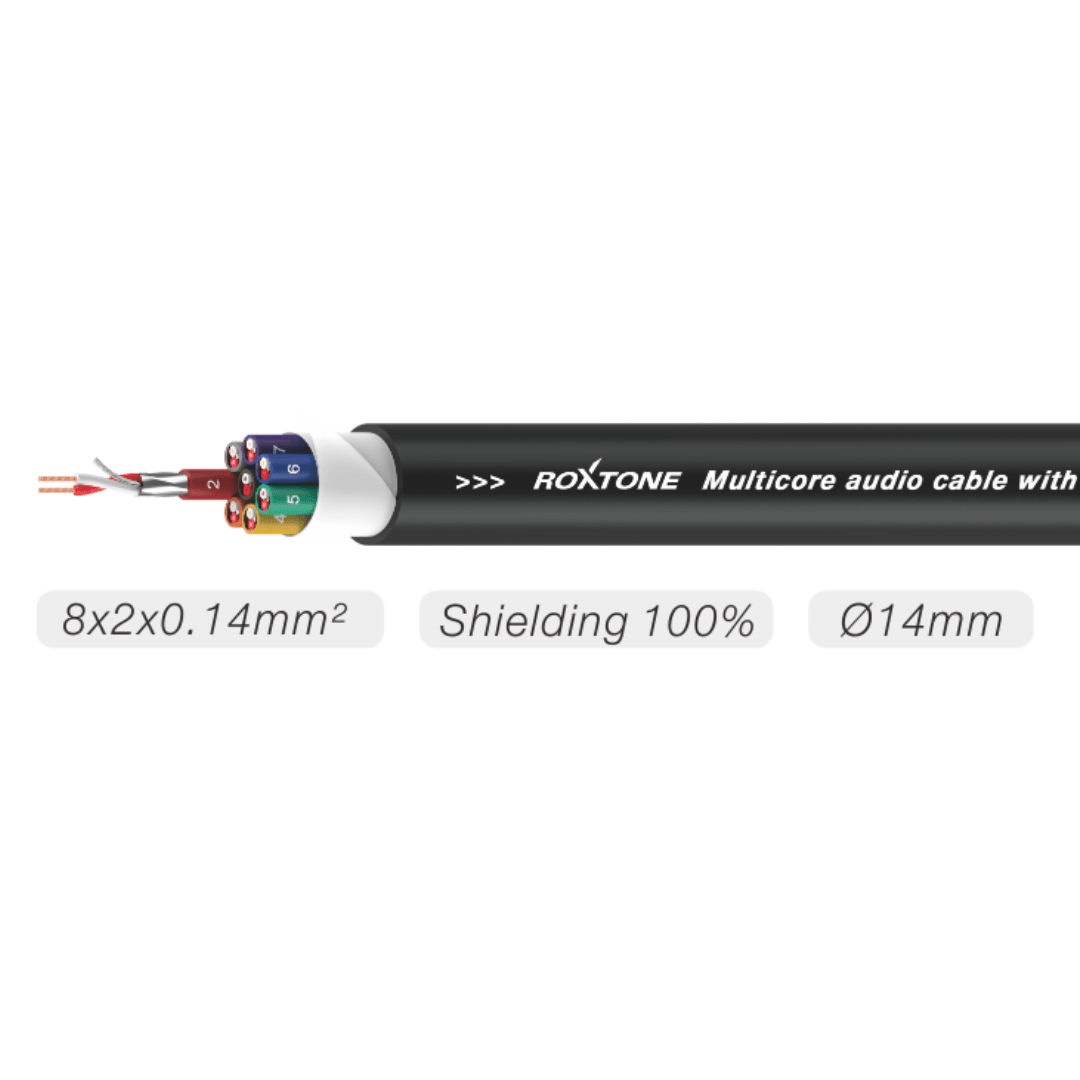

Built for maximum road durability and noise protection, the loom utilizes a high-flexibility, tour-ready outer PVC insulation jacket measuring 14 mm in diameter.
Inside the heavy-duty main trunk, each of the eight individual balanced pairs is wrapped in a dedicated, high-performance aluminum/petroleum (AL/PT) foil shield combined with a tin-plated copper drain wire to supply a 100% shielding factor against external radio frequency (RF) and electromagnetic (EMI) hum.
For seamless management, each discrete channel pair is self-contained within its own black, number-printed PVC inner jacket, allowing technicians to map inputs and outputs instantly with zero guesswork.
Features
Streamlined 8-Channel Layout: Integrates eight separate balanced microphone or line-level signal lines into a single master trunk cable, saving space and speeding up setup times.
Advanced 100% Foil Shielding: Outfitted with an independent AL/PT-foil shield and an auxiliary tin-plated copper drain wire per pair to deliver excellent cross-talk isolation and absolute signal purity.
Windowless Heavy-Duty Housing: Employs rugged, zinc alloy metal connector frames designed without vulnerable structural locking "windows" to vastly improve the mechanical casing's crush resistance.
Anti-Shift Internal Contact Pins: Features special contact terminals engineered with a unique gear-and-fluting design that physically locks the pins in place, eliminating rotational drift and connection failures.
Clear Numeric Channel Tracking: Every internal audio line pair is clearly identified by clean, contrasting numbers printed directly onto its flexible inner jacket for fast, error-free field patching.
Glass Fiber Reinforced Bushings: Assembled with high-strength PA 30% GR (polyamide 30% glass fiber reinforced) rear boots to distribute physical tension away from internal solder connections.
Specifications
Component Type: Professional Balanced 8-Channel Multilink Connecting Cable Loom
Model Designation: MSL8CL6
Assembled Cable Length: 6 meters (19.69 feet)
Input Interface Configuration: 8 x 3-Pole XLR Male Connectors (Model: RX3M-NT)
Primary System Applications: Interconnecting balanced studio outboard gear racks, routing analog recording console tie-lines, managing live audio stage drops, drum sub-snakes, and multi-channel broadcast setups.
What’s in the Box
1 x Roxtone MSL8CL6 8-Way XLR Male to 8-Way XLR Female Multicore Studio Loom (6M)
