Type: Lithium coin cell (primary, non-rechargeable)
Nominal voltage: 3 V
Capacity: Approximately 150 mAh
Continuous standard load: 15 kΩ
Typical weight: ~2.5 g
Diameter: 20.0 mm (±0.2 mm)
Height: 2.5 mm (±0.2 mm)
Operating temperature range: –30 °C to +60 °C
Self-discharge rate: ~1% per year at room temperature
Shelf life: Up to 10 years under recommended storage
Chemistry: Lithium Manganese Dioxide (Li/MnO₂)
Typical internal resistance: ~15–30 Ω depending on discharge pulse

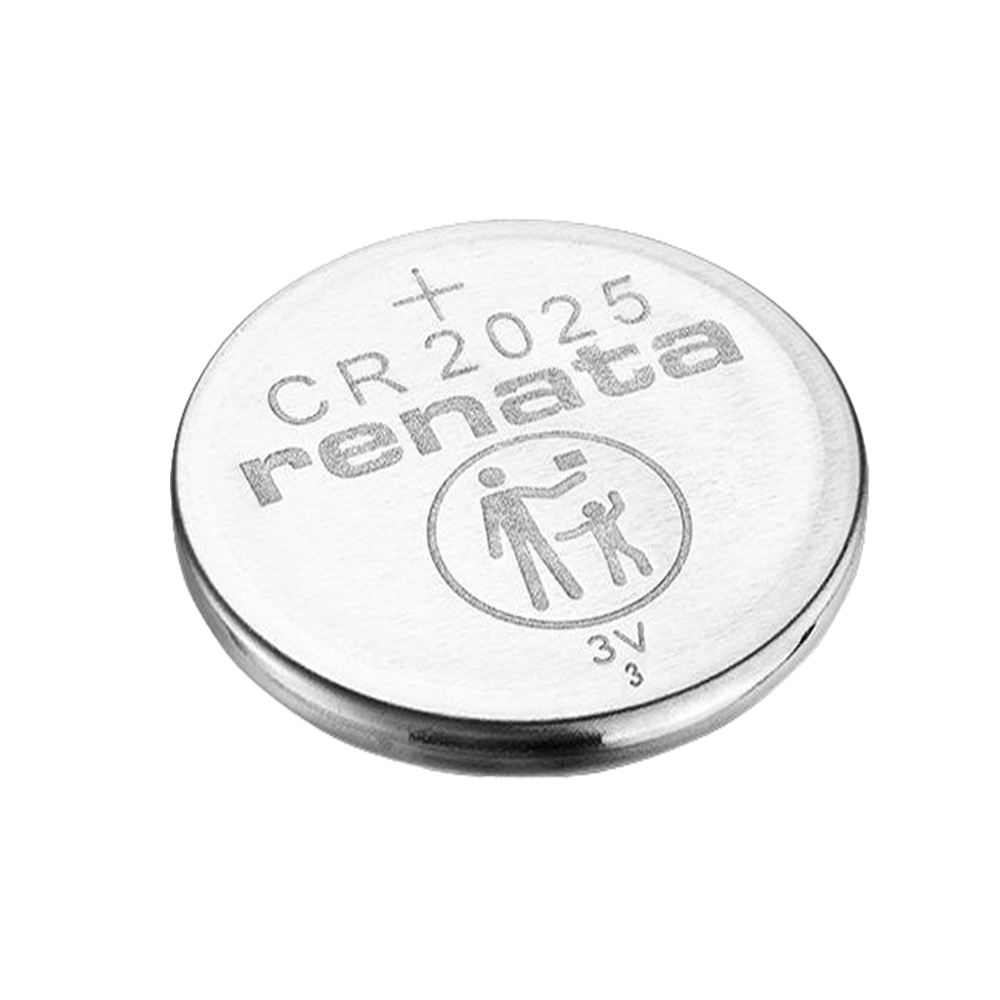

Standard designation: CR2025
| Vendor | Renata |
|---|---|
| Type | Lithium Batteries |
| Sku | 13655809 |
| Barcode | 5052494000689 |
| Weight: | 0.1 kg |
