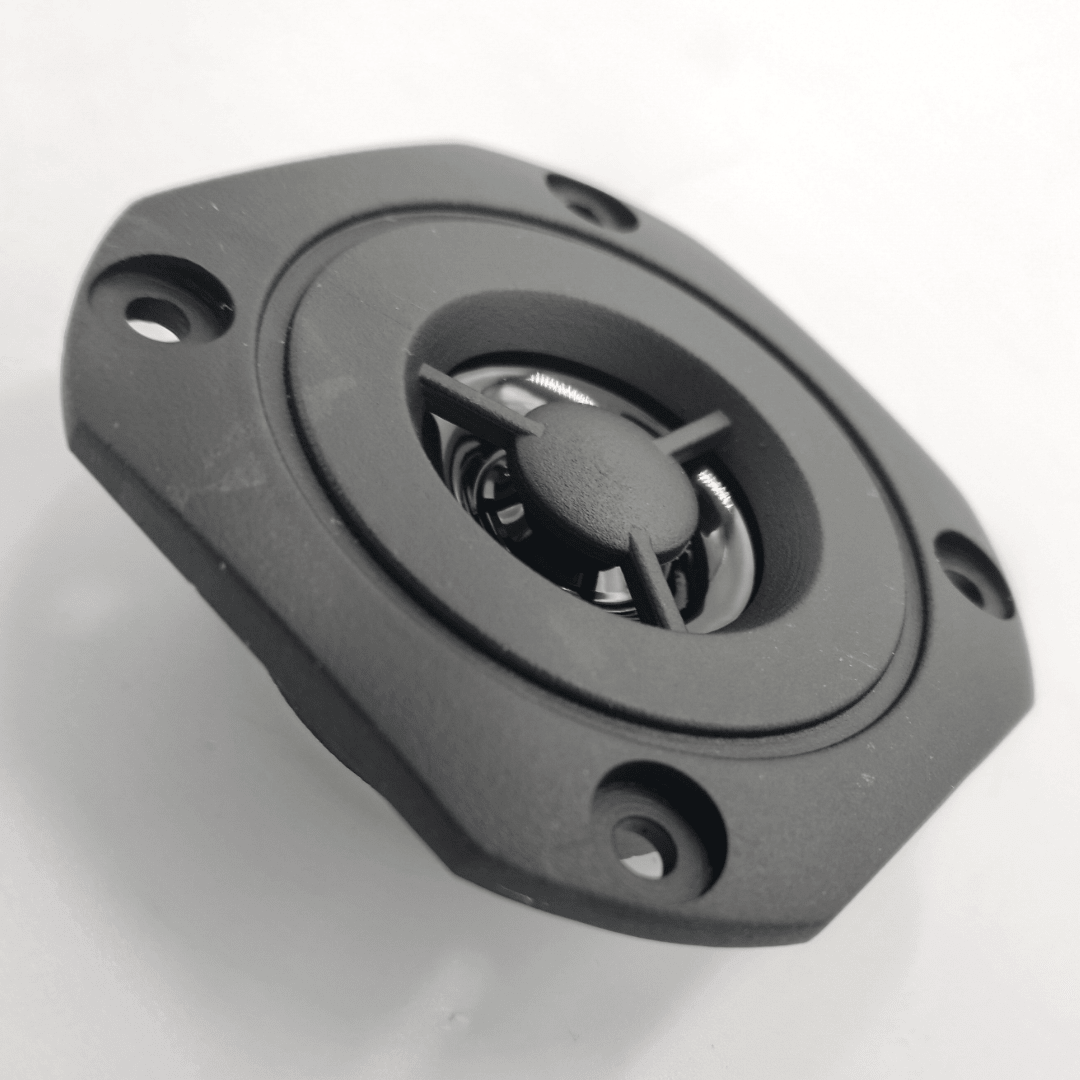

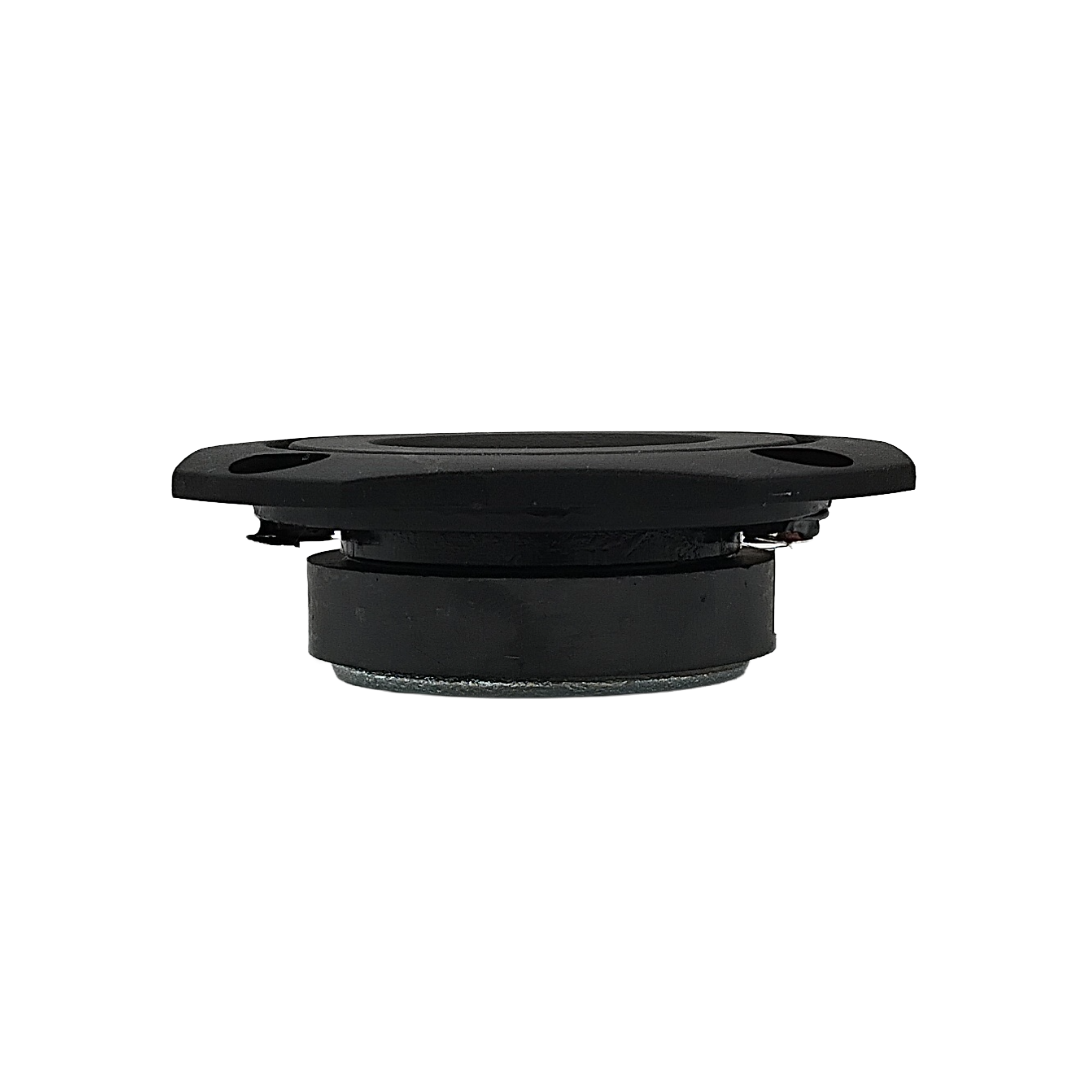

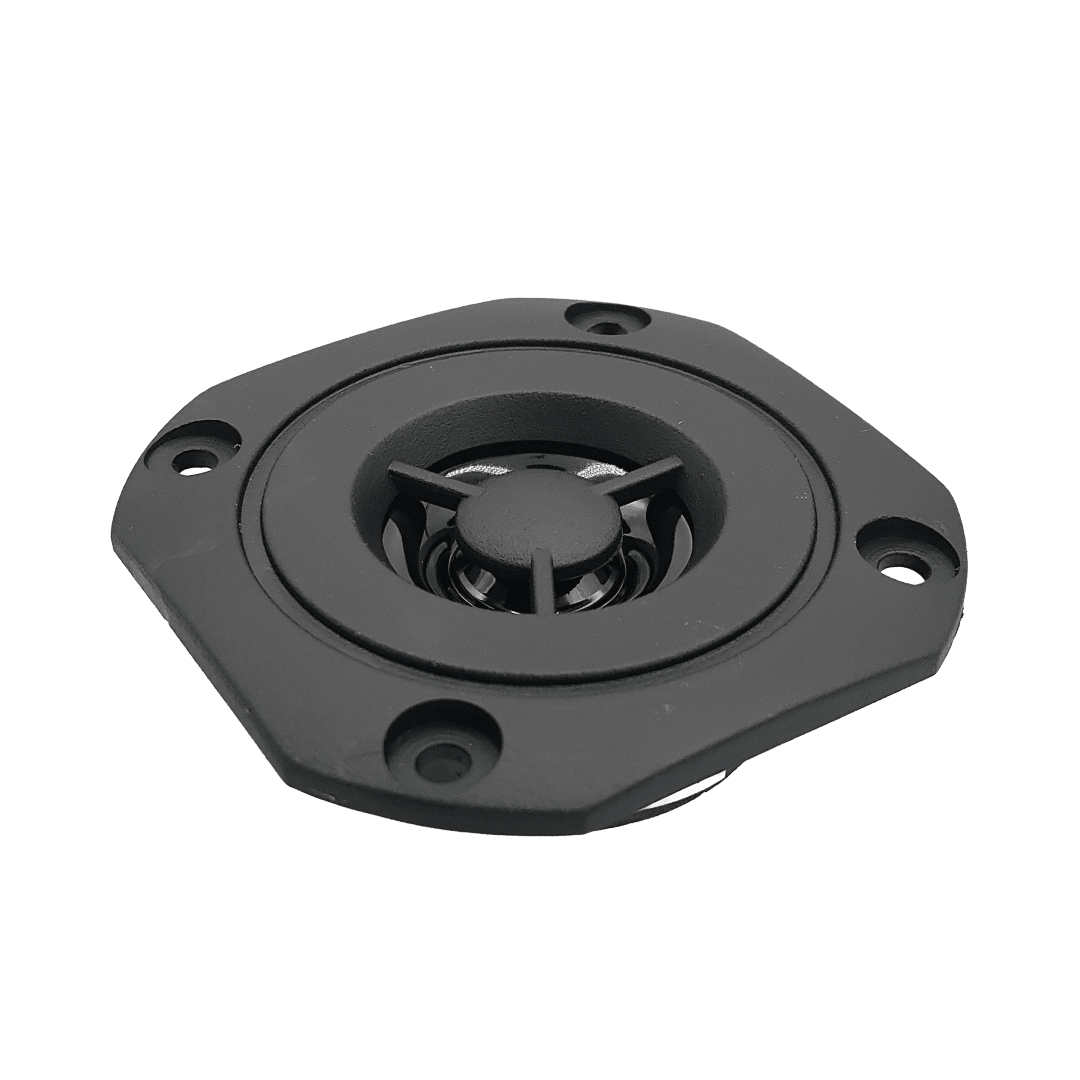

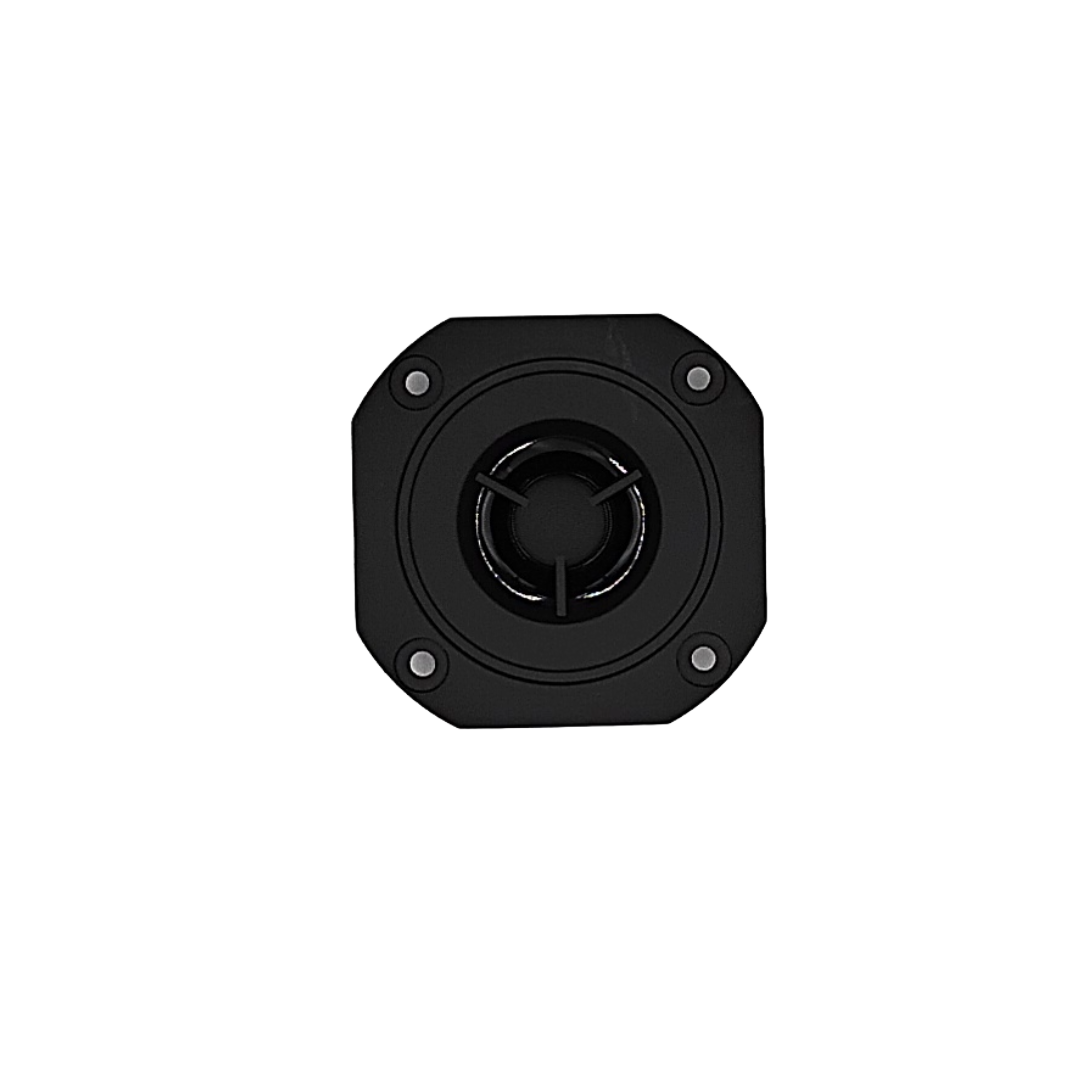

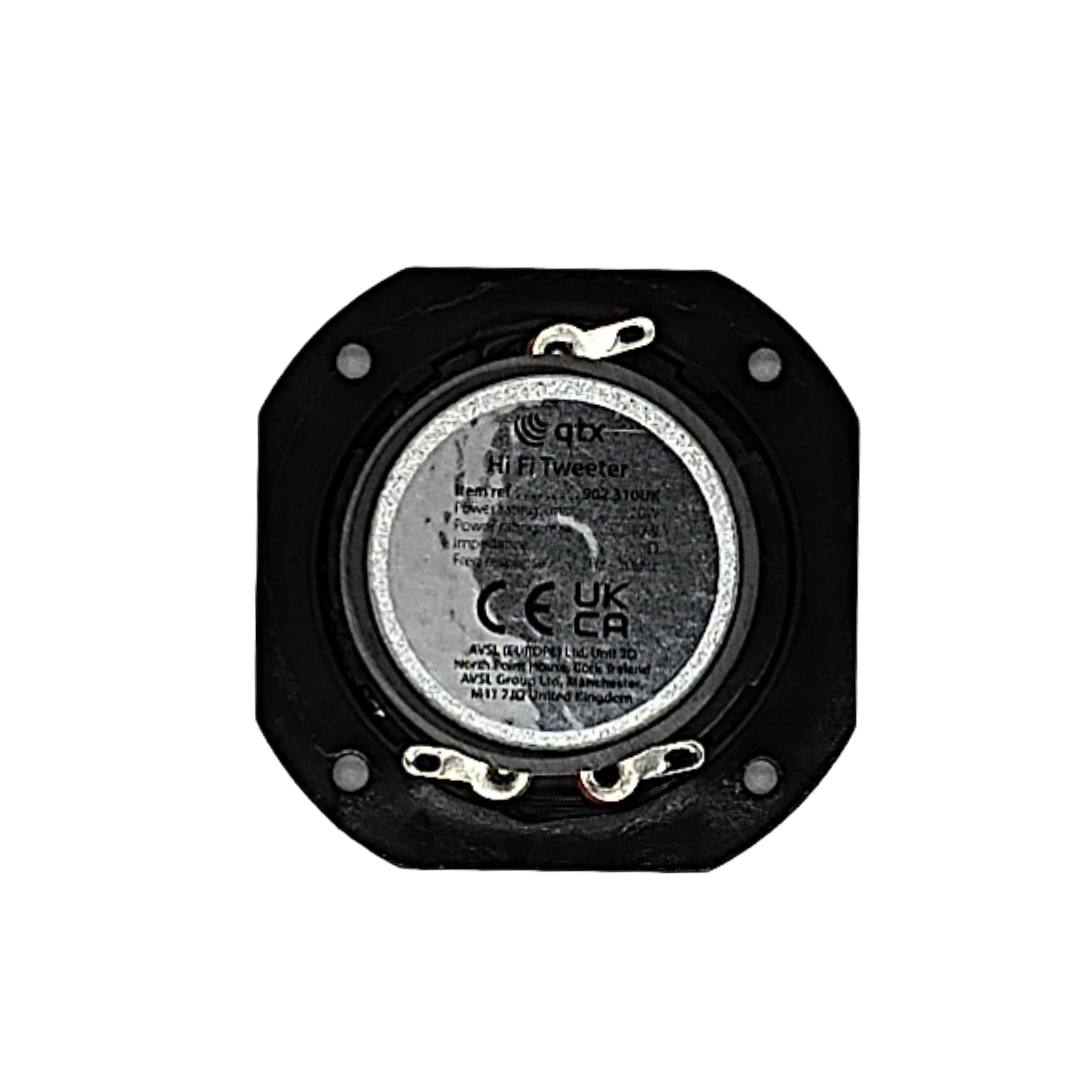

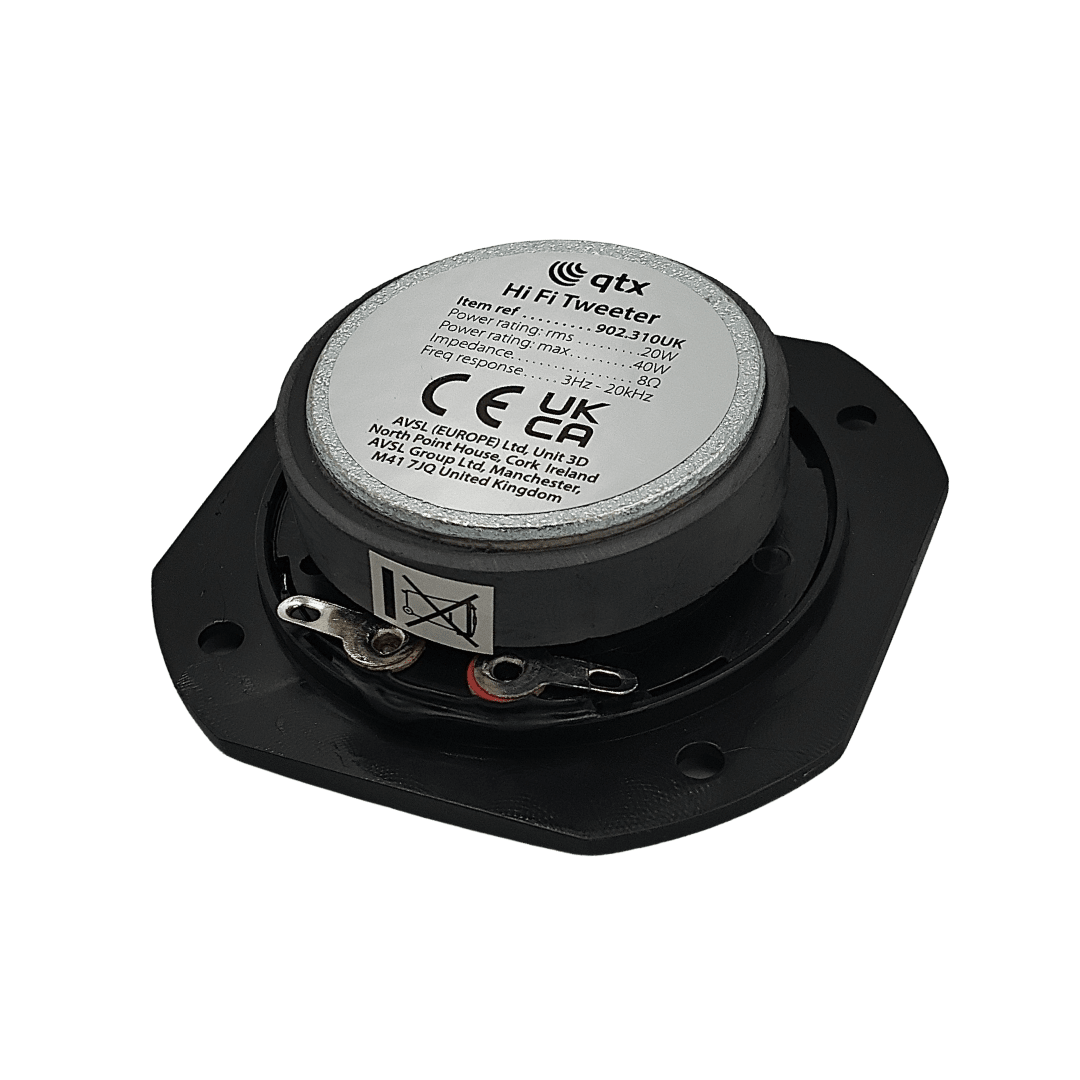

QTX 902.313 20W RMS Square Dome Tweeter

R 89.00
Quantity:
Easy Returns
🔒 Multiple Secure Payment Methods
💬 Friendly Advice Available
🚚 Delivery within 3–5 business days
Sku: 23687607
Visa Mastercard American Express Ozow MTN Mobile Money

  • Compact square high-frequency dome tweeter engineered for high-frequency audio reinforcement in loudspeaker enclosures and custom speaker builds.
  • Delivers 20 Watts RMS (40 Watts Max) power handling, providing clean, detailed treble reproduction with minimal distortion at higher volume levels.
  • Features a high-efficiency dome diaphragm paired with a compact magnet assembly to deliver wide high-frequency dispersion and smooth top-end extension.
  • Built with a durable square plastic faceplate with pre-drilled corner mounting holes for quick flush mounting into cabinet baffles.
  • Ideal for replacing worn-out high-frequency drivers in two-way or three-way PA speakers, studio monitors, home hi-fi cabinets, and portable sound systems.
Features
  • 20W RMS Power Handling: Provides reliable thermal and mechanical power capacity for background music and speech reinforcement systems.
  • Smooth High-Frequency Response: Poly-dome diaphragm architecture ensures crisp, detailed treble extension across upper audio frequencies.
  • Square Flush-Mount Faceplate: Molded mounting frame enables neat, flush insertion into standard speaker cabinet front panels.
  • Pre-Drilled Mounting Holes: Corner screw apertures simplify installation and secure fastening against enclosure vibrations.
  • Solder Terminal Connections: Rear tab terminals provide solid, low-resistance connections for crossover wiring.
Specifications
  • Model / Part Number: 902.313 (902.31)
  • Product Type: High-Frequency Square Dome Tweeter
  • Power Handling (RMS): 20 Watts
  • Power Handling (Max): 40 Watts
  • Nominal Impedance: 8 Ohms
  • Frequency Response: 2.5 kHz – 20 kHz
  • Sensitivity: 90 dB (1W/1m)
  • Frame Shape: Square Faceplate
  • Application: PA Speaker Repair, Custom Cabinet Builds, Studio Monitors, Home Audio Enclosures
What's in the Box?
  • 1 x QTX 902.313 20W RMS Square Dome Tweeter Component
Vendor Qtx
Type Speaker Parts & Accessories
Sku 23687607
Barcode 5015972036488
Weight:  0.1 kg
