• Professional quad-channel UHF wireless microphone system for multi-user applications
• Allows operation of 4 microphones simultaneously with stable performance
• Each microphone is individually coded for easy identification and control
• Designed for PA systems, conferences, stage use, and vocal applications

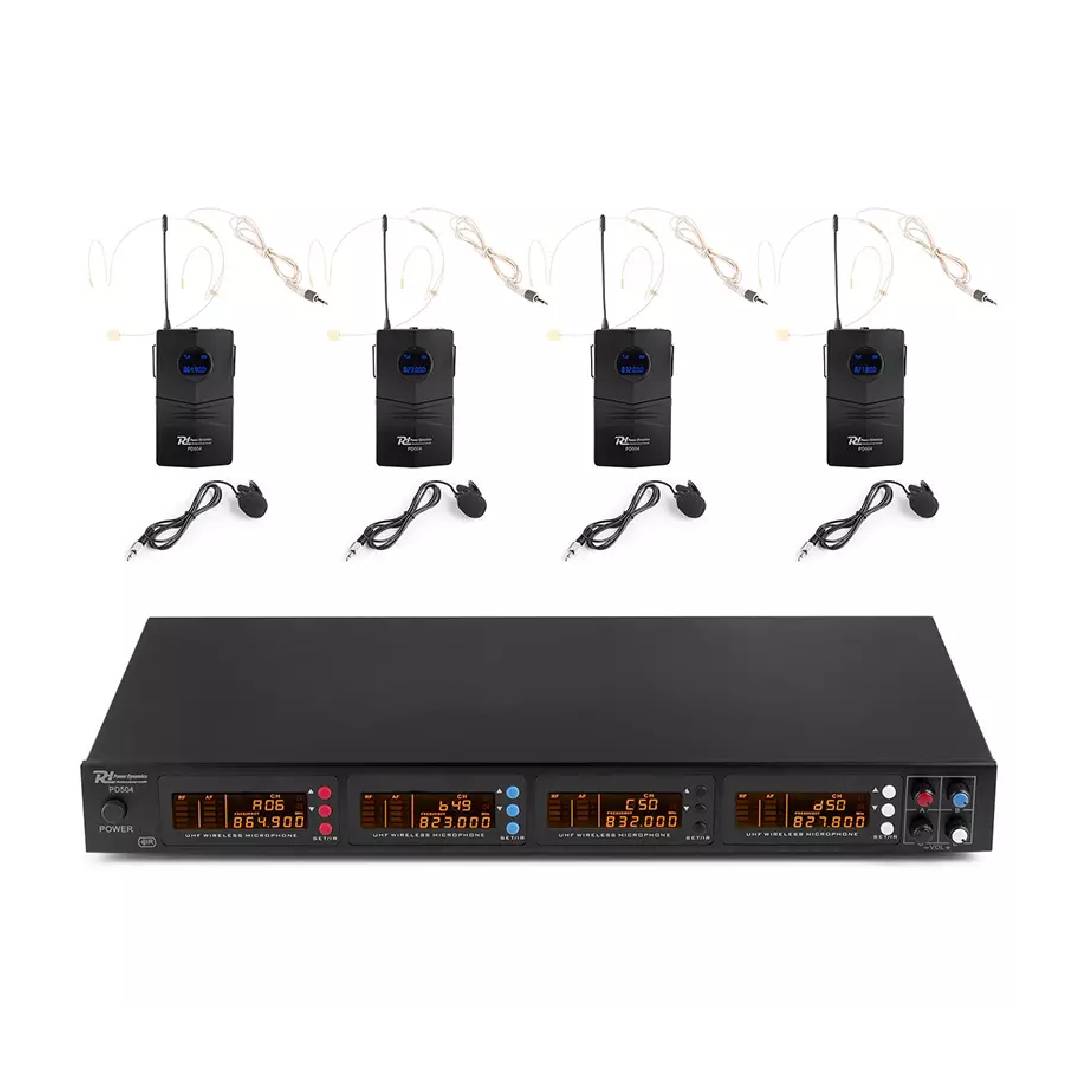

• Supplied as a complete system with receiver, bodypacks, and microphones
• Offers clear sound quality with reliable wireless transmission

Features

• 4 × bodypack transmitters with headset and lapel (tie-clip) microphones
• 50 selectable UHF channels per microphone
• IR sync transmission for quick frequency setup

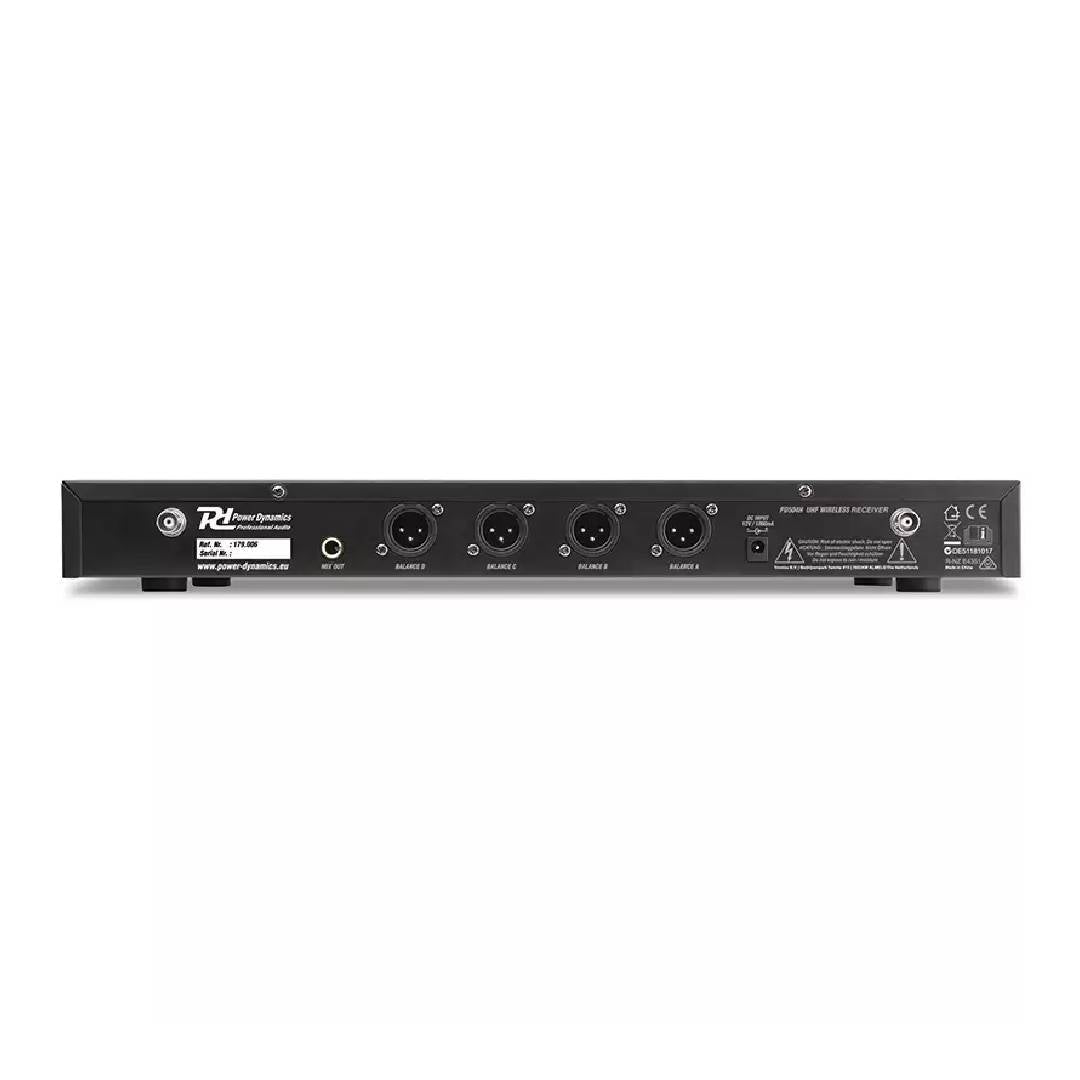

• Balanced XLR outputs (4 channels)
• 3.5mm screw-lock microphone connections
• CPU-controlled system with PLL oscillator
• Transmitters with display (frequency + battery status)
• Dynamic LCD display on receiver
• Supplied in aluminium carry case
• Includes 19″ rack mounting brackets

Specifications

• Receiver
  • Dimensions: 420 × 235 × 44 mm
  • Weight: 1.7 kg
• Bodypack Transmitter
  • Dimensions: 75 × 60 × 23 mm
  • Weight: 0.2 kg
• General
  • Frequency Range: 826.300 – 831.200 MHz / 863.000 – 865.000 MHz
  • Frequency Response: 60 Hz – 18 kHz
  • Frequency Stability: 0.0015%
  • RF Output: <10 mW
  • Signal-to-Noise Ratio: >97 dB
  • THD: <1%
  • Batteries: 2 × AA (3V)
  • Power Supply: 100–240V AC (12V adapter)
  • Input Connections: 3.5mm Jack, XLR (3-pin)
  • Output Connections: 3.5mm Jack, XLR (3-pin)

What's in the box

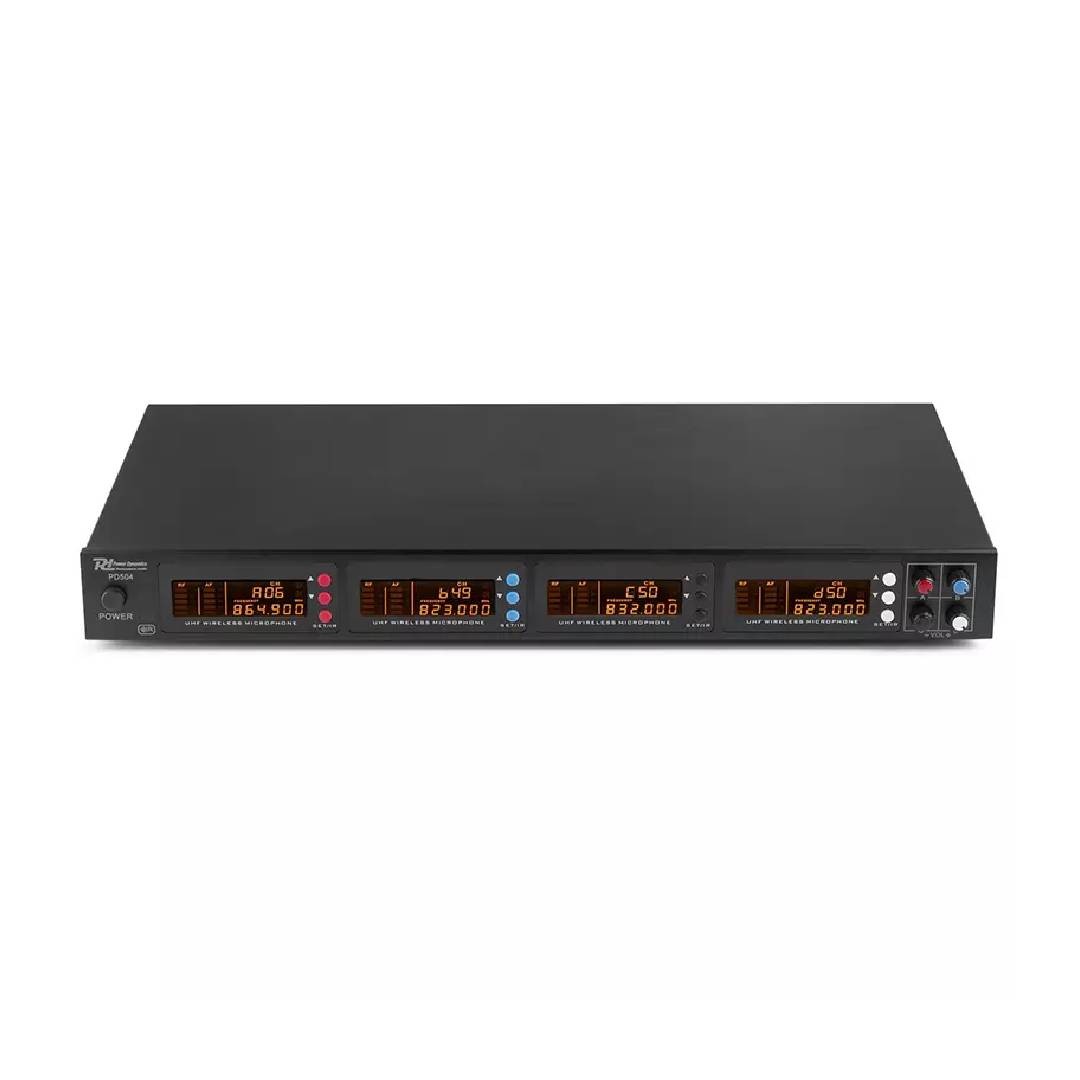

• 1 × Quad channel wireless receiver

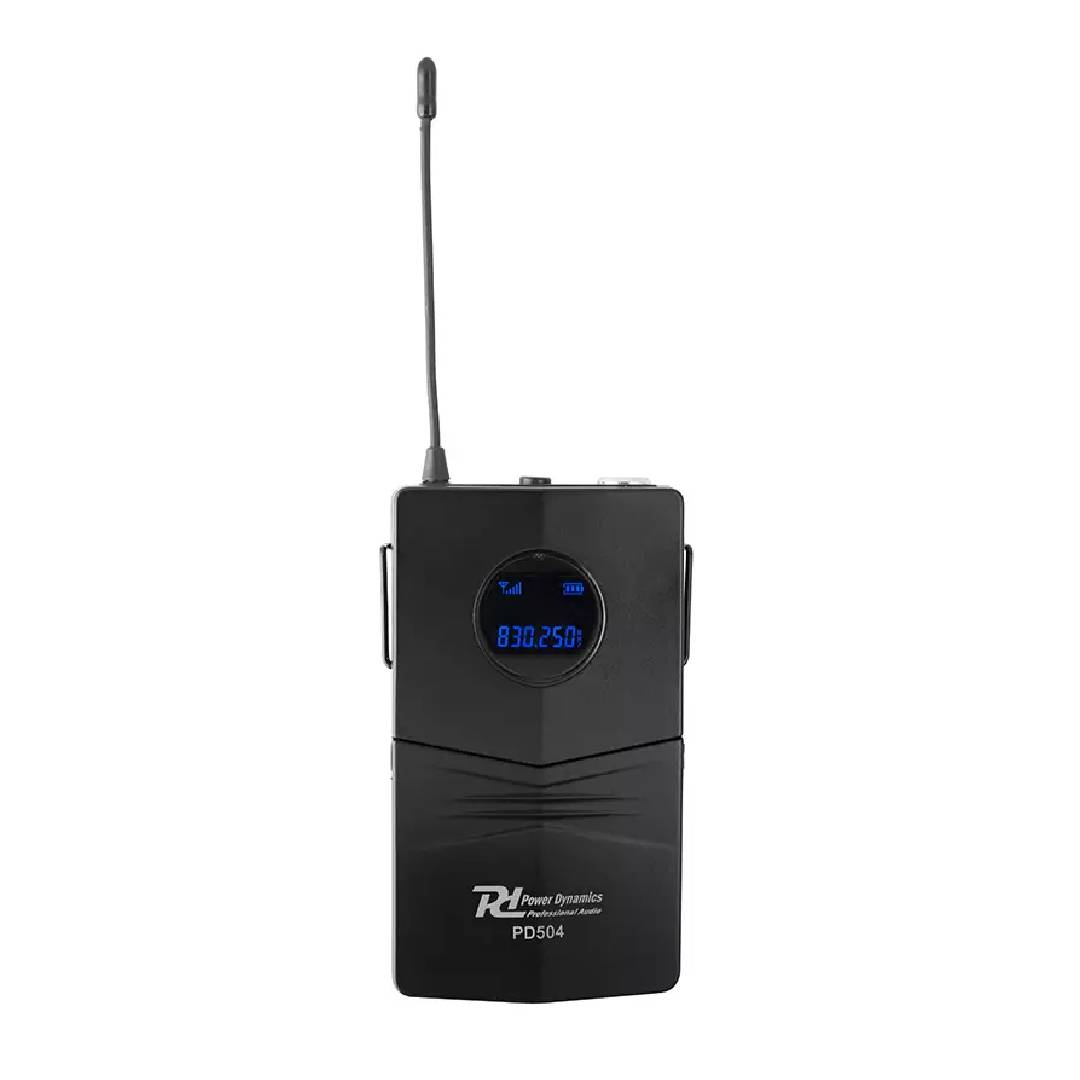

• 4 × Bodypack transmitters

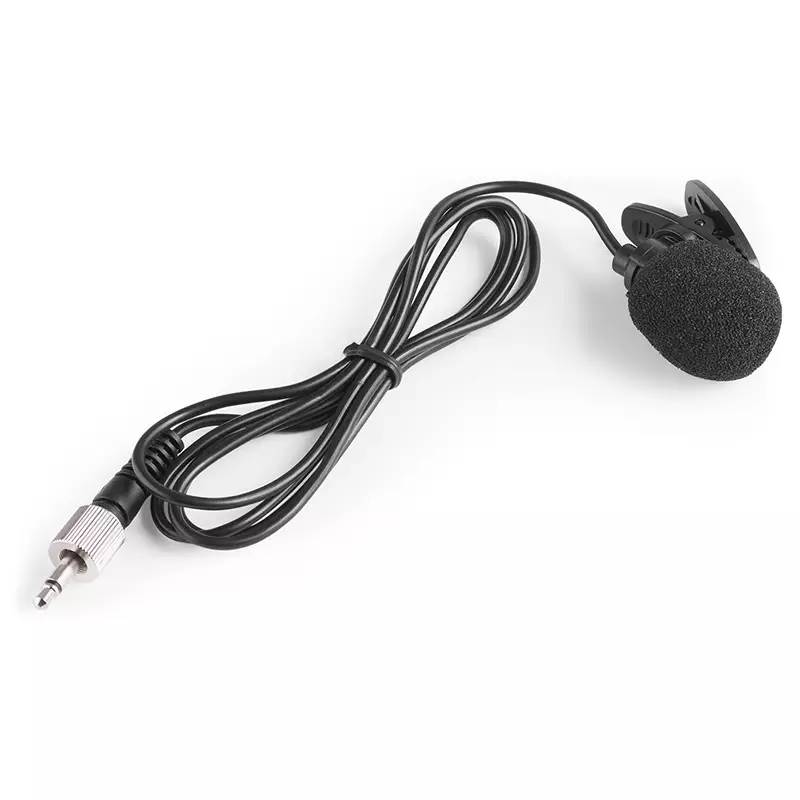

• 4 × Lavalier (lapel) microphones
• 4 × Headset microphones
• 2 × Antennas
• 1 × Power adaptor
• Rack mount brackets

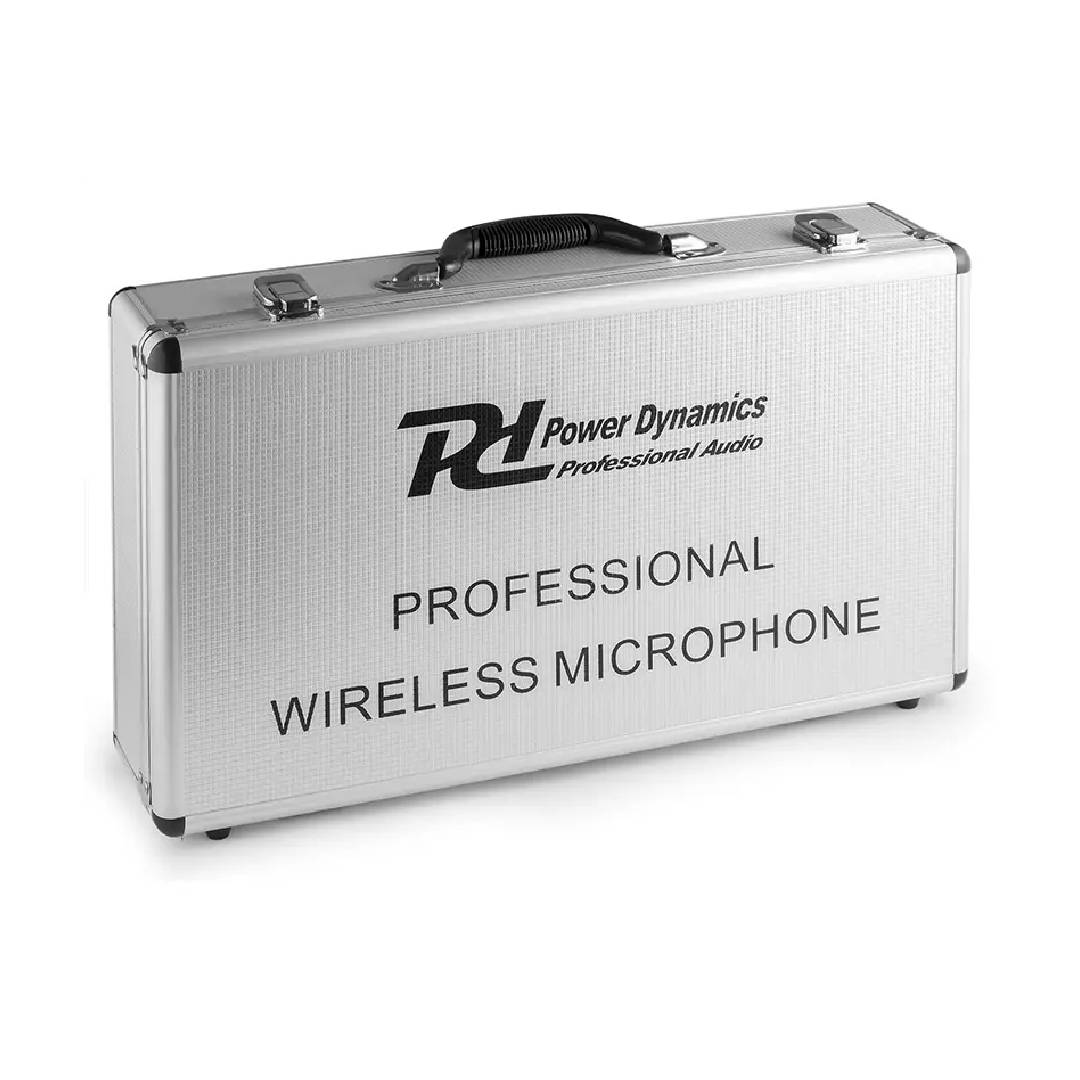

• Aluminium carry case
• User manual
