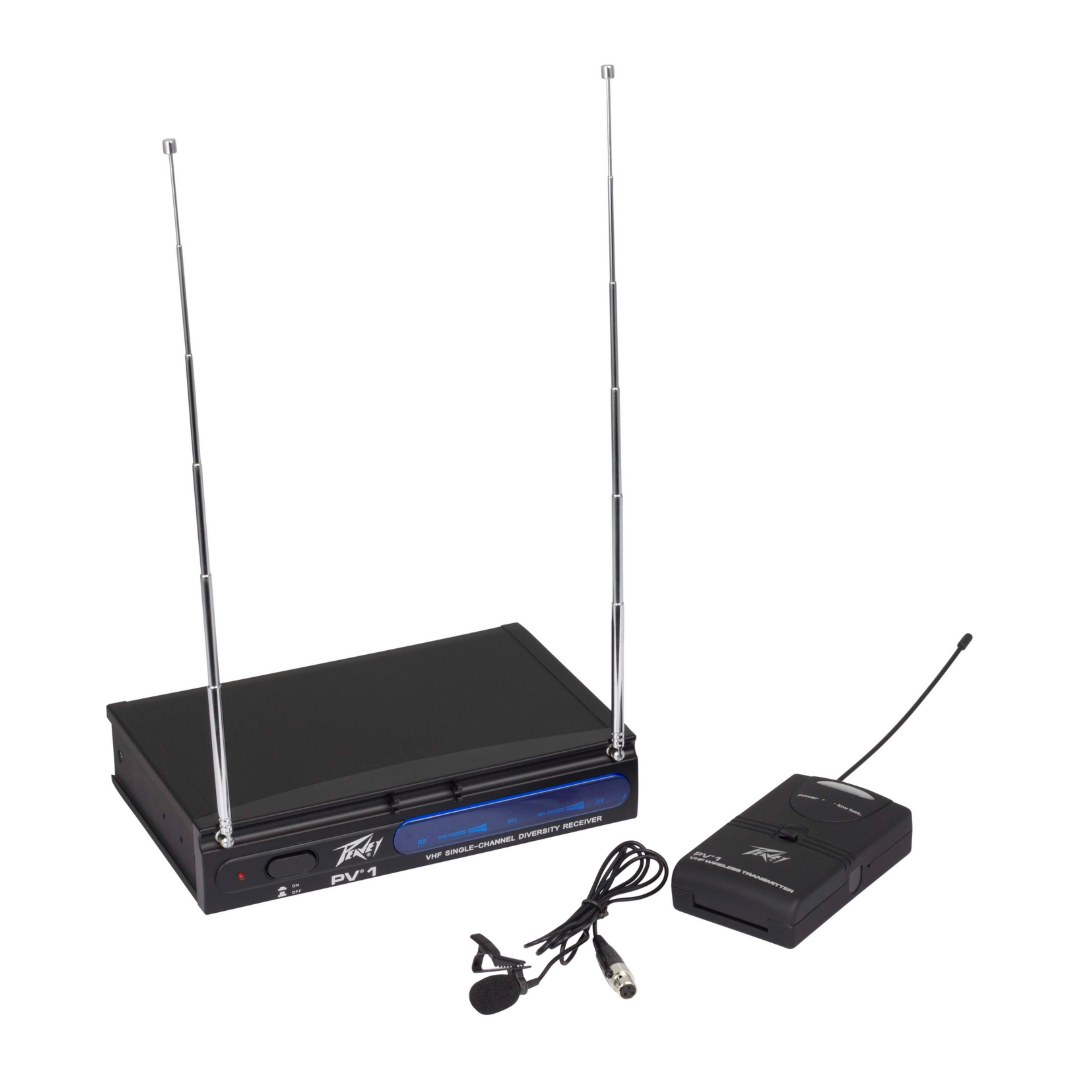

• The Peavey PV-1 U1 is a reliable, single-channel UHF diversity wireless lapel microphone system engineered to deliver clear vocal amplification and hands-free mobility.
• Designed for houses of worship, public speakers, presenters, stage performers, and corporate presenters, this system operates on a clear UHF channel frequency to minimize external interference and maximize transmission stability.
• Built with a compact half-rack receiver design and a lightweight bodypack transmitter, the PV-1 U1 ensures seamless performance delivery without restricting user movement.
• Operating as an integrated audio solution, the system utilizes proprietary compander circuitry to achieve an exceptional dynamic range up to 120 dB, resulting in ultra-clean, natural voice reproduction.
• The diversity reception system features dual retractable front-panel antennas that actively combat dropouts by switching to the strongest incoming radio signal.
• To streamline live operations, the receiver features an adjustable squelch control to block out unwanted RF noise when the transmitter is turned off, alongside noiseless on/off switching to protect venue speakers from loud pops during transitions.

Features

• UHF Diversity Reception Design: Outfitted with dual independent front-panel antennas to capture parallel wireless signals, automatically switching paths to prevent dropouts and maintain transmission continuity.
• Proprietary Compander Circuitry: Engineered to deliver a massive 120 dB dynamic range, minimizing system hiss and maintaining clear, full-bodied vocal intelligibility.
• Adjustable Squelch Control: Features an external mute adjustment dial that seals off the audio channel when RF signal levels drop, preventing white noise from blasting through the PA.
• Miniature Lapel Mic Capsule: Includes a lightweight condenser lavalier microphone equipped with a secure clothing clip and a foam windscreen to control breath pops and clothing rustle.
• Ergonomic Bodypack Transmitter: Houses a rugged, compact belt-pack transmitter outfitted with an On/Off/Standby toggle switch and an internal input level adjustment trimmer.
• Flexible Dual Output Configurations: Built with both a professional balanced XLR output and an adjustable unbalanced 1/4" phone jack to connect seamlessly to mixing consoles, portable PAs, or powered speakers.

Specifications

• Component Type: Single-Channel UHF Diversity Wireless Lavalier Microphone System
• Model Designation: PV-1 Series (U1 Band Variant)
• System Operating Frequency Range: UHF Band (Frequency Channel-Specific, Crystal Controlled)
• Overall Frequency Response: 40 Hz to 20,000 Hz (+/- 3 dB)
• System Dynamic Range: 120 dB
• Total Harmonic Distortion (THD): Less than 0.3%
• Typical Operational Range: Up to 250 feet line-of-sight (Up to 500+ feet under optimum outdoor conditions)
• Transmitter Connector Type: Locking Mini 3-Pin Jack Connection
• Transmitter RF Power Output: 50 mW Maximum (FCC Limit Approved)
• Transmitter Status Array: Single-Flash Power LED Indicator, Steady-On Low Battery Alert LED
• Battery Power Configuration: 2 x AA Alkaline Batteries (Up to 15 Hours Operating Life)
• Receiver Control Interface: Power On/Off, Volume Control Rotate Dial, Rear Squelch Mute Control Trimmer
• Receiver Visual Indicators: Power On LED, 4-Segment RF Signal Level Display, 4-Segment AF Audio Level Display, A/B Diversity Path Activity LEDs
• Receiver Electrical Requirements: DC 12V-15V @ 400mA, external AC/DC adapter power supply
• Receiver Structural Form Factor: Half-Rack Metal Chassis (Optional Rack Mount Kits for 1U spaces sold separately)
• Primary Application: Public speaking, church sermons, corporate AV presentations, teaching lectures, and theatrical stage dialogue

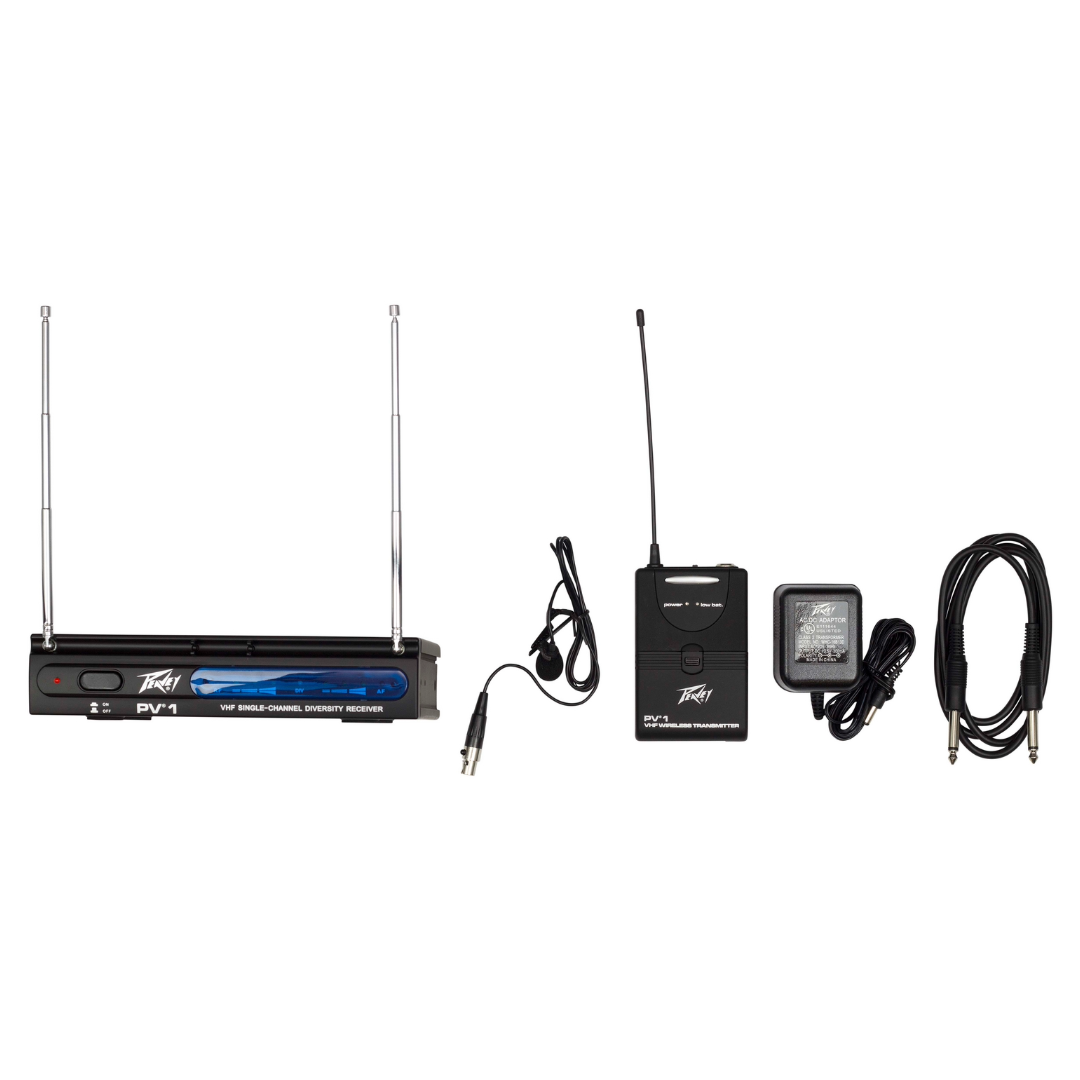

What’s in the Box

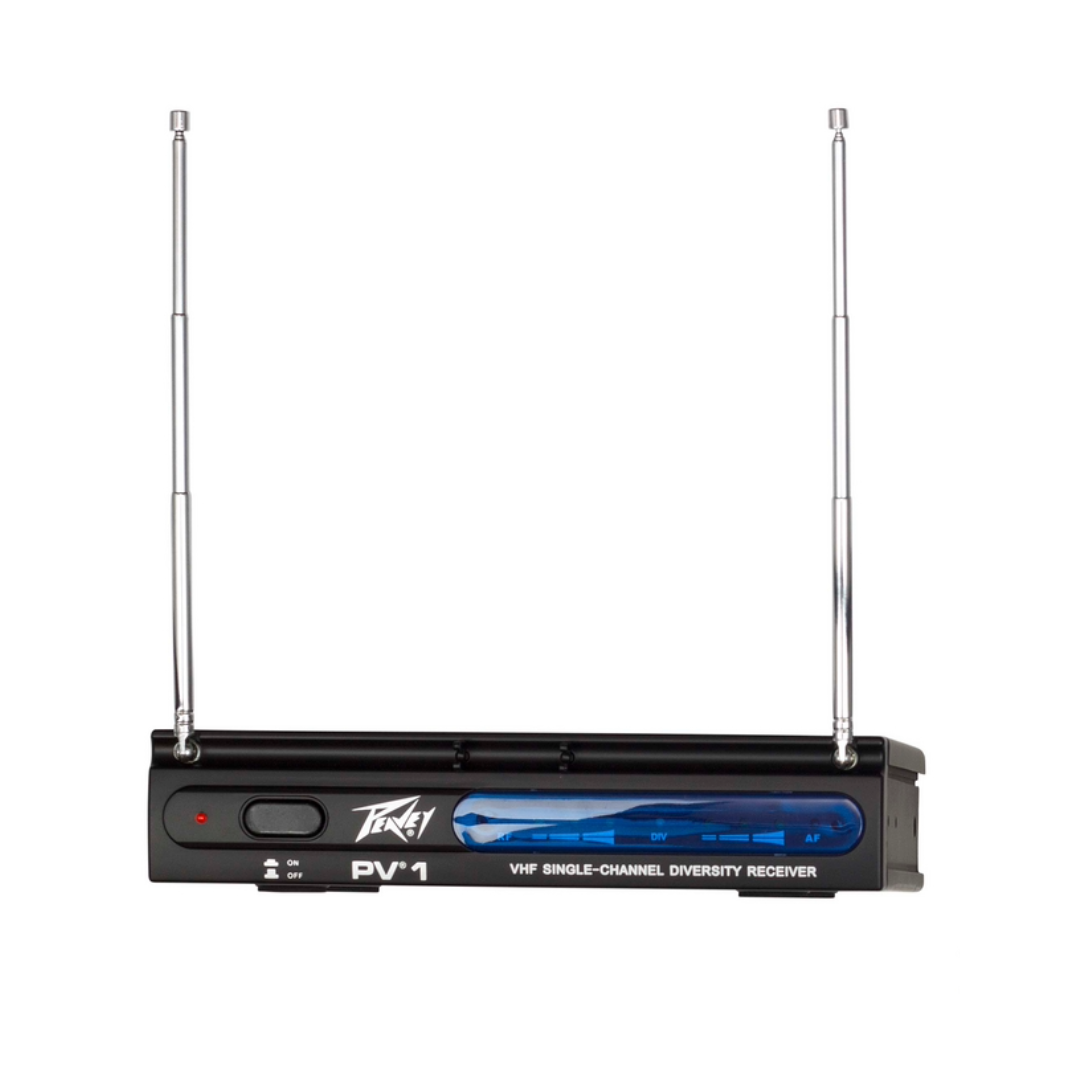

• 1 x Peavey PV-1 Single Channel UHF Diversity Wireless Receiver

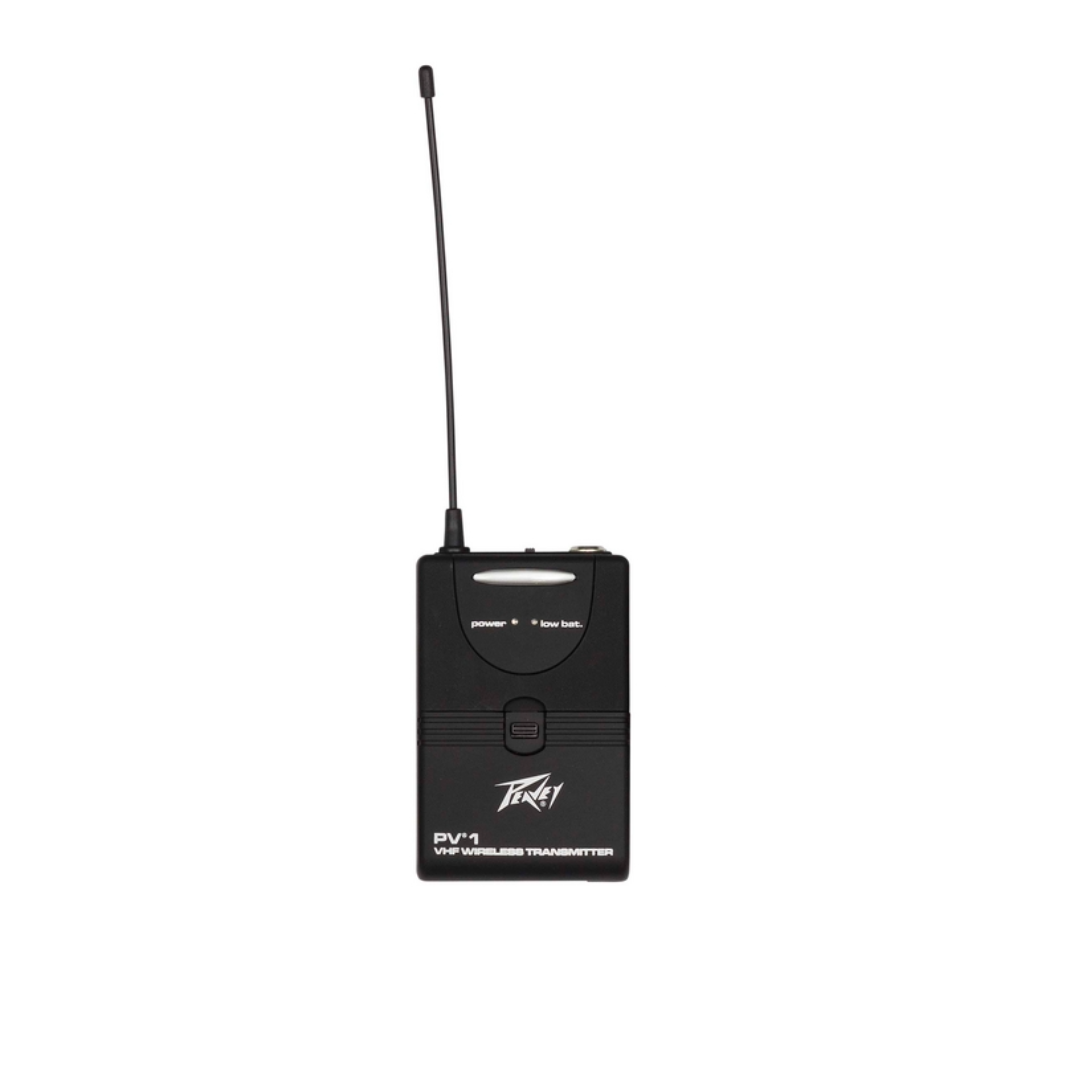

• 1 x Peavey PV-1 Wireless Bodypack Belt-Pack Transmitter

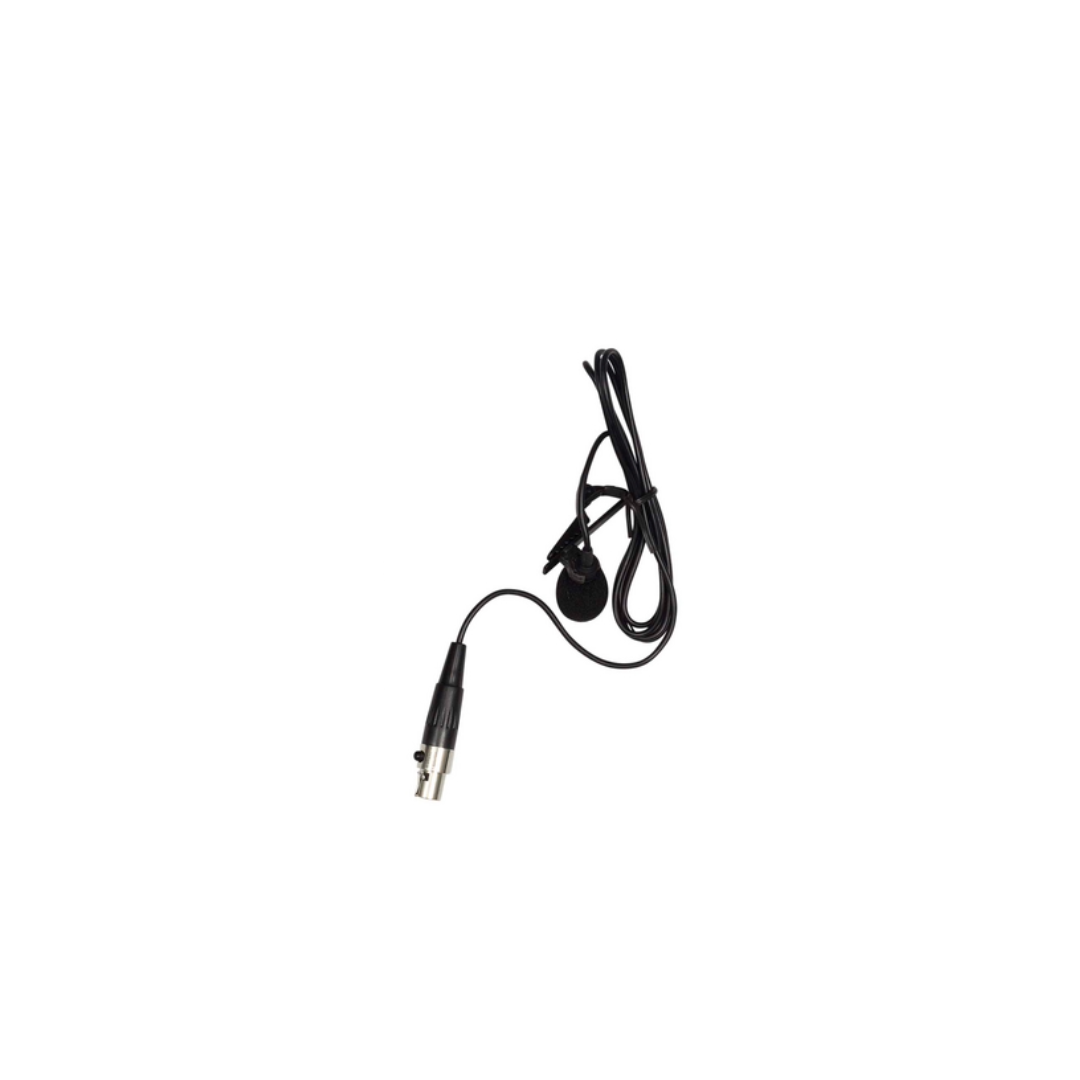

• 1 x Peavey Condenser Lavalier Lapel Microphone with Tie Clip & Windscreen

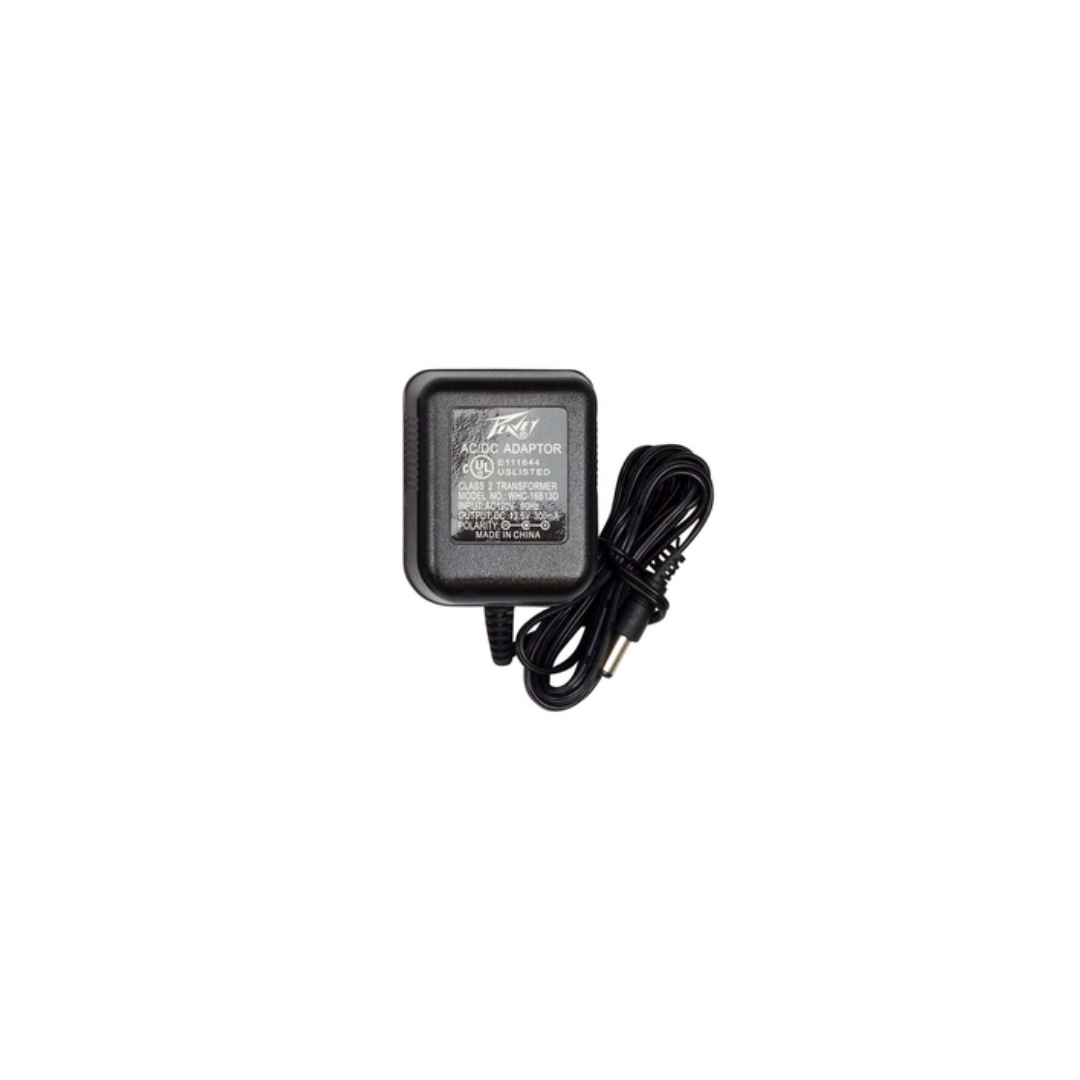

• 1 x AC/DC External Power Supply Adapter
• 2 x AA Alkaline Batteries
