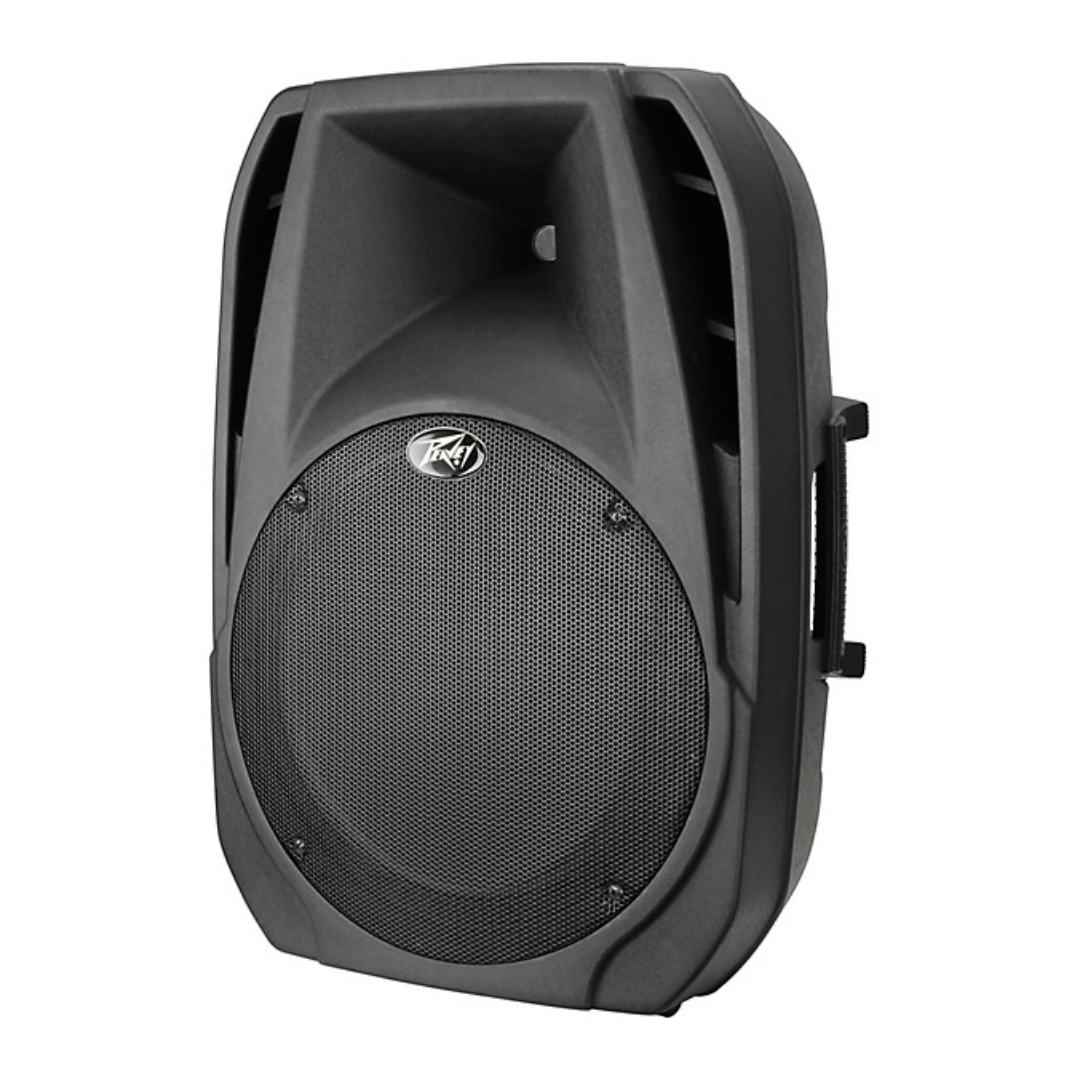

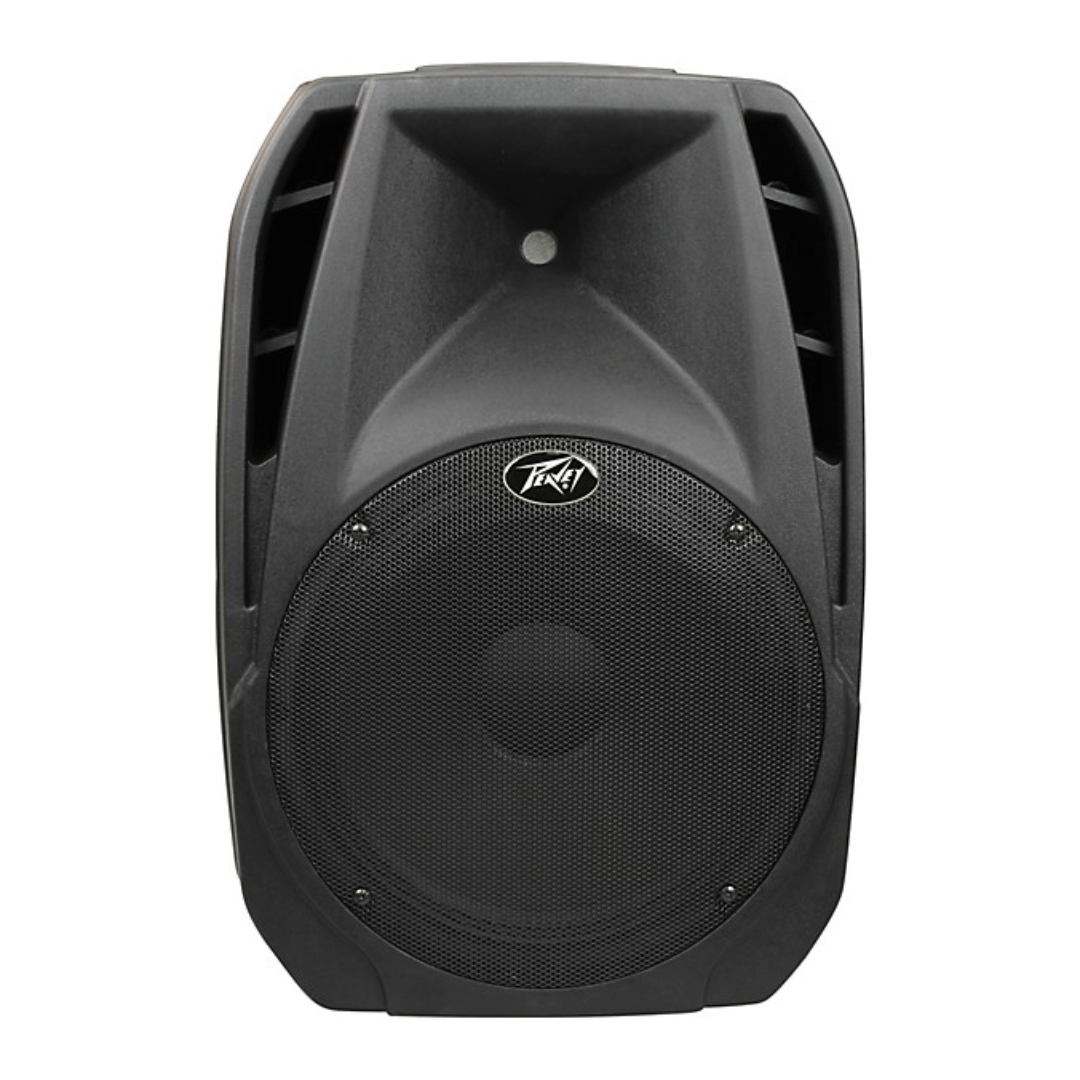

Peavey PBK 15 2-Way Passive Sound Reinforcement Loudspeaker

R 3,999.90
Quantity:
Sku: 80500207
Visa Mastercard American Express Ozow MTN Mobile Money

  • The Peavey PBK 15 is a lightweight, full-range passive loudspeaker designed to provide durable, high-output sound reinforcement for live music applications, mobile DJs, public address installations, and presentation environments.
  • Built around a 15-inch heavy-duty woofer and a premium 1.4-inch 14Ti titanium diaphragm compression driver, this speaker delivers clean bass response coupled with clear, dynamic high-frequency projection.
  • The internal passive two-way crossover network is integrated with an independent high-frequency protection circuit, actively safeguarding the compression driver against damaging power spikes and ensuring reliable operation during extended high-SPL performances.
  • The system is housed in a modern, sleek injection-molded plastic enclosure featuring a rounded aerodynamic profile that minimizes internal standing waves and enhances structural integrity.

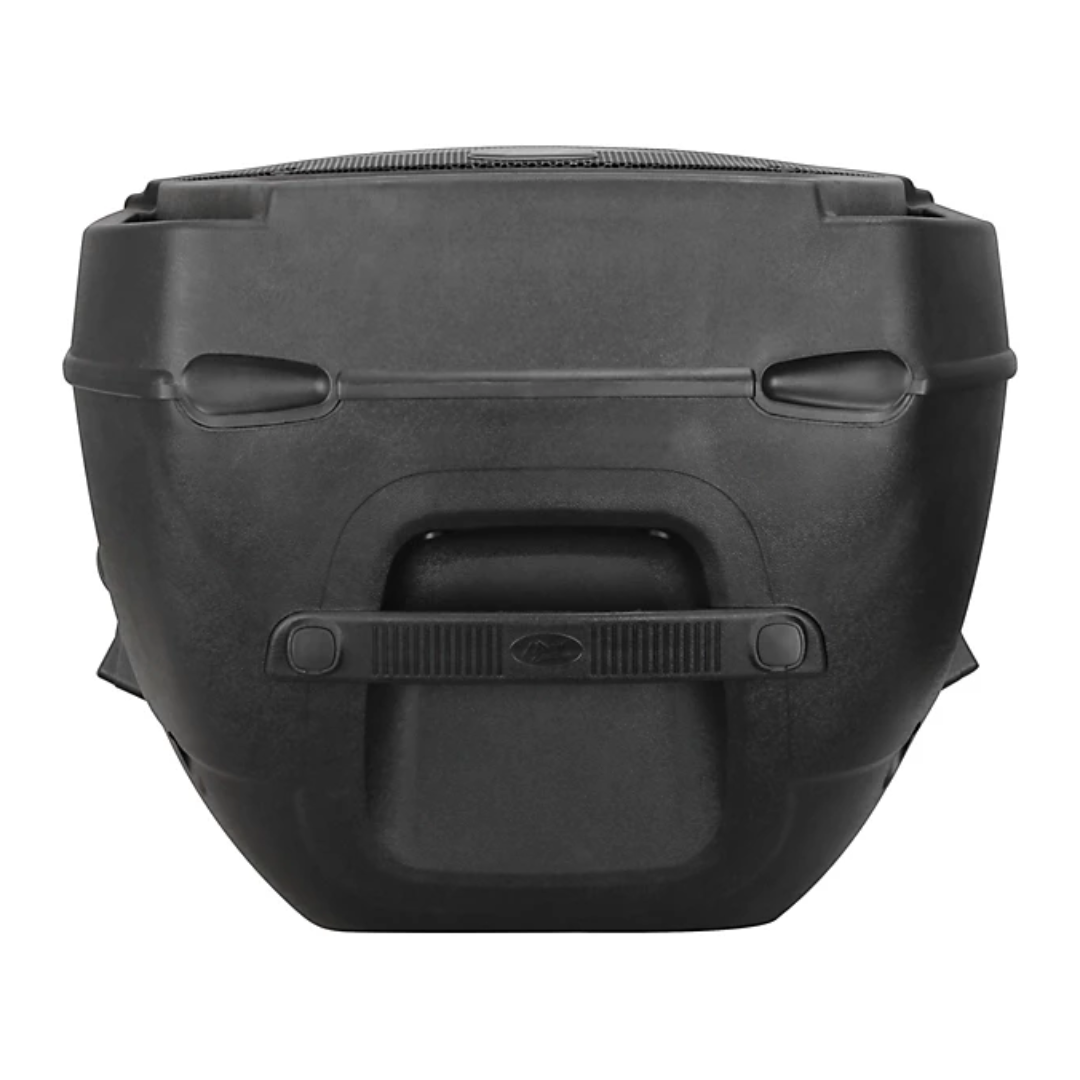

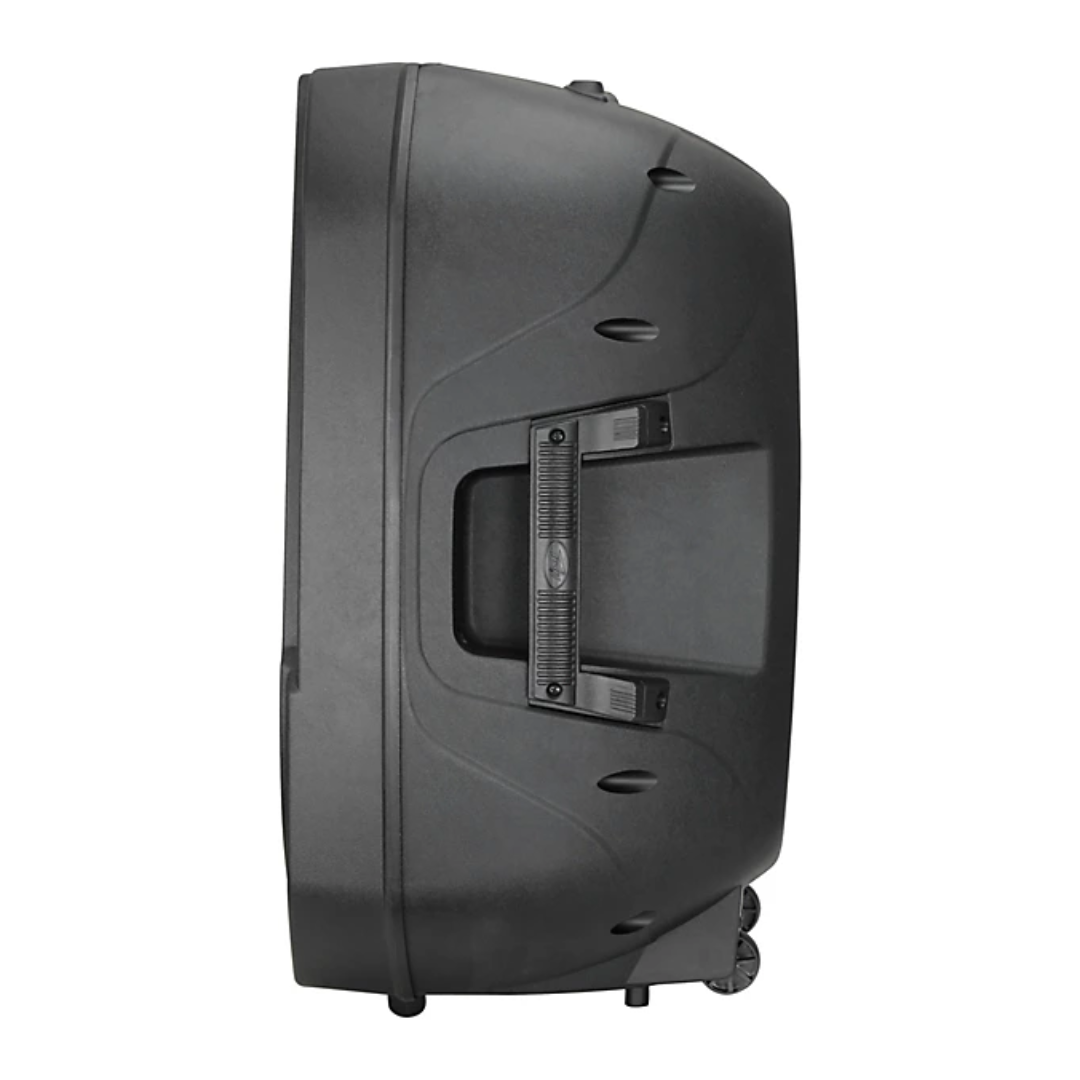

  • Engineered with portable transport in mind, the enclosure includes three heavy-duty ergonomic carrying handles and integrated rear transport wheels.

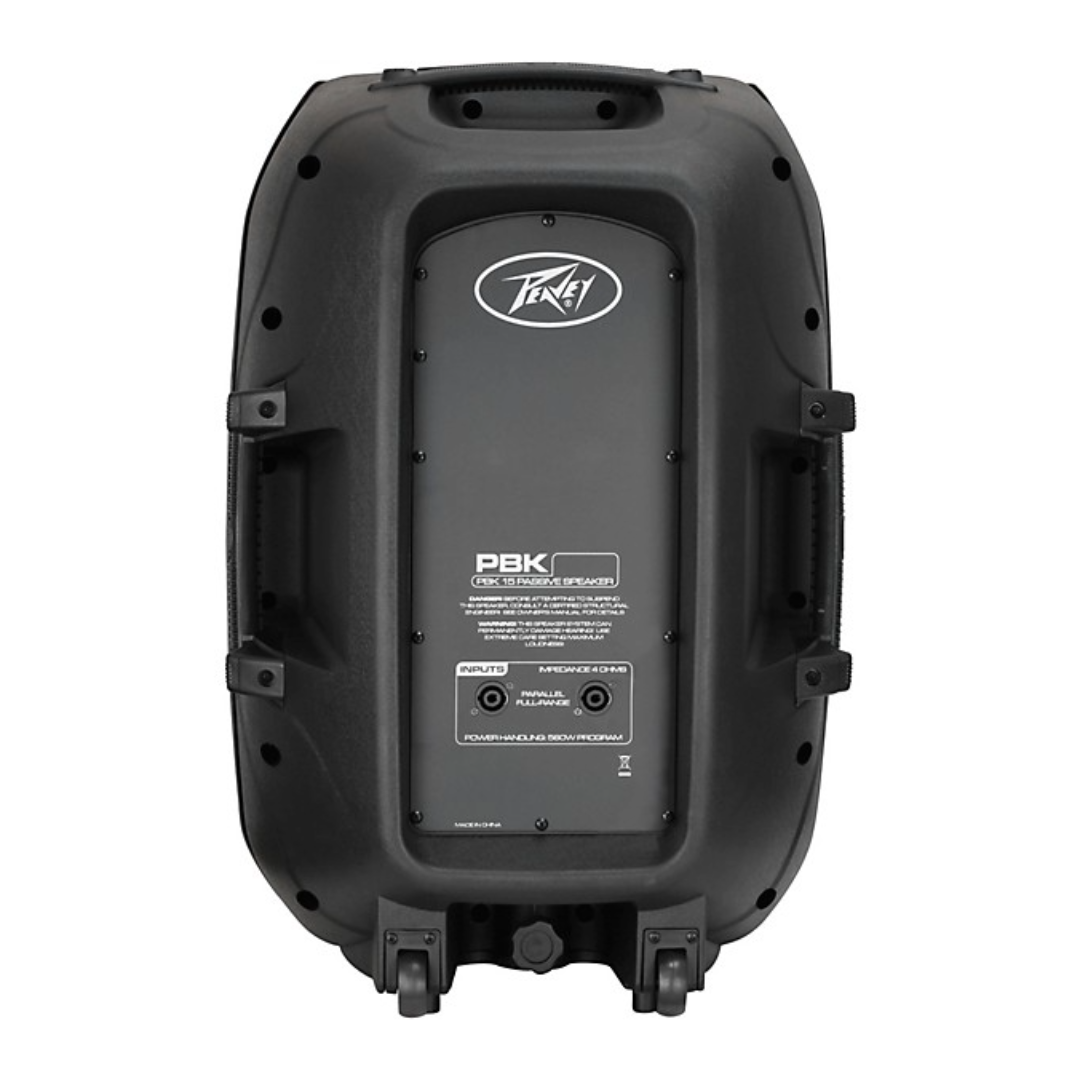

  • The input panel on the reverse side features dual parallel Twist-Lock NL-4 speakon input connectors, enabling quick daisy-chain configurations to parallel enclosures from a single external power amplifier channel.
Features
  • Heavy-Duty 15-Inch Transducer: Engineered with an optimized high-excursion woofer that delivers tight low-end punch and a smooth mid-range transition for vocal clarity.
  • 14Ti Titanium Compression Driver: Utilizes a 1.4-inch pure titanium dome loaded onto a 60 x 45 degree semi-exponential horn waveguide for precise, crystalline high-frequency dispersion.
  • High-Impact Injection-Molded Shell: Constructed from a rugged, lightweight composite plastic material designed to resist scratches, impact cracks, and transport damage.
  • Dual Parallel NL-4 Input Topology: Outfitted with two professional Twist-Lock speakon jacks wired in parallel for efficient loop-through wiring to additional stage monitors or satellite fills.

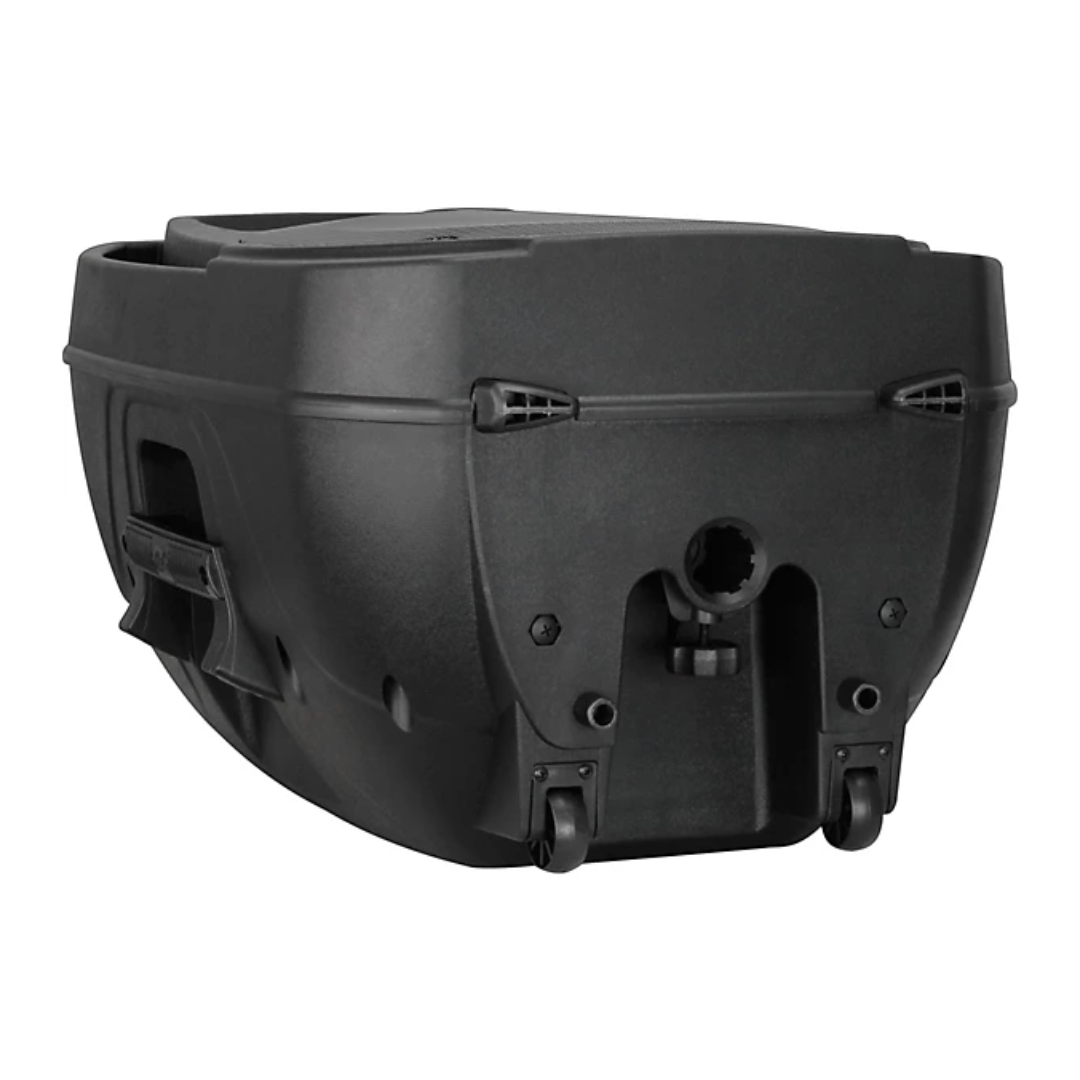

  • Molded-In Pole-Mount Adapter: Built with an integrated 1-3/8" (35mm) bottom pole socket to provide secure mounting on standard speaker tripod stands or subwoofer expansion poles.
  • Powder-Coated Steel Grille: Finished with a heavy-duty, black perforated steel screen that provides robust physical protection for the internal low-frequency driver.
Specifications

  • Component Type: Professional 2-Way Full-Range Passive Loudspeaker
  • Model Designation: PBK 15 (Passive Series)
  • Low-Frequency Driver: 15" Heavy-Duty Bass Woofer
  • High-Frequency Driver: 14Ti Titanium Diaphragm Compression Driver (1.4-inch)
  • Horn Dispersion Pattern: 60° Horizontal x 45° Vertical Semi-Exponential Waveguide
  • Program Power Capacity: 560 Watts Program
  • Maximum/Peak Power Capacity: 840 Watts Peak
  • Nominal System Impedance: 8 Ohms
  • Internal Protection Circuitry: 2-Way Internal Passive Crossover Matrix with Tweeter Diaphragm Protection
  • Input Interface Terminals: 2 x NL-4 Twist-Lock Speakon Connectors (Parallel Wiring Layout)
  • Cabinet Enclosure Material: Industrial Injection-Molded Plastic with Matte Black Finish
  • Hardware Mounting Layout: Molded-In 1-3/8" (35mm) Top-Hat Pole Mount Socket
  • Portability Enhancements: 3 x Ergonomic Carrying Handles (Top and Sides) + Integrated Rear Wheels
  • Primary Application: Passive sound reinforcement, mobile DJ monitor fills, house of worship PA setups, school auditoriums, and live band stage monitors
What’s in the Box
  • 1 x Peavey PBK 15 2-Way Passive Plastic Speaker Cabinet
  • 1 x Technical Specification Sheet
Vendor Peavy
Type PA Speakers
Sku 80500207
Barcode 613815586630
Weight:  18.0 kg
