Power output:
950 W RMS per channel @ 4 ohms
600 W RMS per channel @ 8 ohms
3000 W bridged mono @ 4 ohms
Frequency response: 20 Hz – 20 kHz, ±0.1 dB
Total harmonic distortion (THD): < 0.03%
Slew rate: > 40 V/μs
Damping factor: > 300 @ 8 ohms, 20 Hz – 1 kHz
Signal-to-noise ratio: > 100 dB, unweighted
Input sensitivity: 1.0 V for rated output (can vary by input configuration)
Input impedance: 10 kΩ unbalanced, 20 kΩ balanced
Cooling: Two-speed, temperature-controlled fans
Protection circuits:
Short circuit protection
Thermal overload protection
DC voltage protection on outputs
Turn-on/turn-off muting

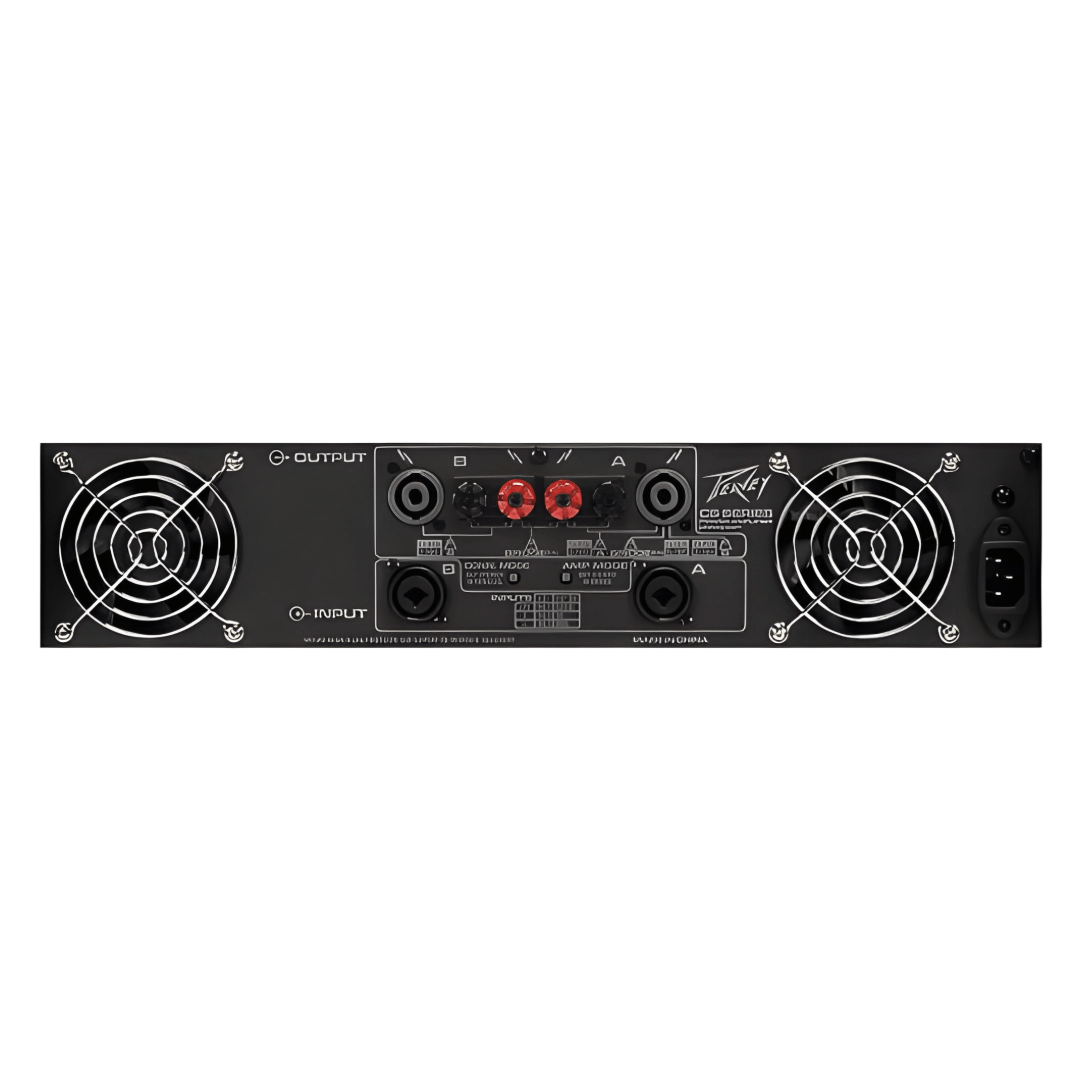

Connectors:
Inputs: Balanced XLR and 1/4" TRS
Outputs: Binding posts and Neutrik Speakon

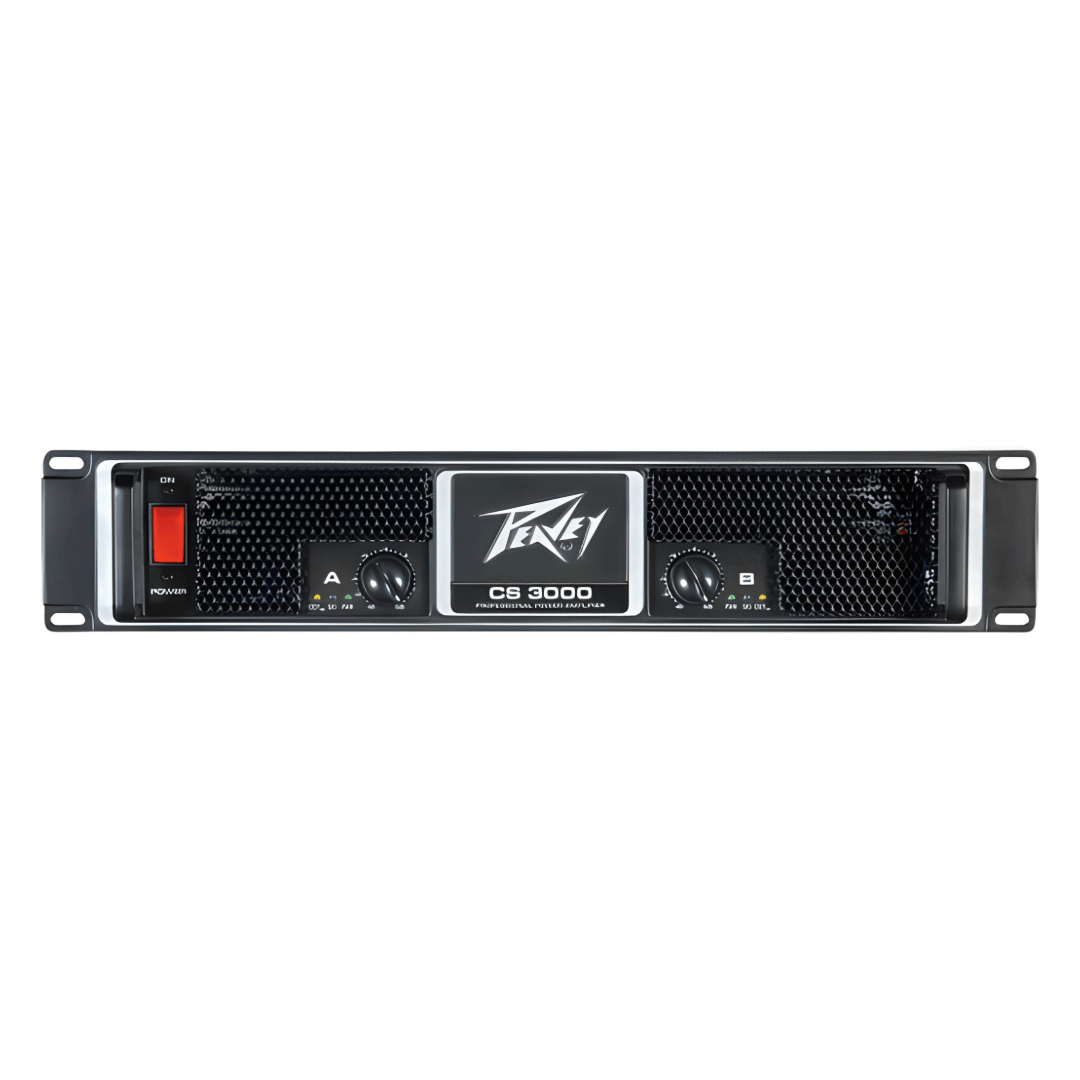

Controls:
Front panel gain controls
Rear panel mode switches (stereo/parallel/bridged)
Dimensions (H x W x D): Approximately 5.25" x 19" x 16" (3U rack height)
Weight: Approximately 59 lbs (27 kg)
Vendor | Peavy |
---|---|
Type | Disco Amplifiers |
Sku | 31606225 |
Barcode | 00014367115666 |
Weight: | 30.0 kg |
