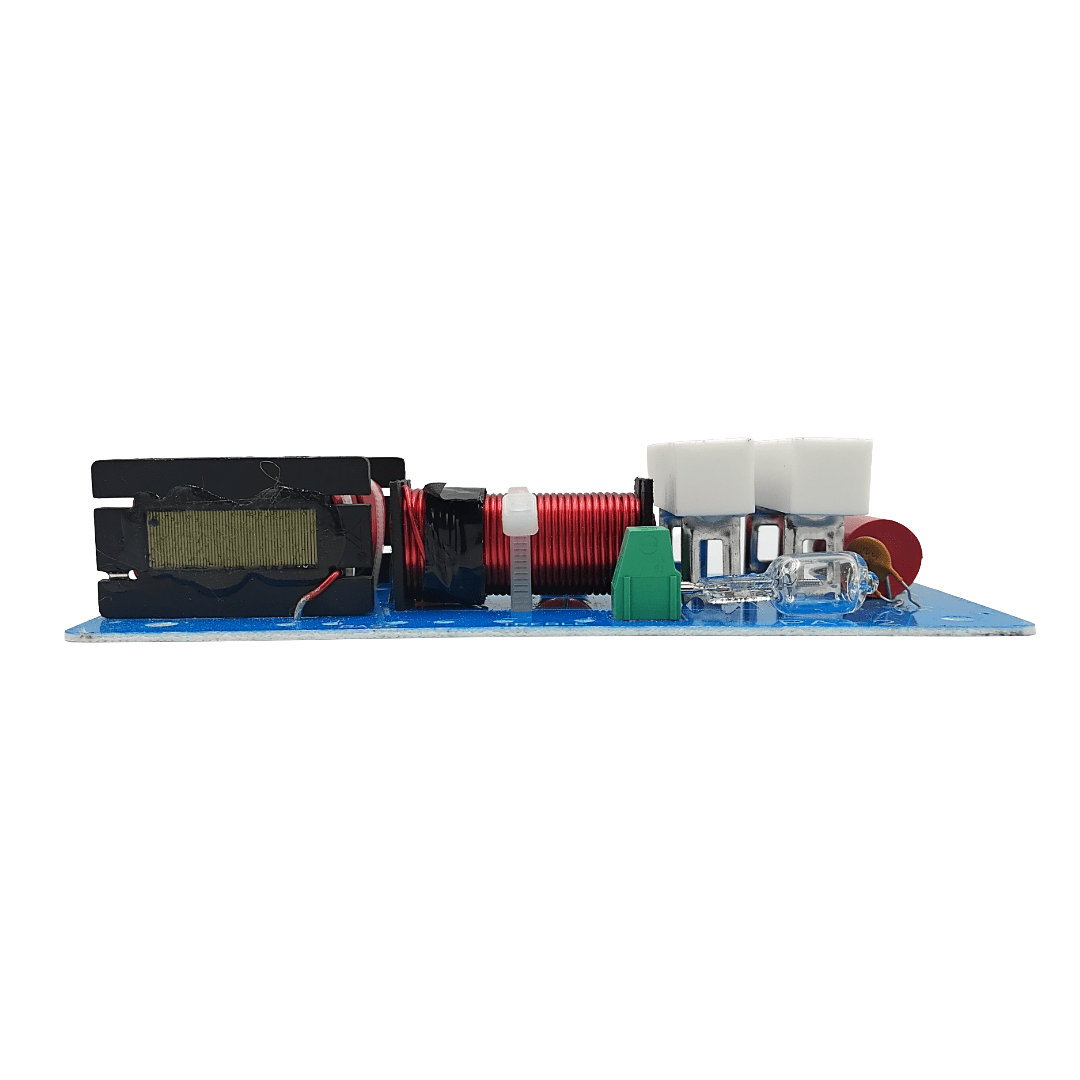

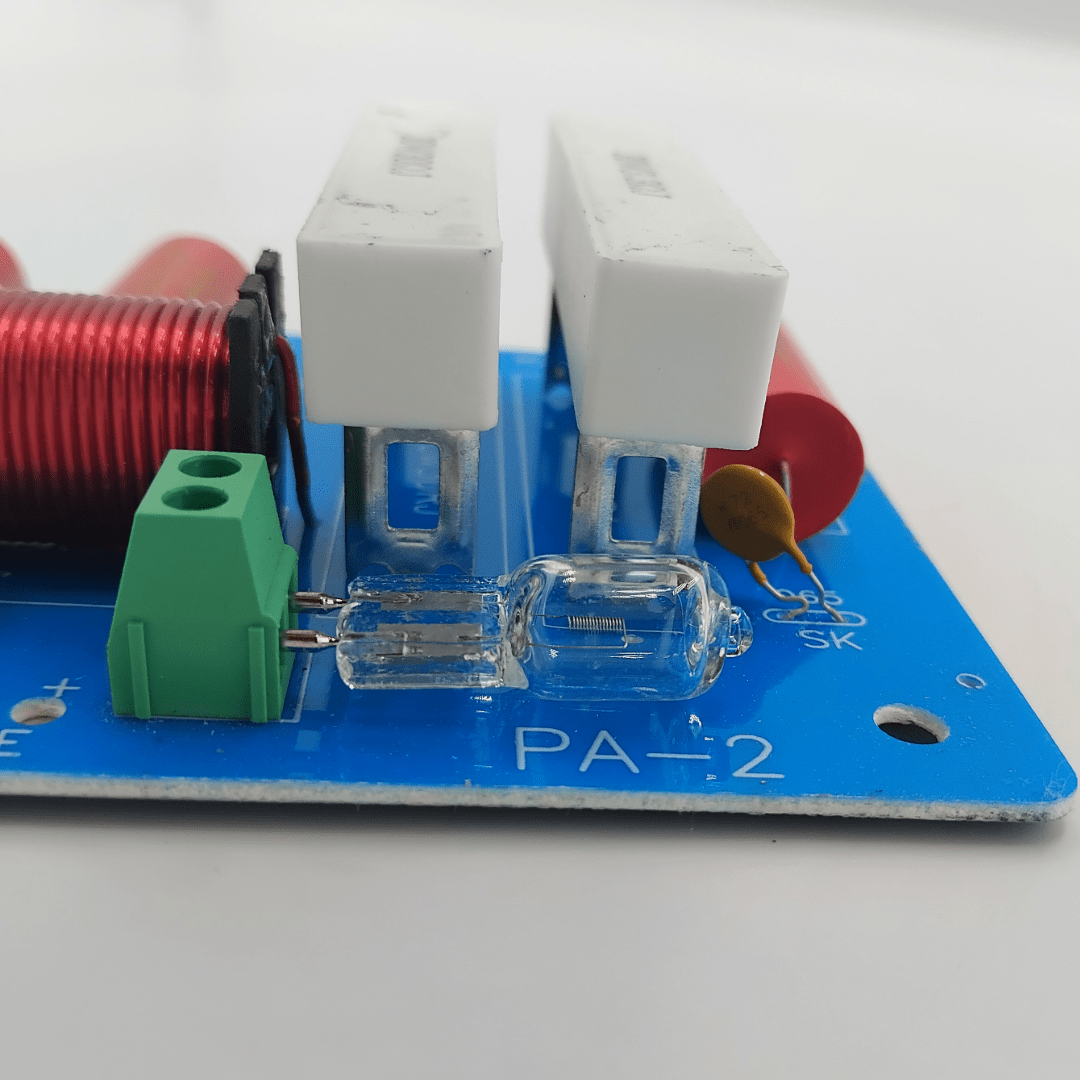

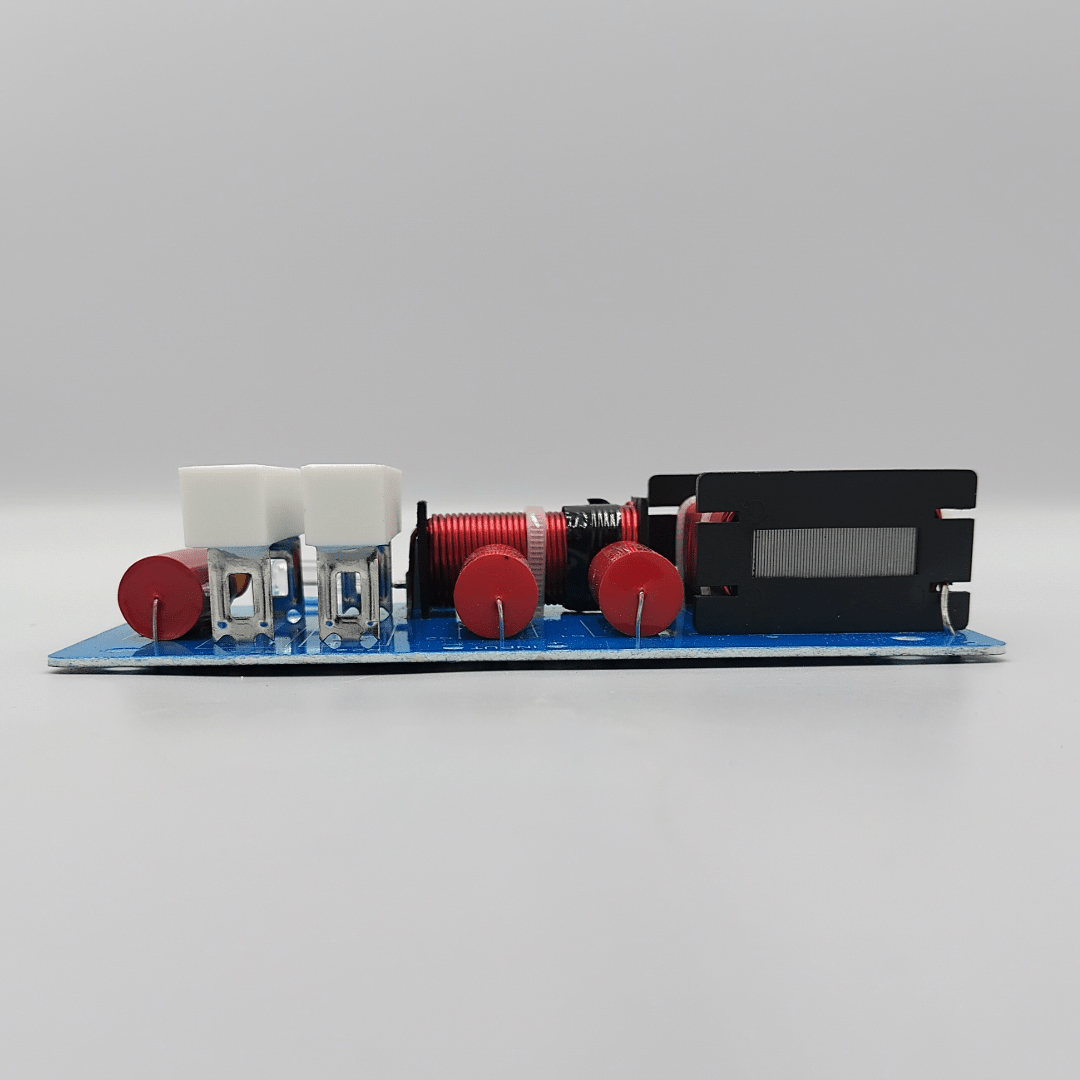

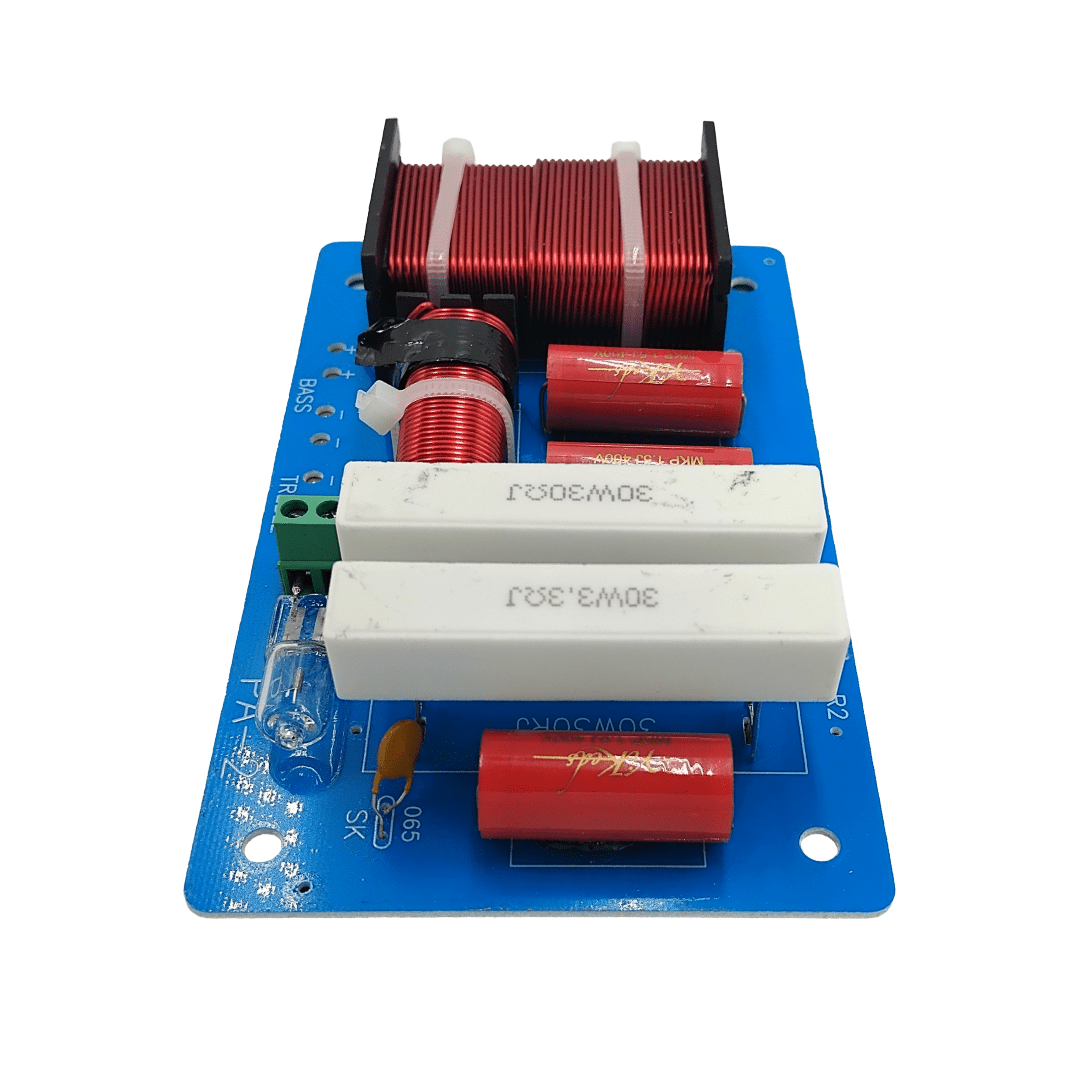

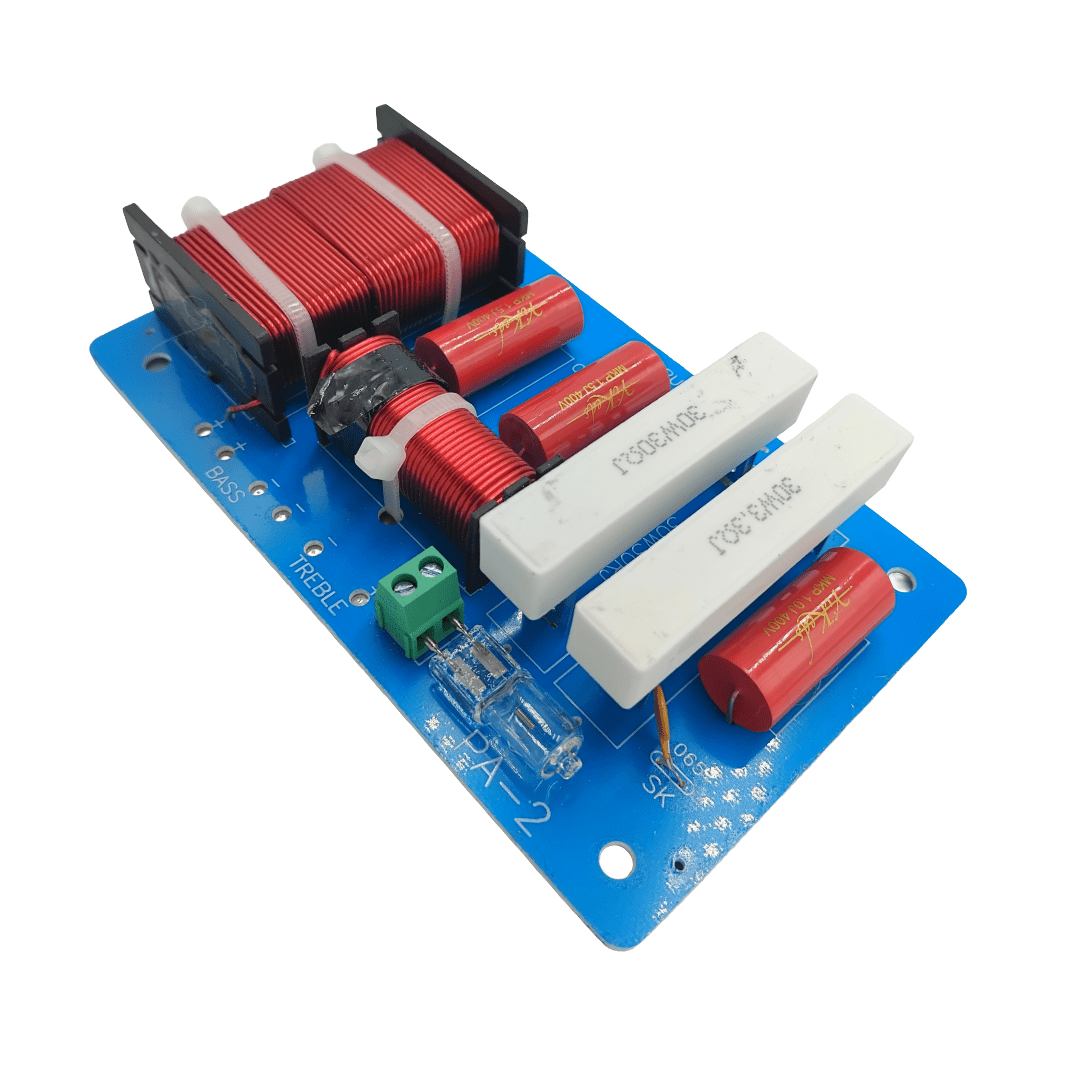

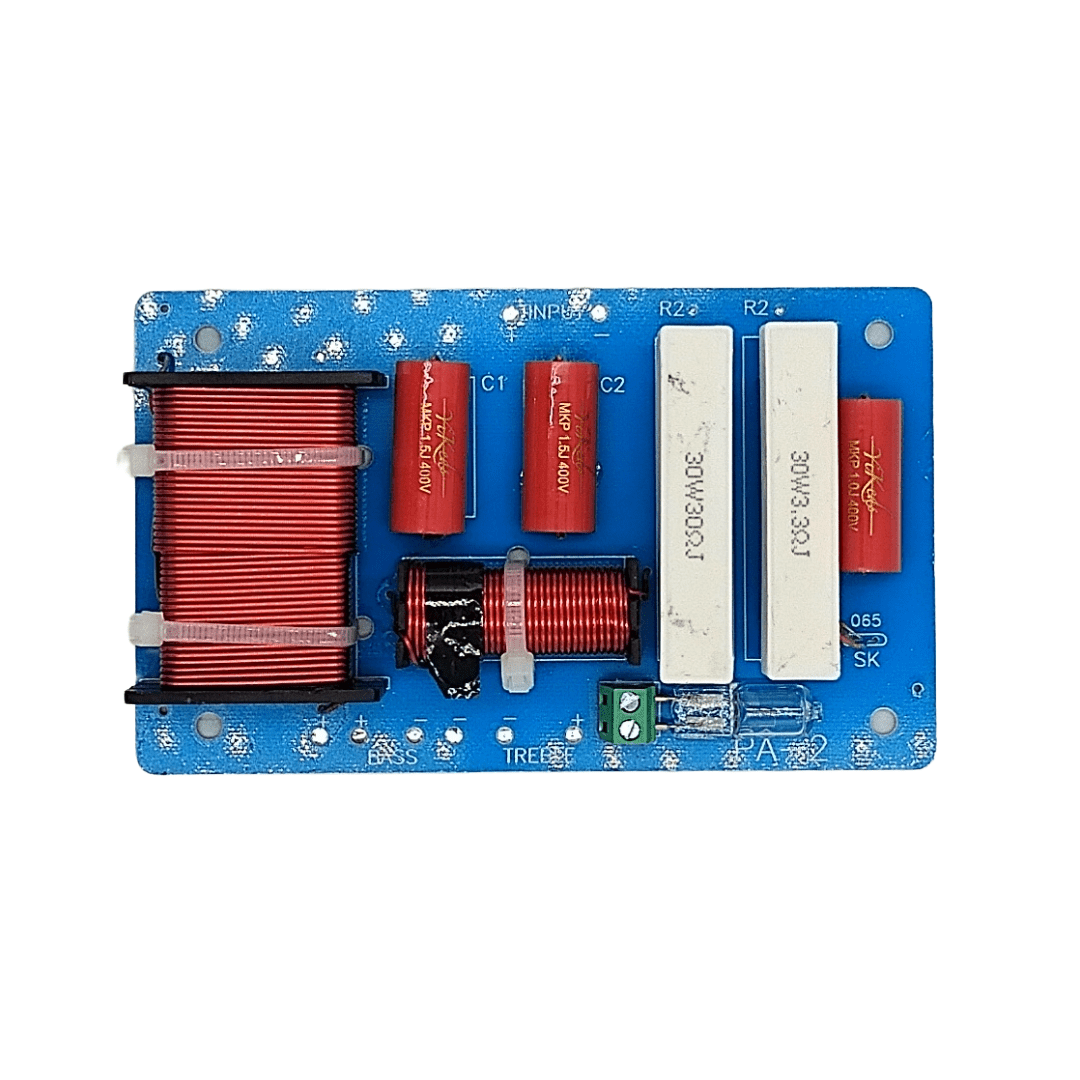

• Professional high-power two-way passive crossover network designed to manage signal routing between low-frequency woofers and high-frequency compression drivers.
• Handles up to 500 Watts of continuous power, providing robust frequency distribution for high-output live sound reinforcement systems.
• Features an optimized 2000Hz crossover point to divide audio signals cleanly, protecting high-frequency drivers while maximizing acoustic efficiency.
• Constructed with heavy-duty copper inductors, high-voltage film capacitors, and heat-dissipating ceramic resistors to resist power compression and signal degradation.
• Ideal for heavy-duty PA speaker cabinets, high-SPL stage floor monitors, custom loudspeaker builds, and venue system repair.

Features

• 500W High Power Rating: Engineered to handle high thermal and electrical loads in demanding pro-audio applications.
• Precision 2000Hz Crossover Point: Sharp filtering slope protects delicate tweeter/compression driver voice coils from excursion-damaging low frequencies.
• Vibration-Resistant PCB: Built on a thick, flame-retardant fiberglass circuit board with reinforced mounting holes to endure heavy cabinet bass resonance.
• Thermal Management Components: Includes high-power wire-wound ceramic resistors for optimal heat dissipation during sustained high-volume operation.
• Clear Connection Labelling: Marked input, woofer, and tweeter terminal points ensure quick, error-free wiring and installation.

Specifications

• Model / Part Number: XO-NX-500
• Product Type: 2-Way Passive Loudspeaker Crossover
• Power Rating: 500 Watts RMS
• Crossover Frequency: 2000 Hz
• System Type: 2-Way (Low / High Frequency Split)
• Nominal Impedance: 8 Ohms
• Circuit Type: High-Grade Passive Filter Assembly
• Application: High-Power PA Loudspeakers, Stage Monitors, Custom Speaker Builds, Sound System Maintenance

What's in the Box?

• 1 x Nexus XO-NX-500 2-Way 500W Crossover Circuit Board
