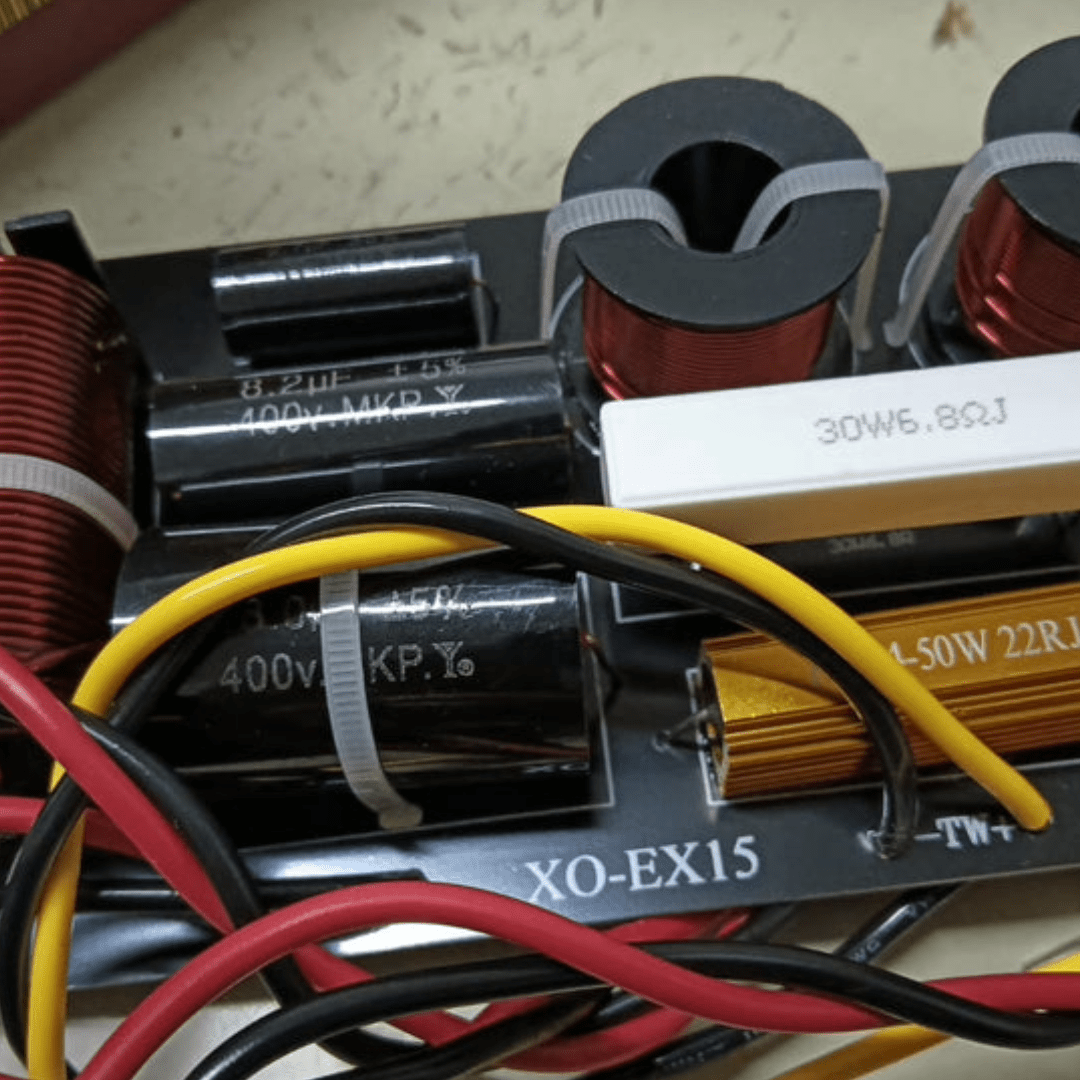

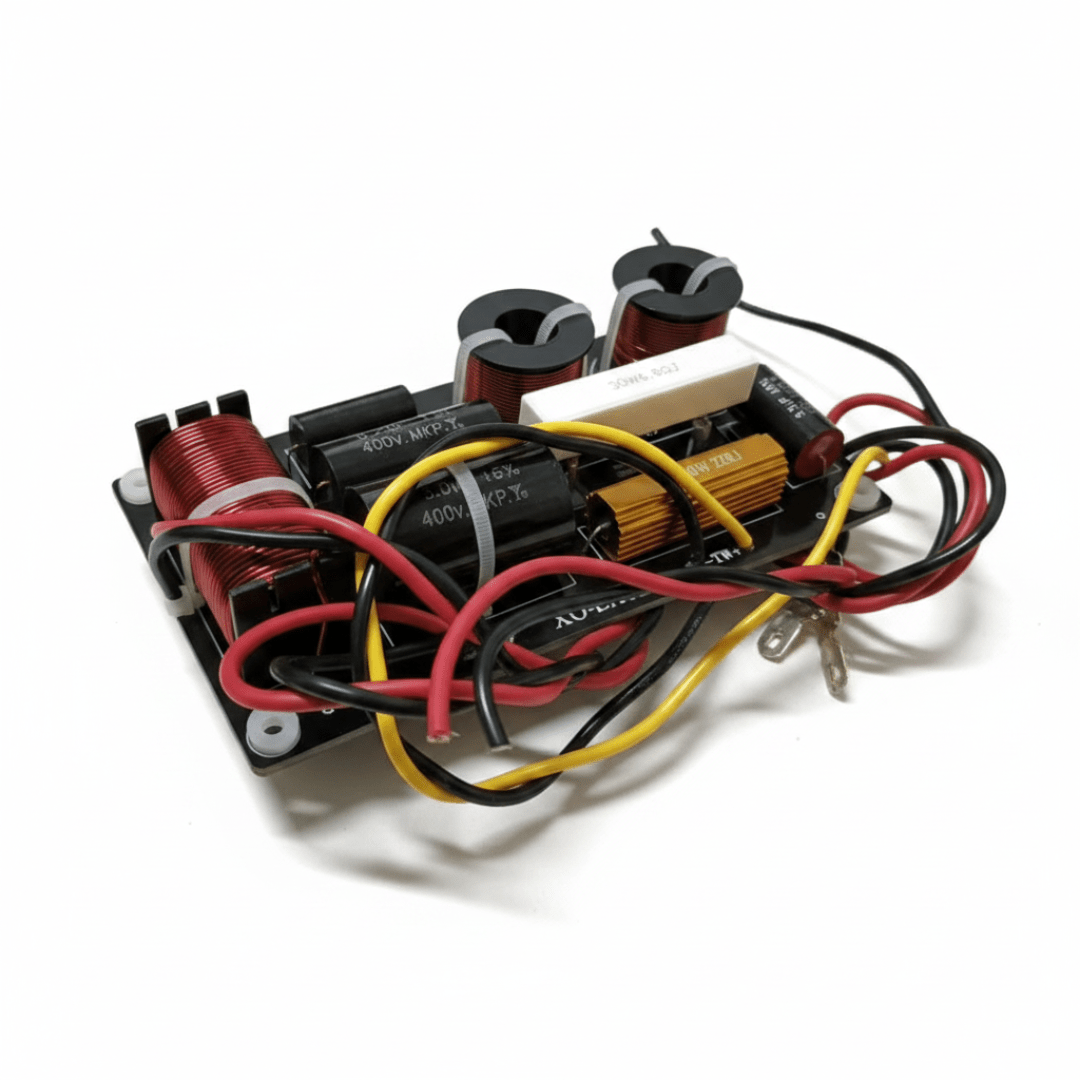

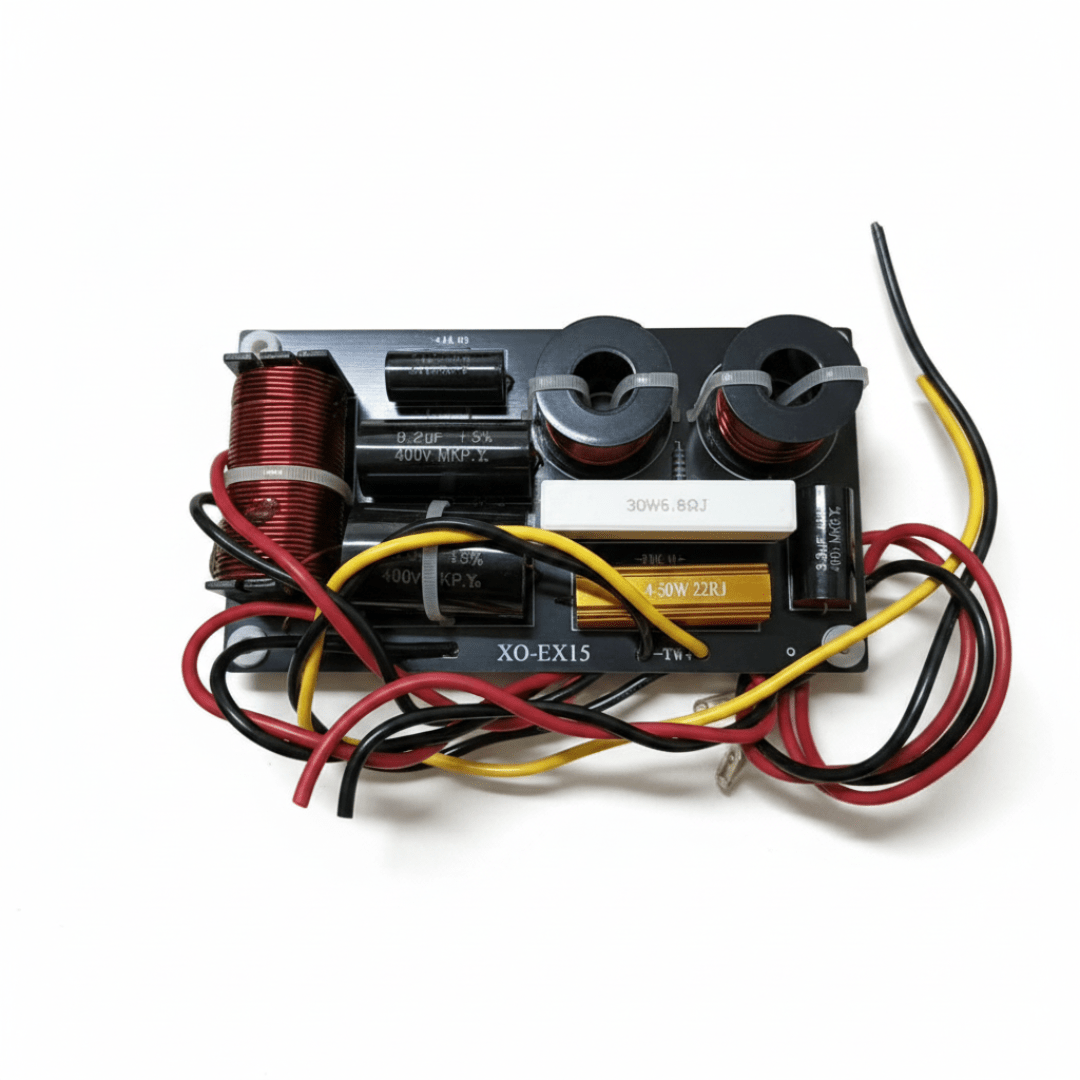

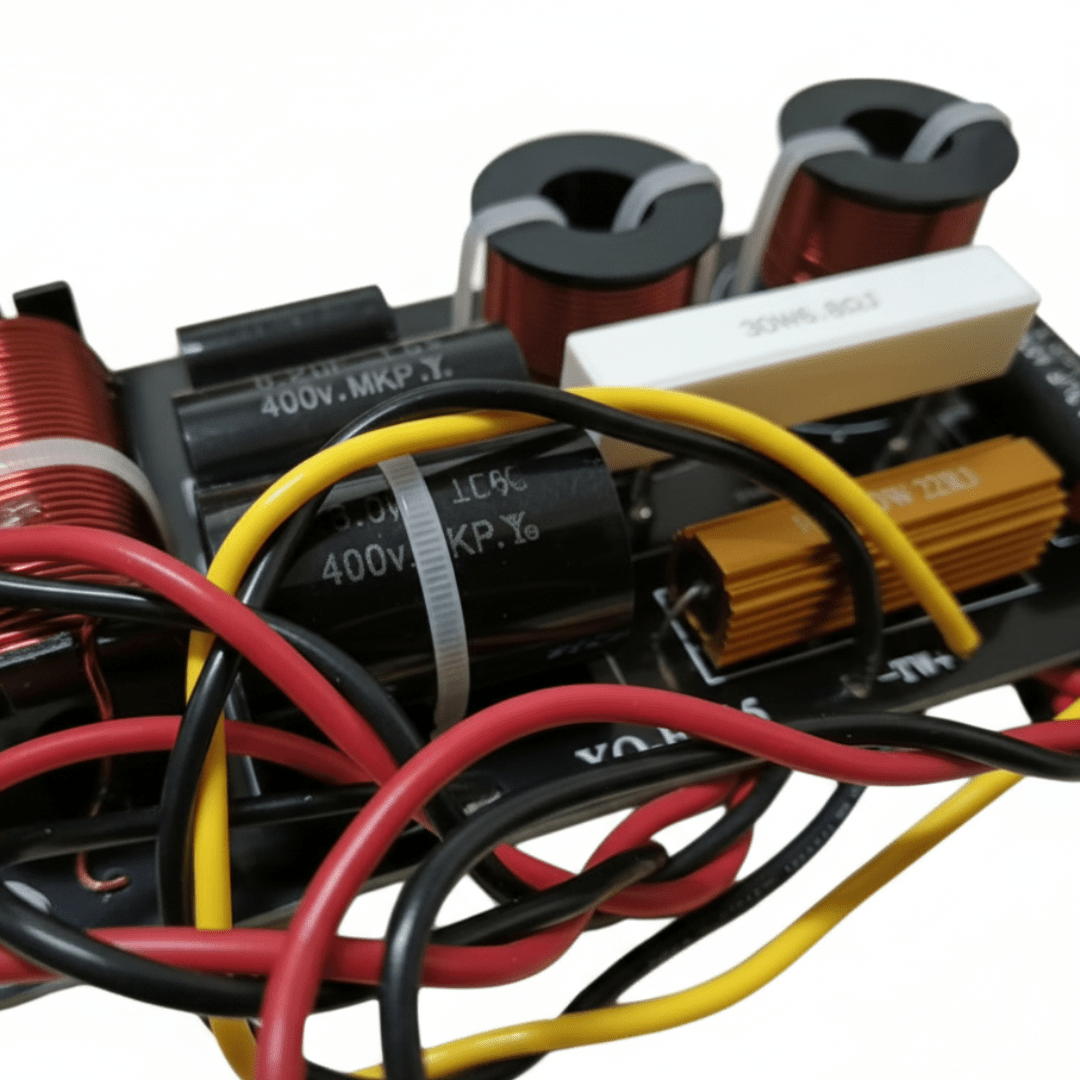

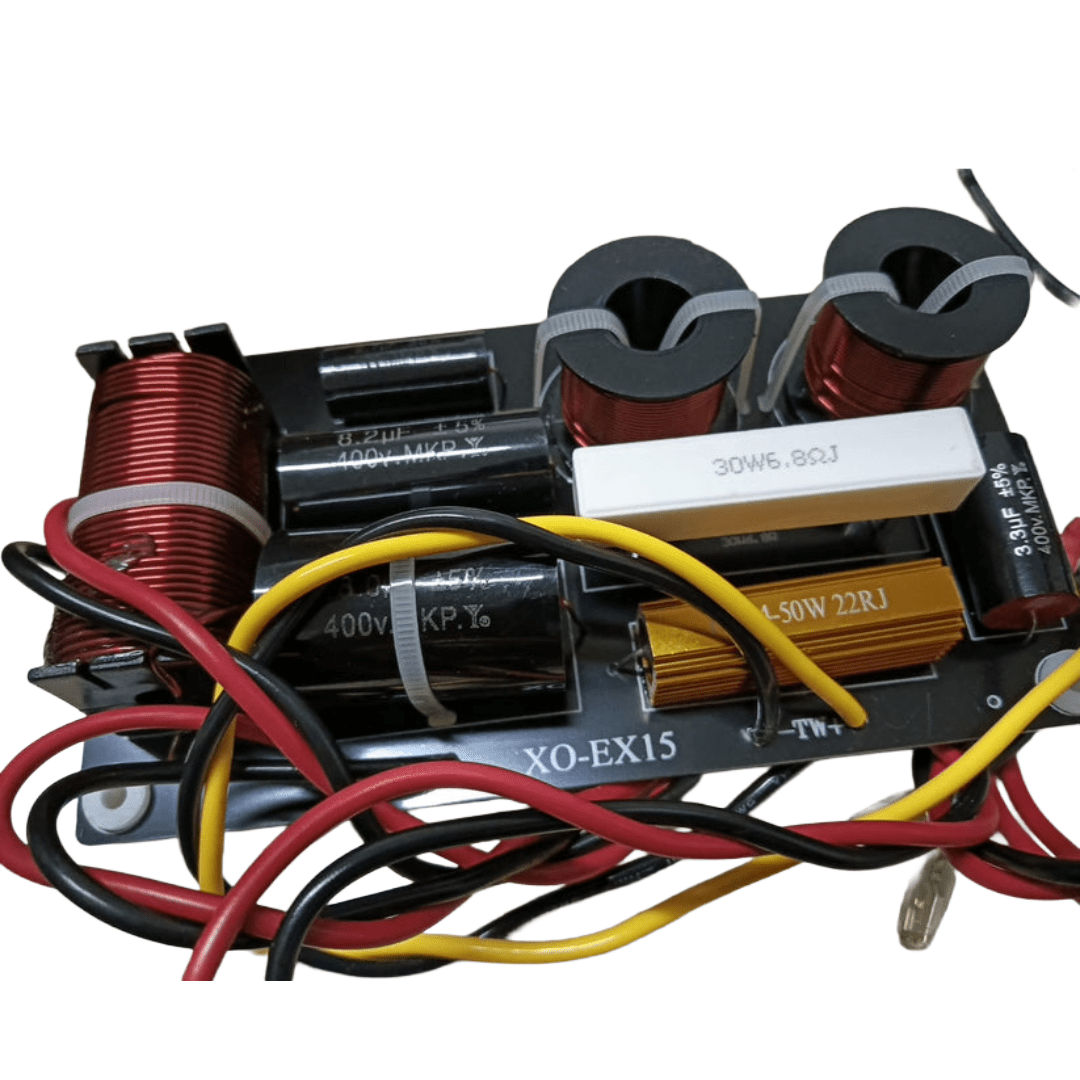

Nexus EX15 Single 12" & 15" 2-Way Passive Speaker Crossover (LF600W @ 2500Hz)

R 635.00
Quantity:
Easy Returns
🔒 Multiple Secure Payment Methods
💬 Friendly Advice Available
🚚 Delivery within 3–5 business days
Sku: 80551215
Visa Mastercard American Express Ozow MTN Mobile Money

  • High-power 2-way passive crossover network engineered for single 12-inch or single 15-inch loudspeaker cabinet builds and upgrades.
  • Efficiently splits incoming full-range audio signals, routing low frequencies up to 2500Hz to the woofer while passing high frequencies to the compression driver.
  • Built to handle continuous heavy power demands of up to 600W RMS on the low-frequency section.
  • Constructed using high-purity copper inductors, high-voltage capacitors, and heavy-duty ceramic resistors to prevent signal degradation and thermal overload.
  • Features a 2500Hz crossover point designed to deliver clear vocal projection, seamless frequency blending, and optimal driver protection.
Features
  • Single 12" & 15" Woofer Support: Precision-tuned frequency distribution optimized for single 12" or 15" low-frequency woofer configurations.
  • 600W Power Capacity: Built to support high-output live sound reinforcement, venue PA systems, and mobile DJ setups.
  • 2.5kHz Crossover Point: Precision 2500Hz separation maintains mid-range clarity and prevents driver distortion.
  • Pro-Grade Componentry: Heavy-gauge copper coils and high-voltage audio capacitors maintain low insertion loss and high efficiency.
  • Rugged PCB Construction: Flame-retardant fiberglass circuit board with pre-drilled corner mounting points for secure cabinet installation.
Specifications
  • Model / Part Number: XO-EX15
  • Product Type: 2-Way Passive Speaker Crossover Network
  • Speaker Configuration: Single 12" or 15" Woofer (LF) + High-Frequency Compression Driver (HF)
  • Power Rating (LF): 600 Watts RMS
  • Crossover Frequency: 2500 Hz
  • Nominal Impedance: 8 Ohms
  • Circuit Board: Flame-Retardant Fiberglass PCB
  • Application: Single 12" & 15" PA Enclosures, Stage Monitors, Live Sound Cabinets, Club Installations
What's in the Box?
  • 1 x Nexus XO-EX15 Single 12" & 15" 2-Way Passive Crossover Board
Vendor Nexus
Type Speaker Parts & Accessories
Sku 80551215
Weight:  0.1 kg
