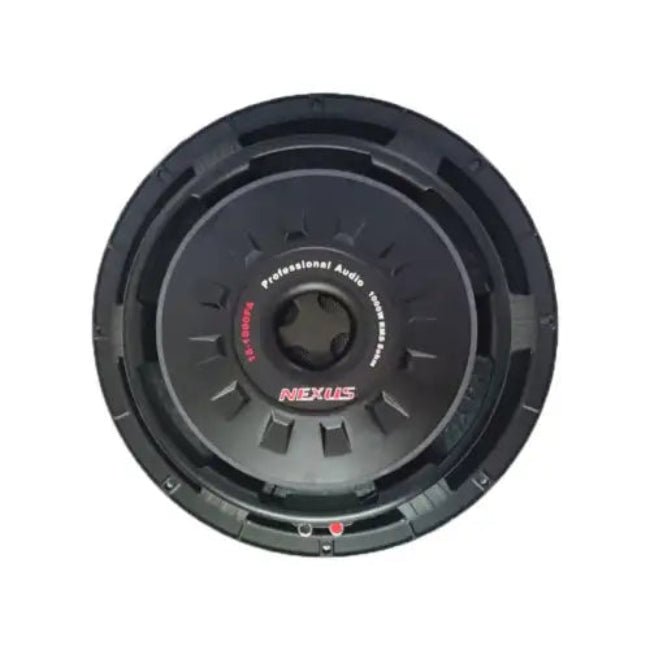

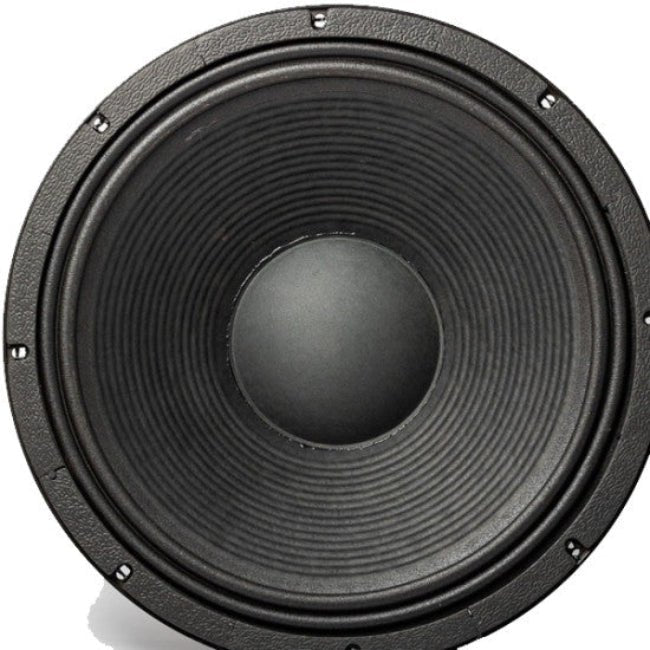

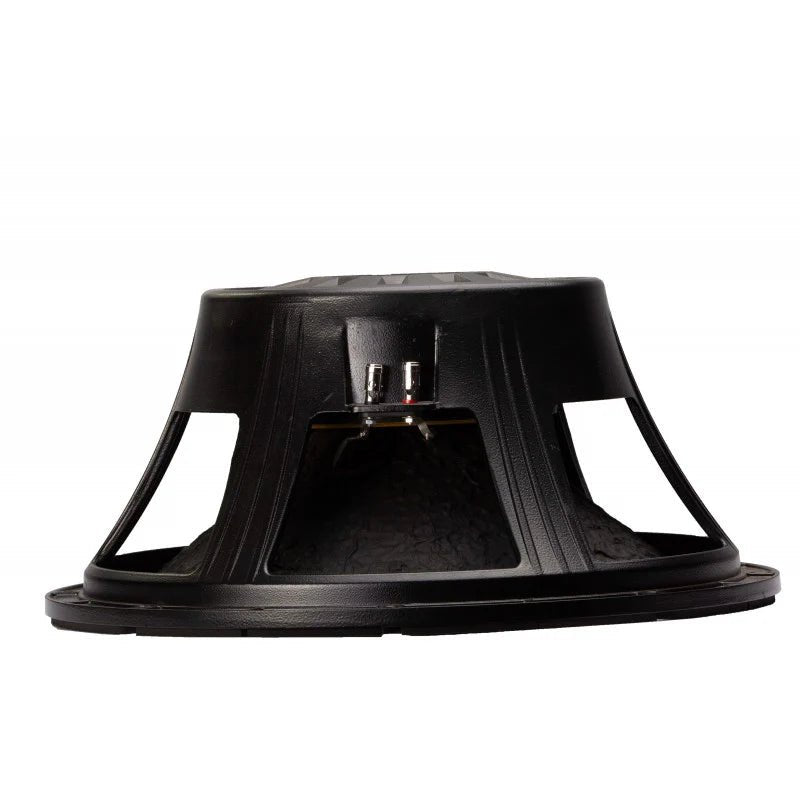

• Professional 18″ replacement woofer designed for PA and subwoofer enclosures
• Delivers 1000 W RMS power handling (high-performance output)
• Suitable for kick bass and low-frequency reinforcement

Features

• High-power handling with strong low-end performance
• 4″ copper voice coil with dual spider suspension for stability
• Y30 ferrite magnet motor structure for efficiency
• Rigid paper composite cone with cloth surround for durability
• Designed for touring sound, mobile PA, and fixed installations
• Extended frequency response down to ~45 Hz for powerful bass
• Compatible with enclosures of 200–300 L tuned to 45 Hz

Specifications

• Speaker Size: 18″ (460 mm)
• Power Handling (RMS): 1000 W
• Nominal Impedance: 8 Ω
• Voice Coil Diameter: 4″ (100 mm)
• Voice Coil Material: Copper
• Magnet Type: Ferrite (Y30 grade)
• Frequency Response: ~45 Hz – 2 kHz
• Sensitivity: ~98 dB (1W/1m)
• Resonant Frequency (Fs): ~56 Hz
• Qts: ~0.67
• Vas: ~98.6 L
• Linear Xmax: ~6.8 mm (one way)
• Basket: Cast steel frame
• Recommended Enclosure:
  • 200–300 L reflex tuned to 45 Hz
  • Up to 400 L hybrid tuned to 41 Hz

What's in the box

• 1 x Replacement Woofer Speaker
