Chord SU20-H-BY MICROPHONE WIRELESS SYSTEM DUAL HANDHELD 864.8 + 863.1MHZ

R 4,899.90
Quantity:
Sku: 64401908
Visa Mastercard American Express Ozow MTN Mobile Money

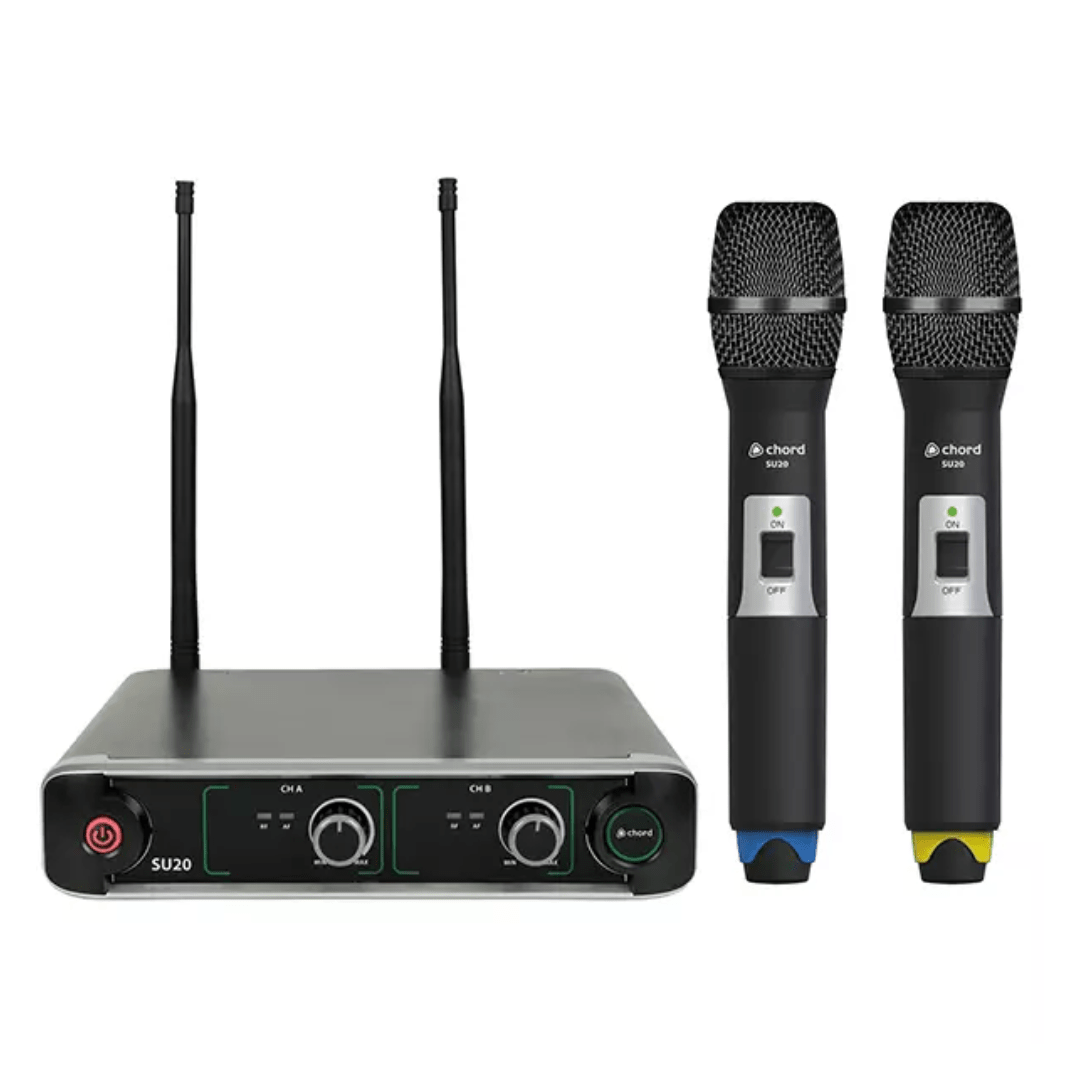

  • The Chord SU20-H-BY is a professional dual-channel UHF wireless microphone system that packs premium multi-mic functionality into a compact, space-saving half-rack format.
  • Operating on the reliable, fixed frequencies of 864.8MHz (Blue) and 863.1MHz (Yellow), this system comes equipped with two independent handheld transmitters.
  • Engineered for quick deployment, minimal rack clutter, and high-quality vocal tracking, it serves as an excellent all-in-one wireless solution for performers, event hosts, and commercial venues.
Features
  • Dual Handheld Vocal Transmitters: Includes two rugged wireless handheld microphones optimized for vocal delivery, featuring internal color-coding (Blue/Yellow) for seamless channel tracking. This setup is ideal for wedding hosts, live vocal duets, karaoke setups, and multi-speaker panel stages.
  • Space-Saving Half-Rack Layout: Delivers two independent channels of wireless audio from a sleek, space-conscious receiver chassis. This small footprint is perfect for traveling mobile DJs, mobile PA rigs, and cramped media consoles where rack space is at an absolute premium.

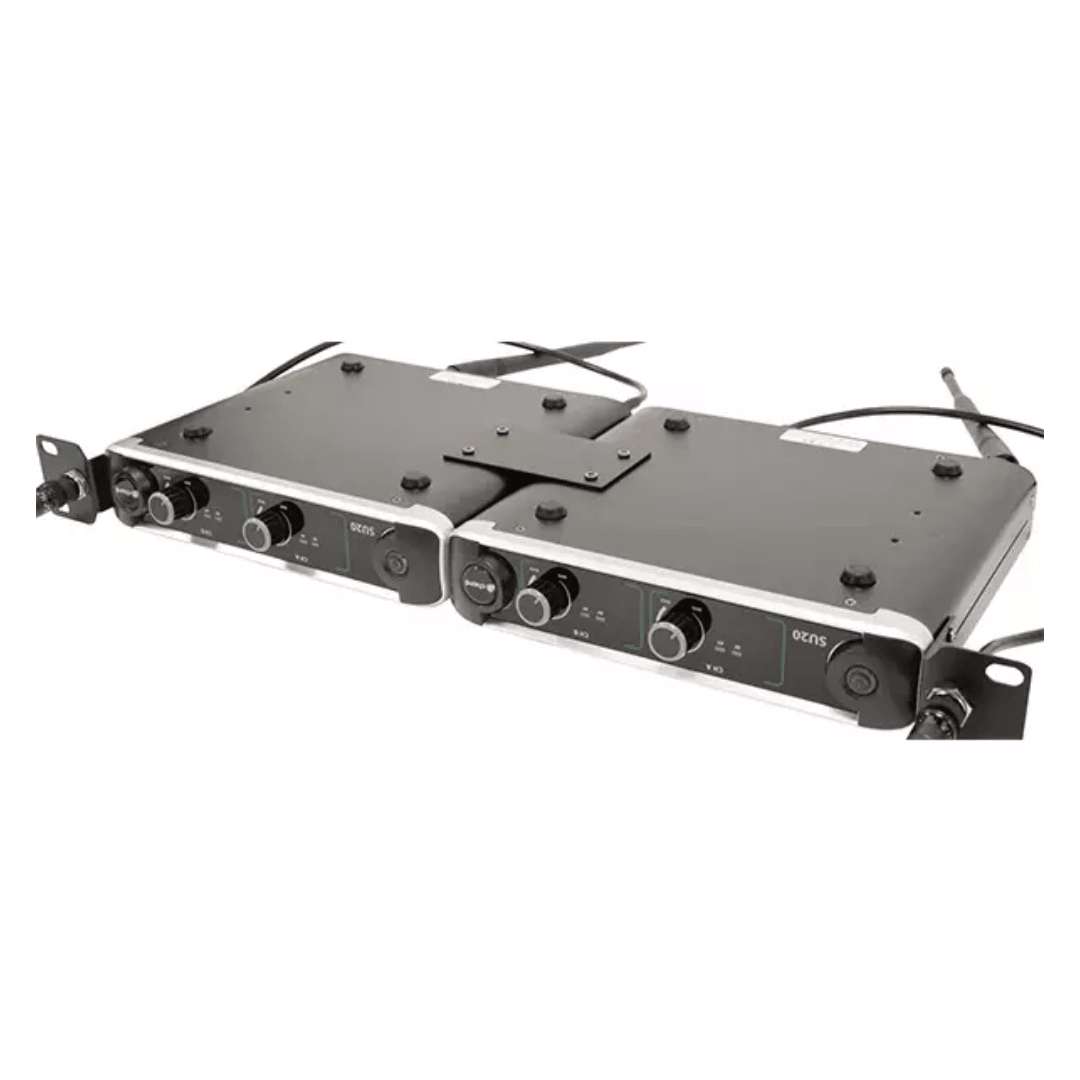

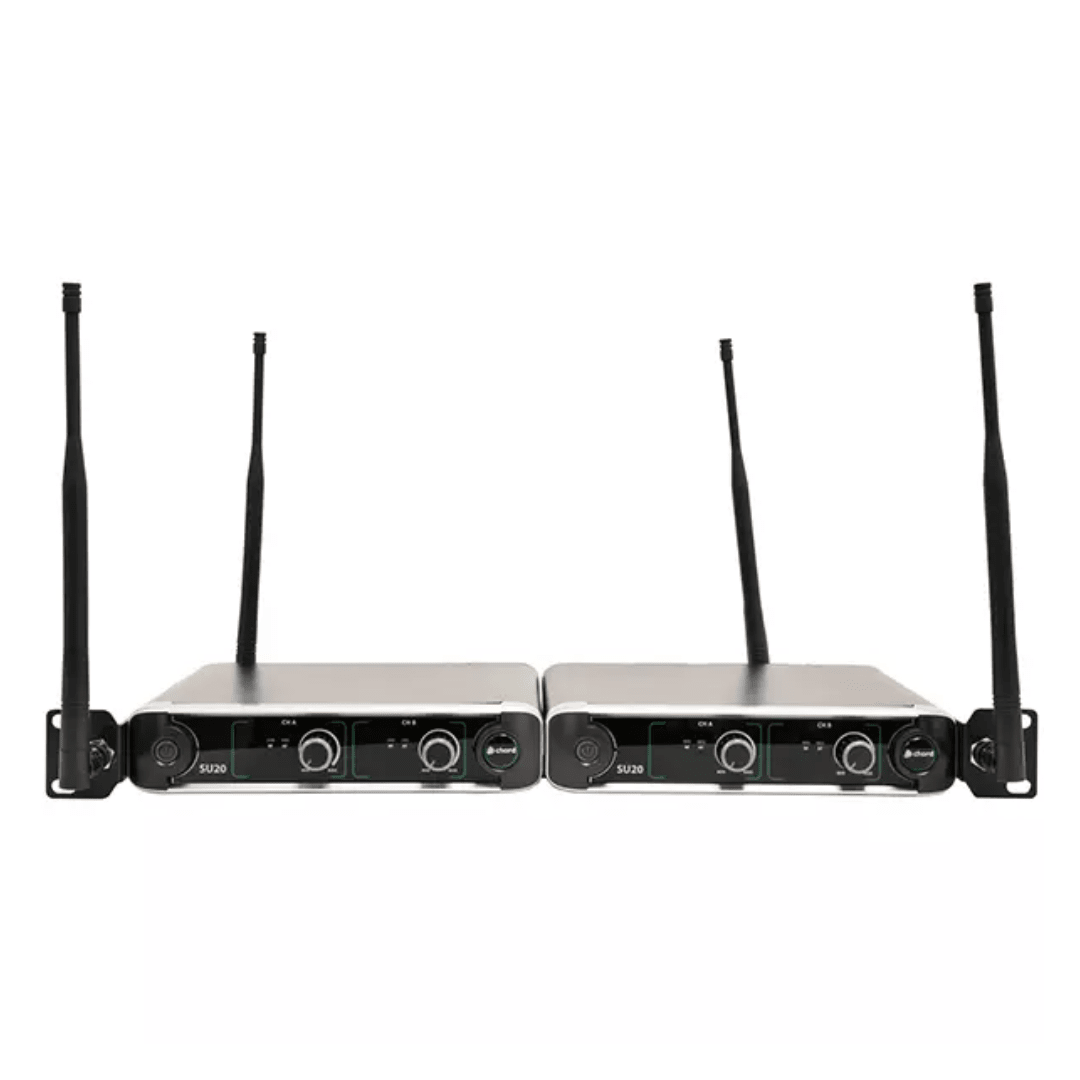

  • Pro Rack Mounting & Flexible Antenna Placement: Bundled with a 1U 19" rack hardware kit and BNC extension cables, allowing you to mount one or two receivers together while front-mounting the antennas. This configuration is optimized for touring cases and permanent venue audio racks to ensure clean line-of-sight RF performance.
  • Feedback-Rejecting Cardioid Pickups: Both handheld microphones utilize a directional cardioid polar pattern that concentrates focus tightly on the vocalist while suppressing background sound. This design is essential for houses of worship, high-volume music stages, and lecture halls to prevent acoustic feedback loops.

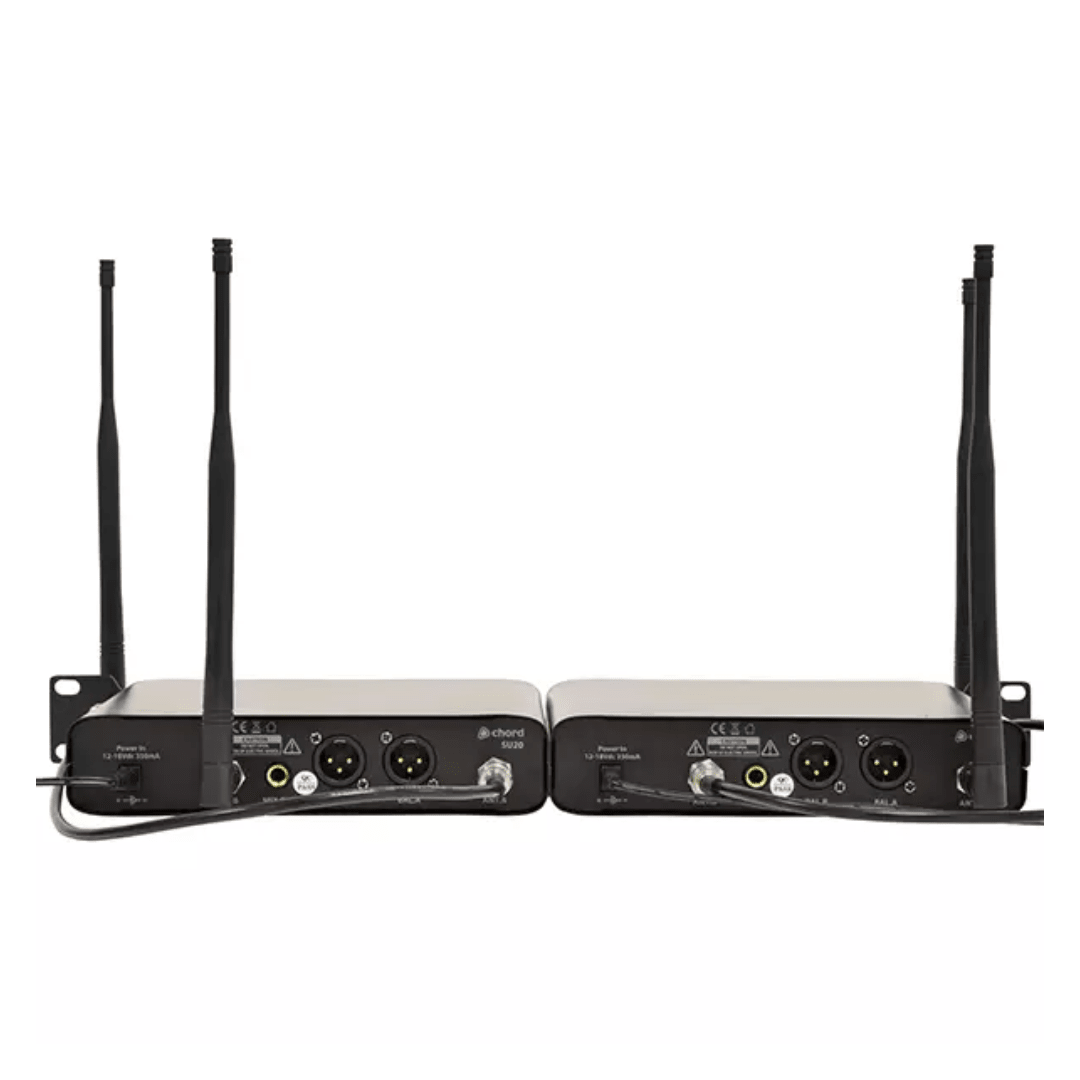

  • Discrete XLR and Aggregated Mixed Jacks: Features two separate balanced XLR outputs for individual channel EQ mixing on a desk, alongside a combined 6.3mm unbalanced mixed jack output. This offers supreme connectivity options for everything from premium digital live consoles to basic portable party speakers.
Specifications
  • Model: SU20-H-BY Dual Handheld (171.912UK)
  • Carrier Frequencies: 864.8MHz (Blue) + 863.1MHz (Yellow)
  • Operating RF Range: Up to 60m (Line of Sight)
  • Frequency Response: 50Hz – 18kHz (±3dB)
  • Signal to Noise Ratio (S/N): >80dB
  • Total Harmonic Distortion (THD): <0.5% @ 1kHz
  • Antenna Terminals: BNC Type
  • Output Connections: 2 x Balanced XLR (Individual), 1 x Unbalanced 6.3mm Jack (Mixed)
  • Output Level: 400mV (Balanced), 200mV (Unbalanced)
  • Power Requirement: 14V DC, 350mA (Adapter Included)
  • Transmitter Power: 4 x AA Batteries (2 x AA per mic, included)
  • Receiver Dimensions: 203 × 187 × 42 mm
  • Receiver Weight: 845 g
  • Handheld Microphone Dimensions: 250 × 47 mm (each)
  • Handheld Microphone Weight: 231 g (without batteries)
What’s in the Box
  • 1 × Compact Dual UHF Receiver
  • 2 × Handheld Wireless Transmitters (Blue & Yellow coded)
  • 2 × Detachable UHF Antennas
  • 2 × BNC Extension Cables (for rack front-mounting)
  • 1 × 1U 19" Rack Mounting Bracket Kit
  • 1 × 14V DC Power Supply Adapter
  • 4 × AA Batteries
  • 1 × User Manual
Vendor Chord
Type Microphones Systems
Sku 64401908
Barcode 5015972215999
Weight:  2.0 kg
