KENTECH PA30MBT 30W 100V Line / 12-24VDC Public Address Amplifier with Bluetooth, USB & SD

R 1,065.00
Quantity:
↩ Easy Returns
🔒 Multiple Secure Payment Methods
💬 Friendly Advice Available
🚚 Delivery within 3–5 business days
Sku: 64155524
Visa Mastercard American Express Ozow MTN Mobile Money

  • Compact, versatile public address amplifier designed for small-to-medium background music (BGM) and voice paging systems.
  • Delivers 30W RMS output power with support for both 100V / 70V constant-voltage commercial speaker lines and 4–16 Ohm low-impedance speaker setups.
  • Features versatile dual-power capability, operating on standard AC mains power (220–240V) or 12V–24V DC battery supply for mobile, vehicle, or backup installations.
  • Equipped with built-in digital media playback options including Bluetooth wireless audio streaming, USB flash drive slot, SD card reader, and an integrated FM tuner.
  • Includes 2 dedicated microphone inputs with independent level controls and a priority override feature for seamless paging announcements over background music.
  • Ideal for retail stores, cafes, small offices, mobile PA vehicles, worship spaces, classrooms, and outdoor pop-up events.
Key Features

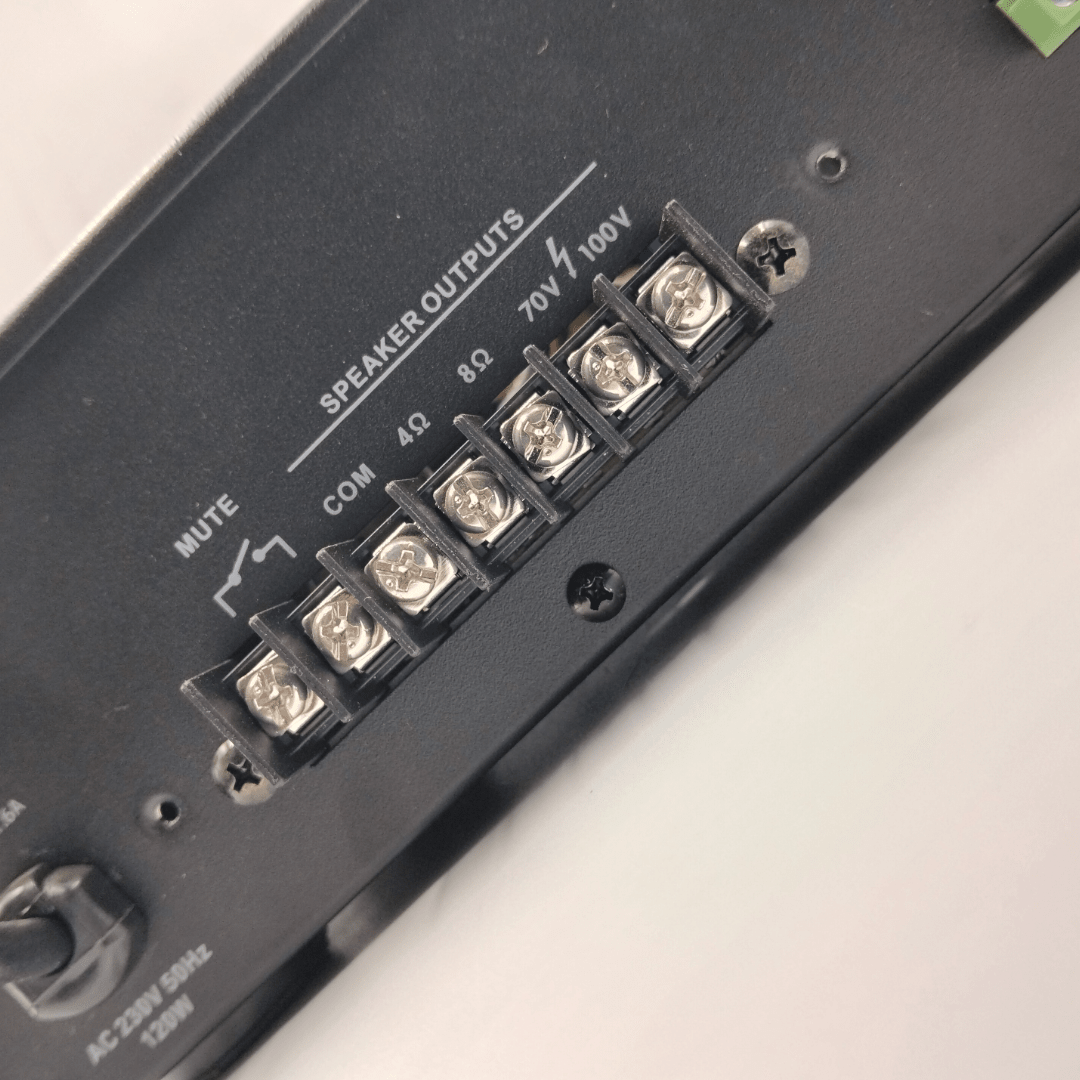

  • Flexible 100V & Low-Impedance Output: Multi-terminal speaker taps support multi-speaker 100V/70V distributed line systems or standard 4–16 Ω low-impedance cabinets.
  • Dual AC/DC Power Options: Runs on standard 220–240V AC wall outlets or 12V/24V DC power sources (car batteries, mobile setups, solar installations).

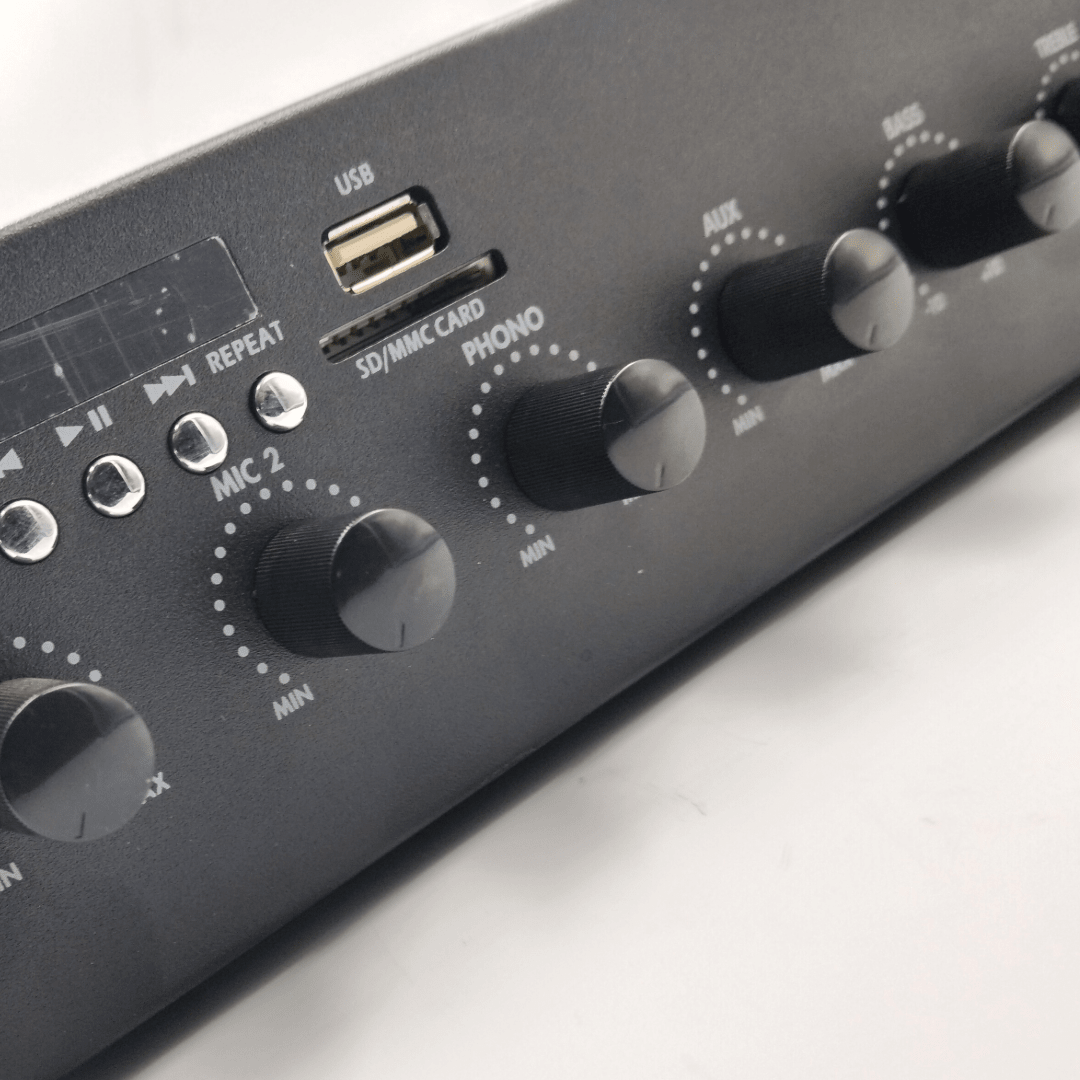

  • Integrated Digital Media Player: Instant audio playback via Bluetooth v5.0, USB flash drive, SD card (up to 32GB support), and built-in FM tuner.

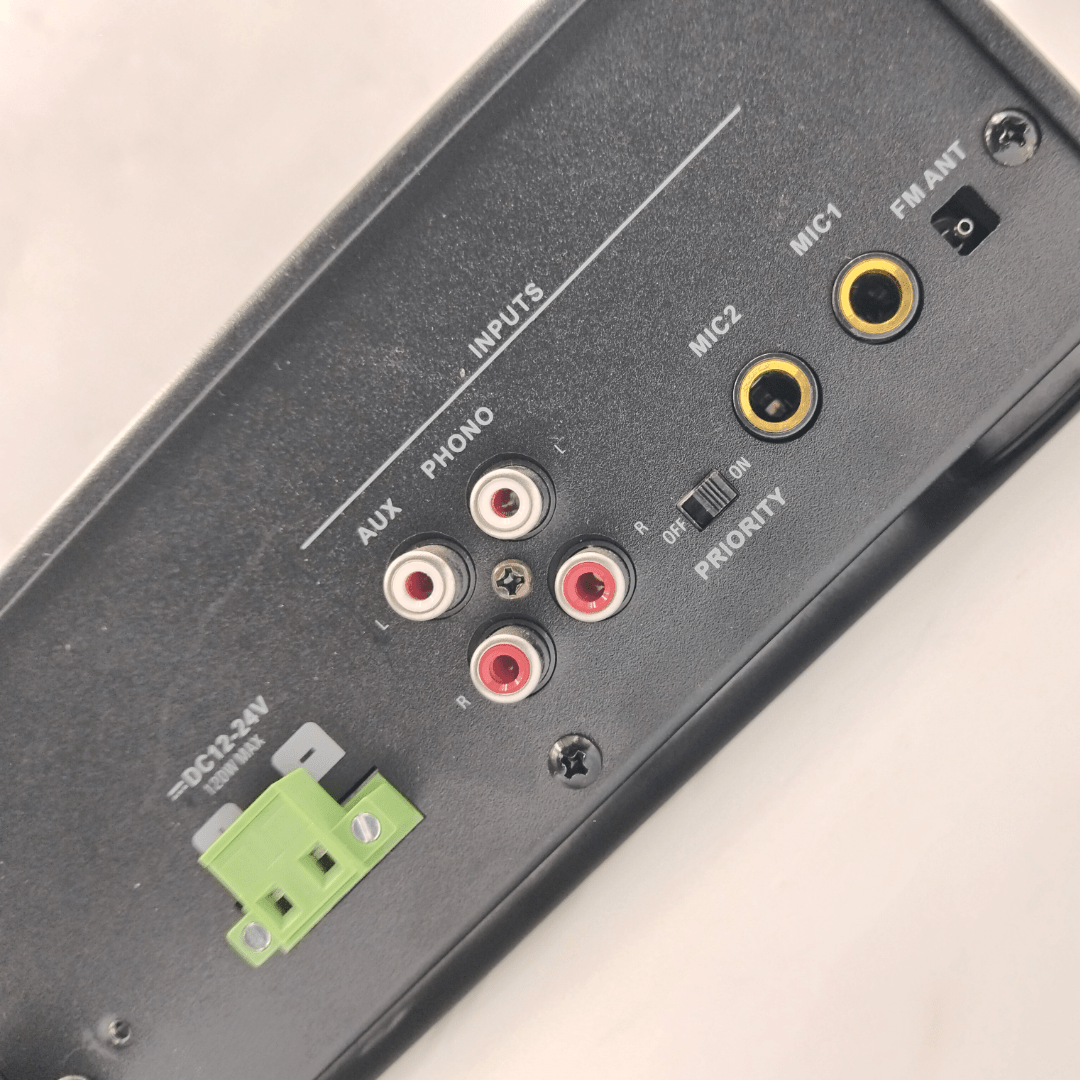

  • Dual Microphone Inputs with Priority: 2 x 6.35mm (1/4") mic inputs with dedicated volume knobs; Mic 1 features auto-ducking priority to lower background audio during announcements.

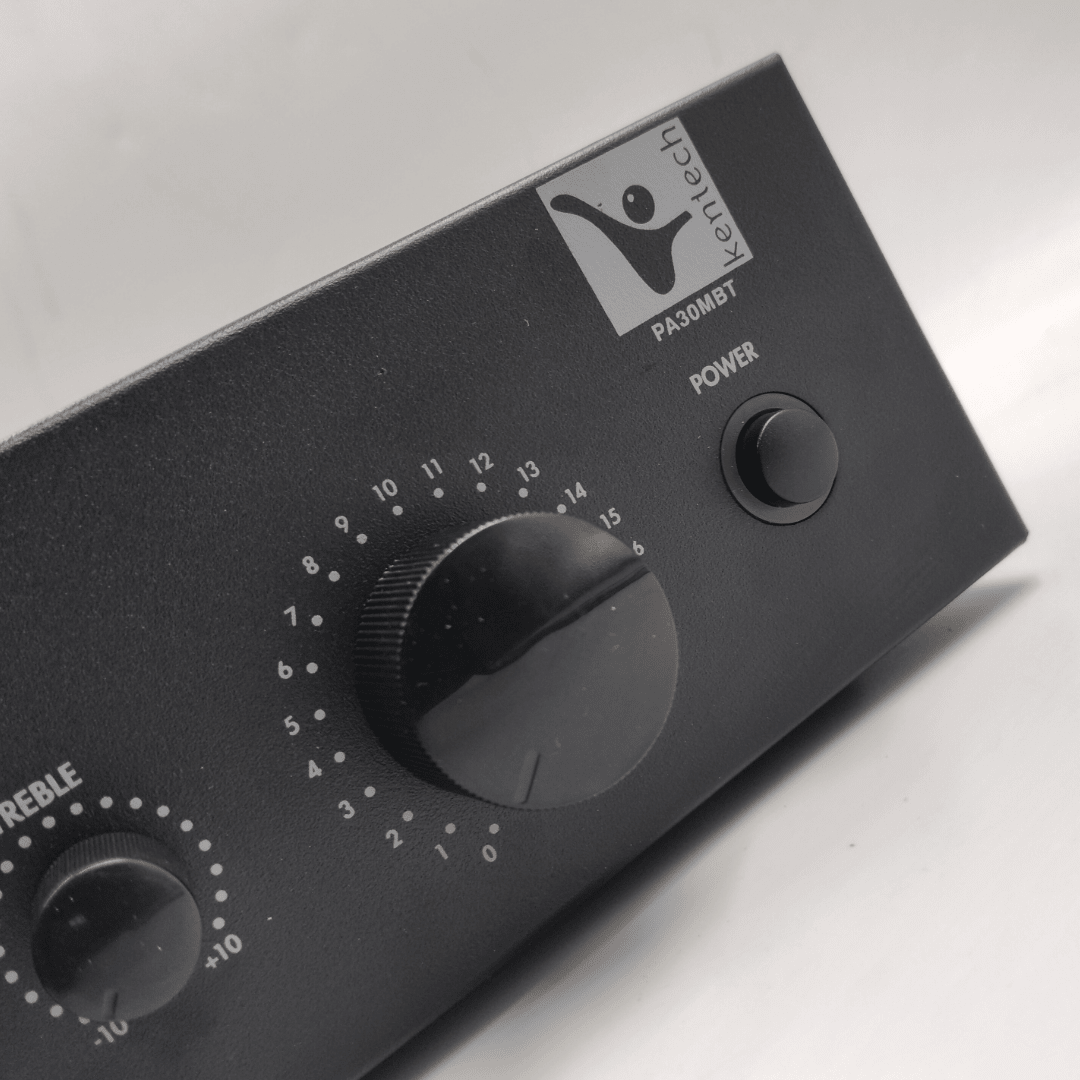

  • Master Tone & Volume Controls: Front-panel master bass, treble, and volume controls allow precise acoustic tuning to match room dimensions.

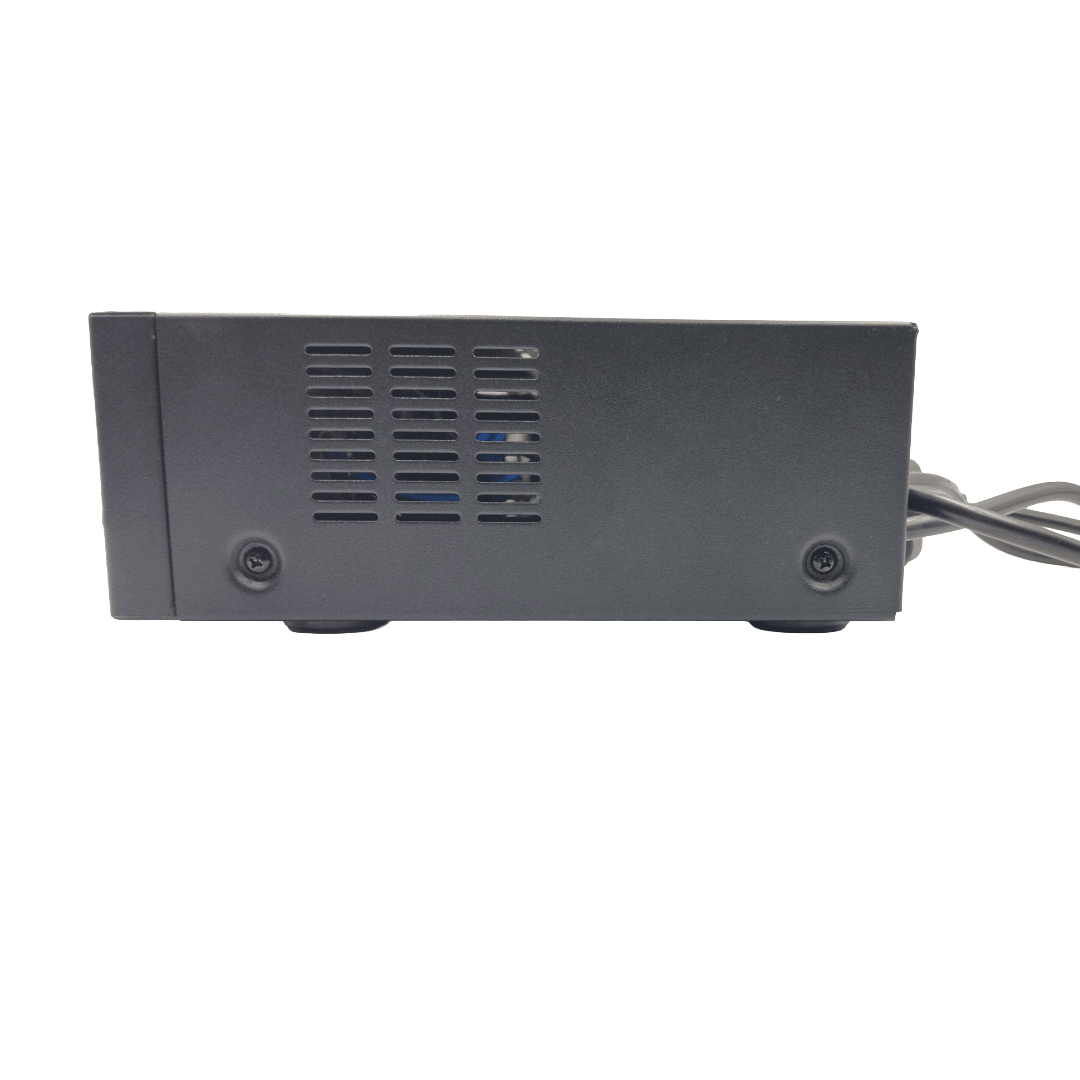

  • Compact Tabletop Housing: Rugged metal chassis with non-slip rubber feet designed for tight counter spaces or desktop equipment stacks.
Specifications
  • Model Code: PA30MBT
  • Product Type: Compact Public Address (PA) Mixer Amplifier
  • Rated Power Output: 30 W RMS (40 W Peak)
  • Speaker Output Terminals: 100V Line, 70V Line, 4–16 Ohms Low Impedance
  • Frequency Response: 80 Hz – 18,000 Hz (±3 dB)
  • Total Harmonic Distortion (THD): < 0.5% at 1 kHz (Rated Power)
  • Signal-to-Noise Ratio (S/N Ratio): Mic Inputs: ≥ 65 dB | Line/Aux Inputs: ≥ 75 dB
  • Input Sensitivity & Impedance:
  • Mic 1 & Mic 2: 3.0 mV / 600 Ohms (Unbalanced 6.35mm TS Jack)
  • Aux Line Input: 250 mV / 10 kOhms (RCA Jacks)
  • Media Player Support: Bluetooth 5.0, USB 2.0 (MP3/WMA format), SD/MMC Card (up to 32GB), FM Radio Tuner
  • Tone Adjustment: Bass Control: ±10 dB at 100 Hz | Treble Control: ±10 dB at 10 kHz
  • Paging Priority: Mic 1 Muting Override (Mutes Aux/Media by -30 dB)
  • Cooling Method: Passive Convection Cooling (Heatsink Aluminum Frame)
  • Protection Features: Short-Circuit Protection, Over-Current Thermal Cut-off, DC Fuse Protection
  • Operating Voltage: Dual Supply: 220V – 240V AC (50/60 Hz) / 12V – 24V DC
  • Power Consumption: 45 W at full rated power
  • Chassis Material: Steel Chassis with Matte Black Anodized Front Panel
  • Weight & Dimensions: 28.0 cm x 22.0 cm x 7.5 cm | 2.80 kg
What's in the Box
  • 1 x Kentech PA30MBT 30W PA Amplifier
  • 1 x IR Wireless Remote Control Unit
  • 1 x AC Power Cable
  • 1 x DC Power Connecting Lead
  • 1 x User Manual & Wiring Diagram Guide
Vendor Kentech
Type PA Amplifiers
Sku 64155524
Weight:  2.8 kg
