• High-output compression horn driver designed for heavy-duty public address, paging, and outdoor voice projection systems.
• Integrated with an internal 100V line transformer to support multi-speaker distribution across long-distance constant-voltage speaker runs.
• Offers 60W maximum power handling to deliver high sound pressure levels and excellent vocal intelligibility over noisy environments.

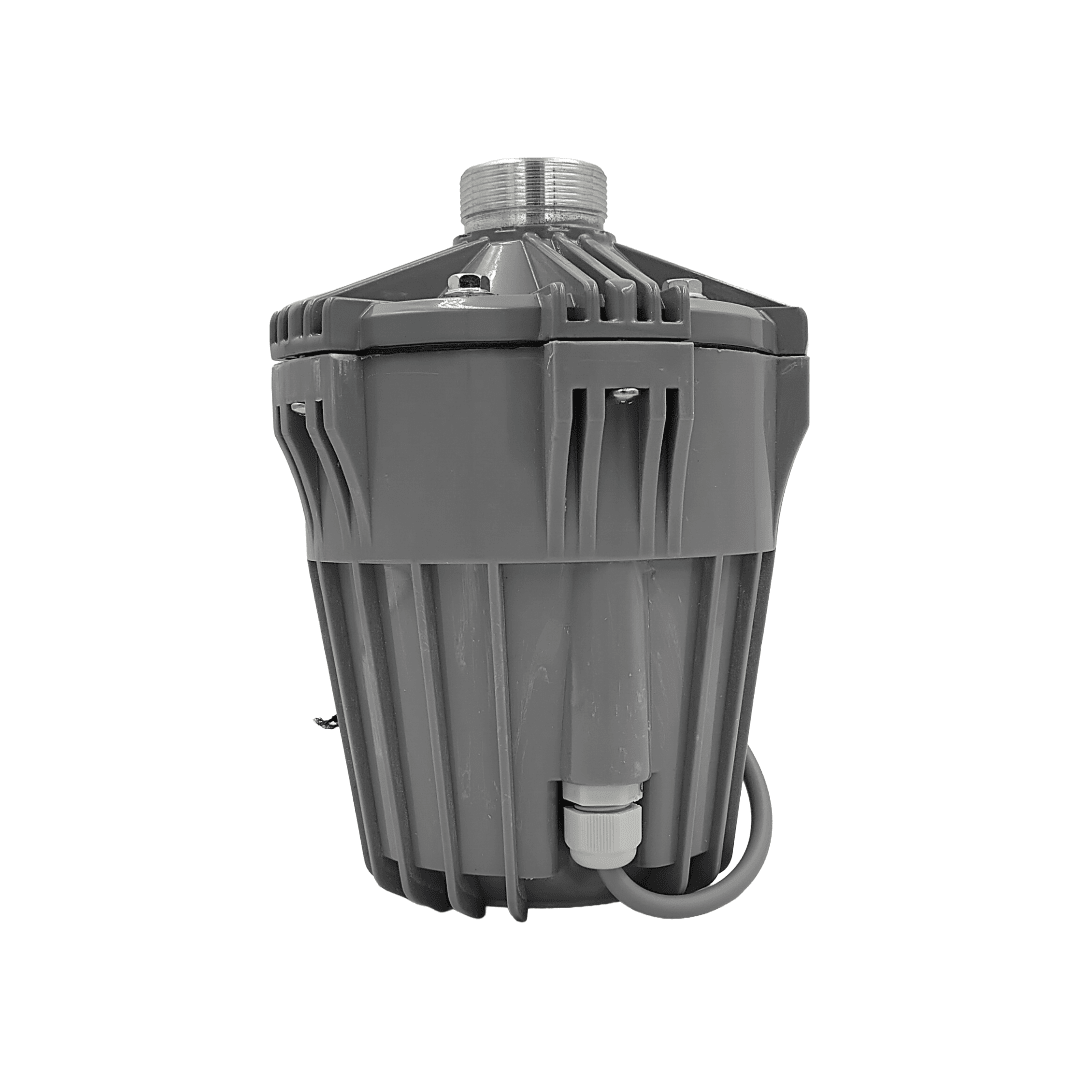

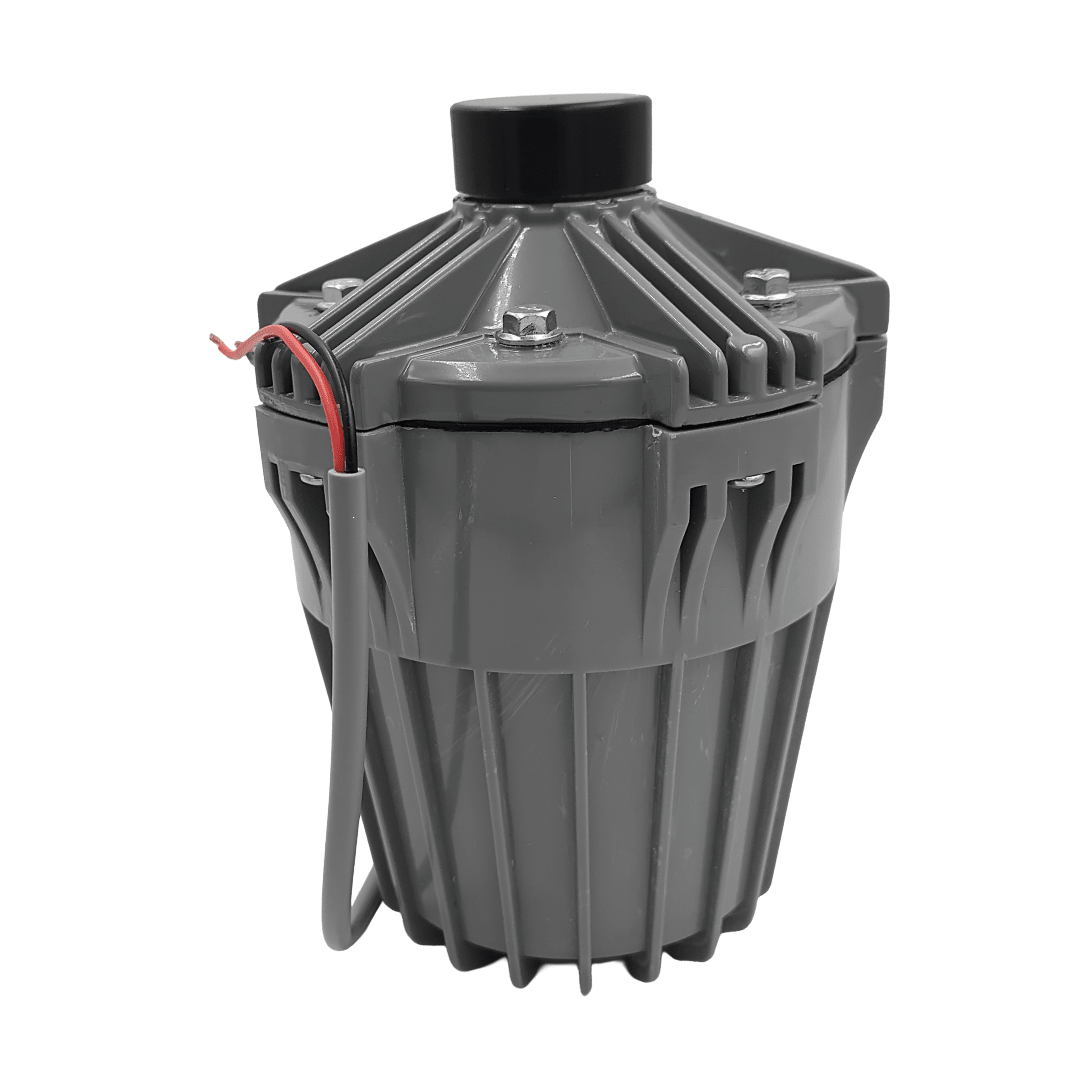

• Encased in a weather-resistant, die-cast aluminum housing engineered to withstand outdoor weather exposure and harsh operating conditions.

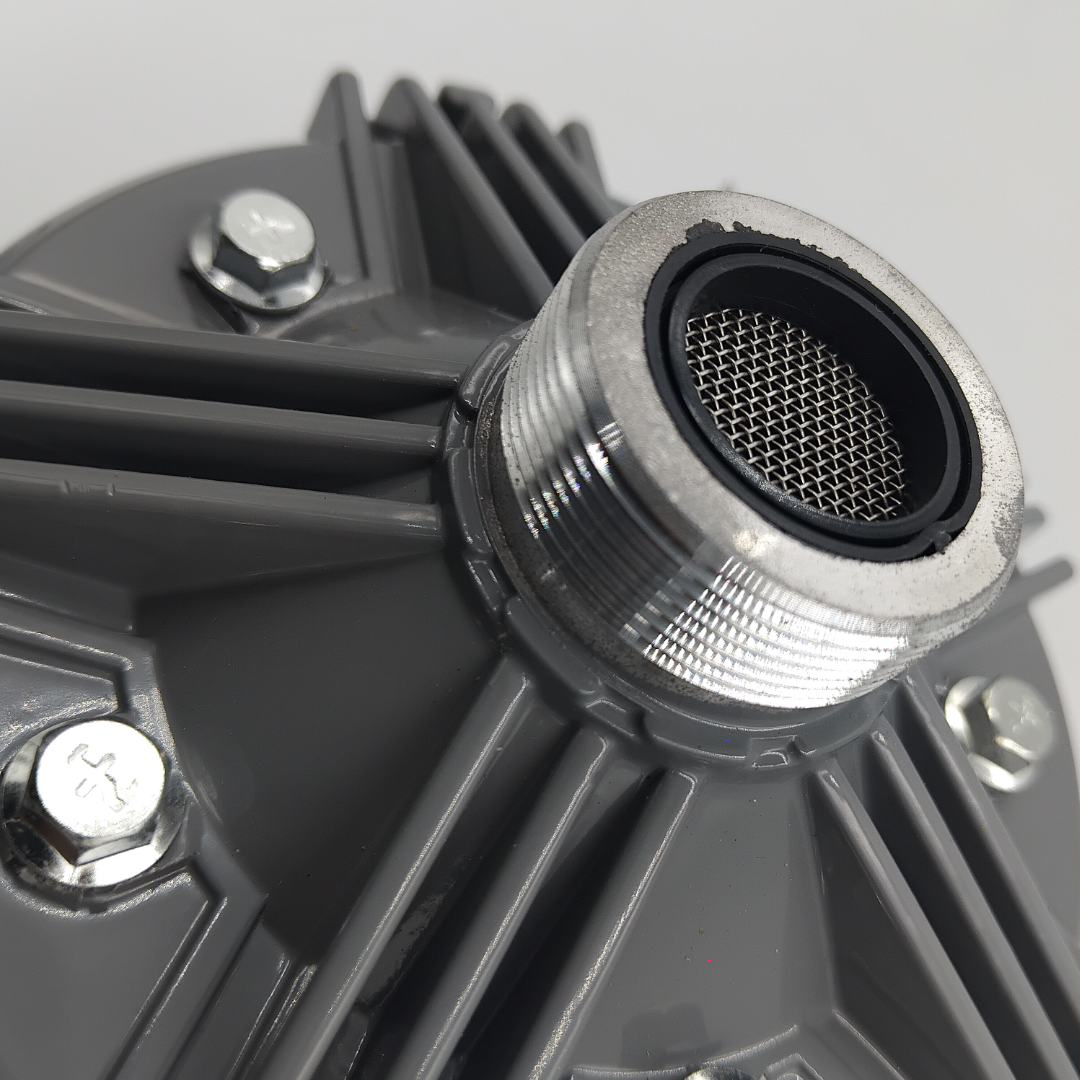

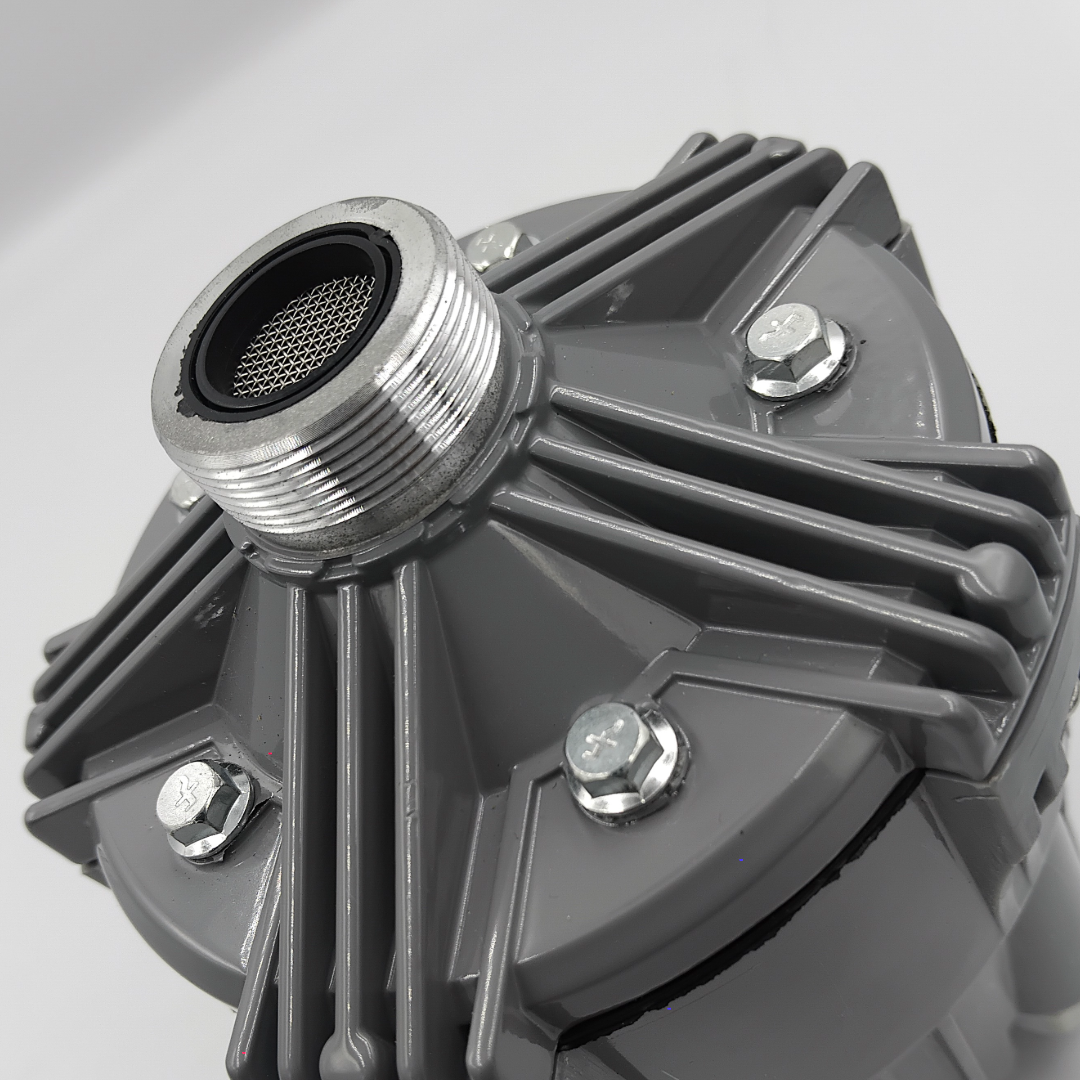

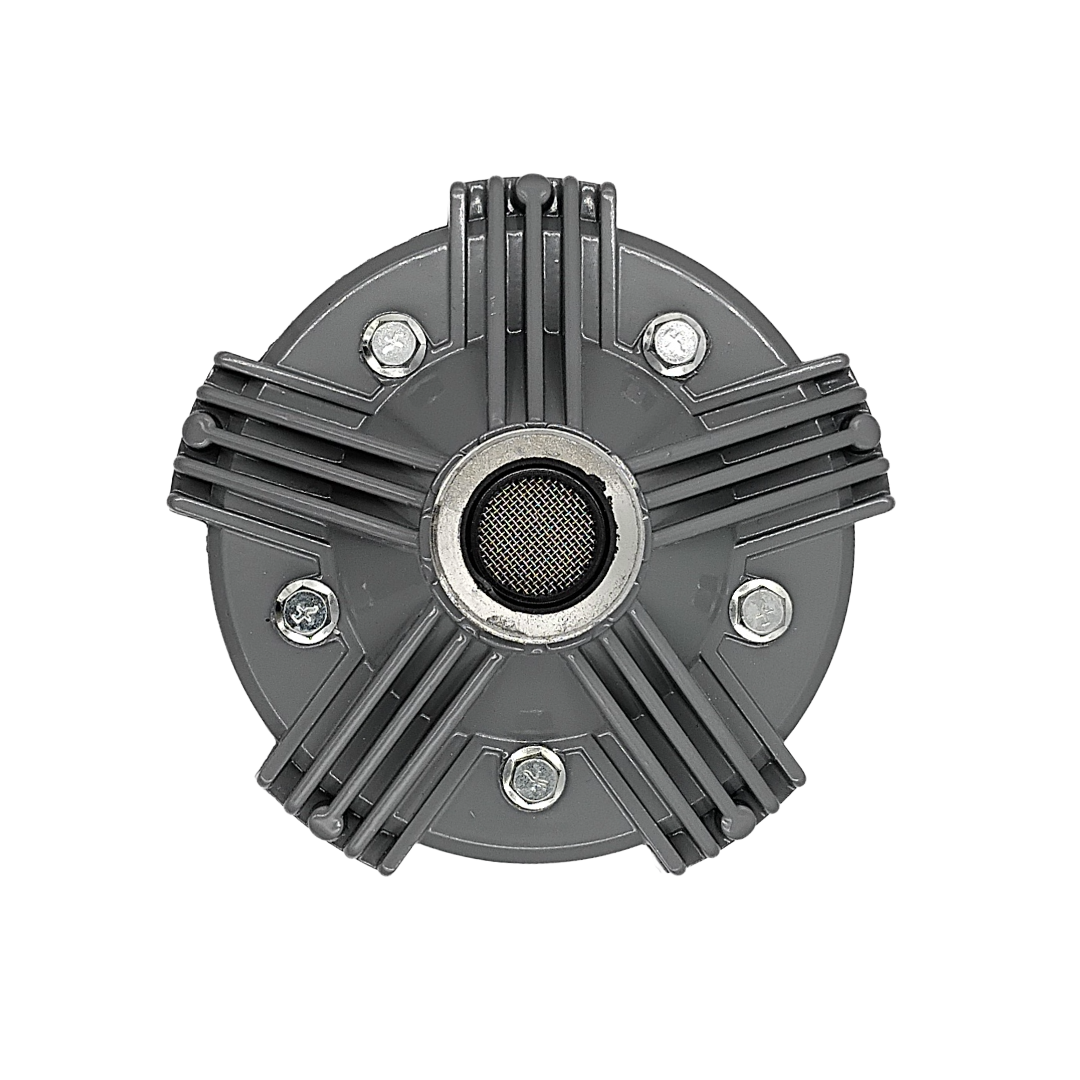

• Features a standard threaded throat mount for fast, secure attachment to standard directional re-entrant reflex horns.

Features

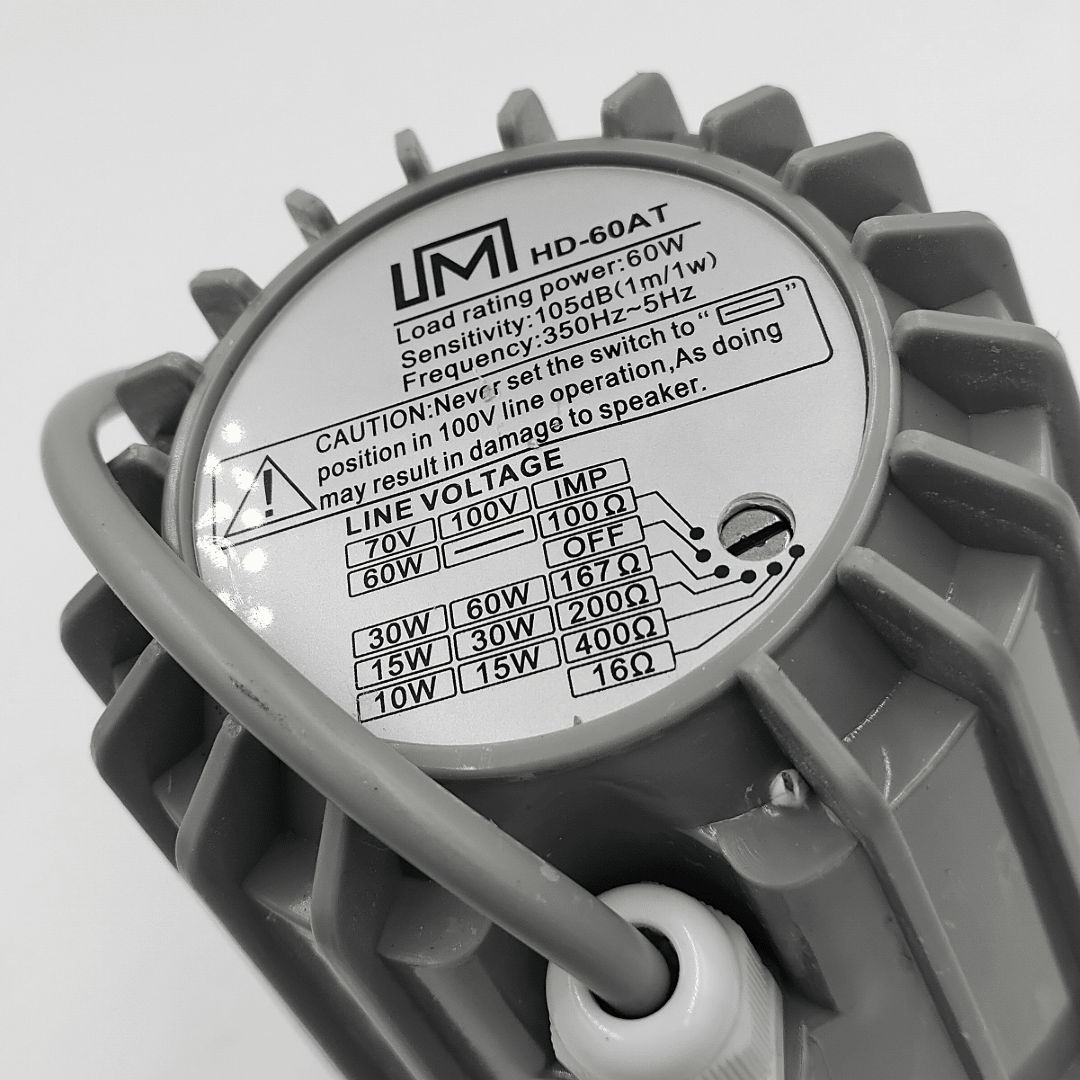

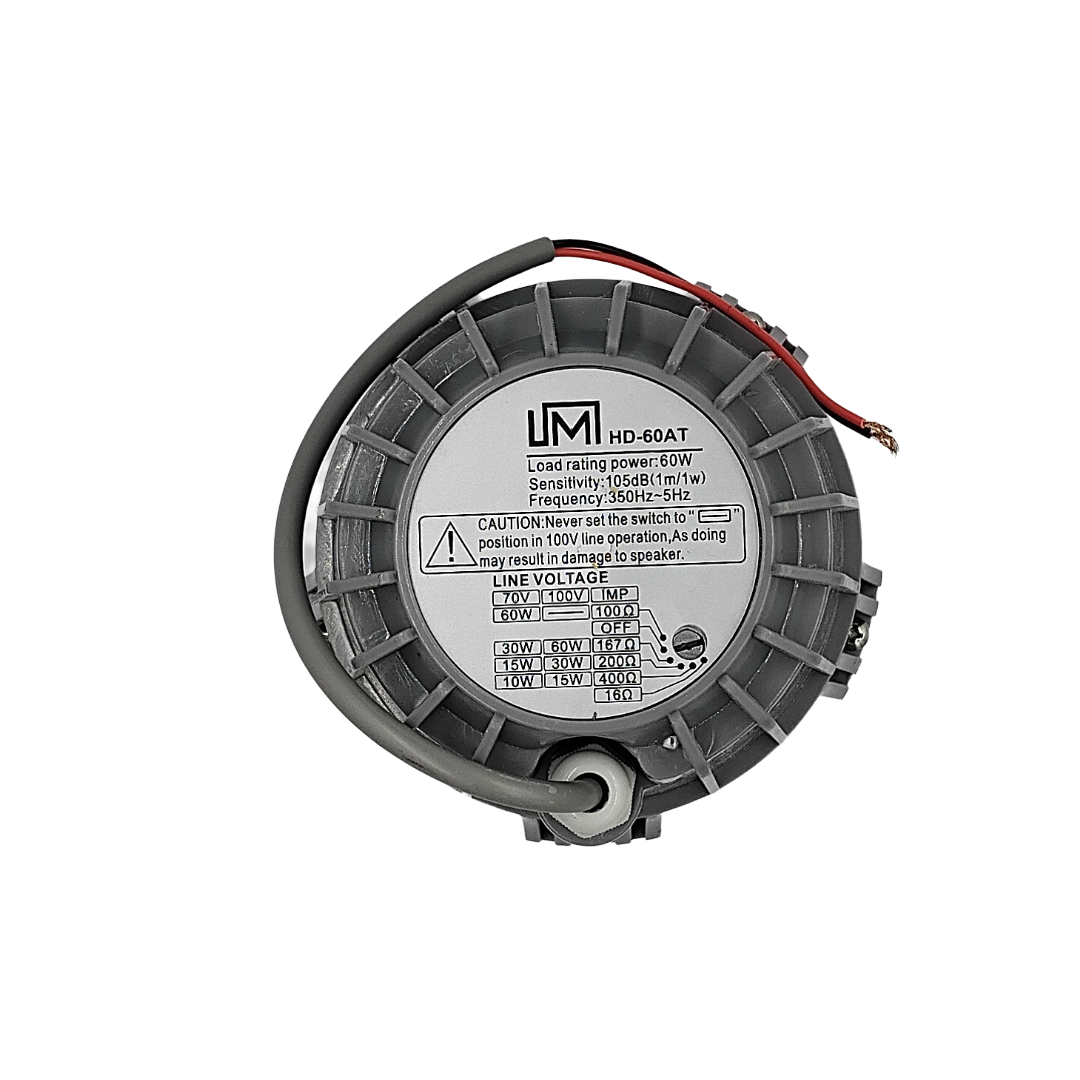

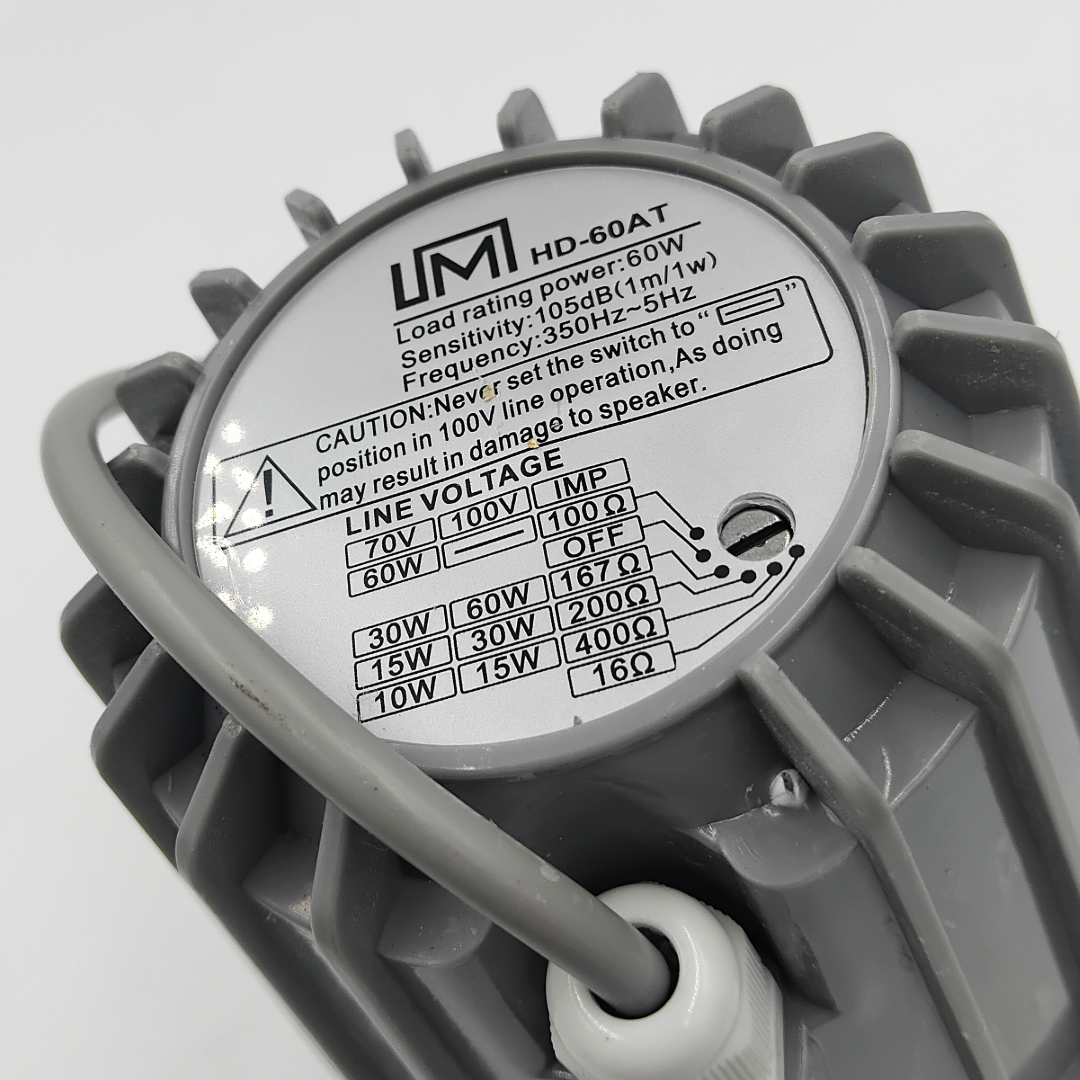

• 100V Line Operation: Built-in line matching transformer enables long-distance cable runs with minimal power signal loss.
• 60W Power Rating: High-power compression engine projects crisp, high-volume sound over broad outdoor and commercial areas.
• Weatherproof Metal Housing: Rugged sealed enclosure protects internal voice coil and driver components against rain, dust, and UV exposure.
• Standard Threaded Mount: Universal screw-on throat fitting allows compatibility with standard PA horn flares.
• High-Efficiency Sensitivity: Maximizes sound output per watt for efficient amplifier power utilization in large-scale public address systems.

Specifications

• Model / Part Number: PA-DR60
• Product Type: Compression Horn Driver Unit
• Input Voltage: 100V Line
• Rated Power (RMS): 60 W
• Impedance / Matching: 100V Constant Voltage
• Frequency Response: 150 Hz – 6 kHz
• Housing Material: Die-Cast Aluminum
• Mounting Thread: Standard Screw-On Horn Throat Thread
• Application: Outdoor Public Address, Stadium Paging, Commercial Security Systems, Factory Warning Horns

What's in the Box?

• 1 x Kentech PA-DR60 60W 100V Line Horn Driver Unit
