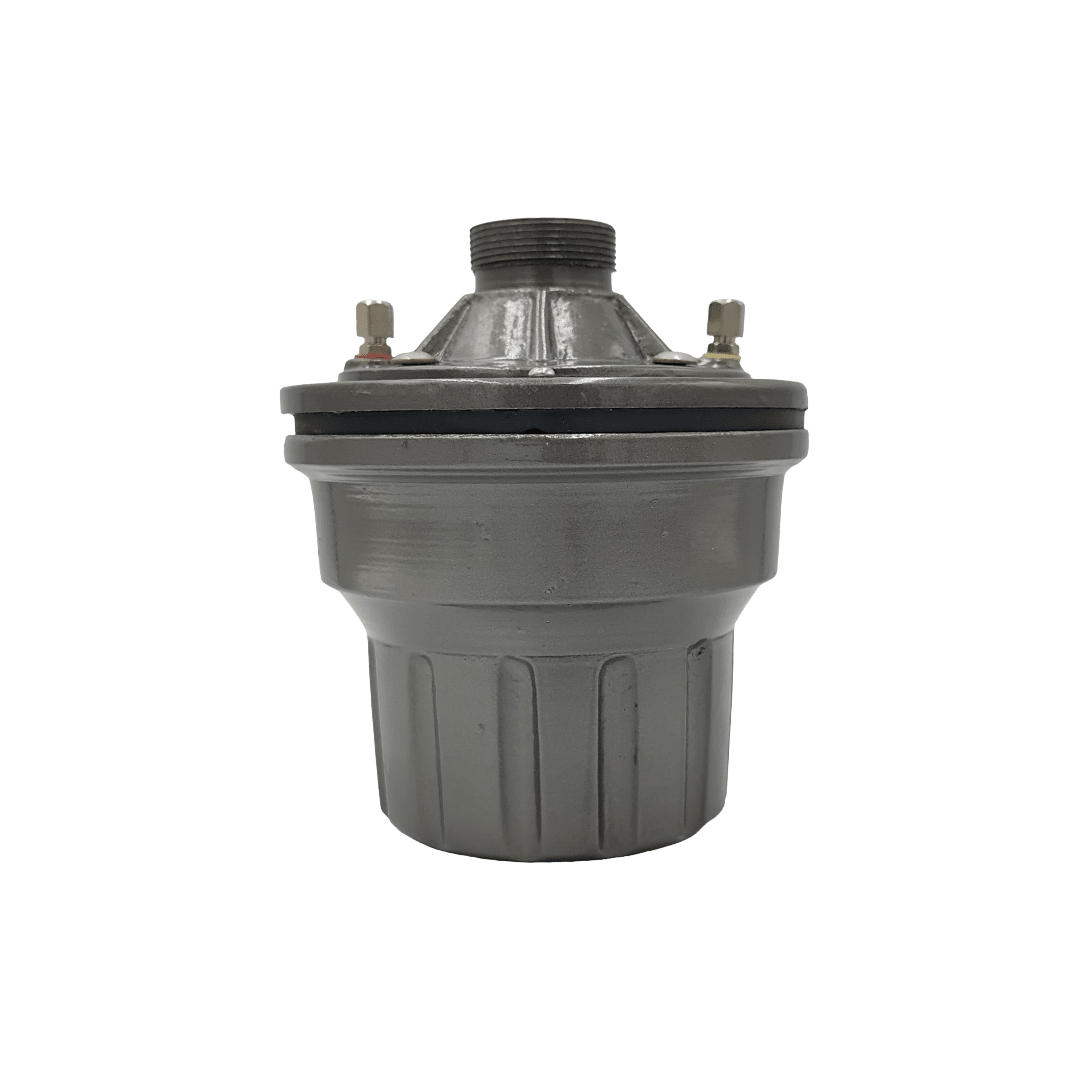

High-Power PA Audio Projection: The Kentech OTR9053 is a commercial-grade, high-efficiency horn compression driver engineered for large-scale Public Address (PA) announcement, paging, and voice evacuation systems over long distances.
Integrated 100V Line Matching Transformer: Outfitted with a heavy-duty internal line matching transformer (LMT) that converts high-voltage 100V distributed audio feeds down to precise safe power thresholds, enabling effortless multi-speaker daisy-chaining without signal attenuation.
Selectable Multi-Tap Power Configuration: Calibrated with accessible multi-tap wiring points that allow installer technicians to easily regulate system volume levels by adjusting the wattage output based on specific zone demands.
Calculated Impedance Step-Downs: Mapped with explicit power-to-impedance matching ratios: 60W at 170 Ohms for maximum sound pressure, down to 40W at 250 Ohms / 500 Ohms, and 20W at 500 Ohms for lower-ceiling or quieter peripheral coverage zones.
Standard Weatherproof Threaded Core: Features a universally sized standard 1-3/8 inch threaded throat mount designed to spin smoothly onto matching heavy-duty aluminum or composite horn flares/reentrant bells.
Features
Engineered Vocal Intelligibility: Acoustic diaphragm responses are tightly optimized to emphasize spoken word frequencies, ensuring emergency alerts and paging calls punch through noisy industrial or outdoor warehouse zones cleanly.

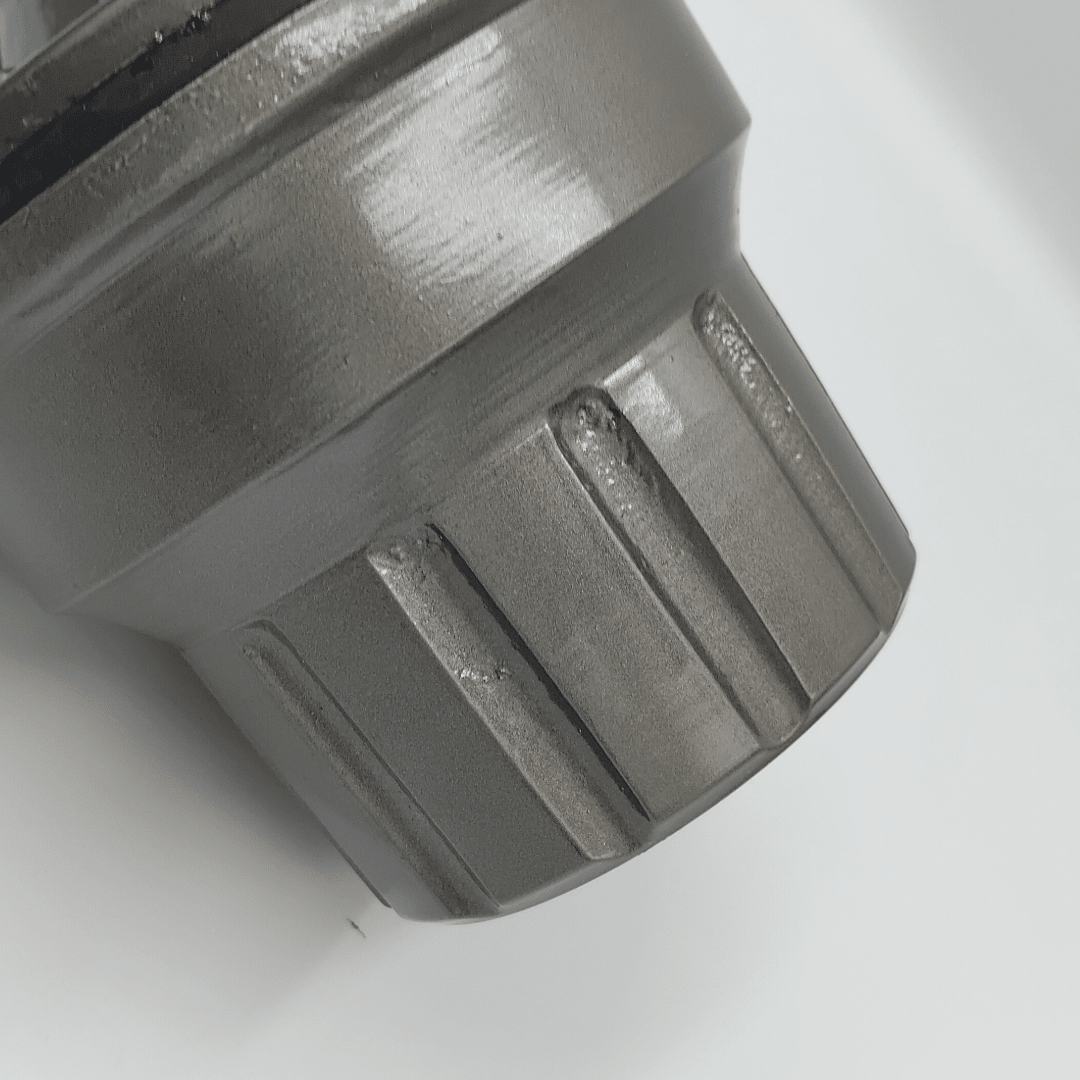

Heavy-Duty Die-Cast Aluminum Body: Enclosed in a rugged, weather-resistant aluminum alloy housing that protects the internal voice coil assembly from crushing impacts, intense solar exposure, and industrial vibrations.
Water and Dust Ingress Safeguards: Built with a tightly sealed back cover assembly that shields the line matching transformer and electrical wire terminations from wind, dust, and rain driven by outdoor installations.
Universal 100V Multi-Zone Integration: Perfectly suited for commercial networks using 100V high-impedance amplifiers, dramatically minimizing transmission line power loss across extremely long field cable runs.
Flexible Installer Field Termination: Offers a straightforward wiring layout that helps sound engineers map, step down, and balance distributed audio system loads directly at the horn deployment site.
Specifications
Product Line: Commercial PA Audio Distribution and Public Address Infrastructure Series
Model Identification: OTR9053 / OTR-9053
System Integration Type: Screw-On Horn Compression Driver Unit with LMT
Input Signal Distribution Class: 100V High-Impedance Line Standard
Maximum Rated Power Handling: 60 Watts RMS
Transformer Power Tappings & Impedance Map:
60W Peak Tap Mode: 170 Ohm Impedance Load
40W Medium Tap Mode: 250 Ohm / 500 Ohm Impedance Load
20W Eco Tap Mode: 500 Ohm Impedance Load
Mechanical Thread Mount Interface: Standard 1-3/8" - 18 TPI Threaded Throat
Target Applications: Stadium Outfield Public Address, Shopping Center Parking Lot Paging, Factory Floor Sirens, Marine Dock Voice Evacuation Systems, School Field Speaker Arrays
What's in the Box
1 x Kentech OTR9053 60W 100V Line Horn Compression Driver Unit
