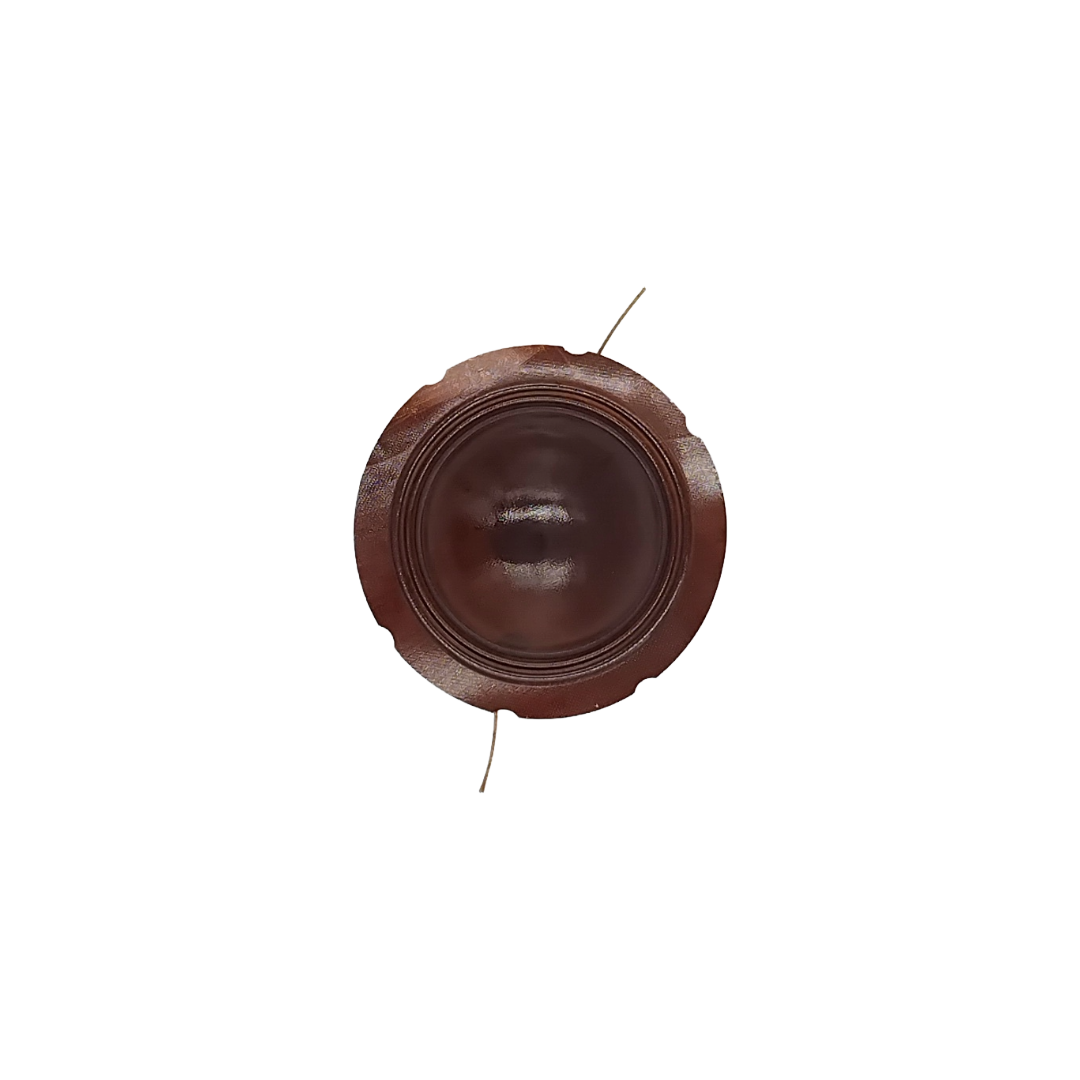

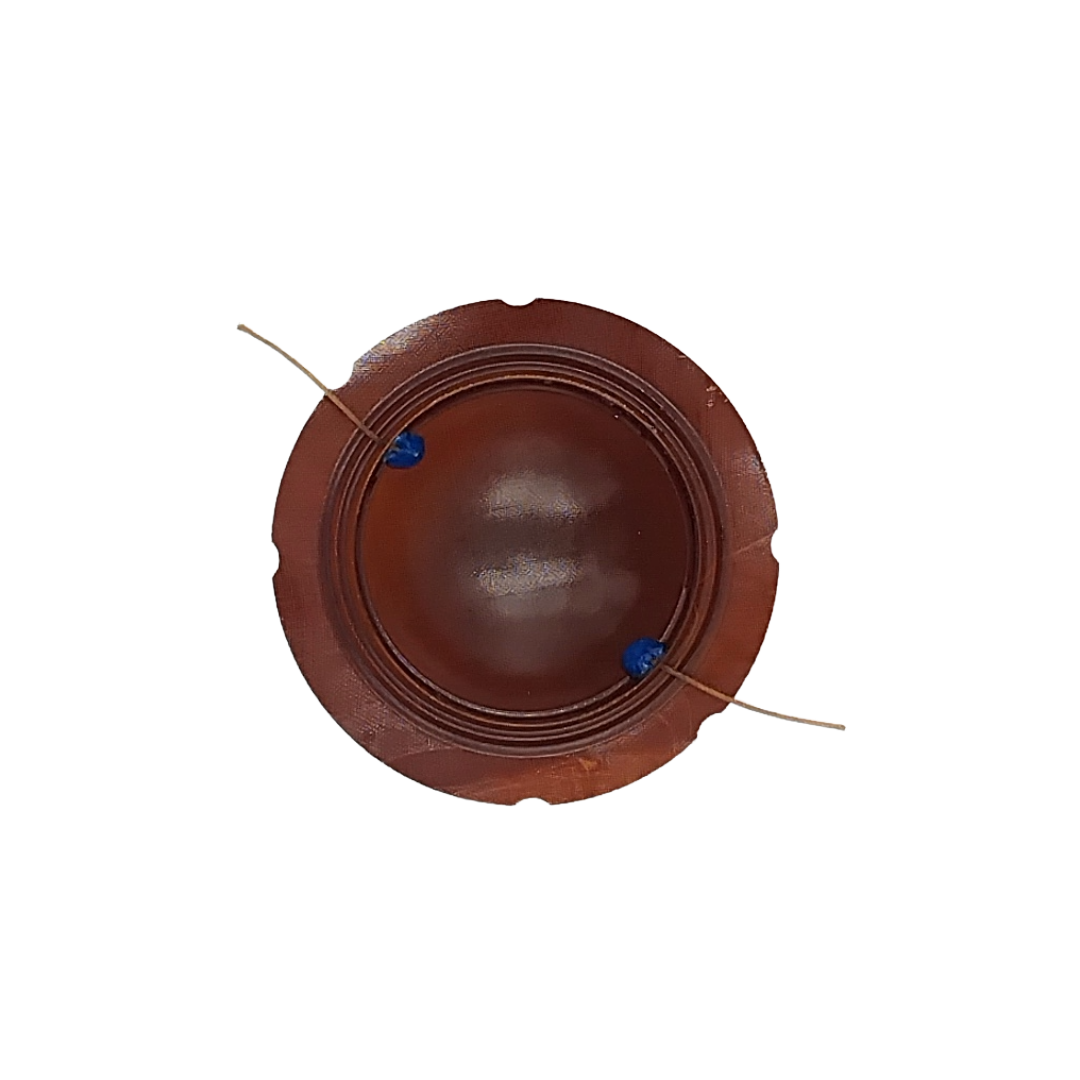

Kentech MTU60MLD Replacement Speaker Diaphragm for MTU60ML

R 59.00
Quantity:
↩ Easy Returns
🔒 Multiple Secure Payment Methods
💬 Friendly Advice Available
🚚 Delivery within 3–5 business days
Sku: 80455123
Visa Mastercard American Express Ozow MTN Mobile Money

  • Factory-grade replacement voice coil diaphragm assembly engineered specifically for servicing and restoring Kentech MTU60ML horn compression drivers.
  • Formulated with a lightweight, high-rigidity phenolic/titanium dome diaphragm that provides clear vocal intelligibility and high-frequency projection.
  • Features a precision-wound high-temperature voice coil assembly designed to handle severe thermal loads without voice coil deformation or burnout.
  • Restores original driver power handling, acoustic efficiency, and frequency response characteristics to damaged or blown horn units.
  • Ideal for sound technicians, PA maintenance personnel, and commercial installers servicing outdoor horn speaker networks, siren systems, and public address arrays.
Key Features
  • Direct-Fit Drop-In Design: Engineered to match the exact physical dimensions and mounting hole layout of the Kentech MTU60ML driver chassis.
  • High-Temperature Voice Coil: Copper/aluminum wire wound on a heat-resistant former ensures long operational life under continuous duty cycles.
  • Optimized Frequency Response: Delivers crisp mid-to-high frequency reproduction, maximizing vocal clarity across outdoor and large-space PA systems.
  • Color-Coded Solder / Push Terminals: Clearly marked polarity terminals ensure fast, accurate, and error-free internal terminal wiring.
  • Cost-Effective Horn Repair: Extends the working life of compression driver assemblies without requiring complete driver replacement.
Specifications
  • Model Code: MTU60MLD
  • Product Type: Horn Driver Replacement Diaphragm Assembly
  • Compatible Driver: Kentech MTU60ML Compression Driver
  • Diaphragm Dome Material: Phenolic Resin / Composite Material
  • Nominal Impedance: 8 Ohms / 16 Ohms (Driver Dependent)
  • Power Capacity: Matches MTU60ML Driver Ratings (Up to 60W RMS)
  • Terminal Type: Polarity-Marked Soldered Tabs / Spade Connectors
  • Weight & Dimensions: 9.0 cm x 9.0 cm x 2.5 cm | 0.08 kg
What's in the Box
  • 1 x Kentech MTU60MLD Replacement Diaphragm Assembly
Vendor Kentech
Type Speaker Parts & Accessories
Sku 80455123
Weight:  0.1 kg
