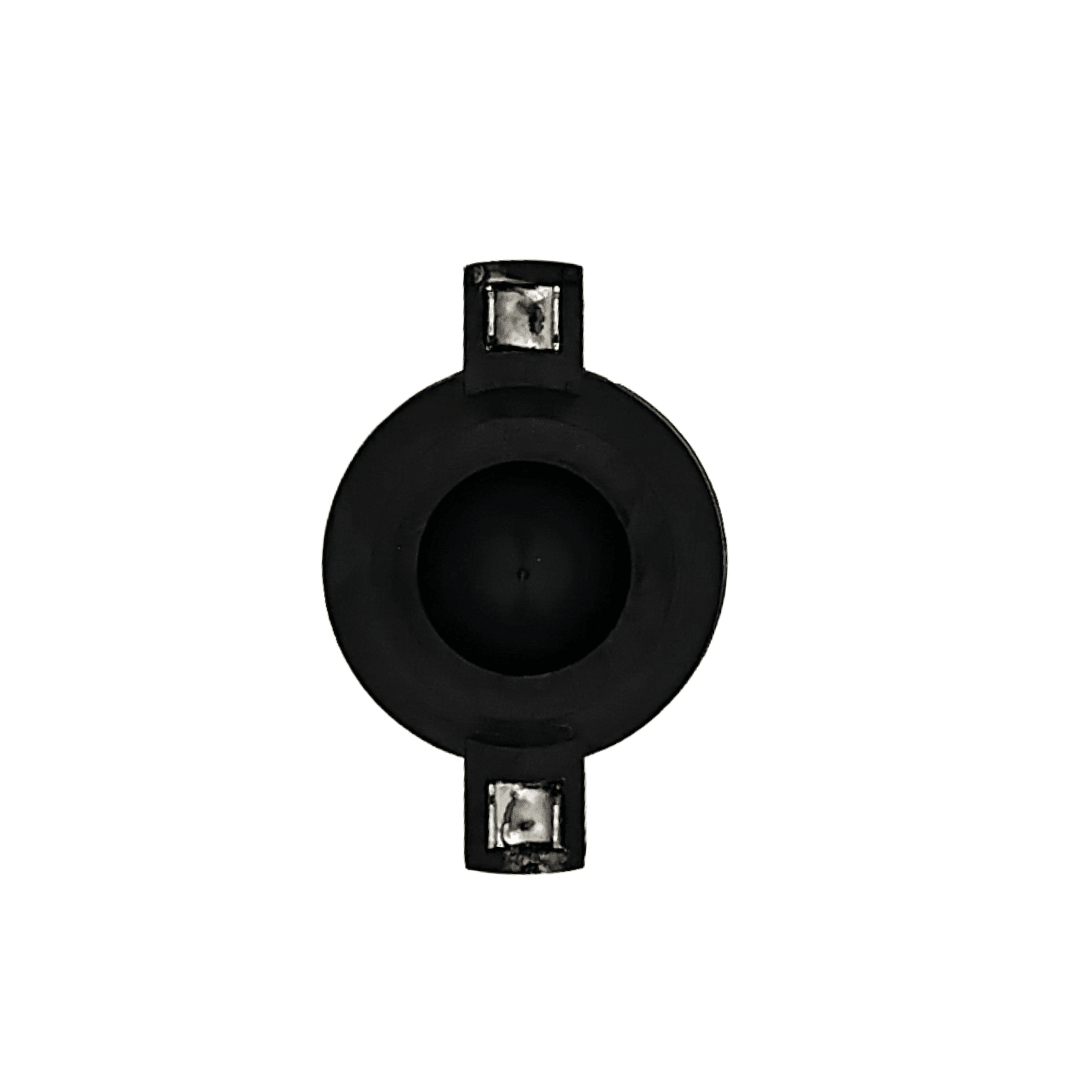

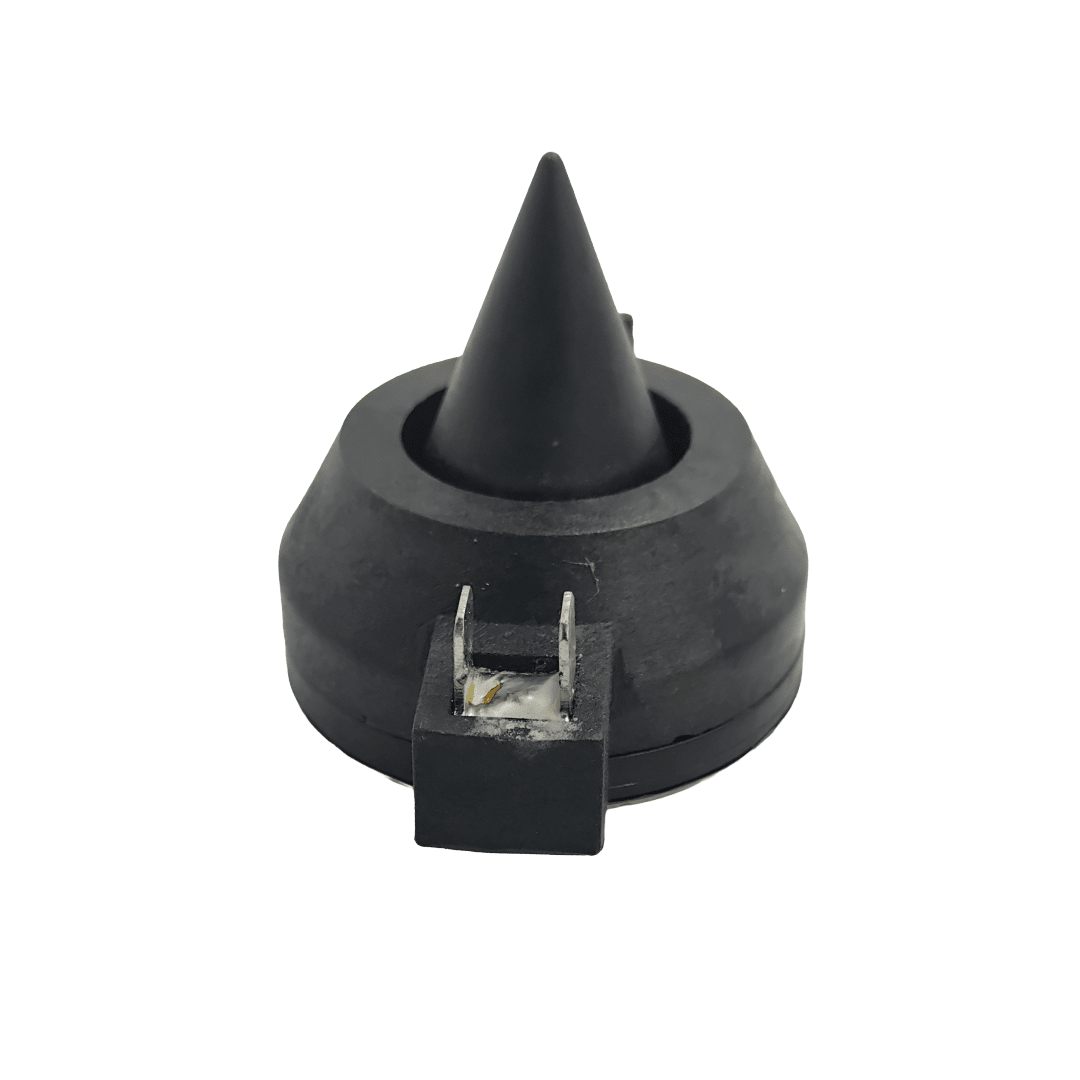

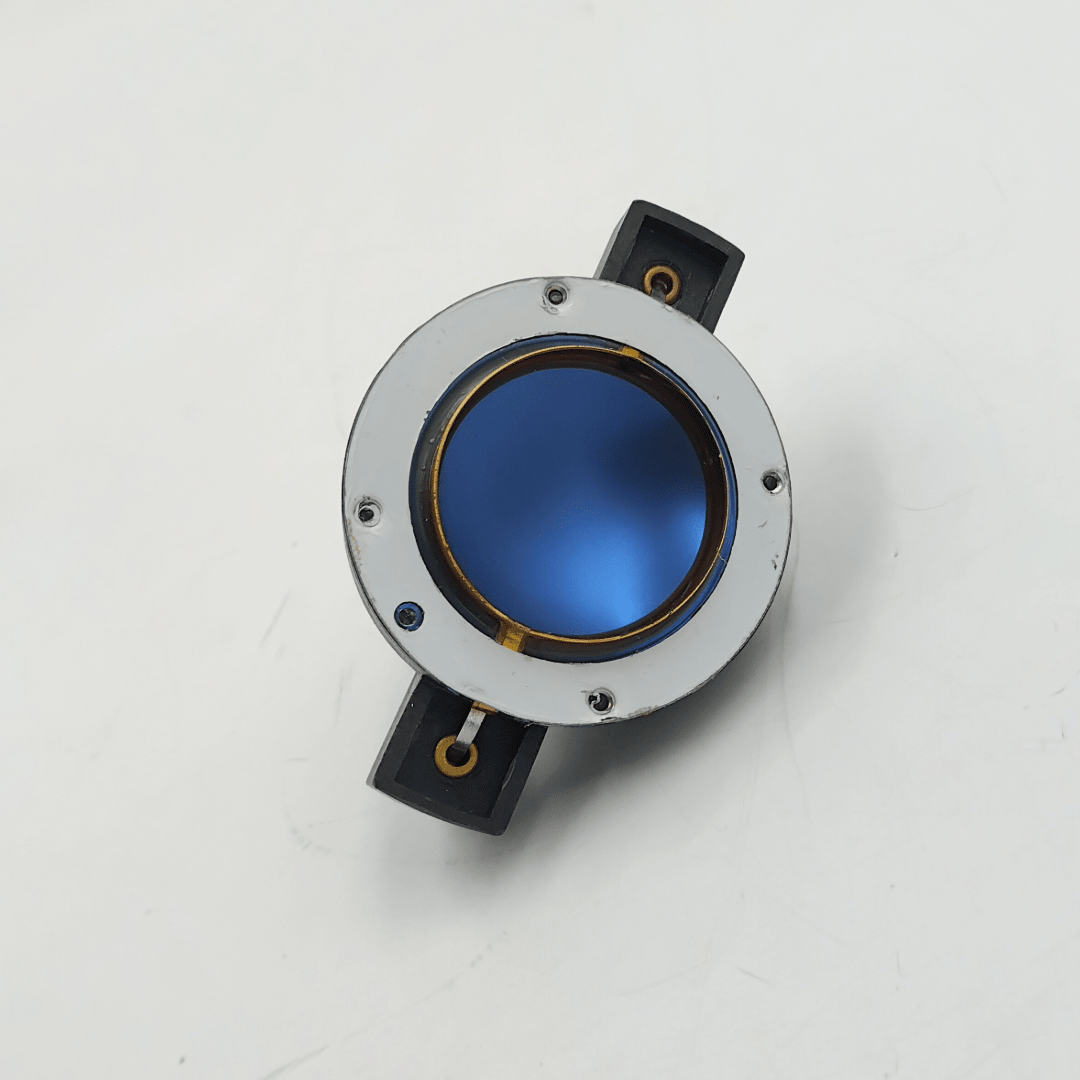

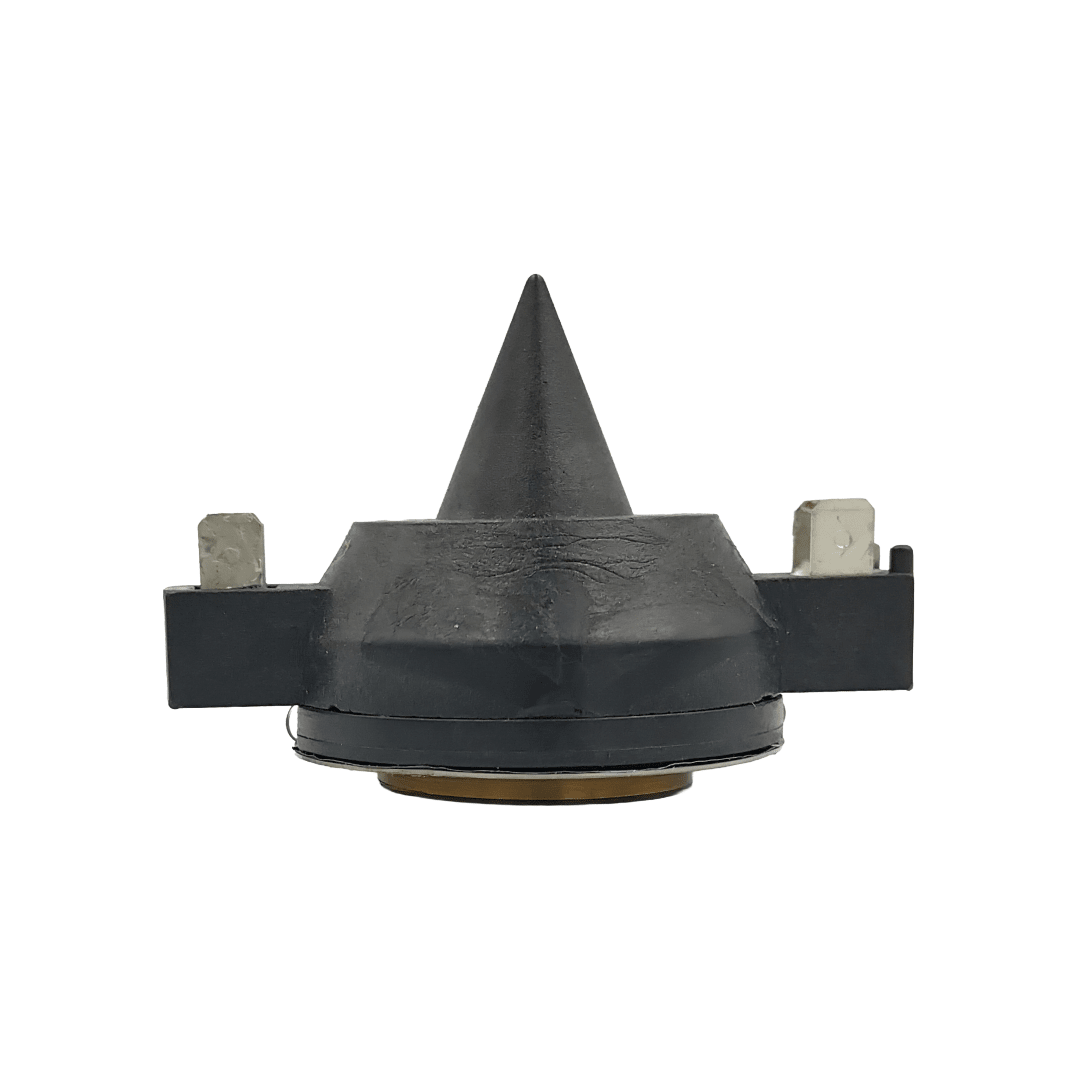

• High-grade replacement titanium diaphragm designed to restore high-frequency performance to compatible compression drivers and tweeter units.
• Features a precision-wound 32.0 mm (1.26-inch) voice coil engineered for accurate high-frequency response and thermal stability.
• Constructed with a titanium dome for enhanced durability, low distortion, and crisp audio projection across PA installations.
• Ideal for audio technicians, venues, and repair centers servicing high-frequency audio horns and speaker enclosures.

Key Features

• Titanium Dome Construction: Delivers high rigidity and low mass for clear, extended high-frequency response and minimal distortion.
• Precision 32.0 mm Voice Coil: Wound to exacting tolerances to ensure proper thermal dissipation and reliable continuous power handling.
• Direct Replacement Assembly: Pre-aligned voice coil assembly facilitates straightforward drop-in installation during field or workshop repairs.
• Standard 8-Ohm Impedance: Designed to match standard crossover networks and speaker driver electrical loads seamlessly.

Specifications

• Model Code: LP-0120 / KALR
• Diaphragm Material: Titanium
• Voice Coil Diameter: 32.0 mm (~1.26 Inches)
• Nominal Impedance: 8 Ohms
• Voice Coil Material: Precision Copper Wire / Aluminum Former
• Compatible Component Type: High-Frequency Compression Driver / Tweeter

What's in the Box

• 1 x Agent Audio LP-0120 Titanium Replacement Diaphragm
