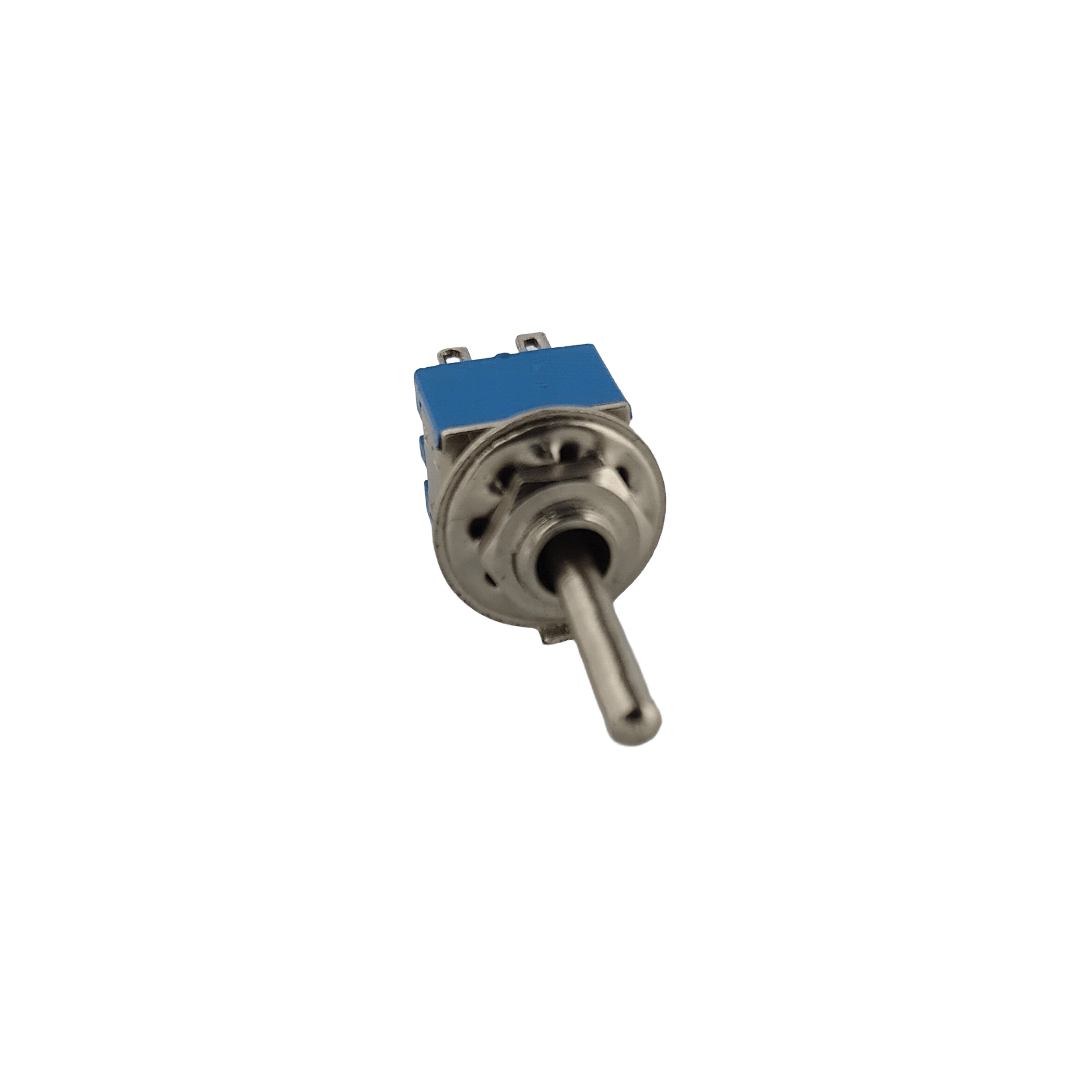

Compact Dual-Circuit Control: The Kentech JX4814P1 is a high-reliability sub-miniature toggle switch featuring a Double Pole Double Throw (DPDT) contact configuration for controlling two separate circuits simultaneously.
Sub-Miniature Footprint: Engineered with an ultra-compact body layout, making it ideal for high-density control panels, custom electronics, model railways, guitar pedal modifications, and DIY projects where enclosure space is strictly limited.
3A 125VAC Electrical Rating: Designed to reliably switch low-to-medium power loads up to 3 Amps at 125VAC (or 1.5 Amps at 250VAC), offering versatile utility across custom audio, instrumentation, and hobbyist circuits.

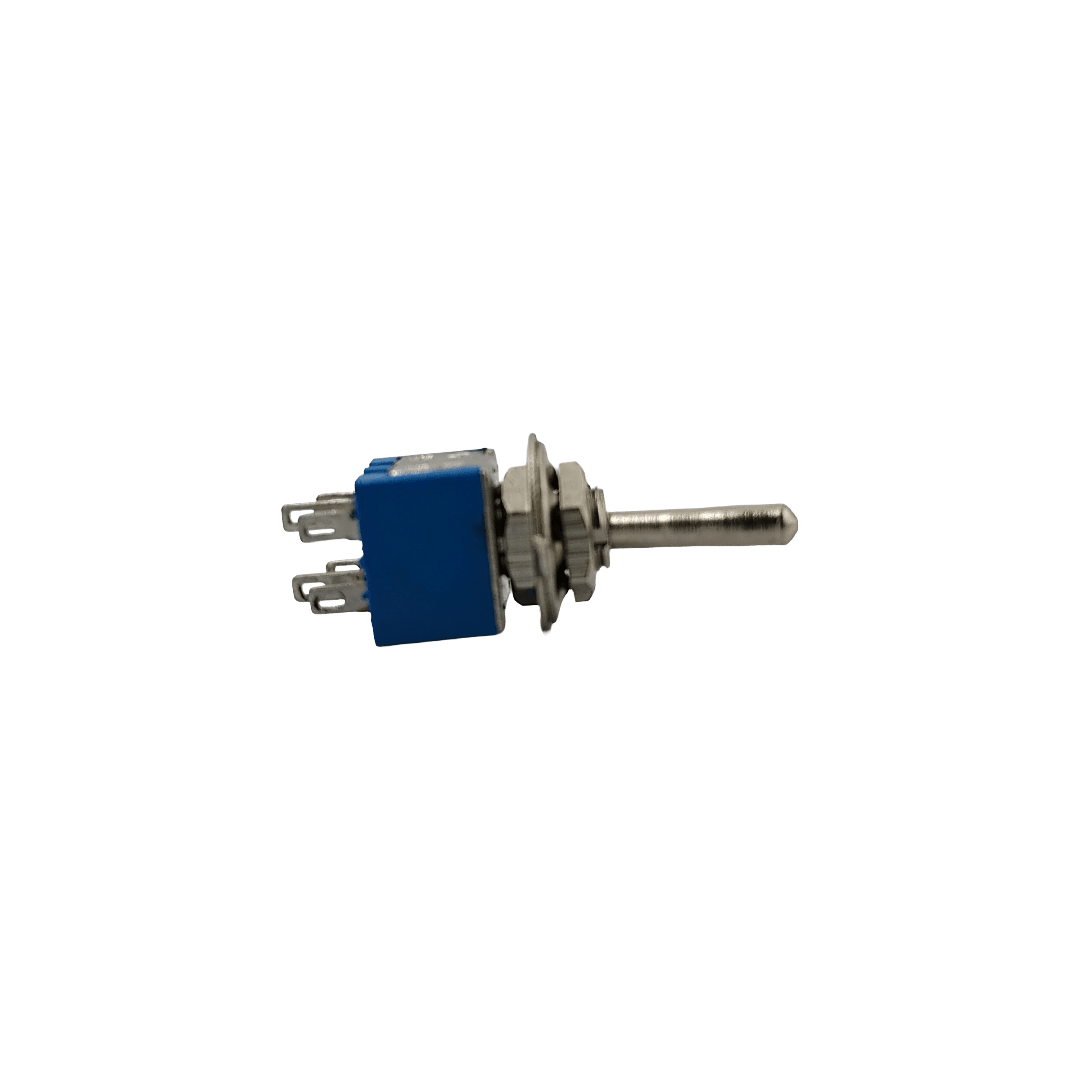

Panel Mount Hardware Included: Outfitted with a threaded metal neck bushing and comes complete with standard mounting hardware (hex nut, flat washer, and locking washer) for quick, secure chassis mounting.

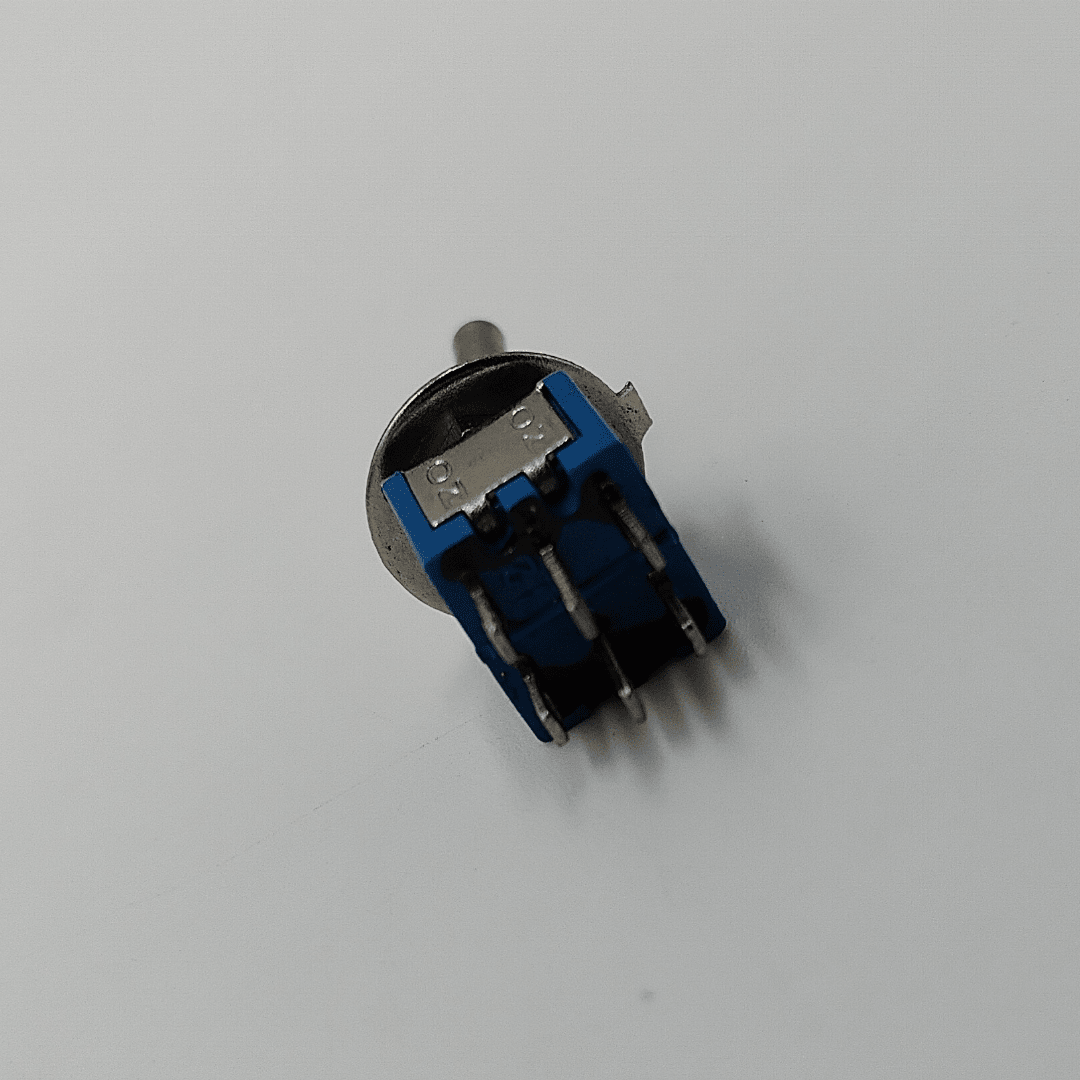

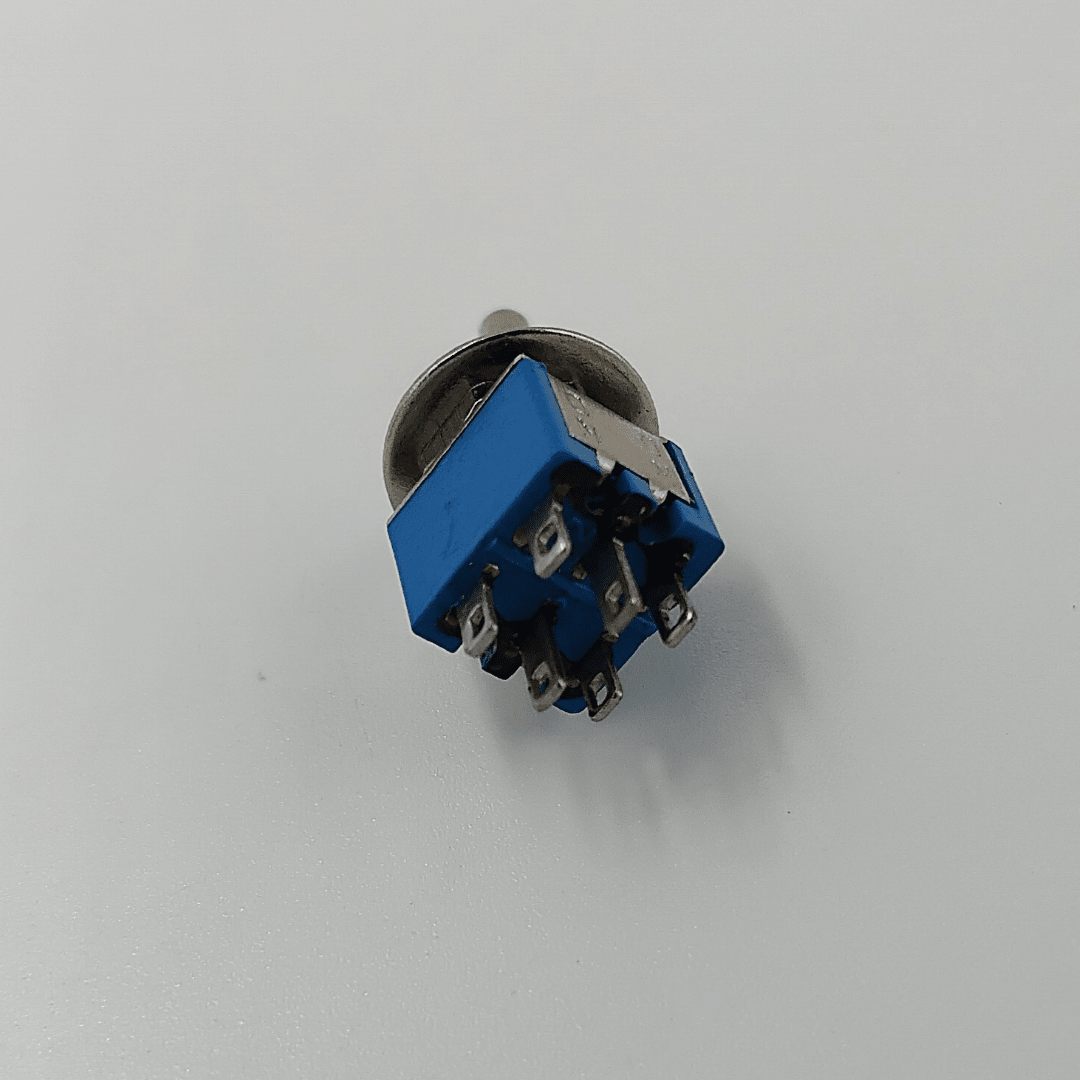

Solder Lug Terminations: Features 6 sturdy solder lug terminals that allow for direct, low-resistance wire connections that hold firm against mechanical vibration and tension.
Features
Dual Pole Switching: Controls two independent electrical paths at once, enabling polarity reversal, A/B audio signal routing, or simultaneous dual-load switching in a single toggle action.
Tactile Bat Handle Actuator: Fitted with a smooth, solid metal bat-style lever that delivers clear tactile feedback and positive mechanical detent across switching positions.
High-Temperature Housing: Constructed with a durable, flame-retardant thermoplastic body that safely withstands hand-soldering iron heat without warping terminal alignments.
Corrosion-Resistant Contacts: Silver-plated contact terminals maintain low electrical contact resistance and minimize signal degradation over extended switching lifecycles.
Versatile Circuit Routing: Perfect for routing signal paths in audio gear, reversing DC motor polarity, building custom test equipment, or toggling device operating modes.
Specifications
Product Type: Sub-Miniature Toggle Switch
Model / Part Number: JX4814P1
Circuit Configuration: DPDT (Double Pole Double Throw)
Switching Function: ON-ON (2-Position)
Current & Voltage Rating: 3A 125VAC / 1.5A 250VAC
Terminal Type: 6 x Solder Lugs
Mounting Style: Panel Mount (Threaded Bushing)
Housing Material: High-Temperature Engineering Plastic & Metal
Pack Quantity: Single Unit (1 Piece)
What's in the Box?

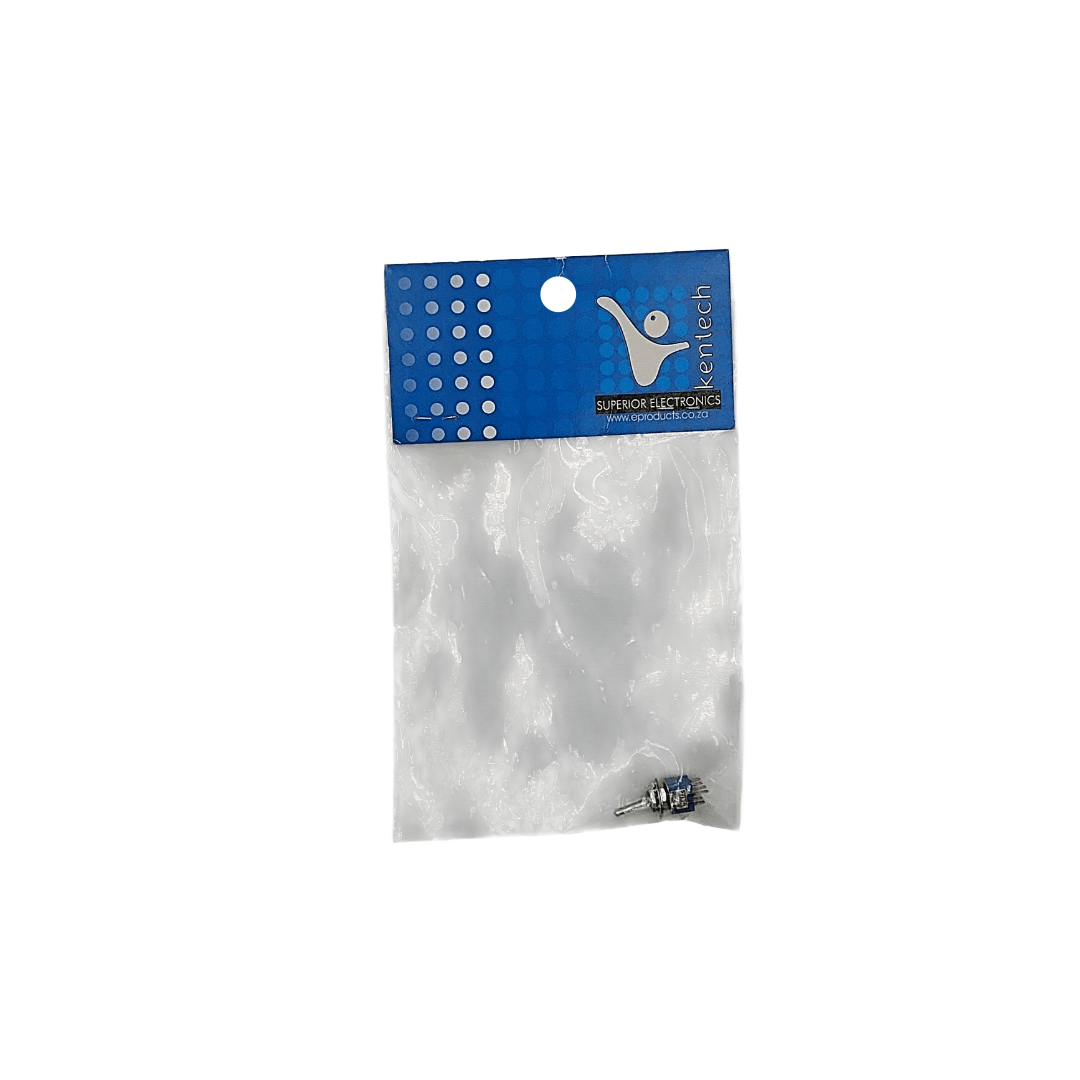

1 x Kentech JX4814P1 Sub-Miniature DPDT Toggle Switch
1 x Panel Mounting Hardware Set (Hex Nut, Lock Washer, Flat Washer)
