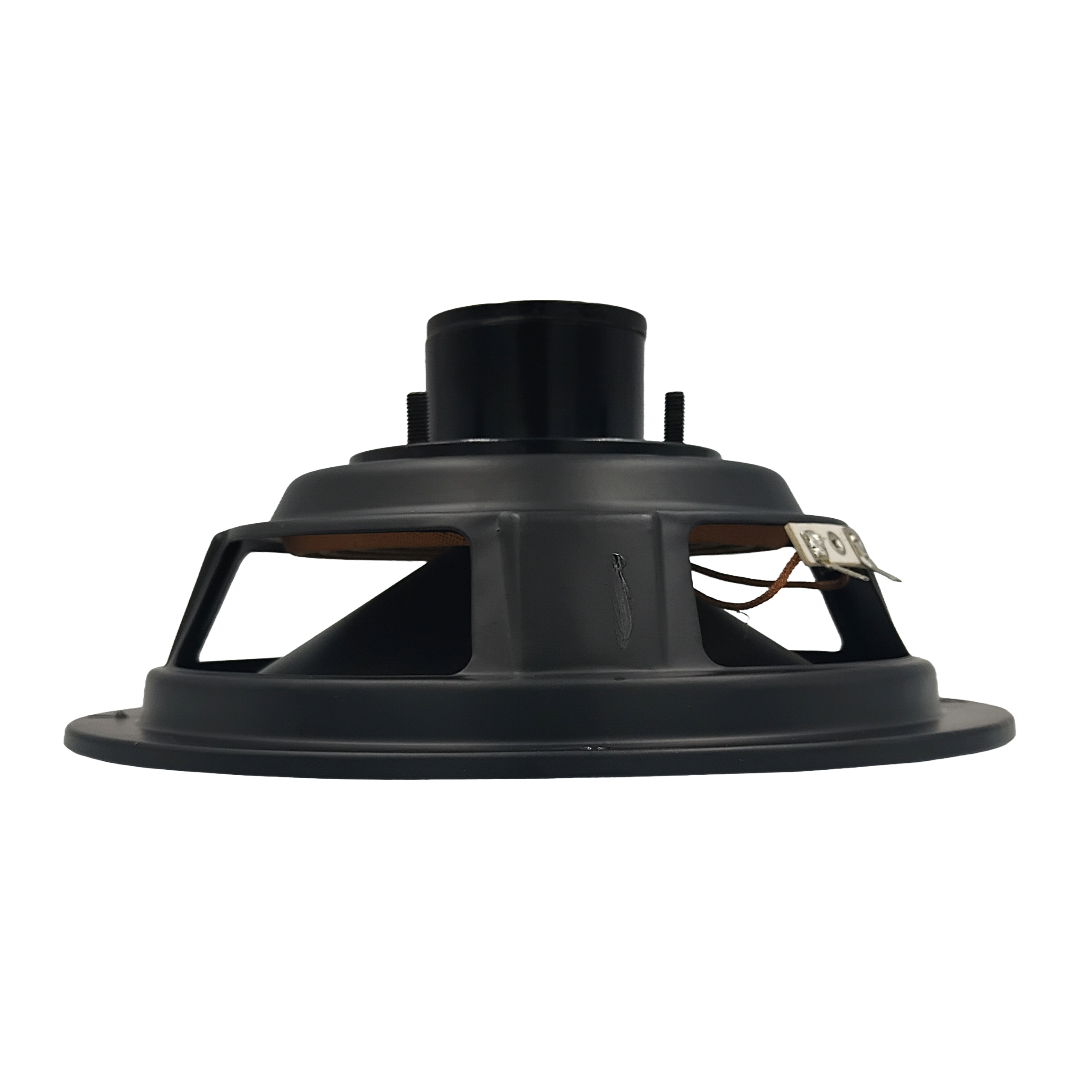

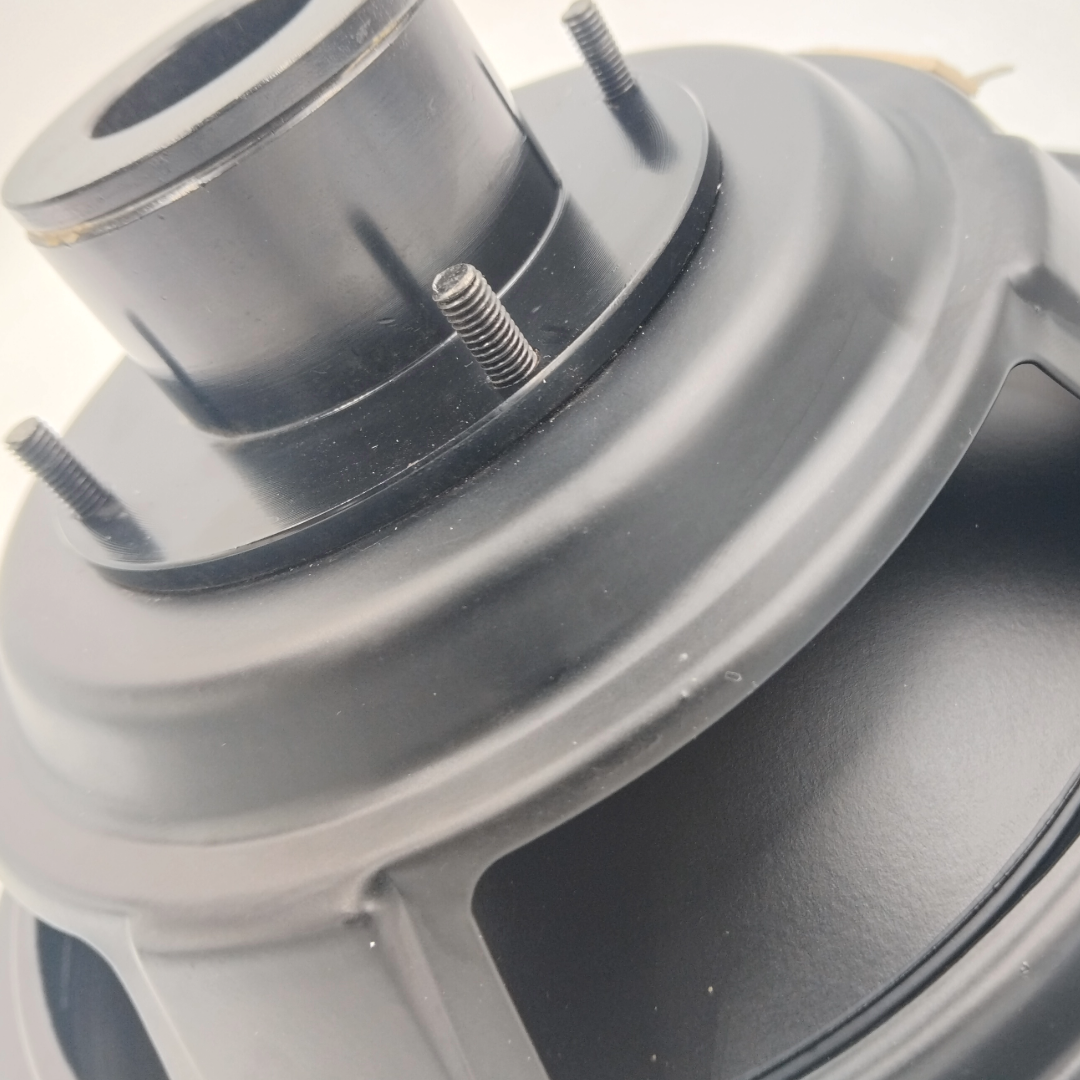

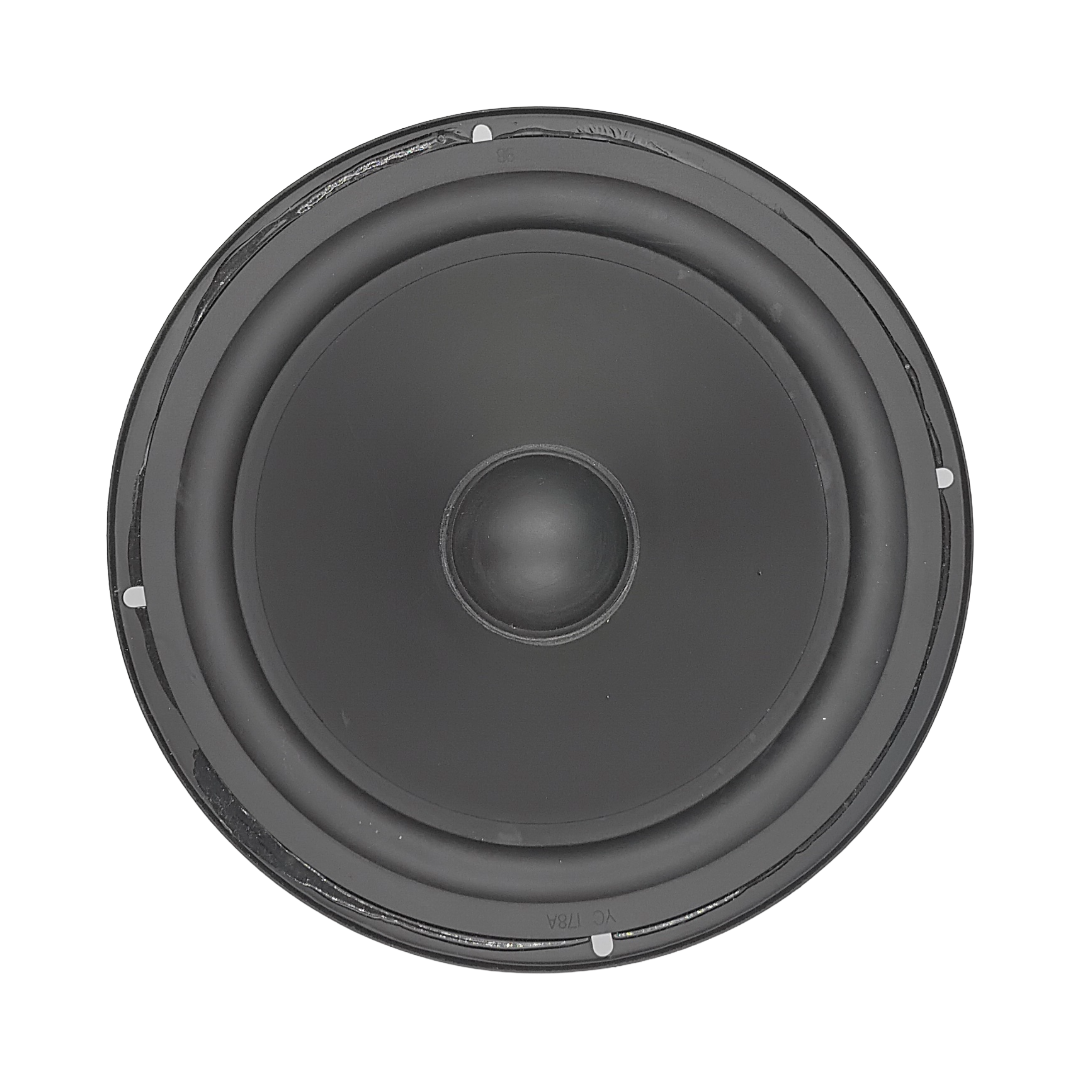

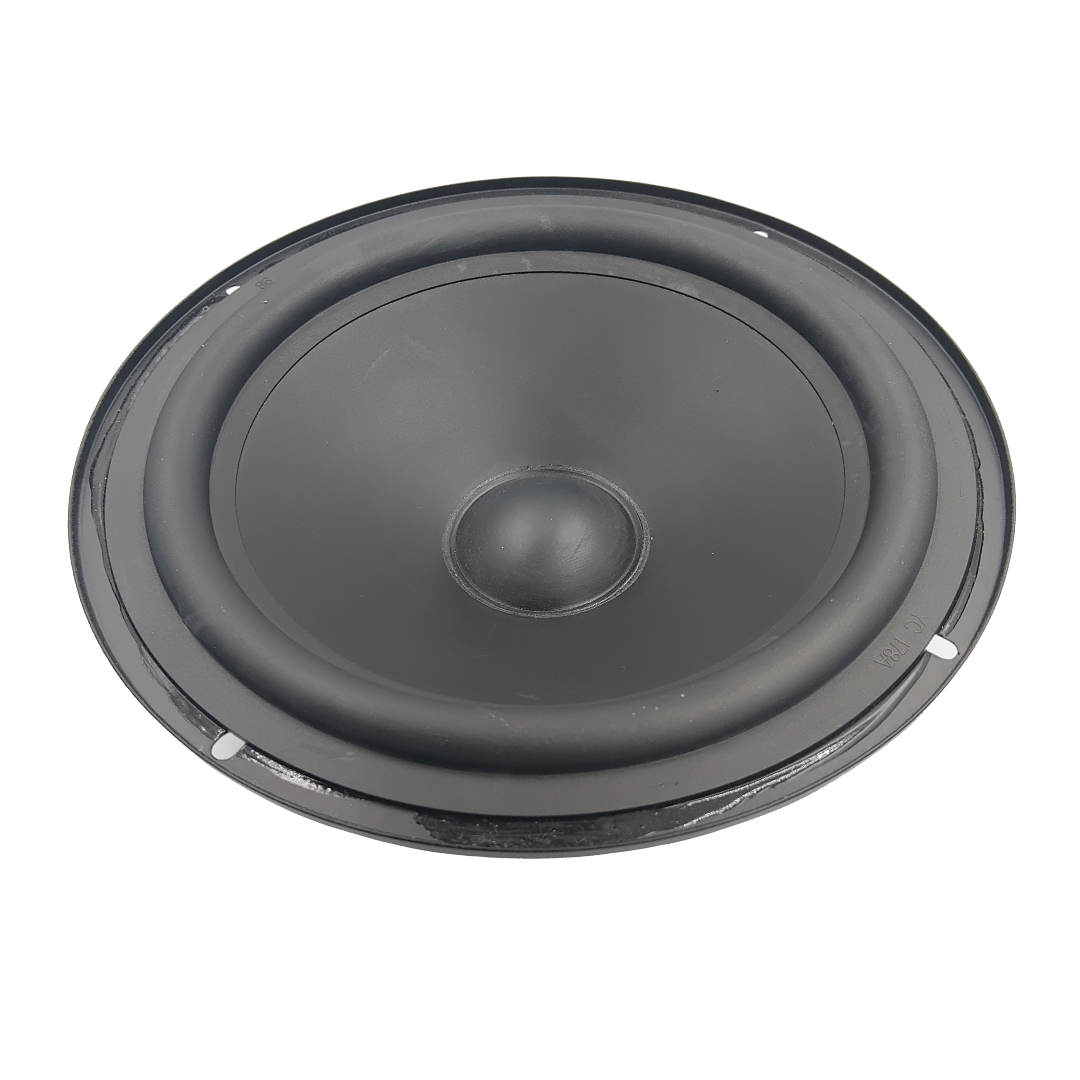

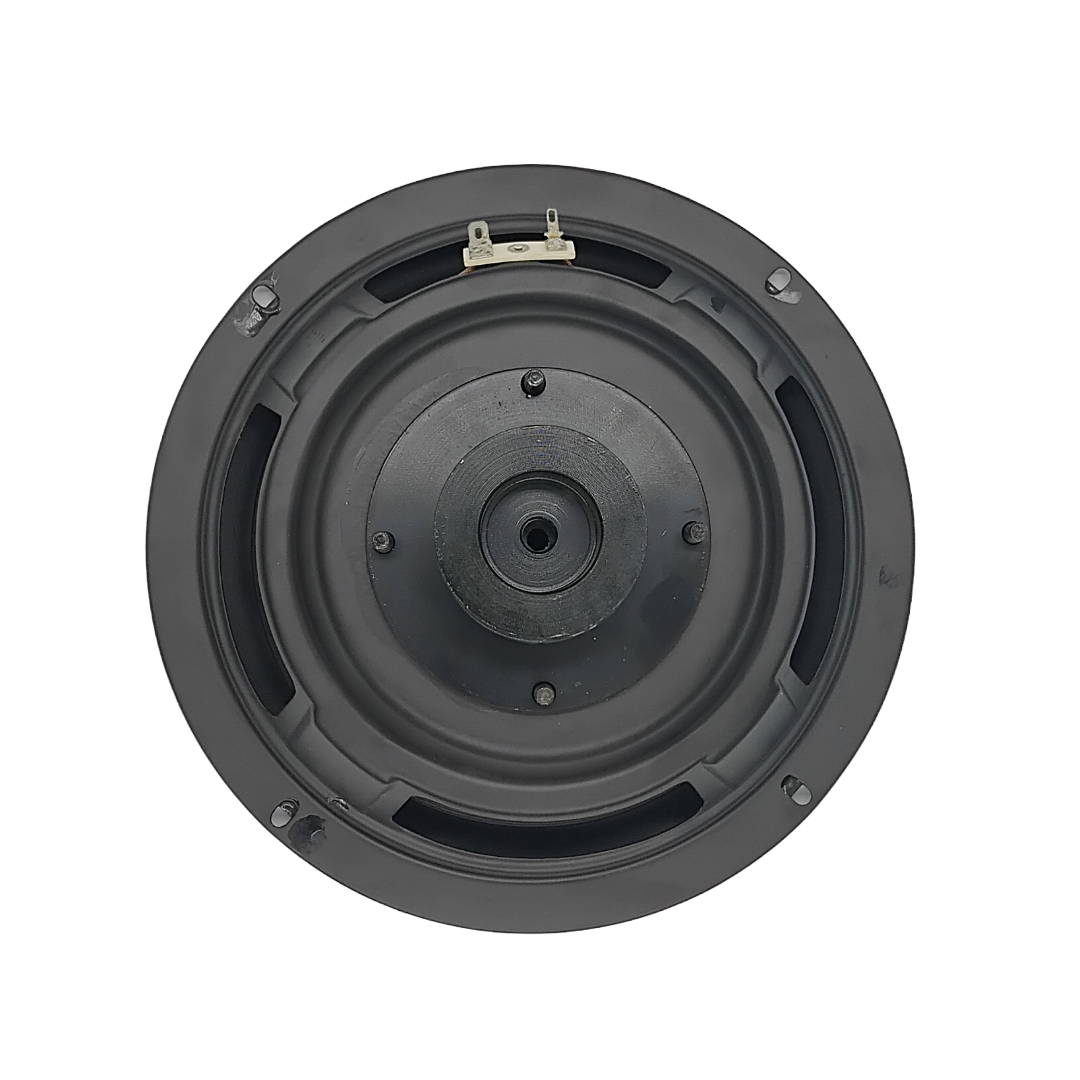

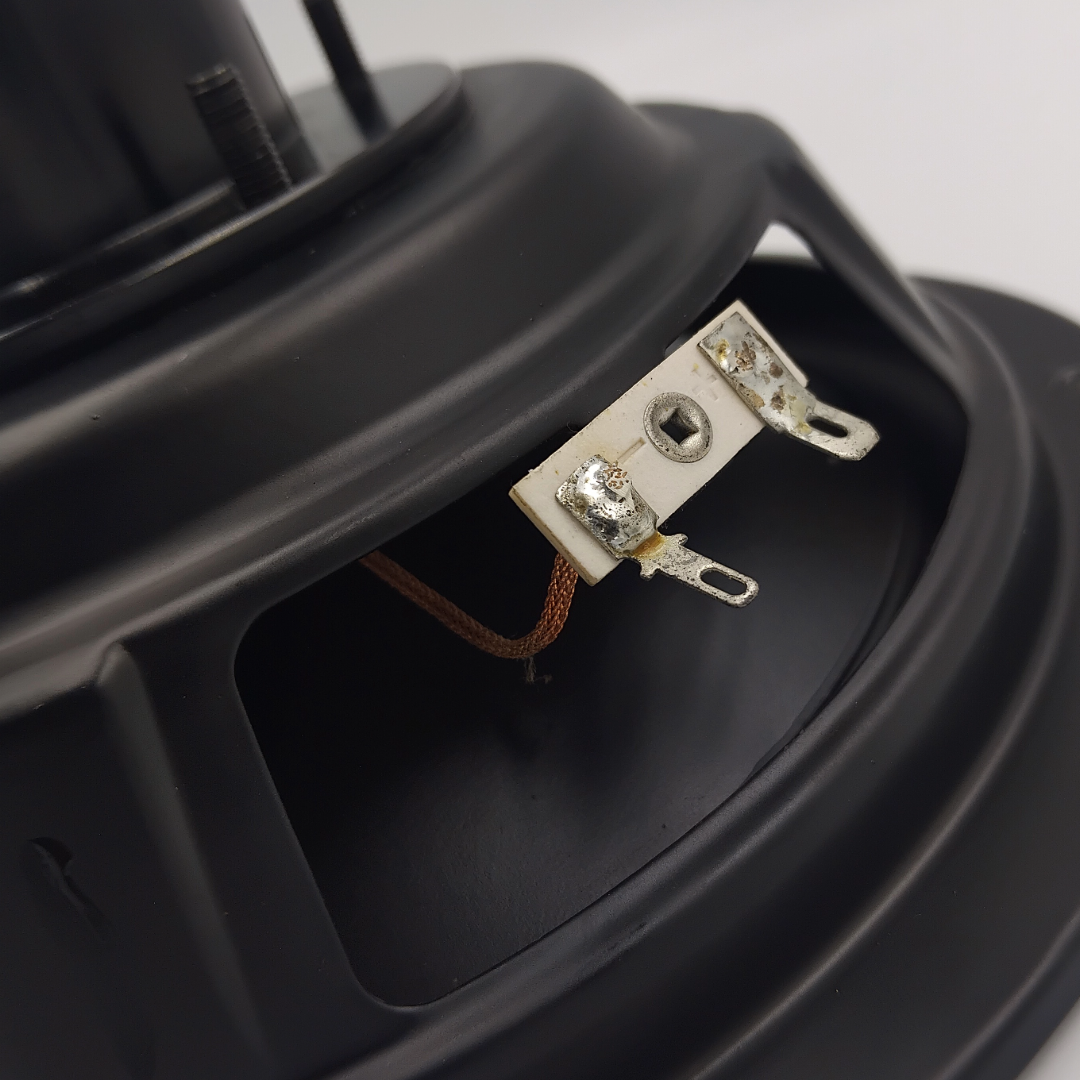

Kentech HT 8" Replacement Speaker (50W / 8 Ohm / Small Magnet)

R 89.00
Quantity:
↩ Easy Returns
🔒 Multiple Secure Payment Methods
💬 Friendly Advice Available
🚚 Delivery within 3–5 business days
Sku: 80203288
Visa Mastercard American Express Ozow MTN Mobile Money

  • Compact 8-inch low-to-midrange replacement speaker driver designed for lightweight PA enclosures, ceiling speakers, column arrays, and home audio systems.
  • Features a high-efficiency small ferrite magnet structure designed to offer reliable acoustic output while keeping total driver weight low for ceiling and wall-mount enclosures.
  • Constructed with a reinforced paper cone and a durable foam/cloth surround to provide smooth midrange reproduction and clear voice articulation.
  • Operates at 8 Ohms nominal impedance with a 50W continuous power handling capacity, making it a direct replacement for low-power or multi-driver cabinet configurations.
  • Ideal for sound technicians, DIY speaker builders, and AV repair specialists restoring background music speakers, public address systems, and small monitor wedges.
Key Features
  • Small Magnet Form Factor: Lightweight ferrite magnet design reduces rear enclosure depth requirements and overall speaker weight.
  • 50W Continuous Power Handling: Rated to deliver up to 50W RMS (100W Peak) continuous clean audio without thermal stress.
  • Universal 8-Ohm Impedance: Standard impedance rating allows seamless integration into standard crossover networks and parallel/series wiring setups.
  • Reinforced Paper Cone: Delivers natural voice and instrument reproduction with controlled resonance and warm tonal response.
  • Stamped Steel Chassis: Sturdy steel frame provides rigid mechanical support for the voice coil and suspension assembly.
Specifications
  • Model Code: HT 8" Small Magnet
  • Product Type: Low-Midrange Replacement Loudspeaker Driver
  • Nominal Diameter: 8.0 Inches (203 mm)
  • Continuous Power Handling (RMS): 50 W
  • Peak Power Handling: 100 W
  • Nominal Impedance: 8 Ohms
  • DC Resistance (Re): 6.8 Ohms (±0.4 Ohms)
  • Frequency Response Range: 65 Hz – 6,500 Hz
  • Sensitivity (1W/1m): 89 dB SPL
  • Voice Coil Diameter: 25.4 mm (1.0 Inch)
  • Voice Coil Former Material: Aluminium / KSV
  • Magnet Type: Compact Ferrite Magnet
  • Frame Material: Heavy-Gauge Stamped Steel
  • Cone Material: Pressed Reinforced Paper Cone
  • Surround Material: Treated Cloth / Foam Edge
  • Mounting Cutout Diameter: 182 mm
  • Overall Depth: 85 mm
  • Bolt Circle Diameter (BCD): 195 mm (4-Hole Standard Alignment)
  • Operating Temperature Range: -10°C to +55°C
  • Weight & Dimensions: 20.3 cm x 20.3 cm x 8.5 cm | 0.95 kg
What's in the Box
  • 1 x Kentech HT 8" 50W 8 Ohm Small Magnet Speaker Driver
Vendor Kentech
Type Replacement Speakers
Sku 80203288
Weight:  0.3 kg
