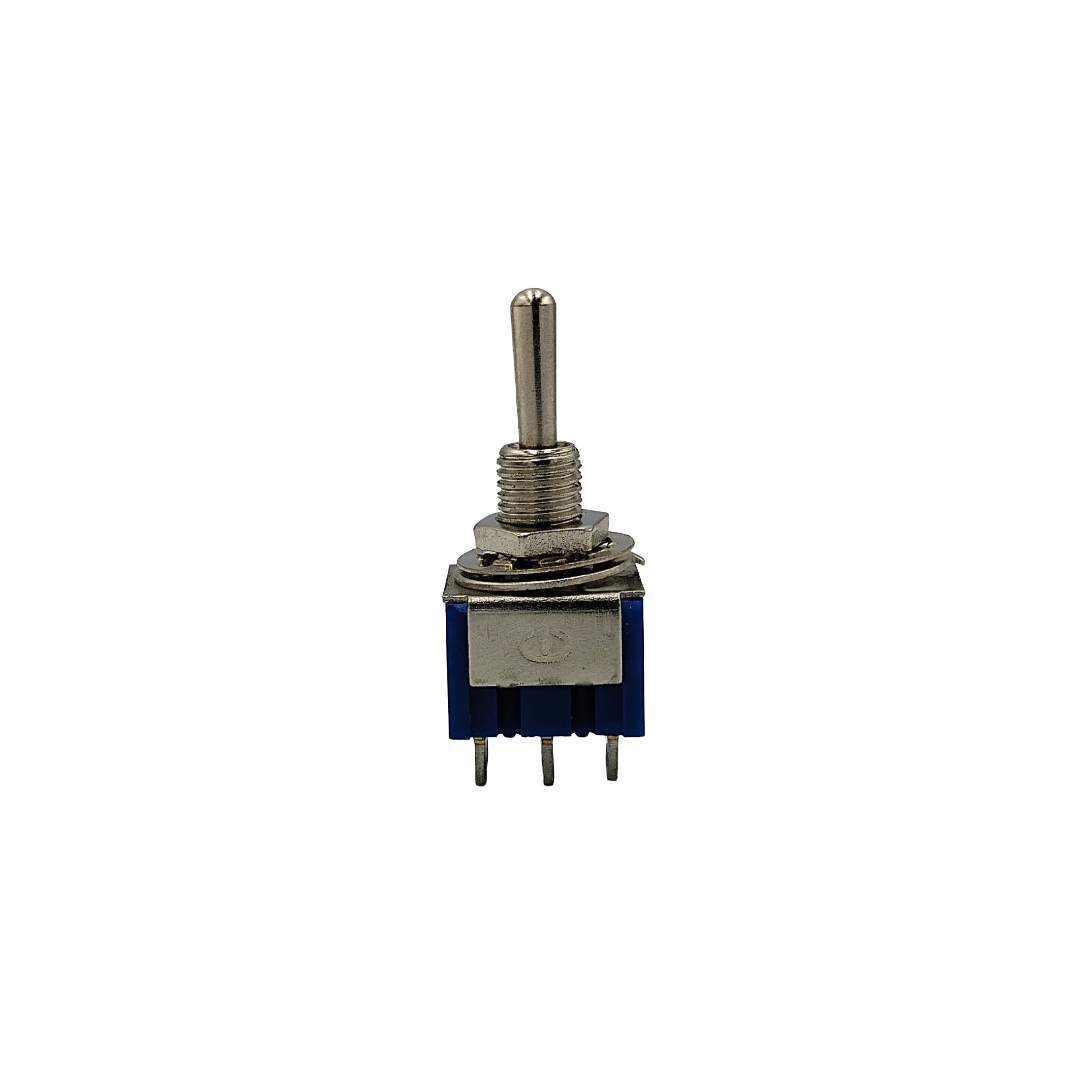

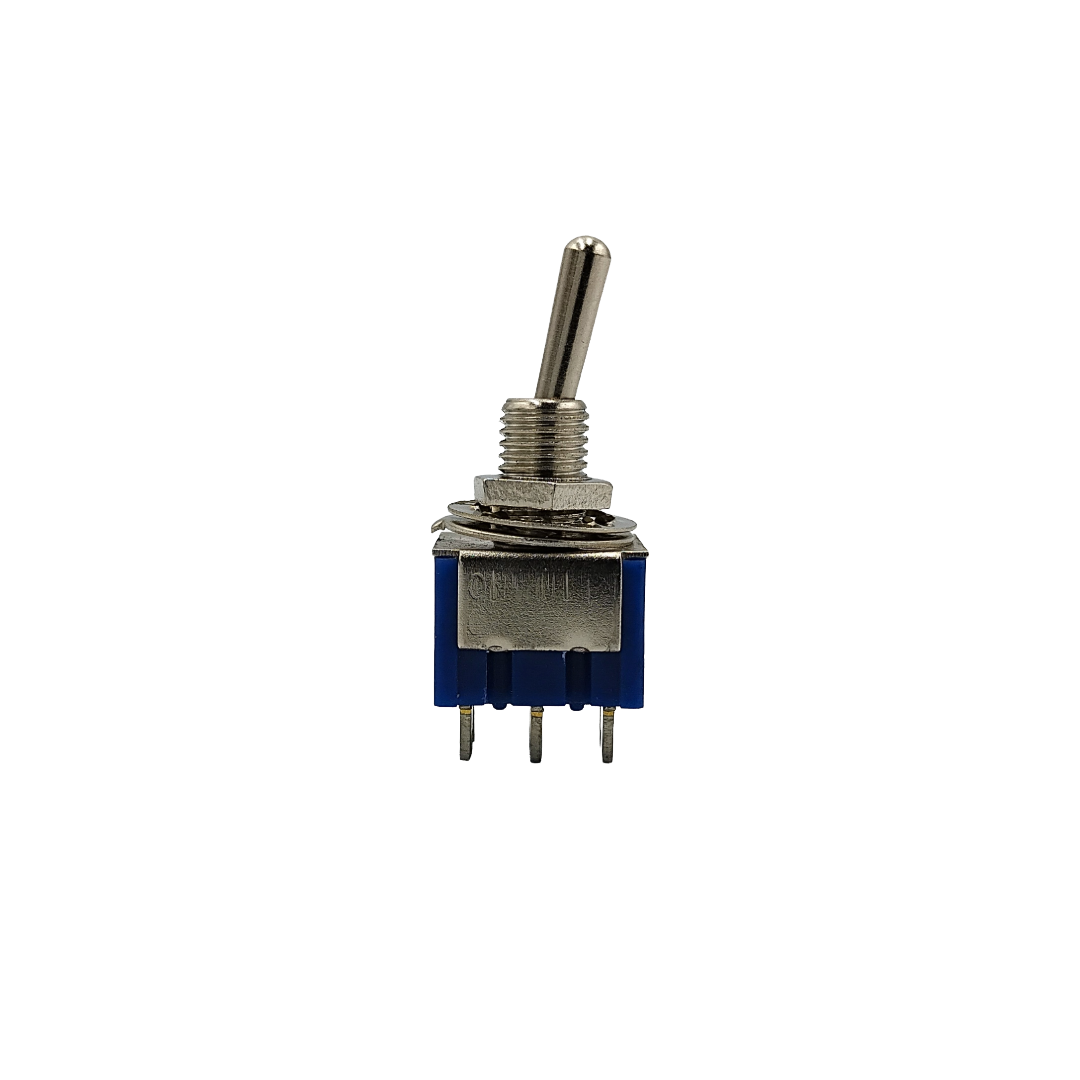

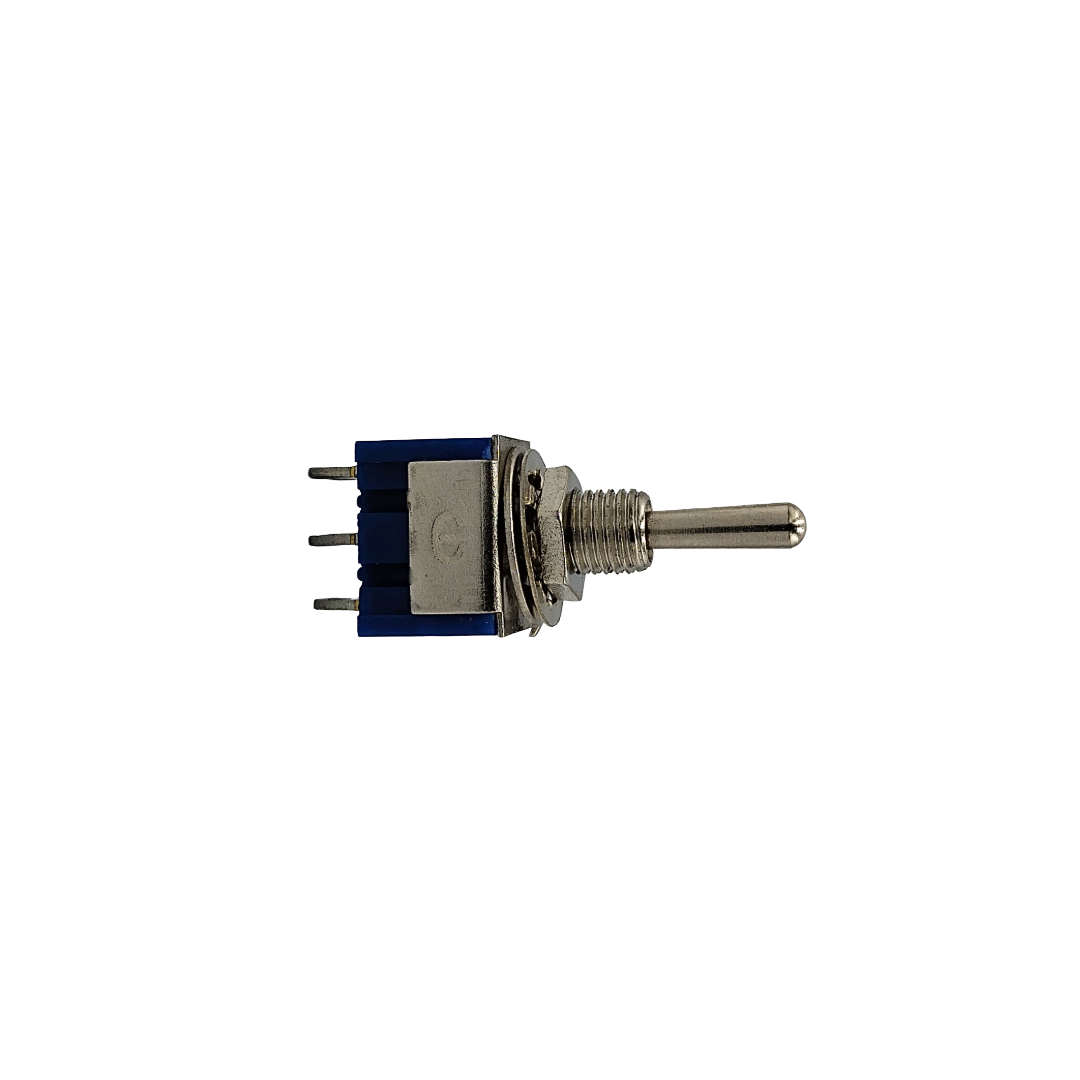

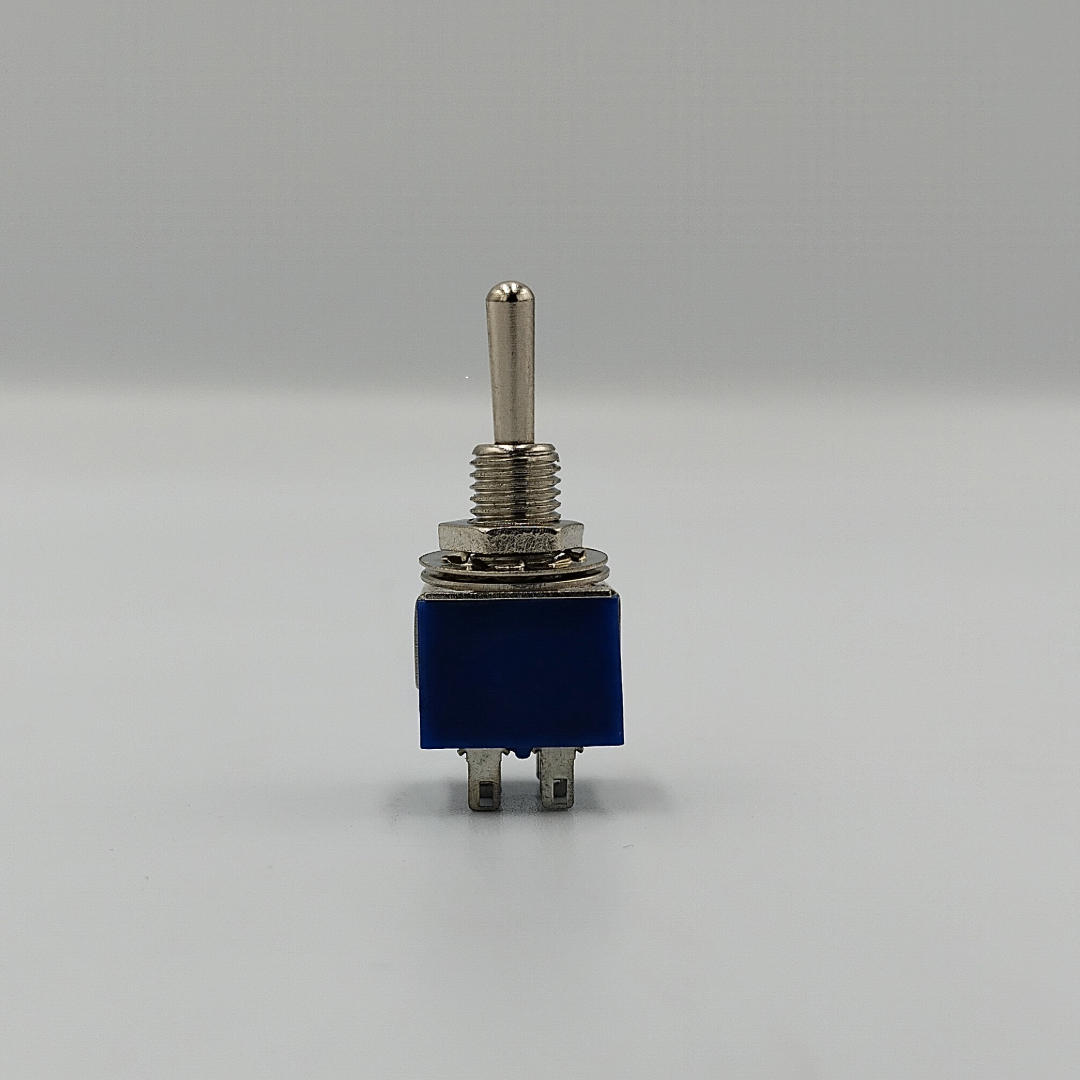

• Compact double-pole double-throw (DPDT) miniature toggle switch designed for panel mounting in electronic equipment, control panels, and custom DIY projects.
• Features a 6-pin terminal configuration allowing control of two separate circuits simultaneously with ON-ON or ON-OFF-ON switching behavior.
• Rated for electrical loads up to 6A at 125VAC (or 3A at 250VAC) for reliable performance across low-to-medium power applications.

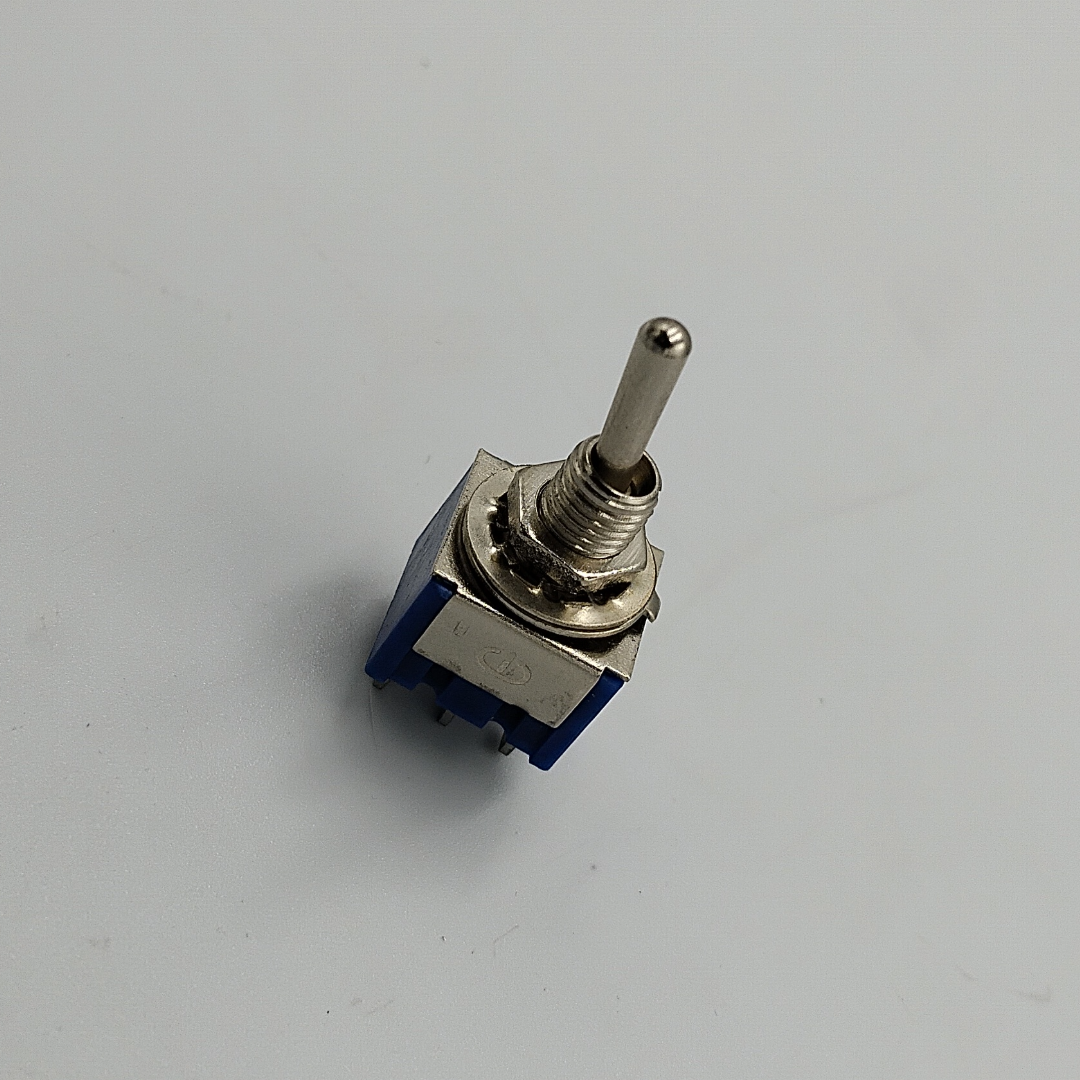

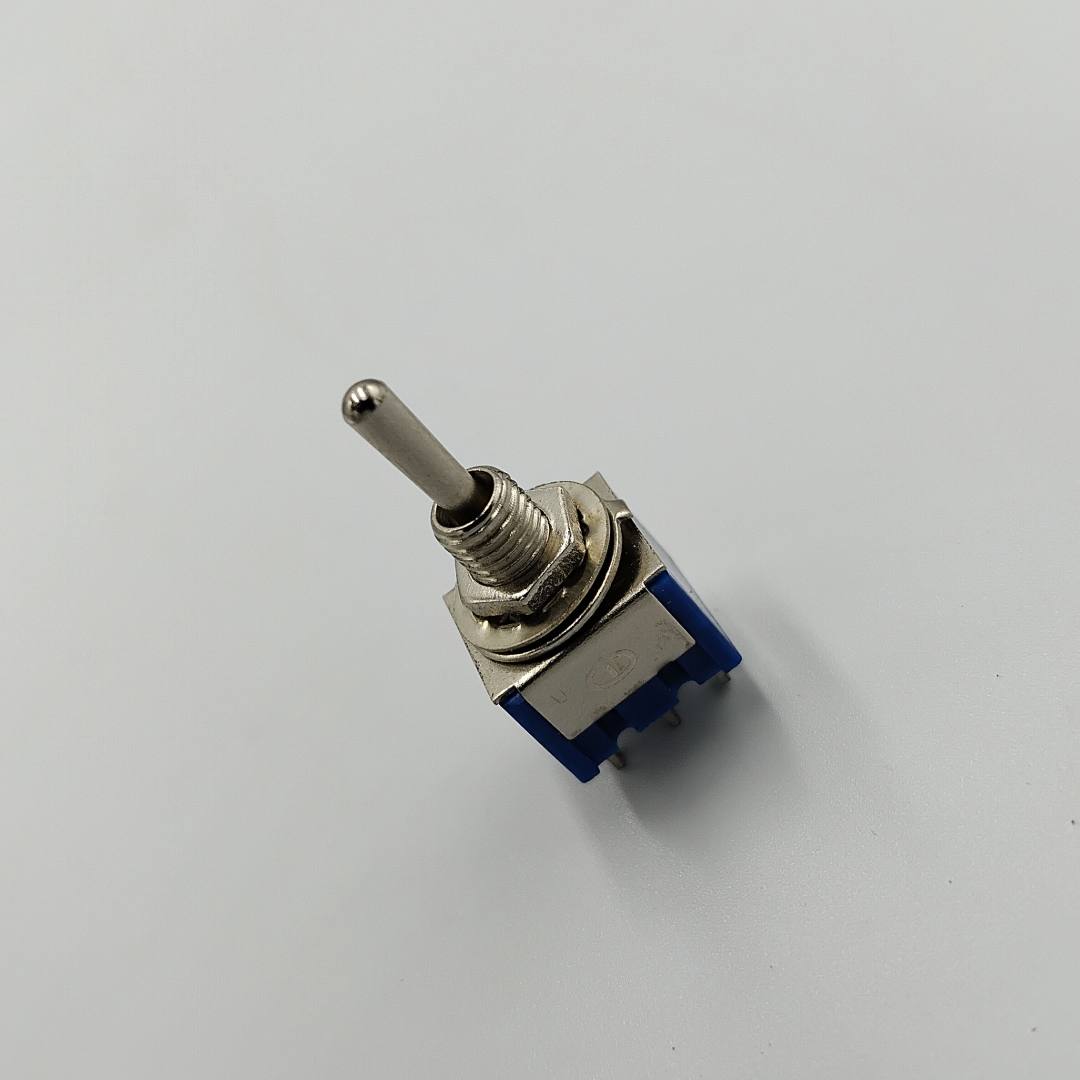

• Built with a threaded mounting neck and includes locking hardware (hex nut and lock washer) for secure panel installation.
• Provided as a single-piece pack (P1) ideal for replacements, prototyping, audio gear modifications, and custom control builds.

Features

• 1-Piece Pack: Single miniature DPDT toggle switch ready for individual assembly or panel repair.
• DPDT Circuitry: Controls two independent circuits at once, providing versatile polarity reversing or dual-line switching.
• Compact Miniature Footprint: Fits into tight enclosure spaces without compromising switching current capacity.
• Panel-Mount Hardware Included: Features standard threaded bushing complete with mounting hardware for quick installation.
• Solder Terminal Contacts: Sturdy terminal pins allow clean, low-resistance soldering to hookup wires or circuit leads.

Specifications

• Model / Part Number: G078 / G078P1 (P/1 = Pack of 1)
• Product Type: Miniature Toggle Switch
• Pack Quantity: 1 Piece
• Switch Function: DPDT (Double Pole Double Throw)

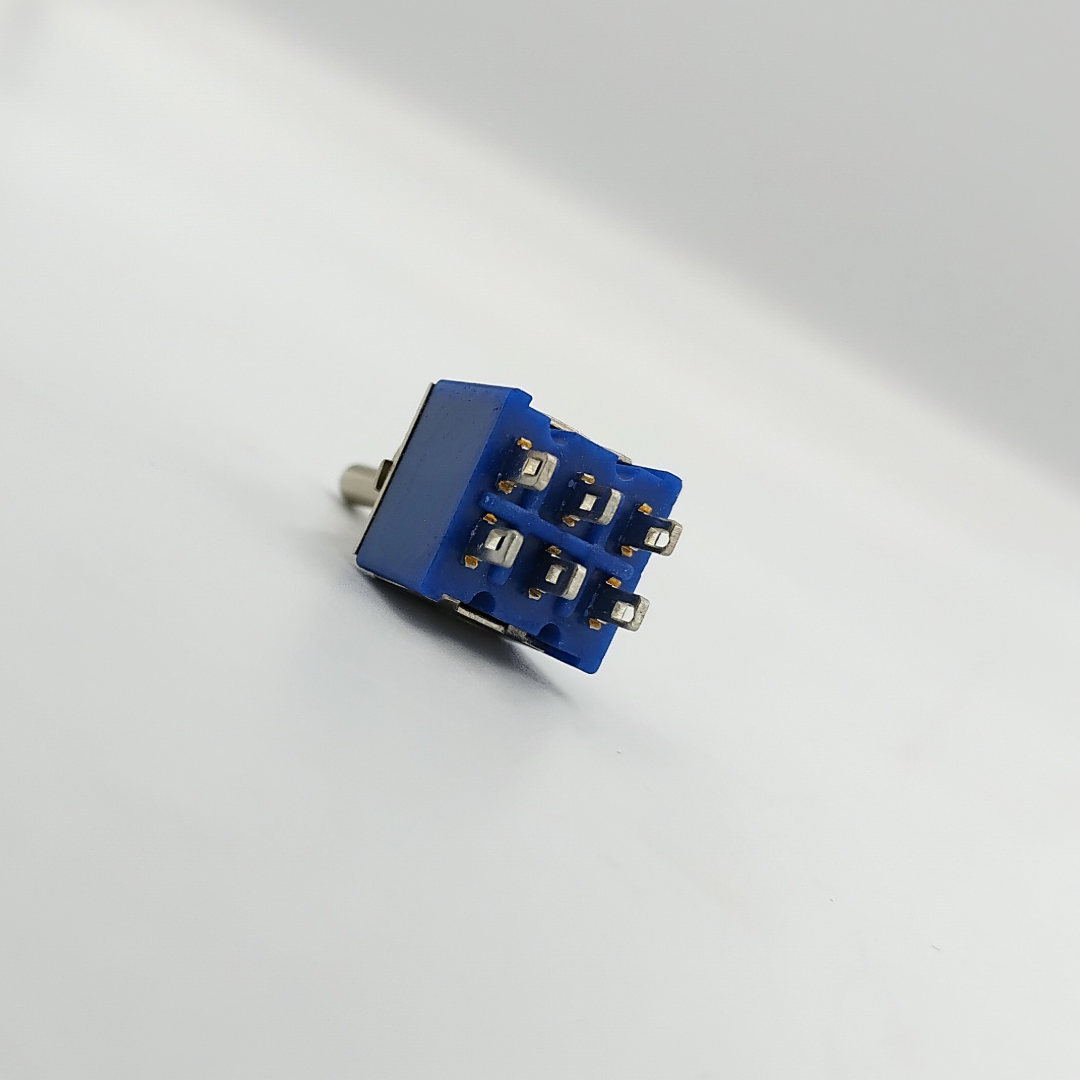

• Terminal Count: 6 Pins
• Contact Rating: 6A @ 125VAC / 3A @ 250VAC
• Actuator Style: Metal Bat / Toggle Lever
• Mounting Type: Panel Mount (Threaded Bushing)
• Termination: Solder Lugs
• Application: Power Switching, Audio Equipment, Model Railways, Polarity Reversal, Control Panels

What's in the Box?

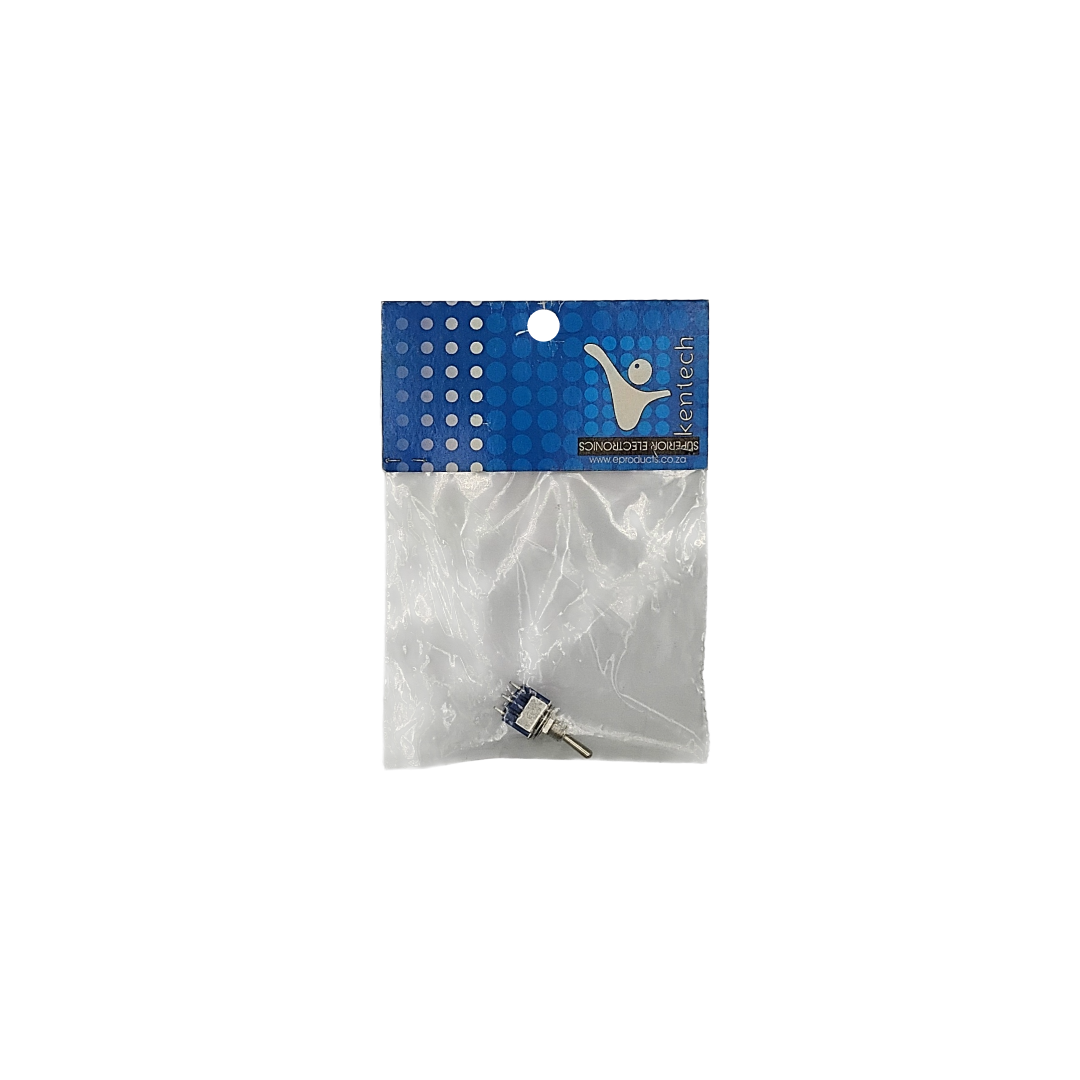

• 1 x Kentech G078 Miniature DPDT Toggle Switch
• 1 x Mounting Hardware Set (Hex Nut, Lock Washer, Keying Washer)
