• High-frequency compression driver replacement diaphragm designed for repairing damaged, blown, or degraded tweeter units.
• Manufactured to exact physical dimensions and acoustic specifications matching HT40D voice coil assemblies.

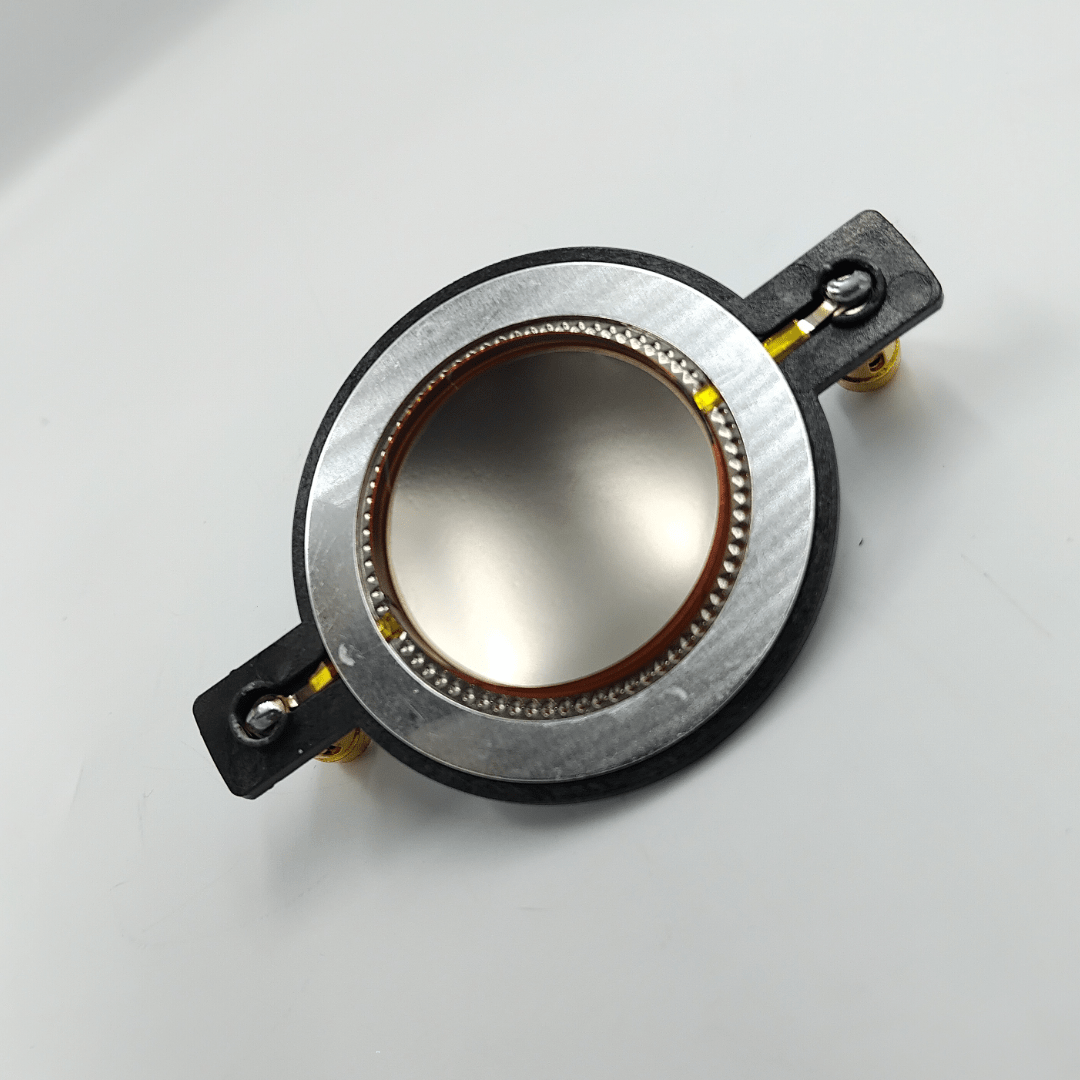

• Features a precision-formed dome diaphragm integrated with a lightweight aluminum voice coil wire for high sensitivity and crisp treble response.
• Equipped with pre-formed mounting holes and quick-connect spade terminals for straightforward, solderless drop-in installation during repairs.
• Ideal for sound technicians, PA repair specialists, and audio engineers servicing high-frequency horns and PA speaker cabinets.

Features

• Direct Fit Dimensions: Engineered to match the voice coil diameter and mounting hole pattern of HT40D driver assemblies.
• Crisp High-Frequency Output: Lightweight diaphragm material delivers detailed high-frequency response and clean sound reproduction.
• Thermal Heat Resistance: High-temperature voice coil former withstands elevated power levels during extended PA use.
• Easy Field Replacement: Simple alignment construction enables quick field replacement without specialized driver tools.
• Standard Terminal Lugs: Pre-mounted connector tabs facilitate secure, reliable wiring connections to the crossover network.

Specifications

• Model / Part Number: DIA-T-40P
• Product Type: High-Frequency Compression Driver Replacement Diaphragm
• Dimensional Compatibility: Matches HT40D Diaphragm Size
• Diaphragm Dome Material: Phenolic / Polymer Composite
• Voice Coil Material: Round Aluminum Wire
• Nominal Impedance: 8 Ohms
• Application: PA Speaker Cabinet Repair, Horn Driver Overhaul, High-Frequency Driver Servicing

What's in the Box?

• 1 x Kentech DIA-T-40P Replacement Diaphragm Assembly
