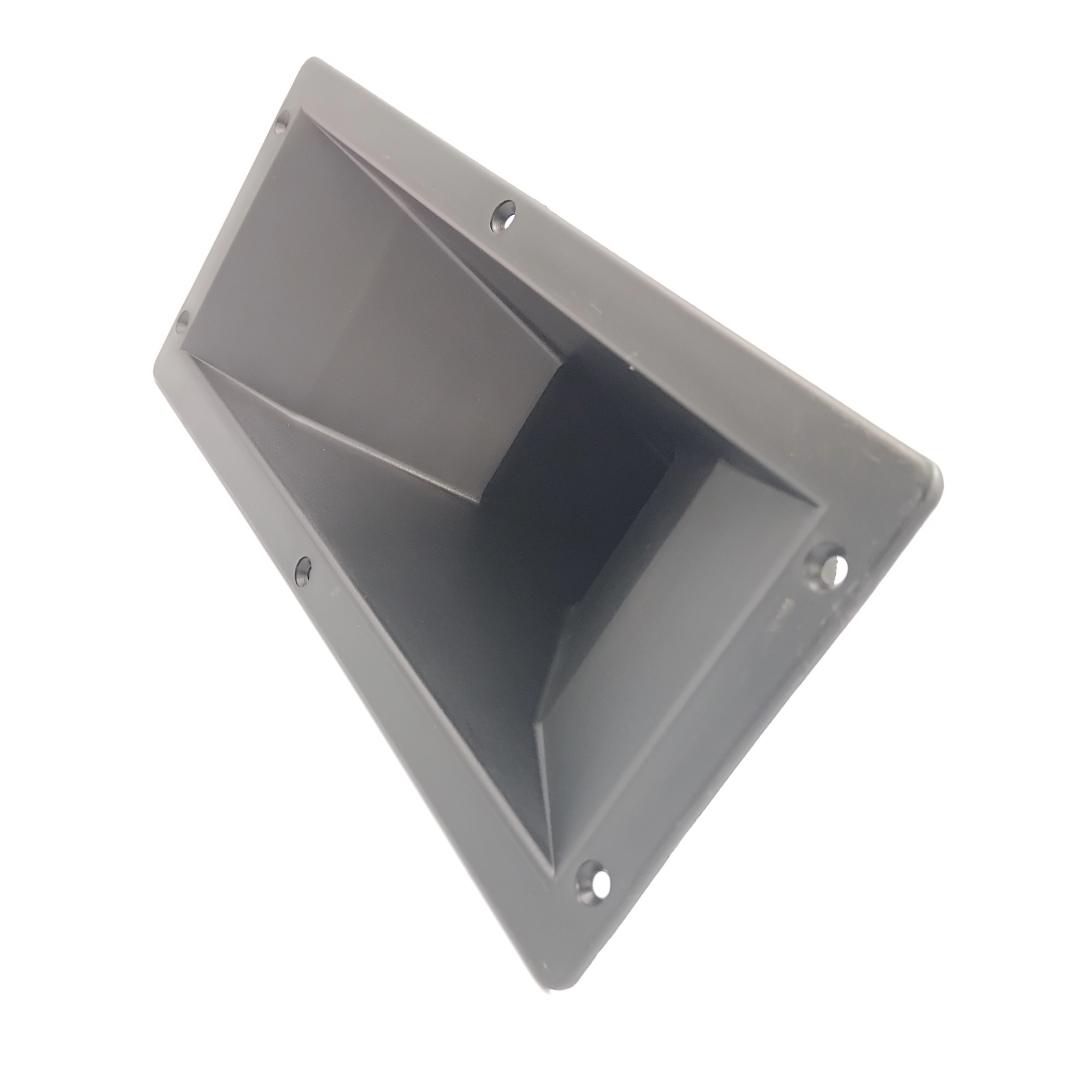

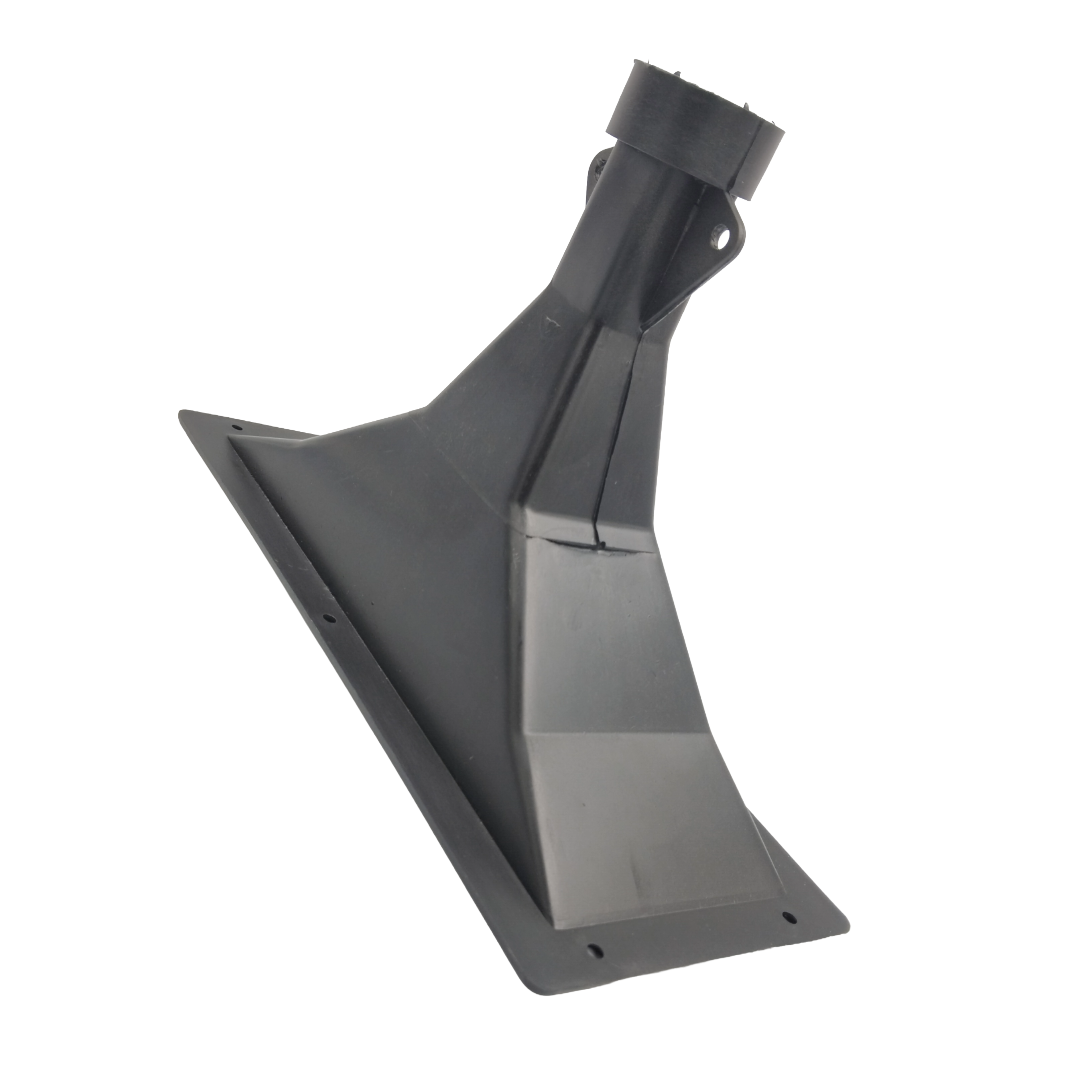

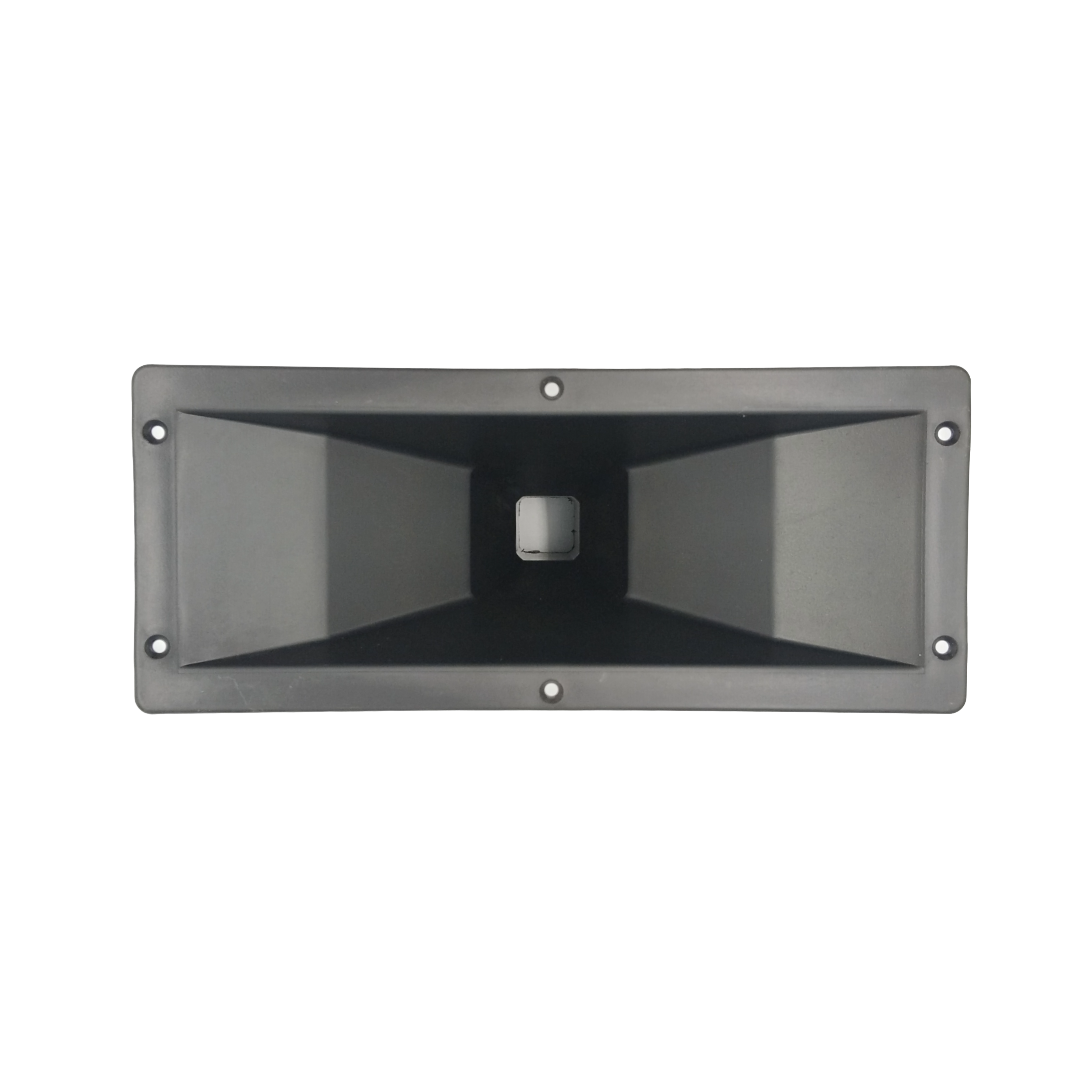

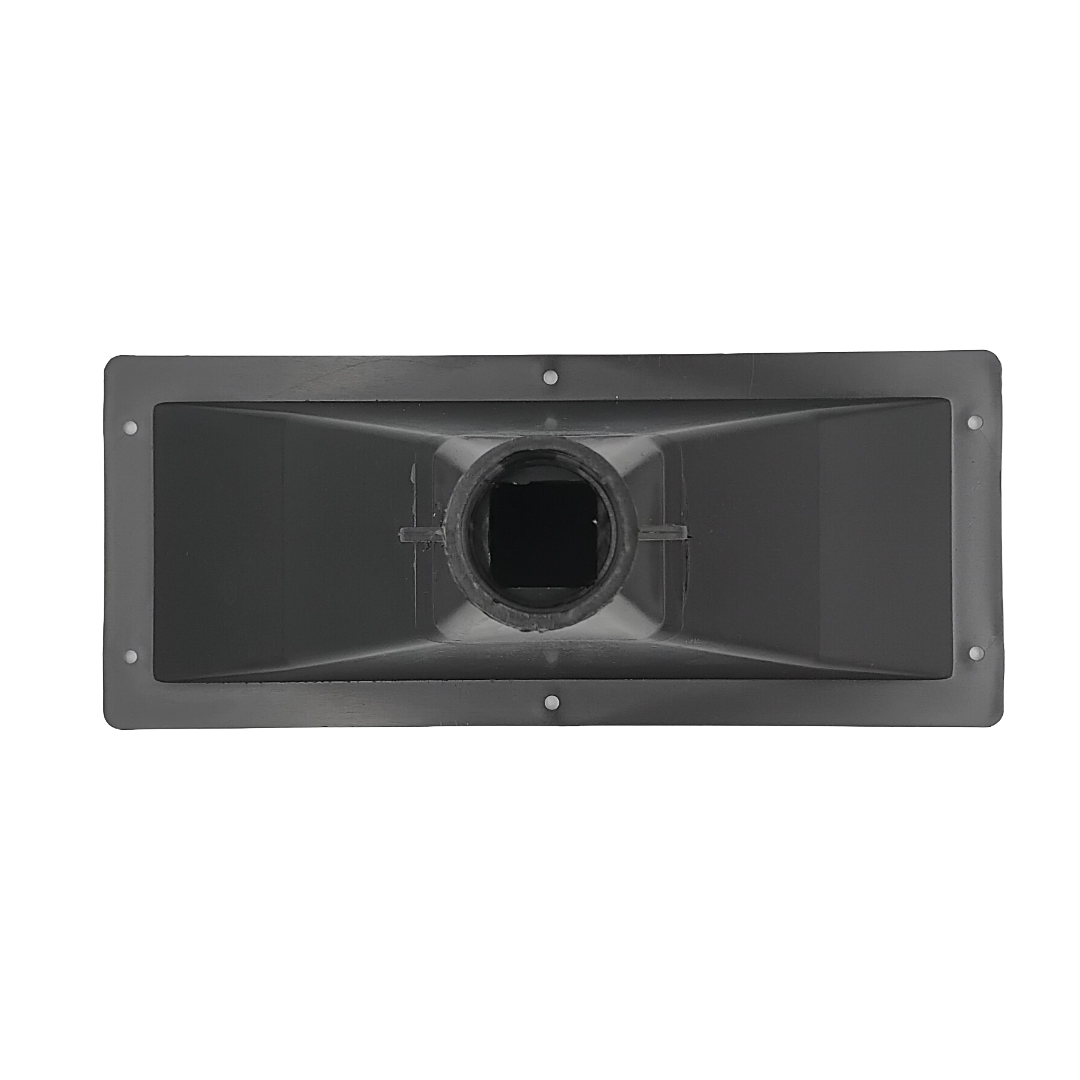

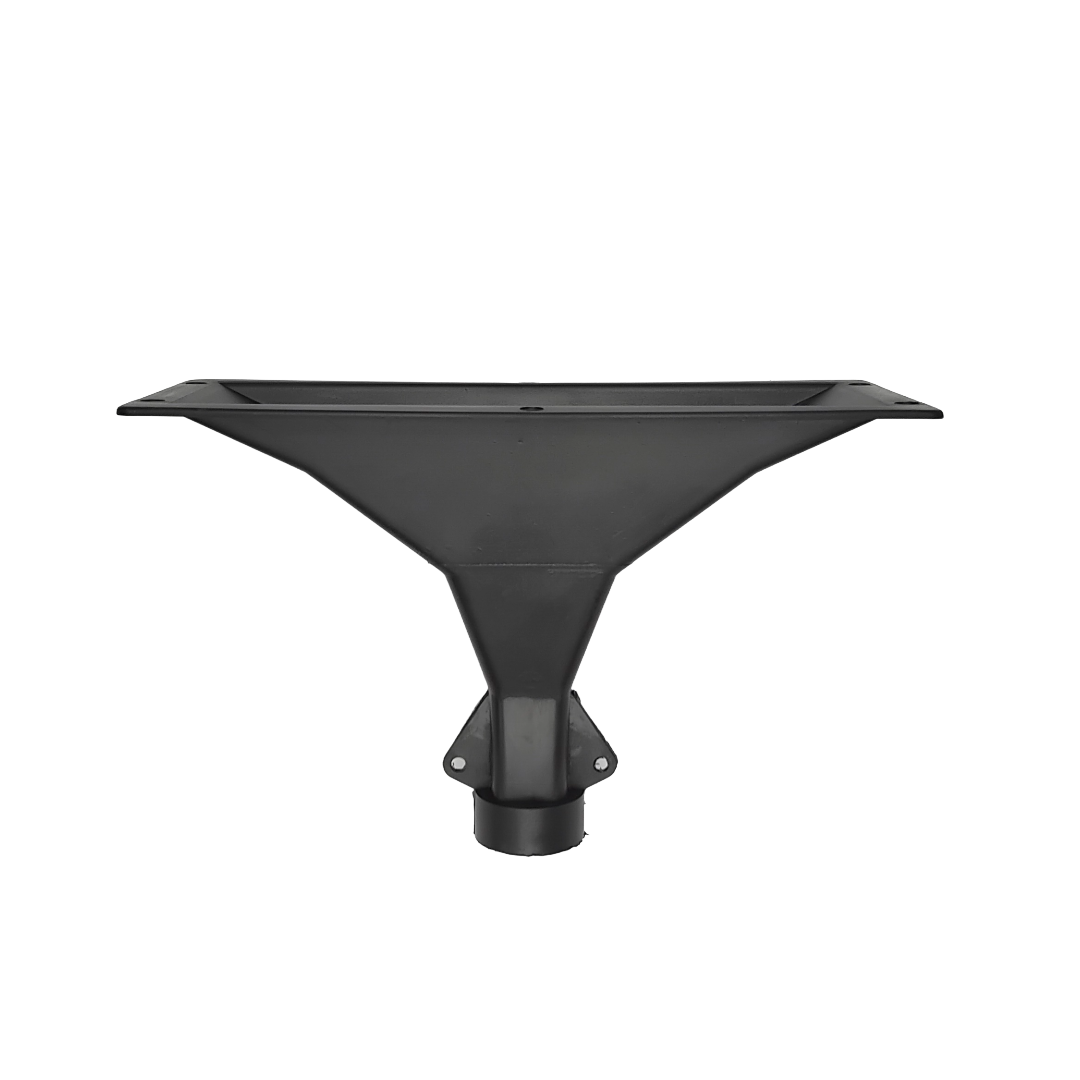

Kentech BM-337 High-Frequency Rectangular Horn Flare

R 89.00
Quantity:
↩ Easy Returns
🔒 Multiple Secure Payment Methods
💬 Friendly Advice Available
🚚 Delivery within 3–5 business days
Sku: 80453337
Visa Mastercard American Express Ozow MTN Mobile Money

  • High-performance 1-inch throat high-frequency horn flare designed for precise directional coverage and efficiency in multi-way PA loudspeaker enclosures.
  • Features a standard 1" (25.4 mm) threaded neck mount, making it compatible with a wide range of screw-on compression drivers.
  • Molded from high-density, acoustic-grade ABS plastic to minimize structural resonances and withstand outdoor environmental exposure.
  • Utilizes an optimized rectangular exponential expansion profile that ensures uniform horizontal dispersion and controlled vertical coverage.
  • Ideal for public address cabinets, outdoor horn arrays, DJ speaker enclosures, stage monitors, and venue sound installations.
Key Features
  • Universal 1-Inch Threaded Mount: Standard 1-3/8"-18 TPI screw-on thread accepts most standard 1" exit compression drivers.
  • Controlled Constant-Directivity Pattern: Provides smooth high-frequency dispersion to ensure consistent sound pressure coverage across the audience area.
  • Resonance-Damped ABS Construction: Heavy-walled structural plastic dampens unwanted acoustic ring and mechanical vibration.
  • Weather-Resistant Build: Corrosion-proof and UV-resistant polymer body makes it suitable for both permanent indoor and outdoor PA setups.
  • Rigid Mounting Flange: Pre-drilled perimeter mounting holes facilitate secure, flush front-baffle mounting in speaker cabinets.
Specifications
  • Model Code: BM-337
  • Product Type: High-Frequency Horn Flare / Waveguide
  • Throat Entry Diameter: 1.0 Inch (25.4 mm)
  • Driver Attachment: 1-3/8" - 18 TPI Screw-On Threaded Neck
  • Dispersion Coverage (H x V): 90° Horizontal x 40° Vertical
  • Cutoff Frequency (Fc): 1,000 Hz
  • Recommended Crossover Point: ≥ 1.5 kHz (12 dB/Octave Minimum)
  • Material Composition: High-Impact Acoustic ABS Polymer
  • Color / Finish: Matte Black
  • Baffle Cutout Dimensions: 265 mm x 115 mm
  • Mounting Type: Front Baffle Flush Mount (4-Hole Standard Corner Alignment)
  • Operating Temperature Limits: -20°C to +65°C
  • Weight & Dimensions: 29.5 cm x 14.5 cm x 16.0 cm | 0.45 kg
What's in the Box
  • 1 x Kentech BM-337 1" Threaded Horn Flare
Vendor Kentech
Type Speaker Parts & Accessories
Sku 80453337
Weight:  0.2 kg
