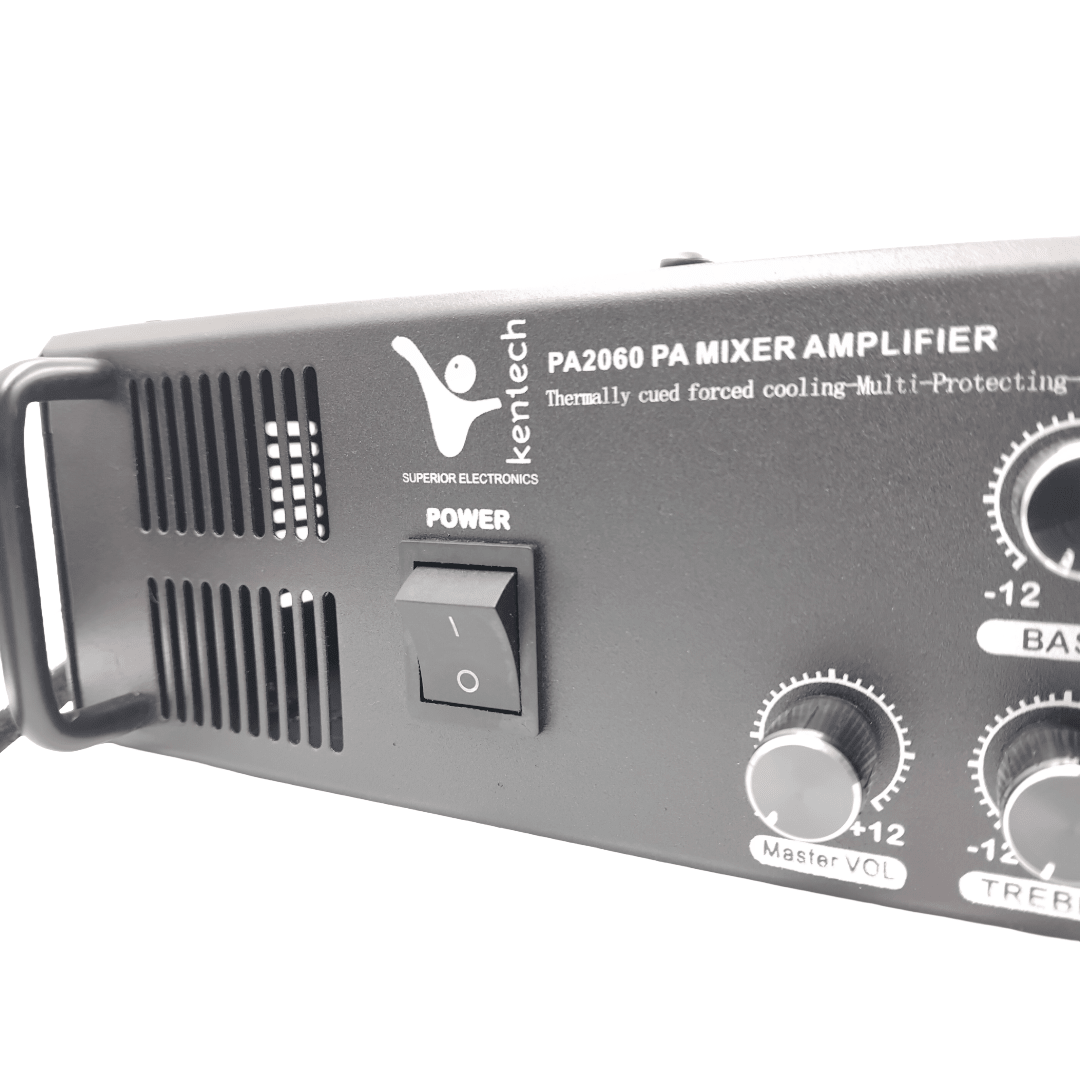

High-Performance Public Address Core: The Kentech PA2060 is a heavy-duty commercial mixer amplifier engineered to act as the primary power and management hub for complex multi-zone public address, emergency paging, and multi-source background music installations.
Continuous 60W RMS Power Output: Delivers a stable, true 60W RMS power stage capable of cleanly driving single or daisy-chained constant-voltage architectural speaker configurations without signal sagging or thermal clipping.
Dual-Format System Output Integration: Features multi-terminal output configurations supporting standard high-voltage 100V/70V distributed lines for long architectural wire runs, alongside standard low-impedance 4–16 Ohm options for localized high-fidelity passive speakers.

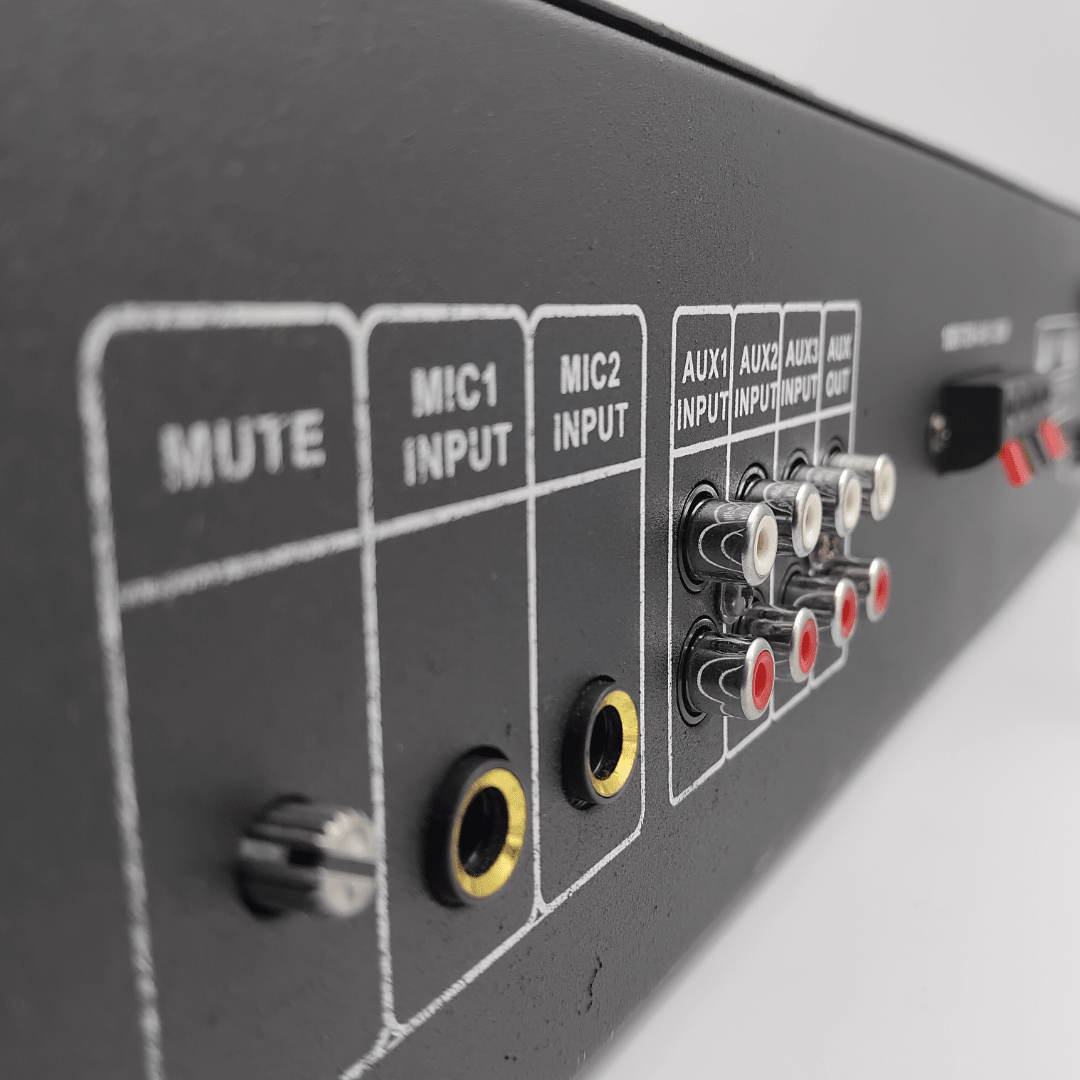

6-Channel Input Mixing Console: Integrated with an expanded front-end grouping comprising 3 independent microphone inputs (6.35mm jack or XLR) and 3 dedicated auxiliary line-level RCA inputs, enabling the simultaneous connection of paging mics, wireless receivers, media players, and satellite tuners.
Voice-Activated Priority Override: Equipped with an automated channel muting network (typically assigned to MIC 1), which instantly attenuates background music from the auxiliary channels whenever a vocal paging announcement is initiated.
Features

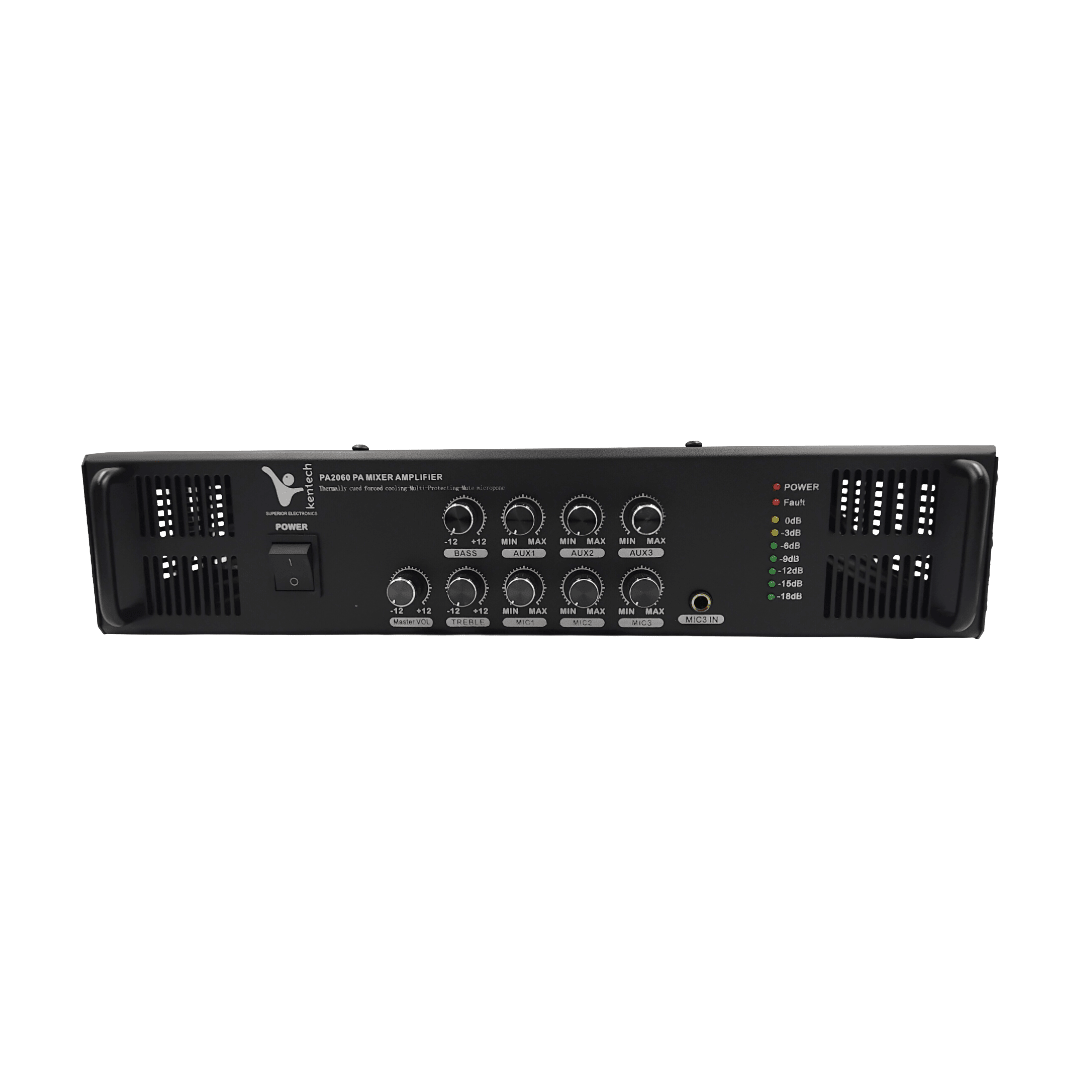

Independent Source Volume Adjustment: The front panel is laid out with dedicated rotatable gain dials for all 3 Mic and 3 Aux channels, giving system operators quick, localized mix equalization adjustments.
Global Master Bass and Treble Controls: Outfitted with global dual-band tone adjustment dials (100Hz and 10kHz shelving networks) to help audio installers adjust room acoustic resonance and balance clarity over horn or ceiling arrays.
Multi-Tier Fault Protection Circuitry: Features integrated internal safety modules providing automated protection against output short-circuits, impedance overloading, thermal spikes, and operational delay hum.
Luminous LED Signal Telemetry Matrix: Designed with an easy-to-read front indicator display featuring dedicated LED nodes for mains power tracking, signal presence detection, and peak clipping limit warnings.

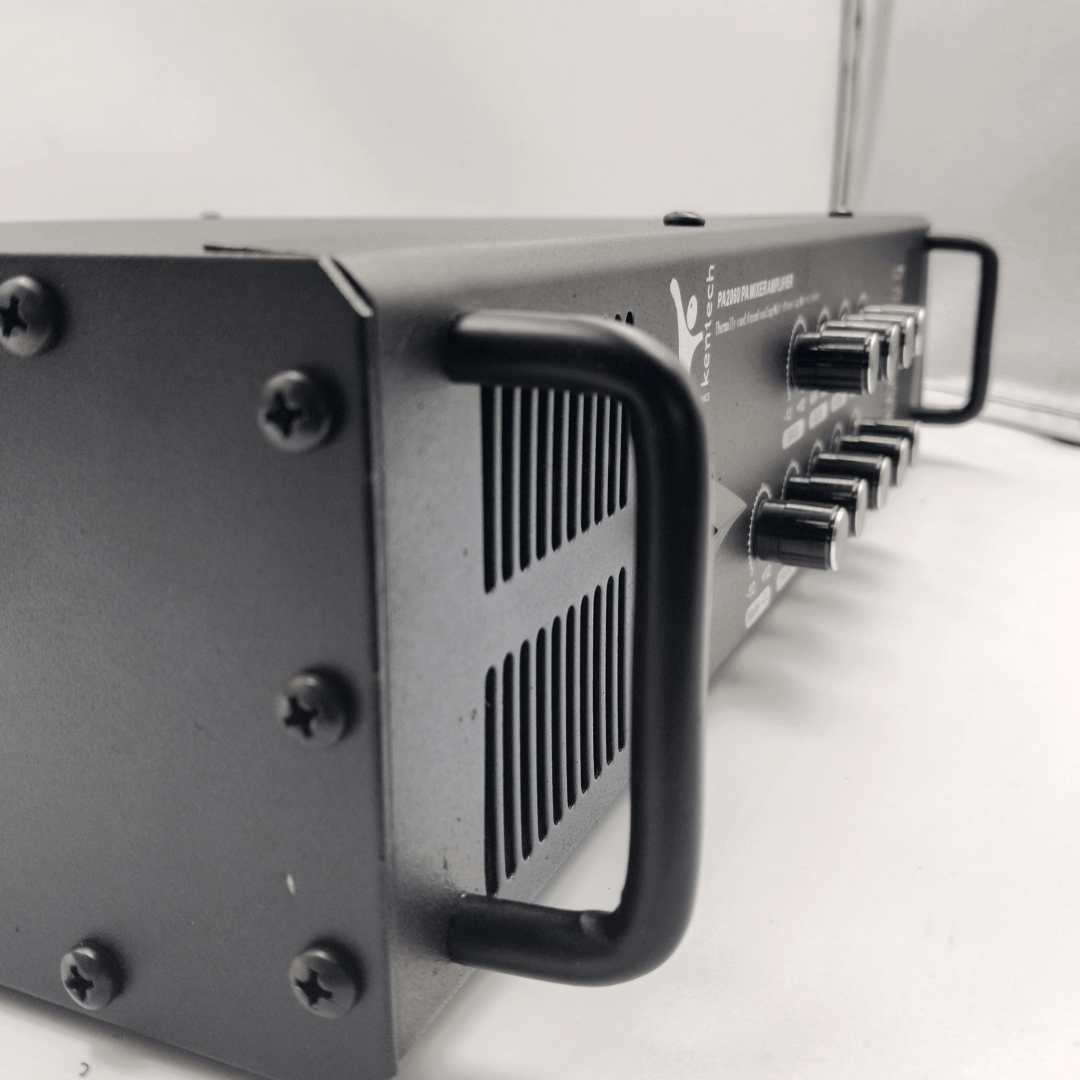

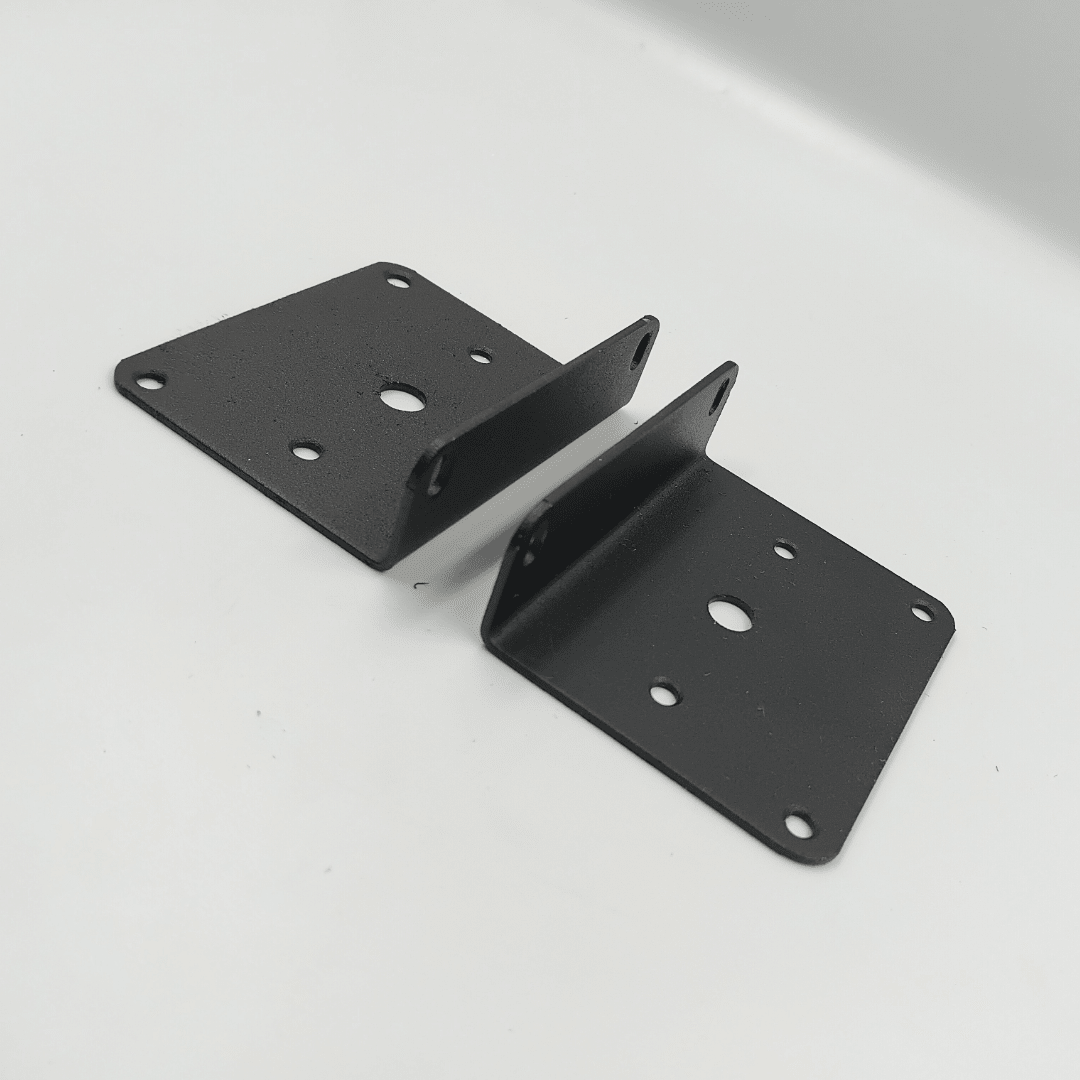

Standardised Equipment Rack Integration: Housed within a rugged, ventilated steel chassis that can sit comfortably on desks or be integrated directly onto commercial server/AV racking shelves.
Specifications
Product Line: Commercial Distributed Mixer Amplifier Series
Model Identification: 64155531
Rated Power Output Stage: 60W RMS (Continuous)
Output Interface Grid: 100V Line / 70V Line / 4–16 Ohms Low Impedance Terminal Strips
Input Interface Allocation: 3 x Microphone Inputs, 3 x Auxiliary Line Inputs (RCA format)
Output Expansion Ports: 1 x RCA Line Output (for loop-routing signals to additional booster amplifiers)
System Frequency Response: * Mic Channels: 100Hz to 15kHz
Aux Line Channels: 30Hz to 20kHz
Total Harmonic Distortion (THD): < 1% at 1kHz rated power
Signal-to-Noise Ratio (SNR): >= 70dB (Mic), >= 80dB (Line)
Primary Power Utility Supply: ~ 220V - 240V AC, 50/60Hz
Target Applications: Corporate Office Corridors, Educational Classrooms, Places of Worship, Retail Supermarkets, Training Centers, Fine Dining Restaurants, Distribution Warehouses
What's in the Box
1 x Kentech PA2060 60W 100V Mixer Amplifier Unit
1 x Heavy-Gauge Detachable AC Mains Power Cord
1 x Operational Configuration and Wiring Diagram User Manual
