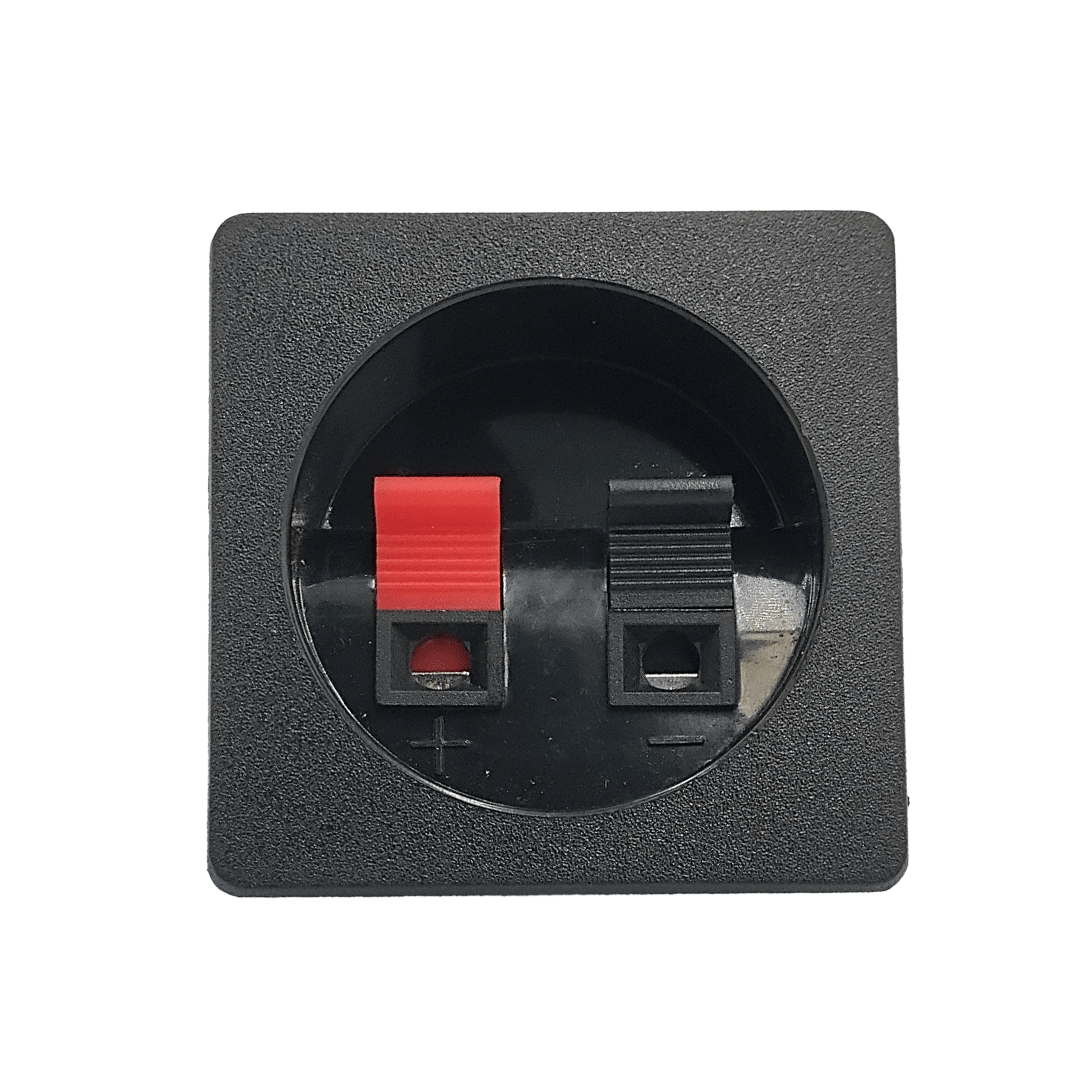

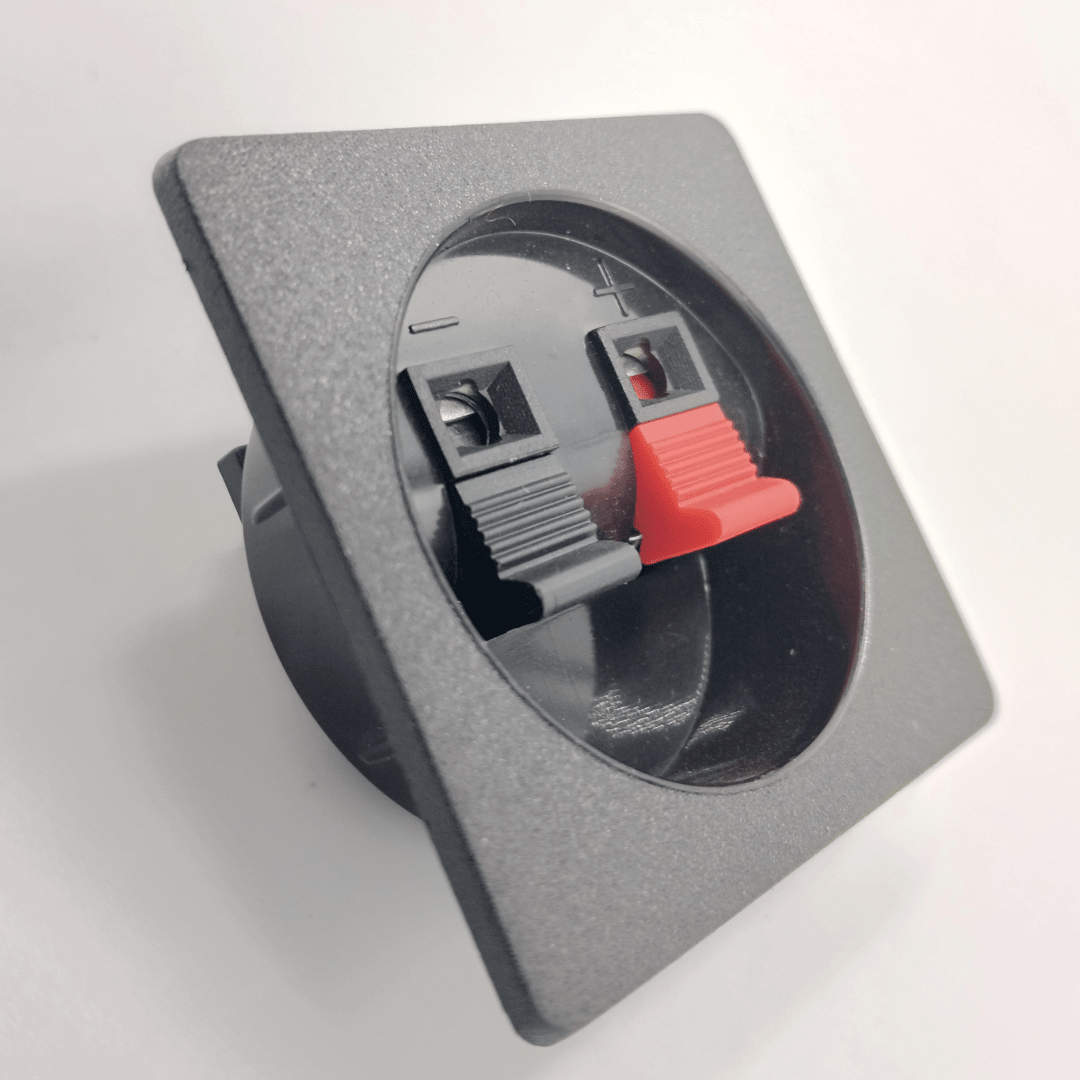

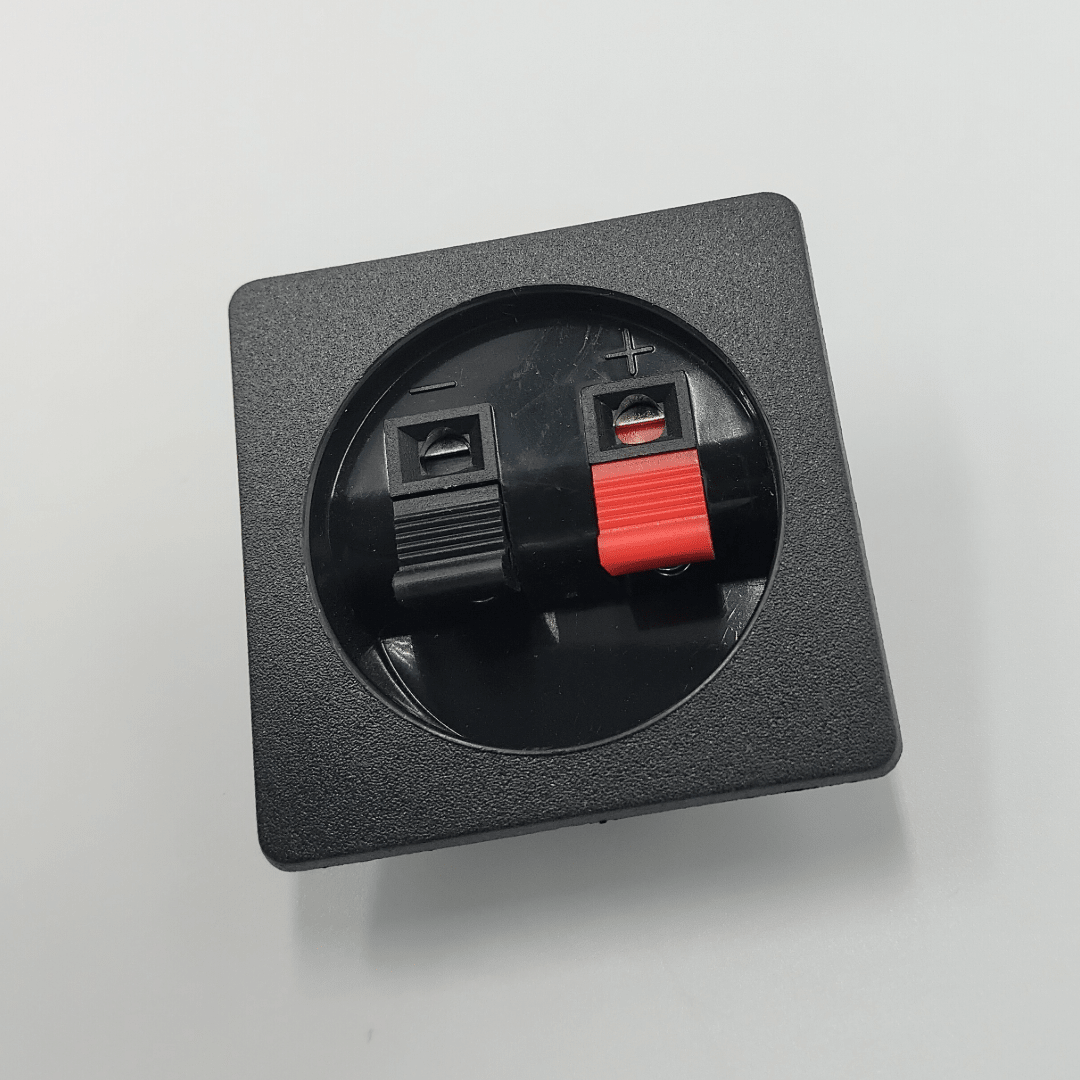

• Flush-mount speaker terminal cup designed for bookshelf speakers, surround sound enclosures, car audio subwoofers, and compact PA speaker boxes.
• Features color-coded red (positive) and black (negative) spring-loaded push clip terminals for fast, tool-free speaker wire insertion.

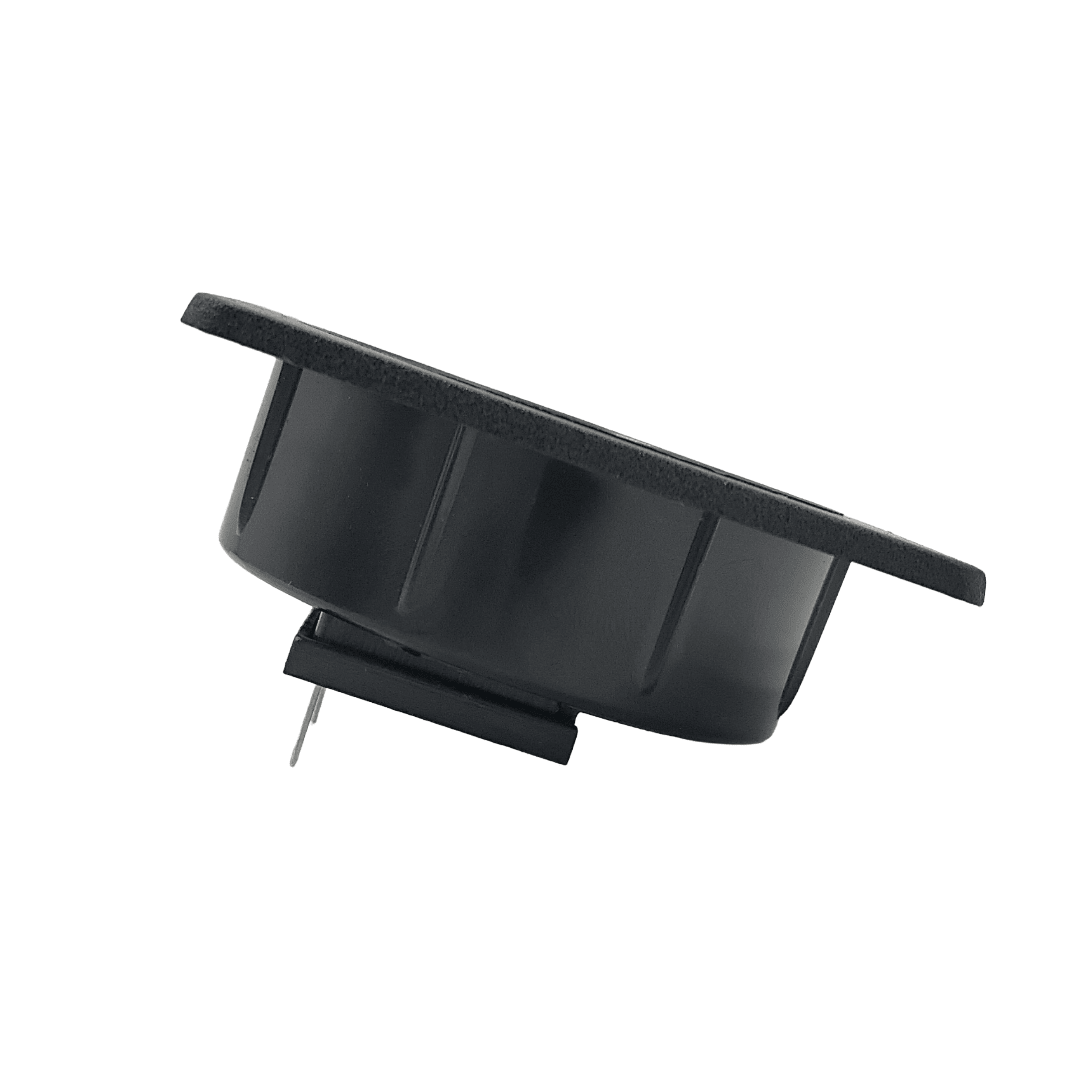

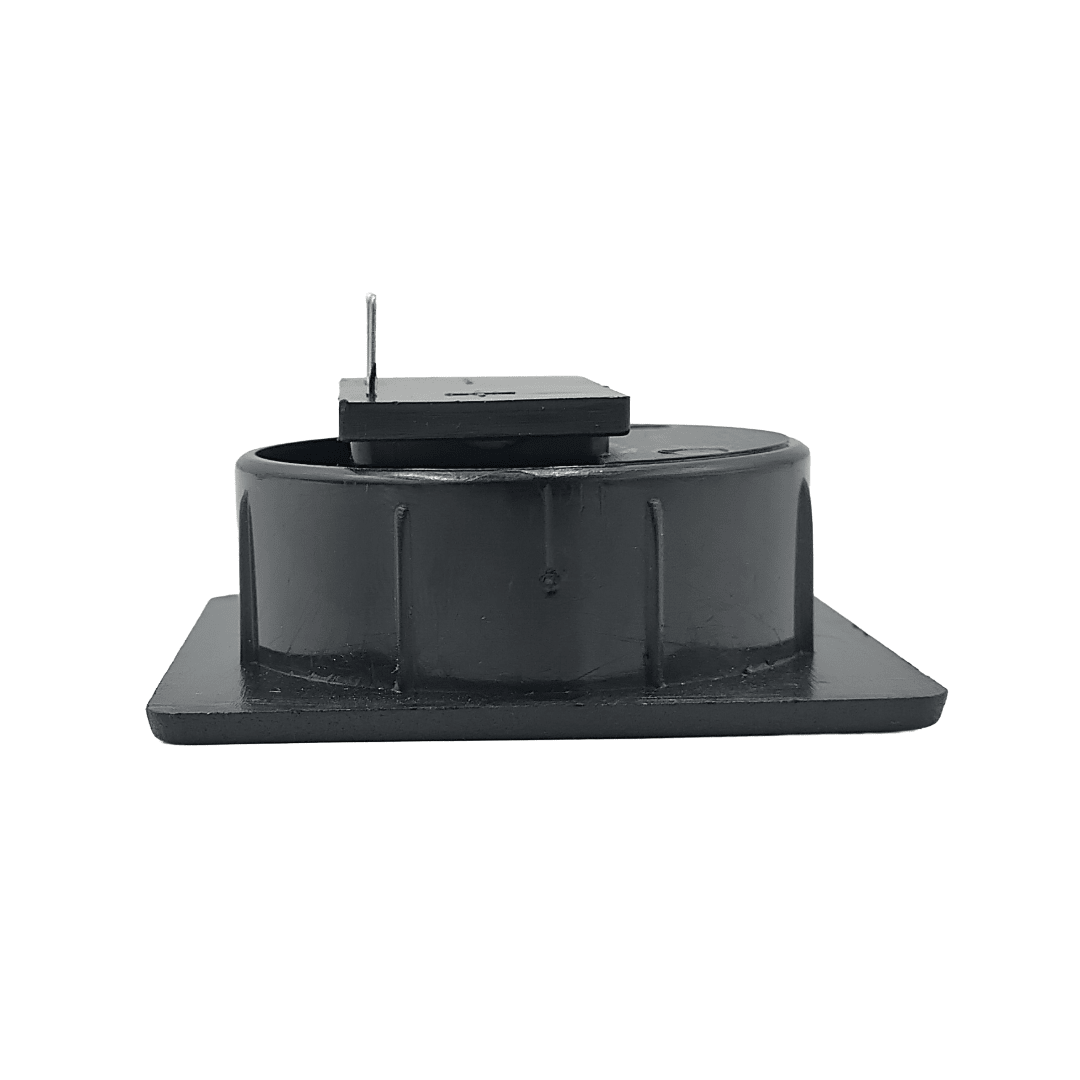

• Integrated rear terminal tabs allow easy internal soldering or push-on spade terminal connections directly to crossover networks or speaker drivers.
• Molded from durable, non-conductive ABS plastic to ensure an airtight seal on closed-box and bass-reflex speaker enclosures.
• Compact 56mm x 56mm footprint makes it an ideal replacement part for damaged speaker terminal cups or custom DIY audio projects.

Features

• Spring-Loaded Push Clips: Color-coded red and black levers ensure correct polarity matching and secure grip on bare speaker wire.
• Airtight Recessed Design: Deep dish cup mounts flush into enclosure walls to prevent air leakage and protect clip terminals from damage.
• Dual Rear Connection Options: Supports both direct wire soldering and standard fast-on spade connectors on the rear panel.
• Durable ABS Plastic Housing: High-strength, non-resonant plastic frame prevents electrical short circuits and cabinet panel vibration.
• Pre-Drilled Perimeter Mounting Holes: Allows quick, secure surface installation into wooden, MDF, or composite speaker cabinets.

Specifications

• Model Code: Y22-9 / TER100
• Product Type: Recessed Push-Terminal Speaker Cup Plate
• Dimensions: 56 mm x 56 mm
• Terminal Type: Spring-Loaded Push Clips (Red / Black)
• Material: High-Impact ABS Plastic
• Mounting Style: Flush-Mount Panel Cutout with Perimeter Screws
• Application: DIY speaker boxes, bookshelf speakers, home theater enclosures, subwoofers, and audio box repairs

What's in the Box?

• 1 x Jumbo Audio Y22-9 / TER100 Speaker Terminal Box Plate (56mm x 56mm)
