• The Professional Dual-Eye RGB/RGV Full-Color Laser System is a premium, performance-grade entertainment visual effect solution engineered to project ultra-sharp, high-intensity aerial beams and complex geometric animations.
• Powered by a advanced multi-wavelength laser diode matrix paired with high-speed motorized scanning mechanics, this dynamic fixture is meticulously tailored for lighting designers, mobile DJs, nightclub installers, and event production companies who require high-impact, multi-dimensional laser architecture to elevate dance floors and concert stages.
• Operating across multiple automated, sound-responsive, or digital control configurations, the system delivers razor-sharp visual projection through twin synchronized output apertures.
• The unique dual-eye layout dramatically multiplies your room coverage, throwing wide-angle liquid sky boundaries, spatial tunnels, and intricate laser webs simultaneously.
• Housed in a compact, tour-ready structural casing, the fixture features a comprehensive 9-channel DMX routing matrix alongside physical hardware DIP switches, ensuring seamless integration into complex light shows or immediate plug-and-play operation right out of the box.

Features

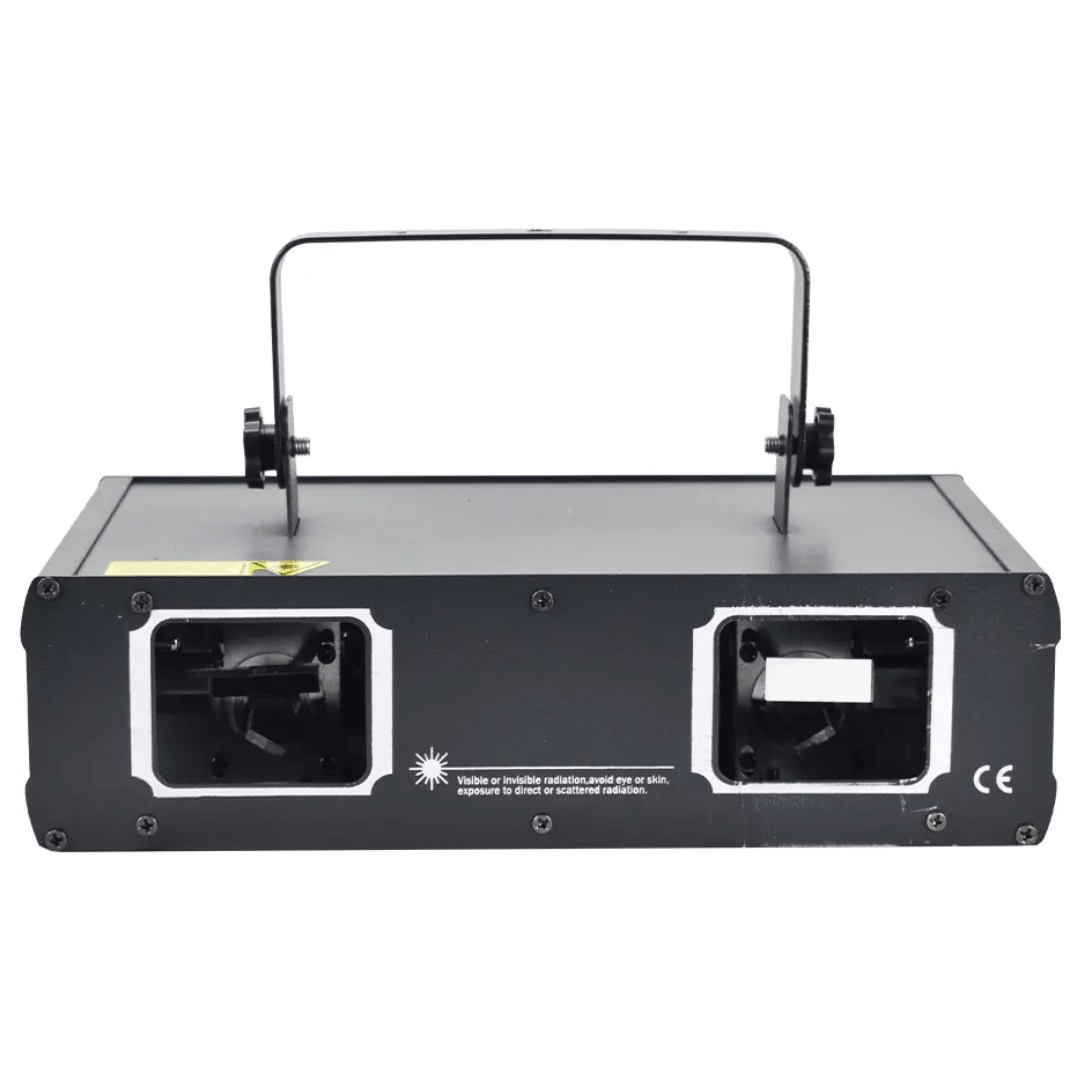

• High-Intensity Dual-Aperture Output: Engineered with twin synchronized laser projection windows.
• This multi-eye configuration is perfectly optimized to double the spatial beam density and wide-angle visual reach, flooding massive venue spaces without requiring multiple separate fixtures.
• Vibrant RGB/RGV Spectrum Color Mixing: Built with premium Red (650nm), Green (520nm), and high-contrast Violet (405nm) solid-state laser diodes.
• This multi-wavelength matrix is ideal for painting air and surfaces in sharp primary tones or blending unique, neon-rich full-color geometric combinations.
• 25 Pre-Programmed Geometric Patterns: Configured with an internal library containing 25 pre-loaded aerial shapes, tunnels, fans, wave lines, and spinning matrices.
• This versatile graphics bank is critical for delivering high-end corporate showmanship or high-energy rave dynamics at the touch of a button.
• Precision ±25° Motorized Scanning System: Driven by high-accuracy, rapid-response stepping motor scanners.
• This agile physical mechanics array is essential for executing fluid, high-speed beam sweeping, artifact-free scaling, and crisp, twitch-free pattern drawing during intense tempos.
• Comprehensive 9-Channel DMX512 Control: Outfitted with full digital mapping over laser modes, pattern selection, rotation speed, 3D axis position sizing, and color chasing.
• This granular control profile is perfect for programming tightly synced, timecoded cues via standard lighting consoles.
• Hassle-Free Sound Active and Diagnostic Testing Modes: Features a sensitive onboard acoustic microphone alongside dedicated hardware diagnostic DIP switches.
• This user-friendly control option is perfect for automatic rhythm-matching operation or rapid, tool-free square/dot grid alignment testing on-site.

Specifications

• Component Type: Professional Dual-Eye Full-Color RGB/RGV Laser Effect System
• Model Designation: IM-STINGRAY2 (Stingray 2 Series)
• Laser Source Profiles: Red Diode (650nm) + Green Diode (520nm) + Violet Diode (405nm)
• Beam Geometry Divergence: Ultra-Focused <1.5 mrad Line Accuracy
• Scanner Mechanical Range: High-Speed Stepping Motors with ±25° Optical Sweep Window
• Internal Graphic Library: 25 Pre-Programmed Dynamic Spatial and Geometric Effects

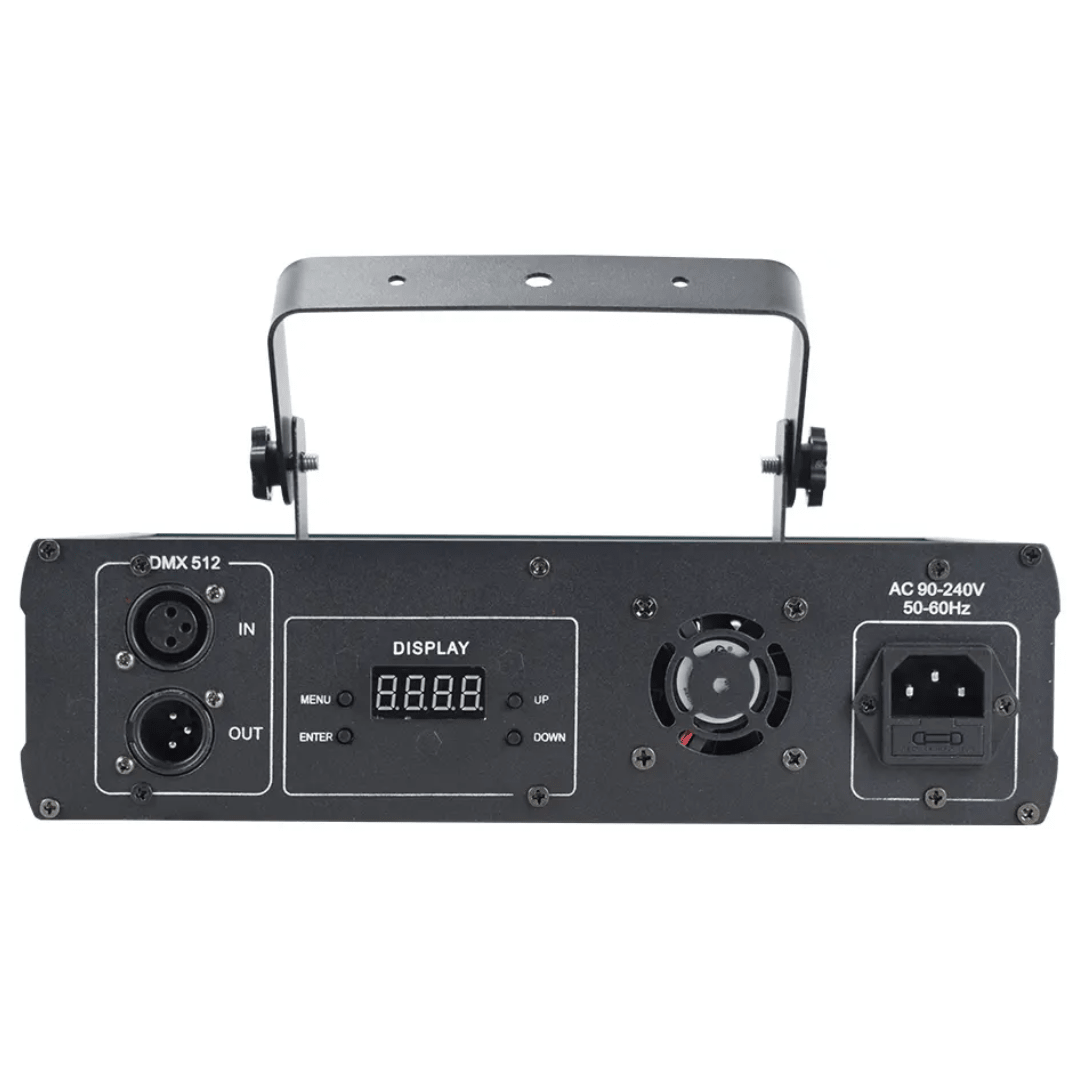

• Digital Protocol Control Interface: DMX512 (9-Channel Profile) / 3-Pin XLR Input and Output Loops
• Operational Mode Matrix: DMX-512 Slave, Audio Sound-Active, Auto Run, Master/Slave Synchronization, Diagnostic Test Grids
• Hardware Address Setup: 10-Position Binary DIP-Switch Panel Block
• Operating Line Voltage: Smart Switching AC 100V - 240V, 50/60Hz Universal Supply
• Compliance Certification Safety: Standardized IEC/EN 60825-1 Protocol Compliance Architecture
• Structural Chassis Weight: 2.0 kg
• Enclosure Physical Dimensions: 33 cm × 24 cm × 15 cm
• Primary Application: Nightclub dance floors, mobile DJ concert rigs, live band music stages, large banquet event halls, haunted attractions, and theatrical ambient effects

DMX Channel Assignment Profile (9-Channel Matrix)

What’s in the Box

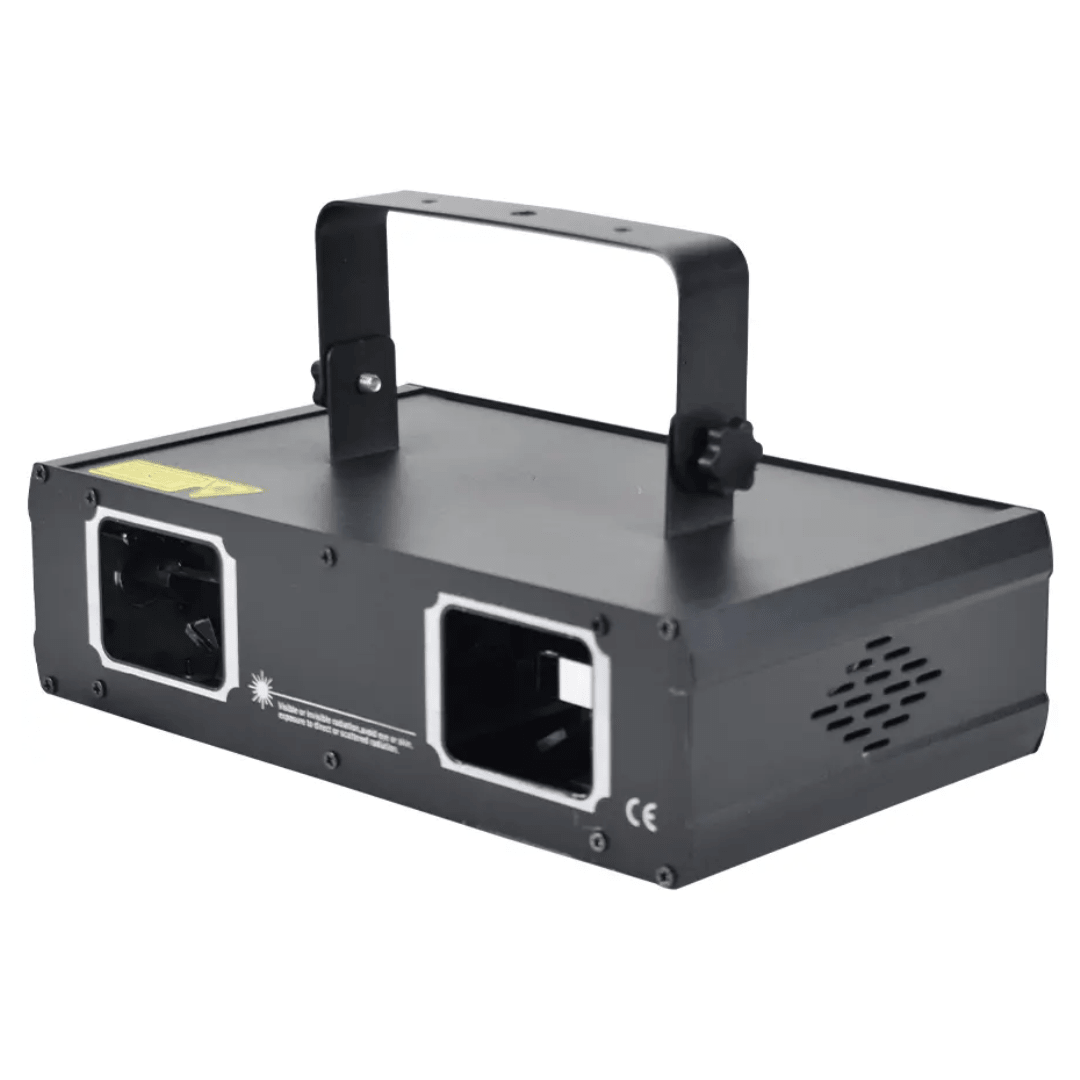

• 1 × IMIX IM-STINGRAY2 Dual-Eye RGB/RGV Full-Color Laser Main Fixture
• 1 × Integrated Adjustable Heavy-Duty Steel Mounting Bracket with Secure Dual Lock Knobs
• 1 × Standard Detachable AC Main Power Cable Assembly
• 1 × Comprehensive Diagnostic and Operational Programming User Manual
