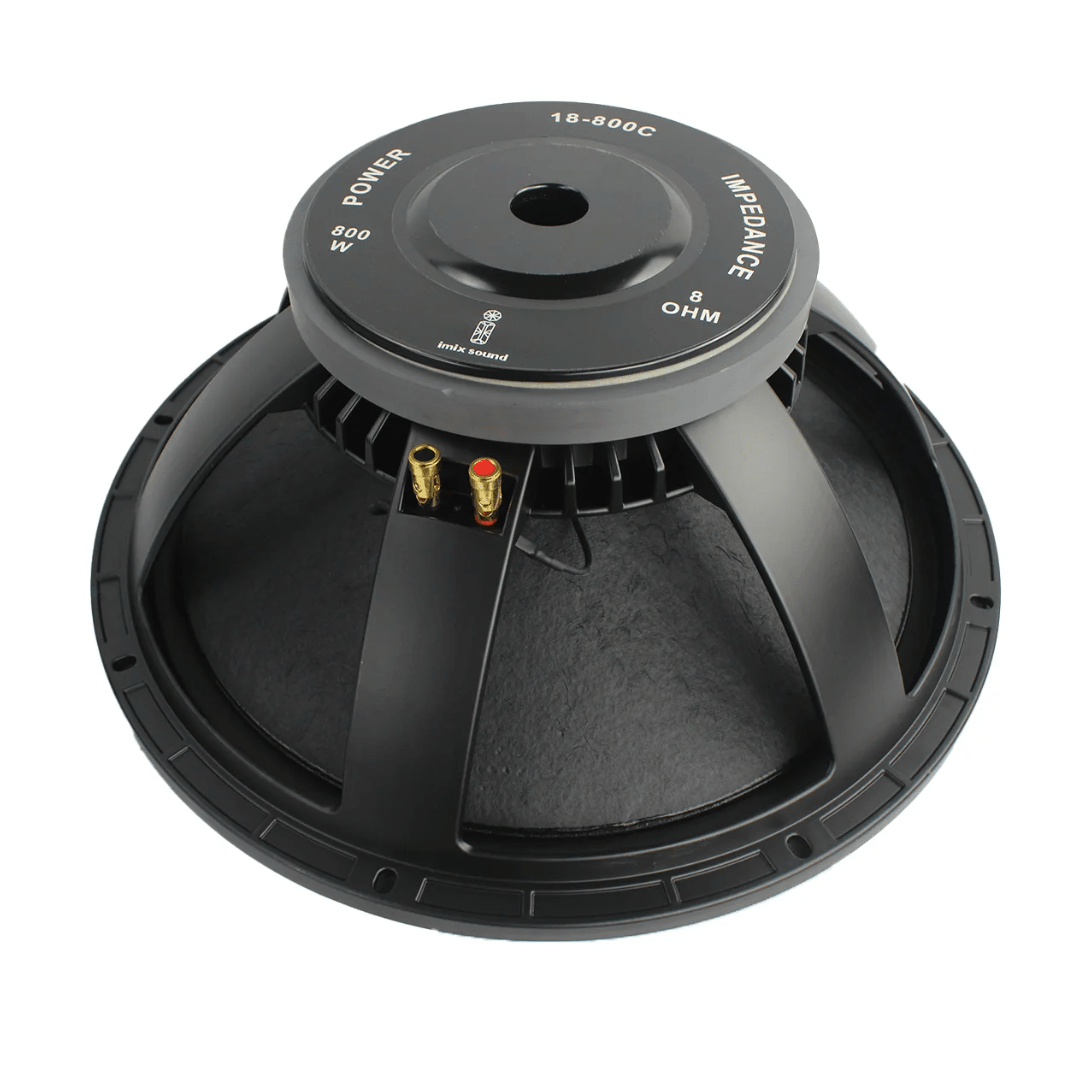

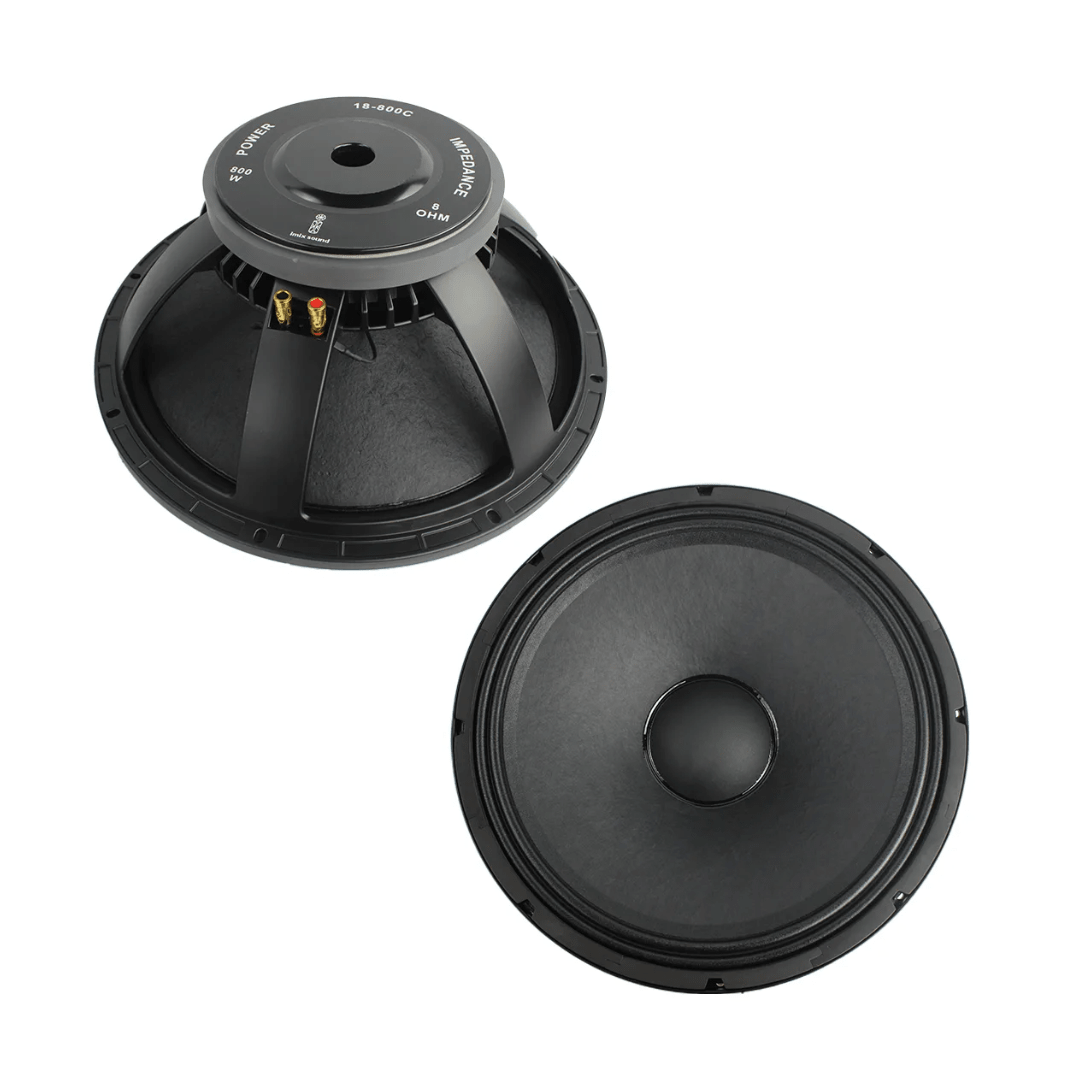

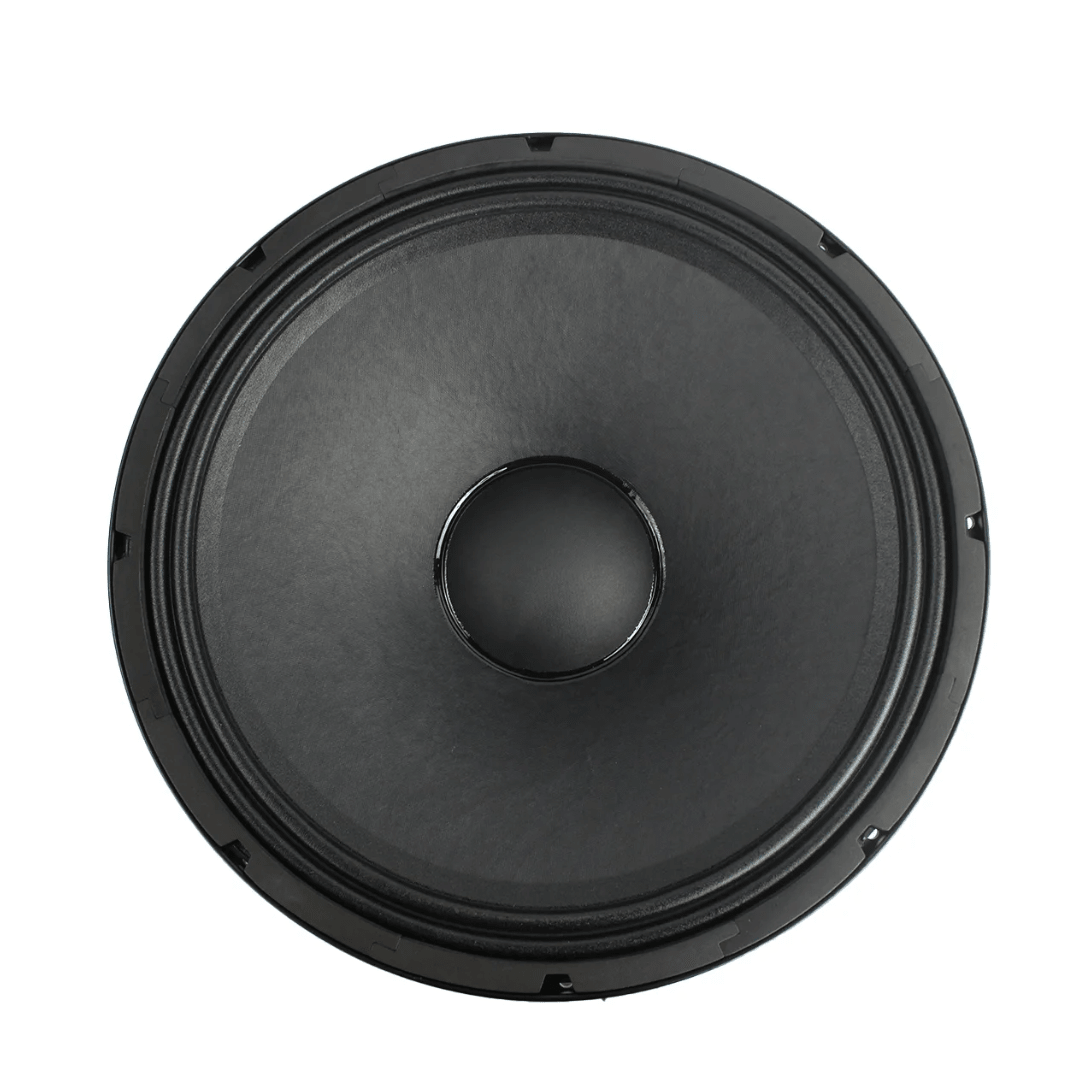

• Heavy-duty 18-inch raw replacement woofer driver engineered for professional PA systems, subwoofers, and custom bass enclosure builds.
• Rated for 800 Watts RMS continuous power handling (1600 Watts Program / Peak) with an 8-Ohm impedance for seamless amplifier compatibility.

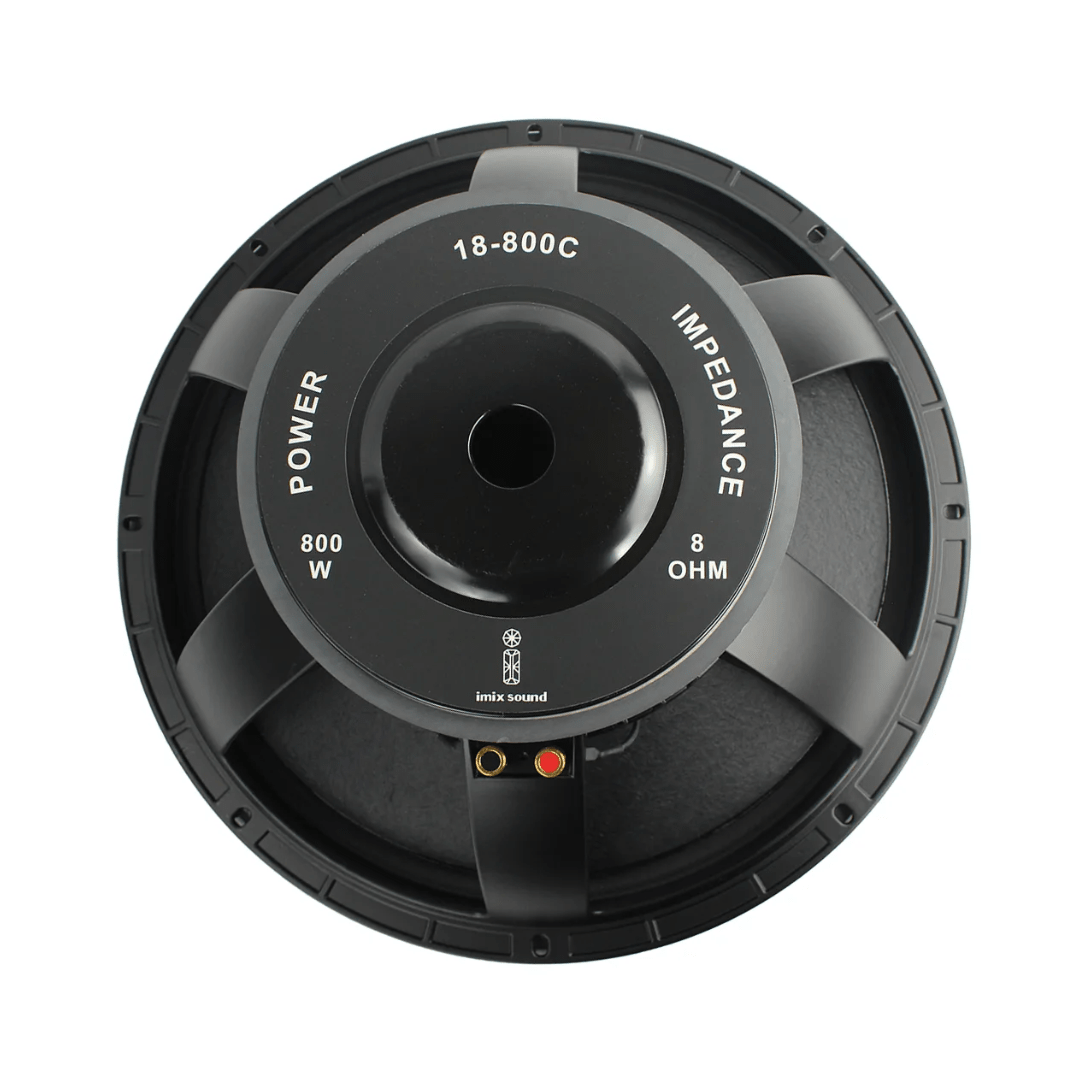

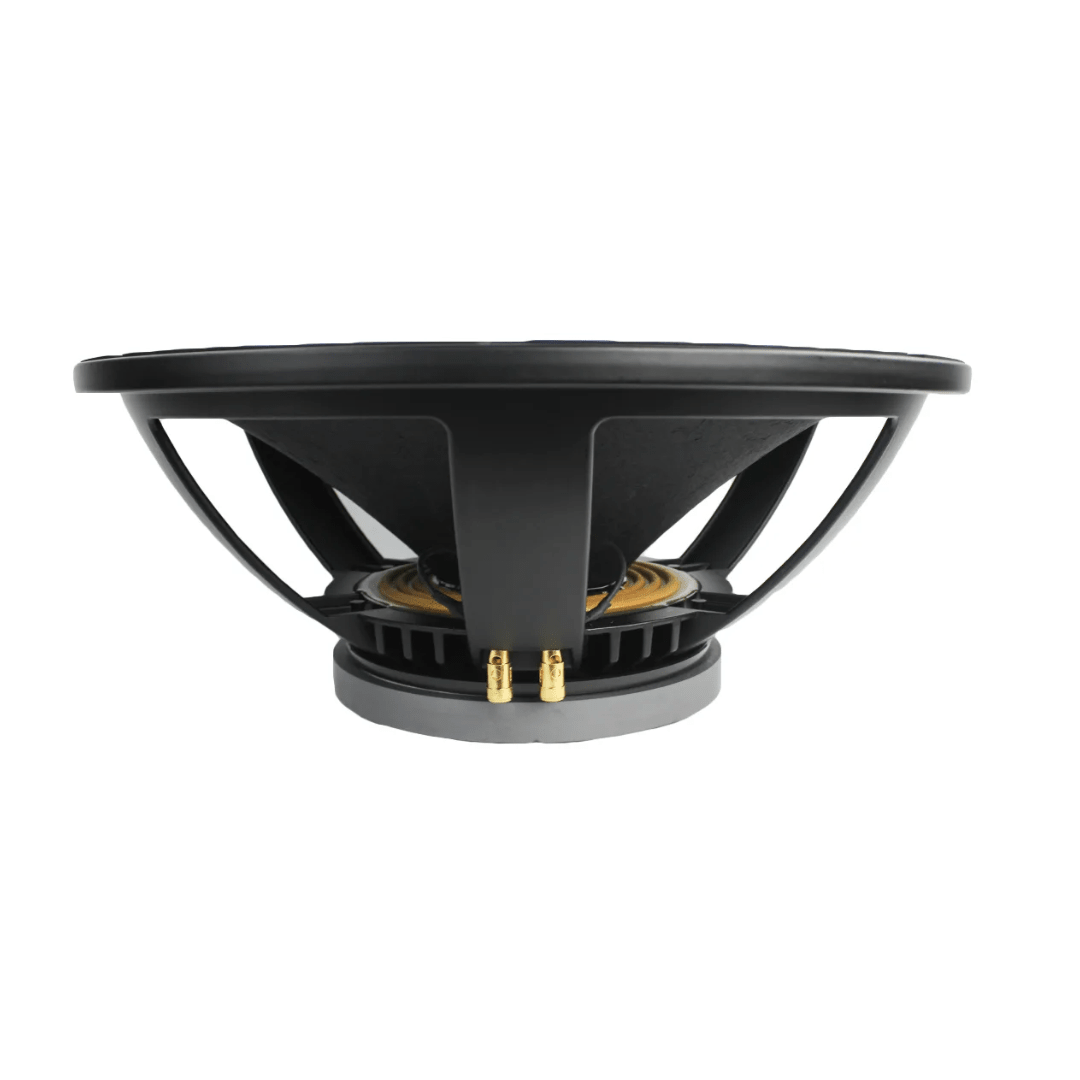

• Features a rigid cast-aluminum basket design that prevents chassis flexing during intense low-frequency excursions.
• High-flux ferrite magnet motor delivers punchy, articulate, and deep sub-bass reproduction down to 35 Hz.
• Perfect replacement driver for venue sound reinforcement, mobile DJs, live bands, and commercial speaker cabinet builders.

Features

• Massive Low-End Output: 18-inch raw driver tuned for deep, resonant low-frequency performance in subwoofer and bass-reflex enclosures.
• High Power Capability: Built to handle high-current transients from pro audio power amplifiers without distortion.
• Cast Aluminum Frame: Anti-flex die-cast aluminum chassis provides maximum thermal dissipation and structural stability.
• Heavy-Duty Ferrite Motor: Large ferrite magnet assembly generates fast transient response for tight, accurate bass hits.
• Standard 8-Ohm Load: Universal 8-ohm nominal impedance allows easy parallel or series wiring setup.

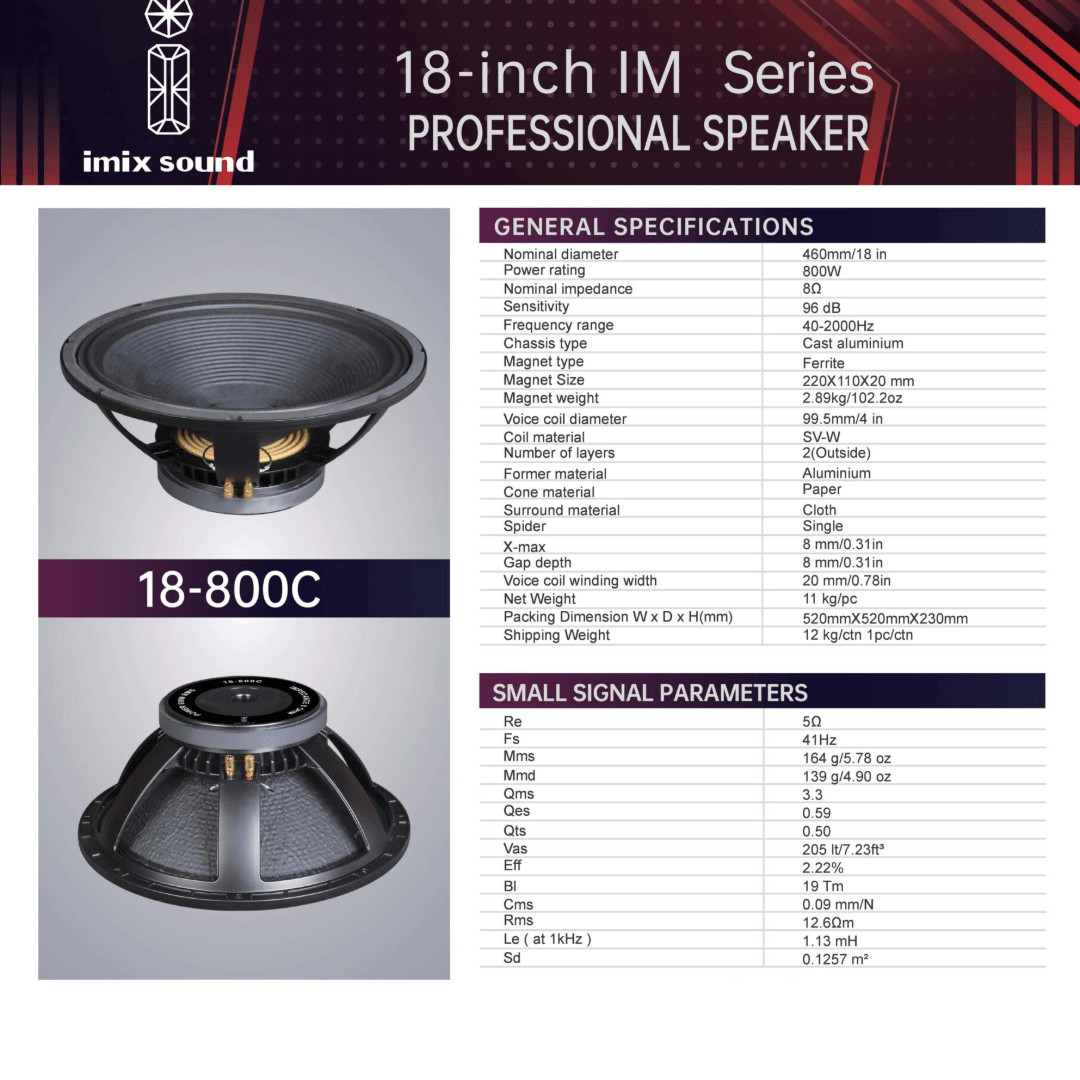

Specifications

• Product Code: 18X800
• Driver Type: Raw / Loose Subwoofer Driver
• Nominal Diameter: 18 Inches (460 mm)
• Continuous Power (RMS): 800 Watts
• Program / Peak Power: 1600 Watts
• Nominal Impedance: 8 Ohms
• Sensitivity (1W/1m): 96 dB
• Frequency Range: 35 Hz – 2000 Hz
• Basket Material: Die-Cast Aluminum
• Magnet Type: Ferrite

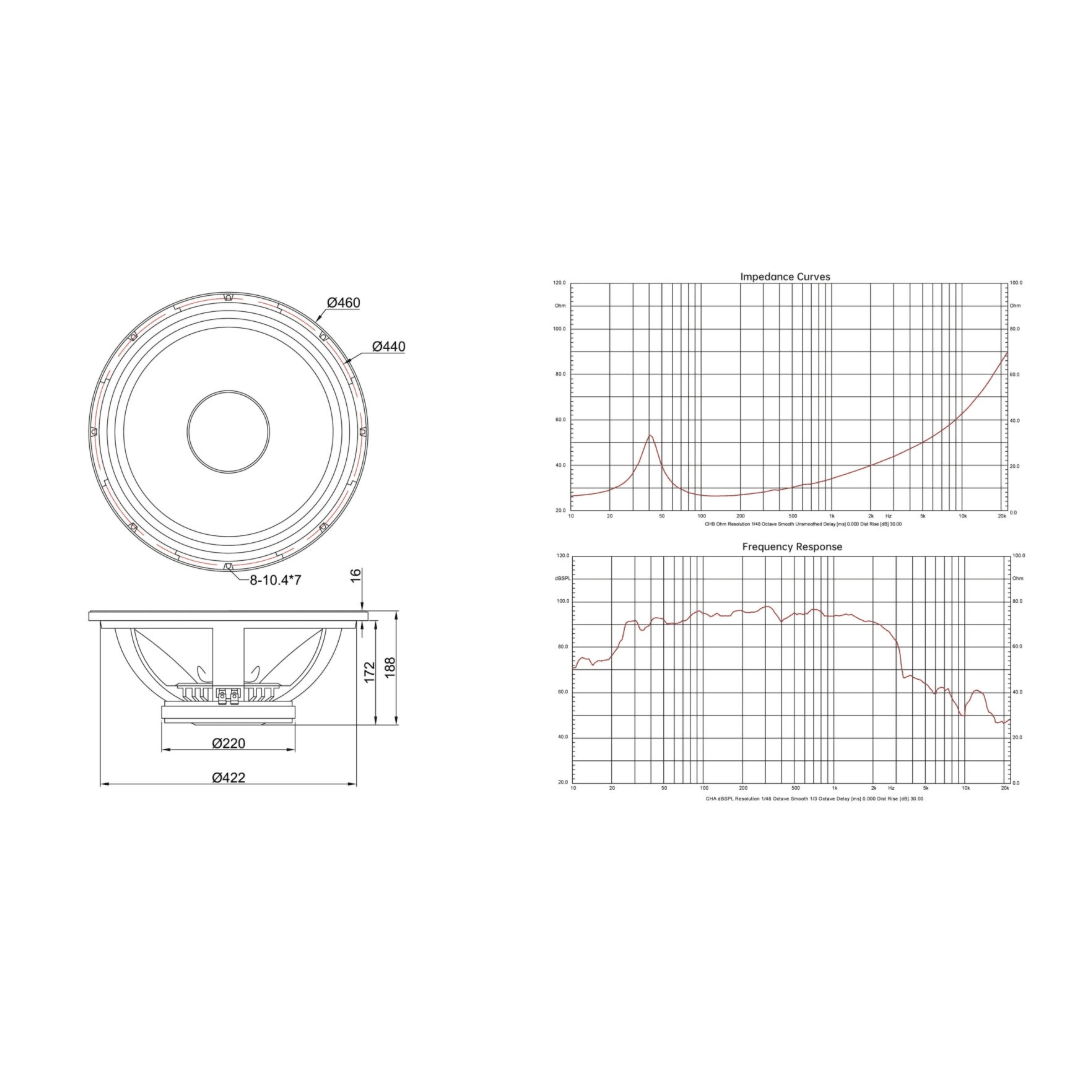

• Baffle Cutout Diameter: 422 mm
• Net Weight: ~10.3 kg
• Application: PA subwoofers, DJ bass cabinets, venue audio systems, and custom acoustic speaker builds

What's in the Box?

• 1 x IMIX 18X800 18" 800W 8-Ohm Replacement Speaker
