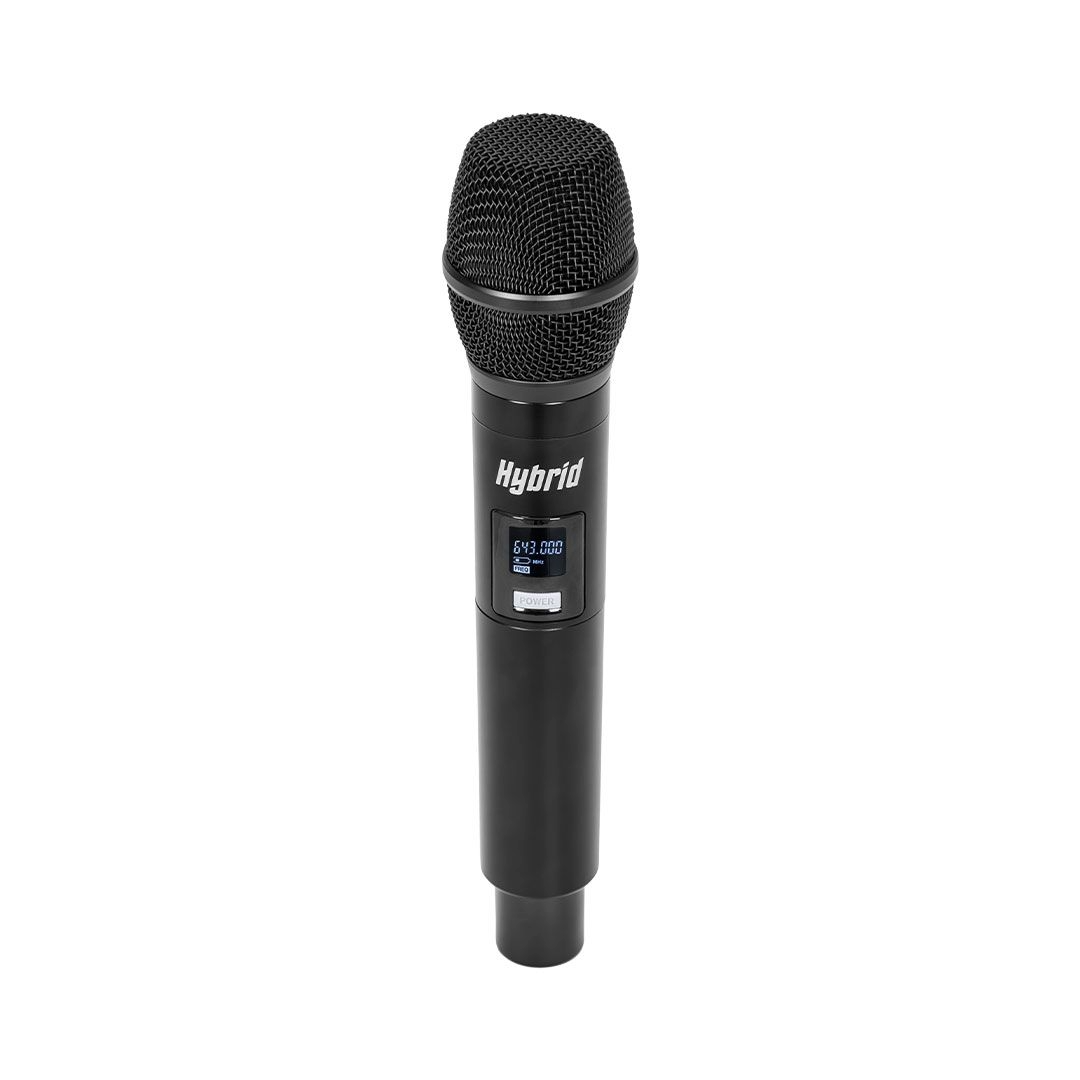

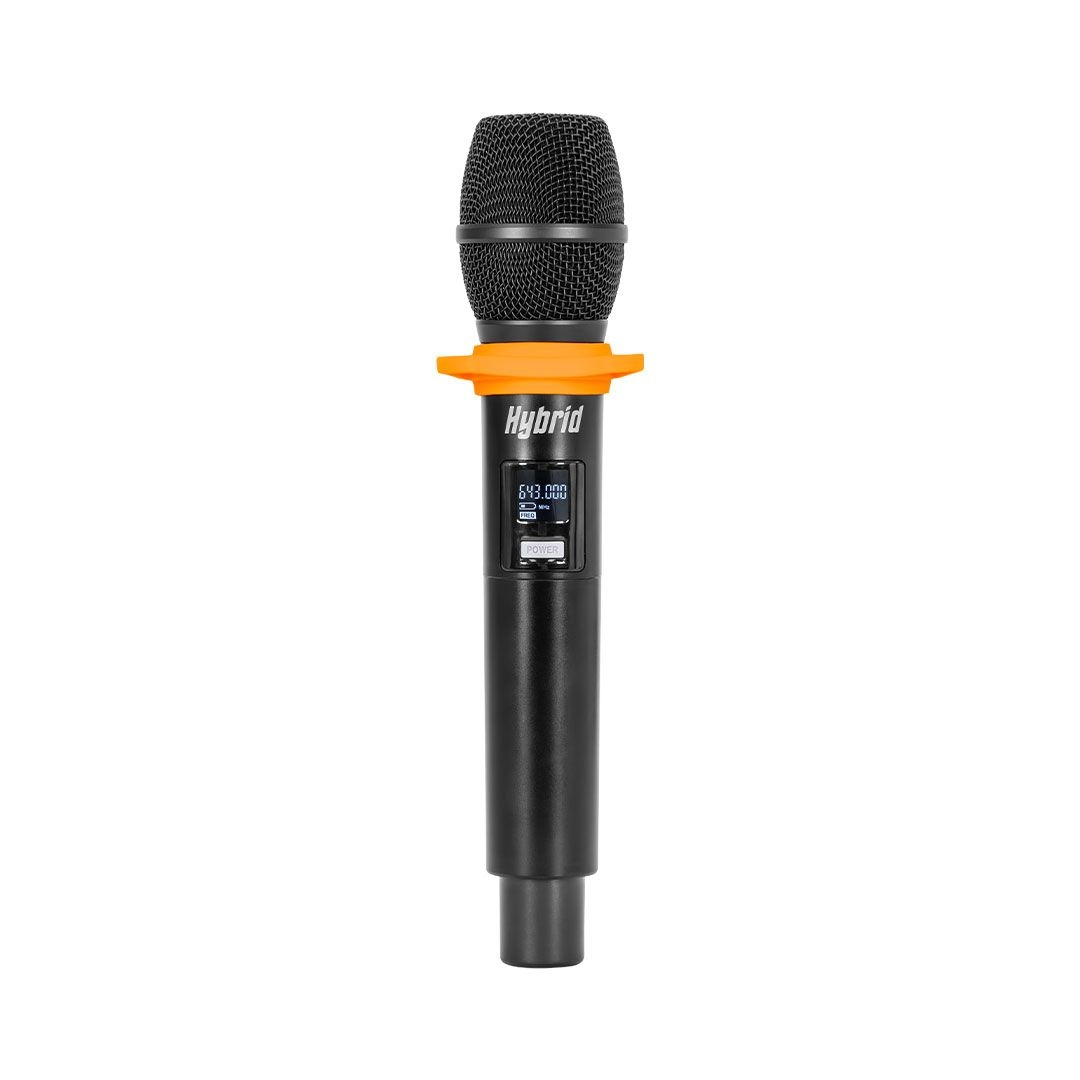

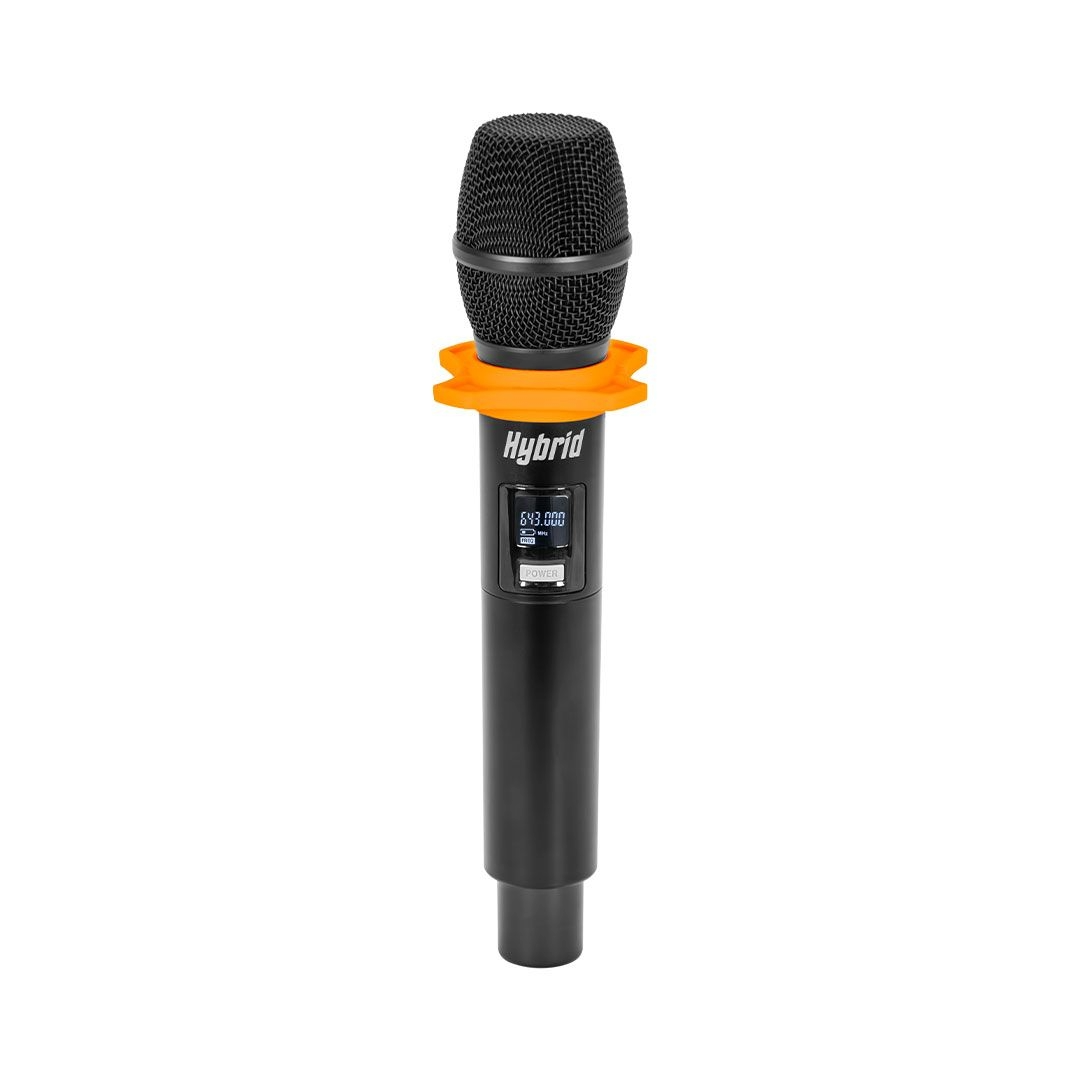

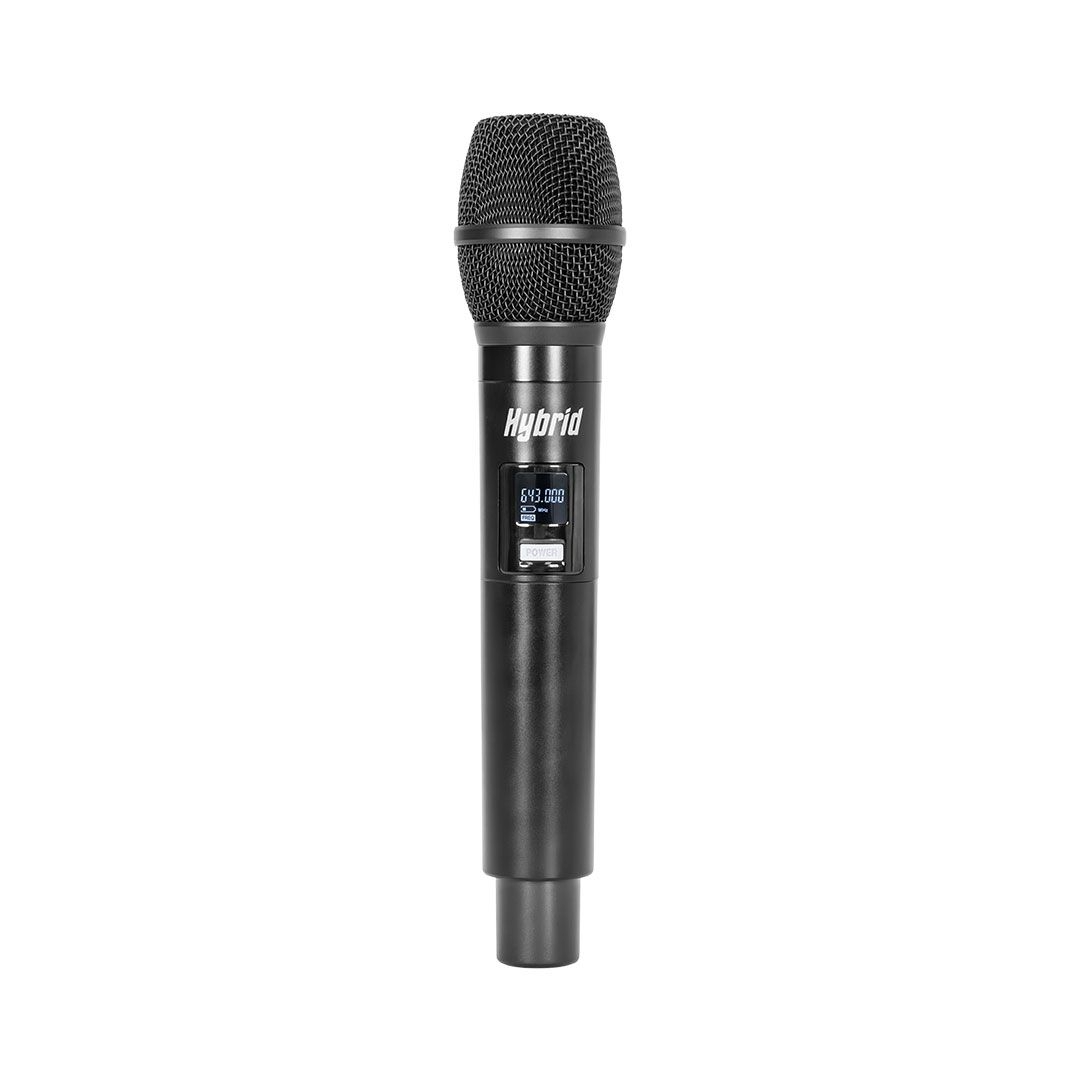

Dedicated Expansion Handheld Transmitter: The Hybrid U-R4/HH (SKU: MICHYB100) is a professional UHF wireless handheld microphone engineered exclusively for deployment with the Hybrid U-R4 4-channel base receiver system.

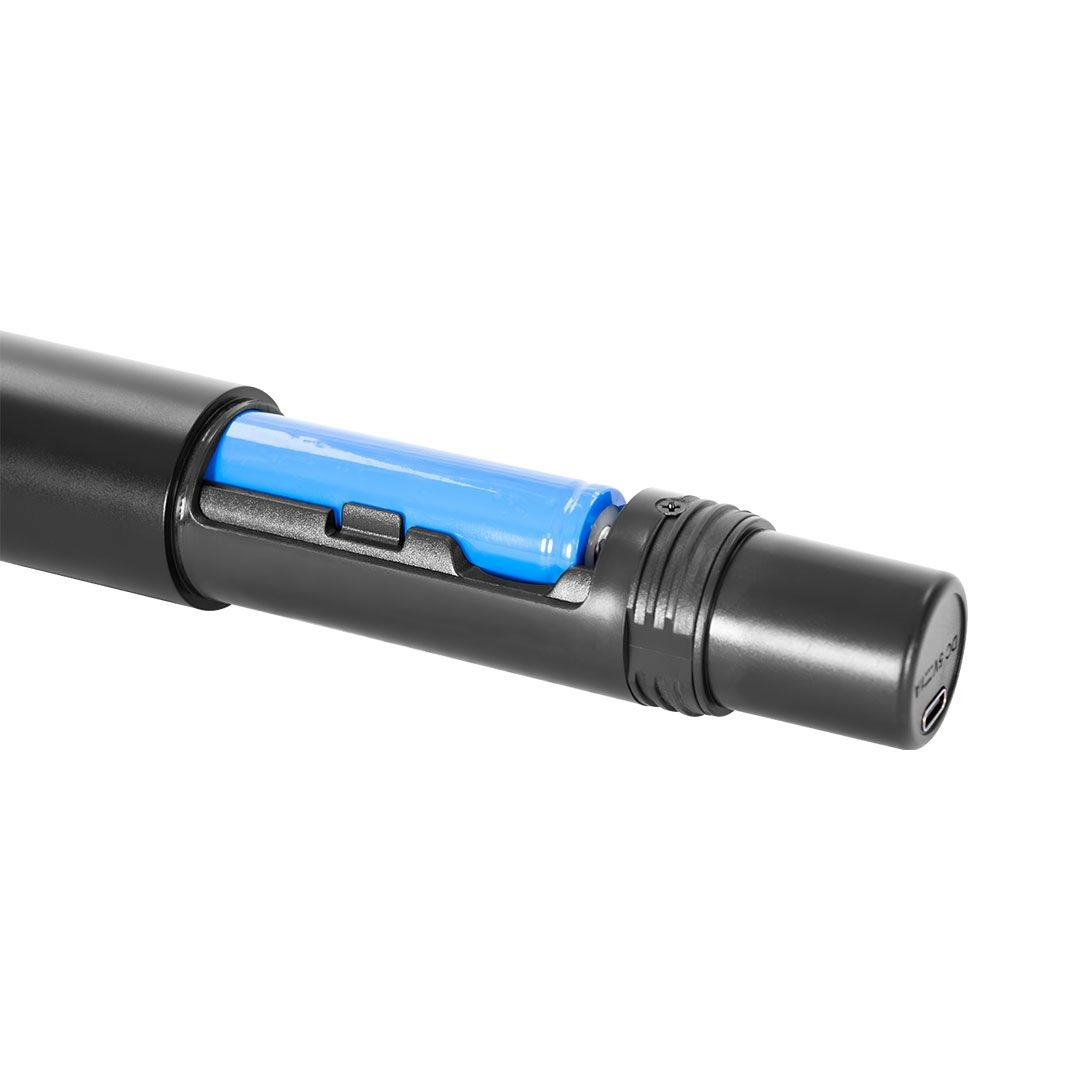

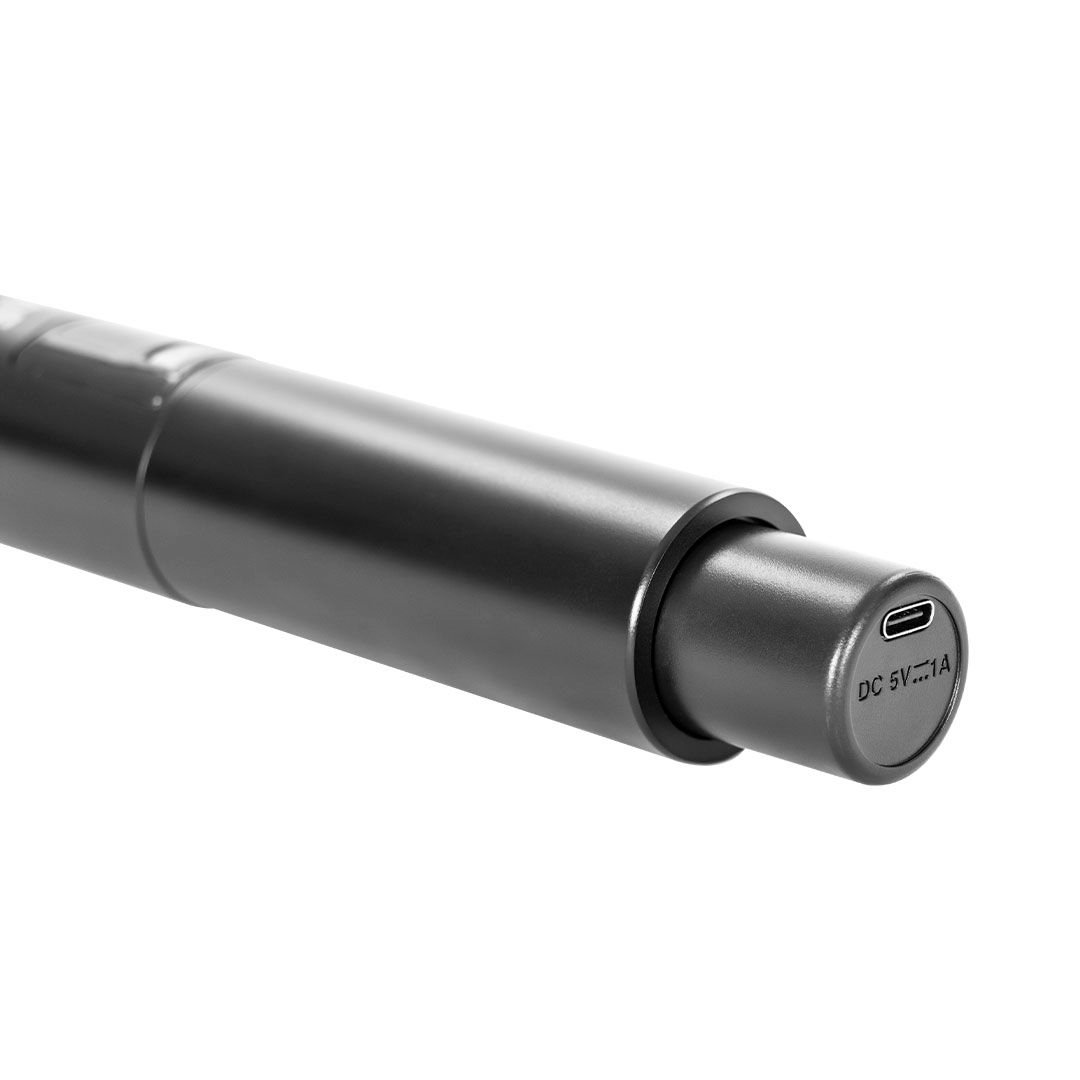

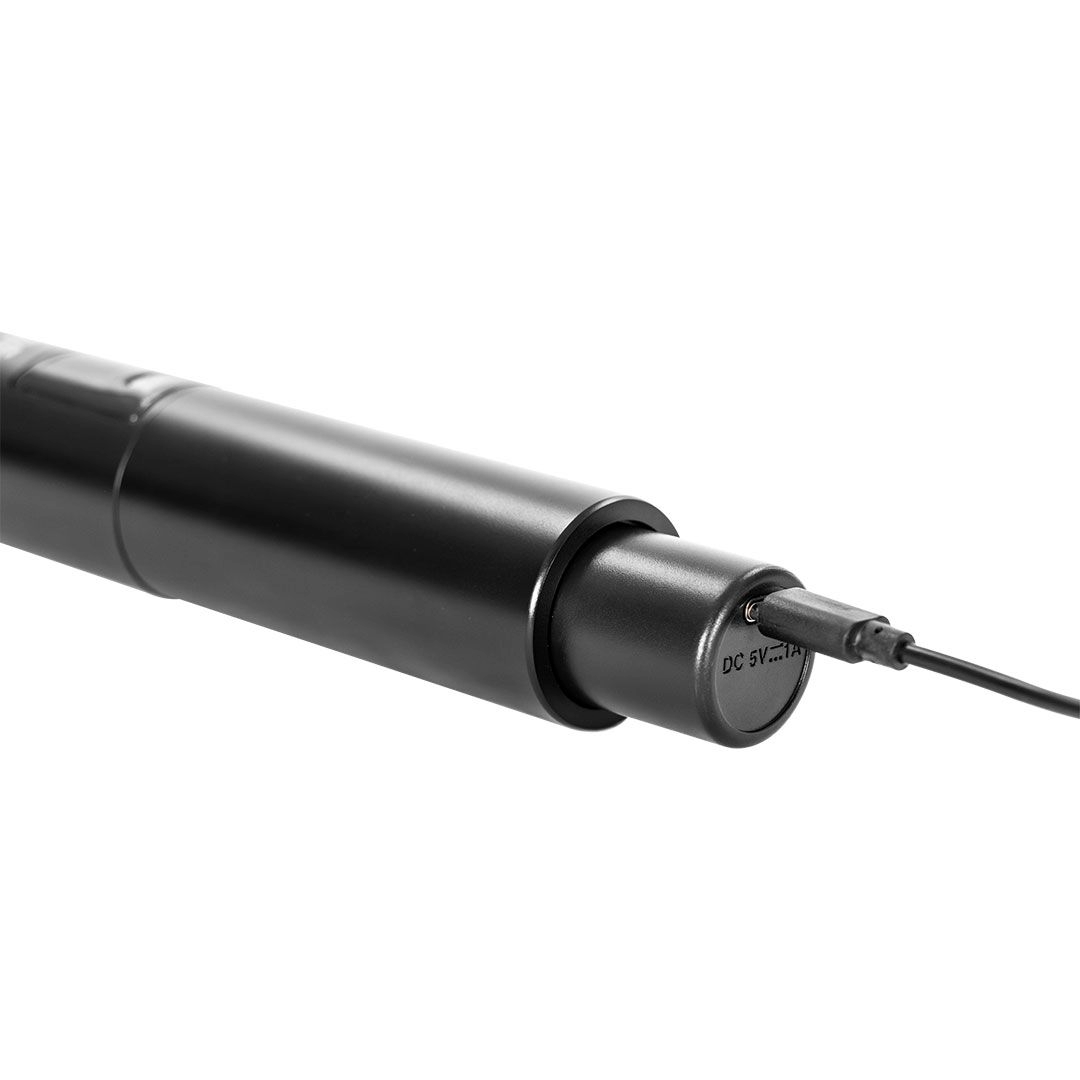

Eco-Friendly Rechargeable Architecture: Designed with built-in sustainable power management, this transmitter runs on an included 3.7V rechargeable battery setup, complete with an integrated charging port to remove the constant cost of disposable cells.
Instantaneous Infrared Synchronization: Built with a front-facing infrared window that syncs with the U-R4 base station. This allows users to lock chosen transmission frequencies with a single button press.
Clear Real-Time LCD Telemetry: Features an integrated backlit digital display window that provides clear visibility of the operational frequency, channel allocation, and battery status under low-light stage environments.

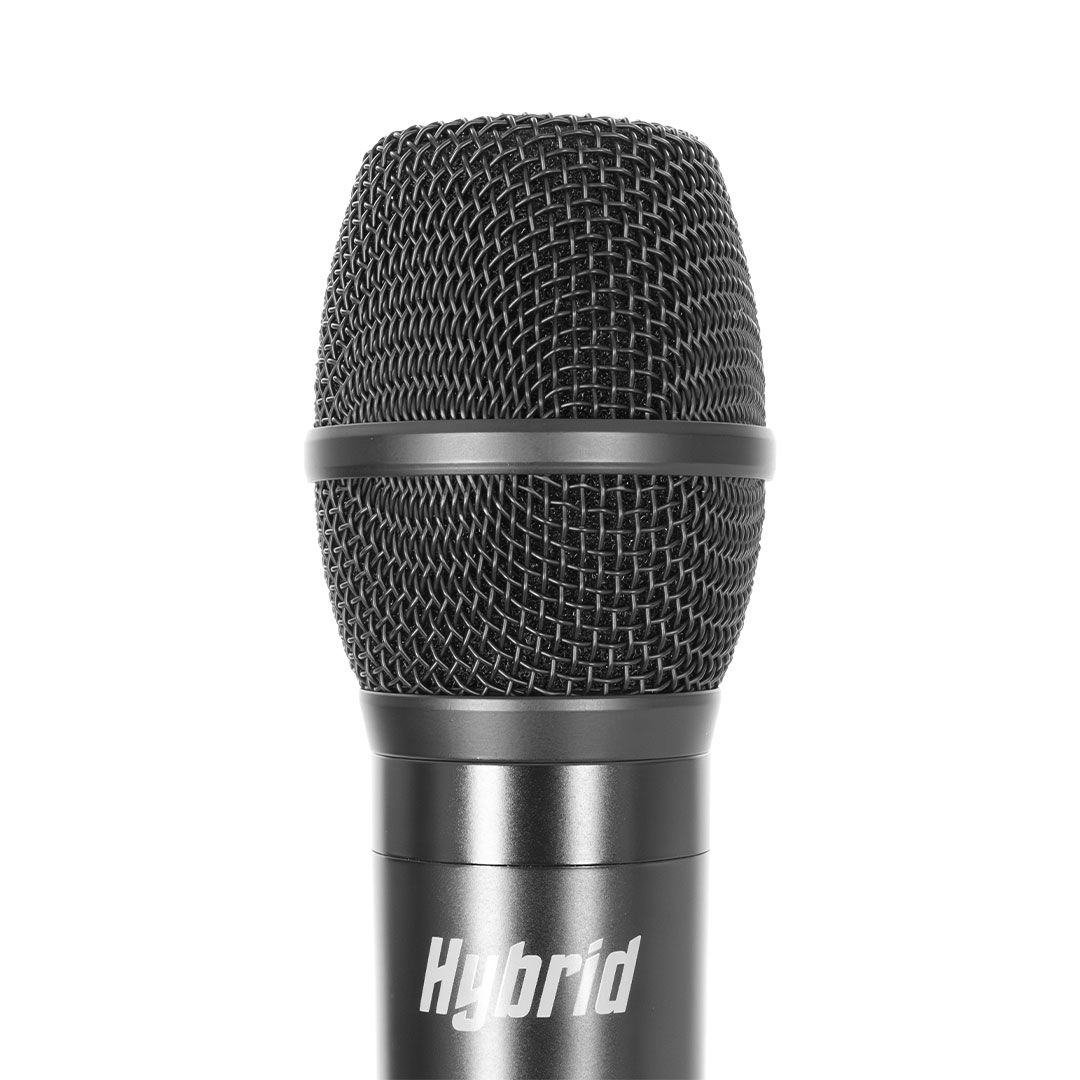

Acoustically Isolated Cardioid Capsule: Outfitted with a high-sensitivity cardioid dynamic capsule that prioritizes forward vocal response while rejecting off-axis ambient stage bleeding, feedback, and mechanical handling noises.
Features
Wide-Band FM Modulation Core: Utilizes an agile FM wireless modulation protocol operating across a broad turntable bandwidth of 50MHz, providing strong signal delivery and low harmonic distortion.
Combined Power & Mute Slide Switch: Features a tactile multi-position slide switch on the main body trunk, allowing performers to instantly mute their live audio feed without severing the active RF connection to the audio deck.
Suppressed Harmonic Radiation Layout: Internally engineered to limit spurious harmonic emissions down past -55 dBc, keeping the local RF spectrum free from crosstalk interference in multi-microphone environments.
High Efficiency 10mW RF Output: Transmits at a balanced 10mW power tier, sustaining a stable line-of-sight signal link over a working radius of up to 40 meters when linked to a U-R4 base station.
Ergonomic Matte-Finished Handle: Protected by a rugged, impact-resistant chassis tailored for comfortable hand contours during long-duration live stage vocals, corporate presentations, and houses of worship services.
Specifications
Product Line: Professional Wireless Microphone Component Series
Model Identification: U-R4/HH / U-R4 HH / MICHYB100
System Component Form Factor: Handheld Wireless Microphone Transmitter Only
Target Companion Hardware: Hybrid U-R4 4-Channel UHF Base Receiver System
Wireless Modulation Mode: Wide-Band Frequency Modulation (FM)
Turntable Operational Bandwidth: 50 MHz
Channel Frequency Interval: 250 kHz
Maximum Peak Deviation: plus or minus 45 kHz
Harmonics Spurious Radiation: Less than -55 dBc
RF Transmitter Power Rating: 10 mW
Battery Power Configuration: 3.7V Lithium Rechargeable System
Continuous Operational Battery Life: Up to 5 Hours
Target Applications: Live Stage Vocals, Corporate Boardroom Presentations, Church Houses of Worship, School Assemblies, Touring Event PA Sound Configurations
What's in the Box
1 x Hybrid U-R4/HH Wireless Handheld Microphone Transmitter (MICHYB100)
